Barn Plan 963-00627

Sq Ft 3,205
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 62'
Depth 86'

Floorplan Drawings

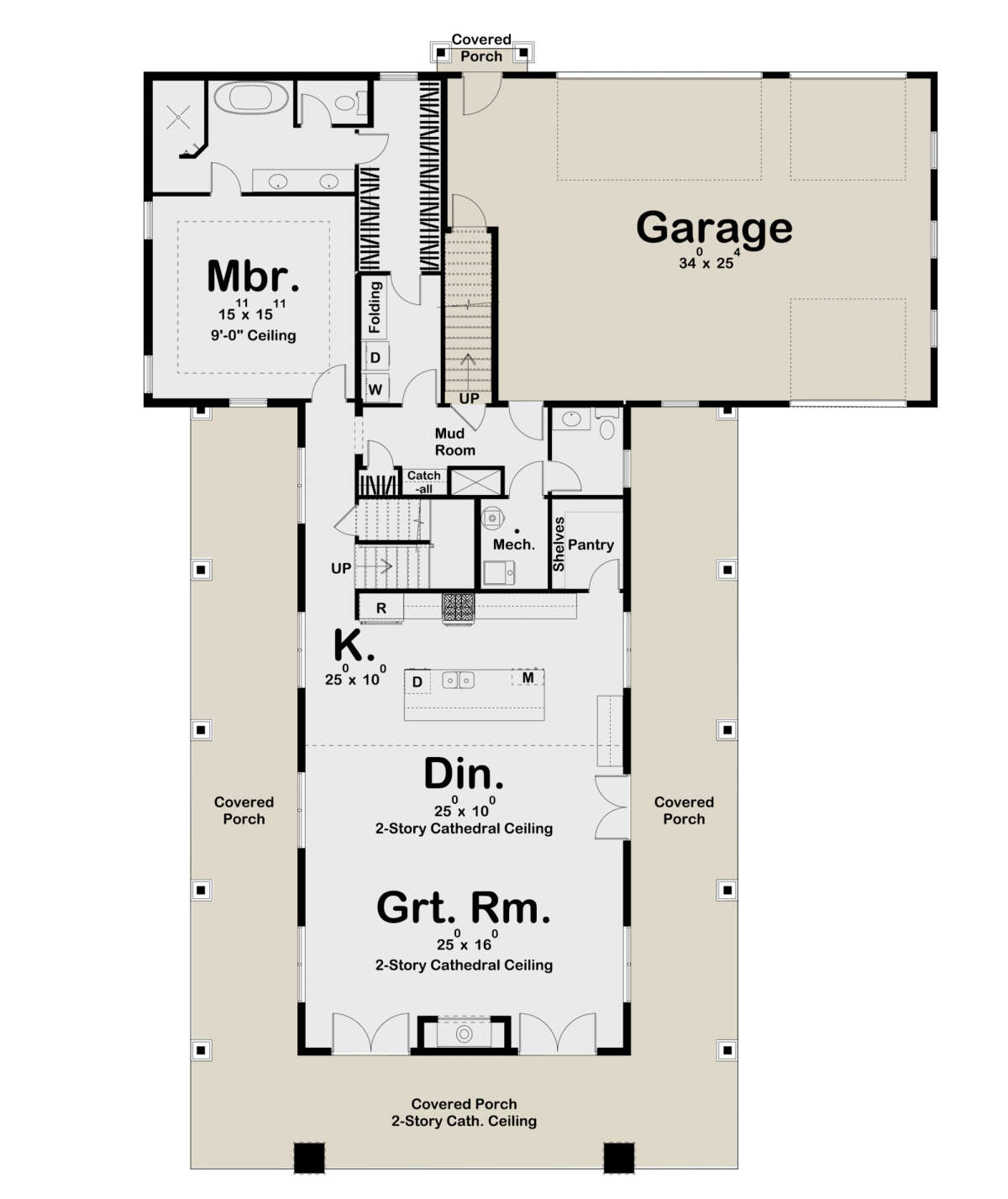

Main Floor
Main Floor for House Plan #963-00627

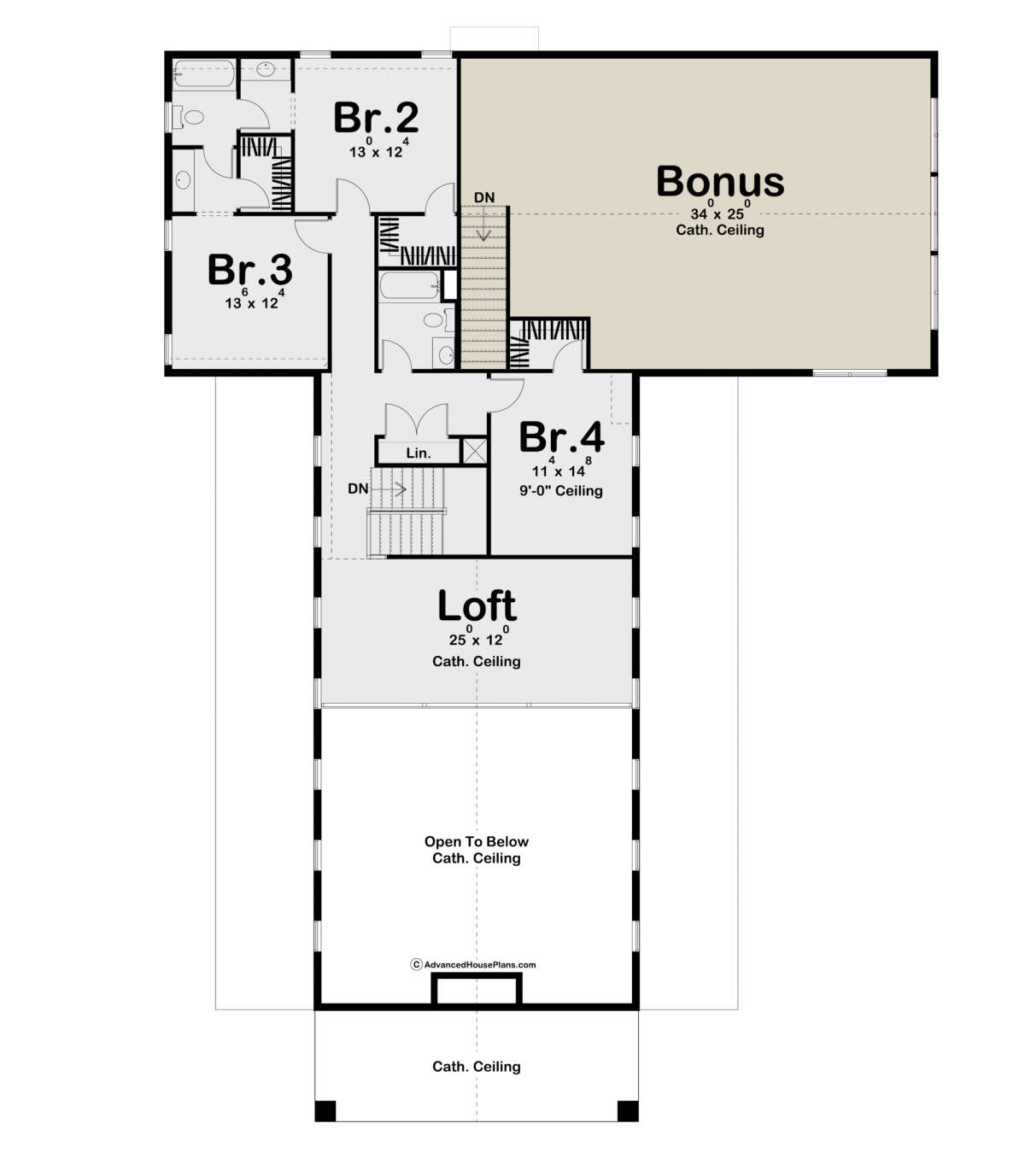

Second Floor
Second Floor for House Plan #963-00627
Images copyrighted by the designer.

What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

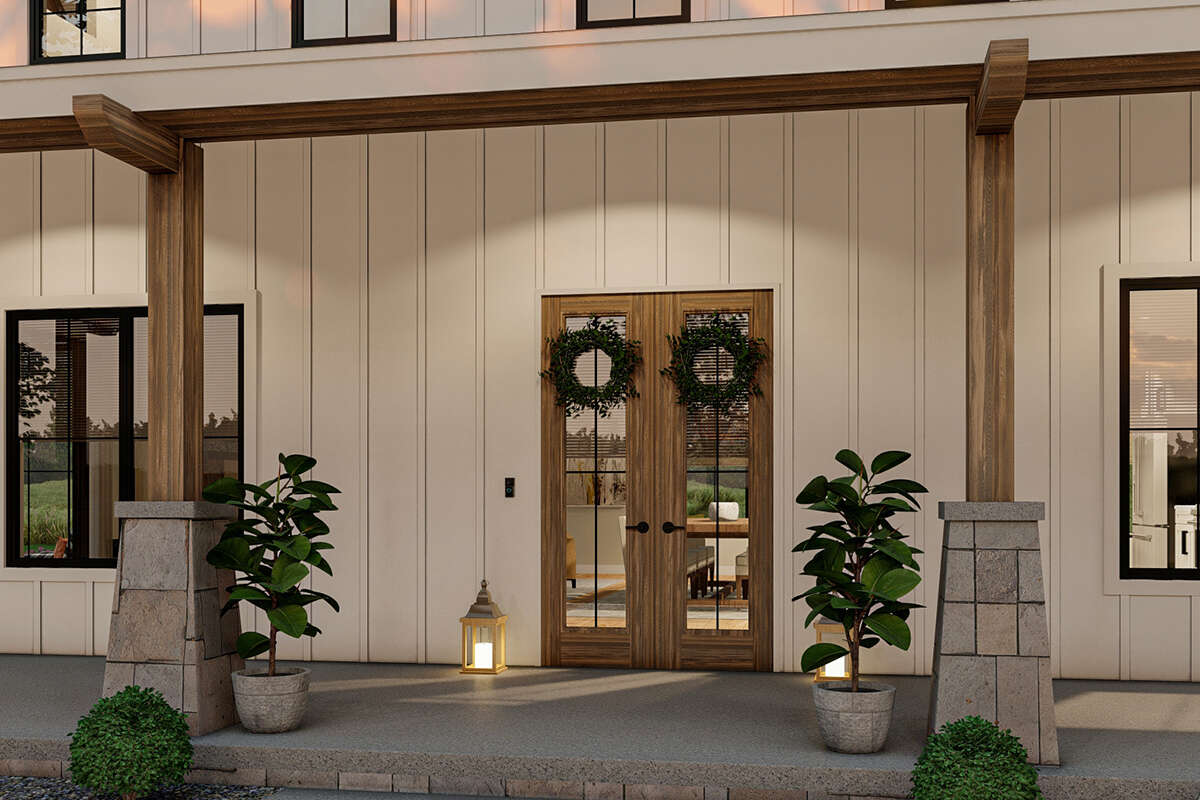

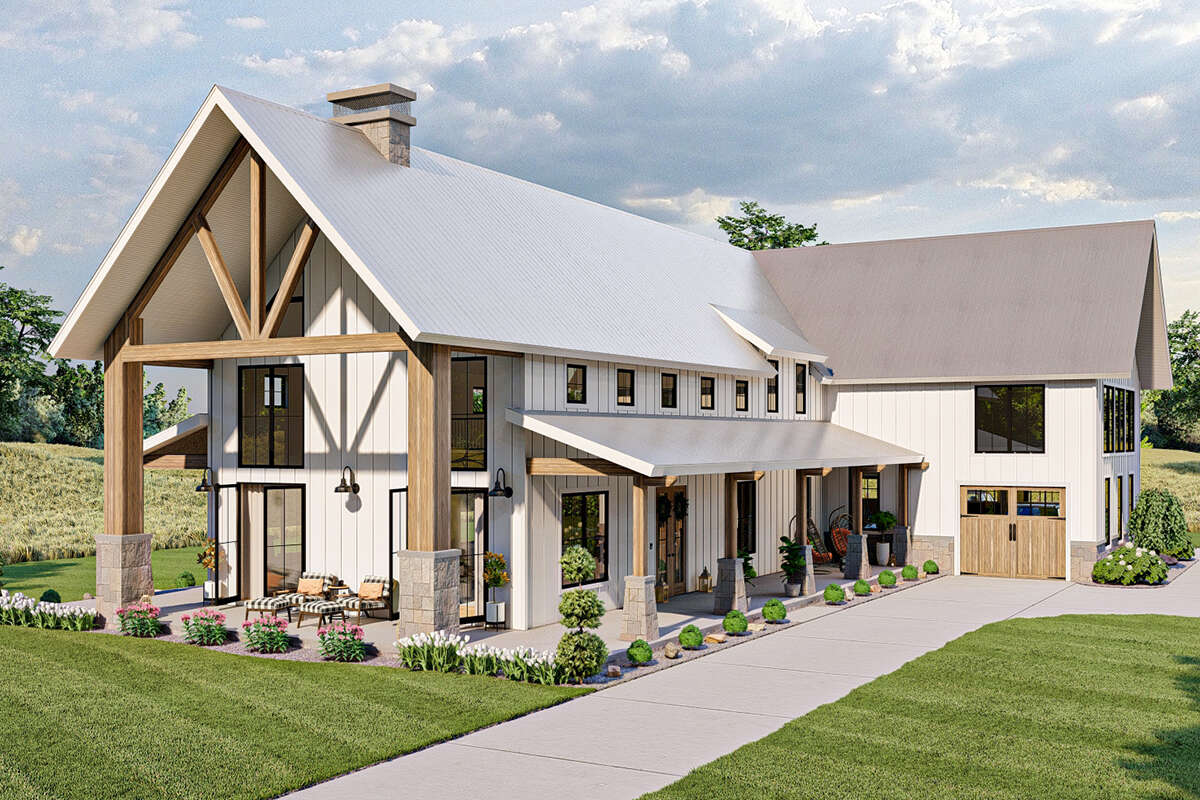

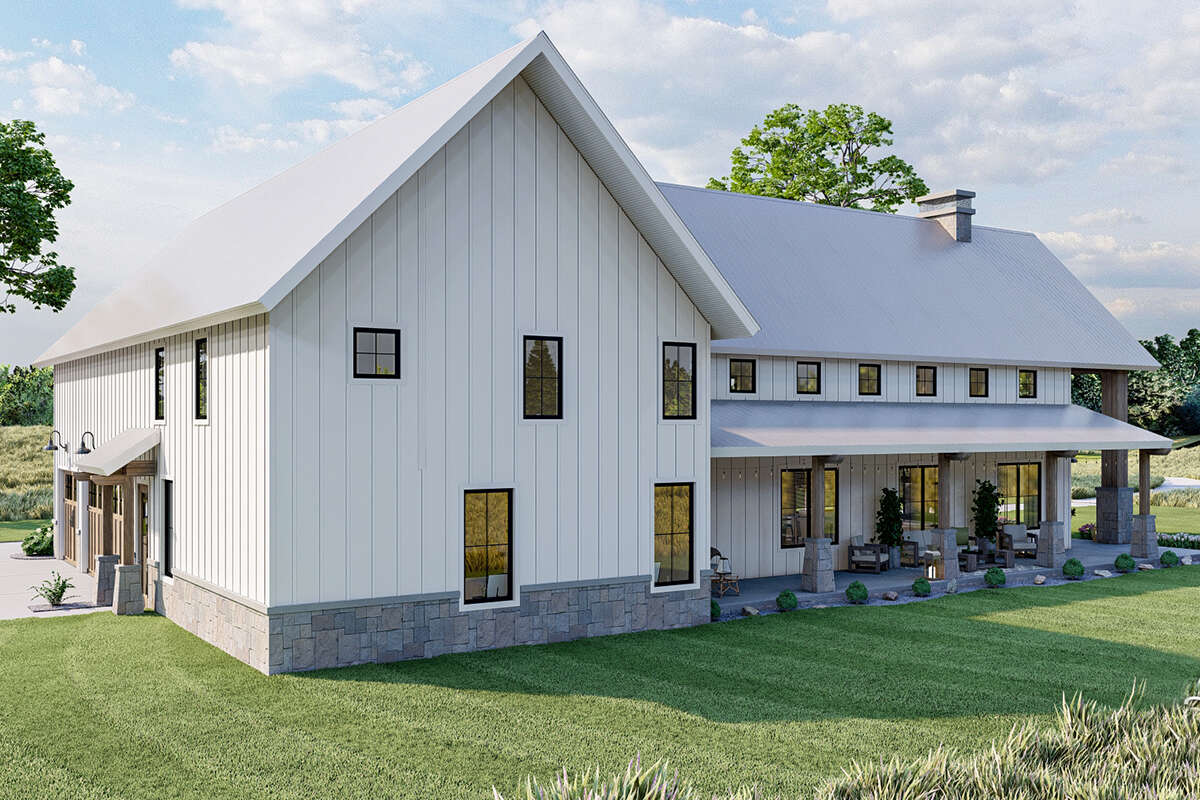

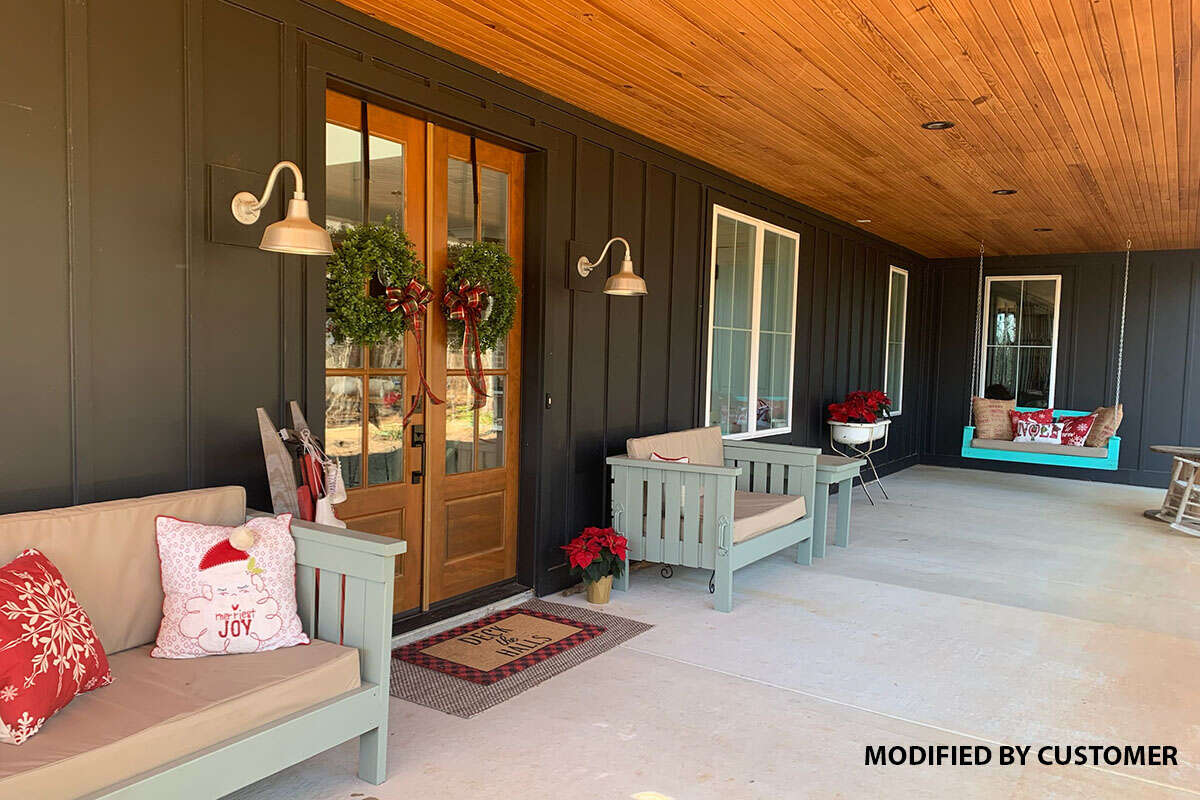

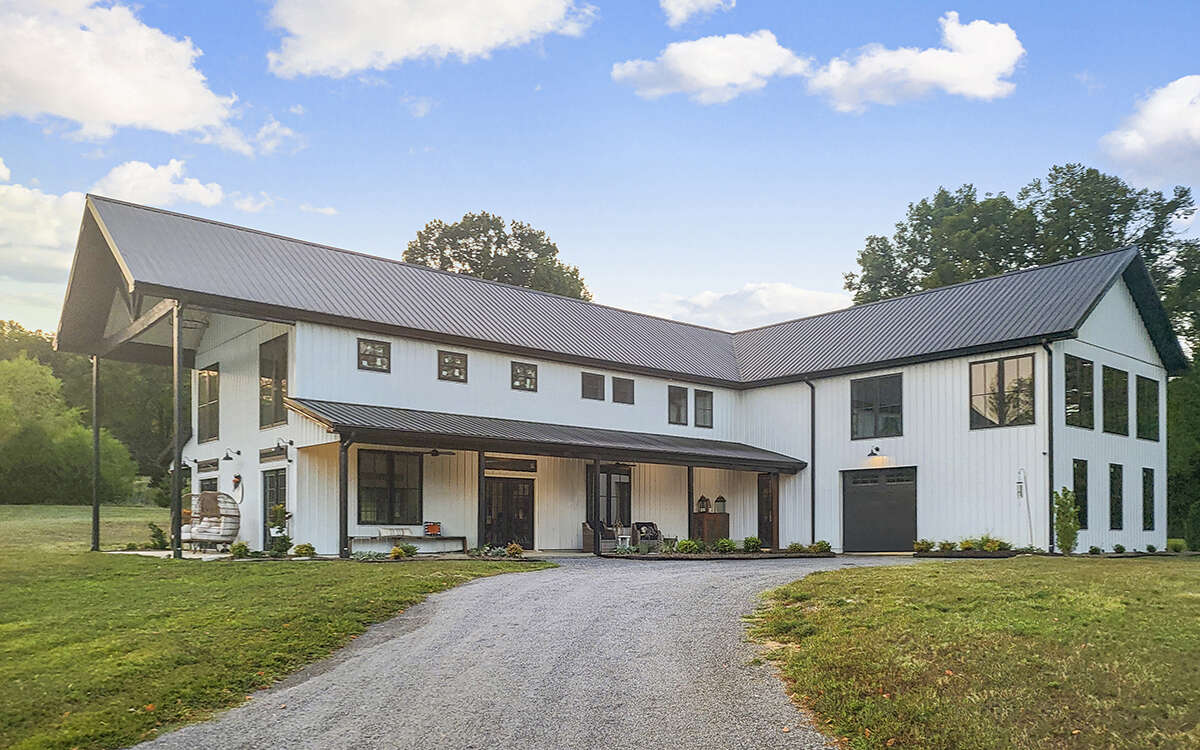

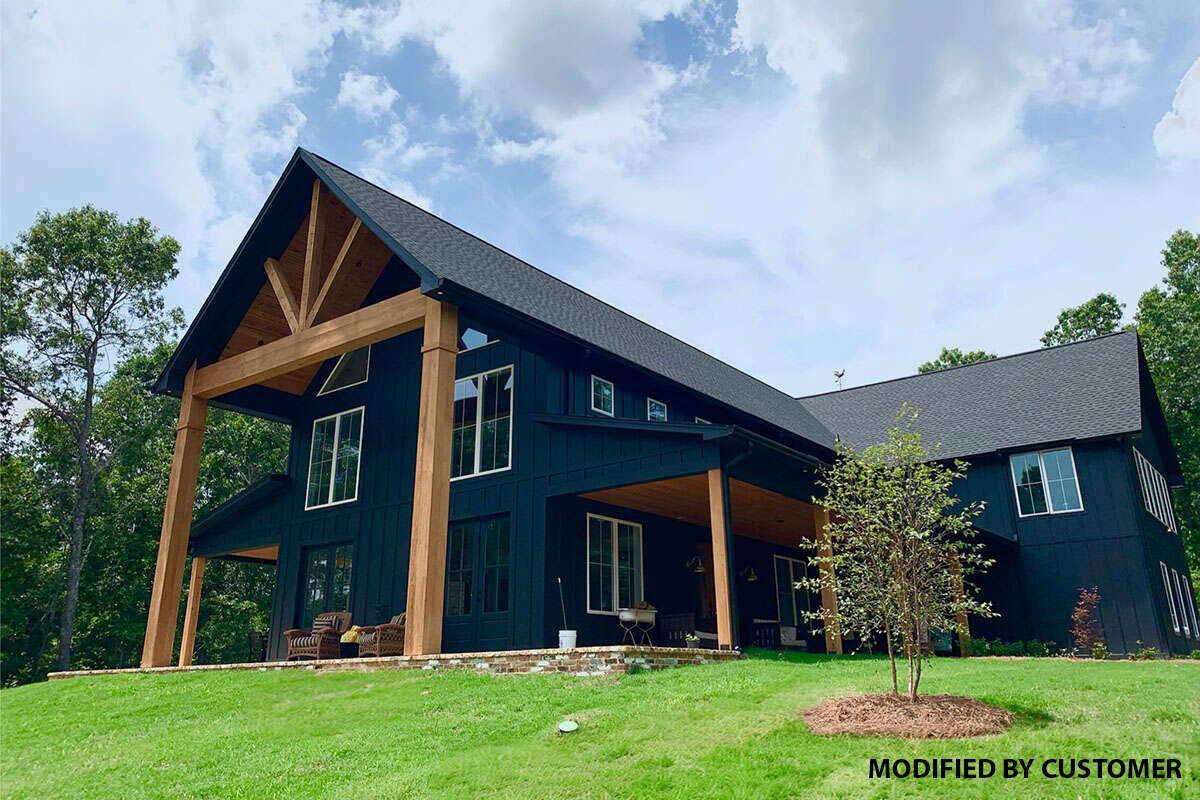

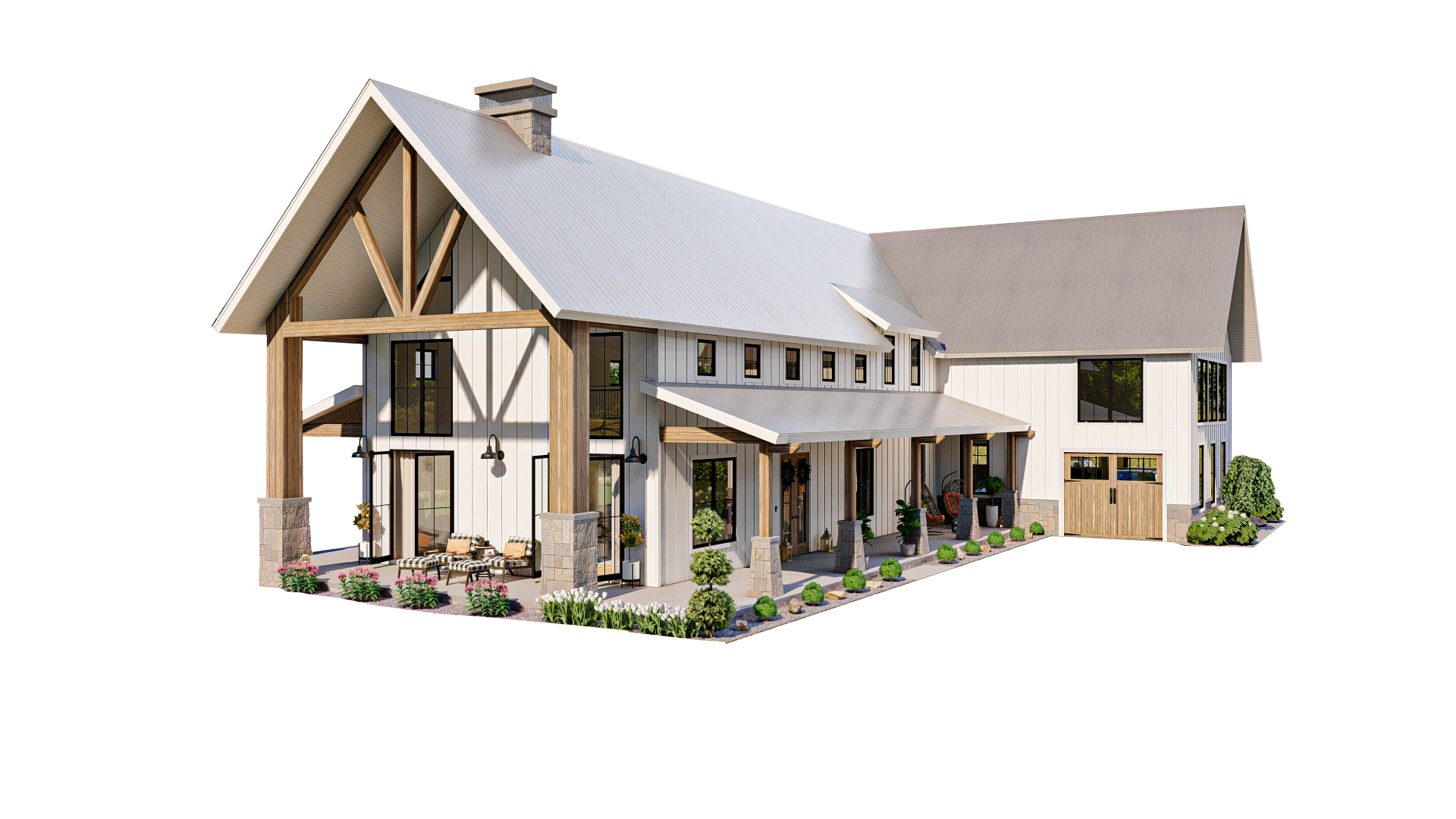

At first glance, this best-selling Barndominium-inspired house plan showboats its impressive ceiling heights both inside and out, a seamless wrap-around porch, and irresistible curb appeal. The T-shaped exterior highlights an exceptional union of board and batten siding and rustic elements accentuating the country feel. From the garage to the primary bedroom, the wrap-around porch unites the front and back porch with plenty of space and shade all around. The 3-car garage offers a double side-entry with a small covered porch and access to the above bonus room. It also opens to the mudroom where a closet and half bathroom is found.

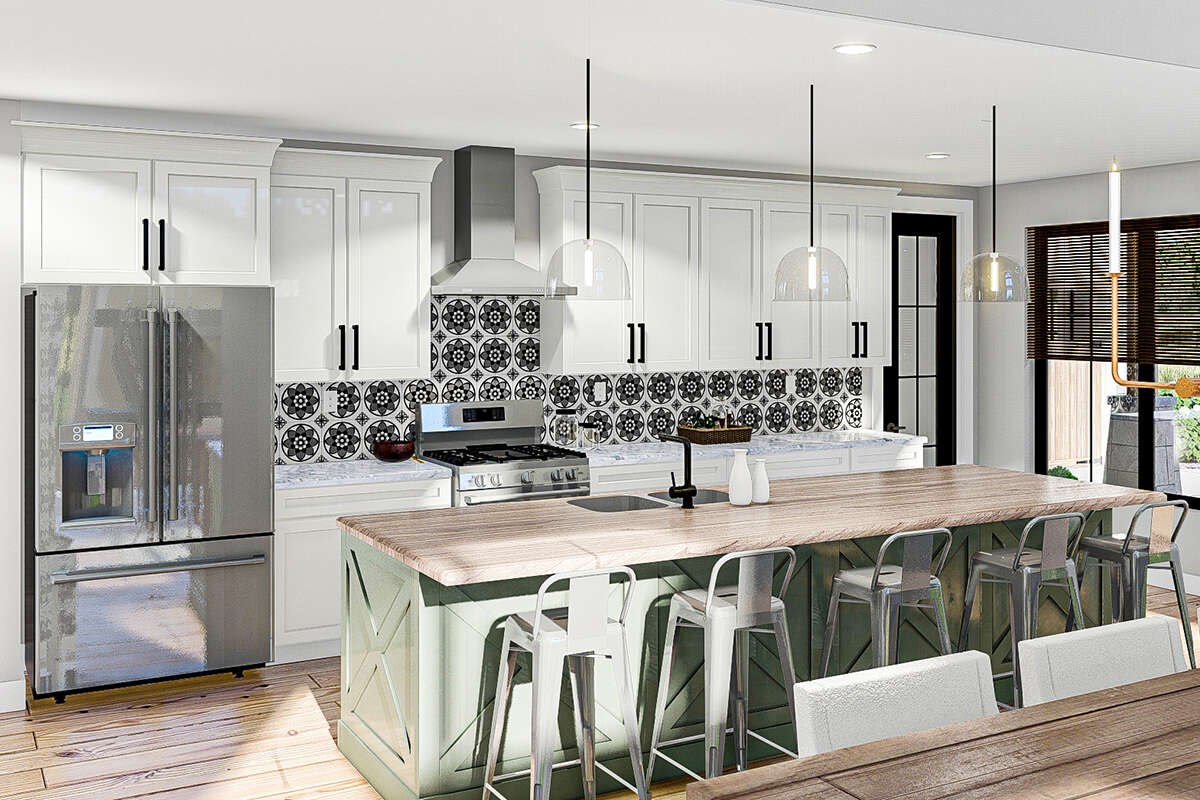

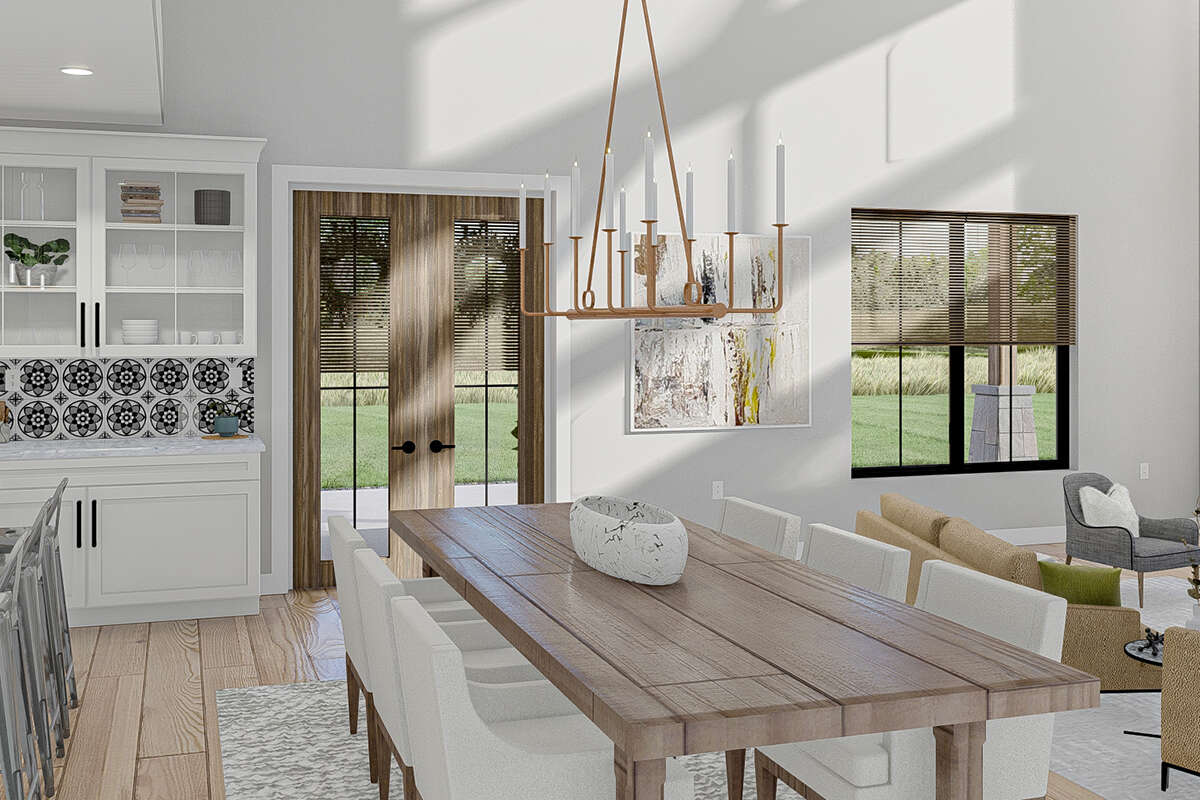

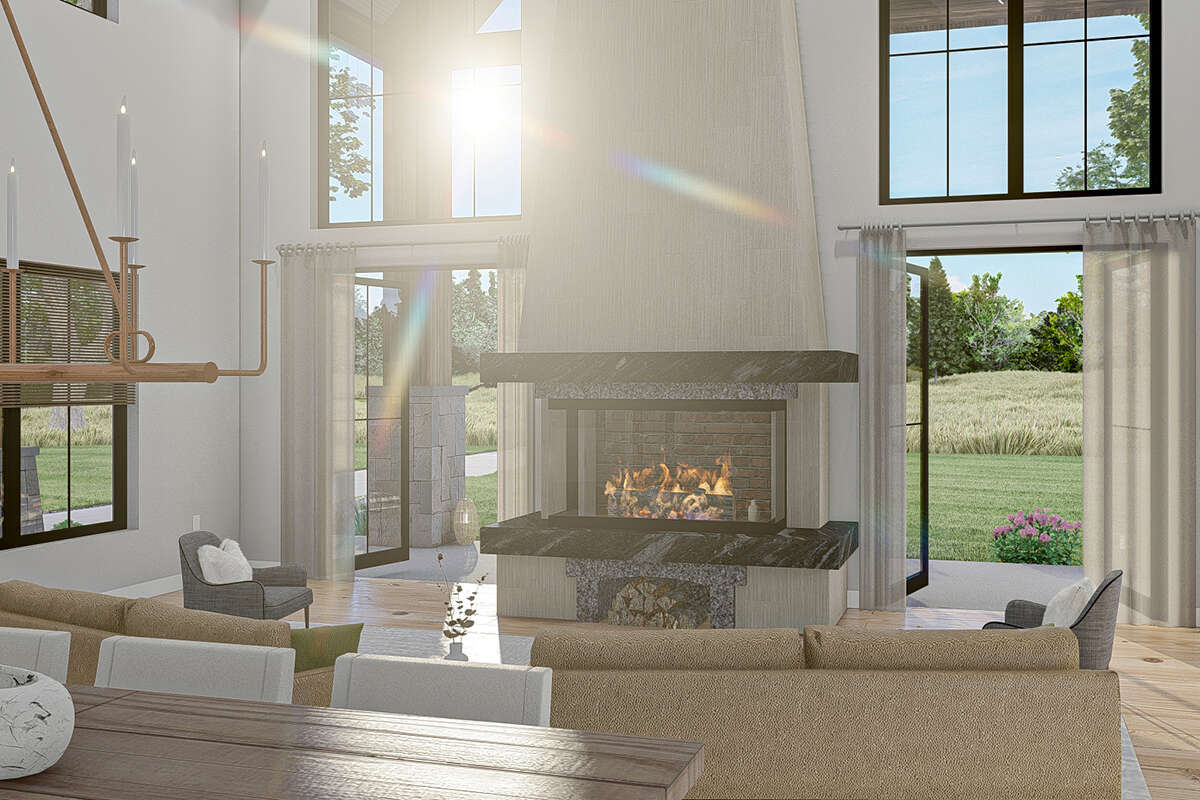

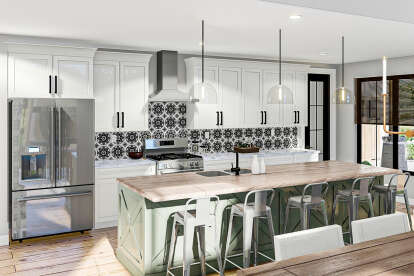

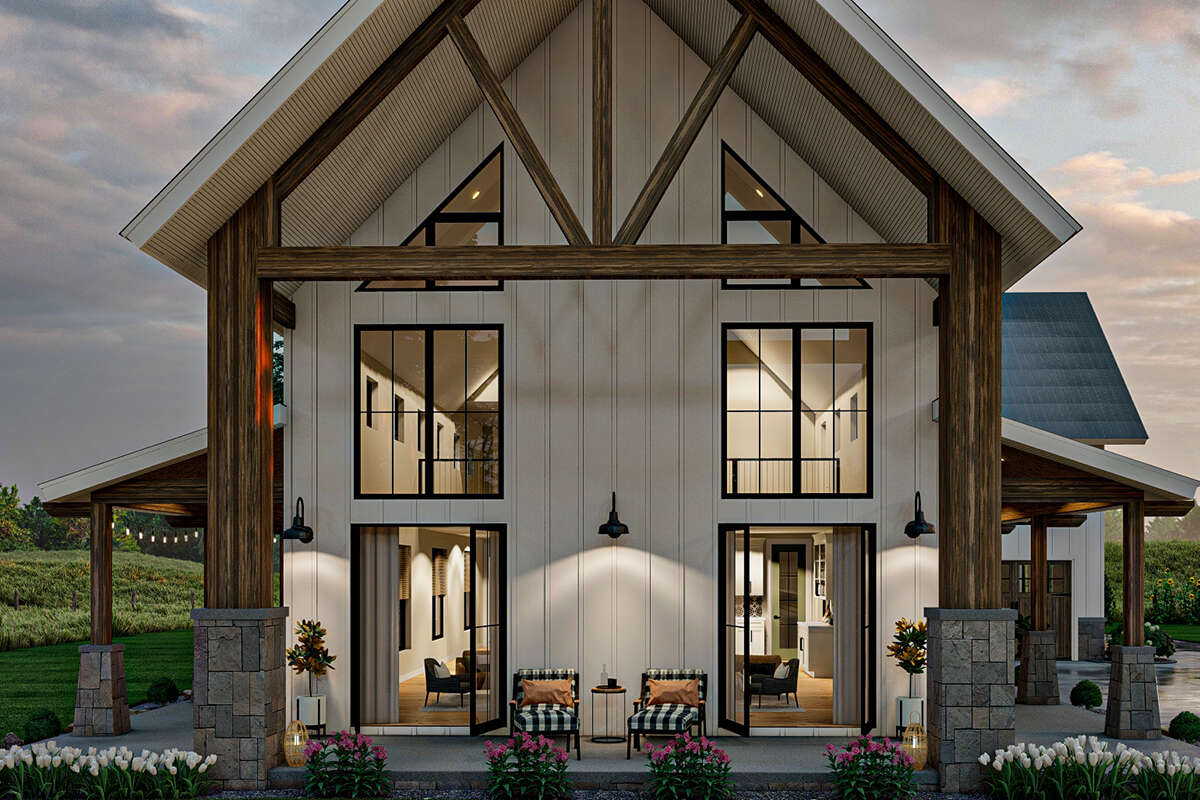

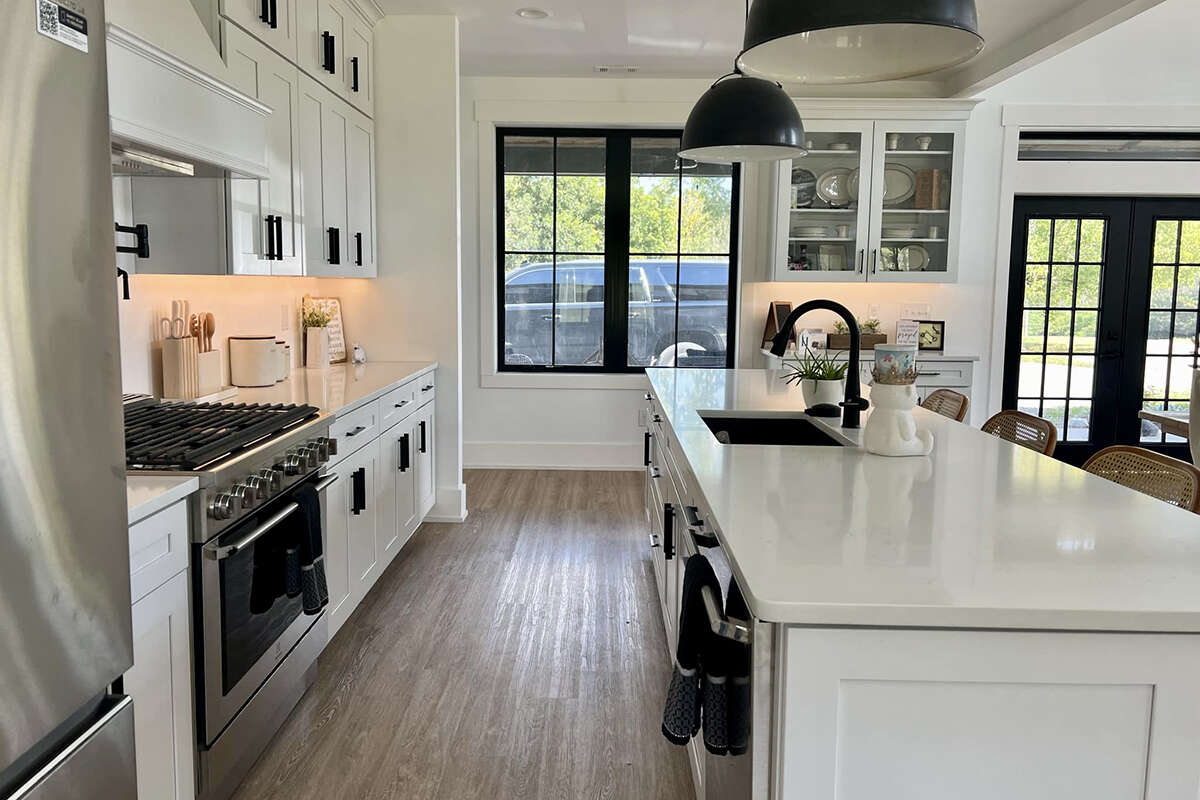

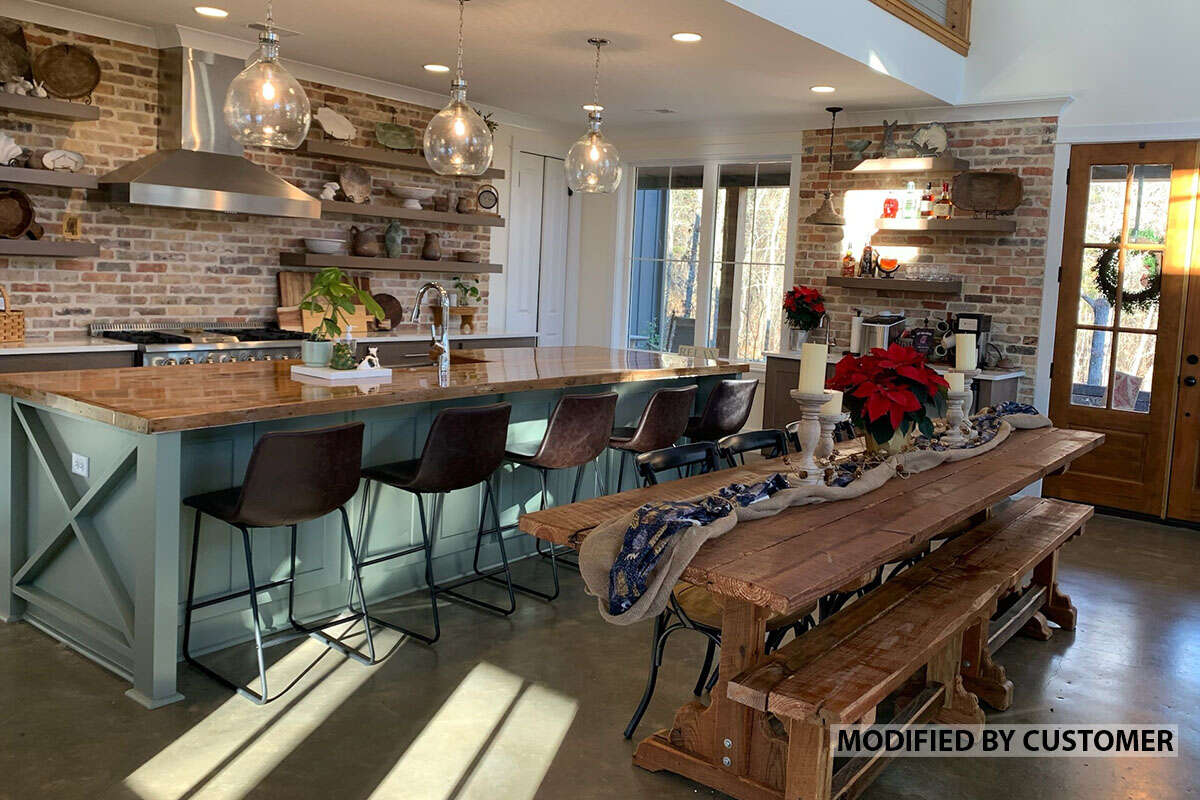

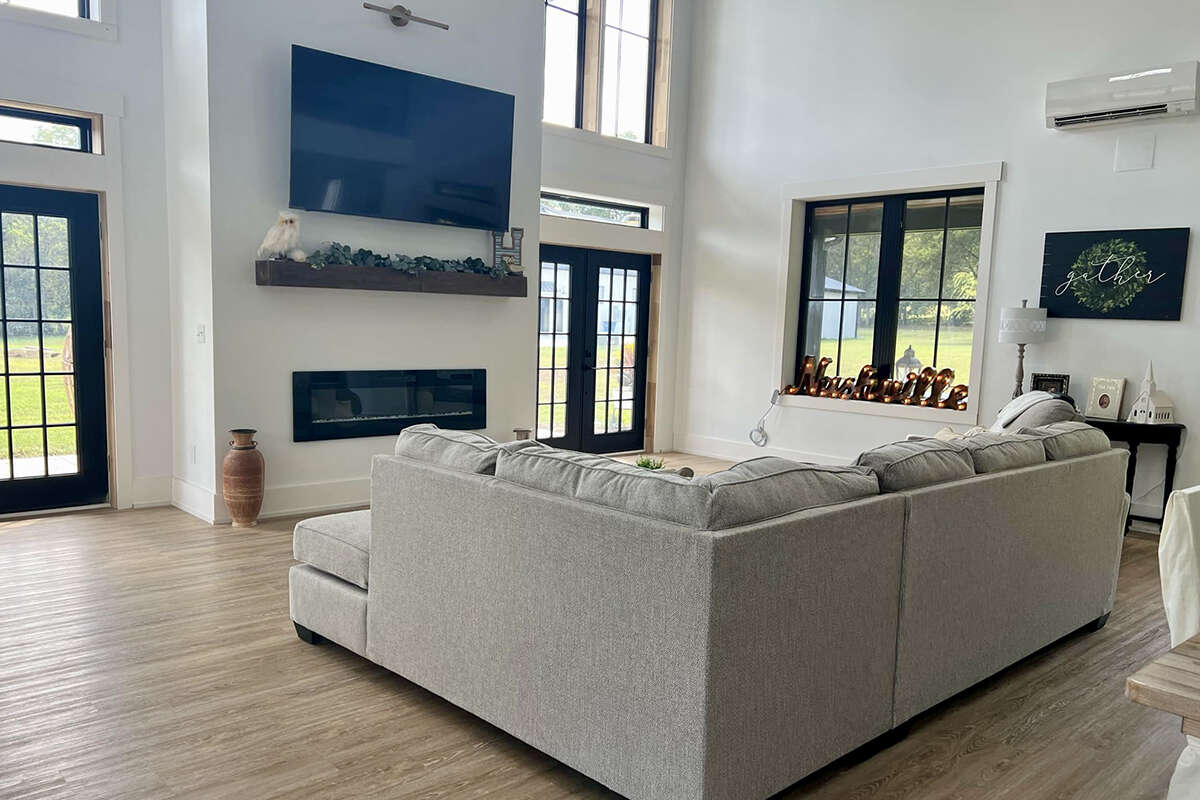

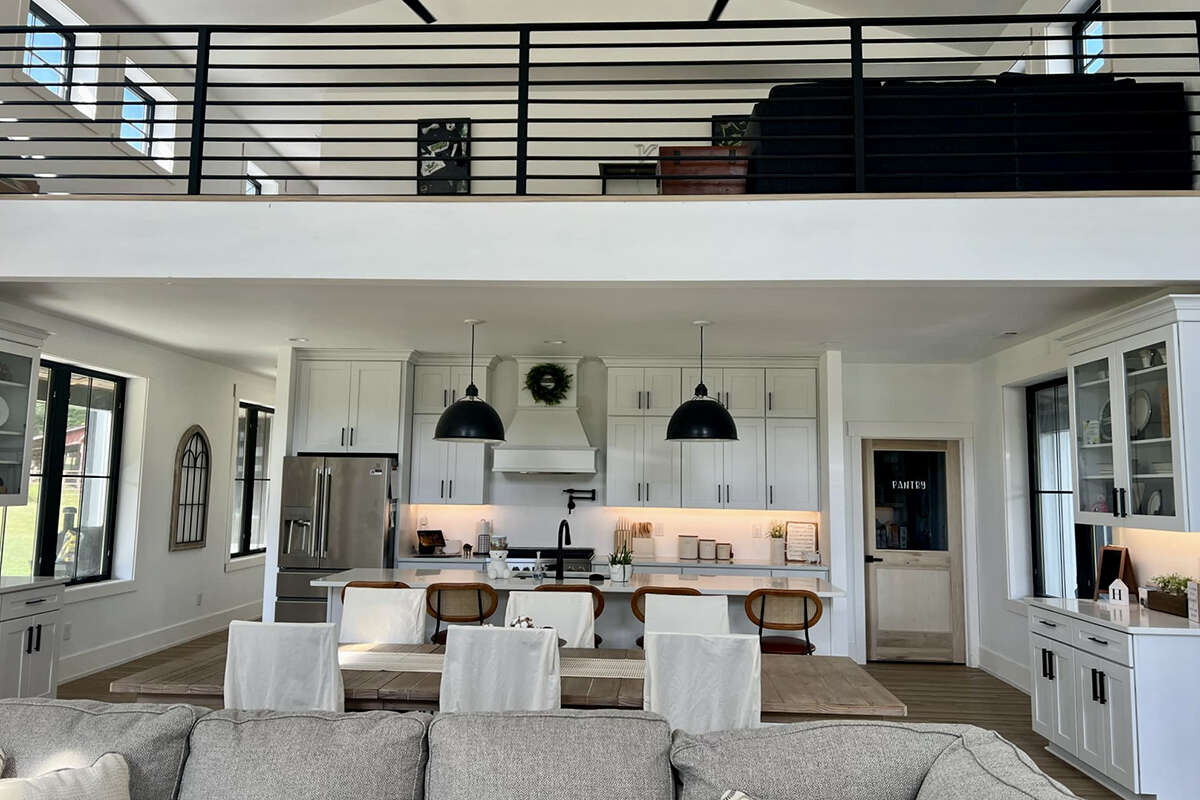

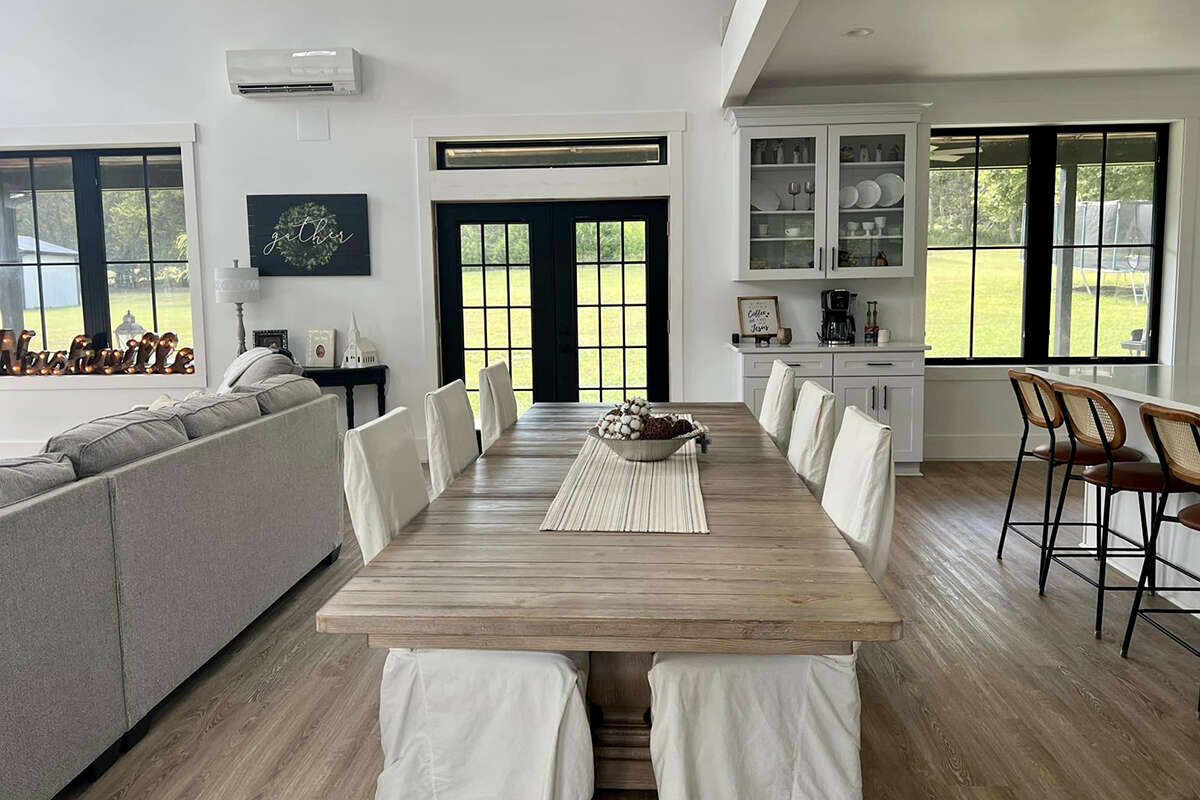

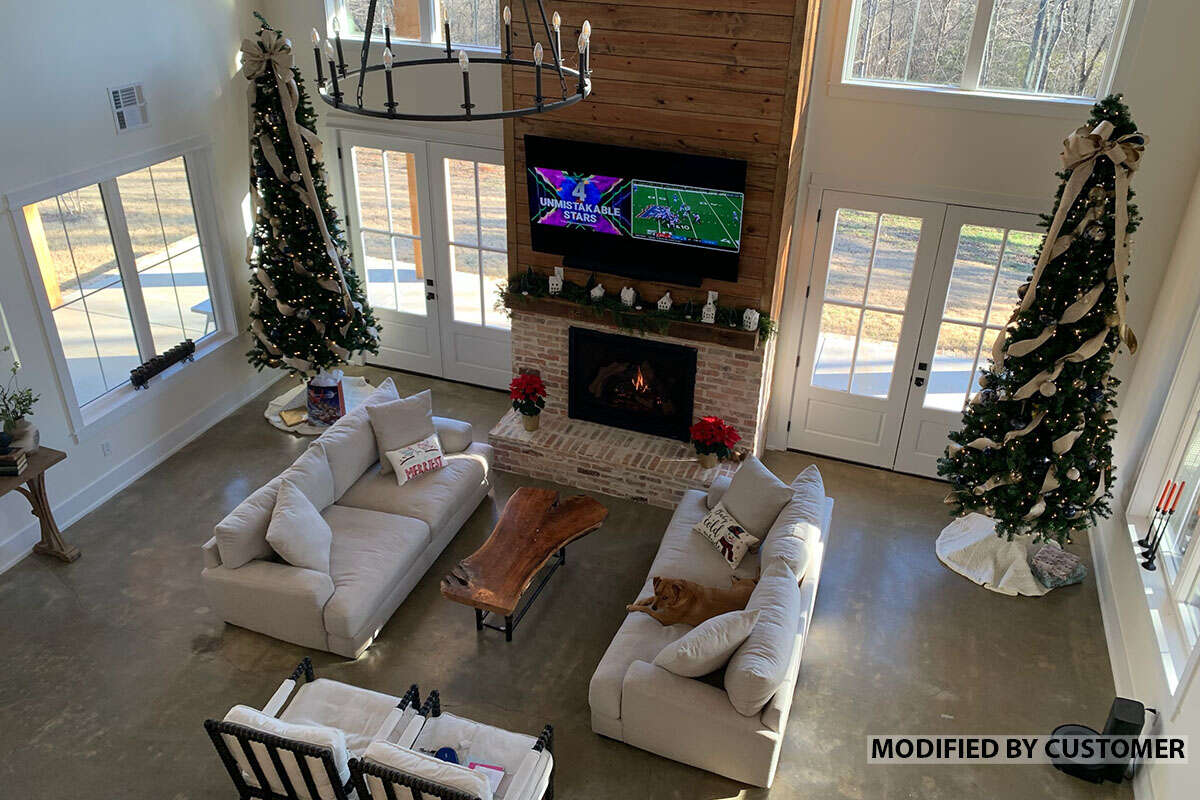

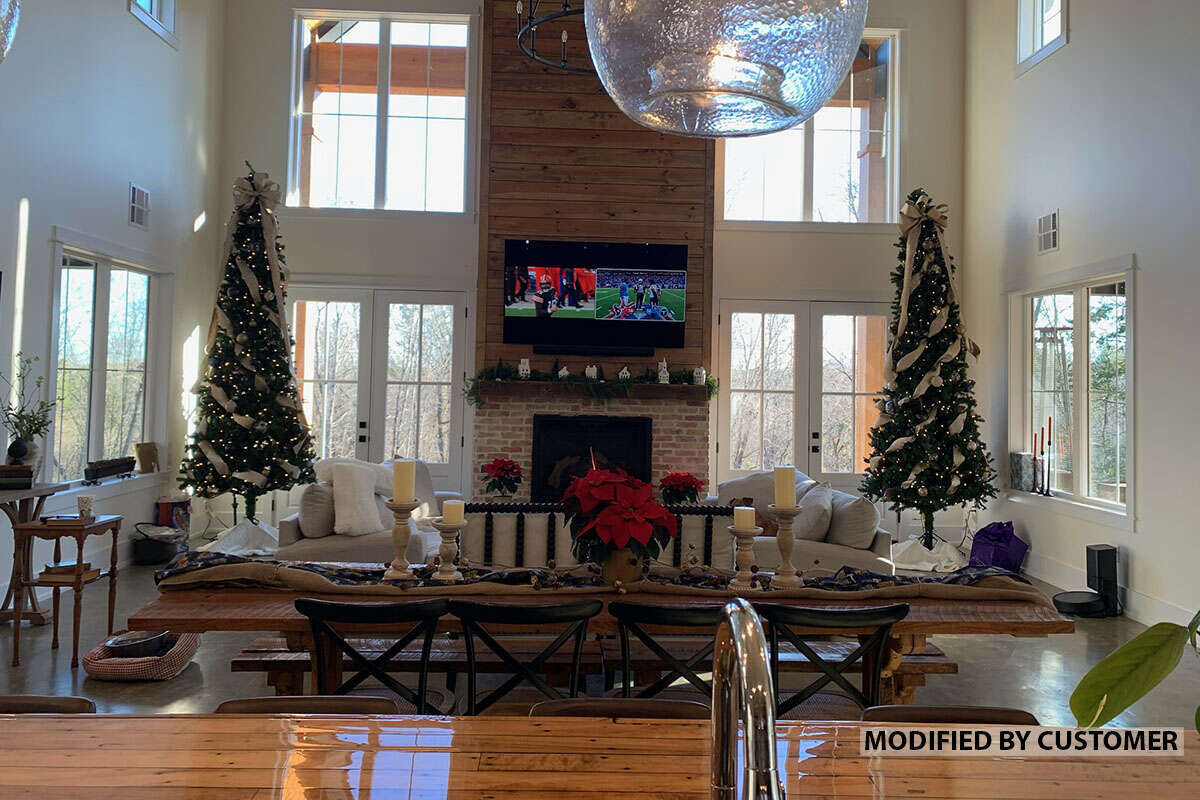

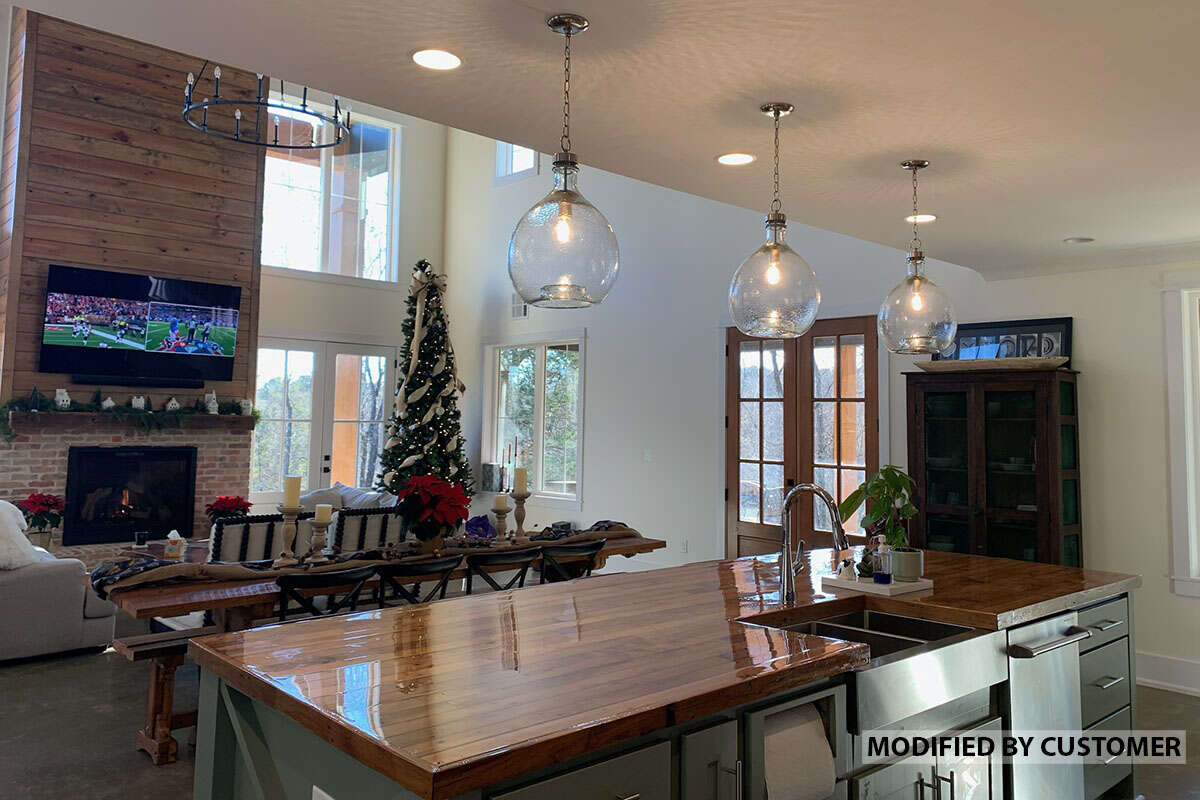

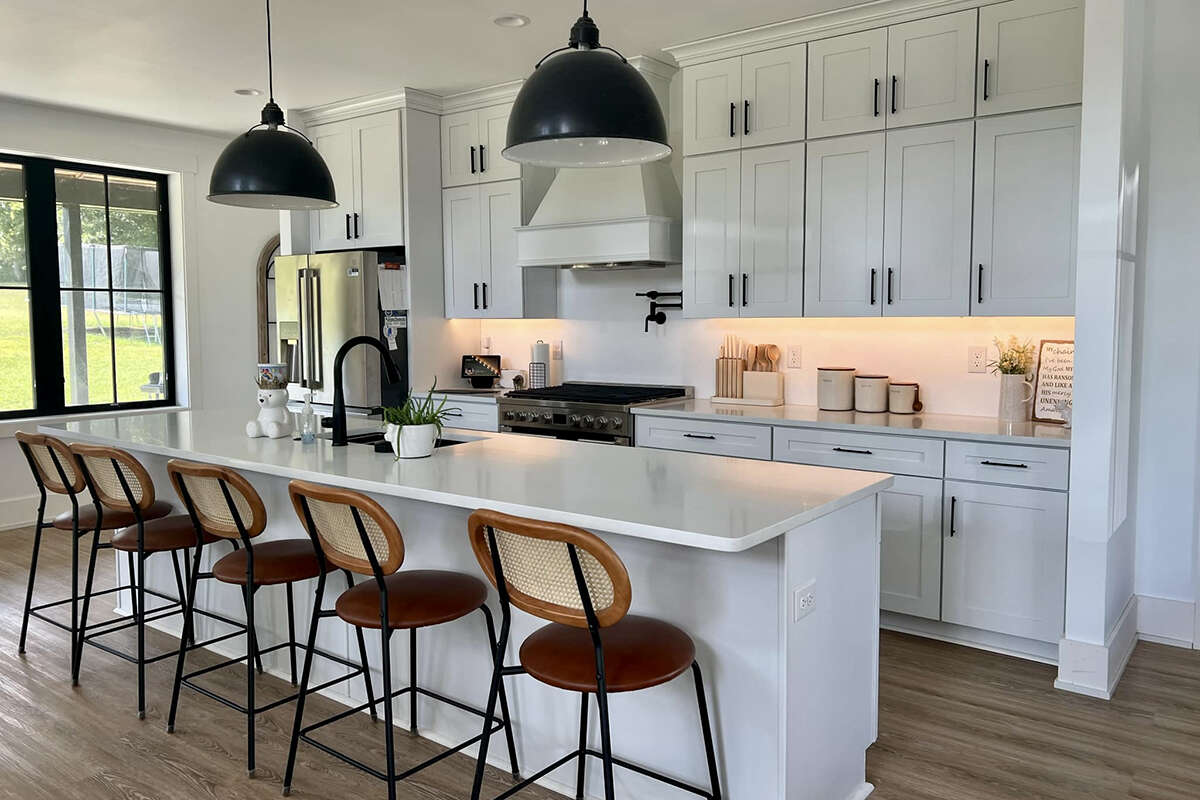

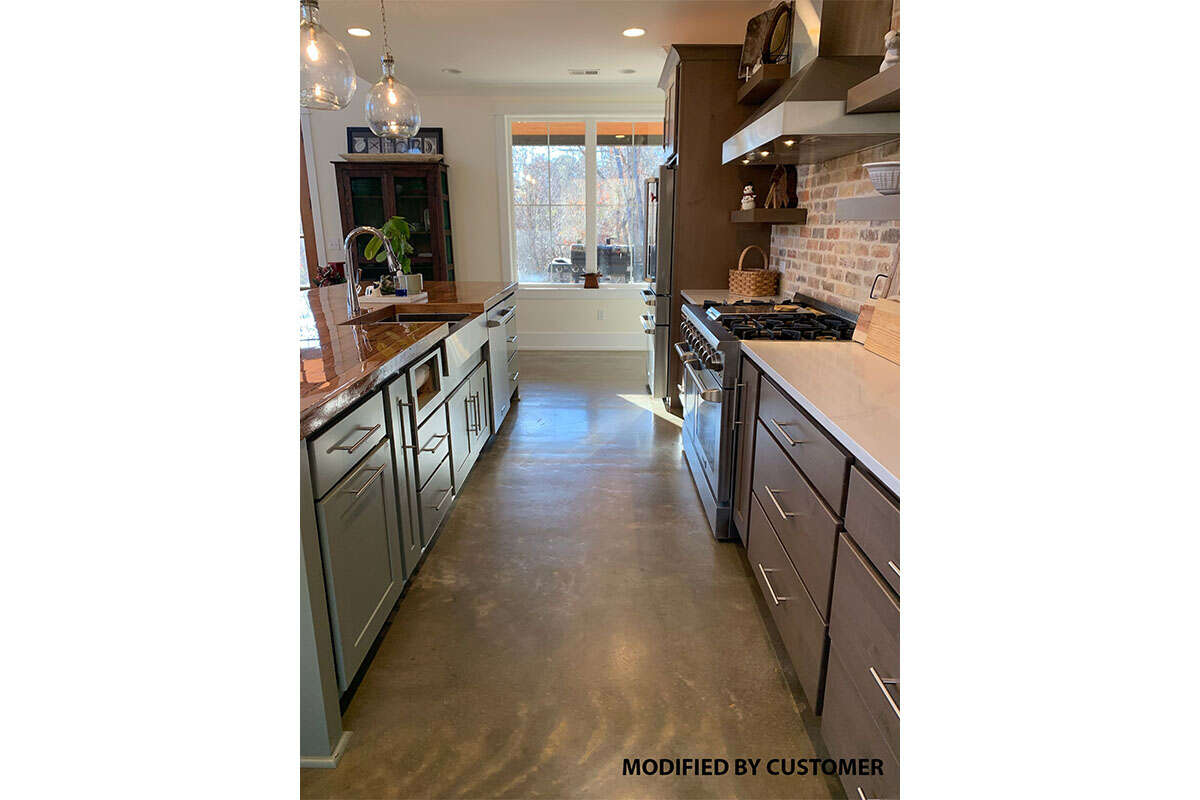

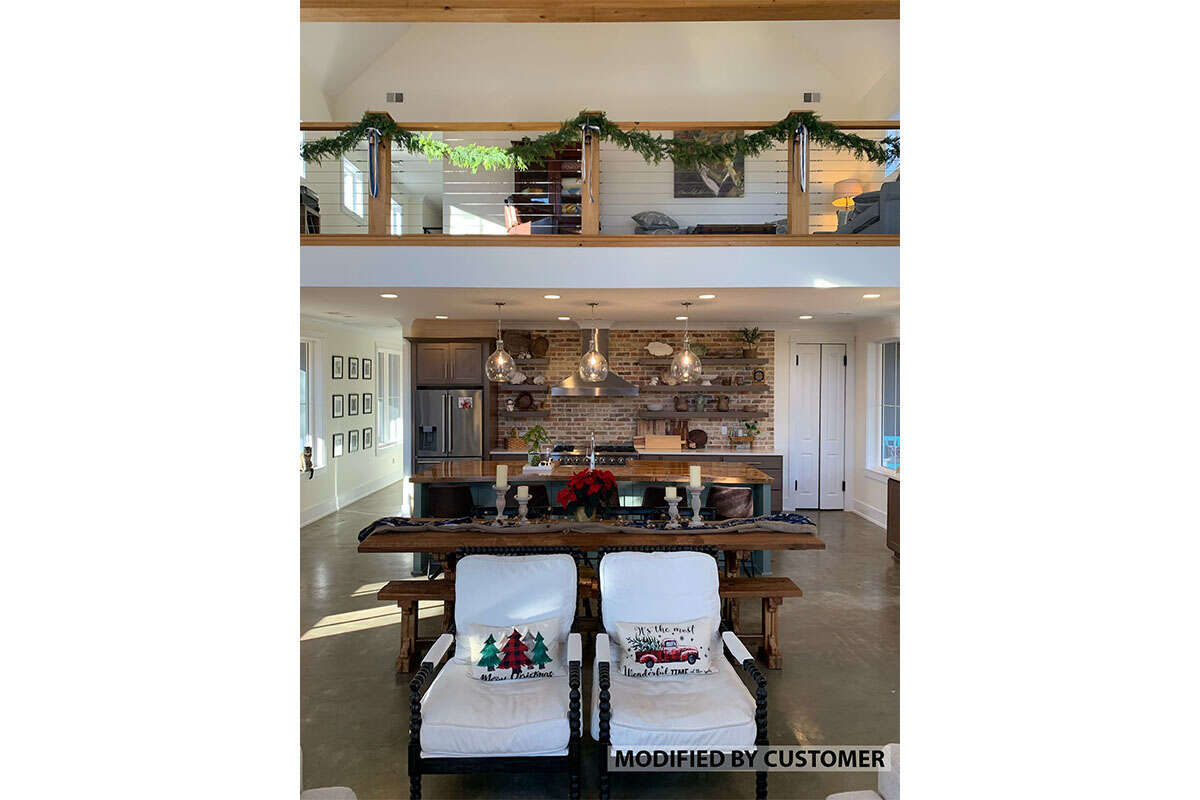

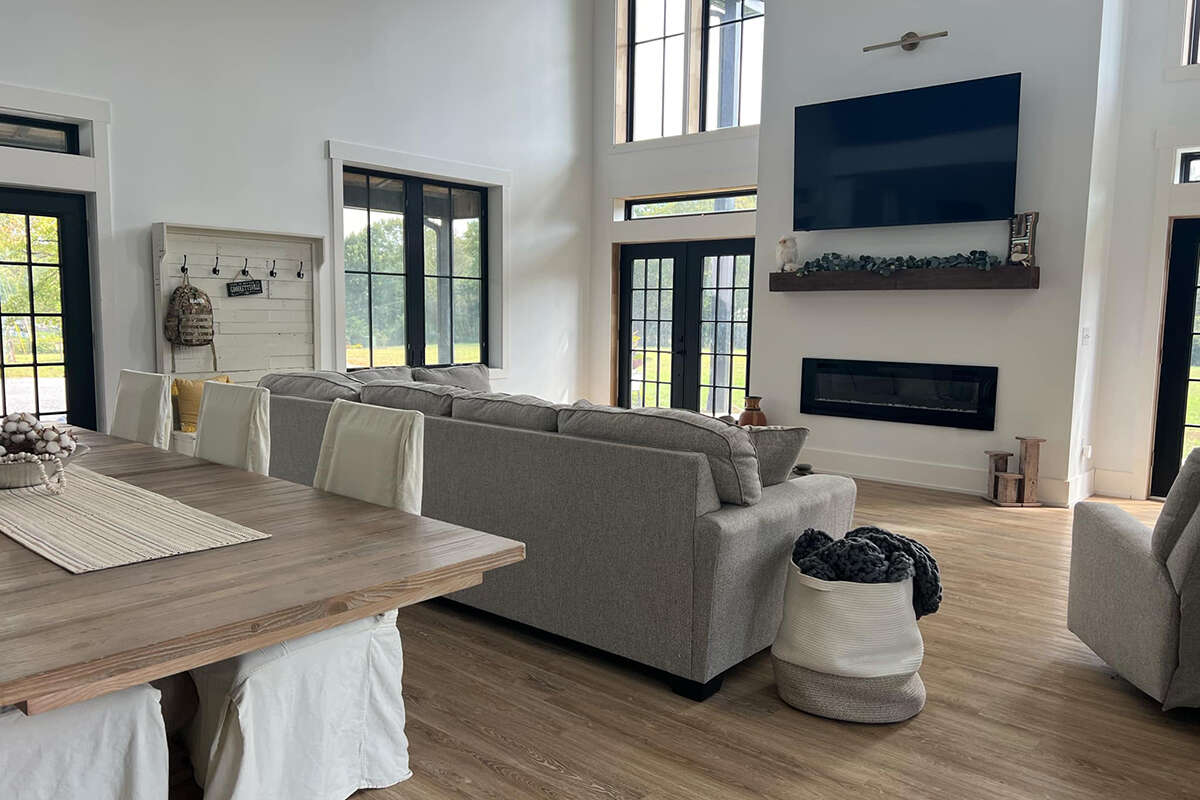

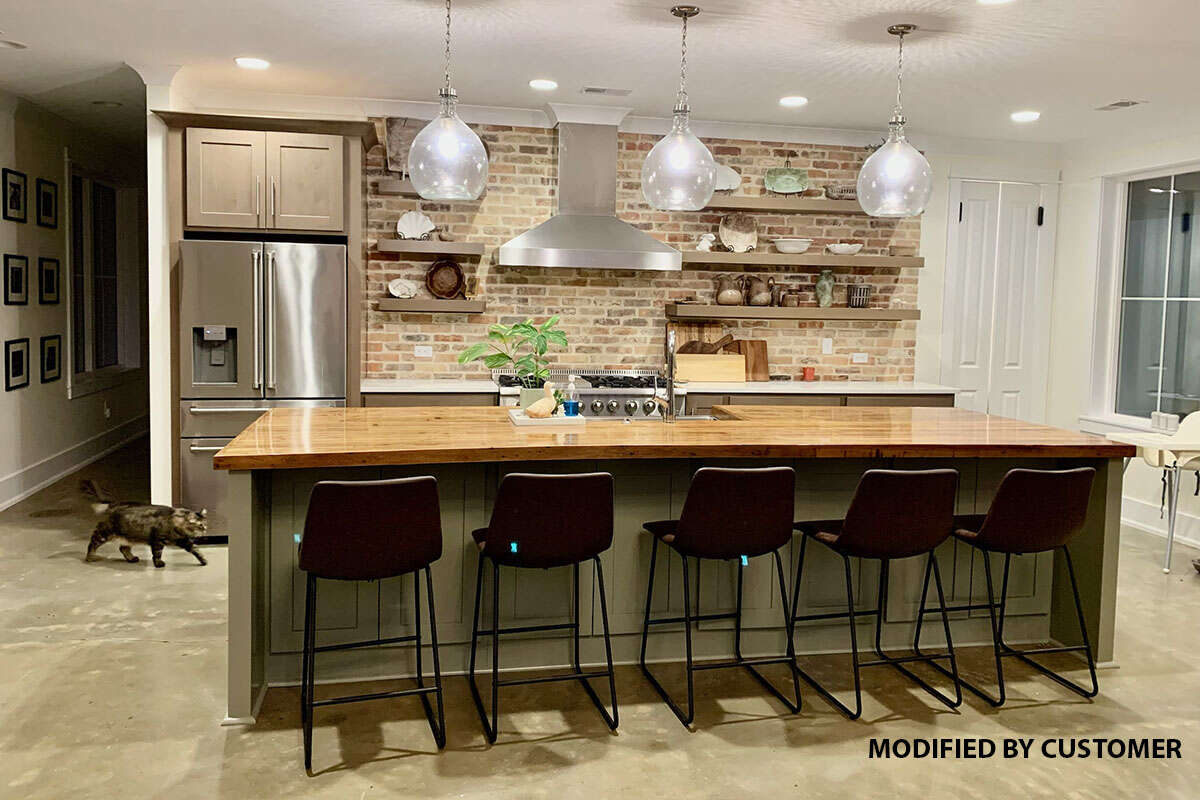

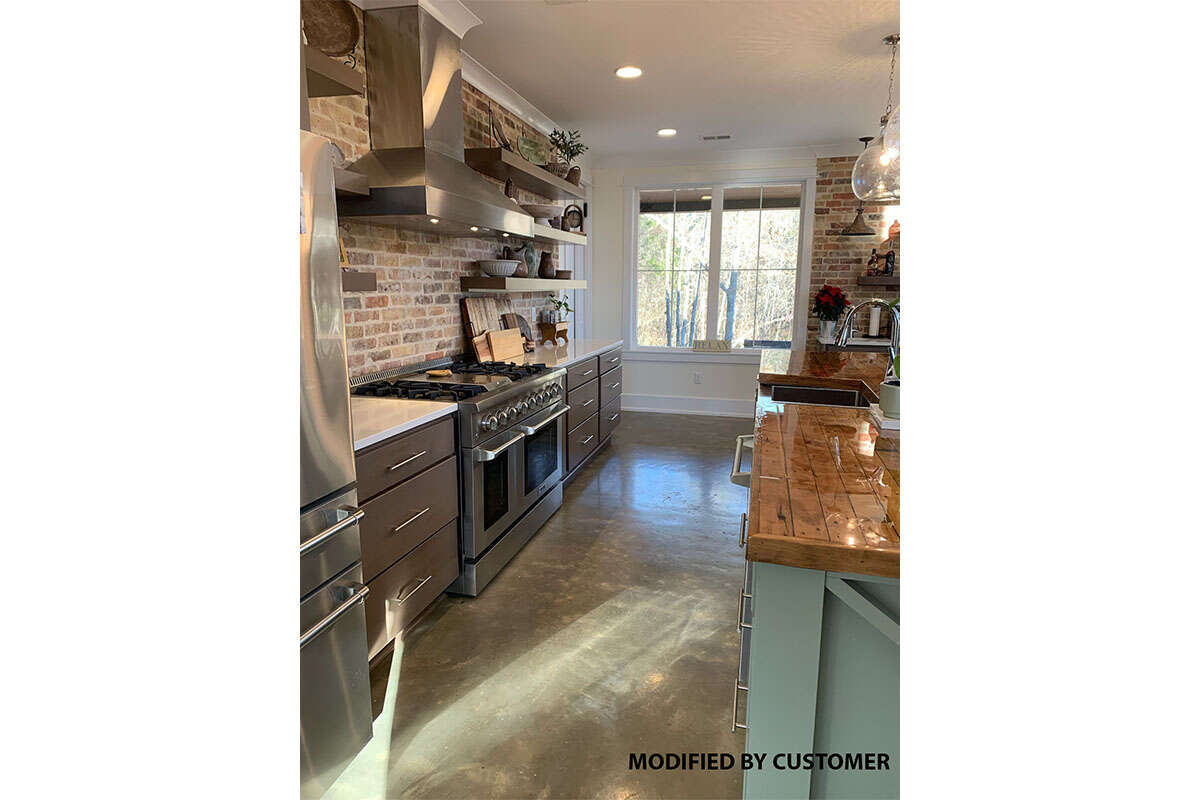

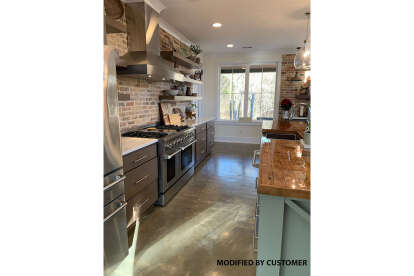

The front entry opens directly to the common rooms brought together by an open floor plan. Thanks to the towering two-story cathedral ceiling, the space given here seems quite extensive. Large windows tower the side wall and align the entire home, allowing for warm sun rays to pour into the home. Additional features in the great room include, two French doors flanking the fireplace on the side wall opening to the covered side porch. The kitchen offers wonderful cooking, storing, and eating space. The long center island allows for 5-chair seating and a sink, and prep space. There is also a convenient walk-in pantry with shelving.

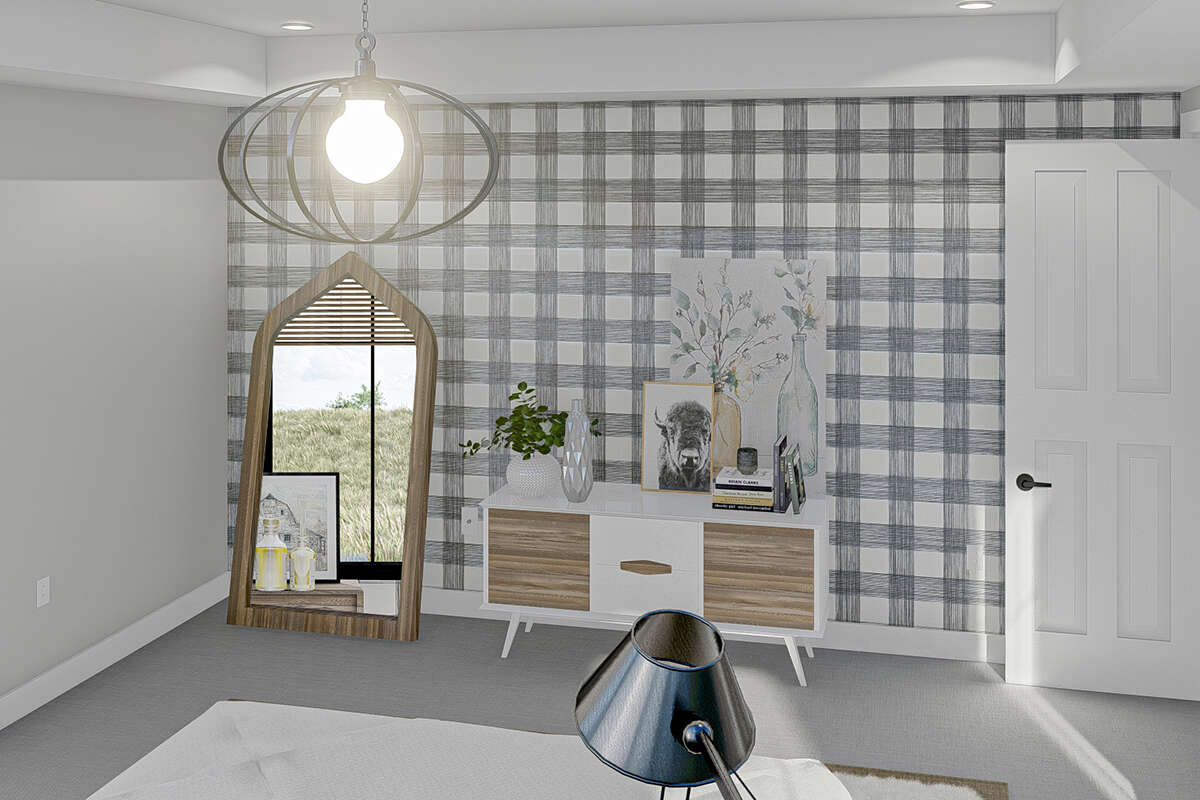

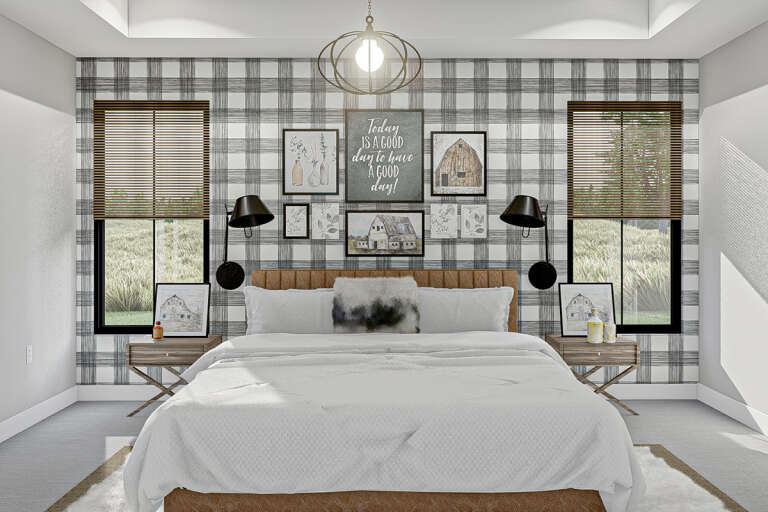

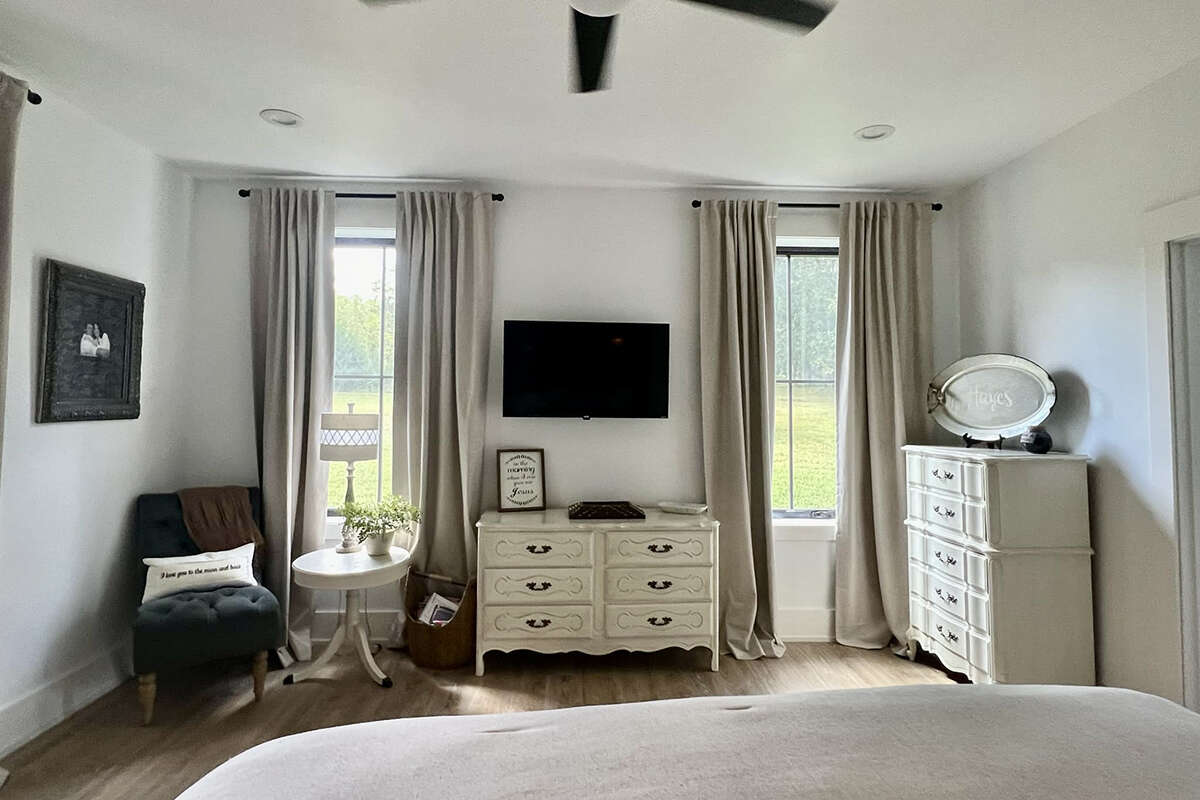

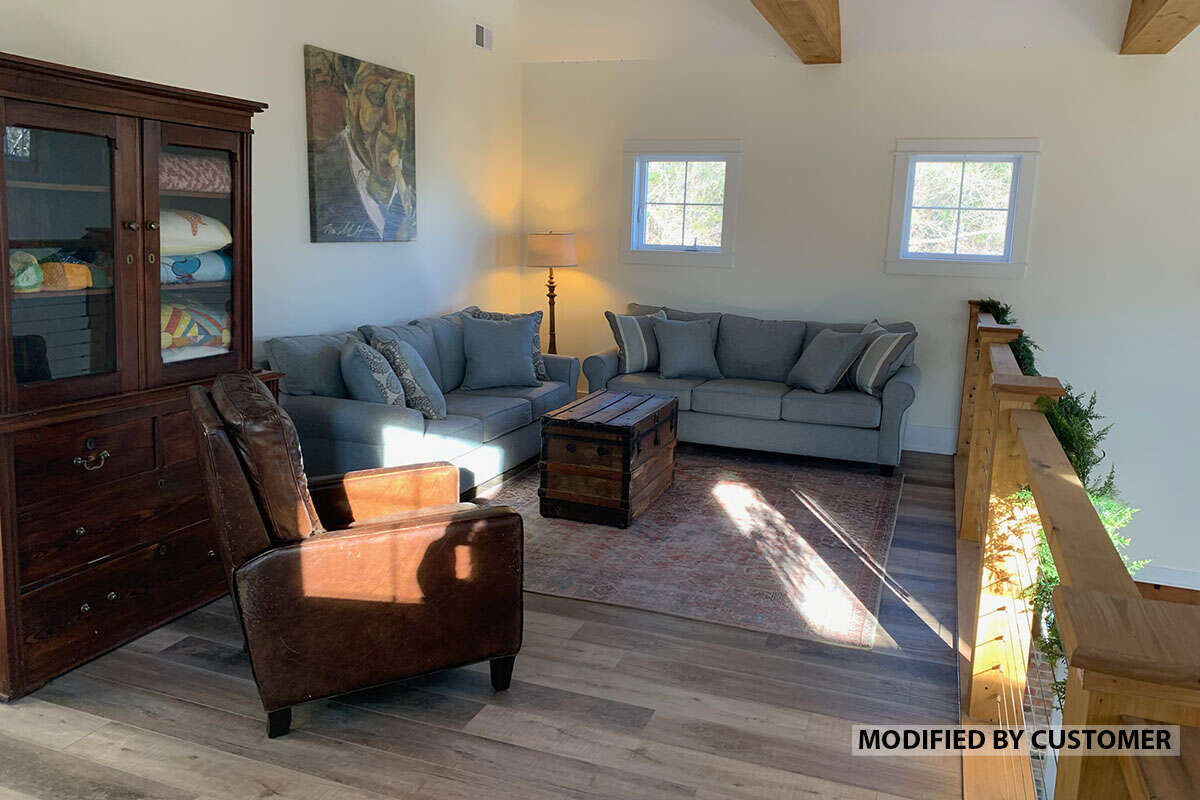

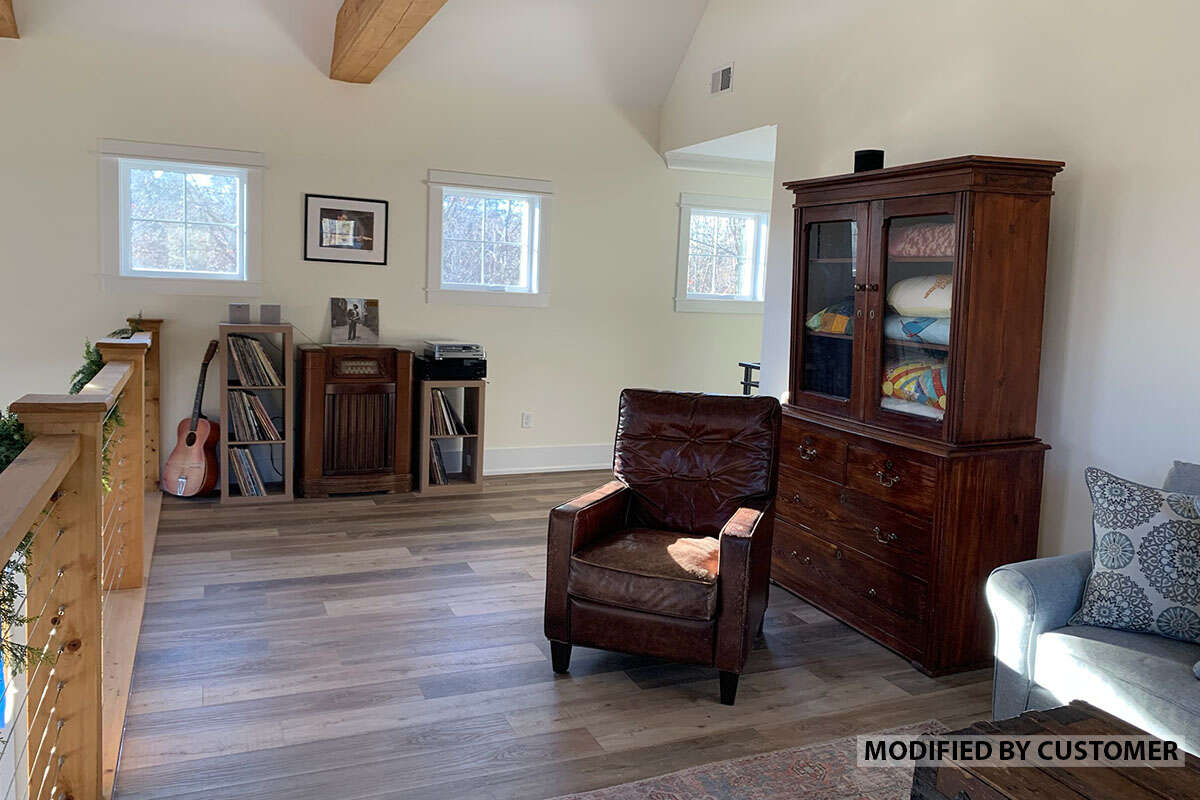

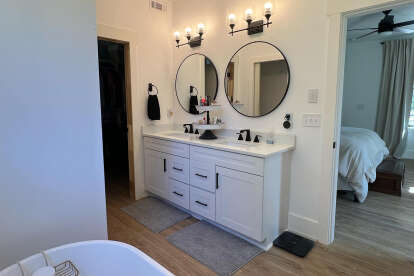

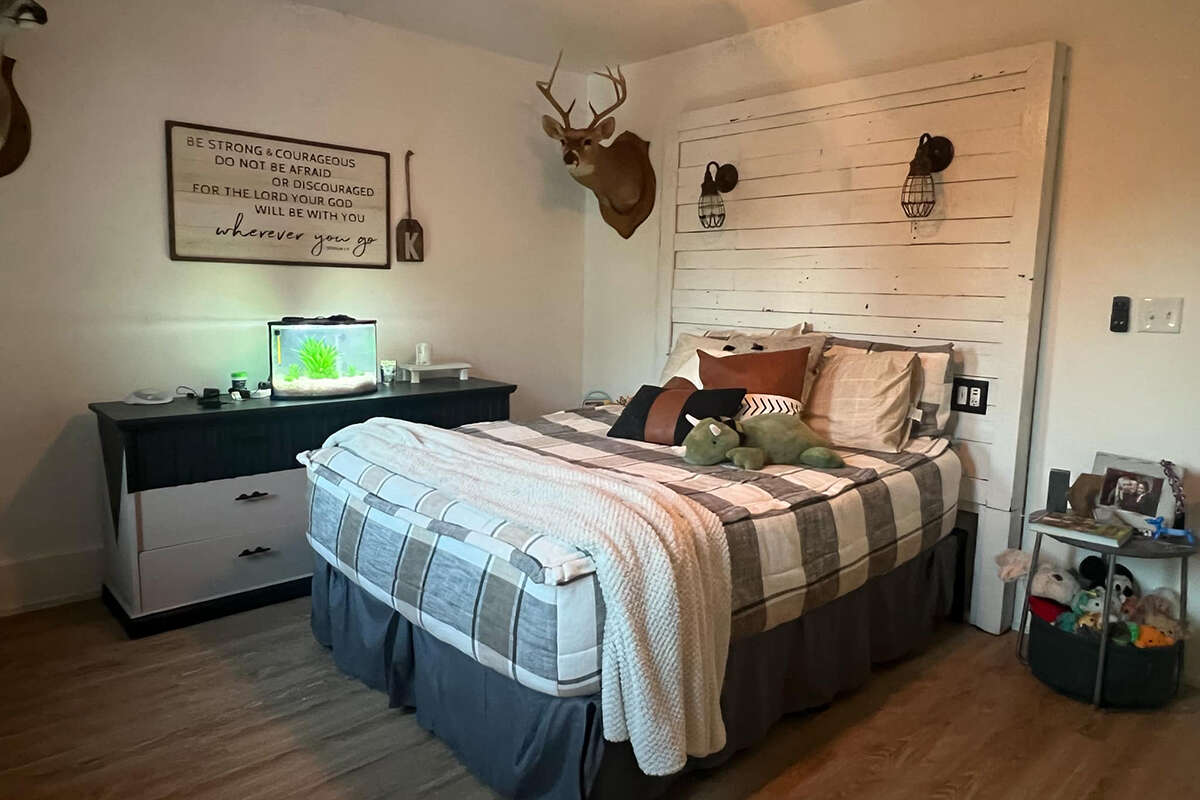

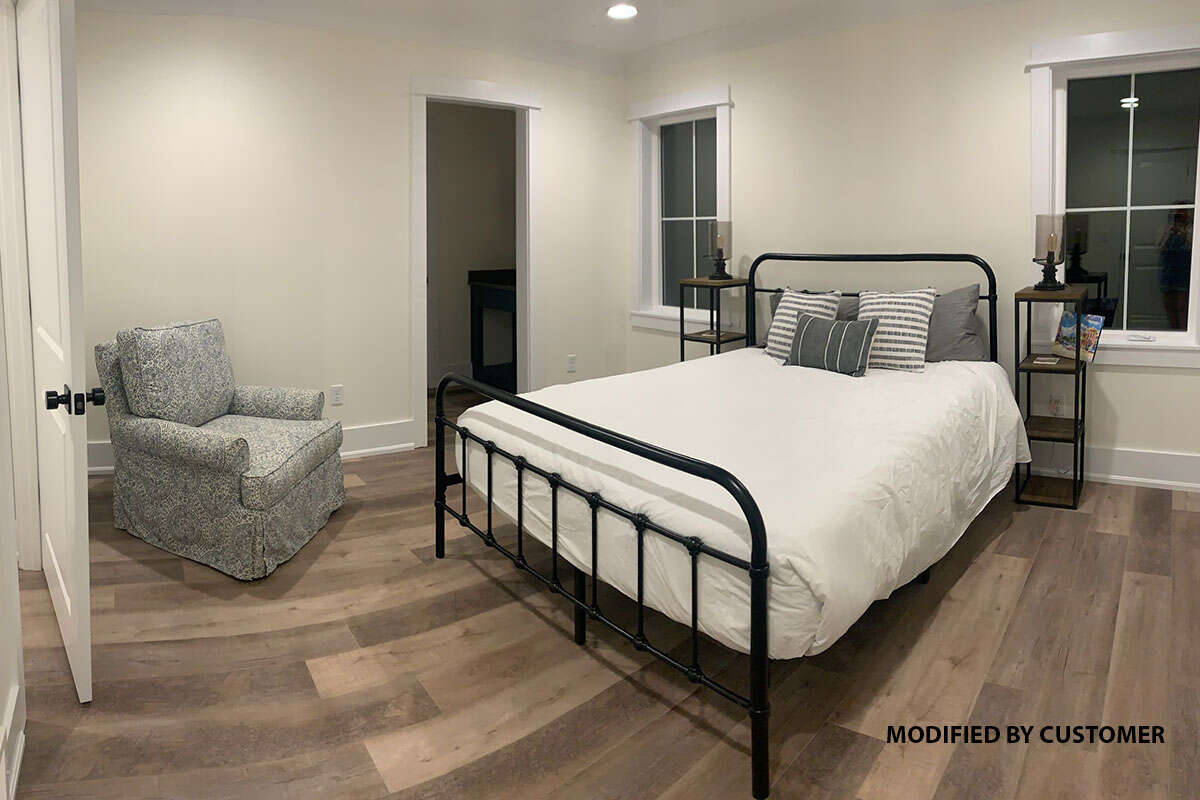

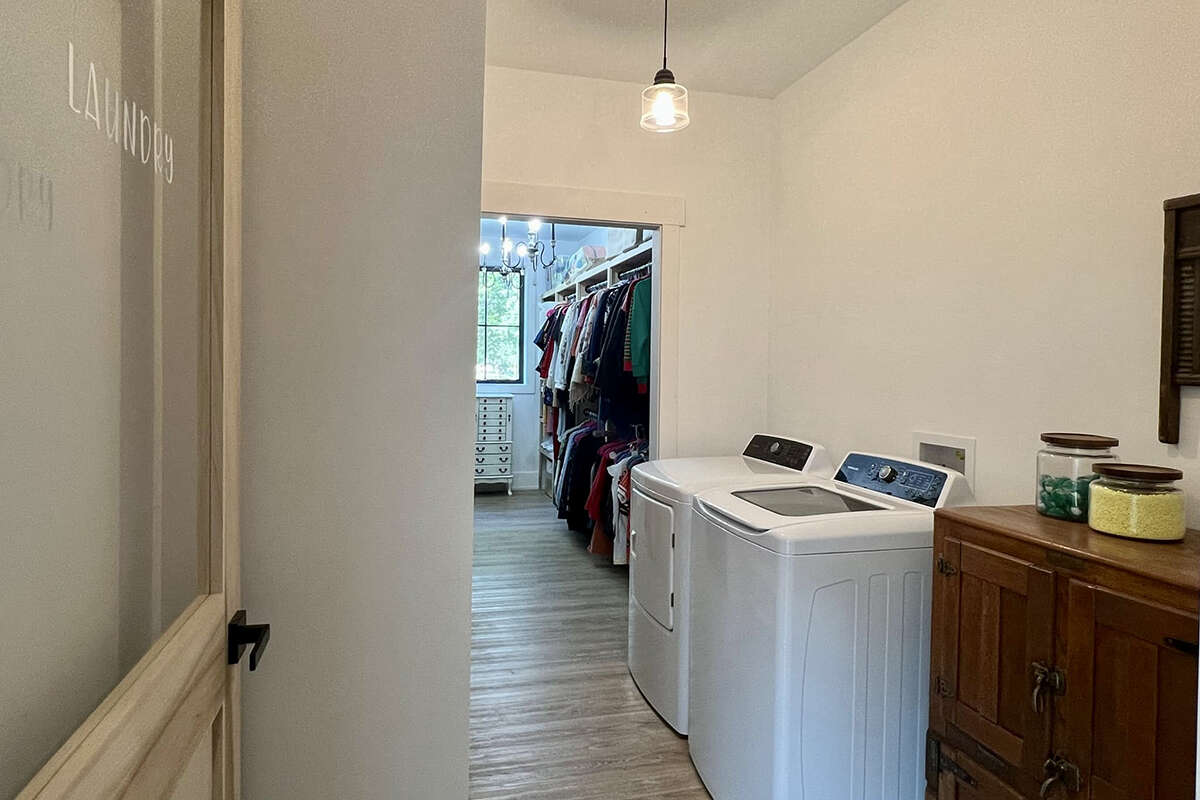

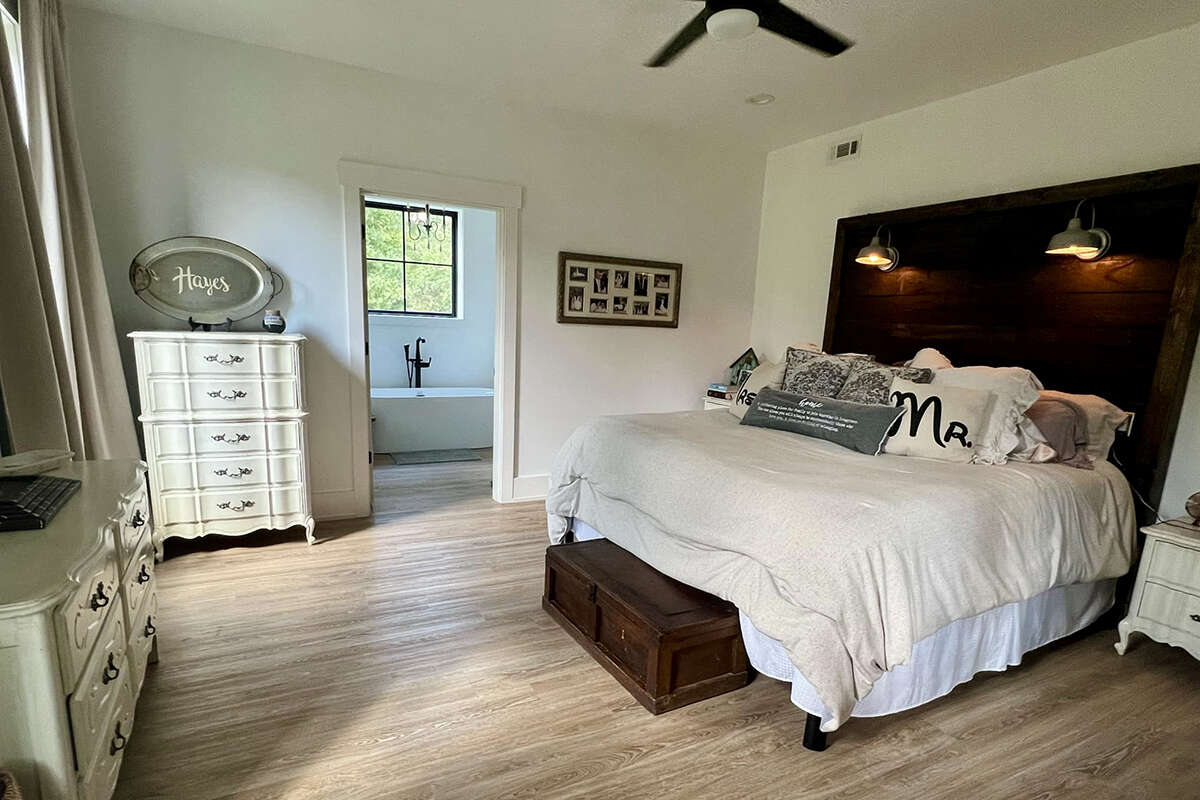

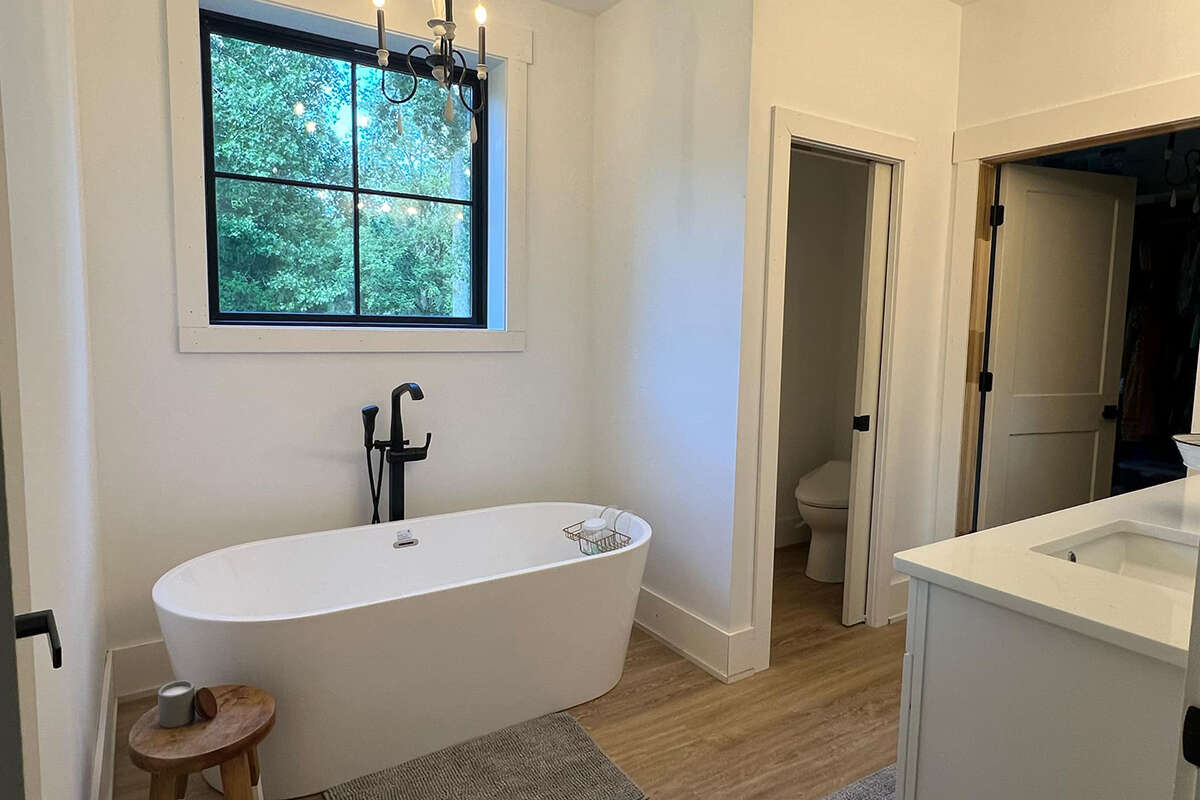

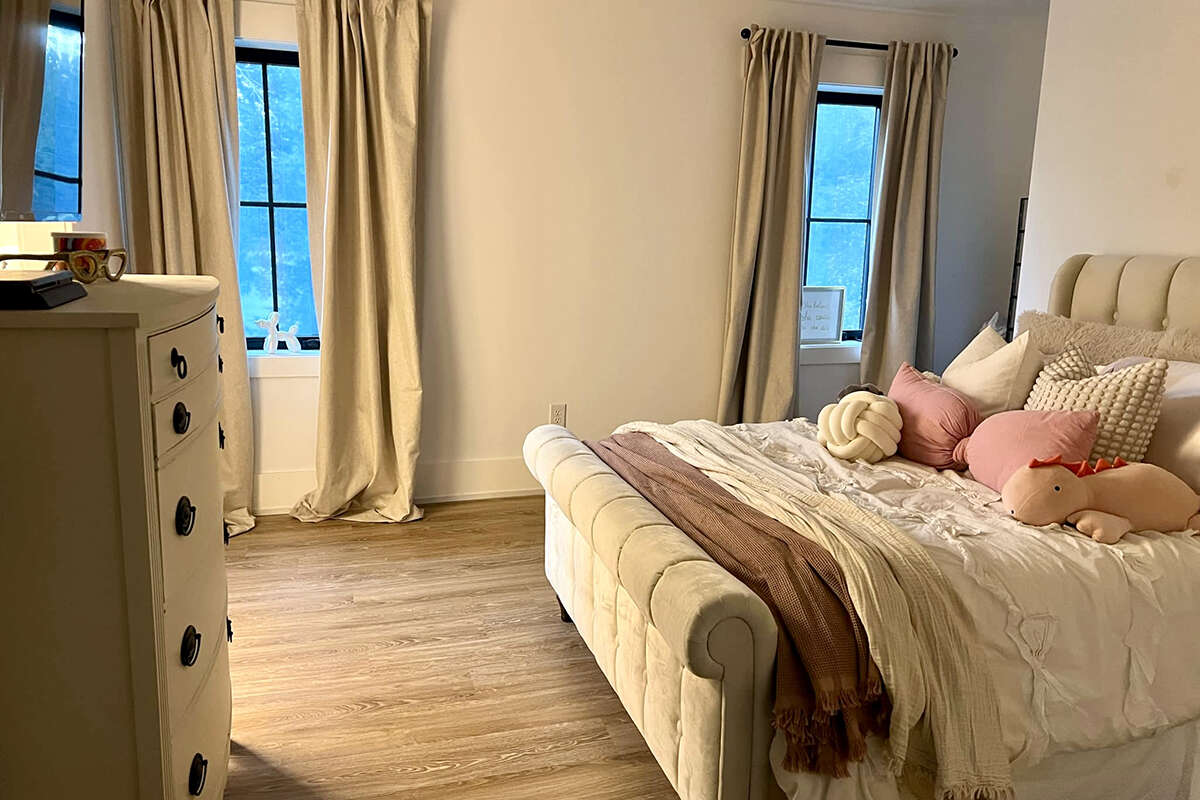

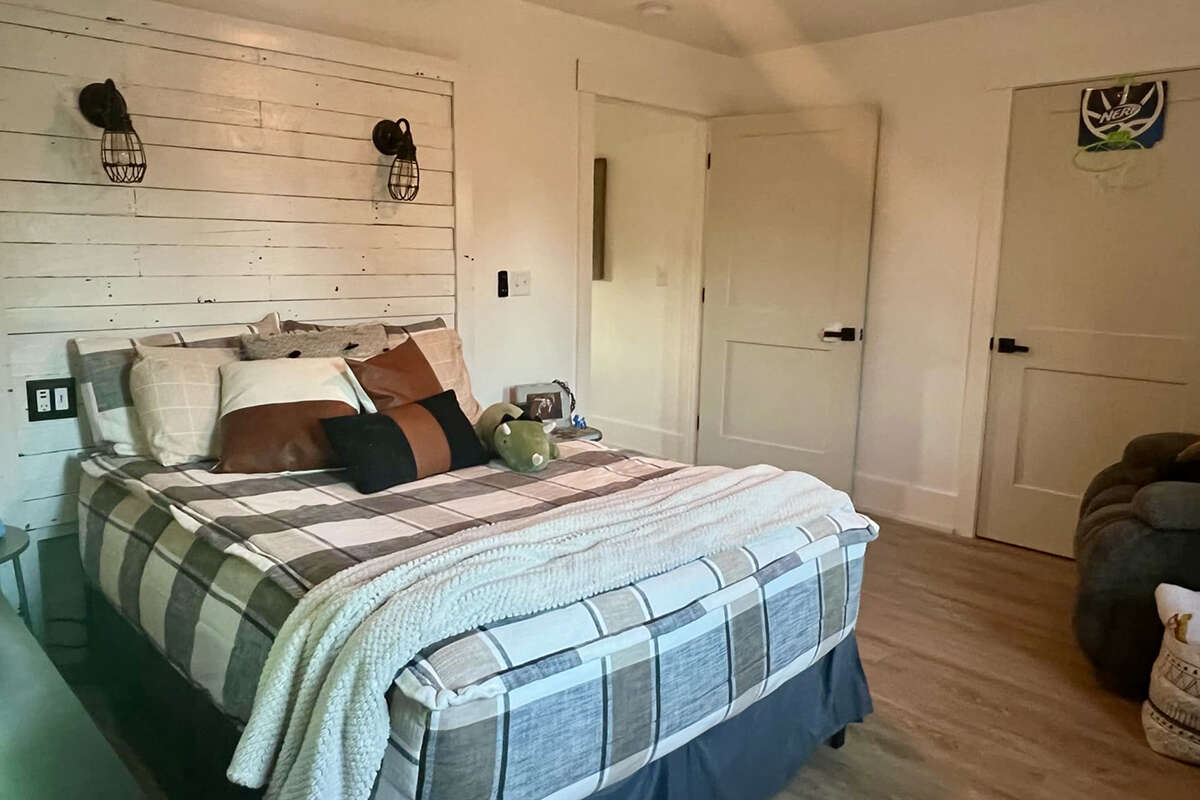

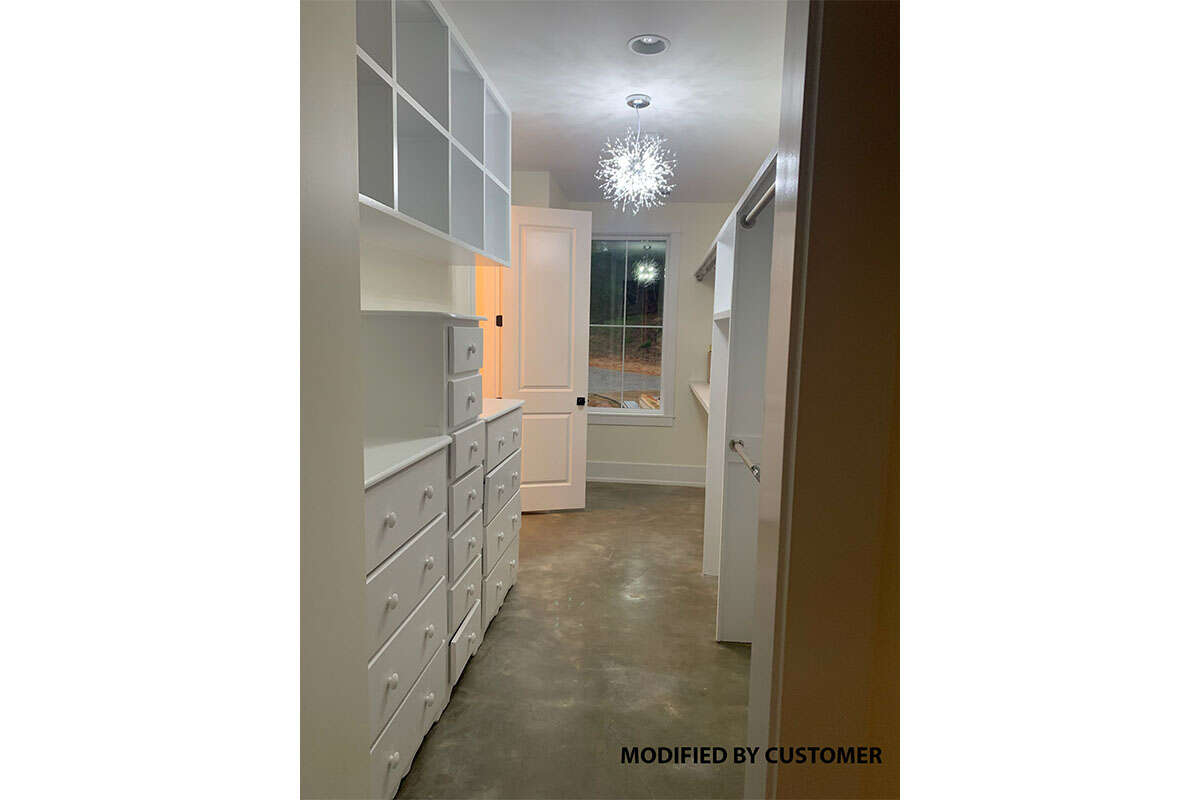

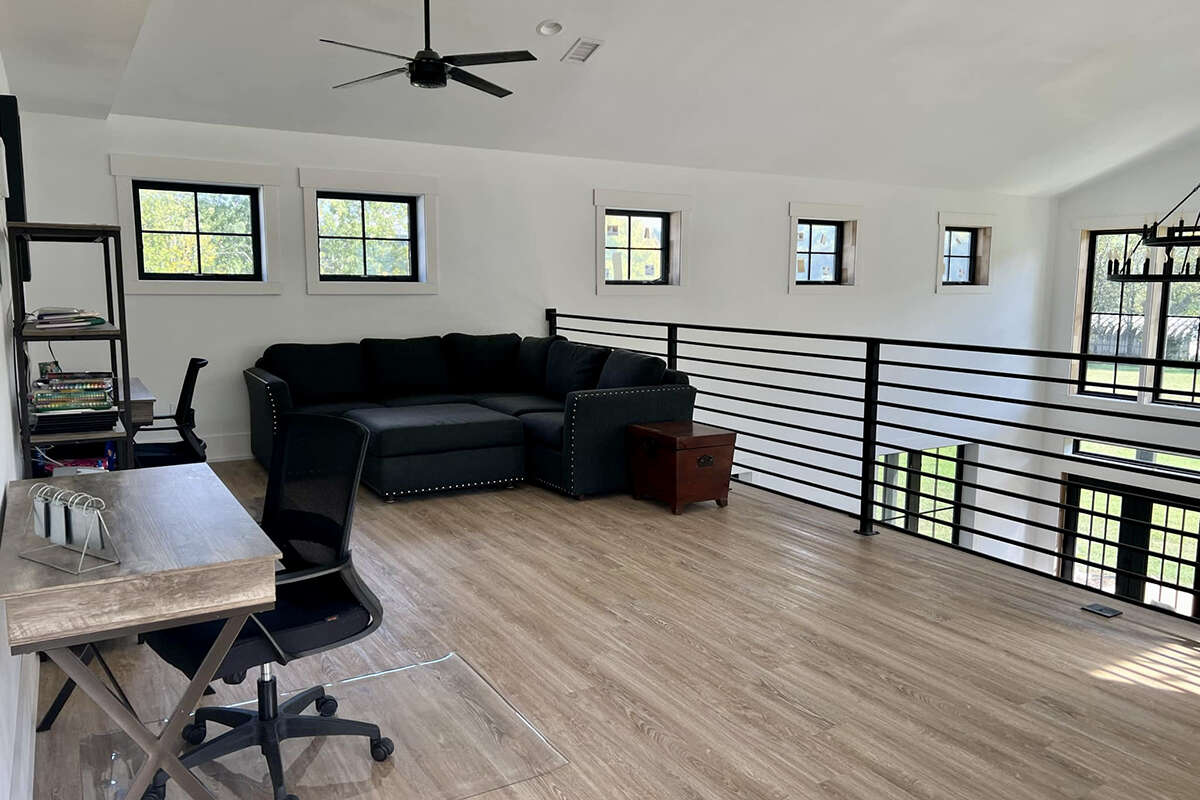

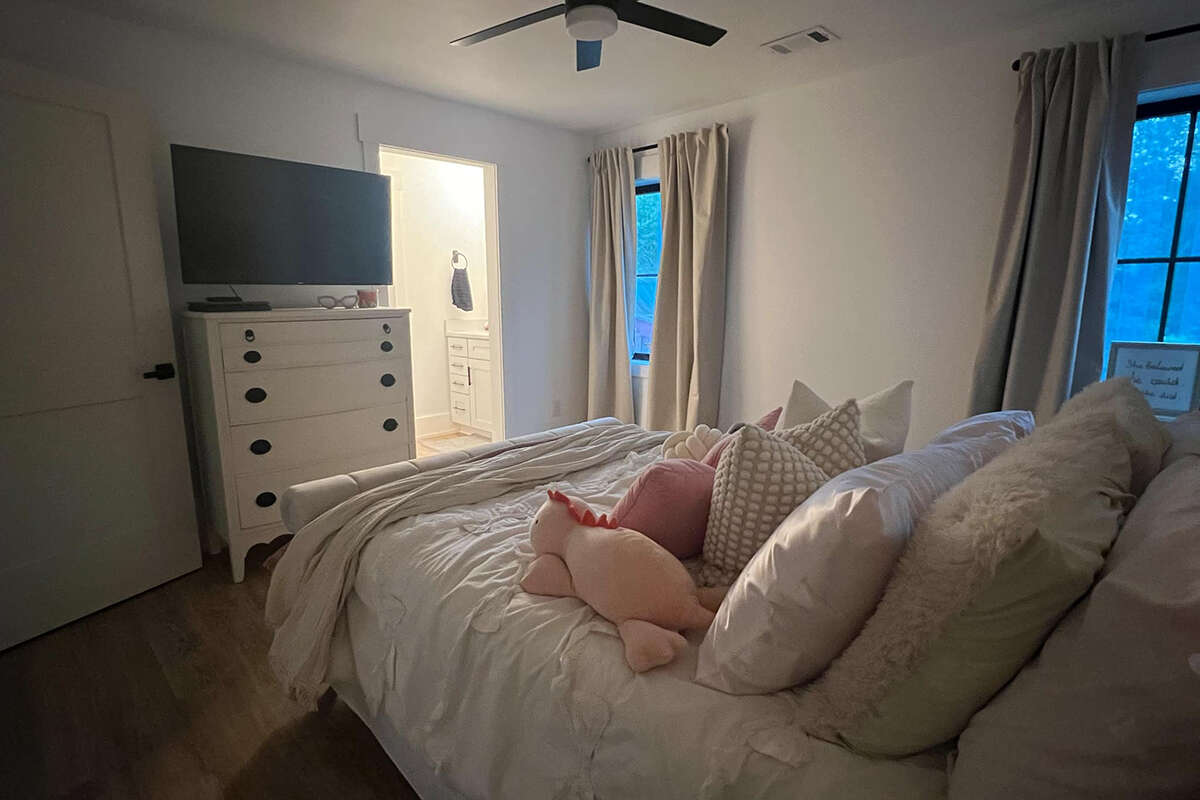

The primary bedroom wraps up the main floor. With a 9-foot ceiling height, the bedroom presents great space with an en suite bathroom featuring a separate tub and shower and two vanities. The primary bedroom offers plenty of conveniences as the walk-in closet includes access to the laundry room. Upstairs grants access to the remaining four bedrooms as well as the loft. Each bedroom includes walk-in closets, two windows, and quick bathroom access.

This Barndominium features 3,205 square feet of living space with 4 bedrooms and 3.5 bathrooms.
