Mediterranean House Plan 963-00377

Sq Ft3,077
1/2 Baths1
Width46' 0"
Depth62' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

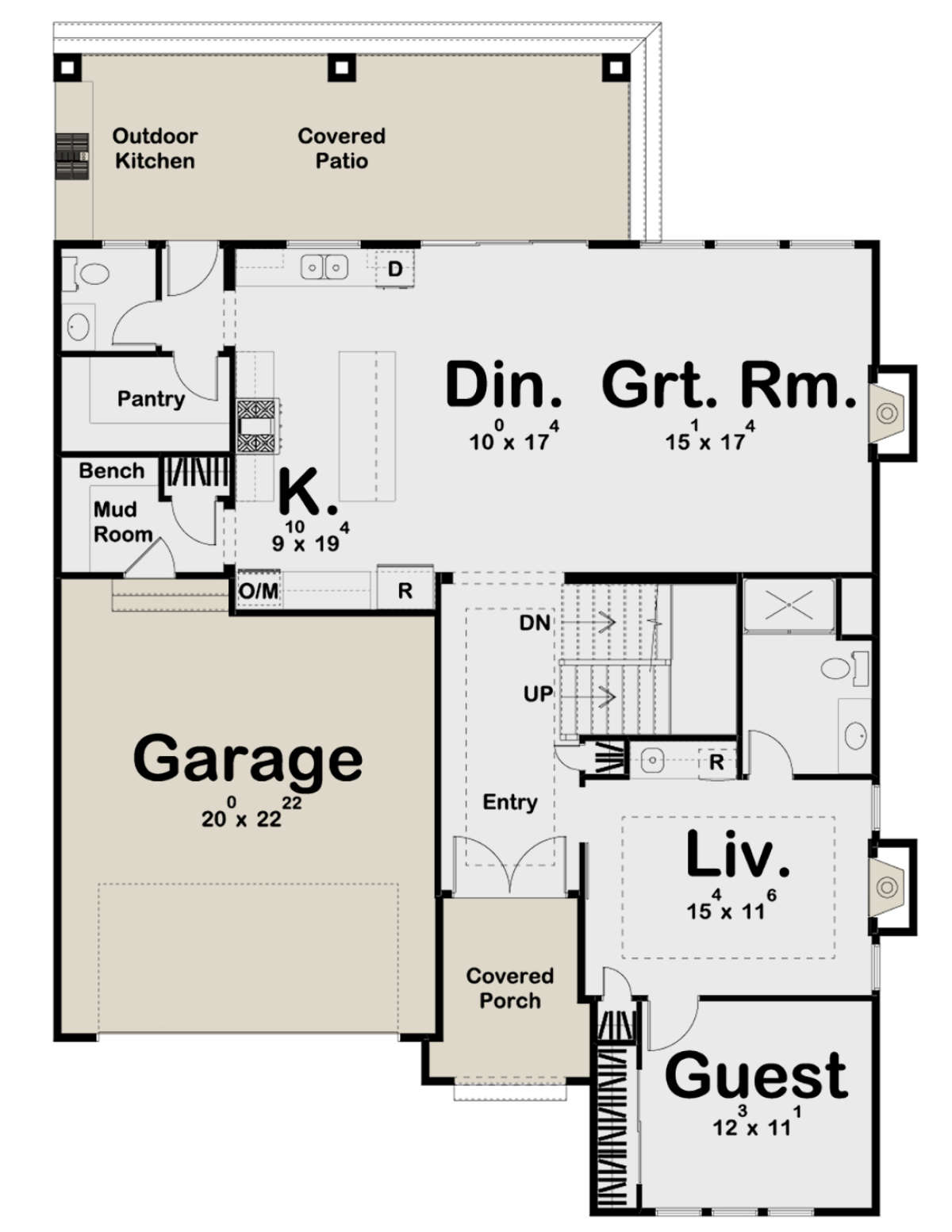

Main Floor for House Plan #963-00377

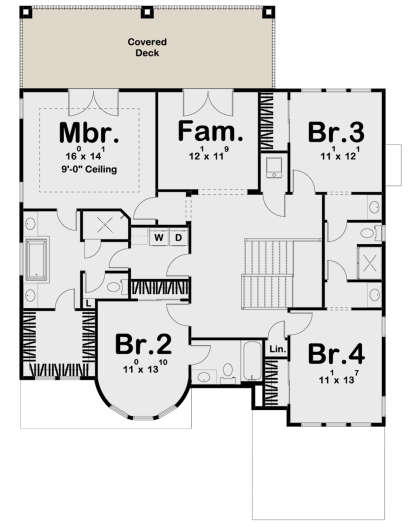

Second Floor for House Plan #963-00377
Main Floor
Main Floor for House Plan #963-00377

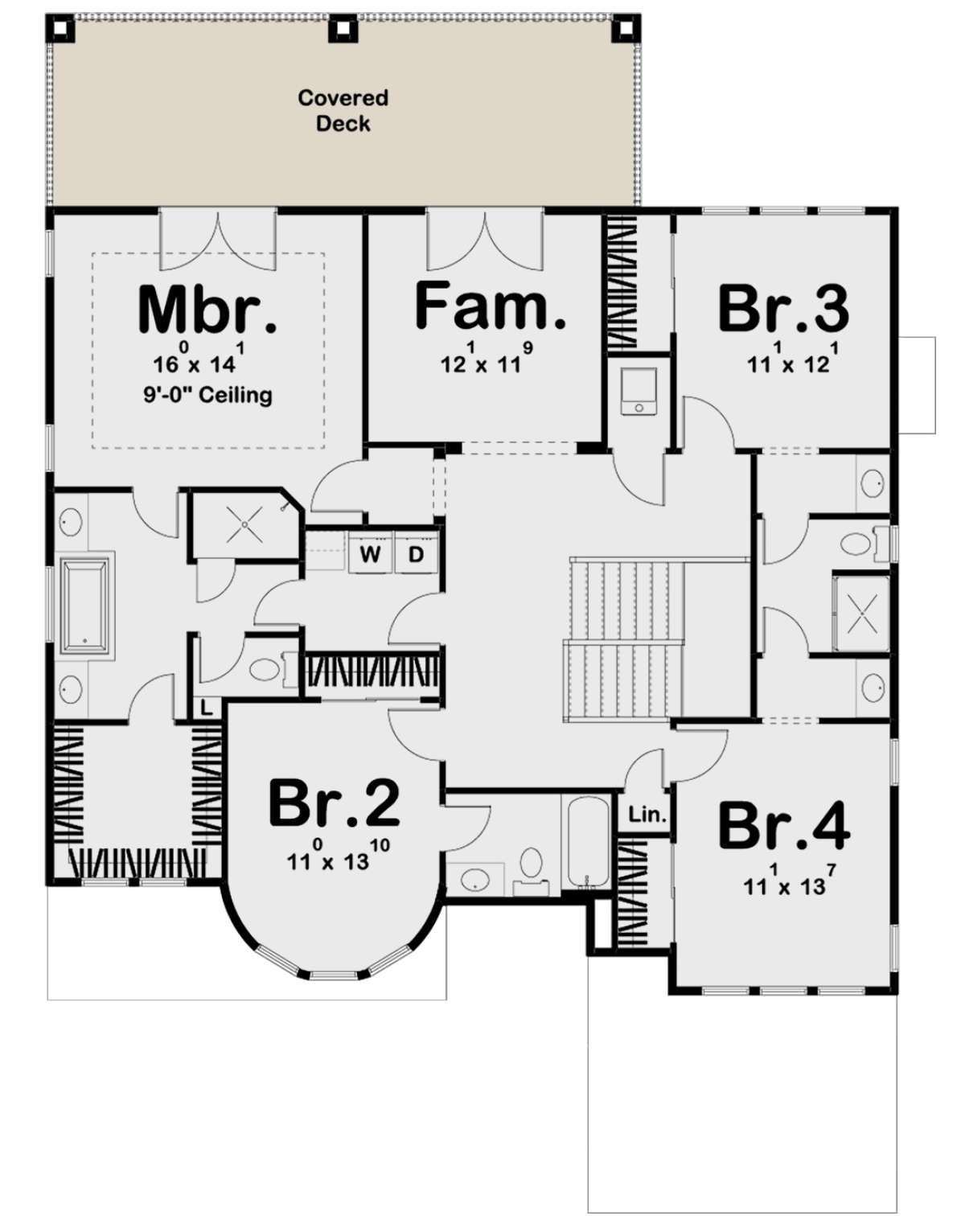

Second Floor
Second Floor for House Plan #963-00377

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

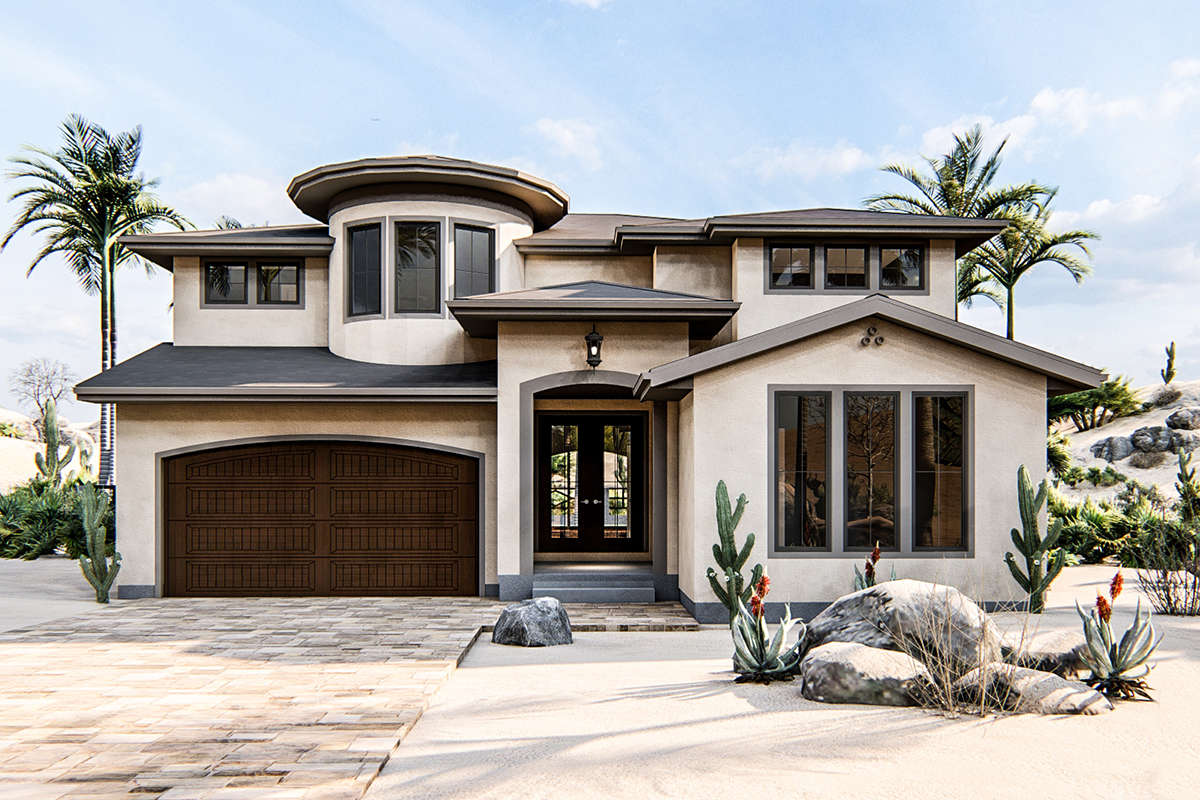

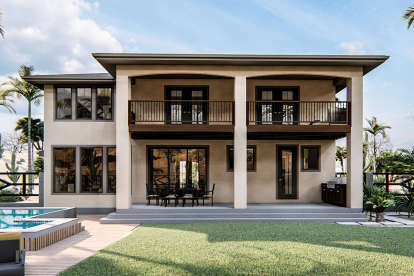

For those who love a stylish Mediterranean home design, this two-story floor plan details a traditional interior layout with remarkable outdoor entertaining areas. Its exterior fancies a combination of stucco, a turret decked out with tall window panels, and hip roofs for an incredible Tuscan feel. The rear showcases a wonderful covered patio that includes an outdoor kitchen that is perfect for summer cookouts and barbecues by the pool. The two-car garage offers great vehicle space and opens to a convenient mudroom with bench, lockers, and a coat closet.

One step inside off the covered front porch and you'll feel right at home with this well thought out floorplan. From the front entry, you will find a lovely formal living room with a fireplace, full bathroom, and access to the guest bedroom. This area is excellent for extra indoor entertaining or private guest living. The great room hosts an open floor plan with a central dining area between the kitchen and the great room. The centrally located fireplace sets as a focal point for each room, while the kitchen details a center island and a corner walk-in pantry and half bathroom.

On the second floor, houses the main bedrooms for a family of four. The master suite is a homeowner’s dream with dual vanities, a shower, an enclosed toilet area, a large walk-in closet, and access to the laundry area. Bedrooms #3 and #4 share a Hollywood Jack and Jill bathroom, while bedroom #2 enjoys its own en suite. The family room and master bedroom feature access to the covered deck that is spacious enough for plenty of outdoor seating.
