Craftsman House Plan 9401-00096

Sq Ft2,504
1/2 Baths1
Width87' 0"
Depth77' 2"

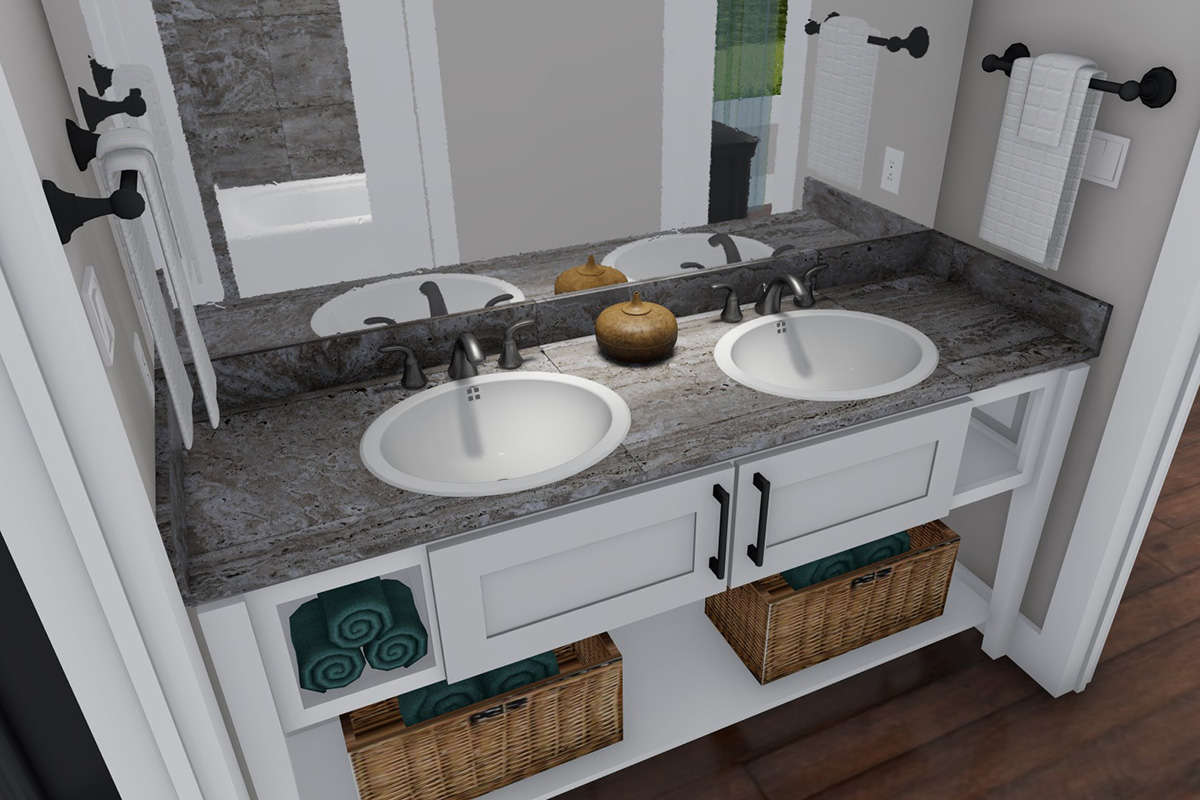

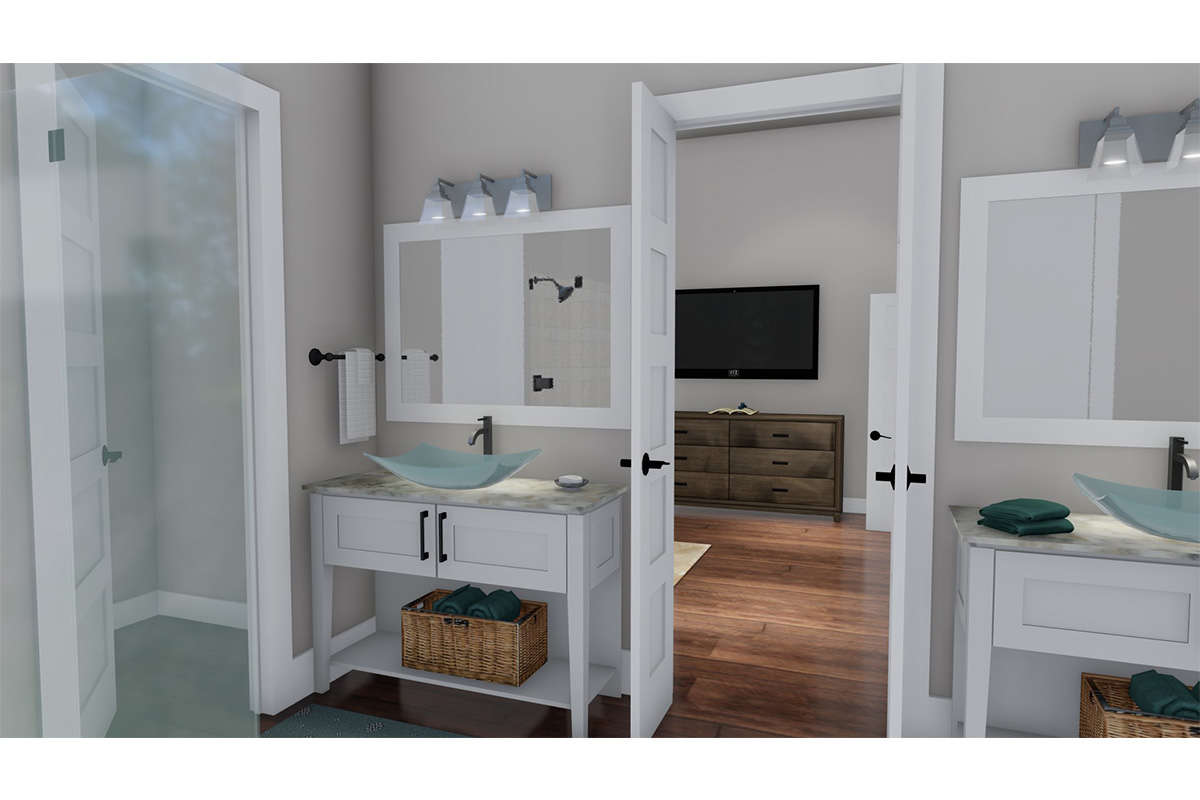

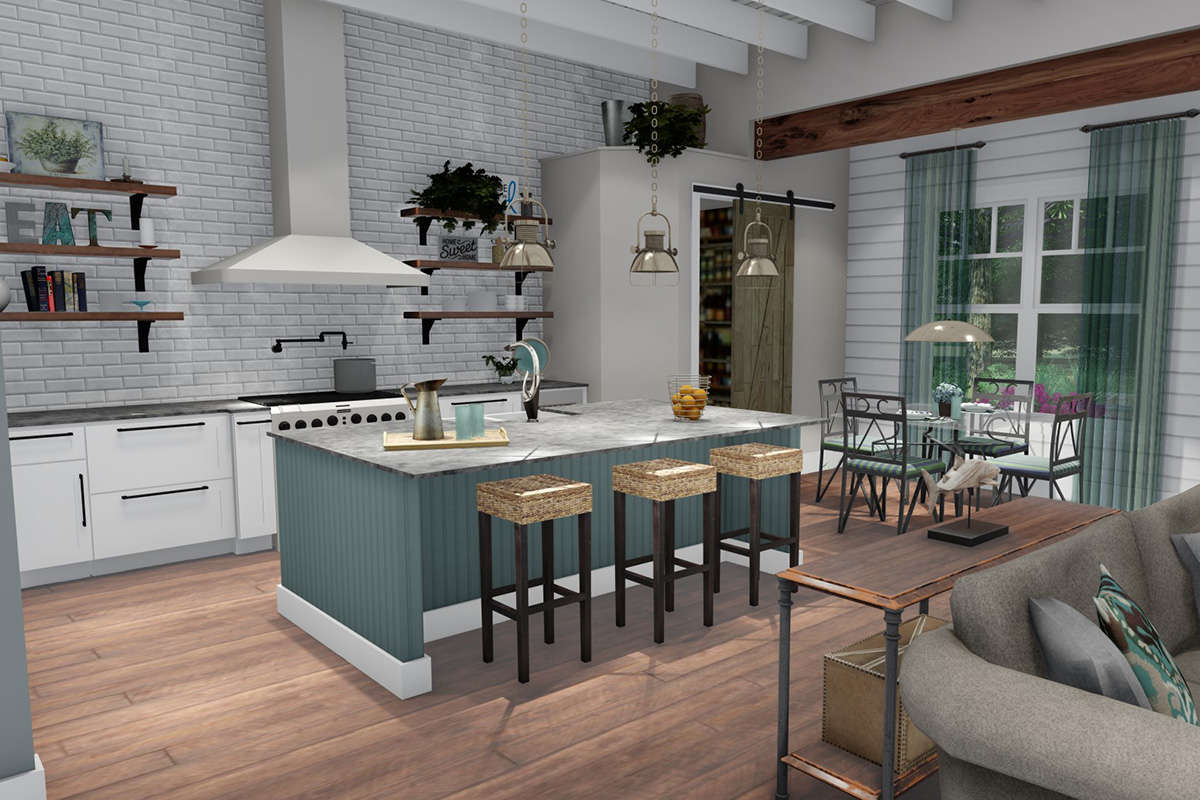

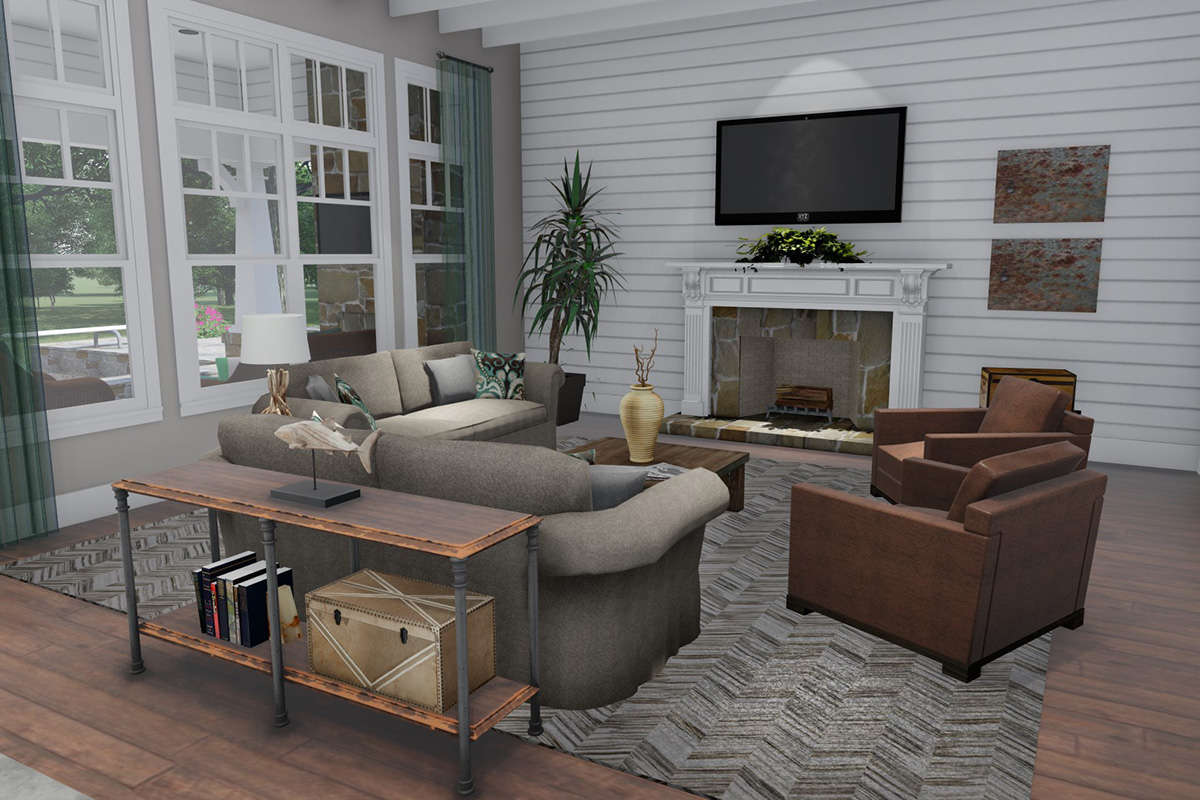

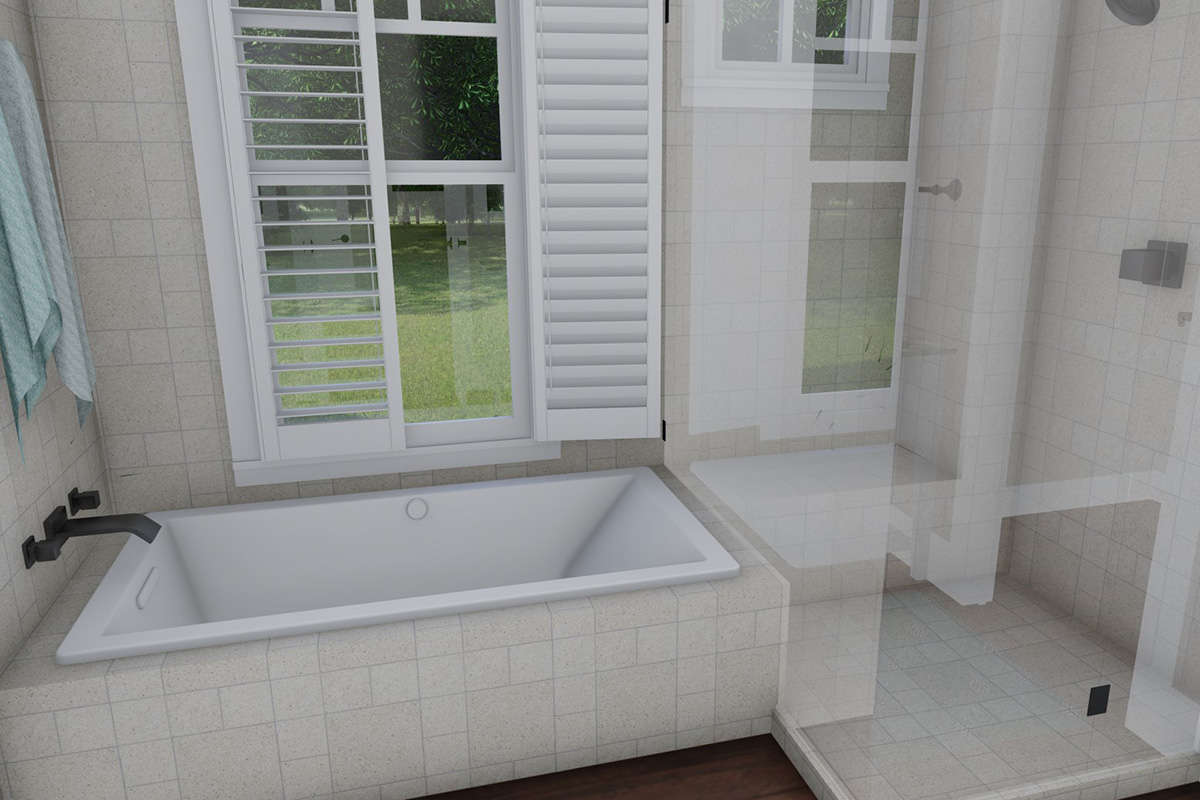

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

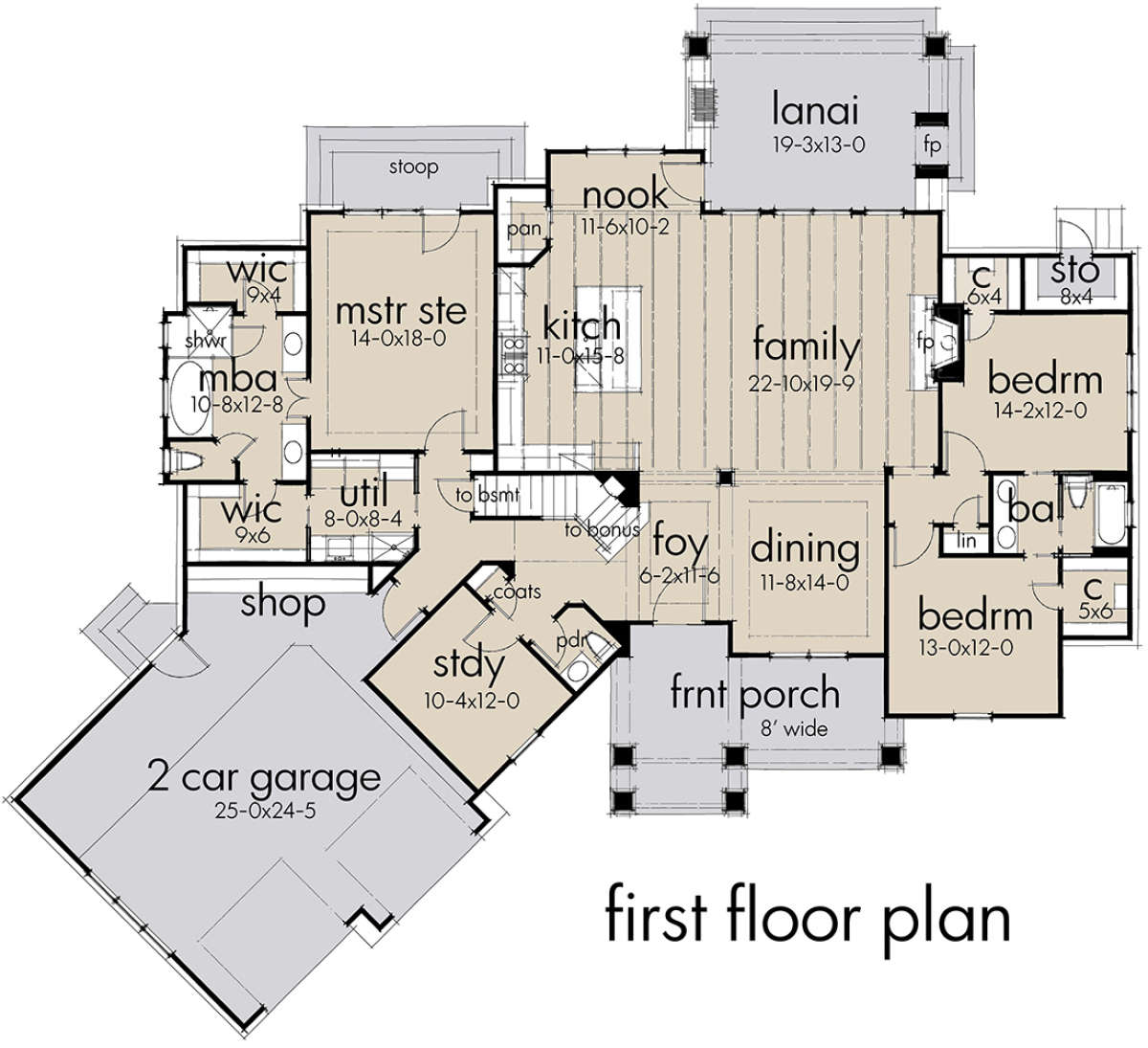

Main Level for House Plan #9401-00096
Bonus Room for House Plan #9401-00096

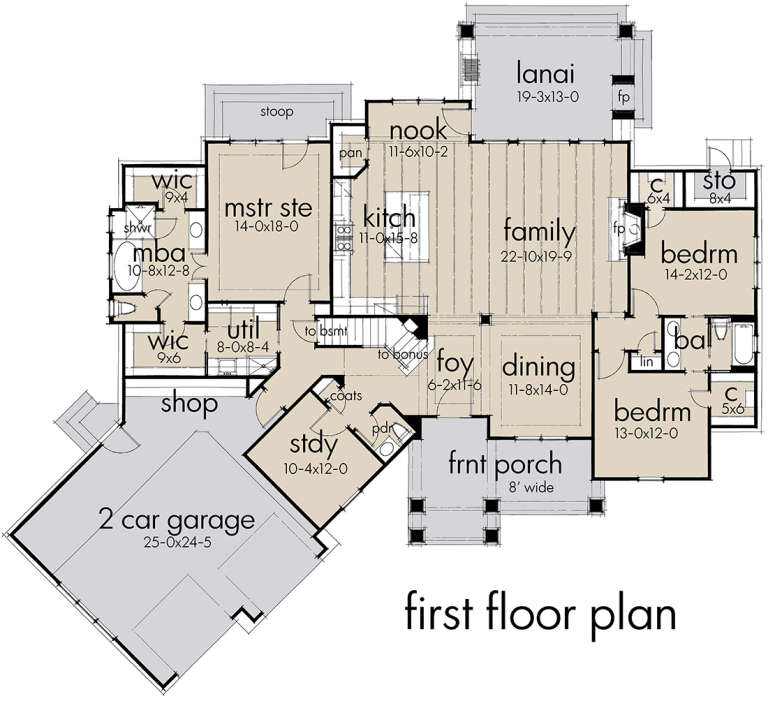

Main Level
Main Level for House Plan #9401-00096

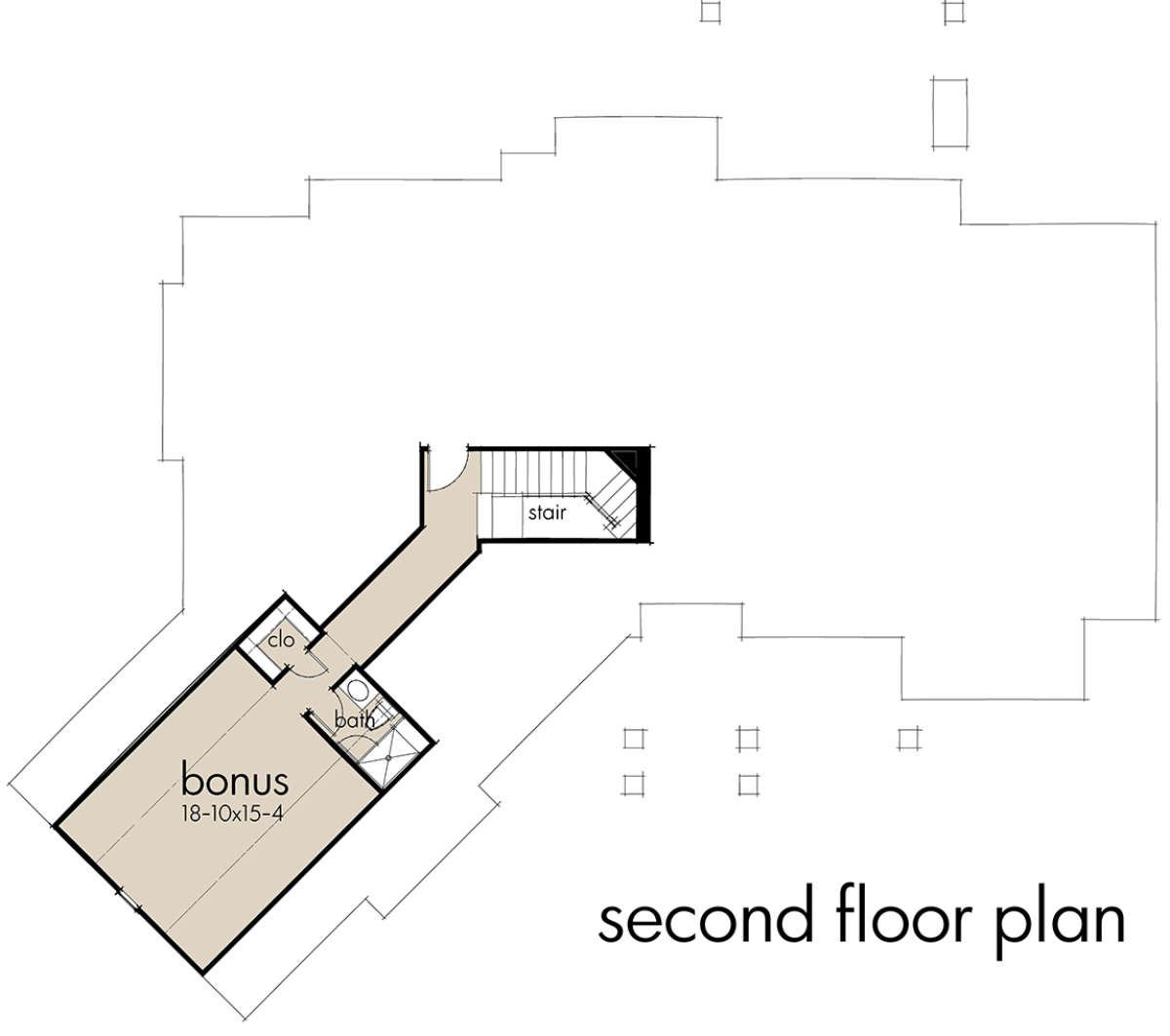

Bonus Room
Bonus Room for House Plan #9401-00096

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

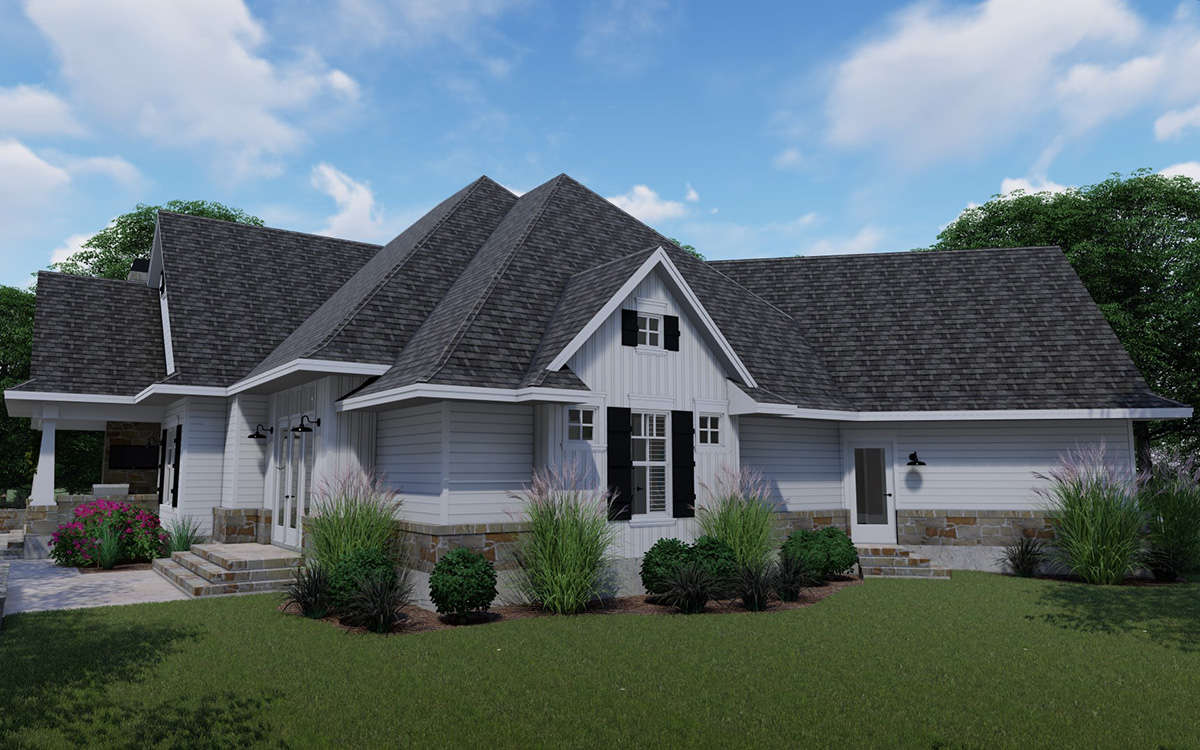

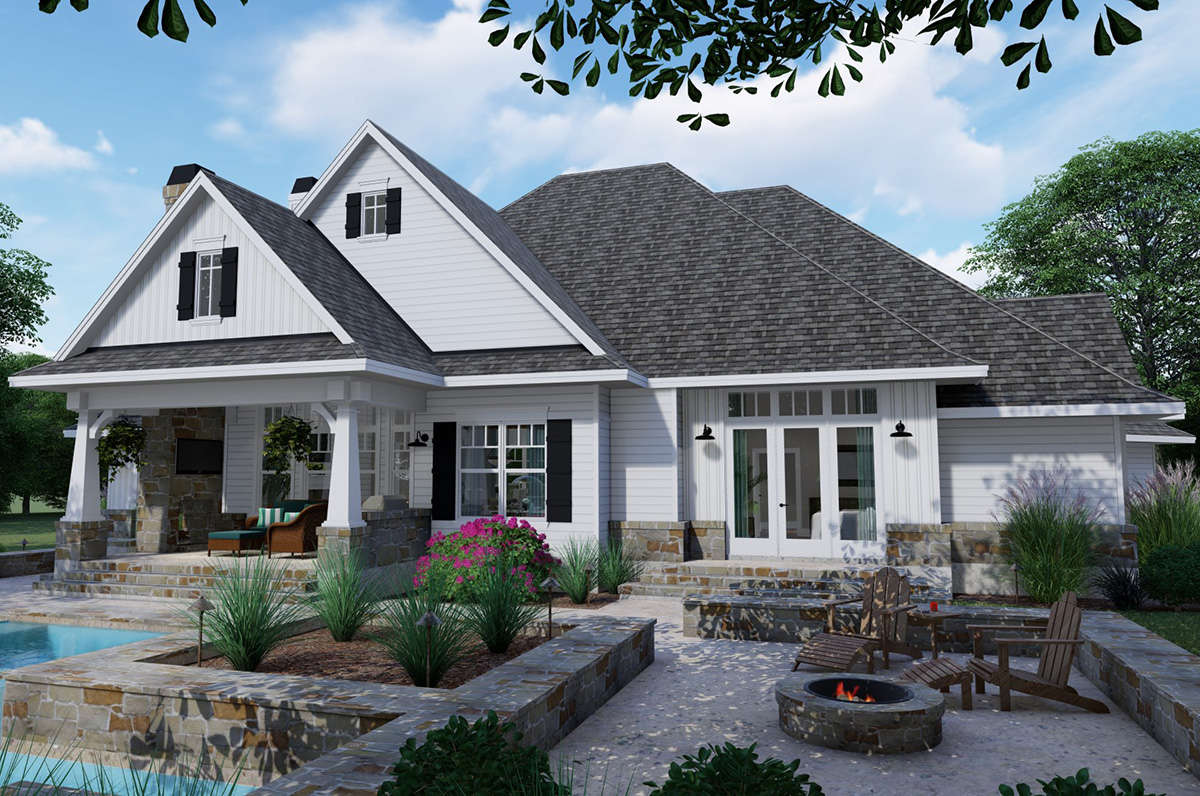

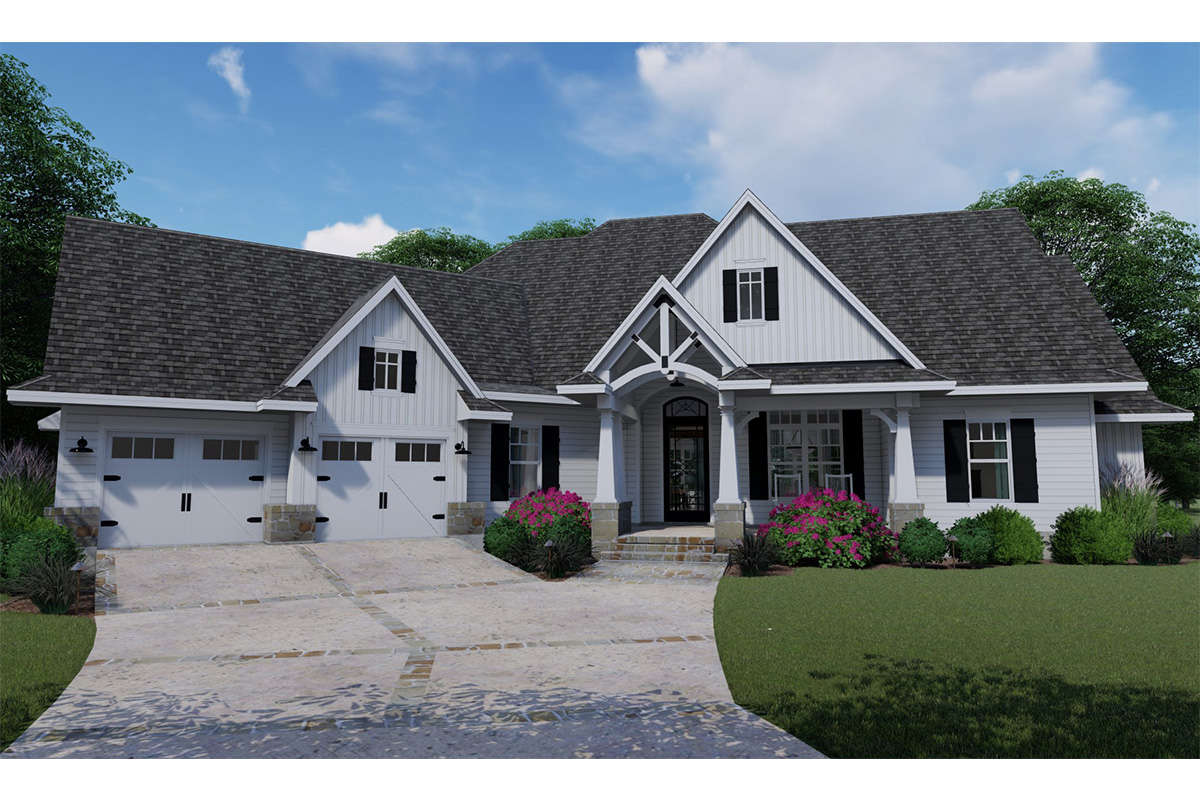

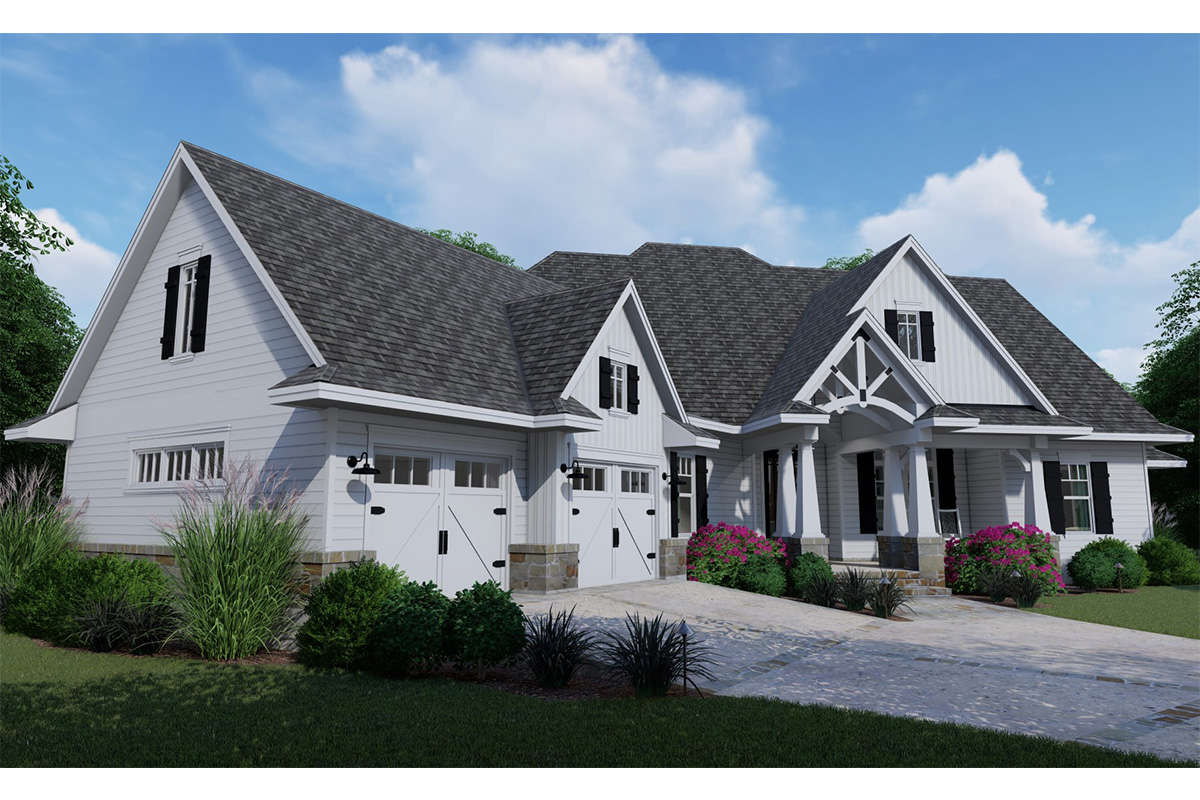

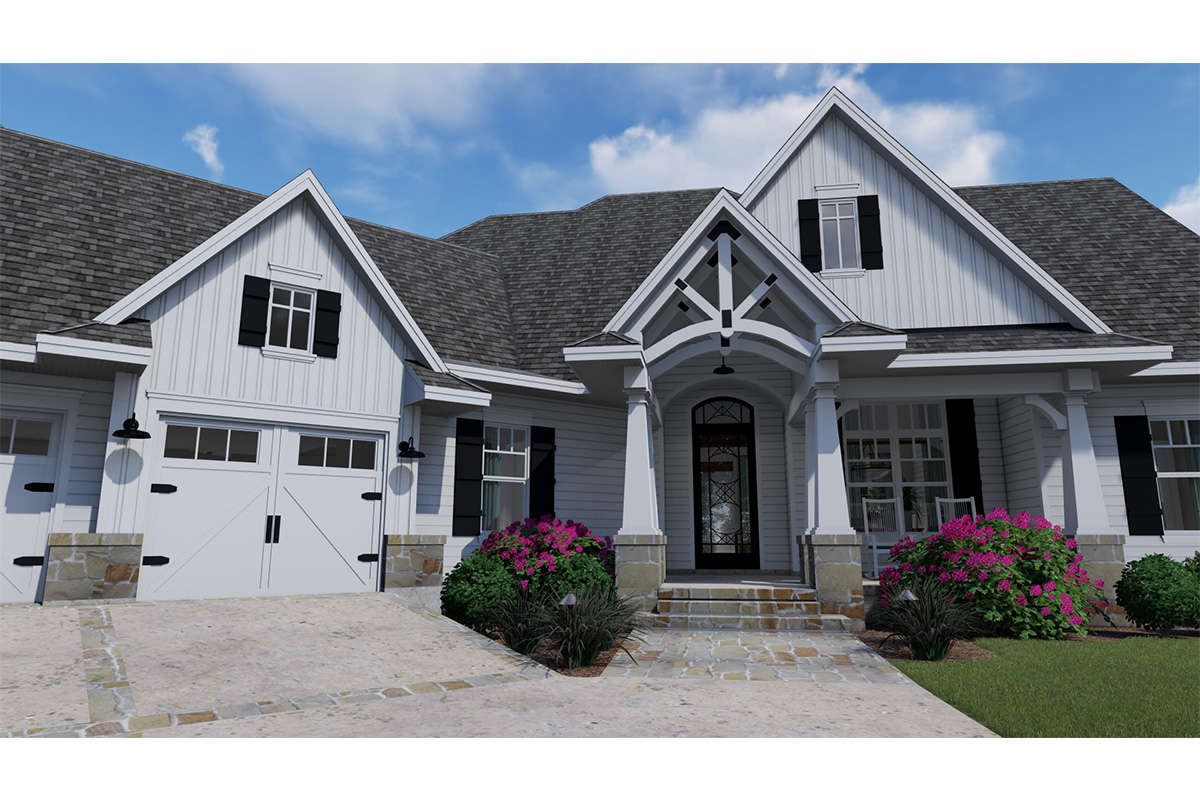

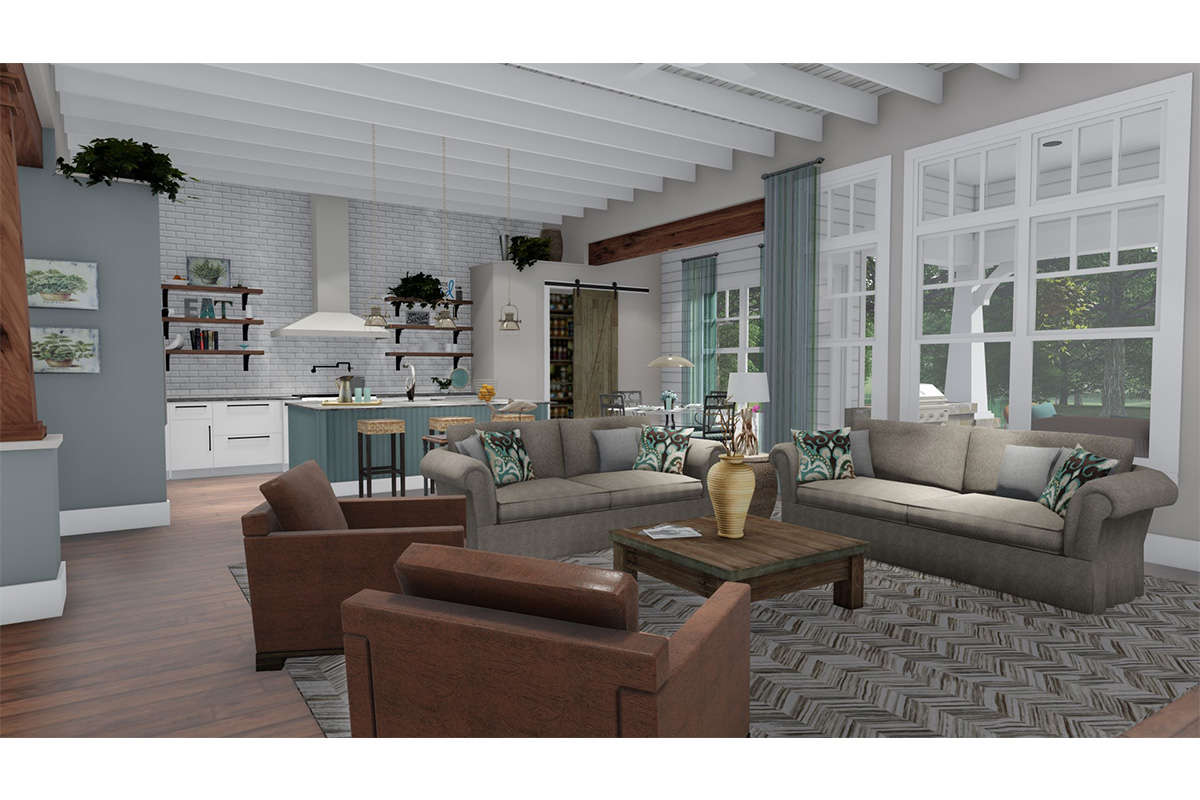

This Craftsman charmer features a lovely exterior and an equally striking interior floor plan. The home’s facade is highlighted with a series of light and airy elements designed to soothe the senses and calm the daily chaos of life. This exterior showcases decorative board and batten gables, compelling barn hinges highlighting the garage and beautiful window views. The extended front covered porch features a barrel vaulted overhead decorative gable, stone pillars and substantial tapered beams. This outdoor space is both practical and inviting; a great spot for relaxing and/or greeting family and friends before entering the home’s interior. The angled two car garage features a rear workshop with lots of space for car repair, hobbies or a spot to store “toys” and/or tools. There is also a rear pedestrian door for convenience and a entry/exit point for easy access in and out of the space. Approximately 2,504 square feet of living space houses three bedrooms, two plus baths and an open concept layout. An additional 605 square feet of living space is found overhead in the bonus room; this space allows for the configuration of numerous rooms for family enjoyment. There could be an additional bedroom, bath and closet, a multi-purpose family room for casual relaxing, a movie theater or an artist’s studio added to the home’s livable square footage. The main floor features a large open floor plan; the front foyer opens onto the adjacent dining room where there is a trey ceiling, a columned beam and double window views overlooking the front covered porch extension. Beyond the dining space and foyer is the family room, kitchen and breakfast nook. The family room features generous floor space, a handsome fireplace and a nice series of rear window views that overlook the rear lanai. The lanai is beautiful outdoor space designed for the comfort and pleasure of family and friends who gather there and offers plenty of space and a warming fireplace for those chilly mornings and evening. Back inside, is the breakfast nook which also offers views of the lanai and backyard; both the nook and family room open onto the grand kitchen which is highlighted with a large center island, a separate pantry and considerable counter and cabinet space. The staircase is located behind the kitchen as well as a comfortably sized study, a coat closet and a guest powder room with the family laundry room situated nearby. The split bedroom plan features two secondary bedrooms situated on one side of the home; each is nicely sized and both have window views and walk-in closets. The jack and jill bath features double sinks and a separate room for the toilet and tub/shower combination and there is a linen closet located in the hallway. The master suite is located on the other side of the home where there is a large master bedroom with a trey ceiling, great window views and access onto a private porch. His and hers walk-in closets flank the master bath and offer plenty of space for the storage of clothes and other personal items. The master bath is accessed through French doors from the bedroom and features dual vanities, a private water closet, a separate shower and a garden tub. This lovely Craftsman home is highlighted with simple yet elegant exterior construction, a practical and functional floor plan and generous outdoor space for relaxing and entertaining.
