Craftsman House Plan 9401-00093

Sq Ft2,662
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars3
Width98' 3"
Depth78' 7"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

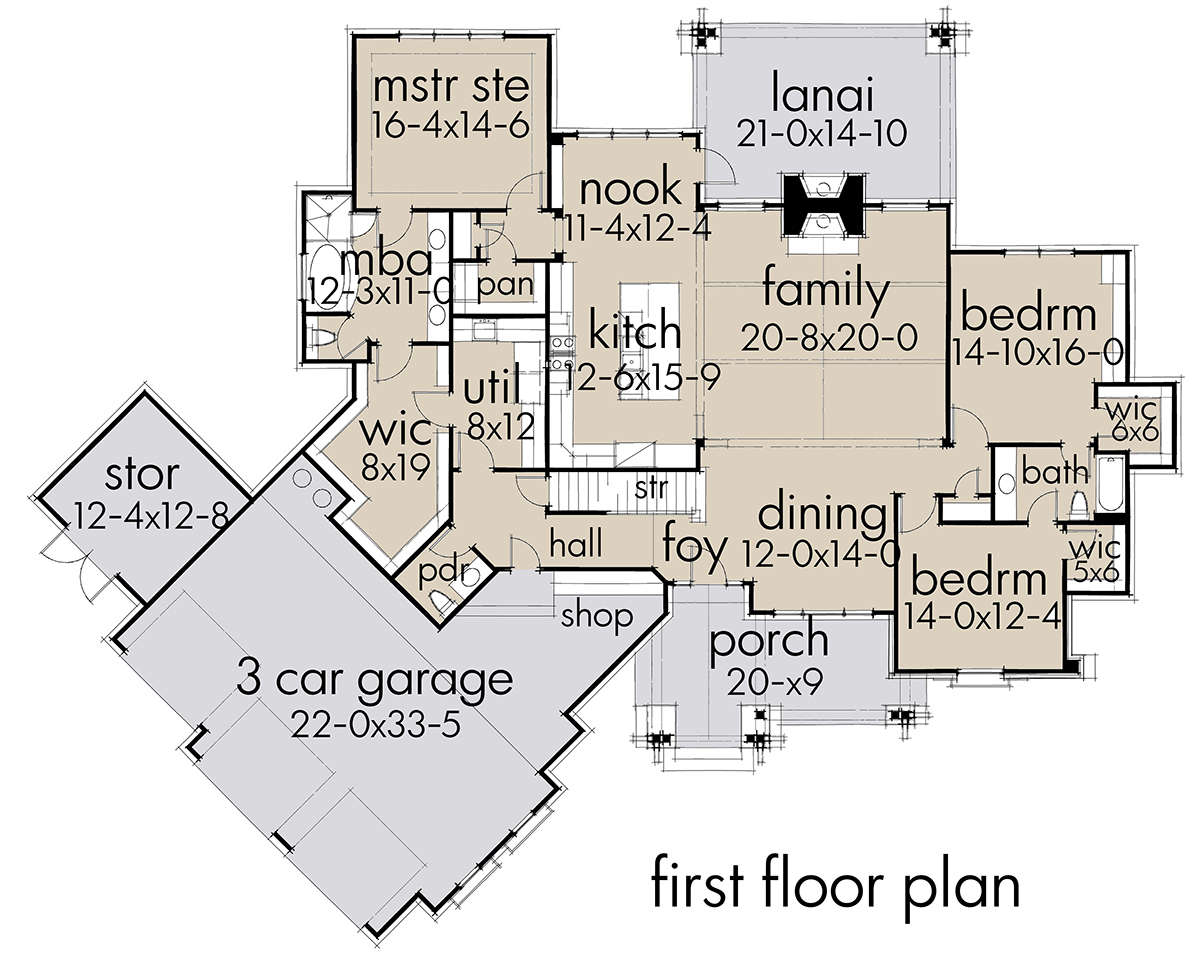

Floorplan 1 for House Plan #9401-00093

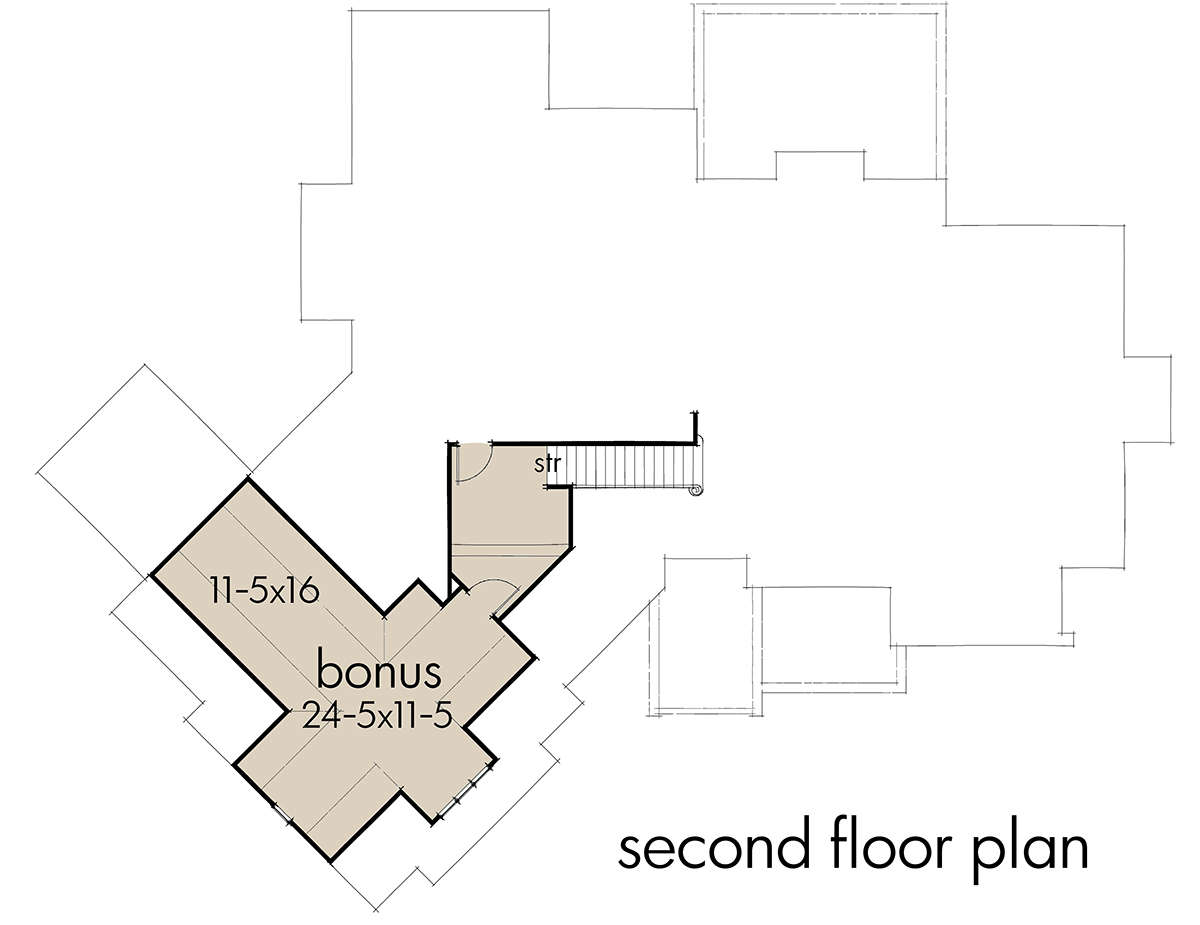

Floorplan 2 for House Plan #9401-00093
Floorplan 1
Floorplan 1 for House Plan #9401-00093
Floorplan 2
Floorplan 2 for House Plan #9401-00093


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

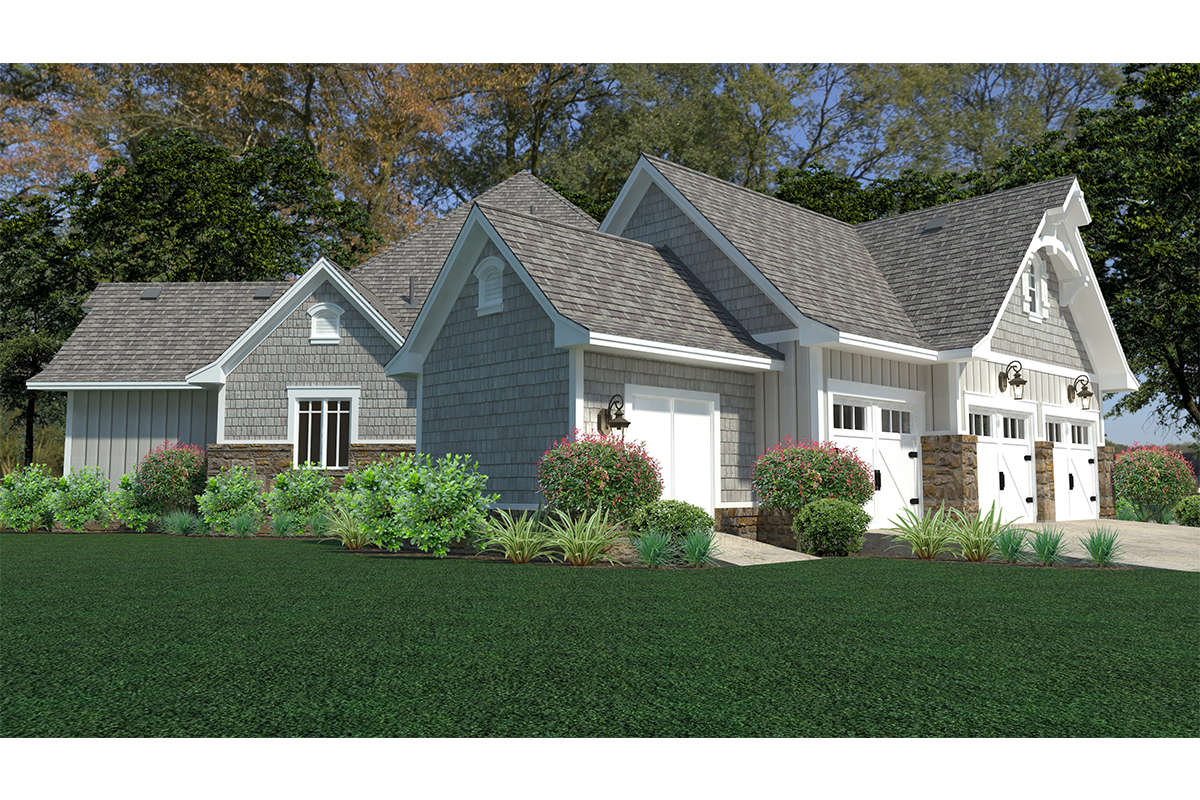

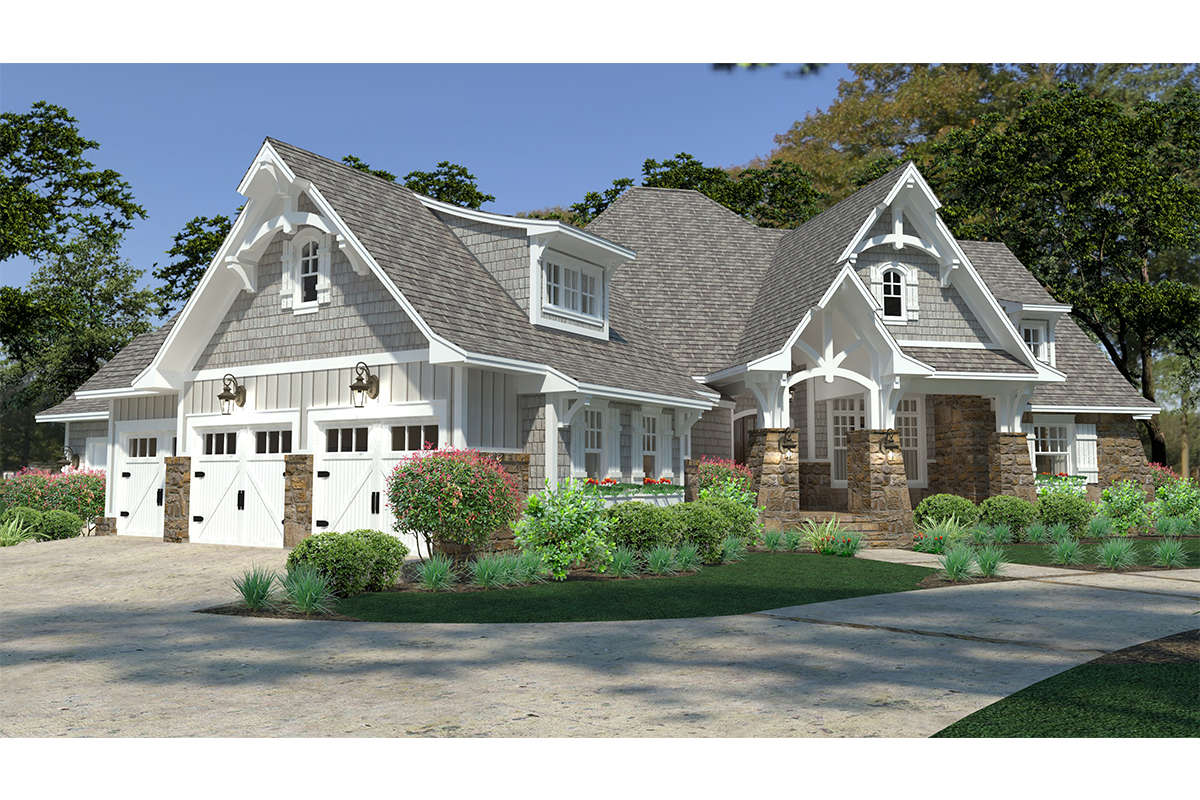

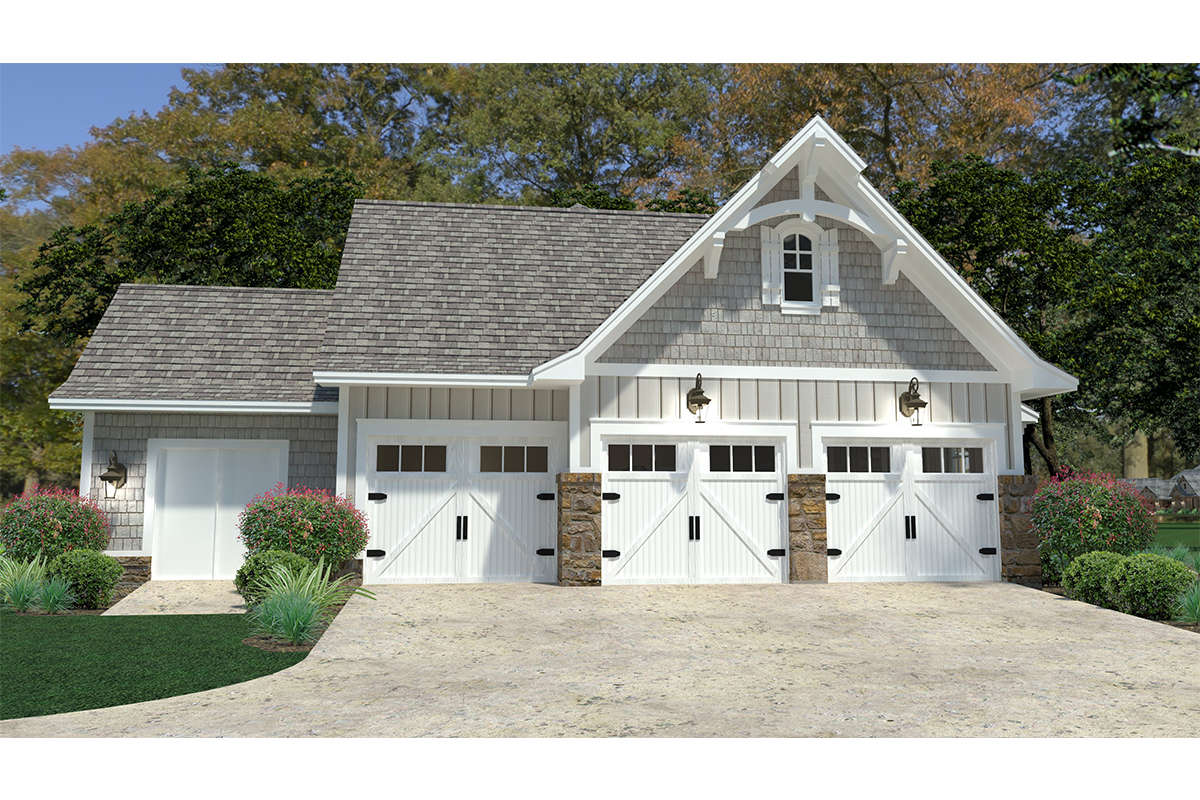

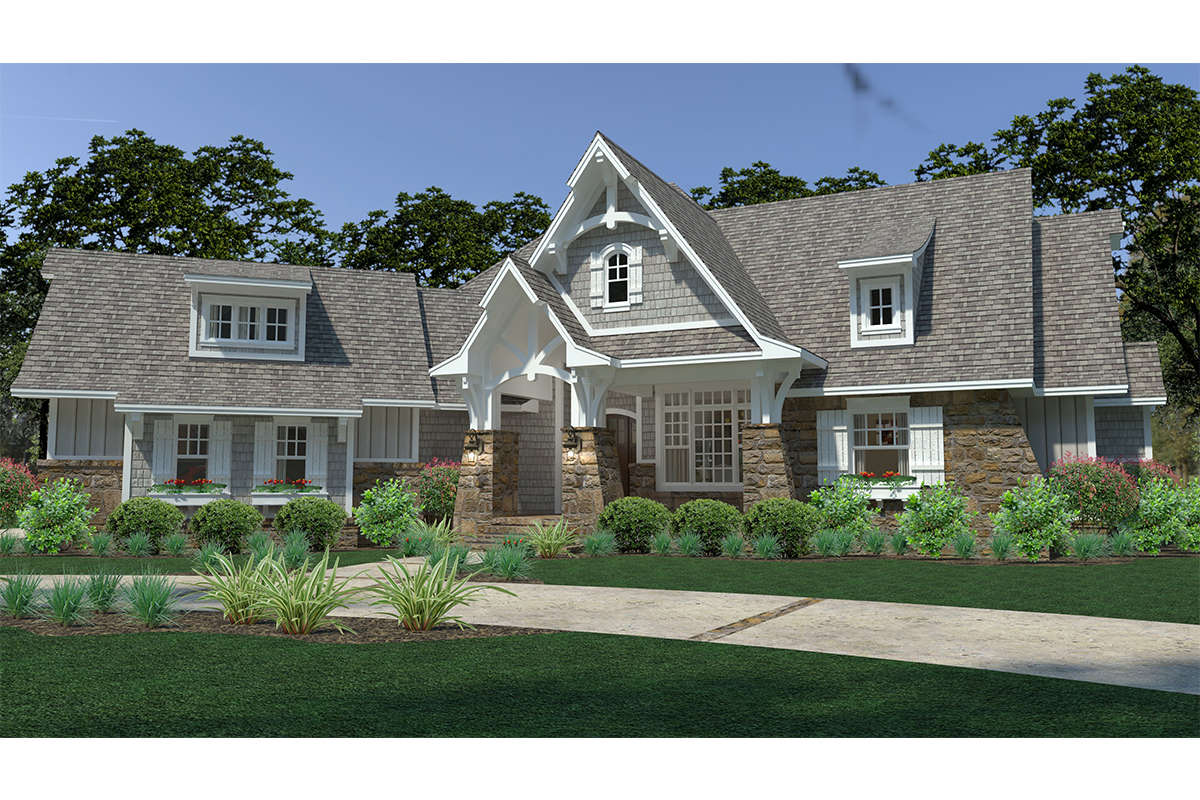

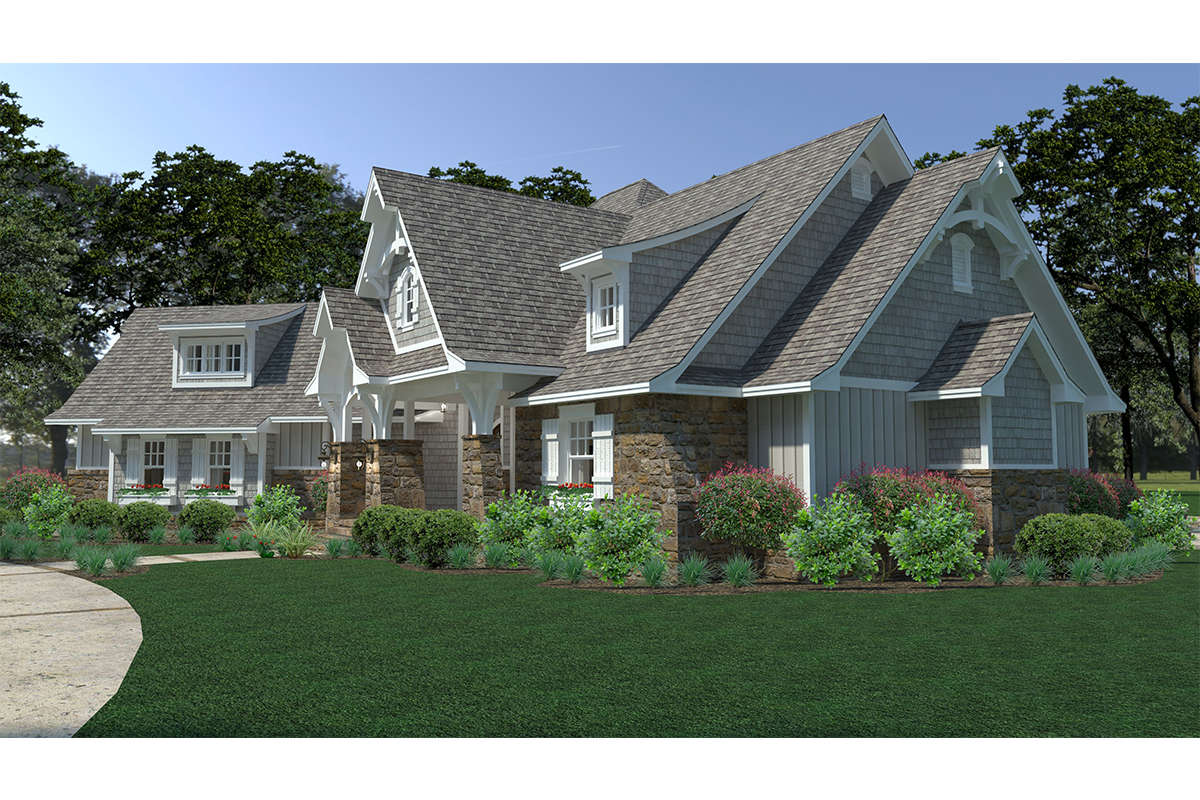

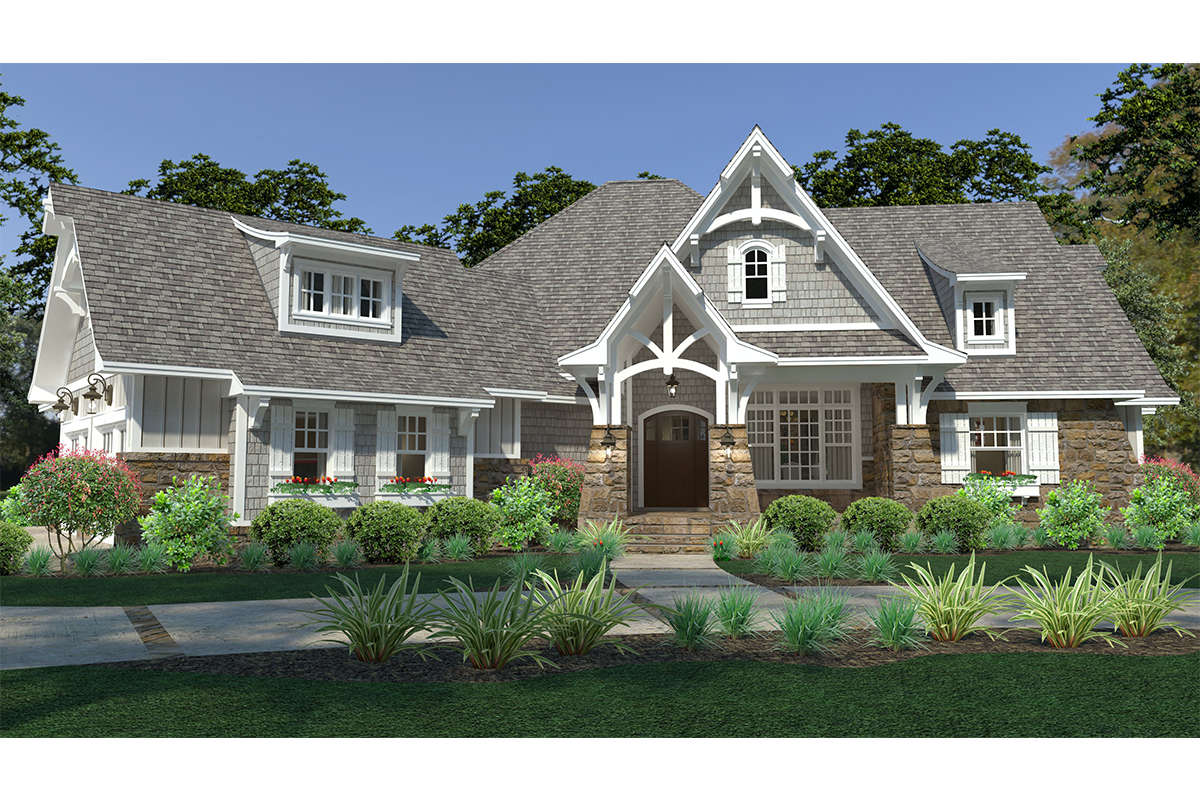

This extraordinary Craftsman house plan features an exterior that commands attention with its beautiful assortment of design elements. Stonework handsomely compliments the exterior along with board and batten, cedar shakes, and overhead window with dormer sheds. The front covered porch and nearby gable are beautifully detailed with decorative wood trim; there is a picturesque window view overlooking the front porch and the stonework and stacked beams add charm and character to the entrance. The expanded porch features plenty of space for relaxing and/or greeting family and friends before entering the home’s interior. The attached garage is no “plain jane” version; the exterior beautifully matches the remainder of the home with its use of stonework, board and batten, cedar shakes and decorative ironwork. The garage is a side entry and features three bays, a huge rear workshop area and there is a separate exterior storage room with French door access.

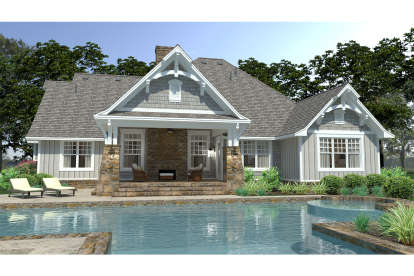

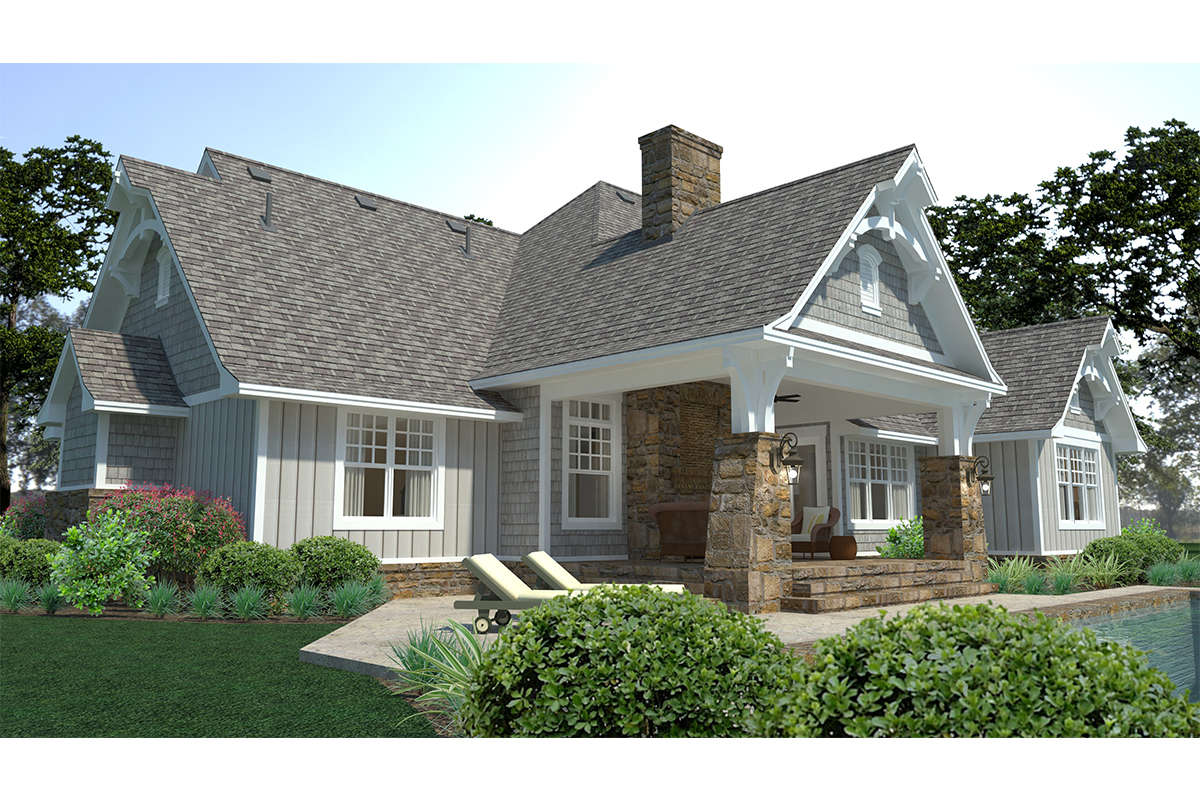

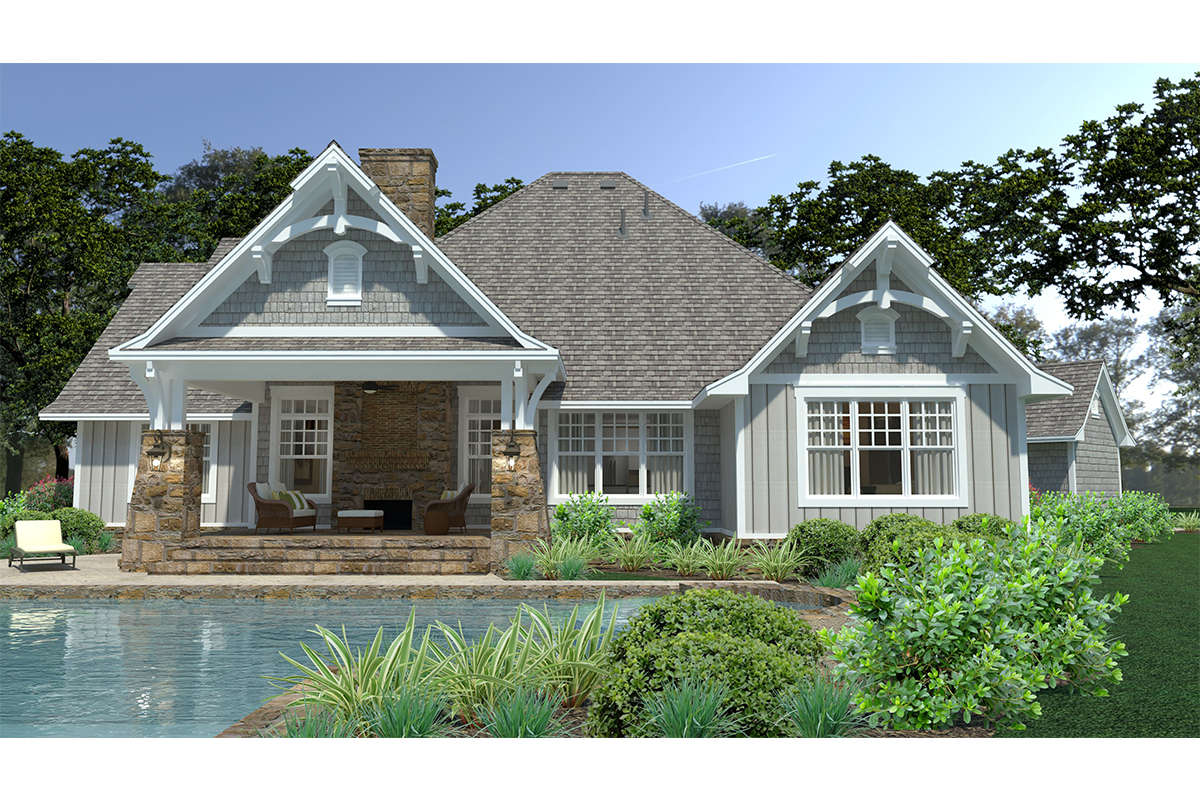

The small interior hallway nearby holds the second story staircase, the powder room, and the large utility room. The interior floor plan offers approximately 2,662 square feet of living space with three bedrooms and two plus bathrooms. This 1.5 storied home design also features an overhead bonus room with an additional 650 square feet of living space, perfect for a fourth bedroom, a playroom for young children, or a homework station for older children. There is an open floor plan on the main level that includes a foyer entrance and a formal dining room with gorgeous overviews onto the front porch. The centrally located family room is large and there is a rear wall fireplace flanked by picturesque window views overlooking the covered lanai. Entrance onto the lanai is off the casual dining nook which is airy and bright for family meals and the adjacent kitchen is open to the nook and family room. The grand kitchen is highlighted with an enormous center island, abundant counter and cabinet space and around the corner is a walk-in food storage pantry.

The split bedroom plan features two secondary bedrooms on one side of the home; both are generously sized with walk-in closets and window views. A Jack and Jill bathroom offers an extended vanity, a toilet area, and a tub/shower combination. The master suite lies on the opposite side of the home and features a spacious master bedroom with rear triple window views and a tray ceiling. There is an elegant master bathroom with dual vanities, a private water closet, a garden tub, and a separate shower. A large master walk-in closet is situated beyond the bathroom for privacy and convenience. This beautiful Craftsman house plan features enormous curb appeal, great outdoor space and a family-friendly layout with a split bedroom plan.
