Bungalow House Plan 9401-00086

Sq Ft1,879
1/2 Baths0
Width78' 11"
Depth57' 11"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

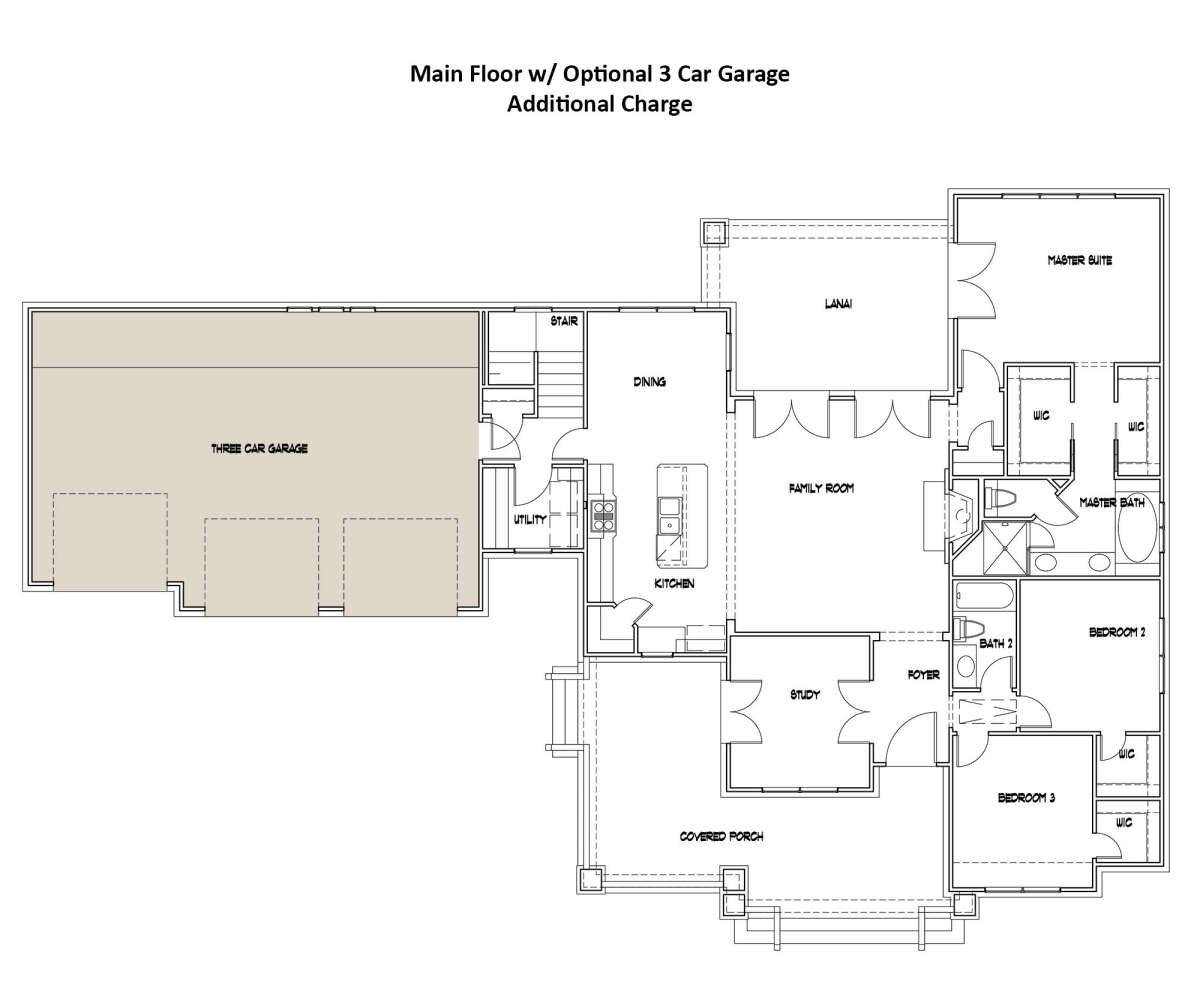

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

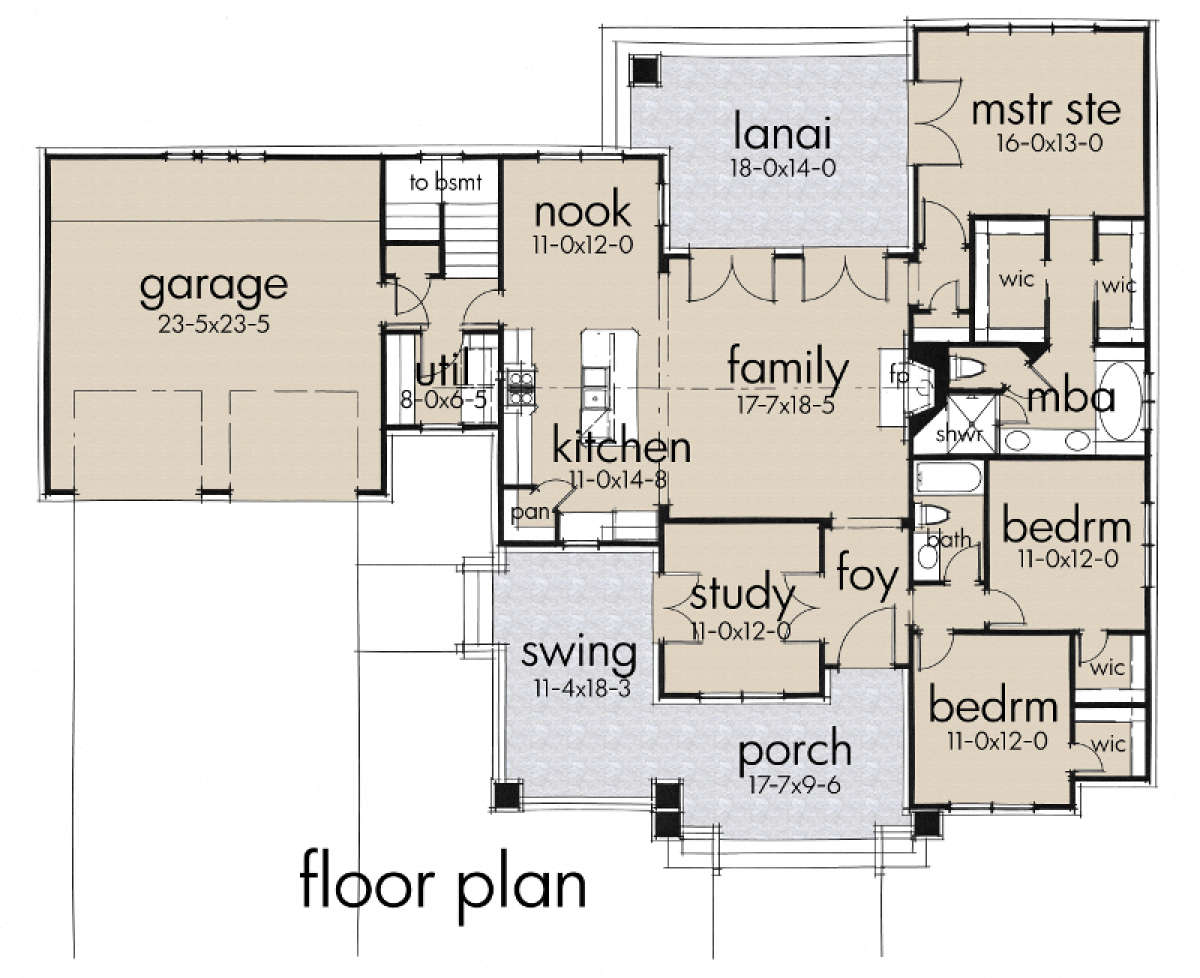

Floorplan 1 for House Plan #9401-00086
Floorplan 1
Floorplan 1 for House Plan #9401-00086

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)

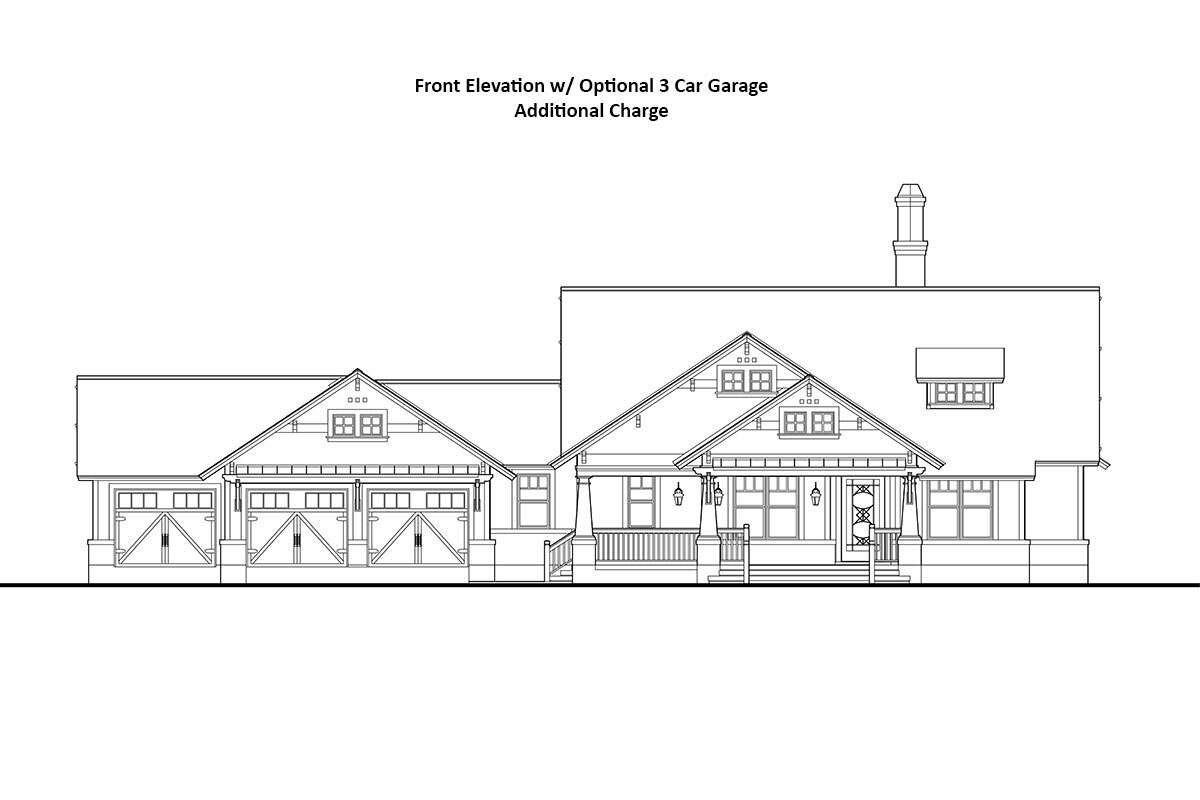

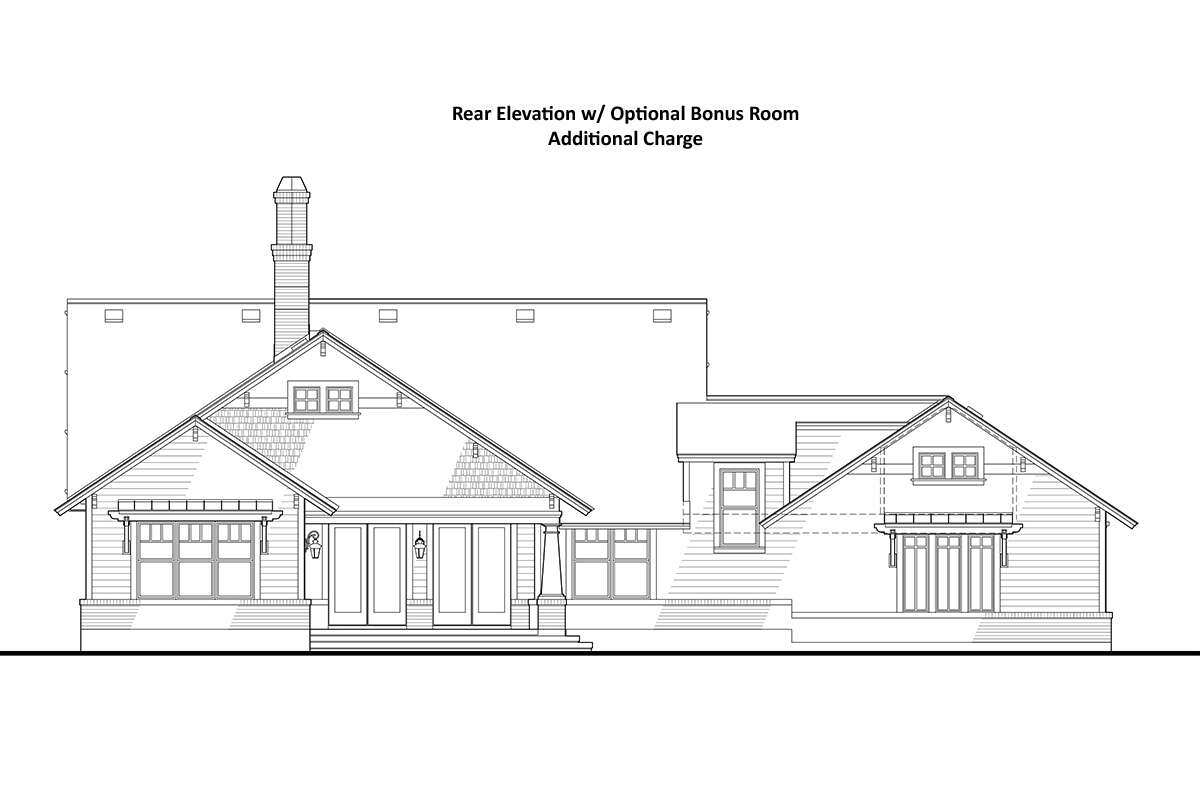

  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

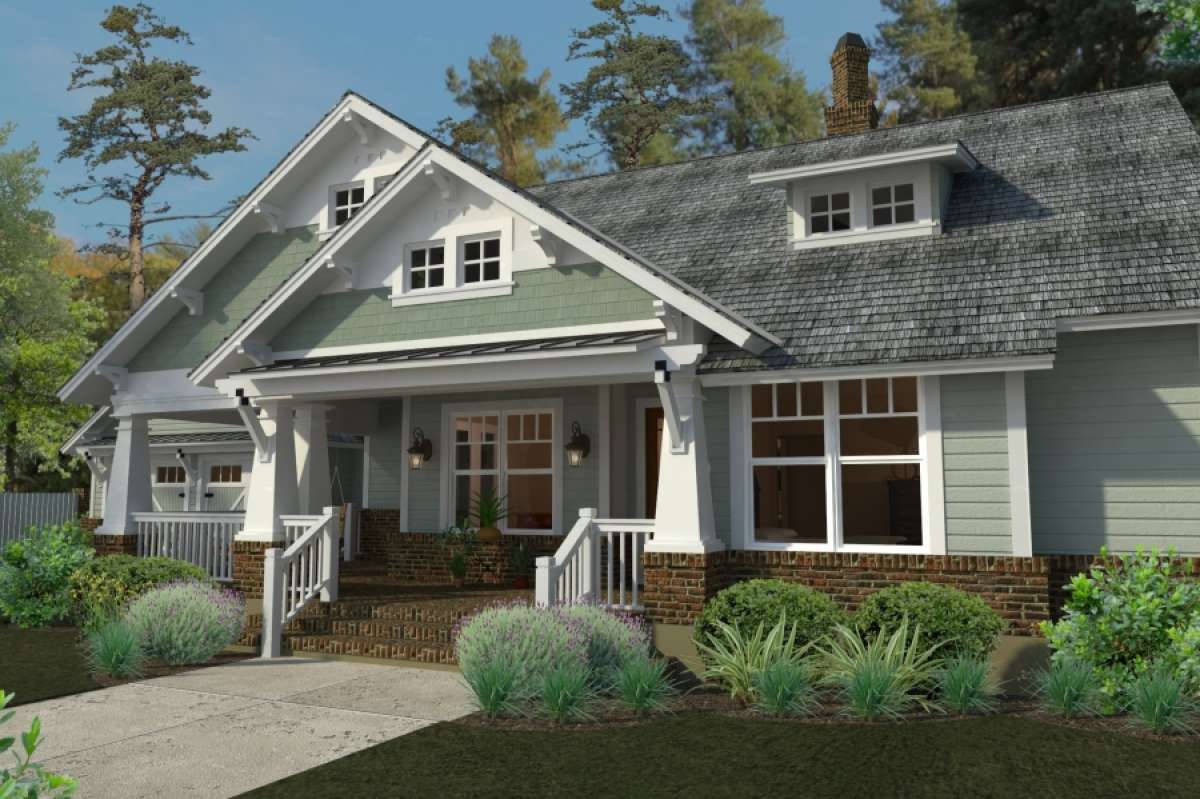

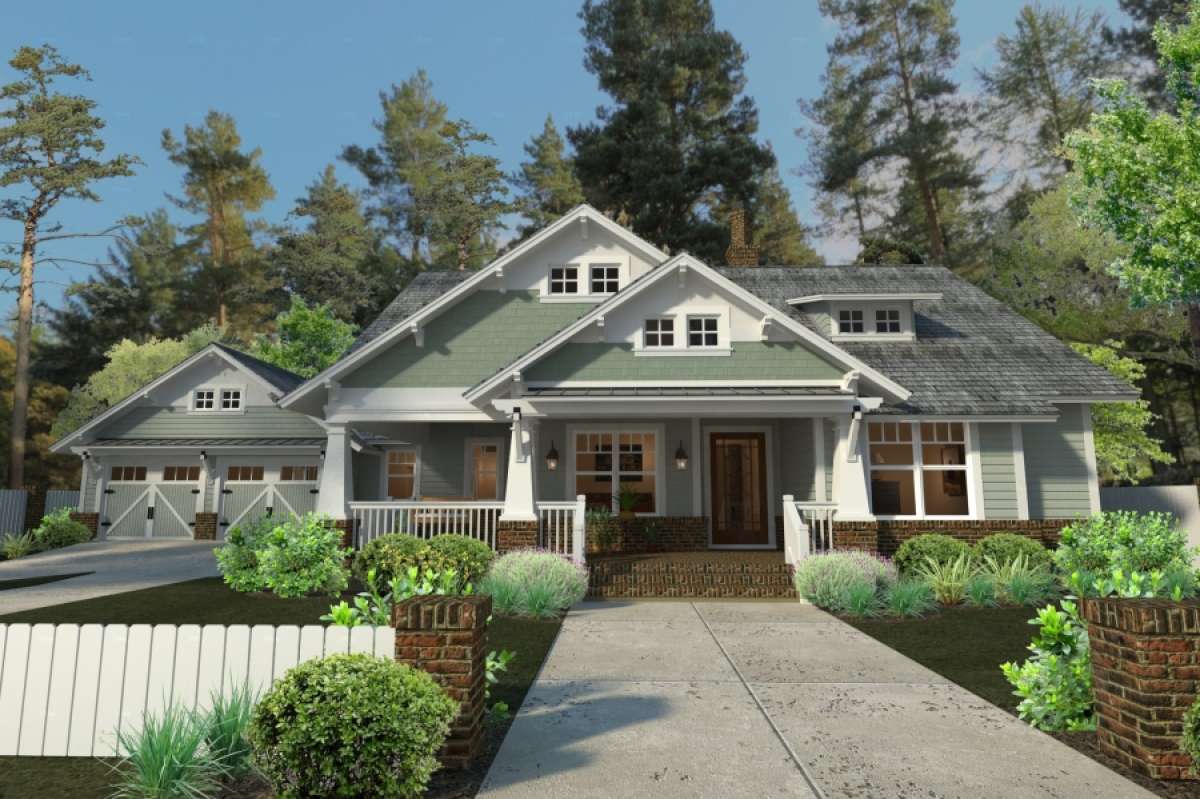

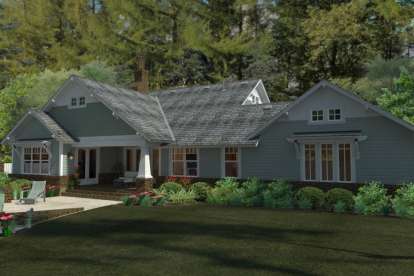

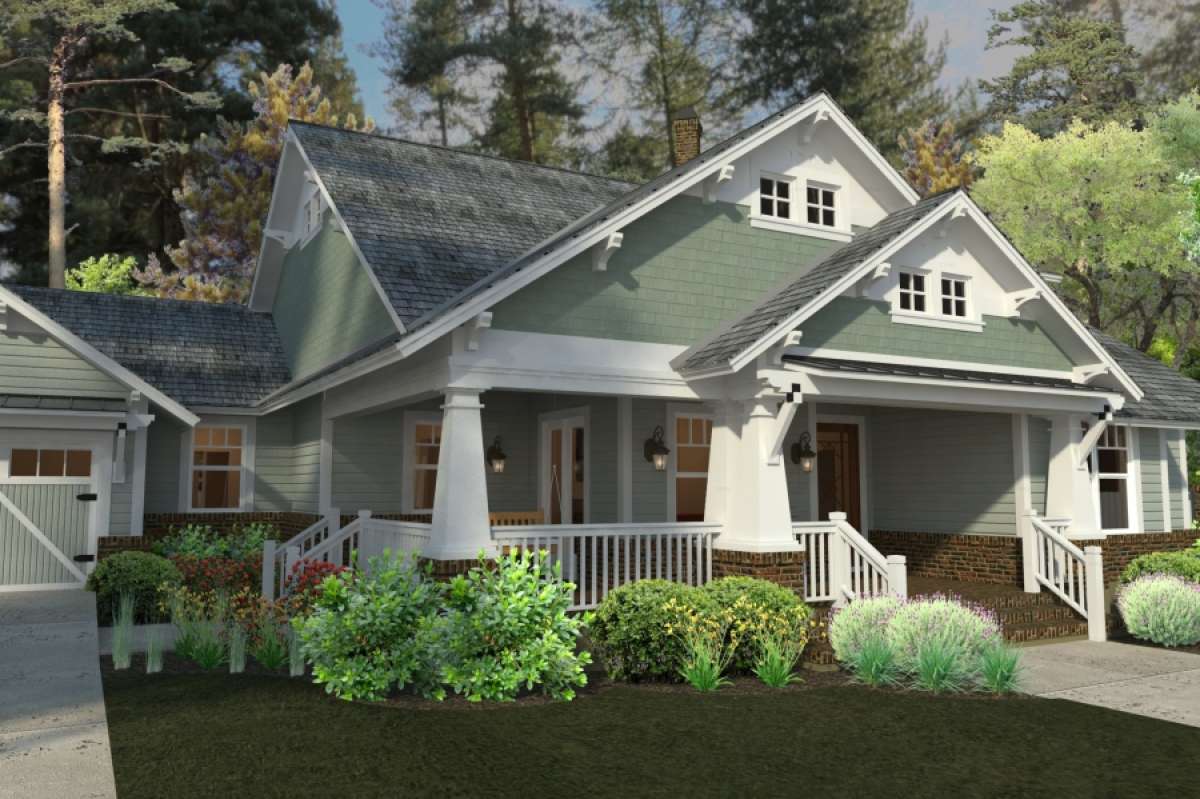

This Bungalow house plan features amazing attention to detail offering classic styling and a beckoning exterior façade. Window views and exposed rafters line the gables and are duplicated over the garage, a dormer shed sits atop the garage and the expansive front covered porch is highlighted with brick pillars, tapered beams, and open railing. This inviting space is ideal for relaxing and/or greeting family and friends into the home’s interior. There are approximately 1,879 square feet of usable living space within the home’s interior which incorporates three bedrooms and two bathrooms into the single-story home.

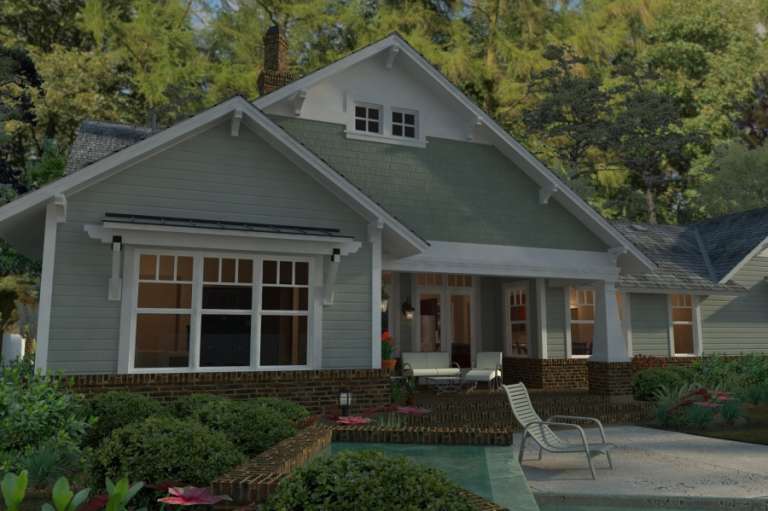

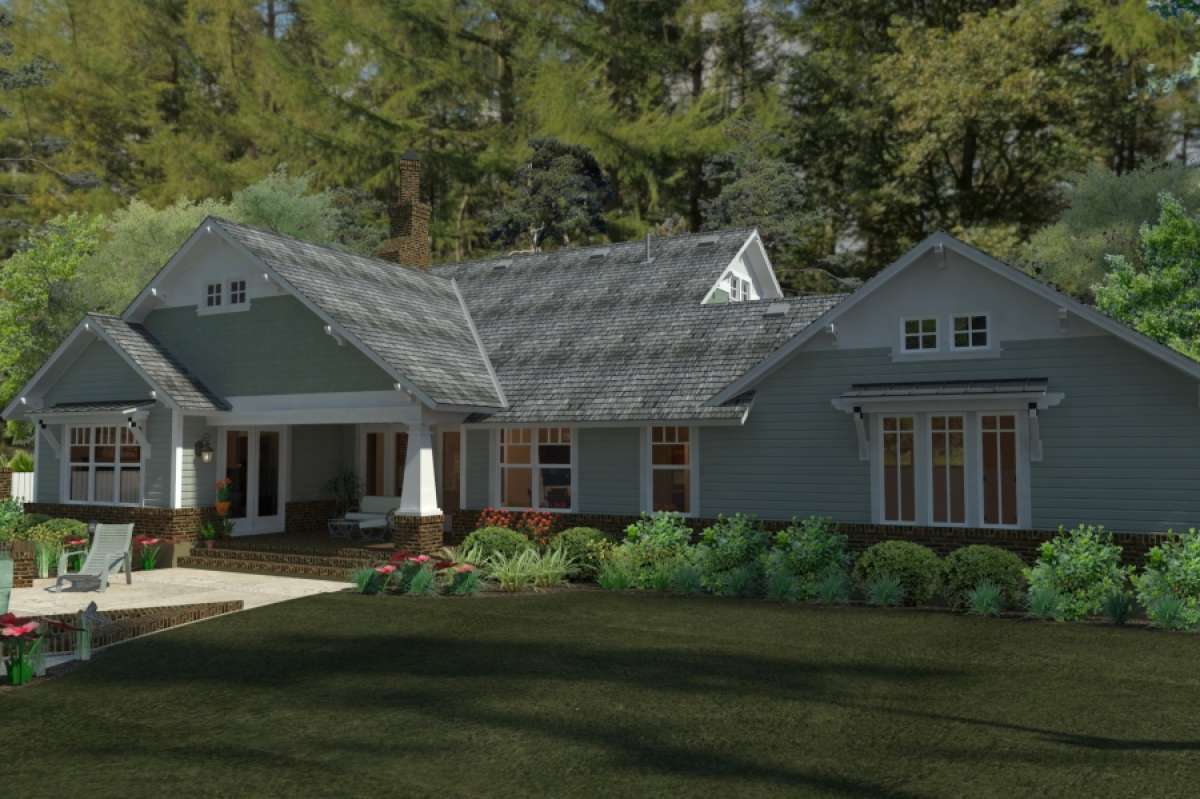

The front covered porch extends along the side of the home and offers a double entrance into the front study either through the foyer or side porch. Both entrances feature French door access into the study where sunlight floods the space and offers a bright and airy room in which to work, read or relax. Beyond the foyer is the family room where there is a warming fireplace and double French doors offering access onto the rear lanai. The lanai is an extension of the excellent indoor space offered in this home and can be accessed from the family room and the master suite. There is a grand kitchen and breakfast nook that is open to the family room. There is a huge center island with double sinks and plenty of work/prep space along with a breakfast bar for additional seating within the kitchen. There is a corner pantry and plentiful countertop and cabinet space as well. The breakfast nook features surrounding window views overlooking the lanai and rear yard for a sun-drenched space to enjoy family meals. The two car front loading garage features direct access into the family’s laundry room for convenience.

The three bedrooms are situated on one side of the home with the master suite positioned at the rear of the home for privacy. The master suite features private access onto the lanai through French doors and a triple wall of windows supplies additional sunlight. There are his and her walk-in closets lining the hallway before accessing the master bathroom. The en suite is highlighted with elegant detailing and provides dual vanities, a separate shower, and a garden tub. The remaining two bedrooms are equivalently sized and each features a walk-in closet and double window views. Both bedrooms share a hall bathroom with a tub/shower combination nearby. This amazing home features a host of indoor/outdoor spaces which provide a light-filled home and excellent entertaining and family relaxing space.
