Craftsman House Plan 9401-00029

Sq Ft2,487
1/2 Baths0
Width76' 3"
Depth73' 5"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

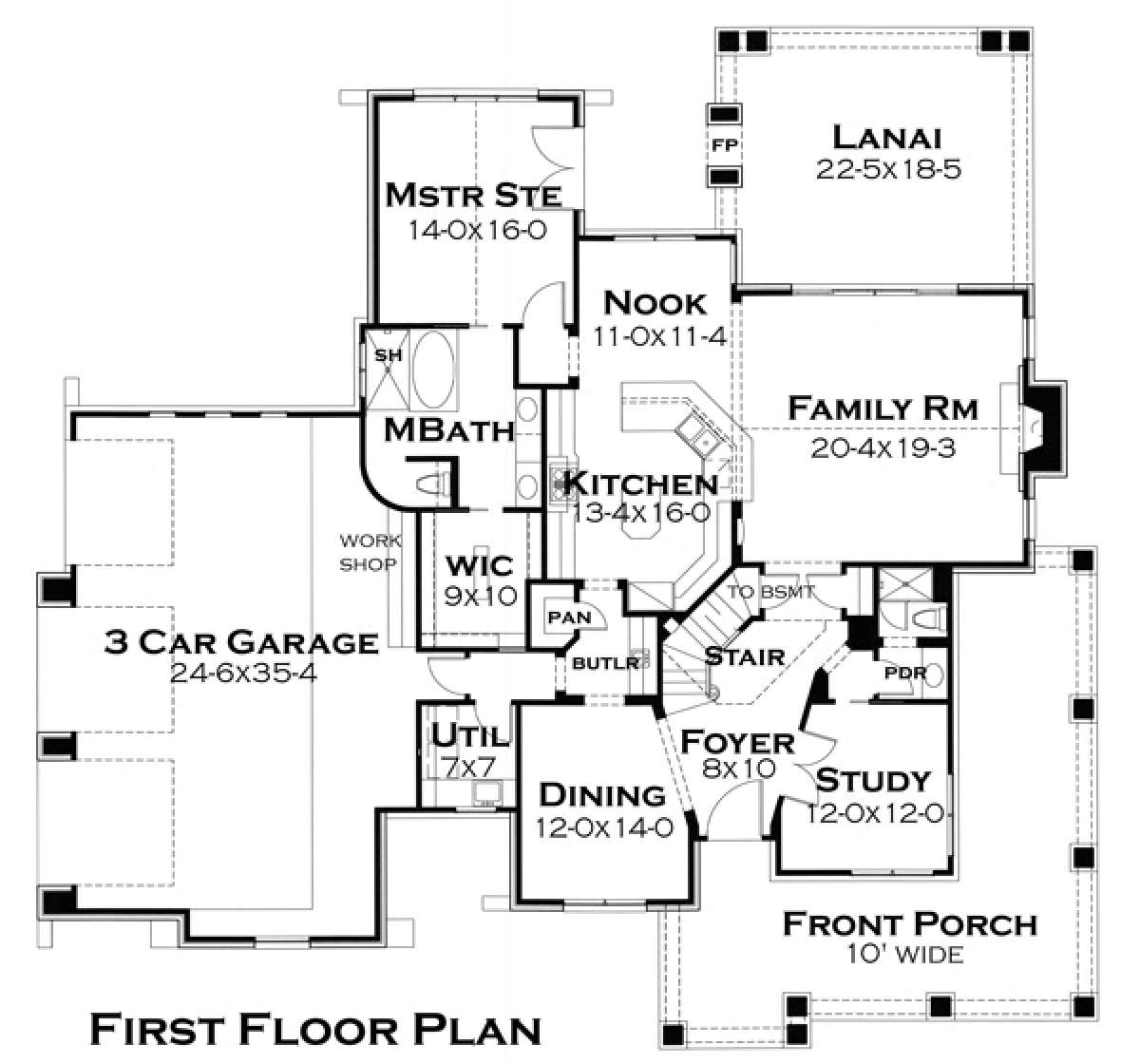

Main Floor for House Plan #9401-00029

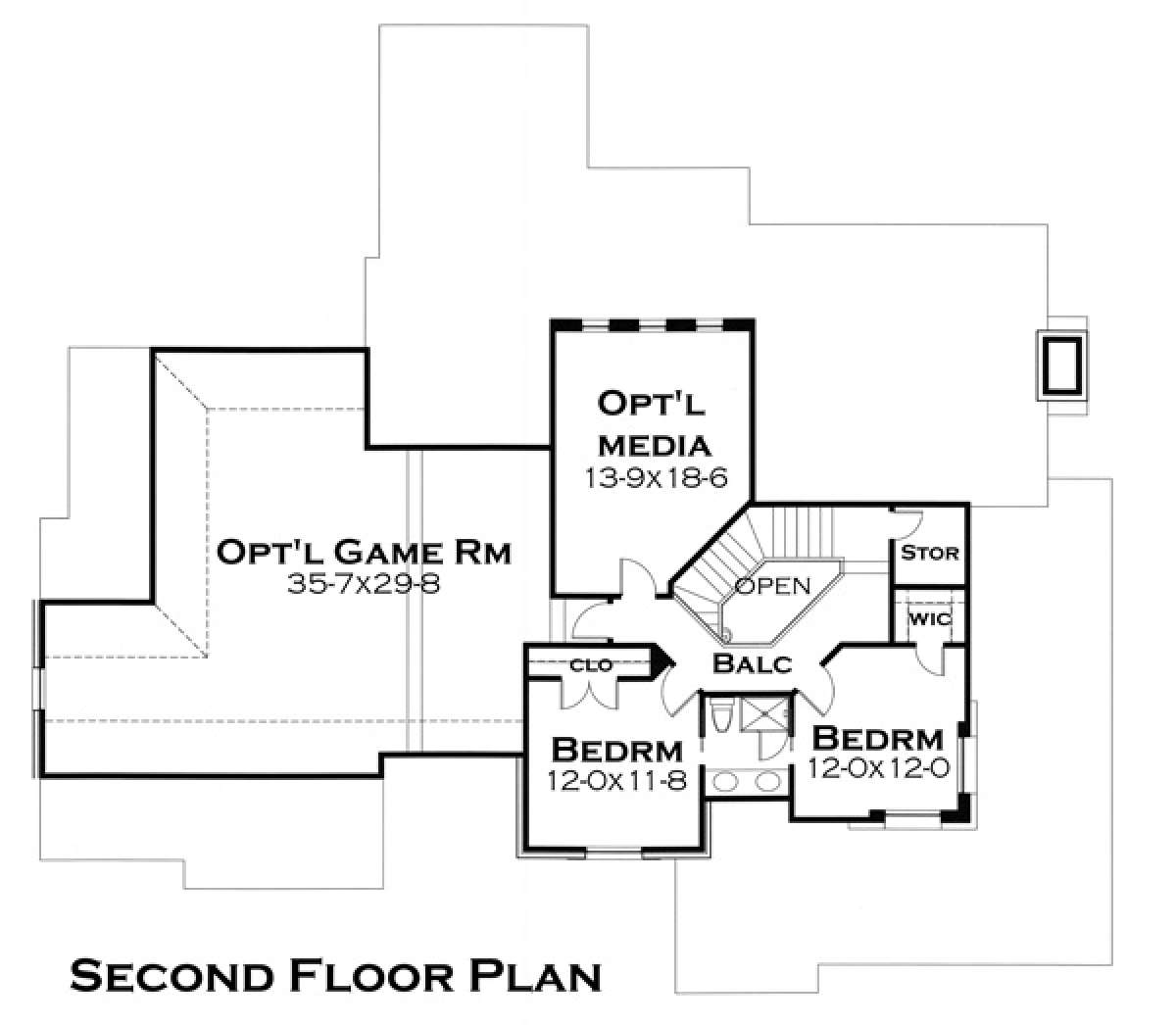

Second Floor for House Plan #9401-00029
Main Floor
Main Floor for House Plan #9401-00029
Second Floor
Second Floor for House Plan #9401-00029

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

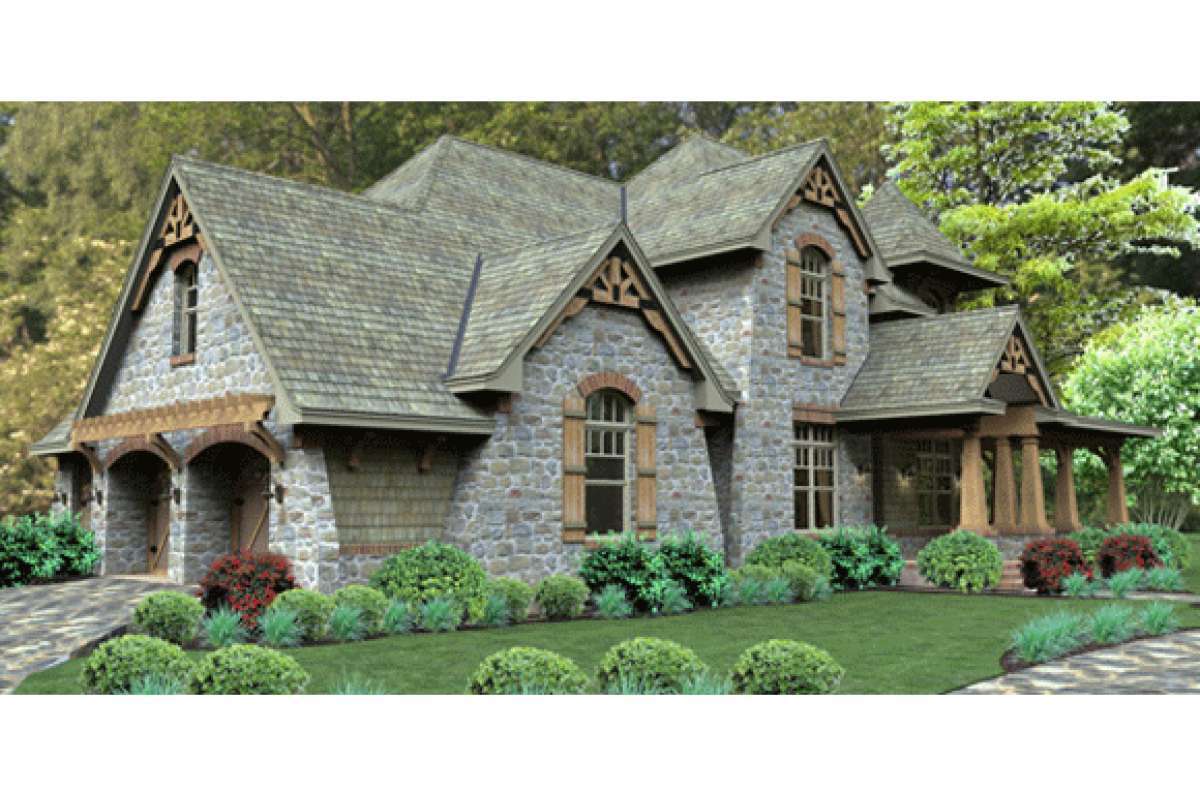

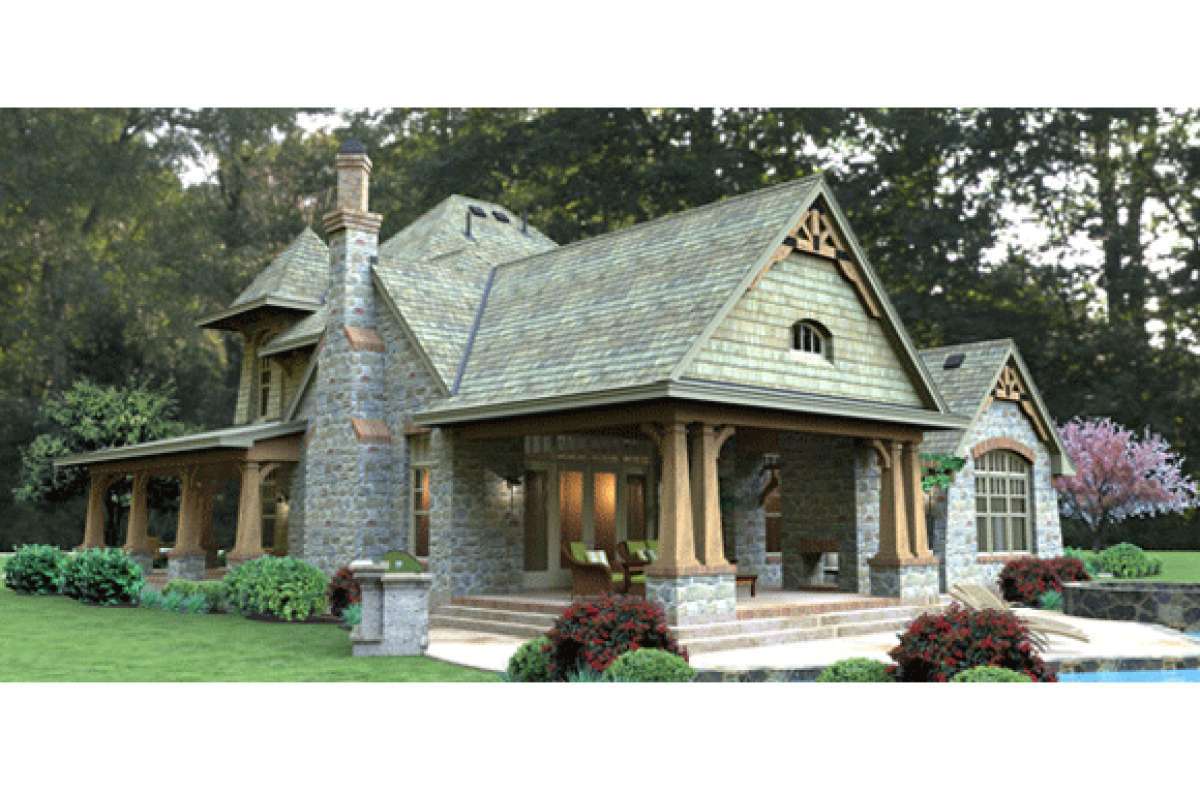

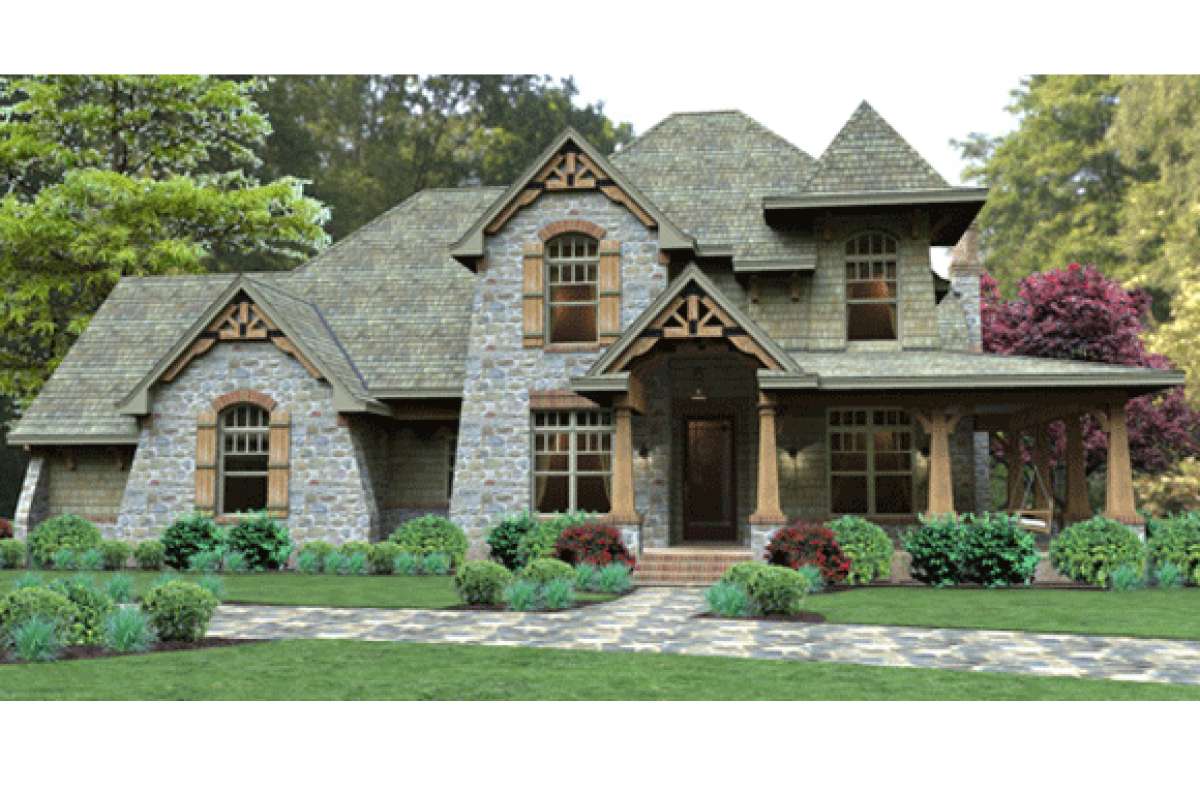

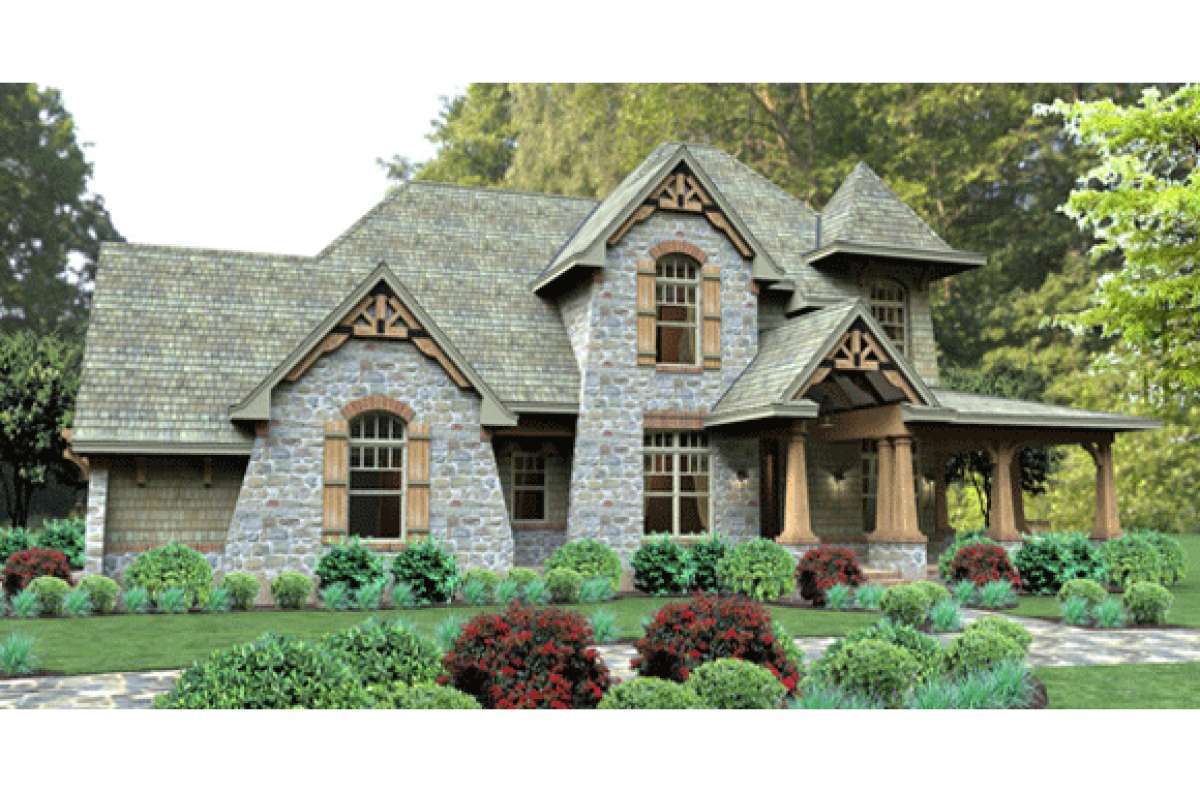

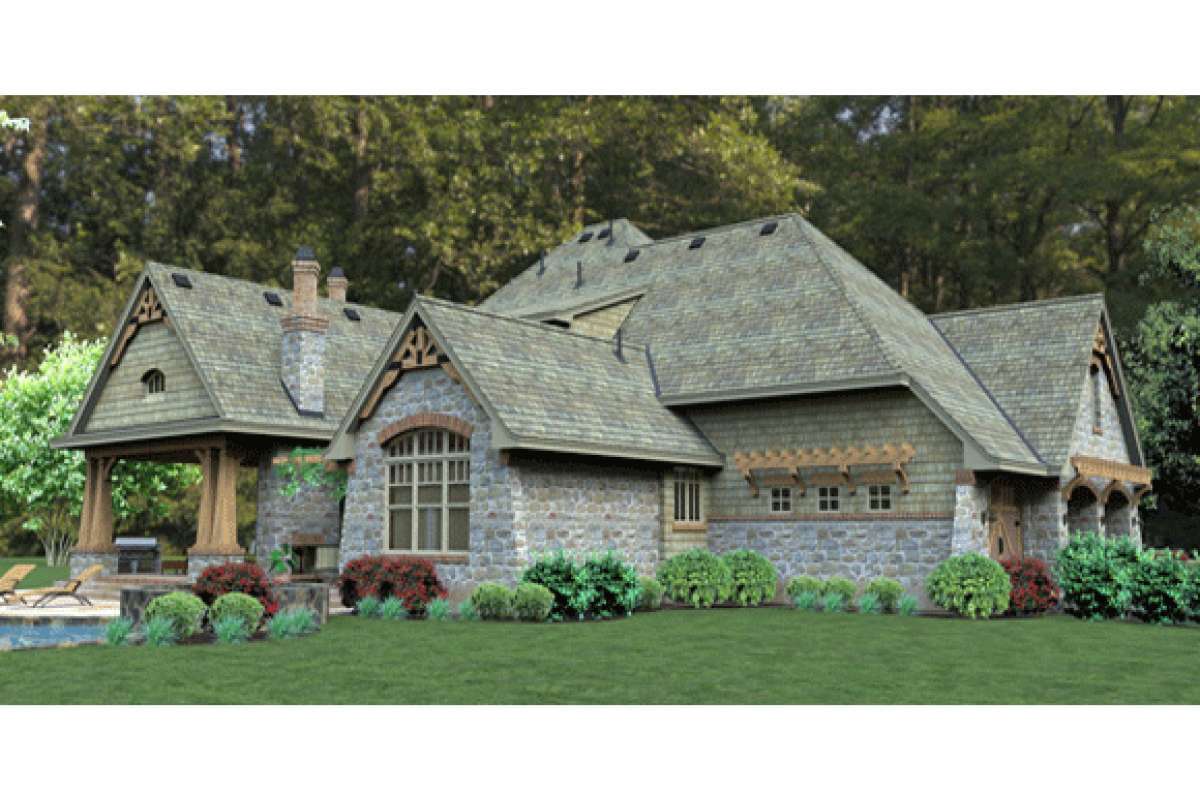

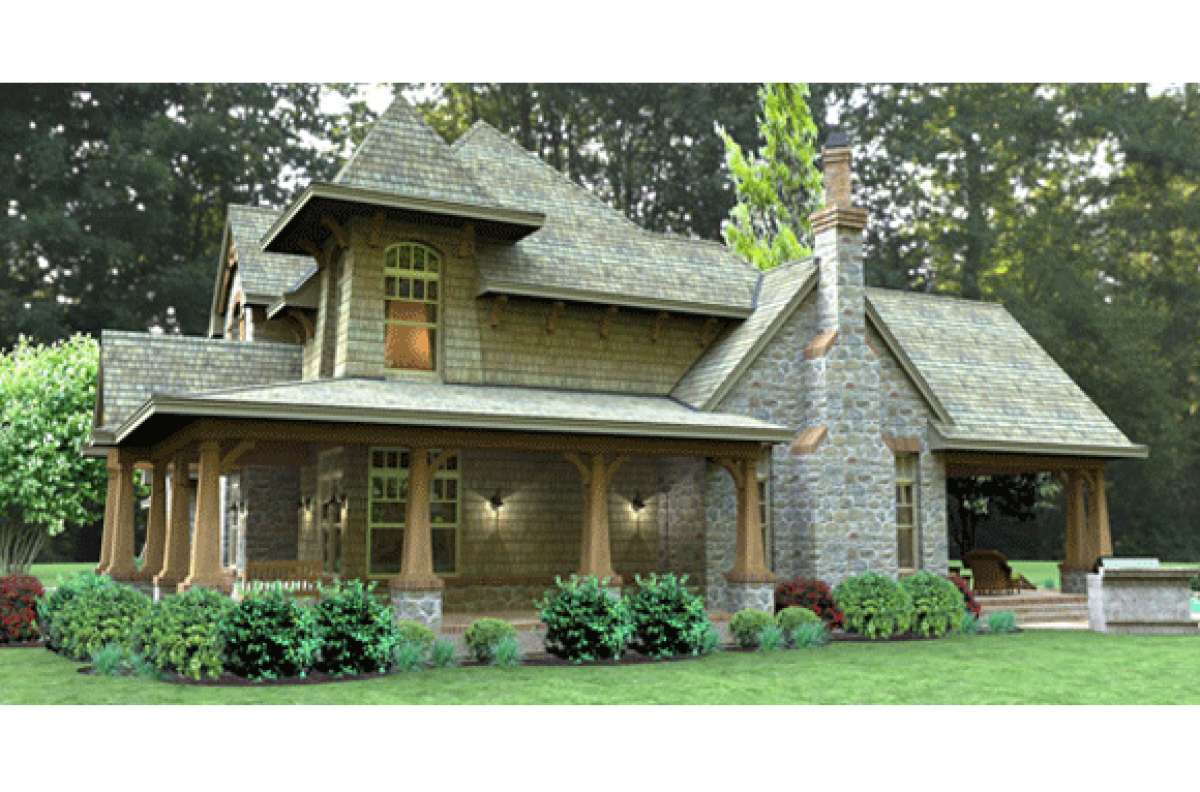

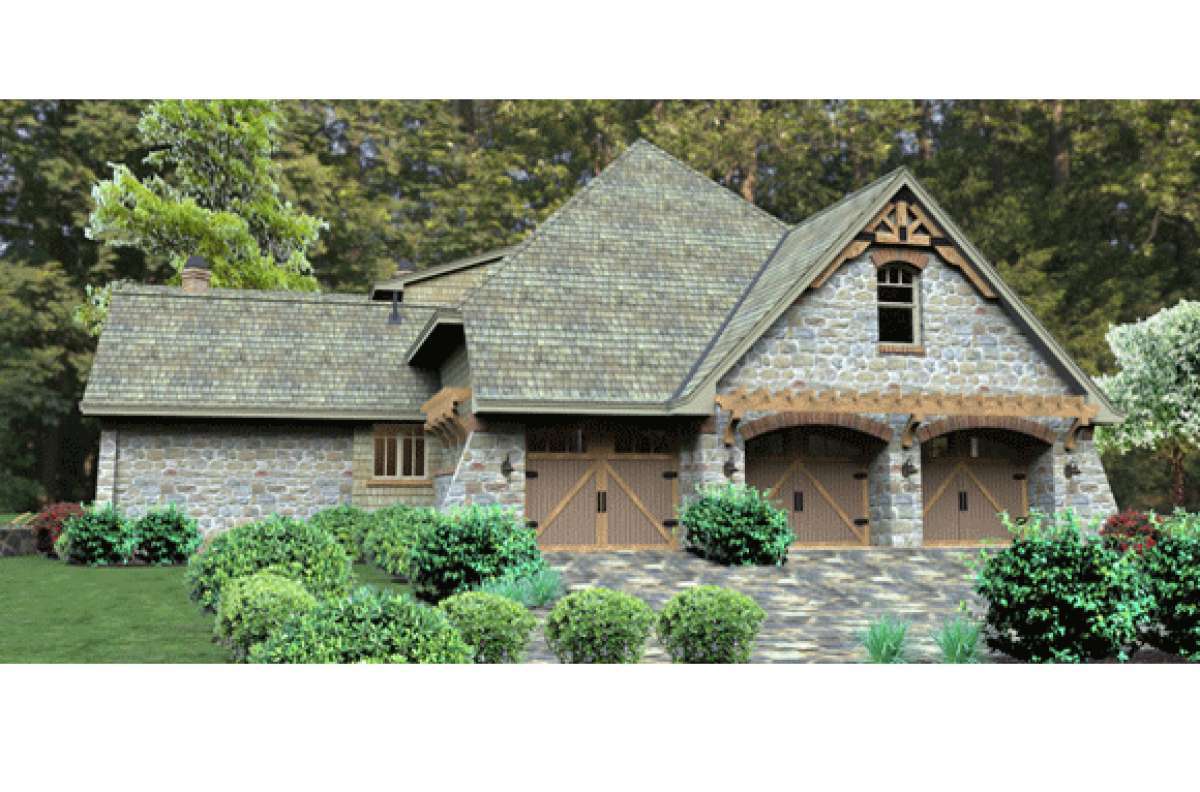

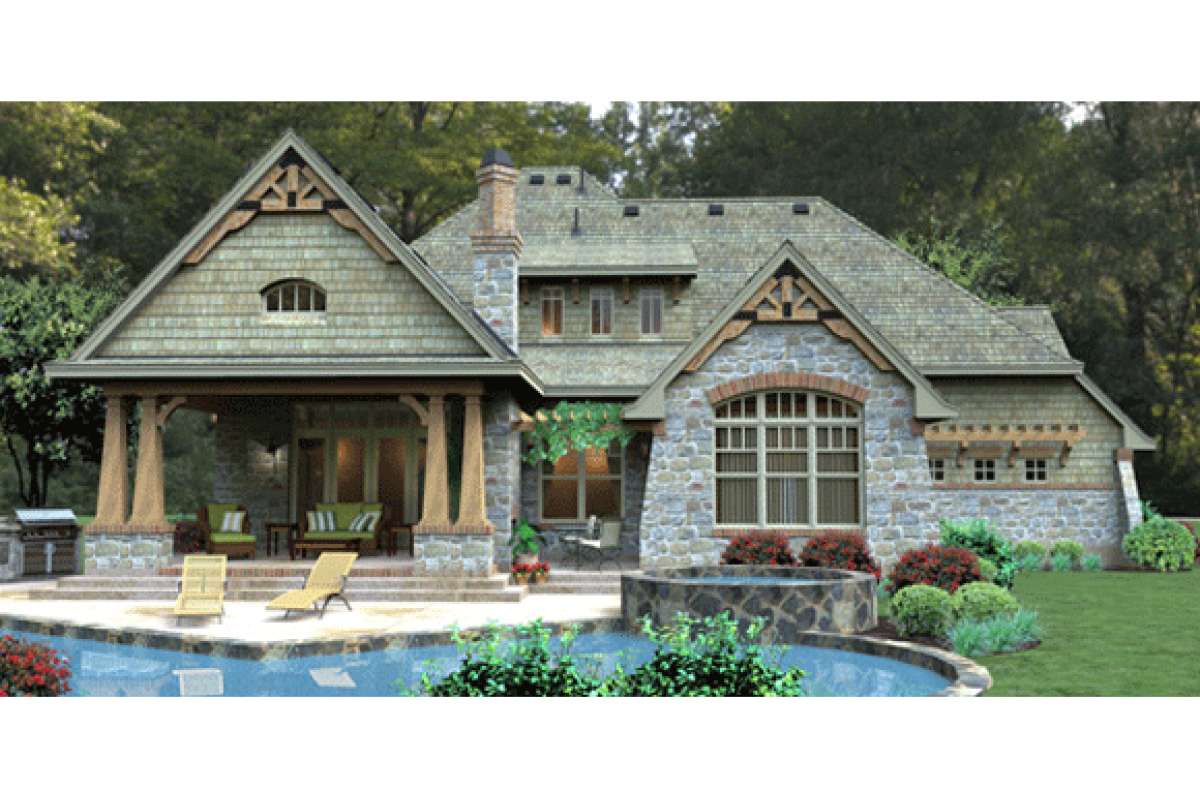

This eclectic façade exudes a sense of wonder and excitement about what lies within the home when viewing the storybook exterior. The exterior of the home features architectural design elements that inspire the imagination and creatively blend walls of stone work, wooden shutters, decorative trim within the gables and a gorgeous side covered porch. The interior floor plan features excellent space in which to secure a personal design scheme with its approximate 2,487 square feet of living space. Included within the layout are four bedrooms and three baths along with a bonus room featuring an astounding 1,090 additional square feet. The beautifully designed front entrance is offset by an alluring L- shaped front covered porch which provides excellent space in which to relax and greet neighbors and family. The entry foyer is spacious and contains multiple points of entry/exit into the home’s well appointed rooms. French doors lead to the cozy study where abundant space and window views overlooking the front porch are revealed. A powder room for guests, winding second story staircase and the open formal dining room are also situated off the foyer. The dining room features a pass-thru butler’s pantry and food storage pantry before accessing the grand kitchen where an angled breakfast bar and casual dining nook open onto the family room. The family room is huge with a warming fireplace and access onto the rear lanai which is covered and highlighted with an outdoor fireplace. There is a three car side loading garage that features additional storage and a workshop area that conveniently leads to the family’s laundry room. The main level master suite enjoys a proliferation of elegantly designed rooms including the master bedroom that is highlighted with a triple wall of windows and private French door access onto the outdoor space. The en suite master bath features dual vanities, a separate shower, garden tub and private toilet area before gaining access into the oversized walk-in master closet.
The winding staircase travels upward to the second floor landing where overviews into the foyer can be appreciated and a balcony hallway is situated. There is additional storage space, two family bedrooms, a bath and amazing expansion space available on this floor. Both bedrooms are spacious, one with generous closet space and the other features a walk-in closet. The jack and jill bathroom is highlighted with dual lavatories and a shower. There is a large enclosed media room and an optional flex space which could be utilized as a game room, hobby/craft room, home office or multi-purpose family room. This one-of-a-kind home features an exterior façade brimming with amazing curb appeal and a functional and versatile interior layout.
