Craftsman Plan 9401-00021

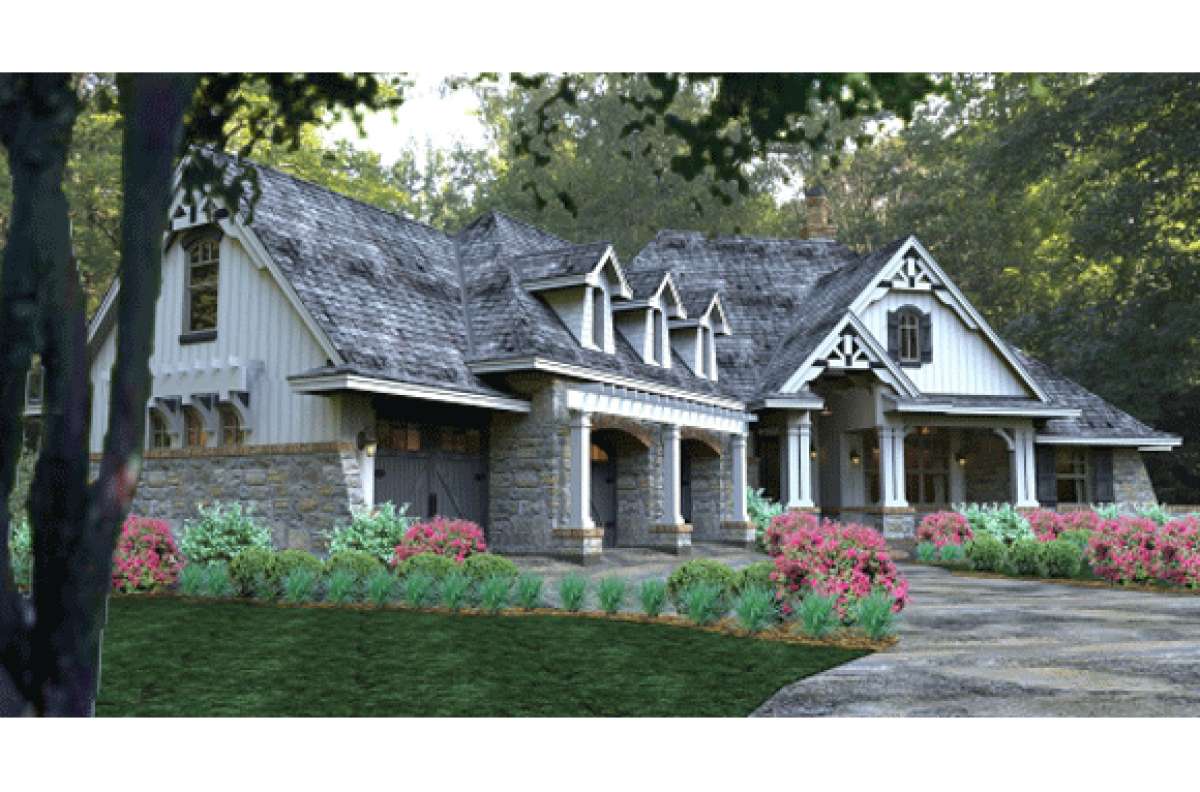

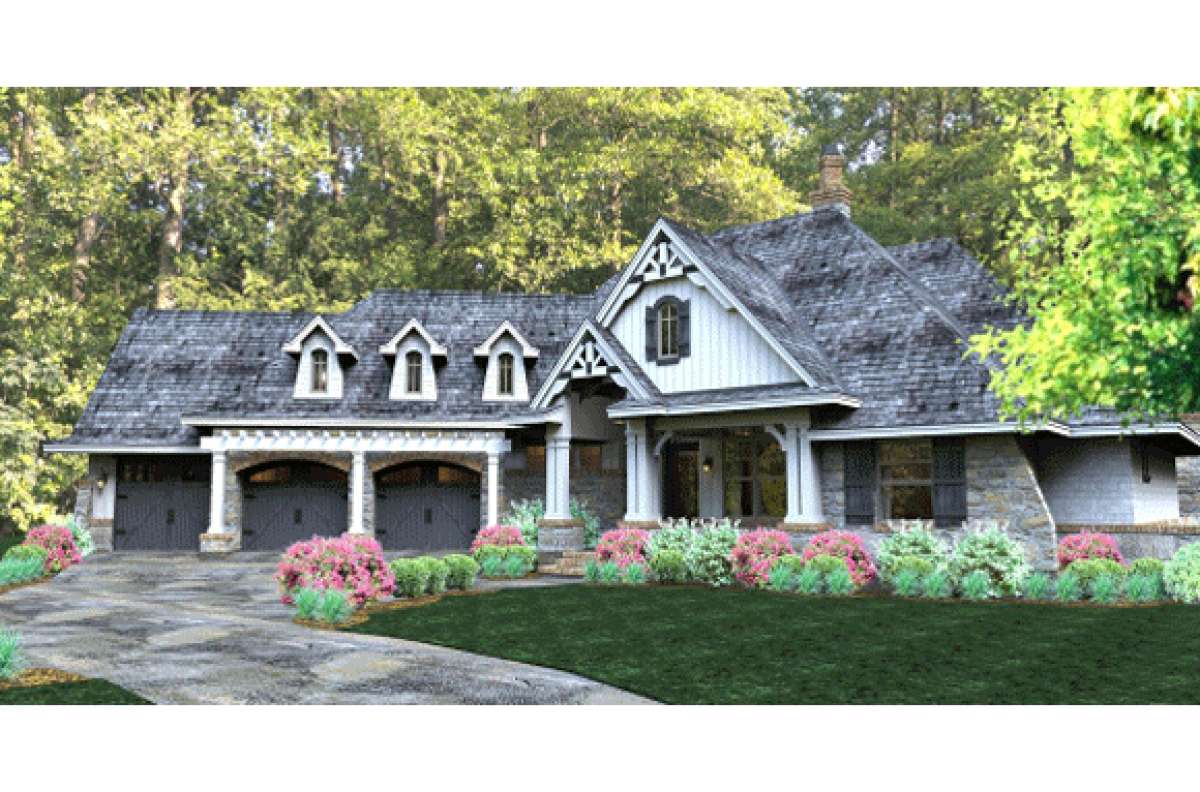

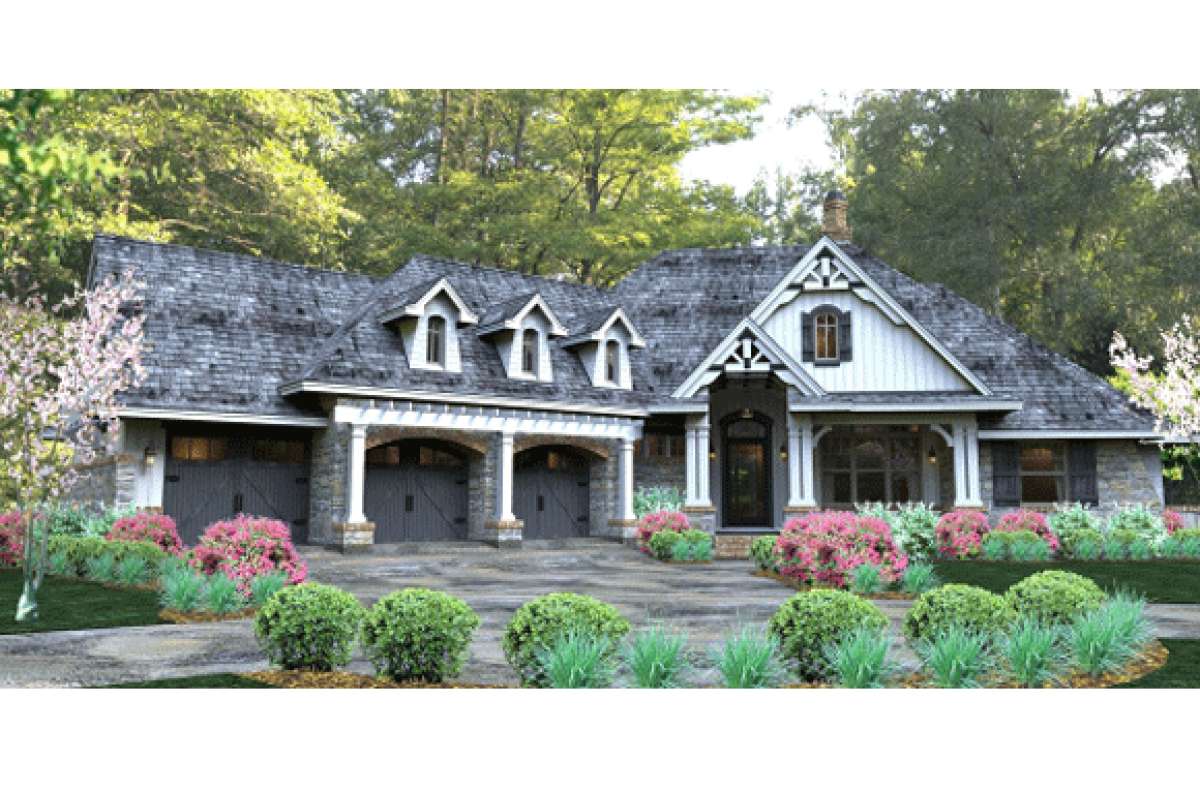

Craftsman House Plan #9401-00021 Elevation Photo
Craftsman House Plan #9401-00021 Elevation Photo

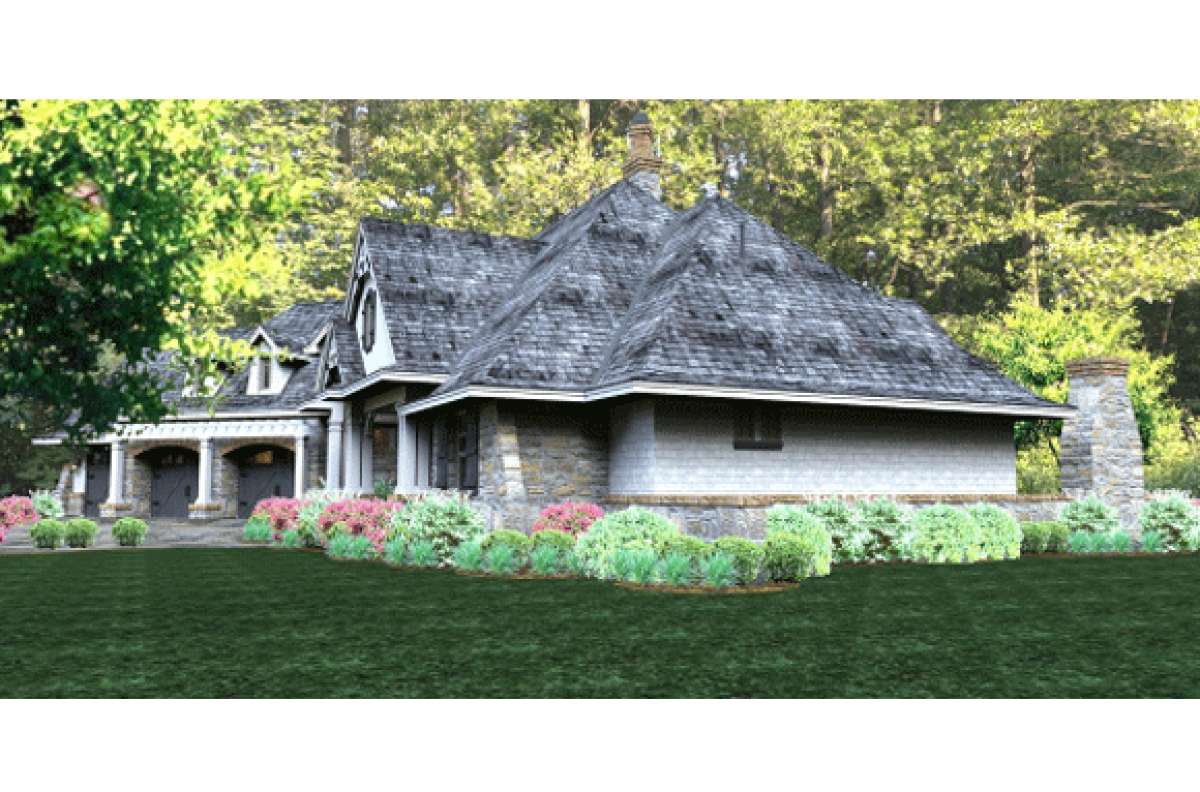

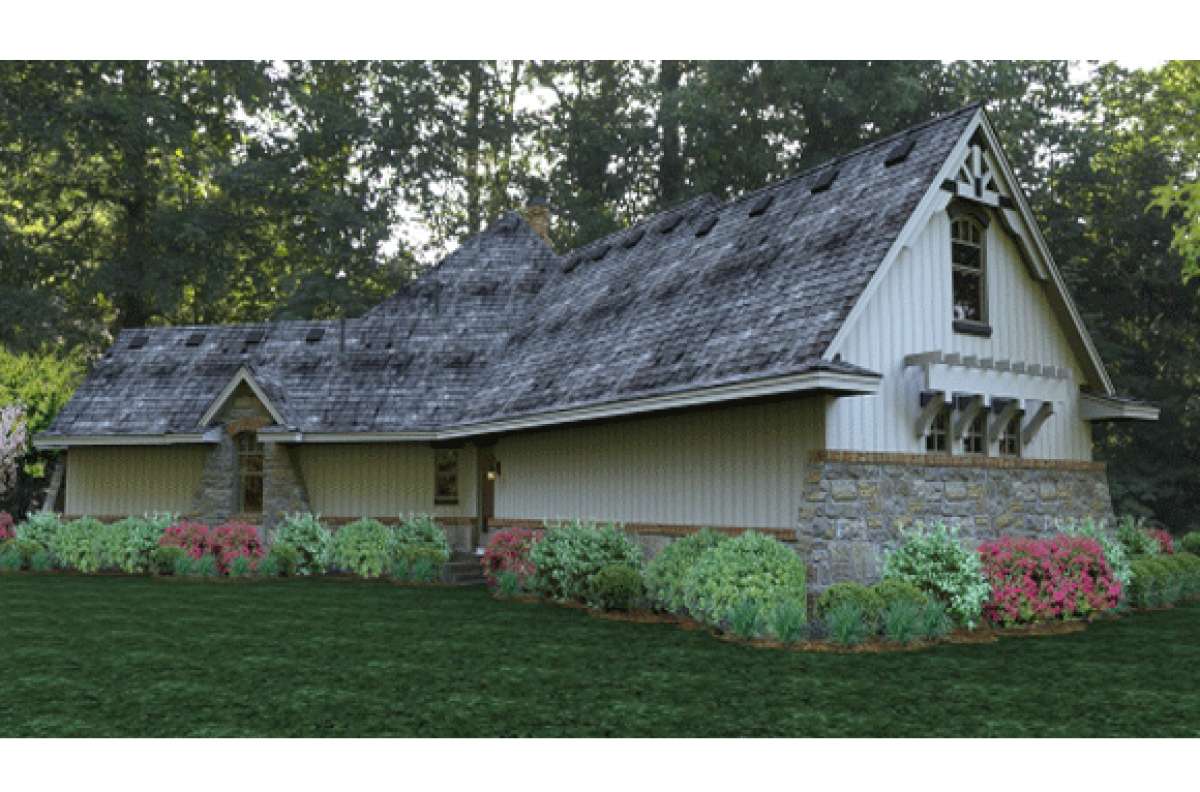

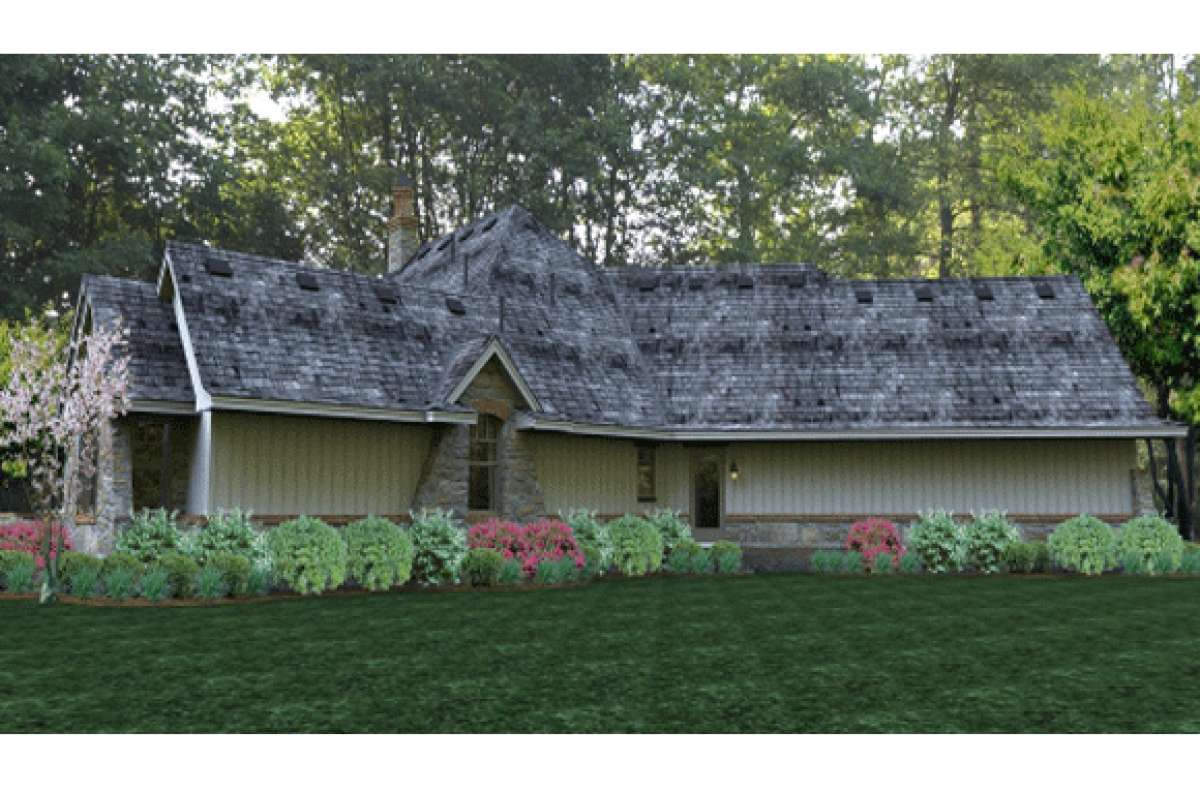

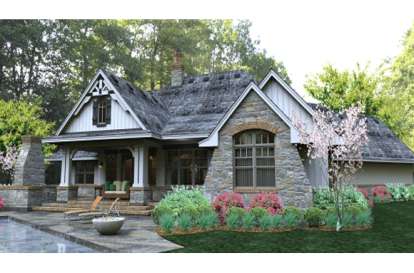

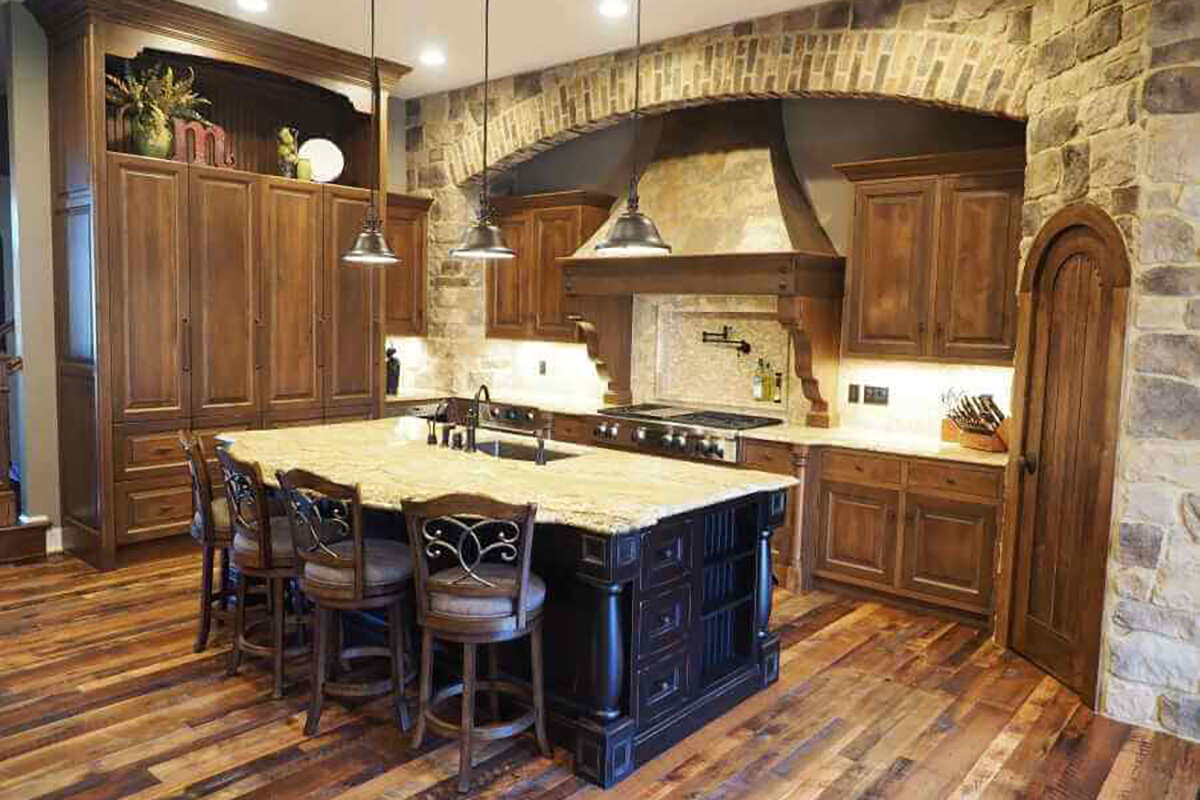

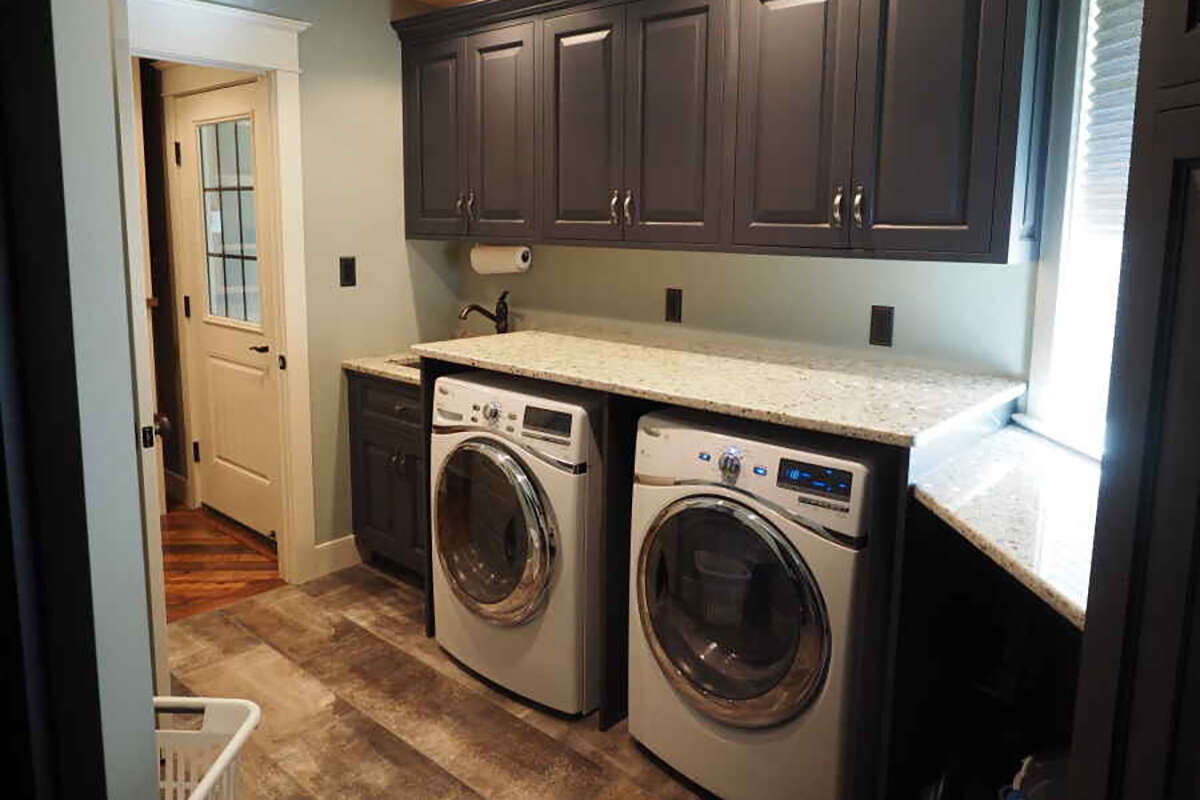

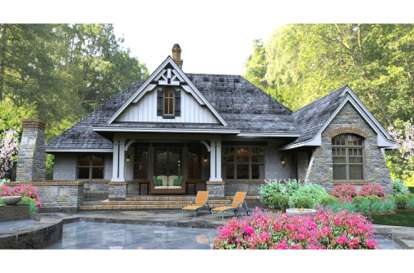

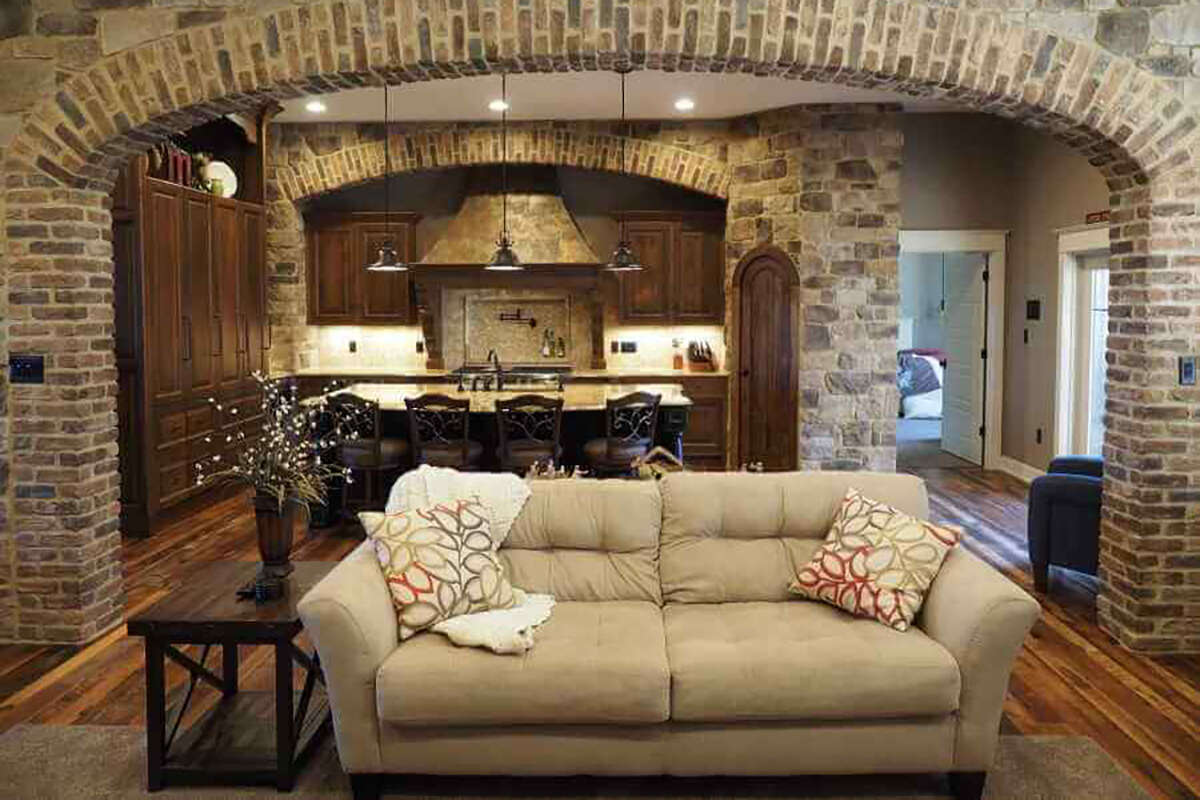

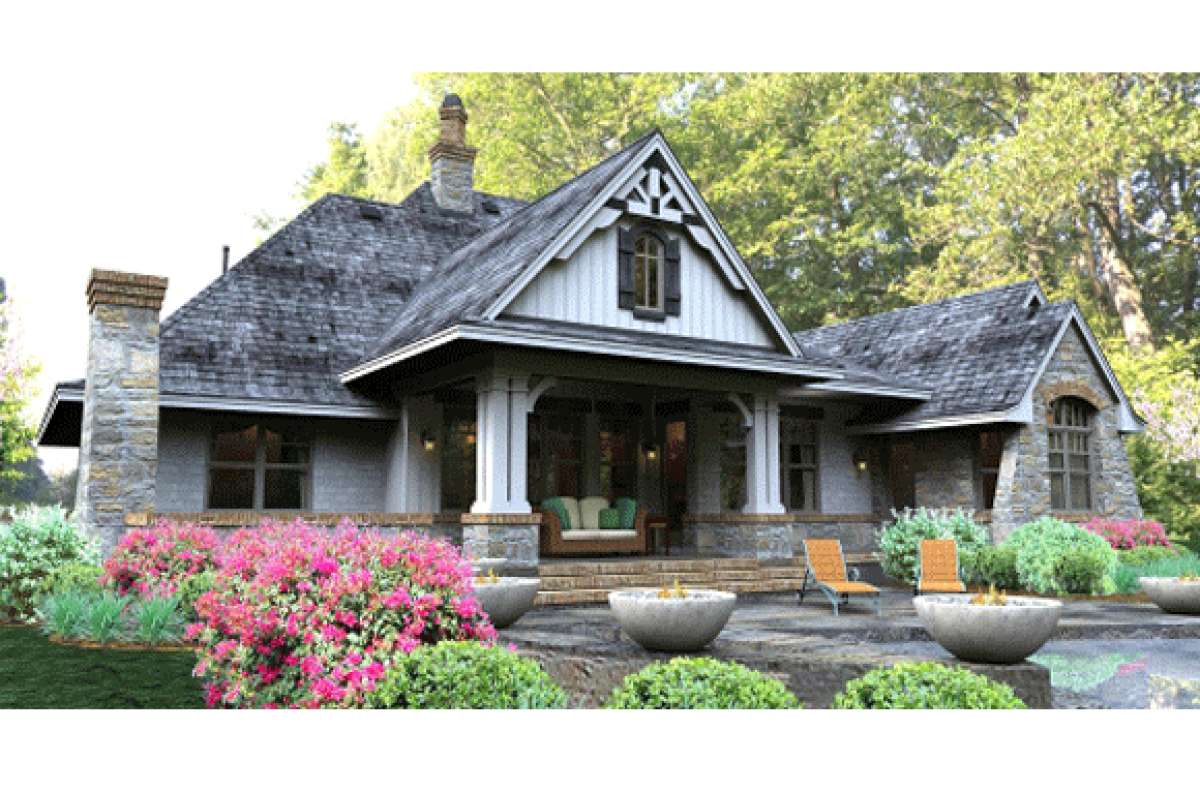

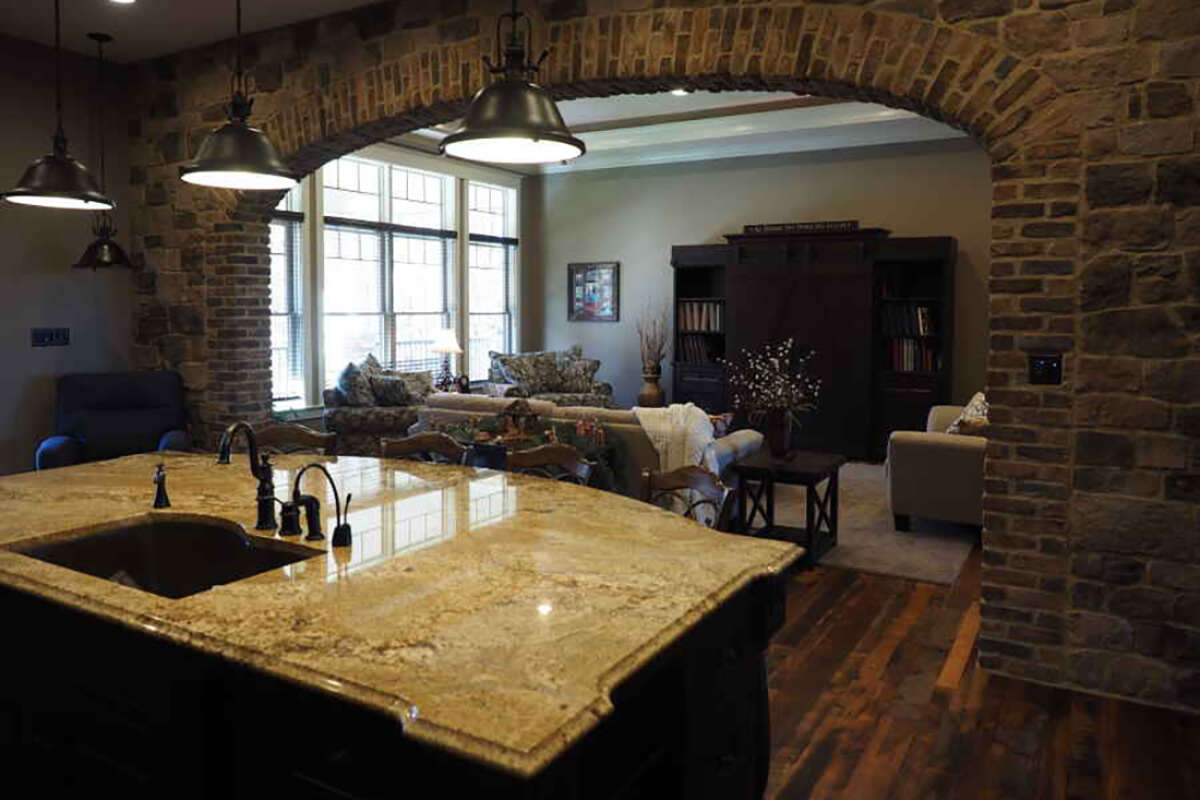

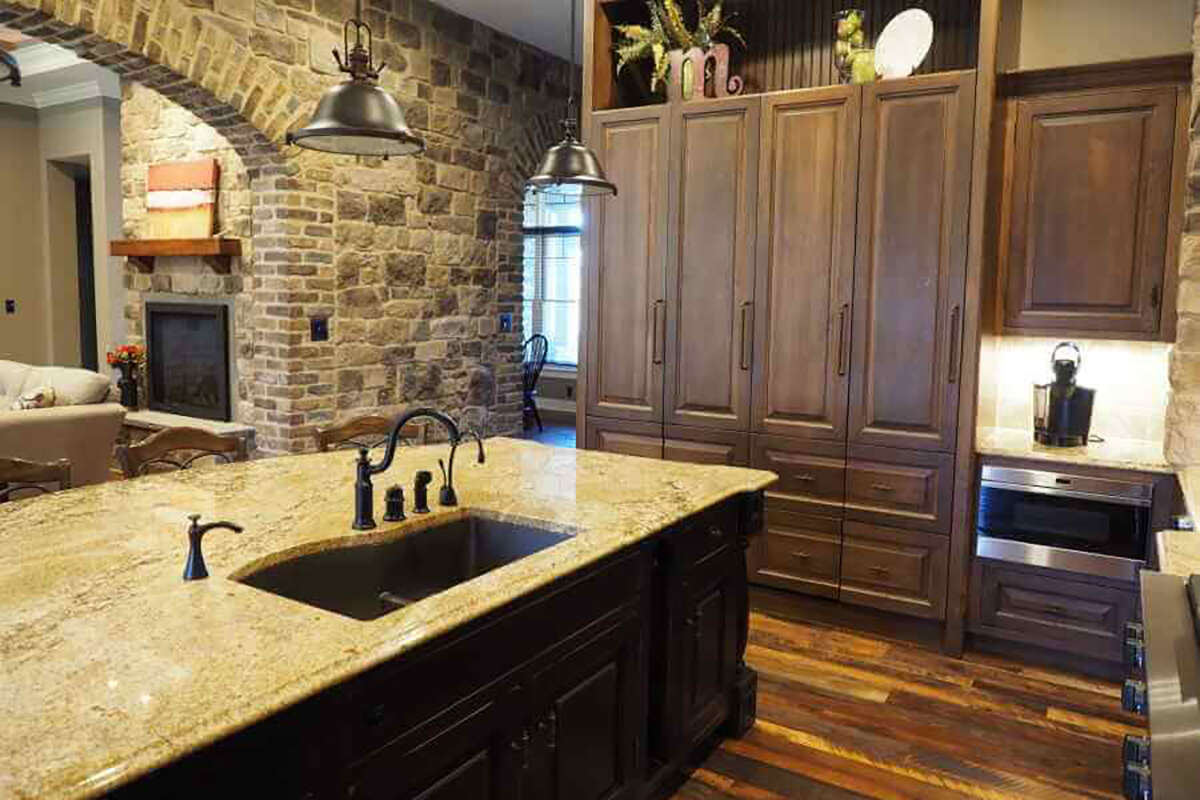

Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Craftsman House Plan #9401-00021 Additional Photo
Main Floor for House Plan #9401-00021
Bonus Room for House Plan #9401-00021
16 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 2,495
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 1
Cars Icon Cars 3
Stories Icon Stories 1
Width Icon Width 90' 11"
Depth Icon Depth 83' 11"

Floorplan Drawings

 PRINT  DOWNLOAD
Main Floor for House Plan #9401-00021
Bonus Room for House Plan #9401-00021

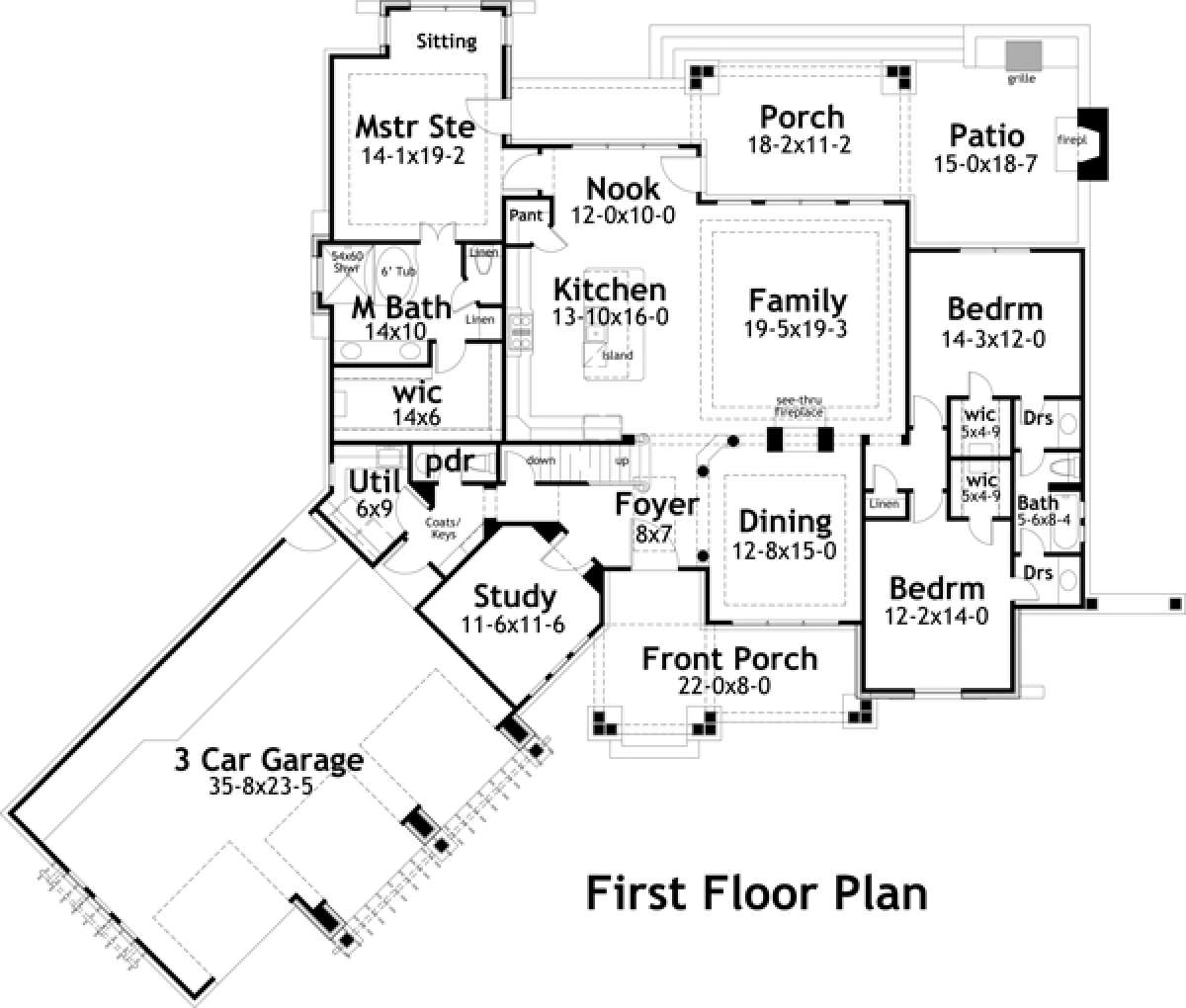

Main Floor
Main Floor for House Plan #9401-00021

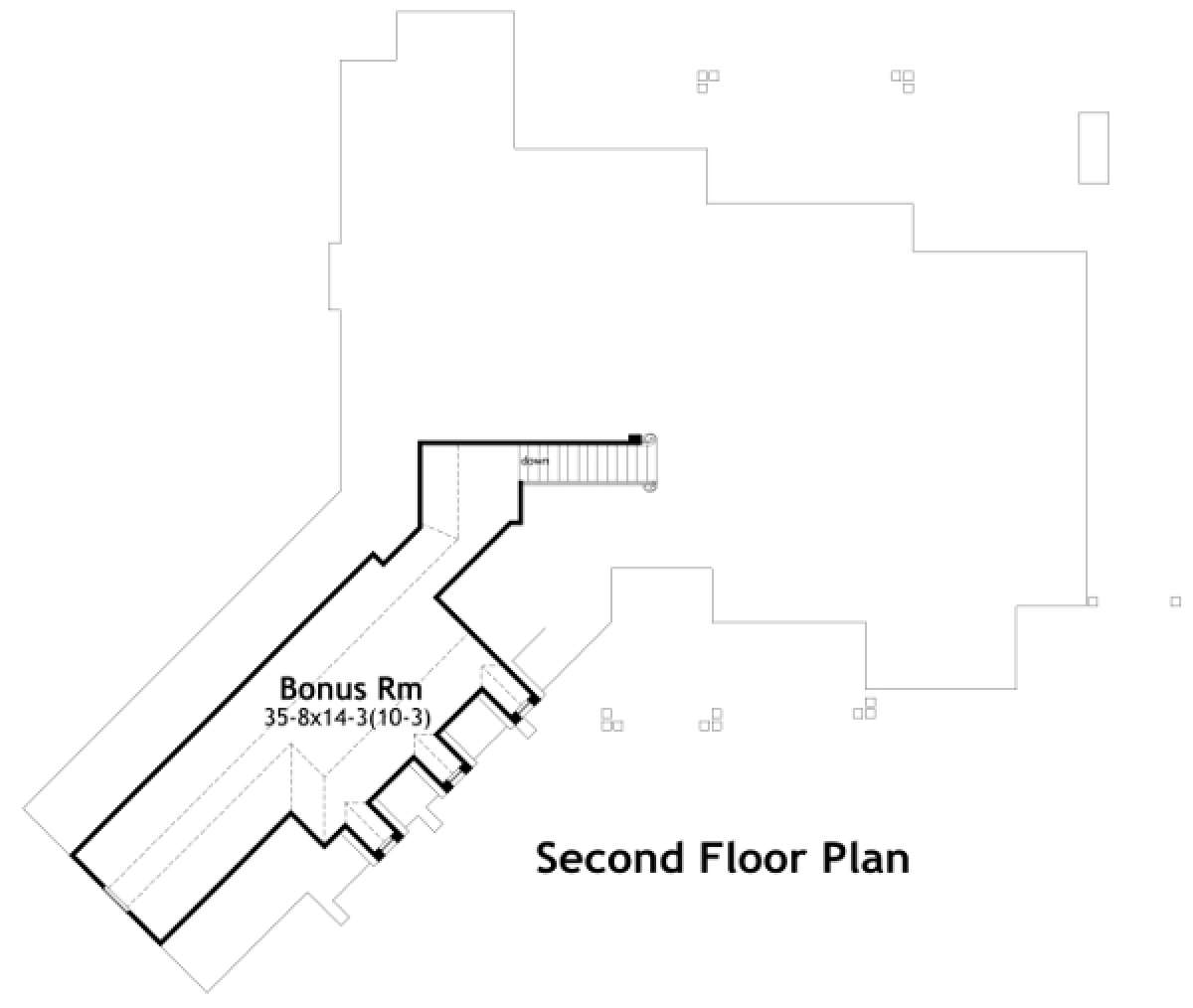

Bonus Room
Bonus Room for House Plan #9401-00021
Images copyrighted by the designer.


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A broadly sweeping front exterior is highlighted in this Craftsman home with touches of English countryside homes that reside in hamlets and small towns dotting the landscape of Europe. Decorative trim that sits in the split gables atop the front covered porch and a triple set of window dormers highlight the exterior along with exposed rafters and finely crafted barn garage doors trimmed with iron hardware. The front covered porch boasts of double column beams set apart at varying intervals, stacked stone and an impressive environment to greet family and friends. Almost 2,500 square feet of usable living space is highlighted in the home’s interior consisting of a beautiful blend of entertaining and private family space. Embodying the single story approach, the home’s layout is efficient and comfortably spacious where the only second story space available is the bonus room featuring 625 square feet of additional space. It is a great space situated over the garage and could function as an entertaining space for older children, a studio for an artist or a multi-purpose family room. Below, the three car garage features plentiful vehicle and storage space and leads to the conveniently located laundry/mudroom and powder room for guests. The front entrance of the home is highlighted by an extended foyer comprised of multi-directional points; there is a private study and a large formal dining room highlighted with columned beams, window views overlooking the front porch and a see-thru fireplace shared with the subsequent family room. The family room is quite large, holds a double trey ceiling accent, and a featured rear wall of windows overlooking the rear porch and patio. The outdoor space is expansive, perfect for entertaining and relaxing, with excessive charm and detailing that includes columned beams atop stacked stone, pavers, an outdoor fireplace and kitchen. The grand kitchen is open to the family room and is, once again, highlighted by great space that includes a sun drenched breakfast nook accessible to the rear porch and patio. The kitchen, itself, features an oversized center island with work/prep space and a breakfast bar, a corner separate pantry and loads of counter and cabinet space. The split bedroom plan integrates privacy into the layout with the master suite’s location on one side of the home. There, you will find a large master bedroom with a trey ceiling and private access to the rear porch and patio. The elegantly designed master bath boasts the finest in luxurious detailing with dual vanities, a linen closet, compartmentalized toilet, a separate shower and a large soaking tub. The walk-in master closet is situated at the rear of the space for privacy and convenience. Two bedrooms are situated on the opposite side of the home; each room features generous floor space and walk-in closets. The jack and jill bathroom is highlighted with separate vanities, a private toilet area and a tub/shower combination. This Craftsman house design has enormous curb appeal, outstanding outdoor space and an interior floor plan that is fully functional and comfortable.
