Cottage House Plan 9401-00017

Sq Ft1,657
1/2 Baths0
Width48' 0"
Depth58' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

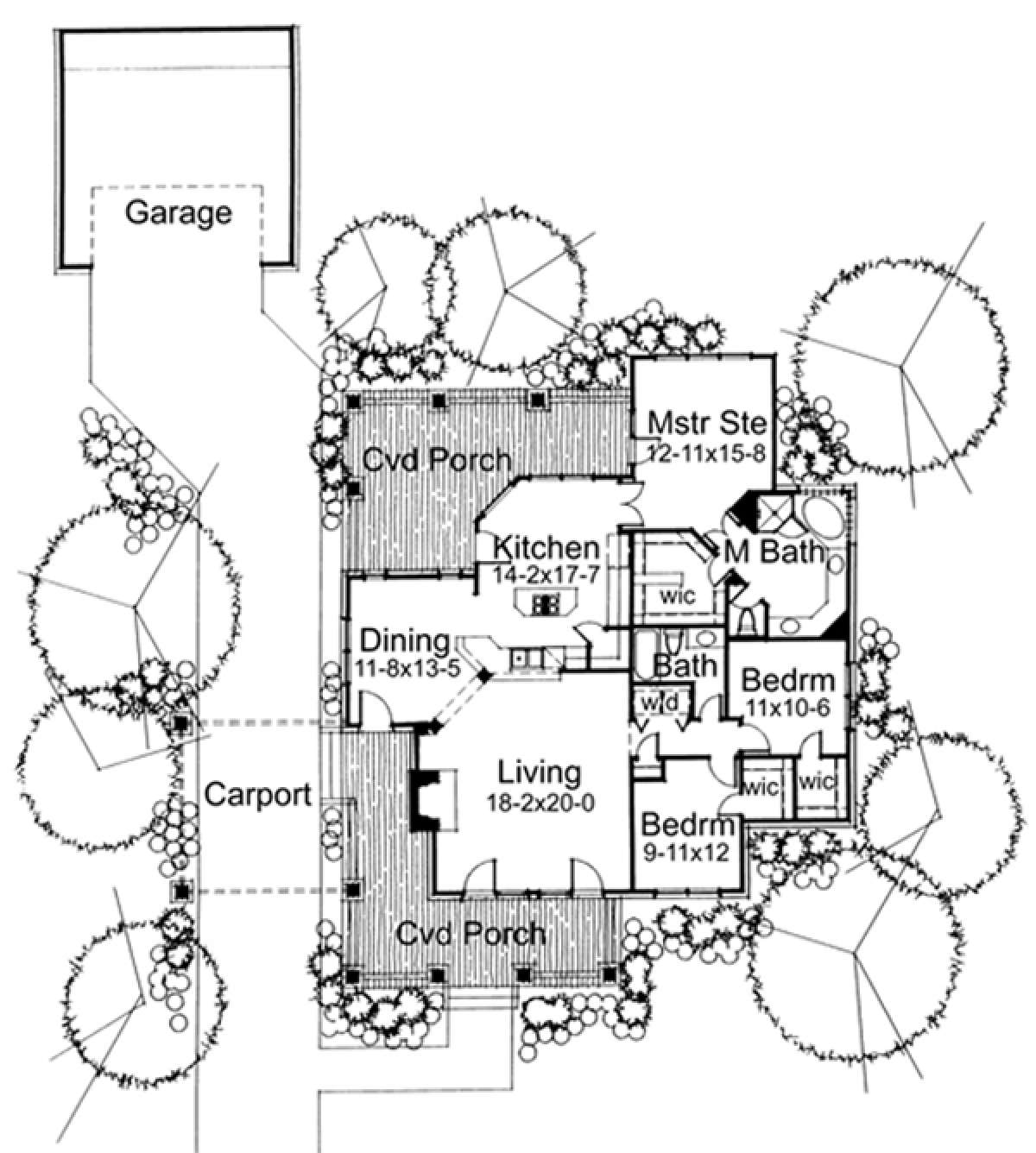

Main Floor for House Plan #9401-00017
Main Floor
Main Floor for House Plan #9401-00017

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)

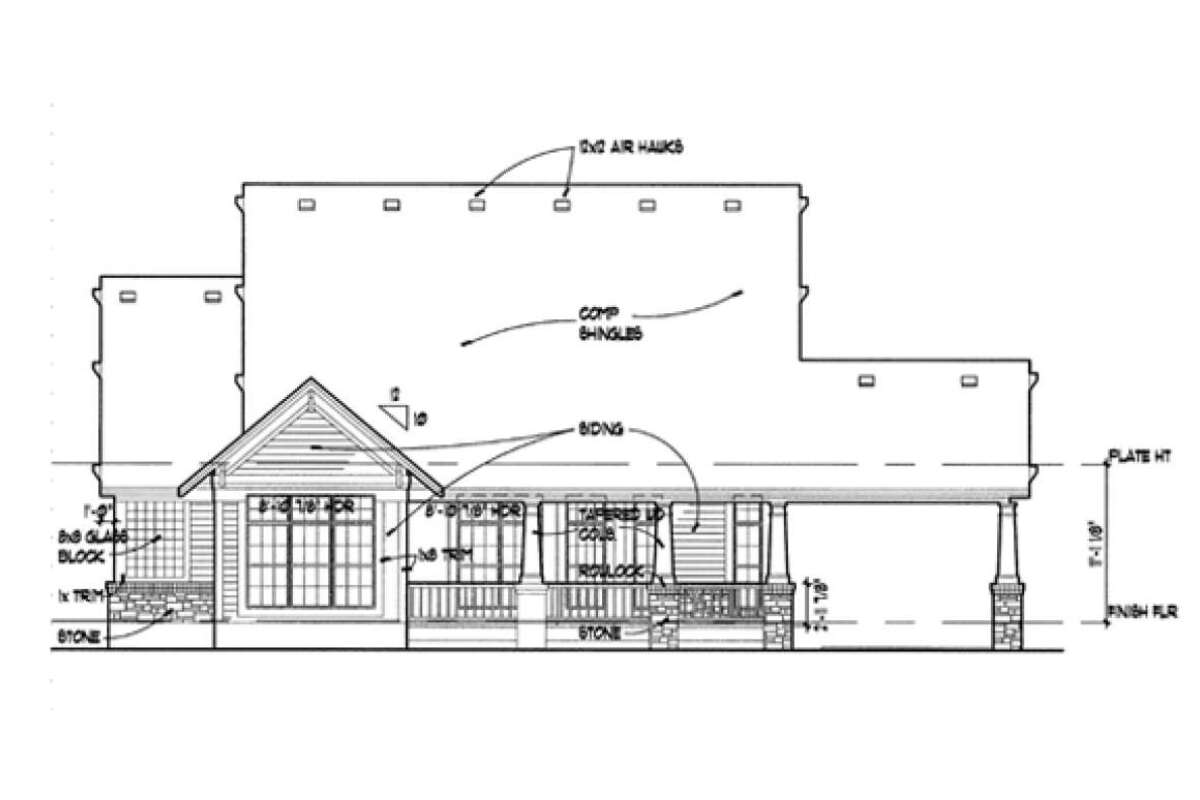

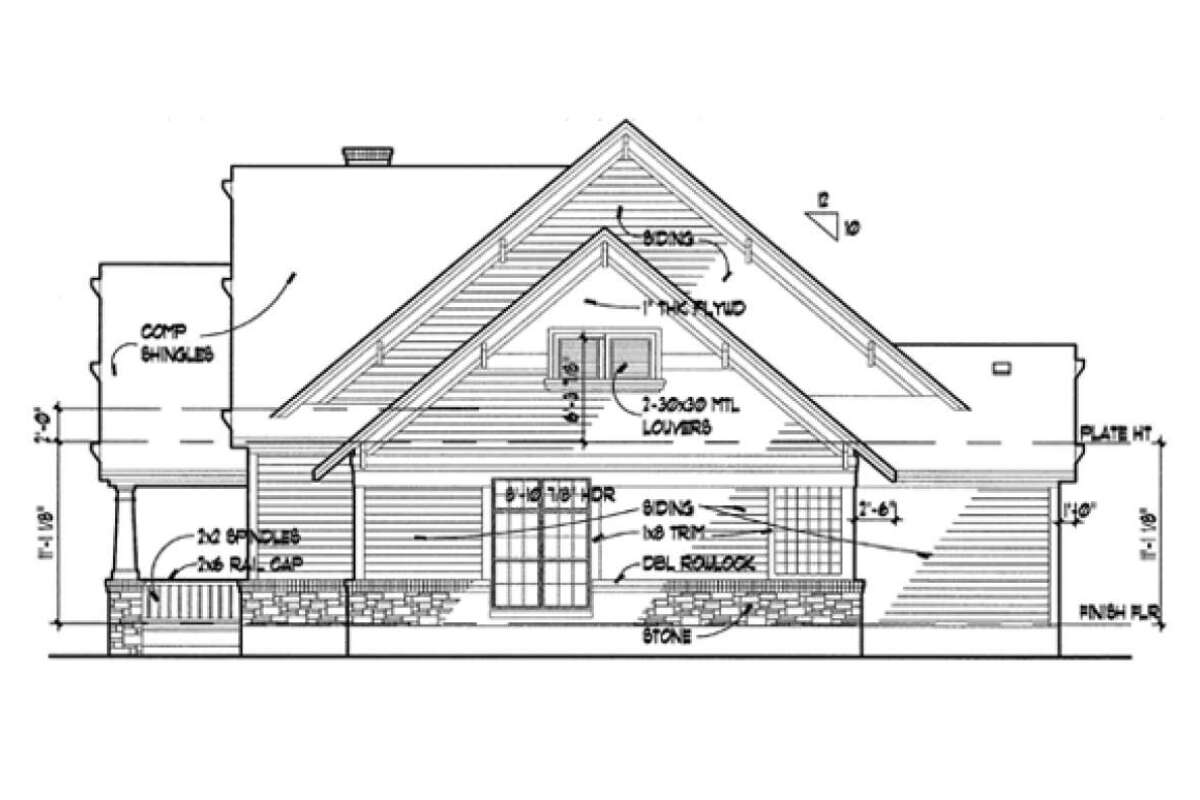

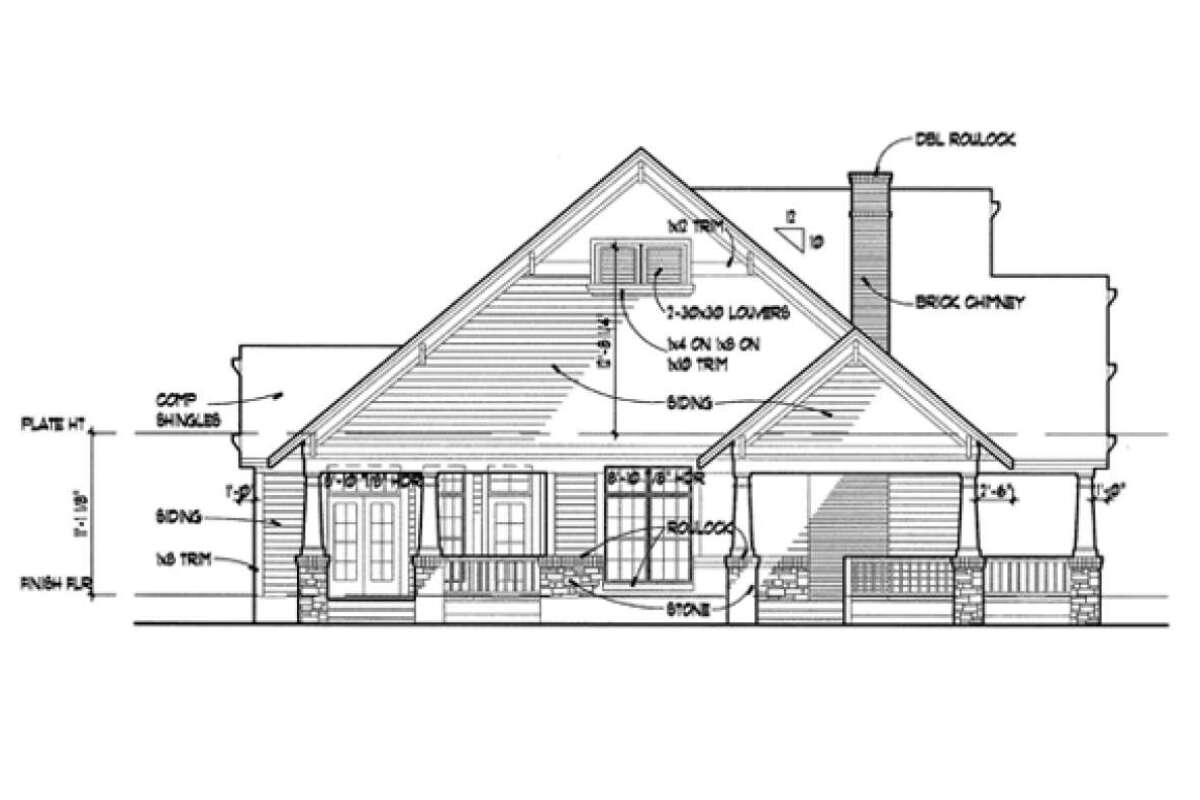

  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

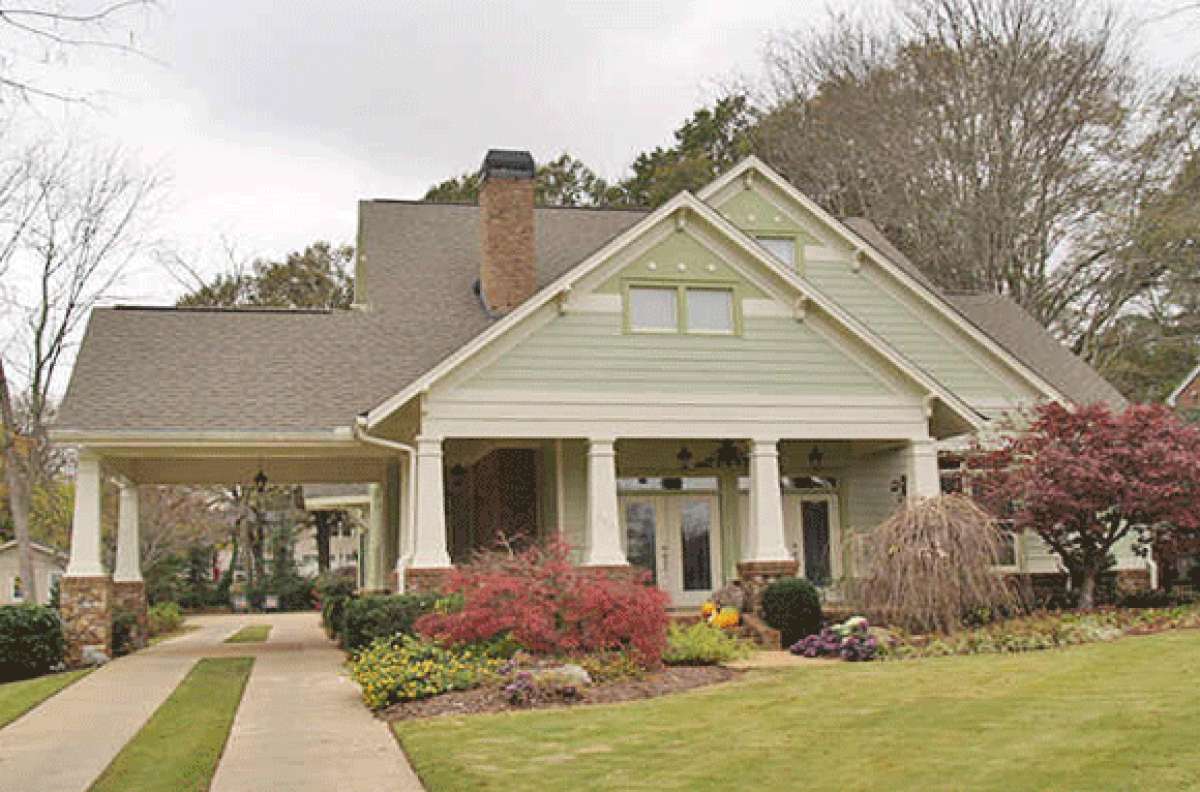

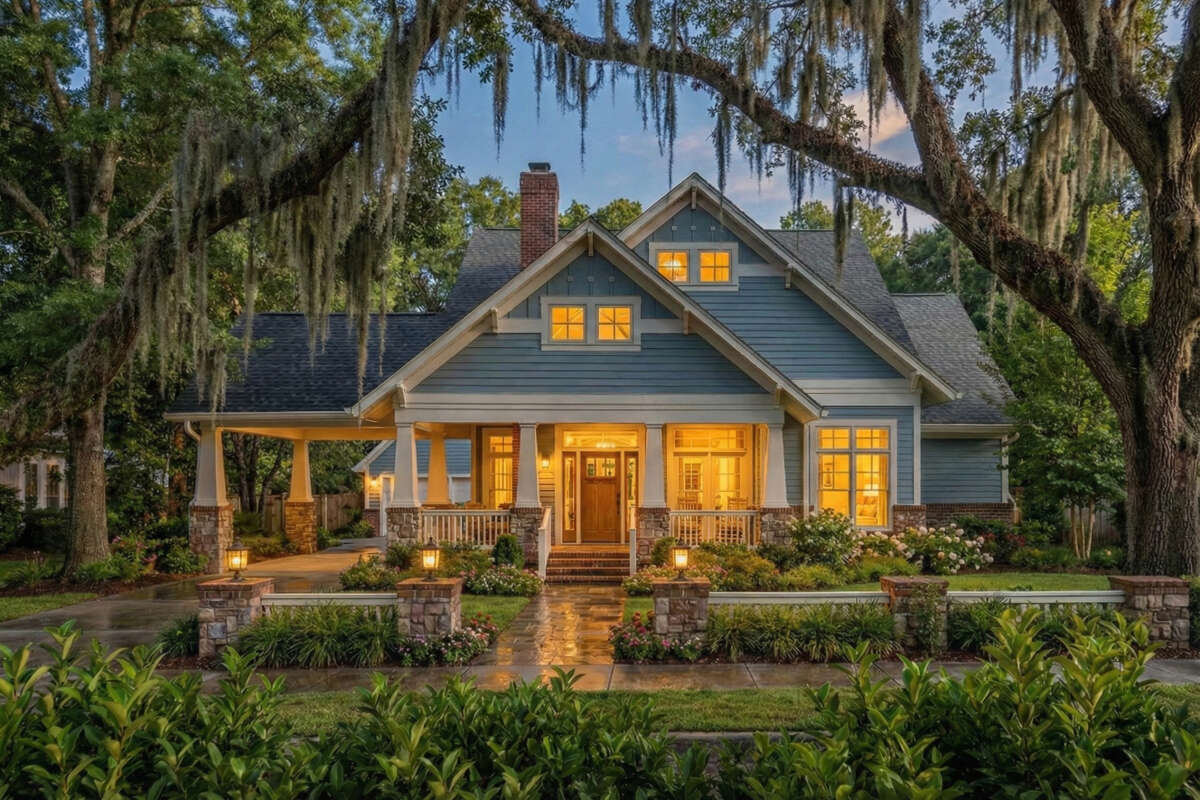

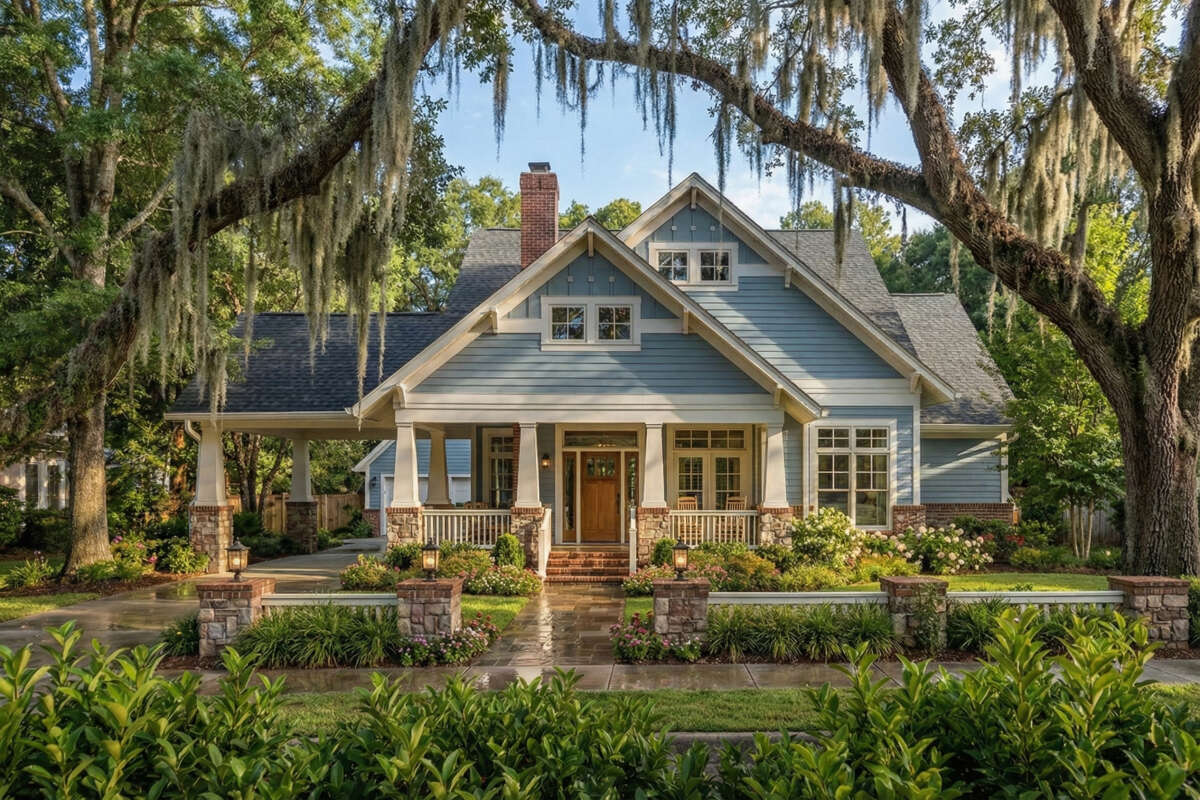

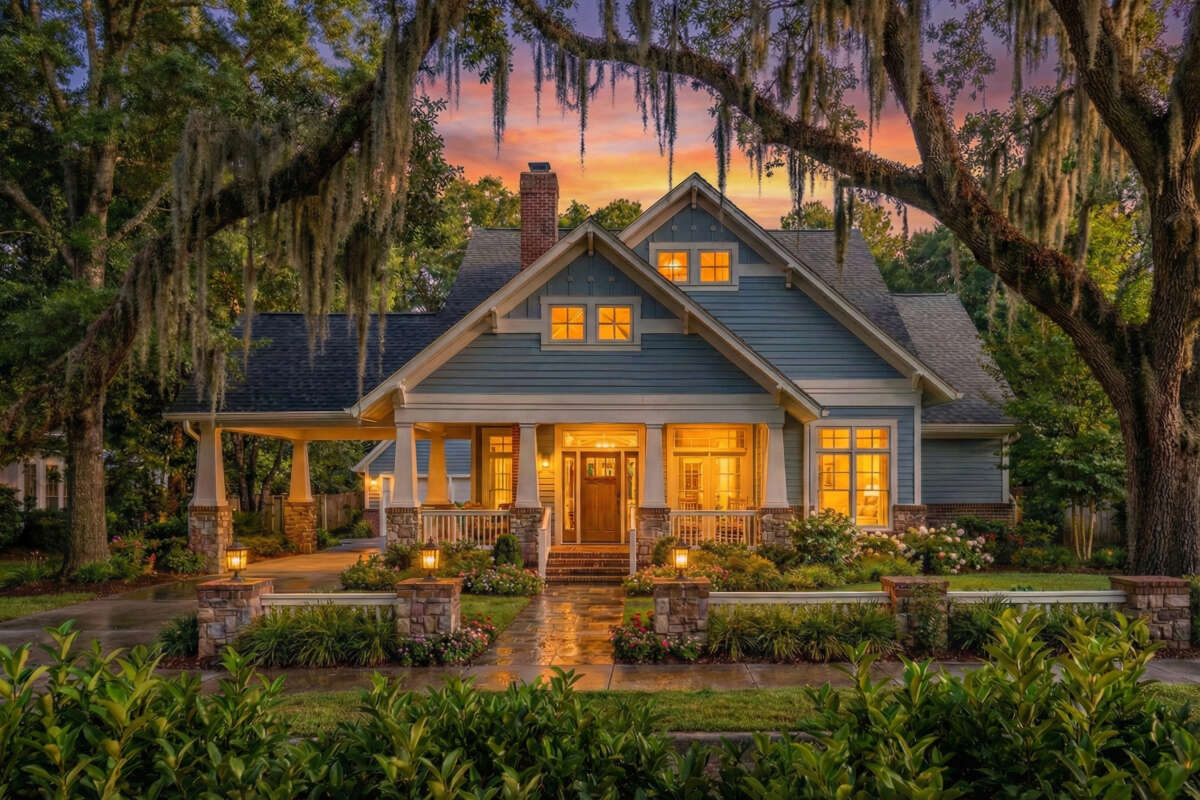

This aesthetically pleasing Craftsman home has innovative and upscale design elements created for the discriminating homeowner. A broadly proportioned front covered porch is framed with wide beams atop stacked stone making for an inviting entrance into the home. Multiple gables, a port-cochere and a detached two car garage add visual interest and protect the sight lines of the front exterior. The interior of the home features approximately 1,657 square feet of living space which consists of three bedrooms and two baths. The L-shaped front porch extends to offer an abundance of space to relax and enjoy greeting neighbors and friends while providing entrance into the home. The home features 11’ ceiling heights throughout adding to the spaciousness and comfort of the floor plan. There is a large living room with warming fireplace and wonderful window views line two walls of the space. The light filled dining room features column detailing and is surrounded by a plethora of window views which includes entry onto the rear covered porch. The rear porch offers outstanding entertaining value and space and a large gathering spot for family and friends. The family friendly kitchen is highlighted by a center cook top island, corner walk-in pantry and plenty of additional counter and cabinet space.
Two bedrooms, the laundry nook and a bath are situated on the main hallway. Both bedrooms are spacious and each contain a walk-in closet and access to the adjacent hall bath. The master suite is situated at the rear of the home for privacy and features French door access into the master bedroom. The bedroom enjoys a generous footprint with rear window views and private access to the covered porch. An oversized walk-in closet is situated off the master bath for convenience and the master bath is highlighted by dual vanities, a separate shower, a garden tub and a compartmentalized toilet. This beautifully crafted home is an exemplary example of Craftsman styling and character which will bring many years of comfort and enjoyment to your family.
