Craftsman House Plan 9401-00011

Sq Ft2,466
1/2 Baths0
Width102' 0"
Depth77' 9"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

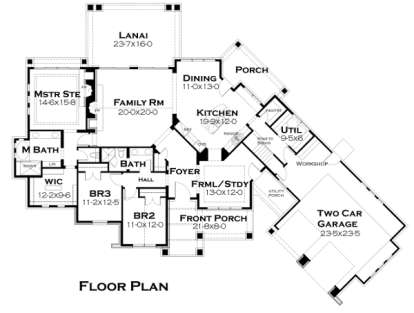

Main Floor for House Plan #9401-00011
Second Floor for House Plan #9401-00011

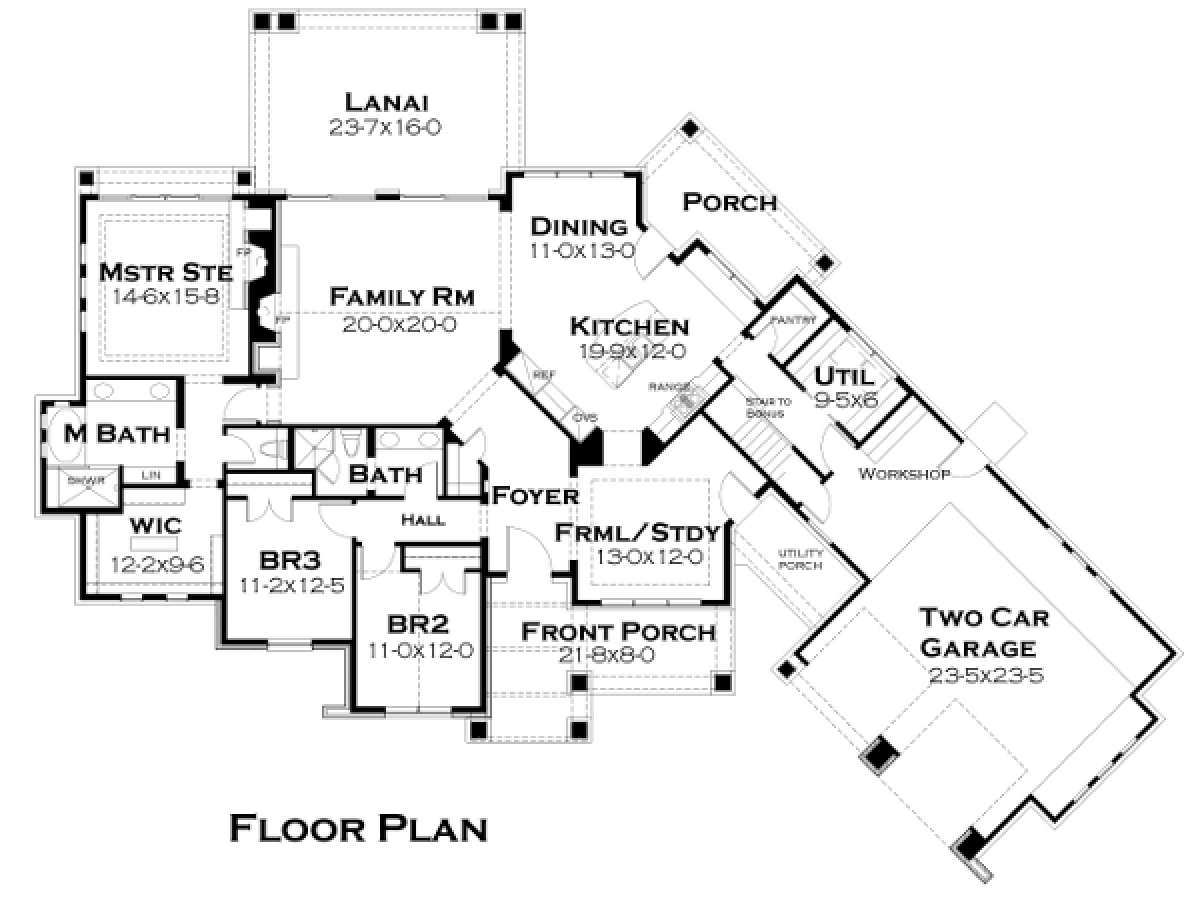

Main Floor
Main Floor for House Plan #9401-00011

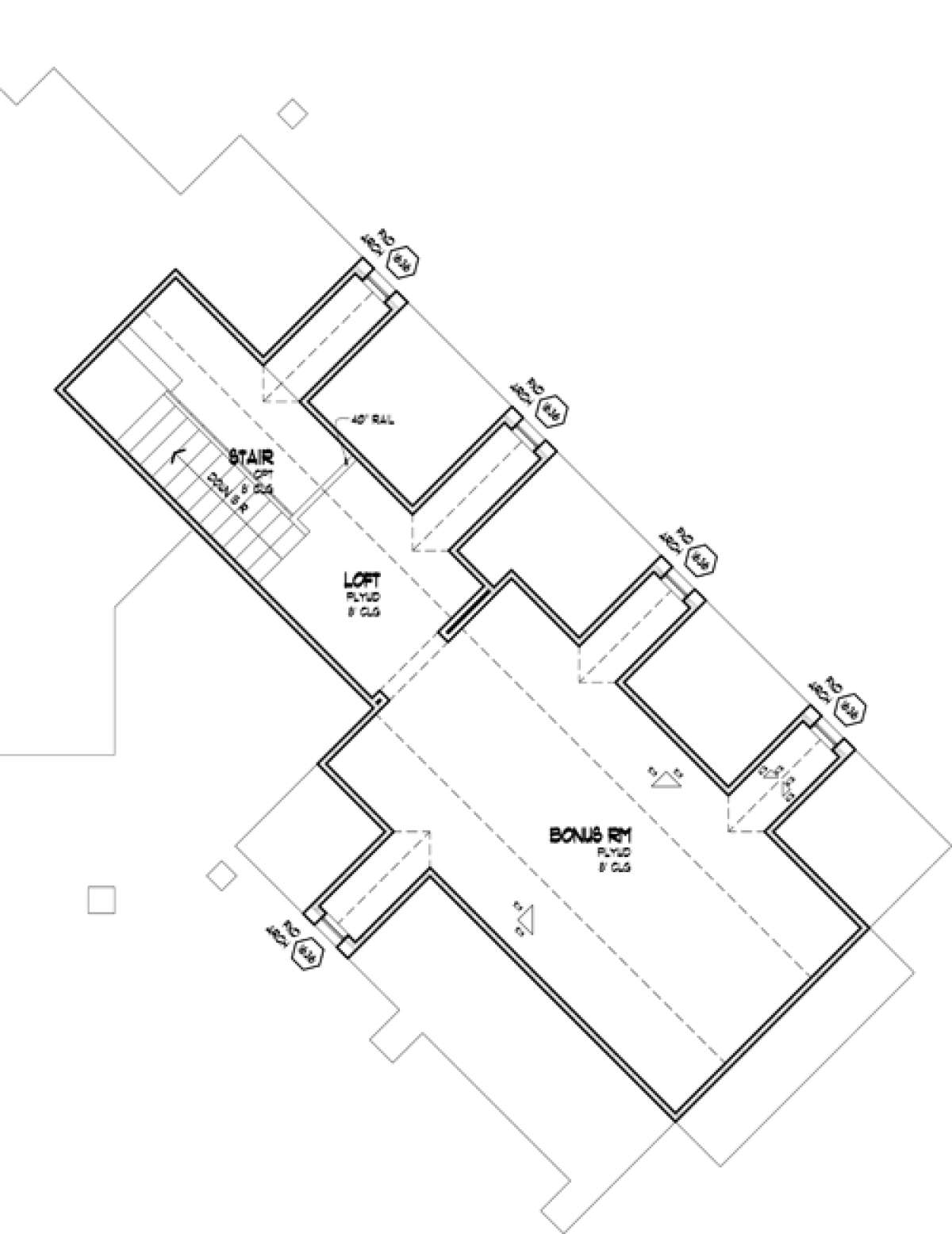

Second Floor
Second Floor for House Plan #9401-00011

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

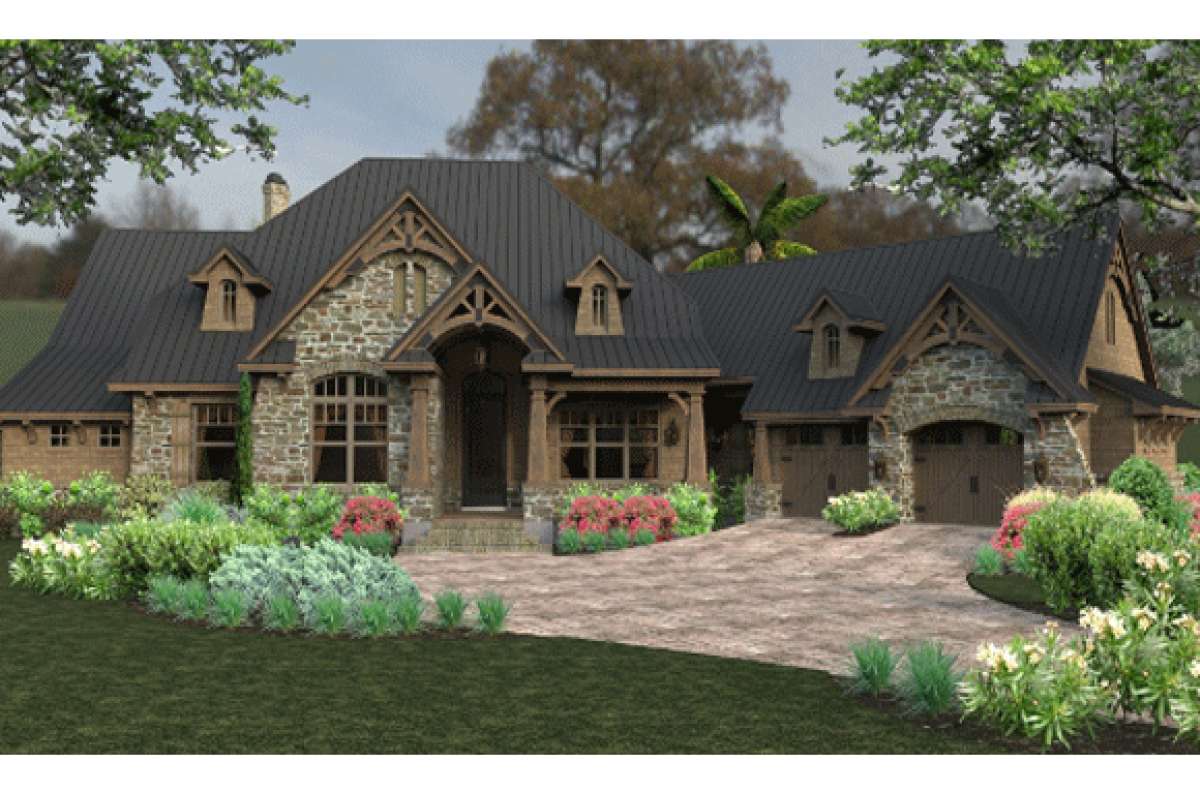

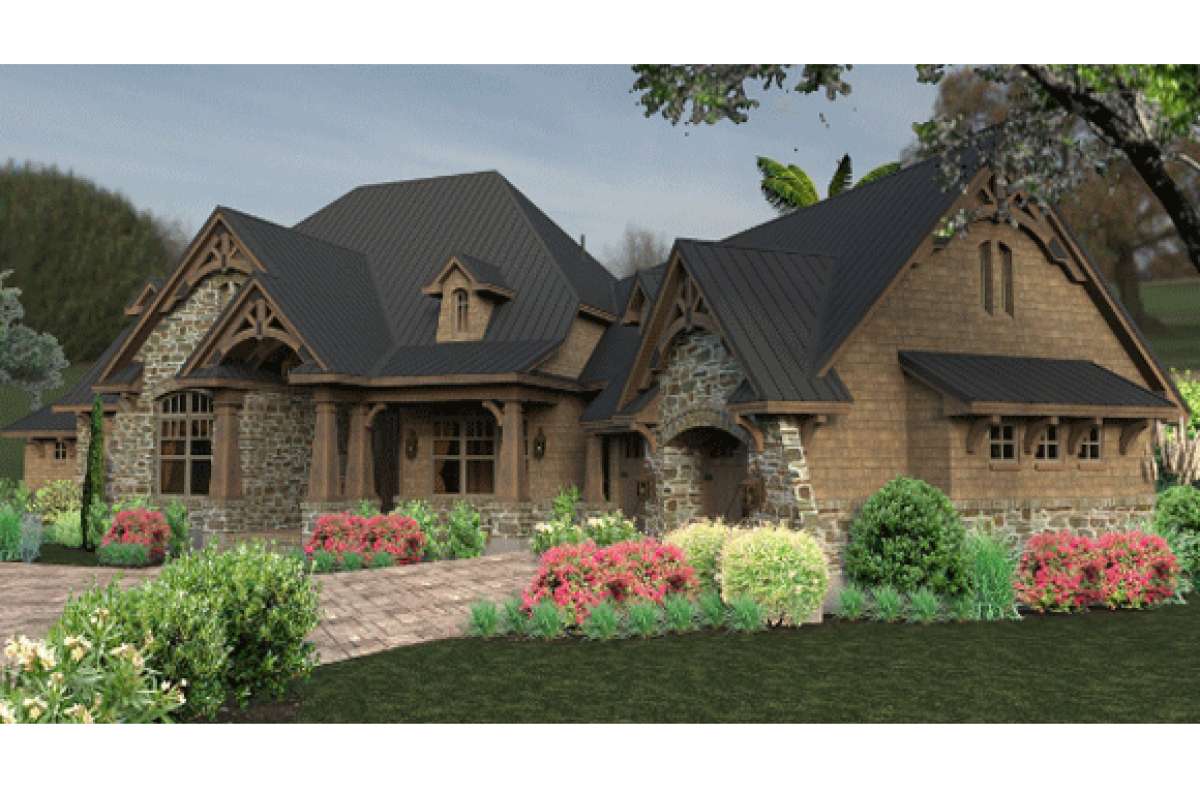

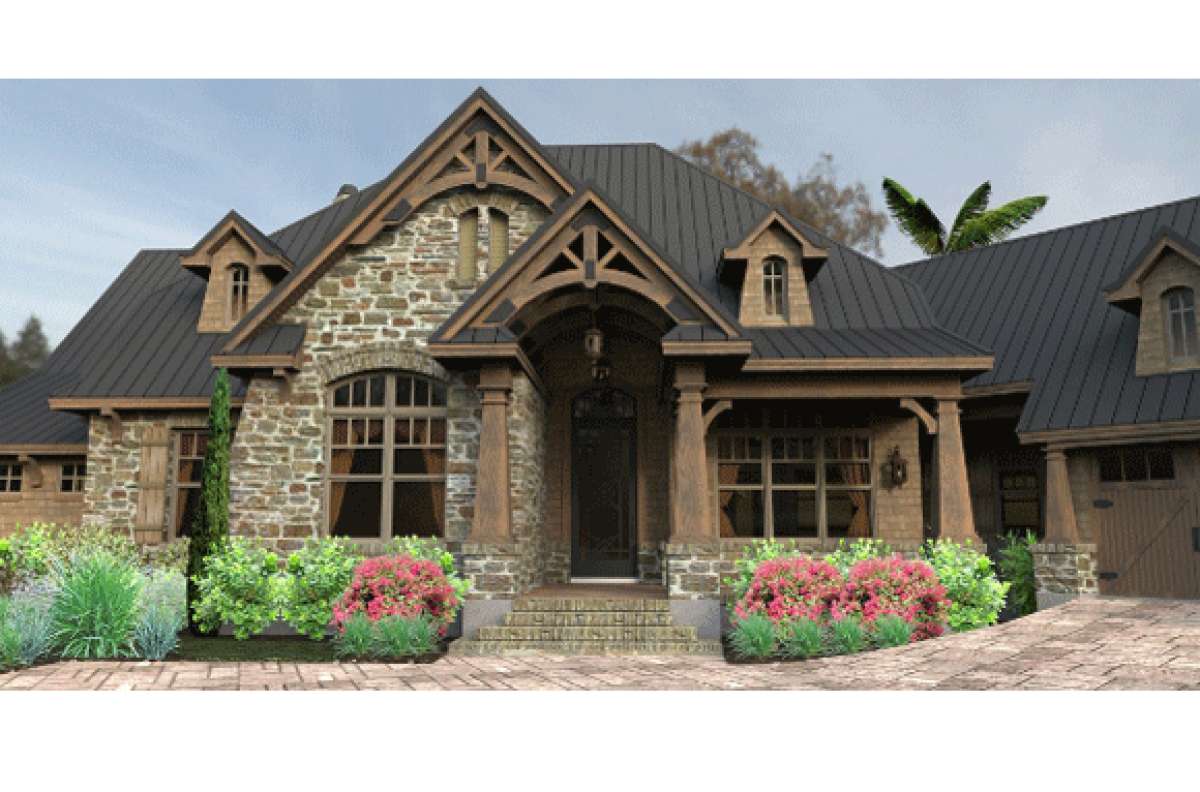

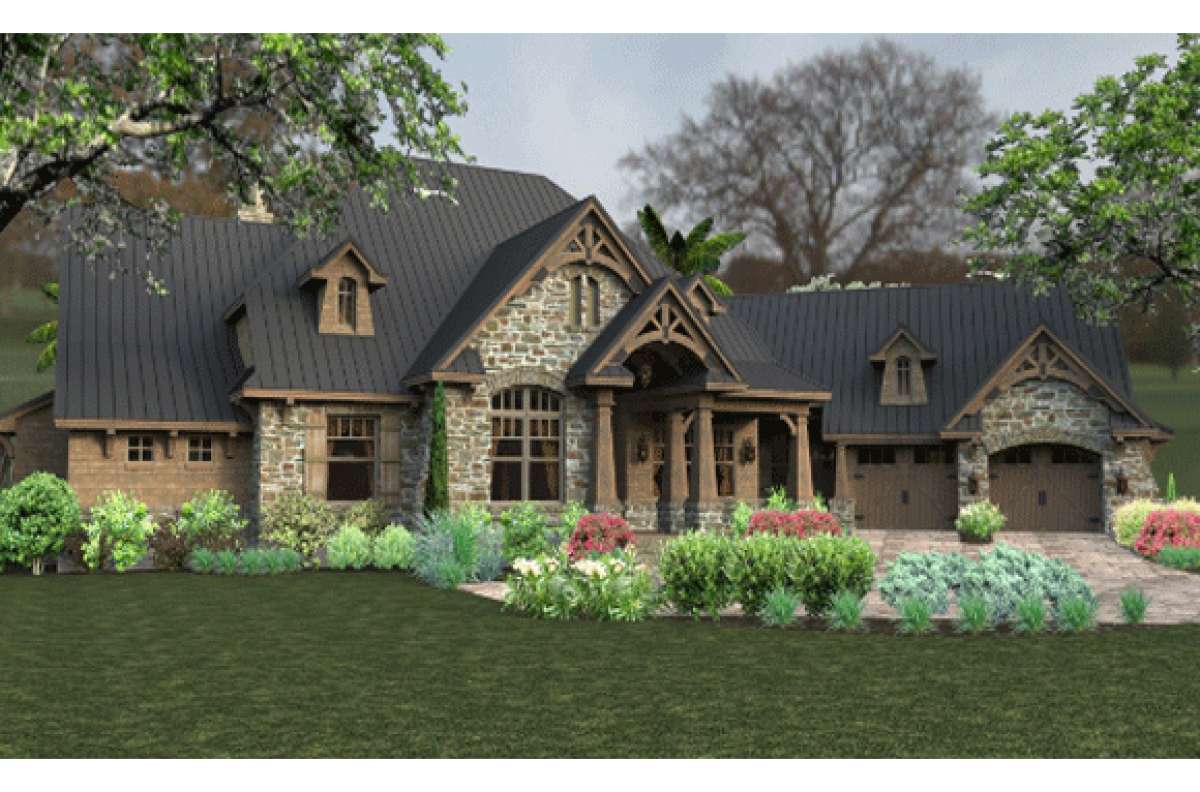

This captivating Craftsman plan has hints of the English countryside with its deliberate design which is fashioned to be in harmony with the landscape. A stone front façade with substantial wood beams, decorative gables and barn door shutters create a beautiful blend of Old World charm while the interior floor plan is modern and efficient. Guests and family alike will roused by the beauty and character of the home and look forward to being entertained and relaxing in the attractive and well appointed 1.5 storied home. There are three bedrooms and two baths in the approximate 2,466 square feet of living space. The second floor of the home features great dormer windows for lighting, a large loft area once you step onto the landing and a massive bonus room. The loft area would allow for extended living and could be used as a teenager lounge or second entertaining space and the bonus room could function as a multi-purpose room, hobby/craft room or as an artist’s studio. The two car garage features an enormous amount of space in the 759 square feet including a workshop. There is an outdoor exit to the yard and a utility porch for tidiness and convenience along with a staircase to the bonus area upstairs before leading into the house. A large interior utility room is perfect off the garage, again for tidiness and ease of clean-up before stepping into the kitchen. An expansive walk-in pantry, a center work island and loads of additional counter and cabinet space are also evident in the gourmet kitchen. The rear of the space holds a dining space drenched in sunlight and there is access to the rear covered porch. The 20’x20 family room features a handsome fireplace, soaring ceiling heights and access to the rear covered lanai. This is a beautiful outdoor space ideal for family relaxing and entertaining large groups of family and friends. The front covered porch leads to an angled foyer which houses a coat closet and opens onto the study; this flex space is generously proportioned and enjoys a triple window view onto the front porch and a trey ceiling.
A small hallway leads to two family styled bedrooms and a bath; both bedrooms are spacious, have ample closet space and bedroom two is vaulted. The shared hall bath features double vanities and a shower. The master retreat is situated at the back rear of the home for privacy and features a gorgeous design. The master bedroom has a warming fireplace, a triple window wall, a double step trey ceiling along with private access to the lanai. The elegant master bath features dual vanities, a compartmentalized toilet, separate shower and a garden tub. There is an oversized master walk-in closet at the rear of the space for convenience. This spectacular exterior is sure to encourage a peaceful and calming atmosphere and the interior floor plan provides resounding comfort and relaxing family living.
