Craftsman House Plan 9401-00001

Sq Ft2,091
1/2 Baths1
Width78' 9"
Depth71' 5"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #9401-00001
Bonus Room for House Plan #9401-00001
Basement for House Plan #9401-00001

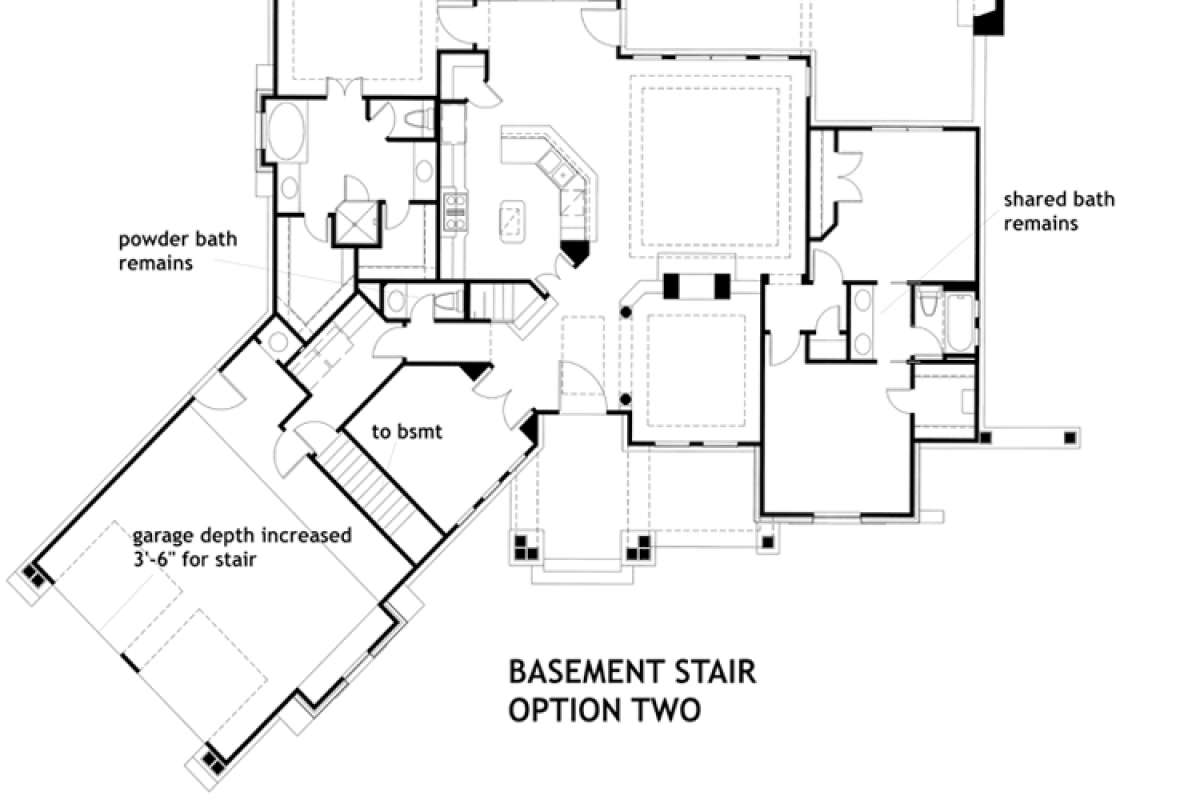

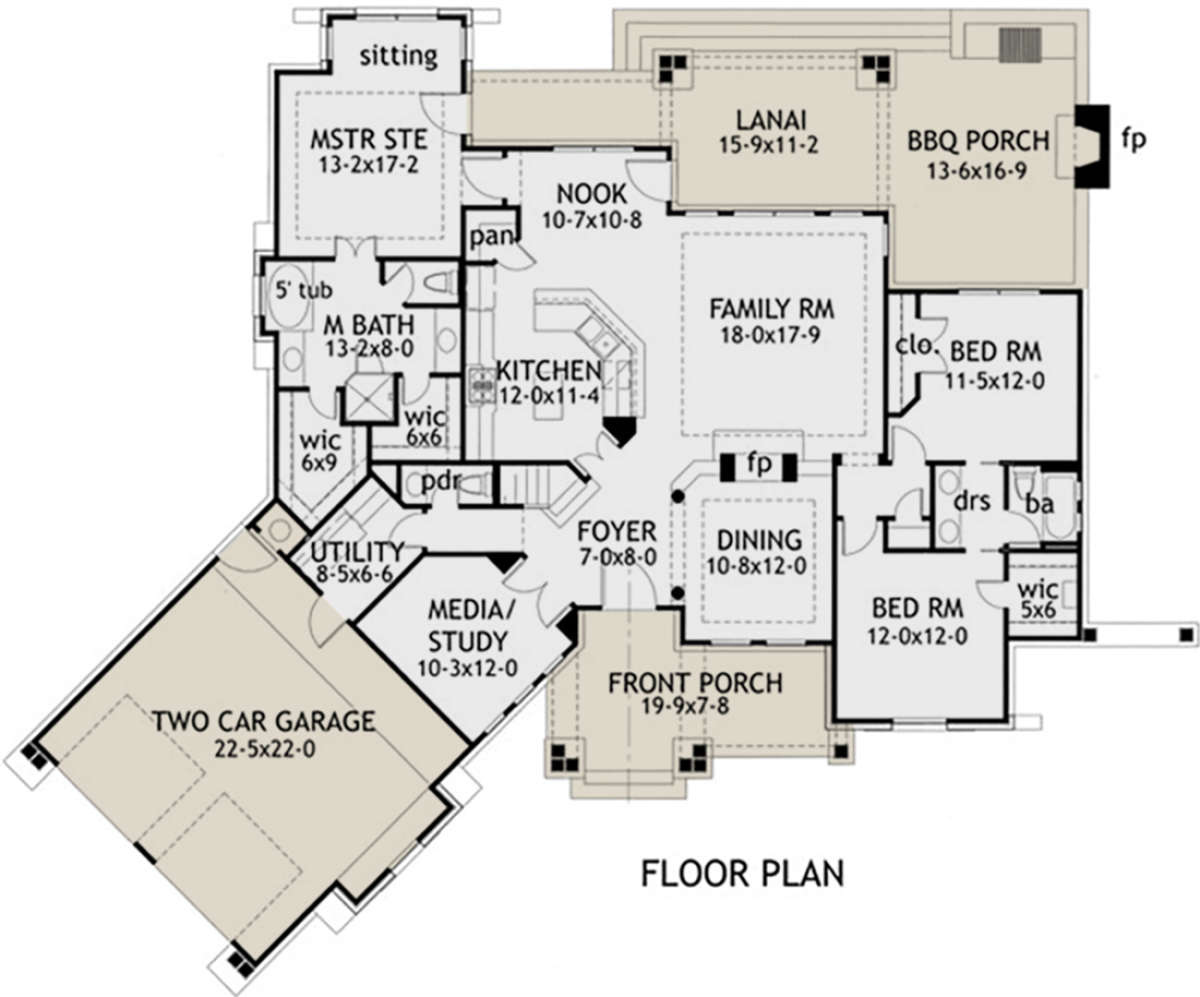

Main Floor
Main Floor for House Plan #9401-00001

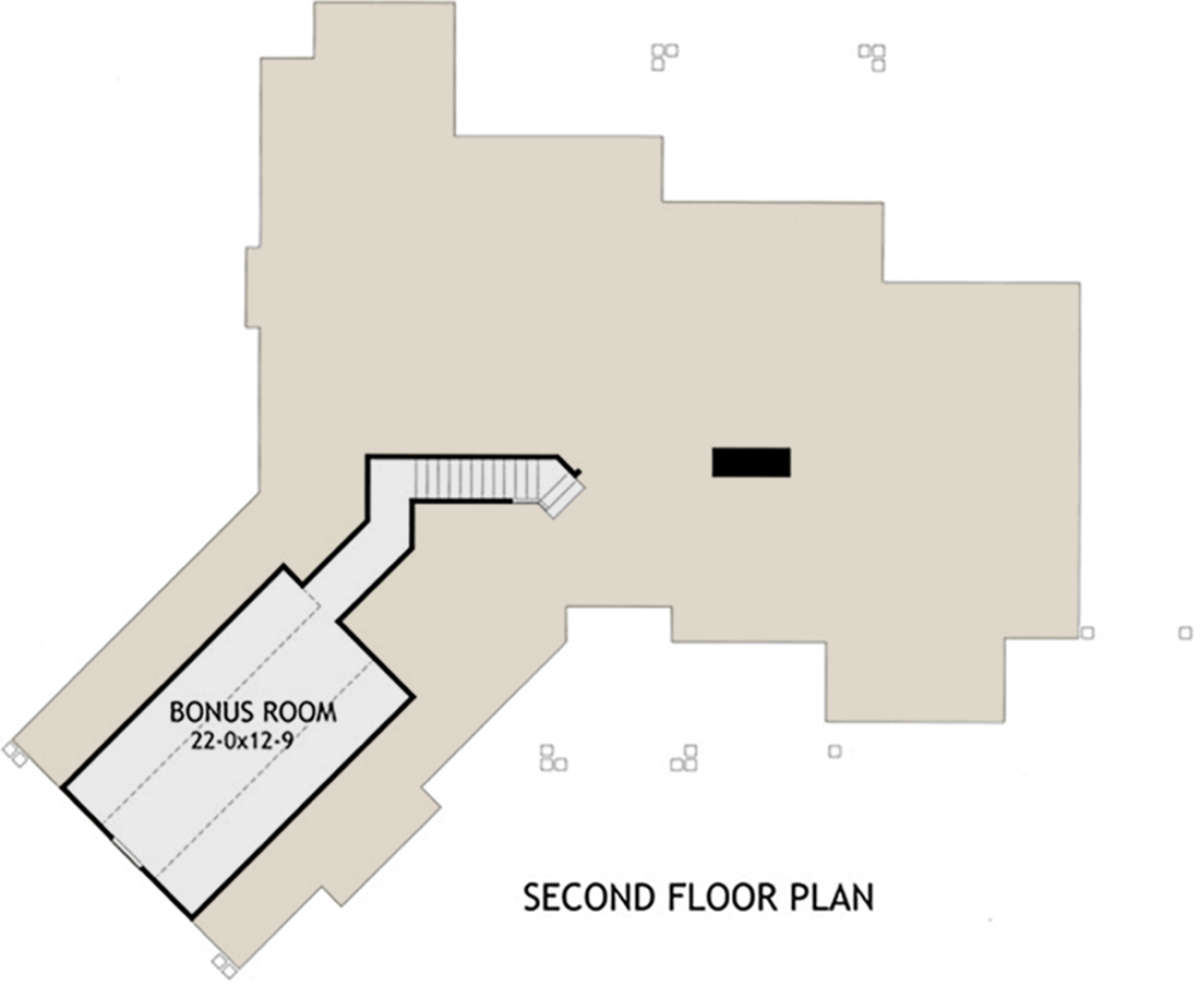

Bonus Room
Bonus Room for House Plan #9401-00001

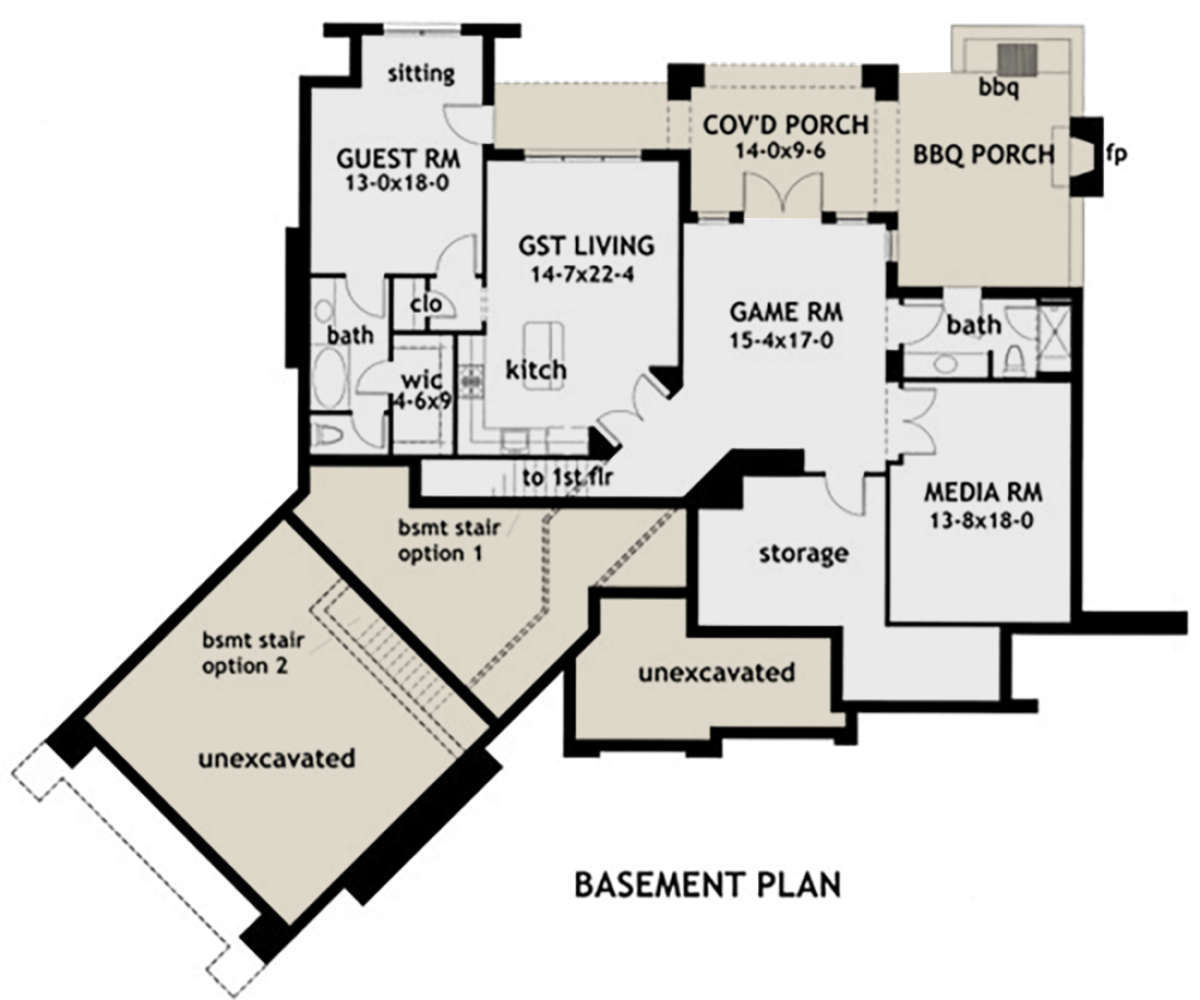

Basement for House Plan #9401-00001

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

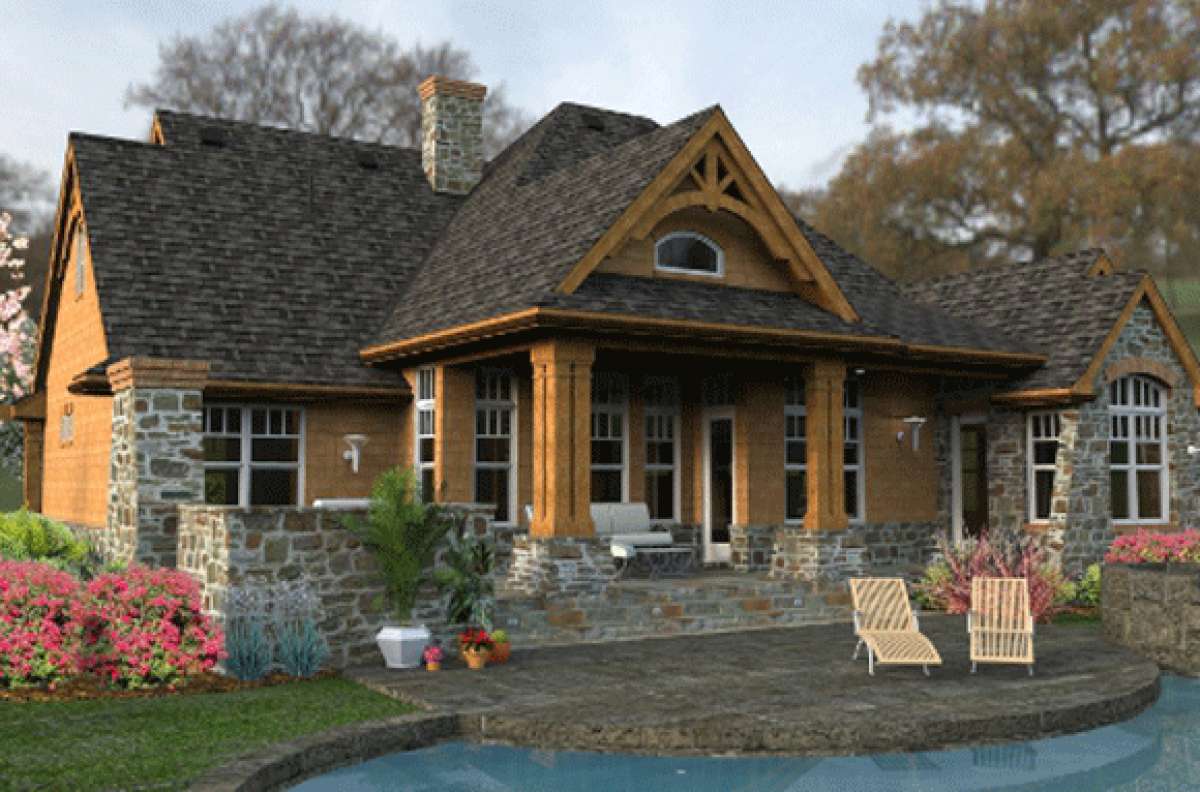

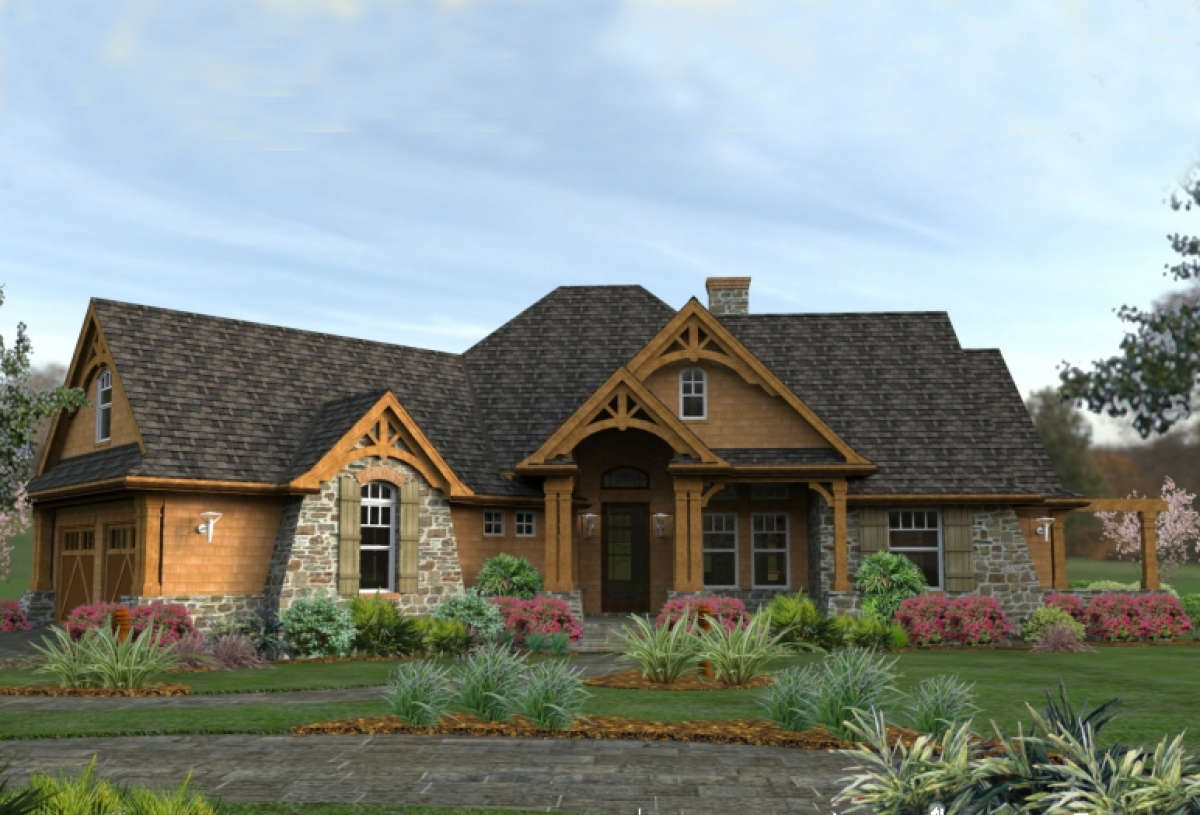

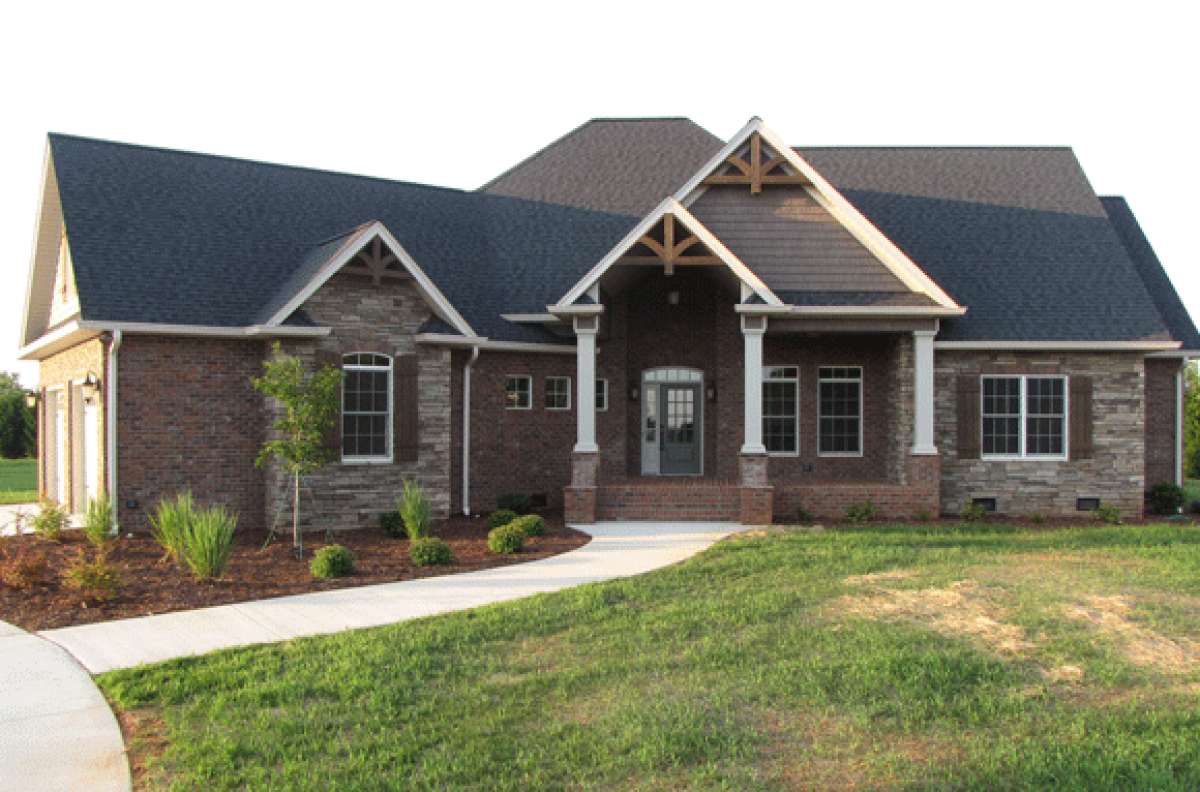

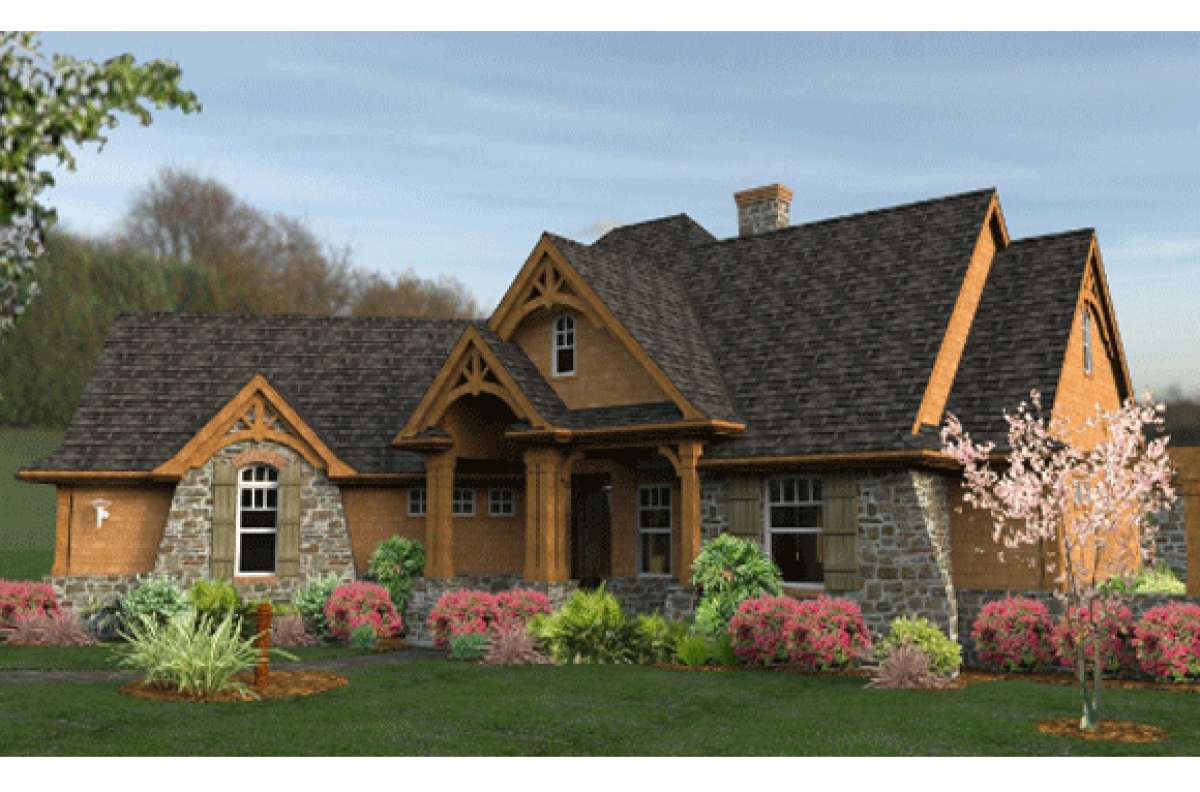

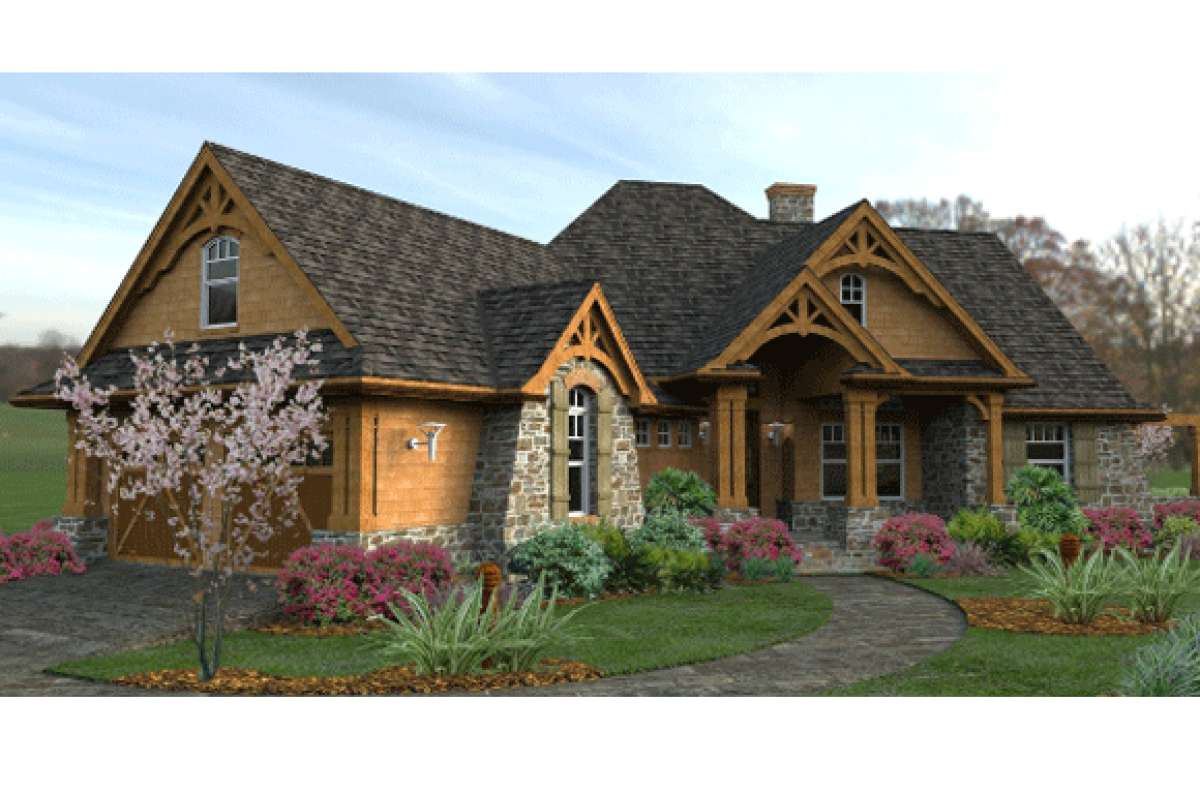

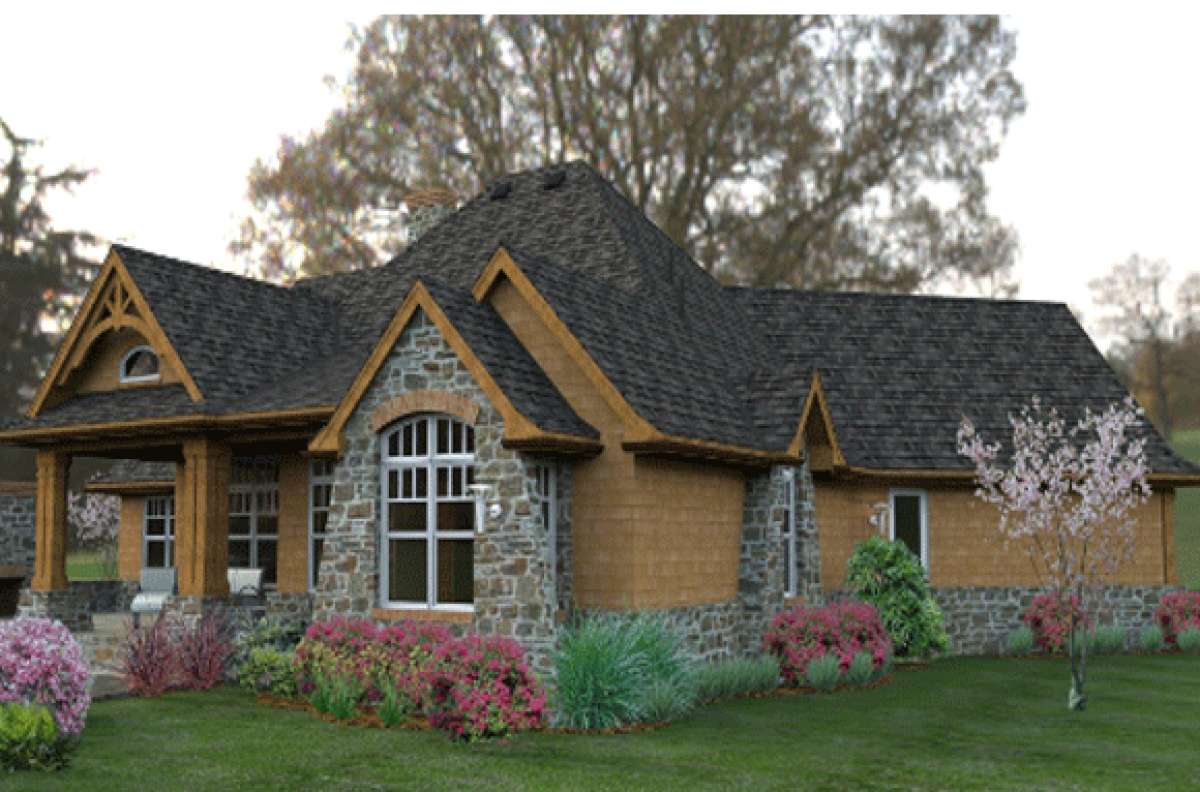

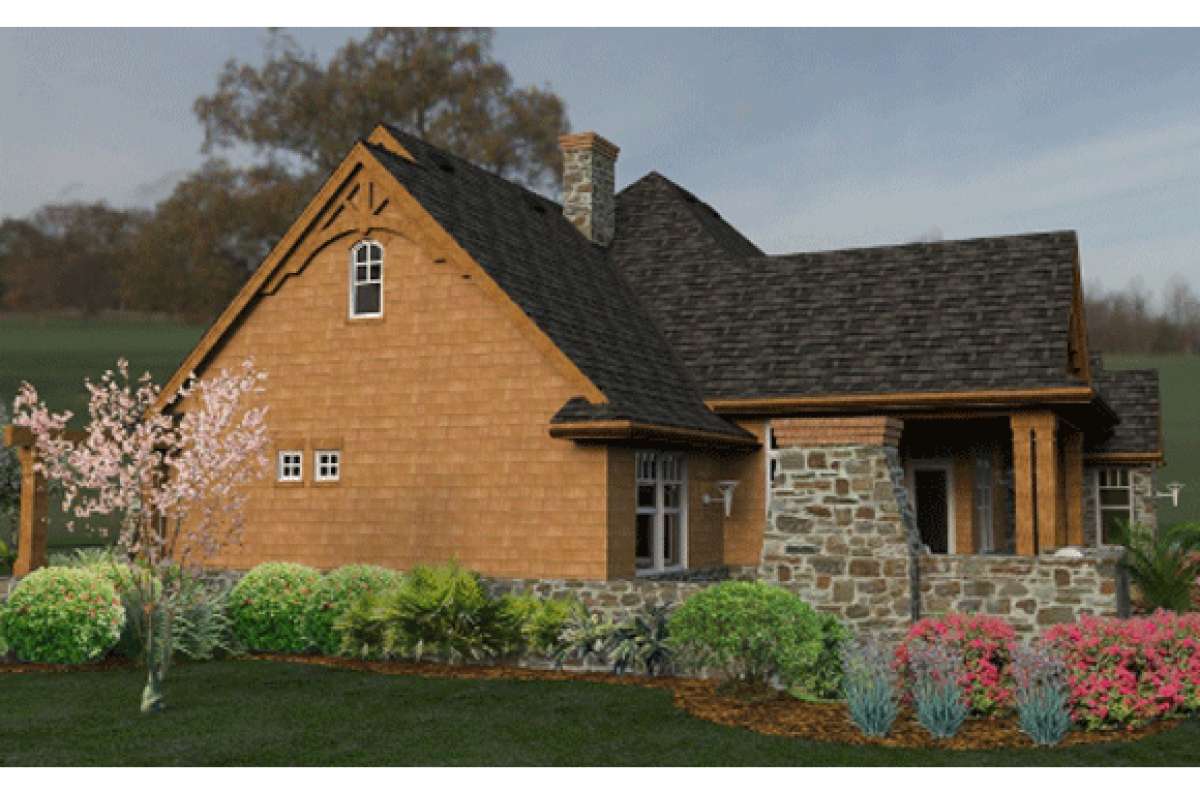

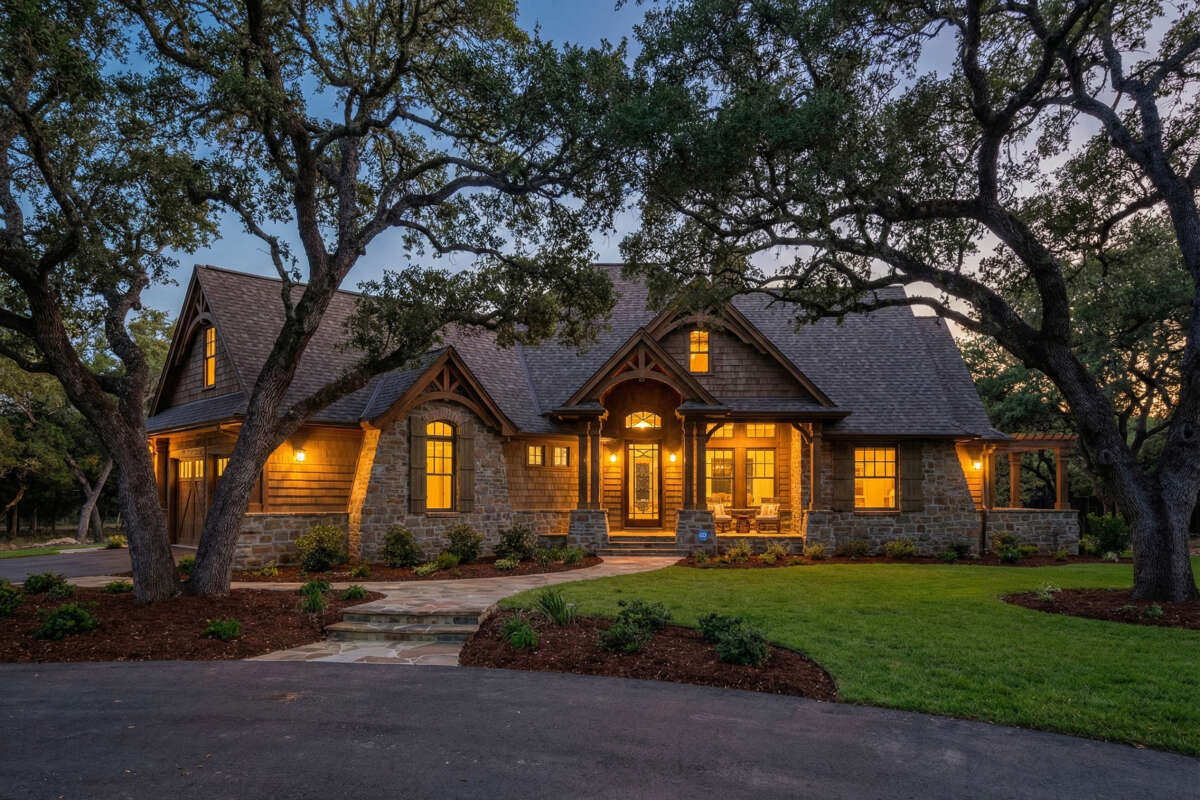

This storybook Craftsman house plan details charming features both inside and out. The exterior showcases much attention to detail as it includes a natural mixture of brick, cedar, wooden beams, stone, and a barn garage door for an English cottage feel. The front covered porch adds to the curb appeal and presents a small space for a bench, potted plants, pottery, or other outdoor decor items to jazz up the home. The rear outdoor area details an extended space with a lanai that is partially covered for comfortable lounging and entertaining. The porch also includes an outdoor fireplace and a barbecue pit.

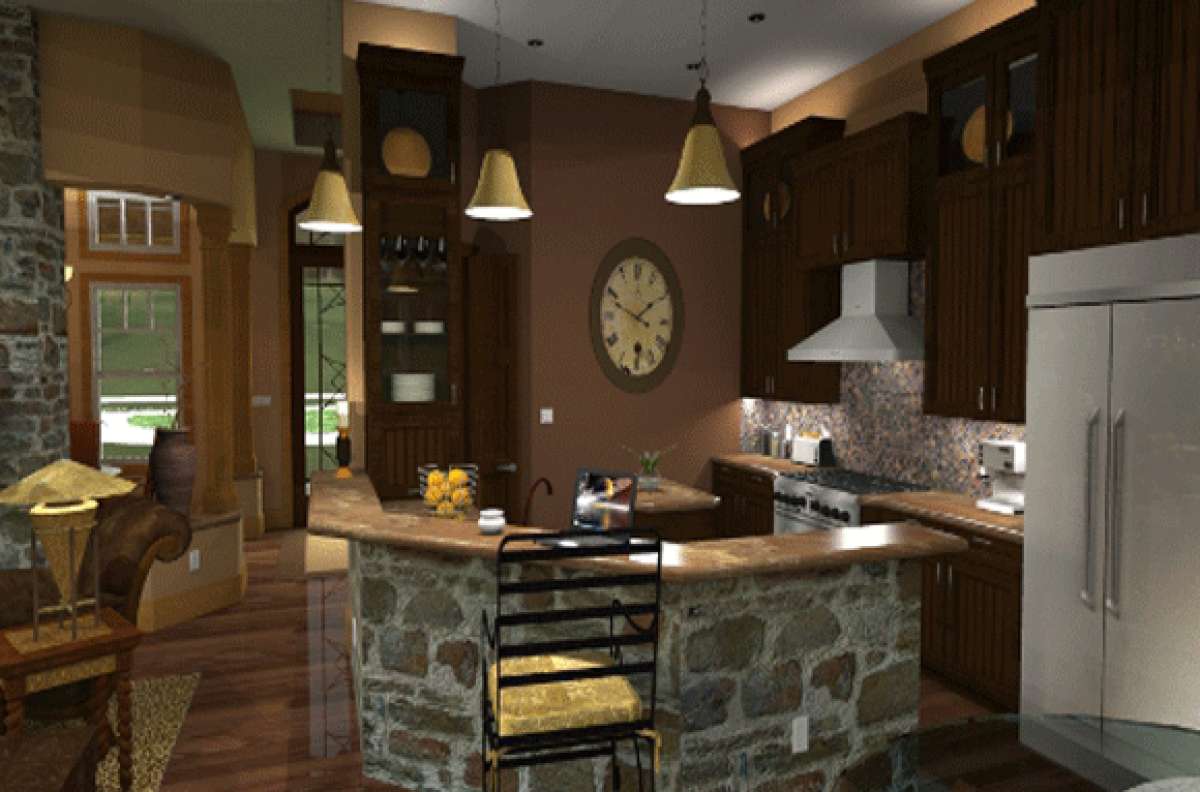

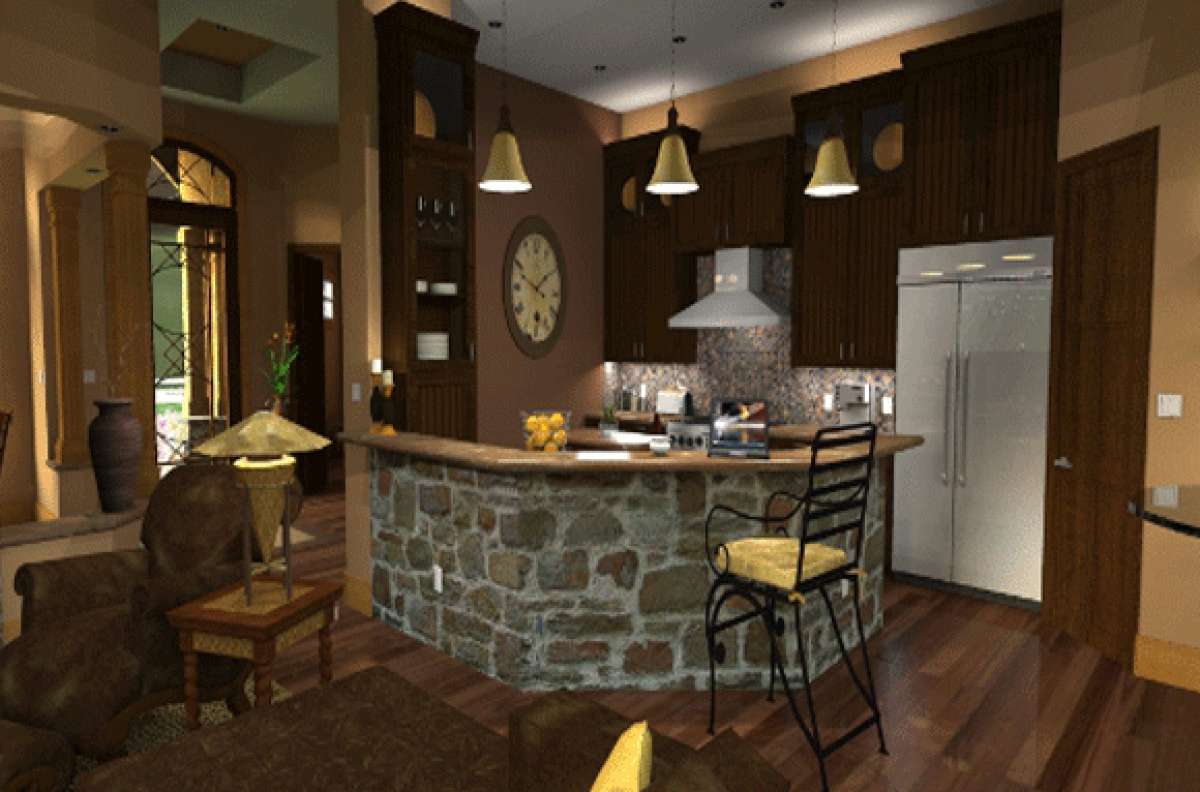

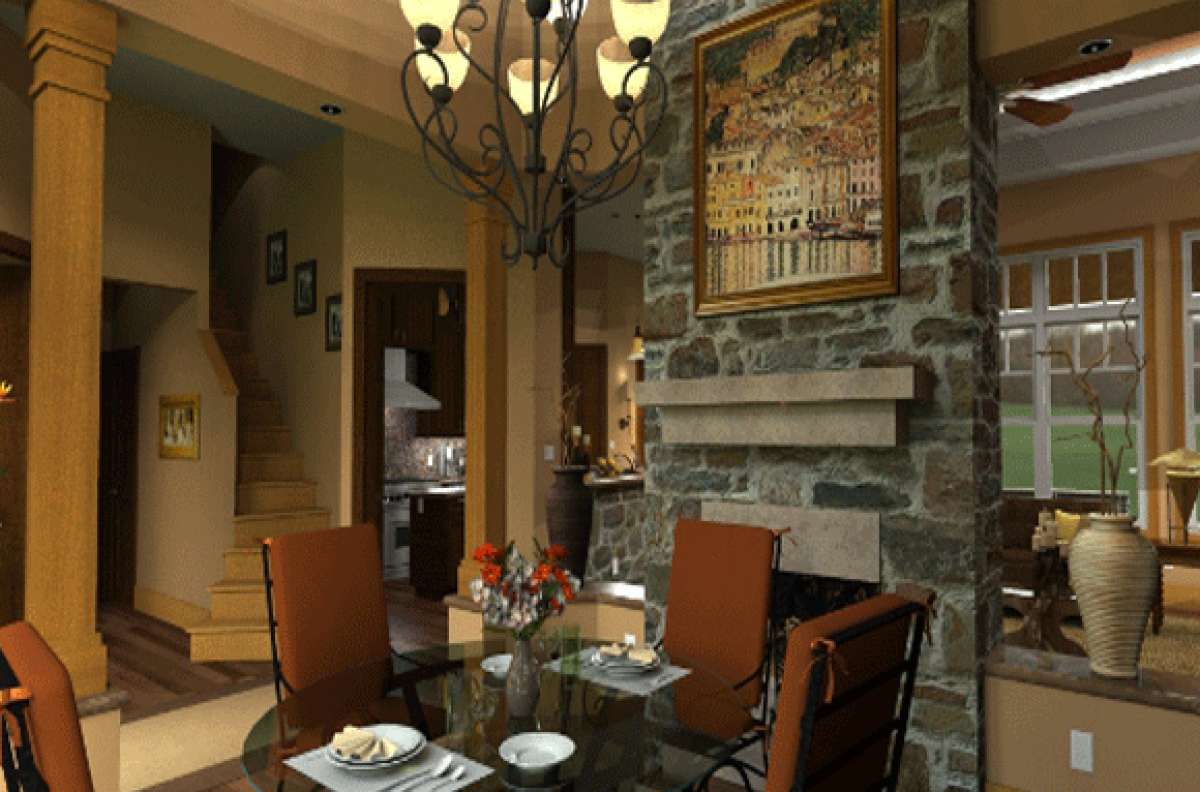

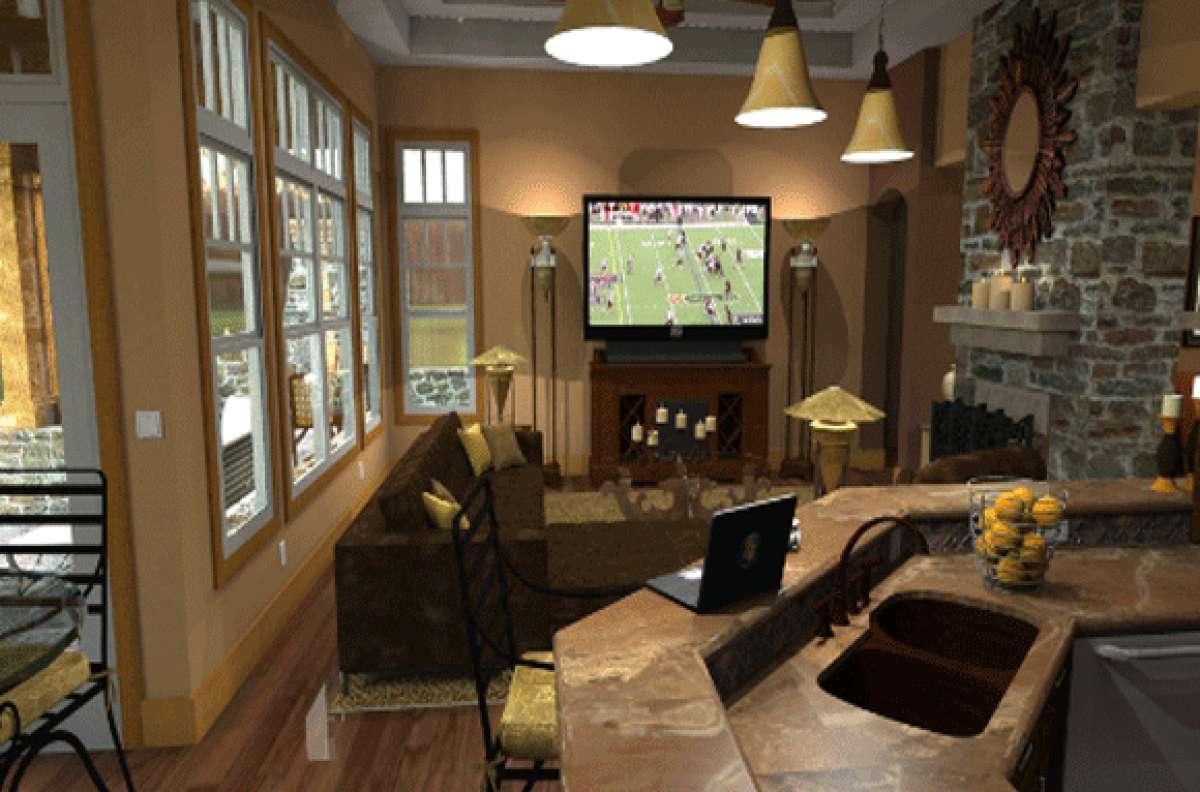

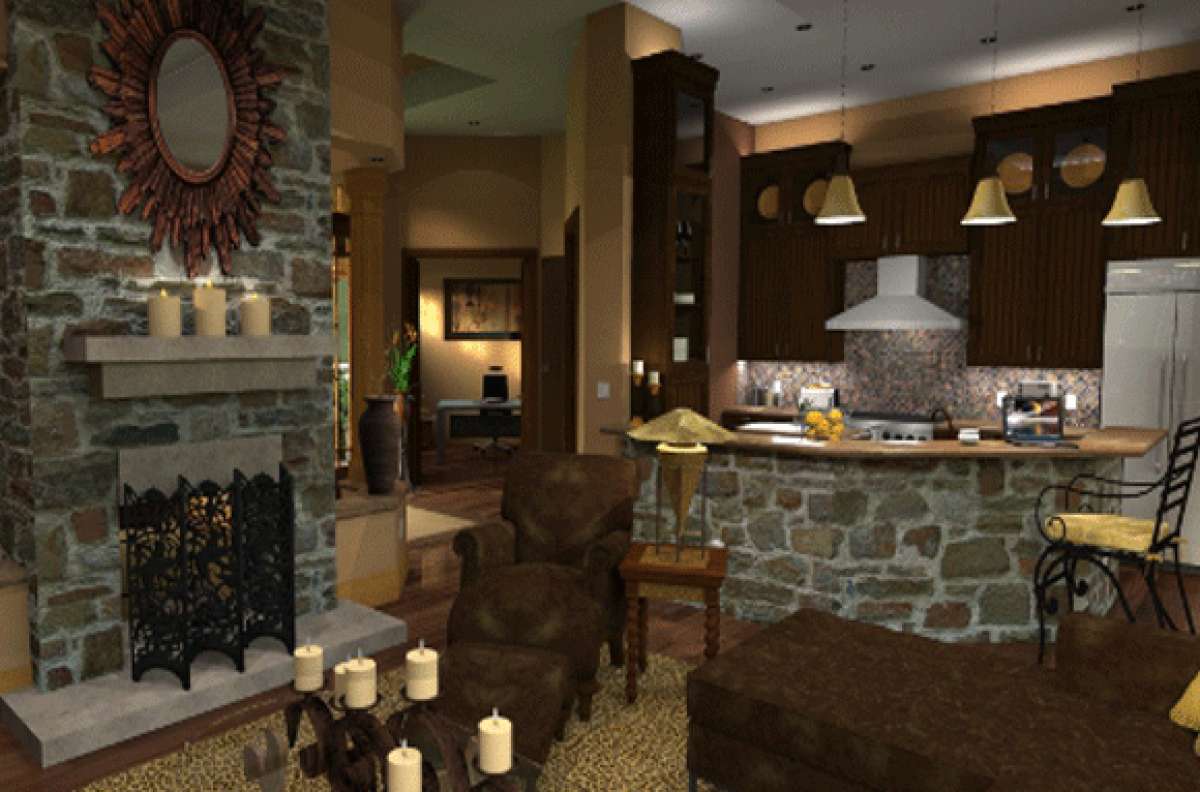

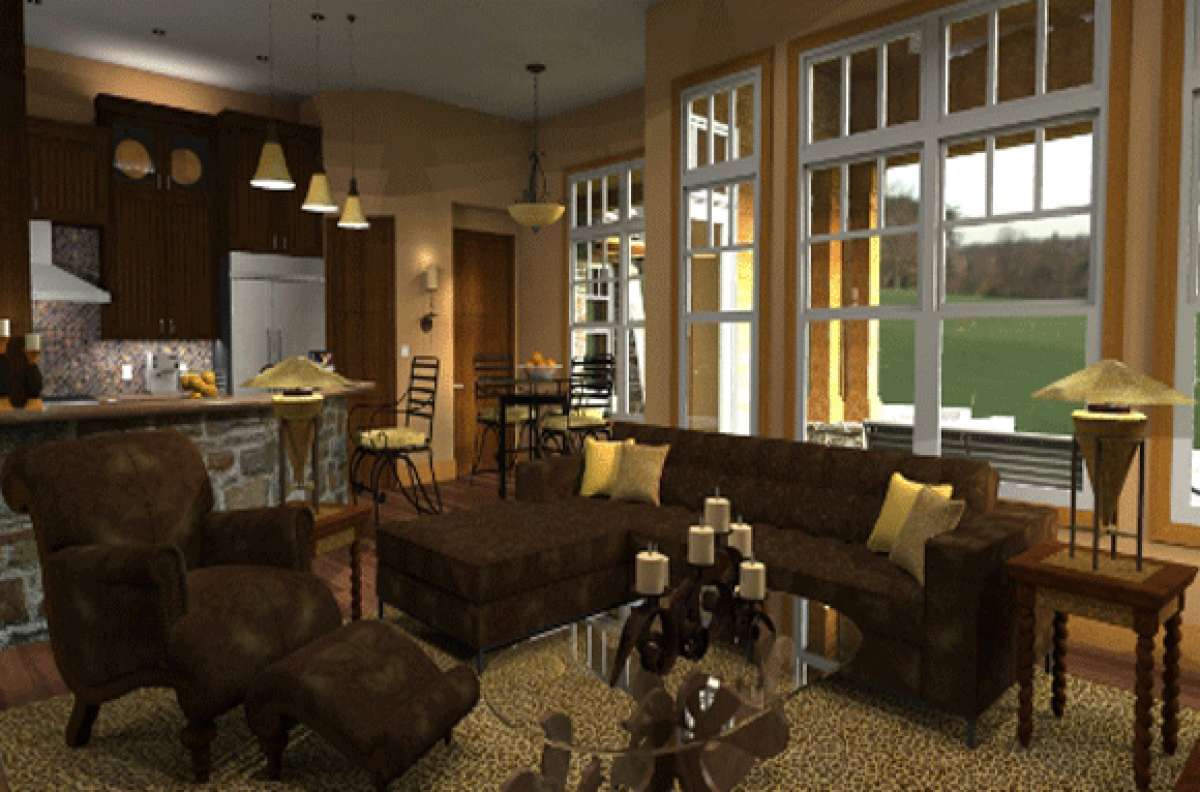

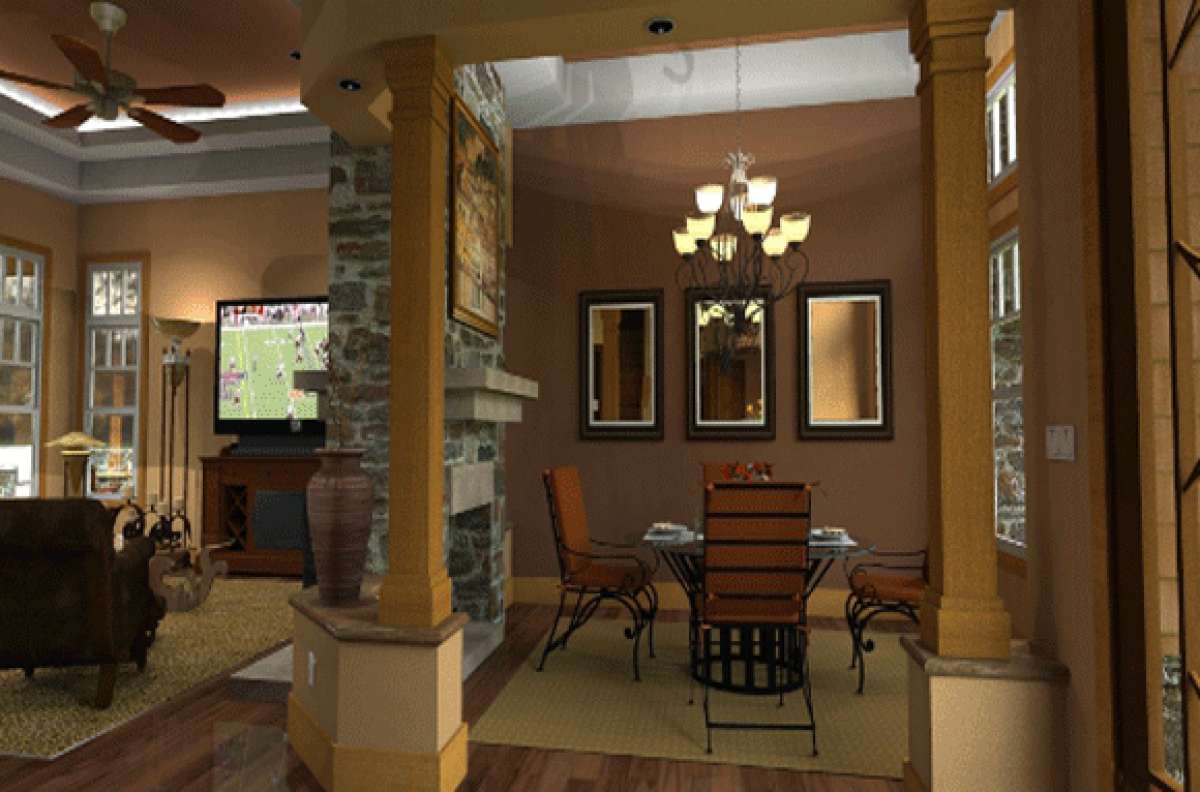

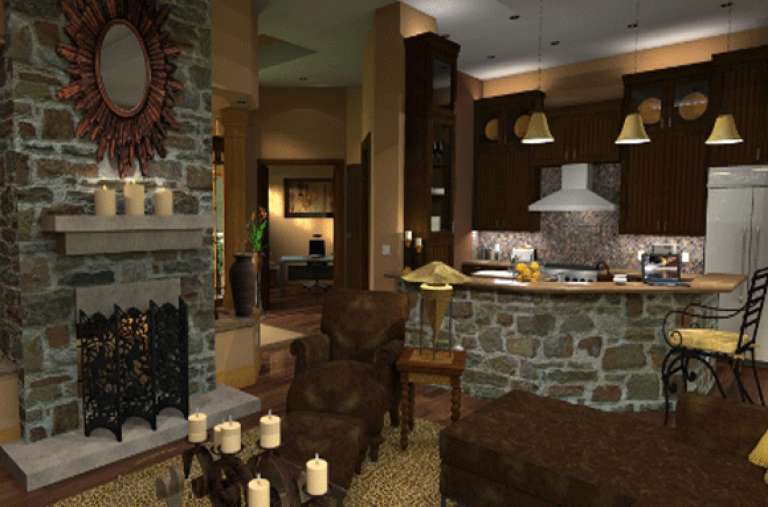

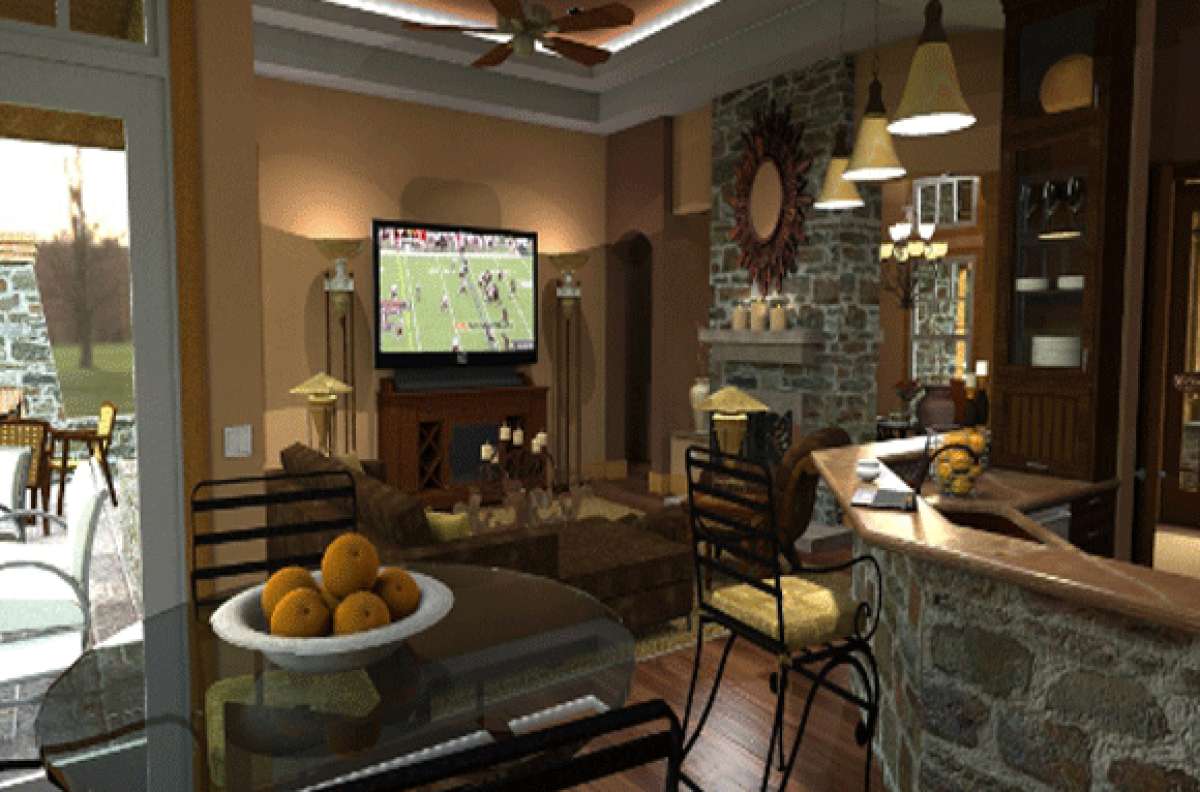

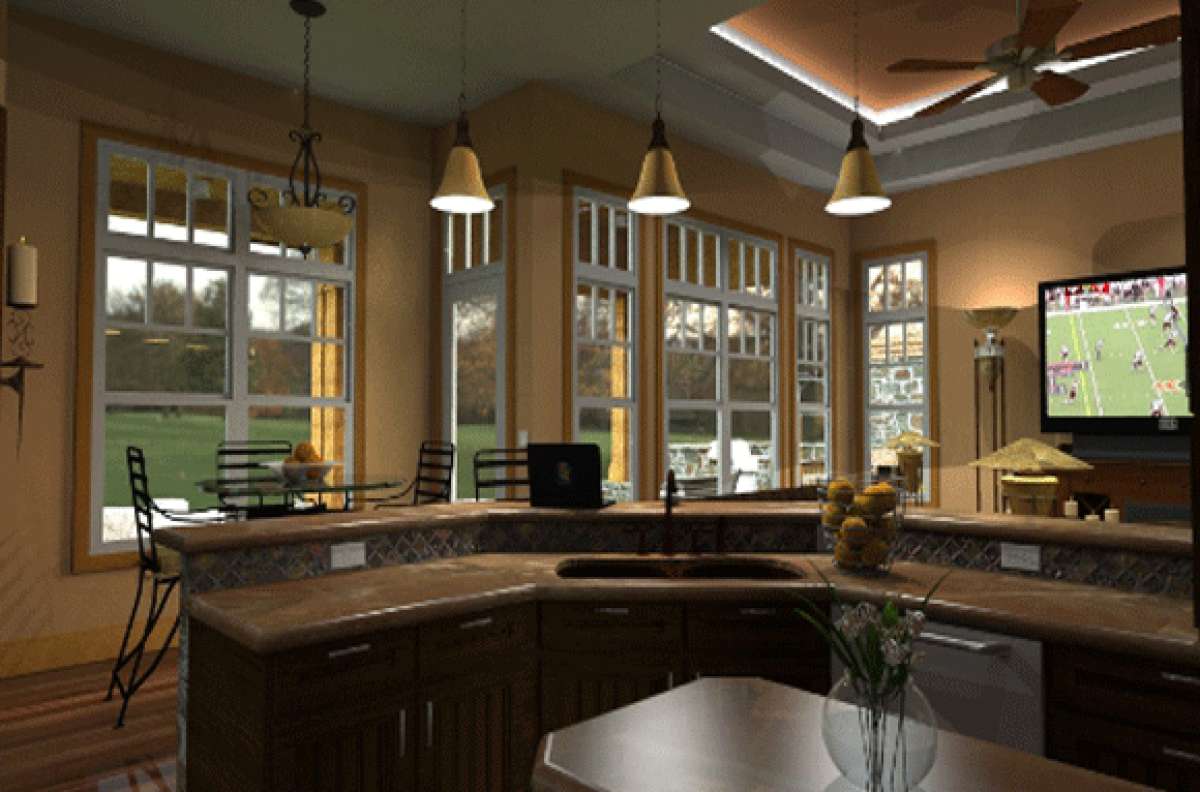

The main floor of the house plan offers approximately 2,091 square feet of living space with 3 bedrooms, 2.5 bathrooms, and a bonus room. The foyer stands as the lighthouse of the home, granting visual to the dining room, family room, media room, utility room, and bonus room stairs. Leading into the common area, the dining room is partially open and features a double-sided fireplace with a tray ceiling for added style and character. The family room is on the other side of the fireplace with a tray ceiling as well. The family room presents a naturally lit area with a window wall opposite the fireplace. It is open to the kitchen which features a peninsula that includes an eating bar for extra space. There is also a pantry for food storage and a breakfast nook with large windows for sunlight and access to the lanai.

The bedroom configuration consists of a split layout with the secondary bedrooms off the family rooms. Both rooms are similarly sized, separated by a jack and jill bathroom with dual vanities and a tub/shower combination. The primary suite boosts privacy and a generous bedroom size with a tray ceiling and a separate sitting area with beautiful rear yard views. The attached bathroom features dual vanities, a separate shower, a garden tub, a compartmentalized toilet, and his and her walk-in closets.

Additional rooms increase the value of this Craftsman house plan such as the bonus room, main floor study room, and the basement. The bonus room, located on the second floor, features 349 square feet of ideal space for a guest bedroom or playroom for the children. The basement level adds an additional 1,524 square feet to the house plan and features a private guest suite. It contains a spacious and open living and dining area, a kitchen with a center island, and plenty of additional counters and cabinet space. Additionally, there is a large bedroom with a sitting room, a private bathroom, and a large walk-in closet. A centrally located game room provides access to the rear covered porch and an outdoor barbecue area with a fireplace. Off the game room, is a spacious media room and private bathroom. An enormous storage space completes the basement plan, making this 2,091 square foot home perfect and comfortable for in-laws, guests, and adult children.
