Modern Plan 940-00198

Name: House Plan 940-00198 - Modern Plan: 650 Square Feet, 1 Bedroom, 1 Bathroom
Brand: America's Best House Plans
SKU: 940-00198
Price: 950.00 USD

Modern House Plan #940-00198 Elevation Photo

Modern House Plan #940-00198 Additional Photo

Video

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 650

Beds 1

Bath 1

1/2 Baths 0

Car 2

Stories 2

Width 23'

Depth 28' 3"

See What's Included

Select Package

PDF (Single Build)

$950.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,115.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,157.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Plus PDF, Single Build)

$950.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $35.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Material list may require up to 2 weeks to prepare. Material list only includes materials for the standard foundation for this particular plan. Any upgrades or "Additional Options" purchased with the base plan will not be reflected in the material list.

View Sample Material List

Return Policy, Building Code & Copyright Info

Visualize this plan on your own land! Create Photo

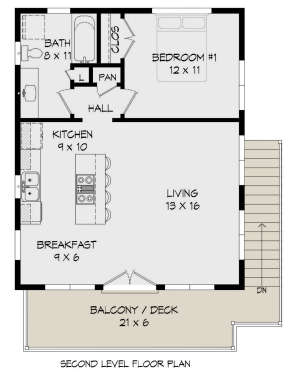

Floorplan Drawings

PRINT DOWNLOAD

Main Floor

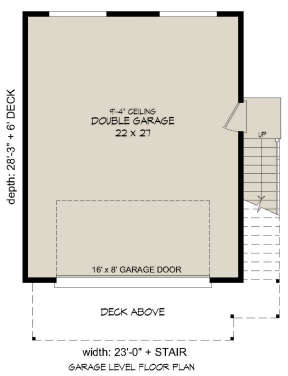

Garage

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 650 sq. ft. First Floor: 650 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 650 sq. ft. Garage: 650 sq. ft.

Bedrooms: 1

Full Baths: 1

Floors: 2

Garage Size: 2 car

Width: 23ft.

Depth: 28ft.-3in.

Height: 24ft.-10in.

Foundation: Slab Foundation

Main Roof Pitch: 2.5:12

Exterior Framing: 2x6 Wood

What's Included in these plans?

Exterior Elevation Views of front, side and rear elevations

Foundation Plan

Floor plan(s)

Electrical Layout

Roof Plan

Cross Section through main body of house

Stair Detail (if applicable)

Interior and exterior details

General Notes

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

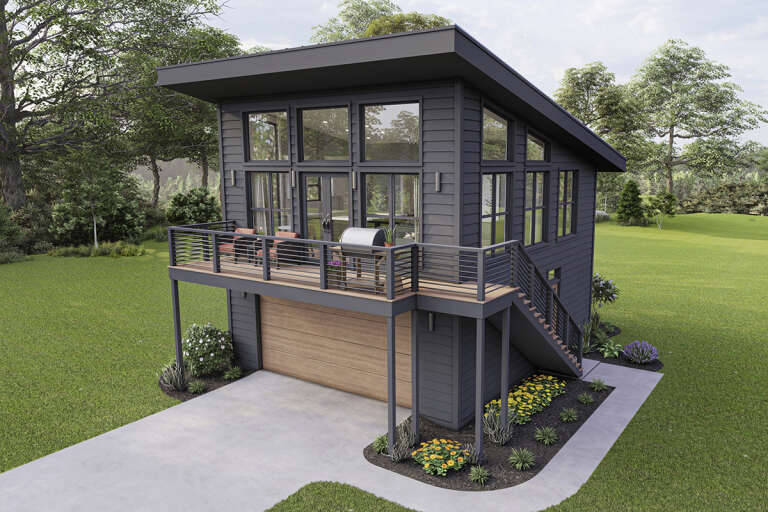

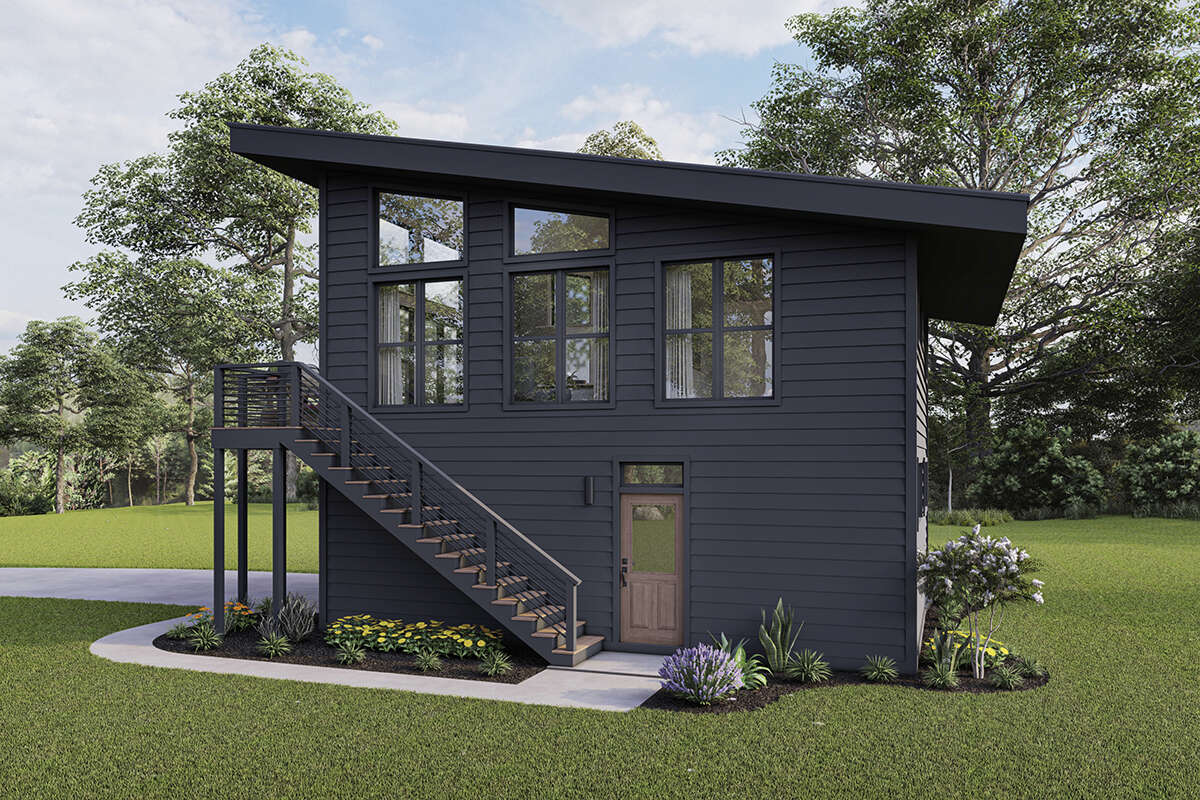

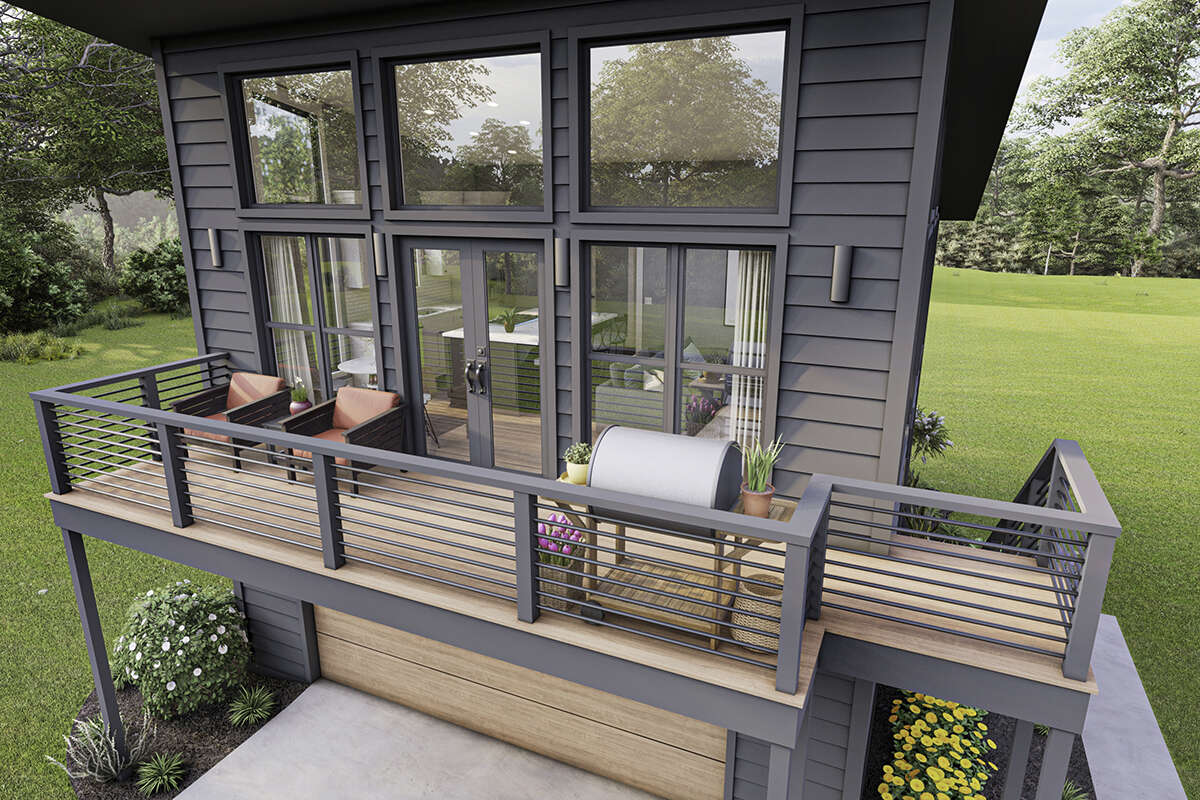

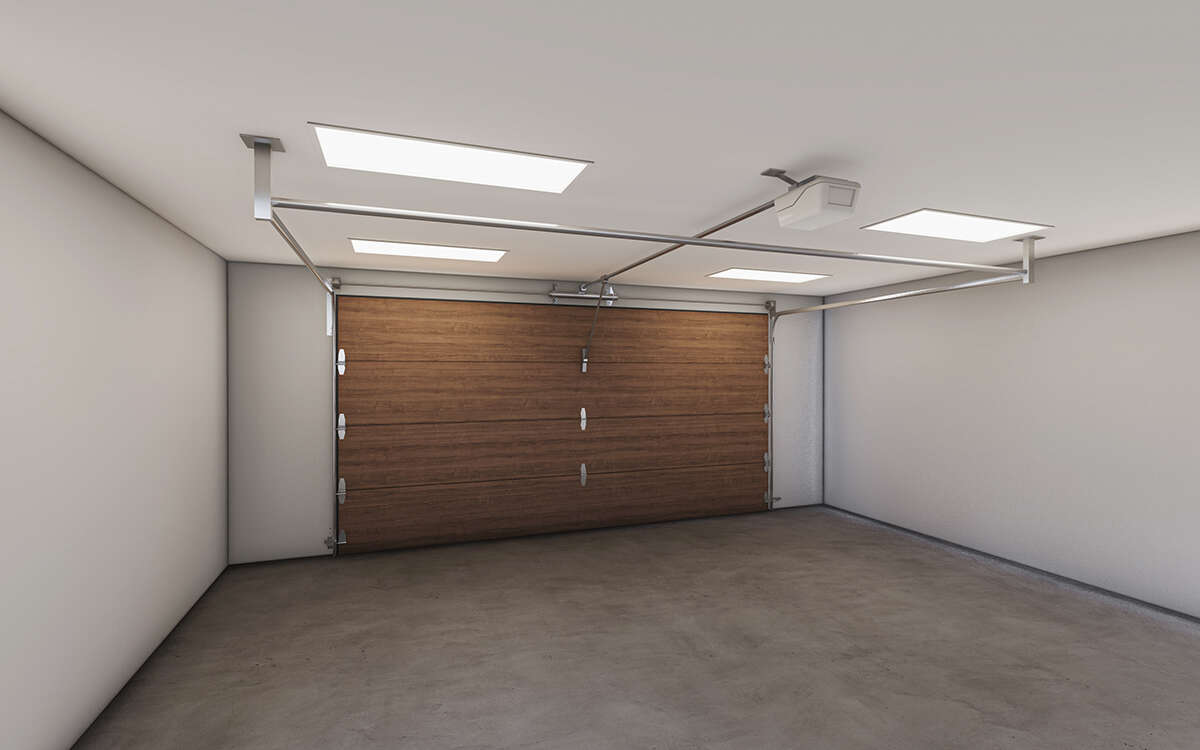

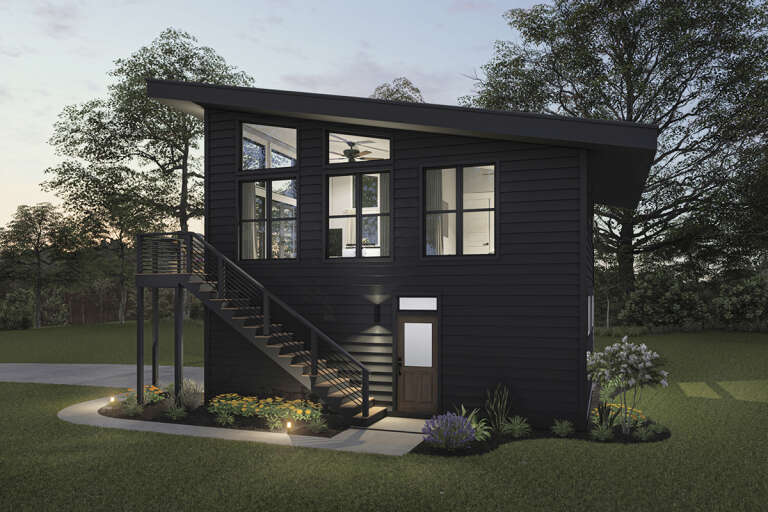

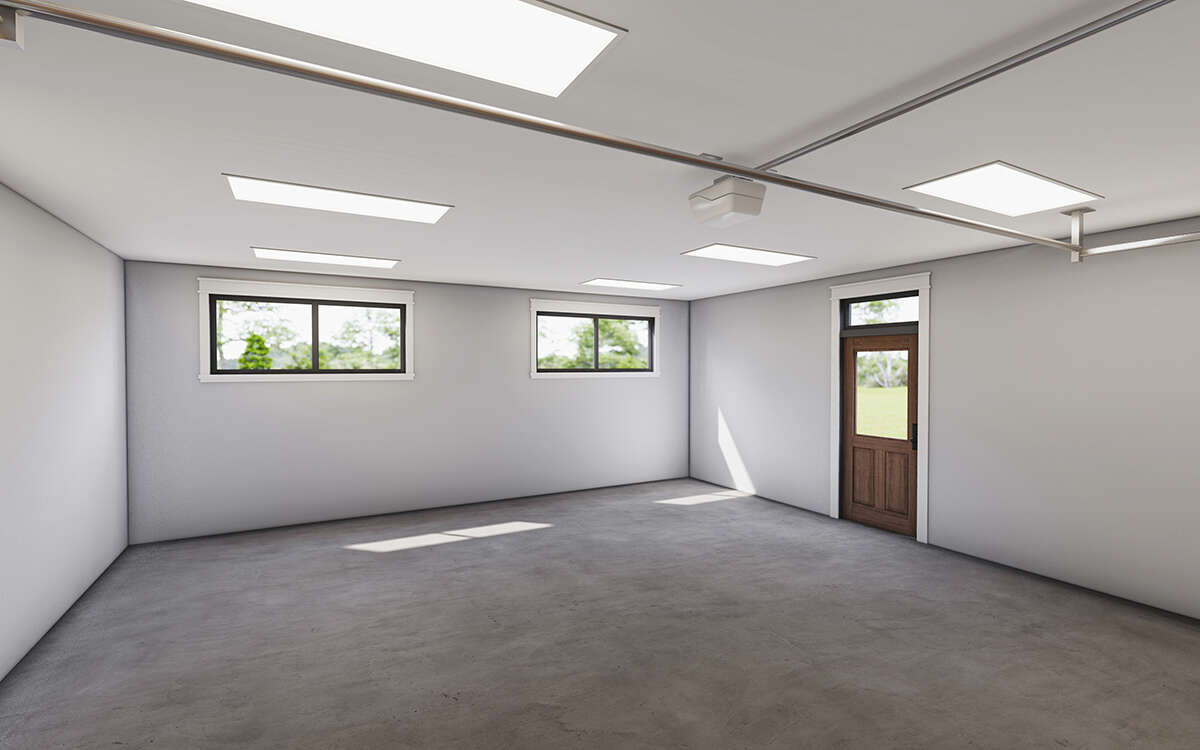

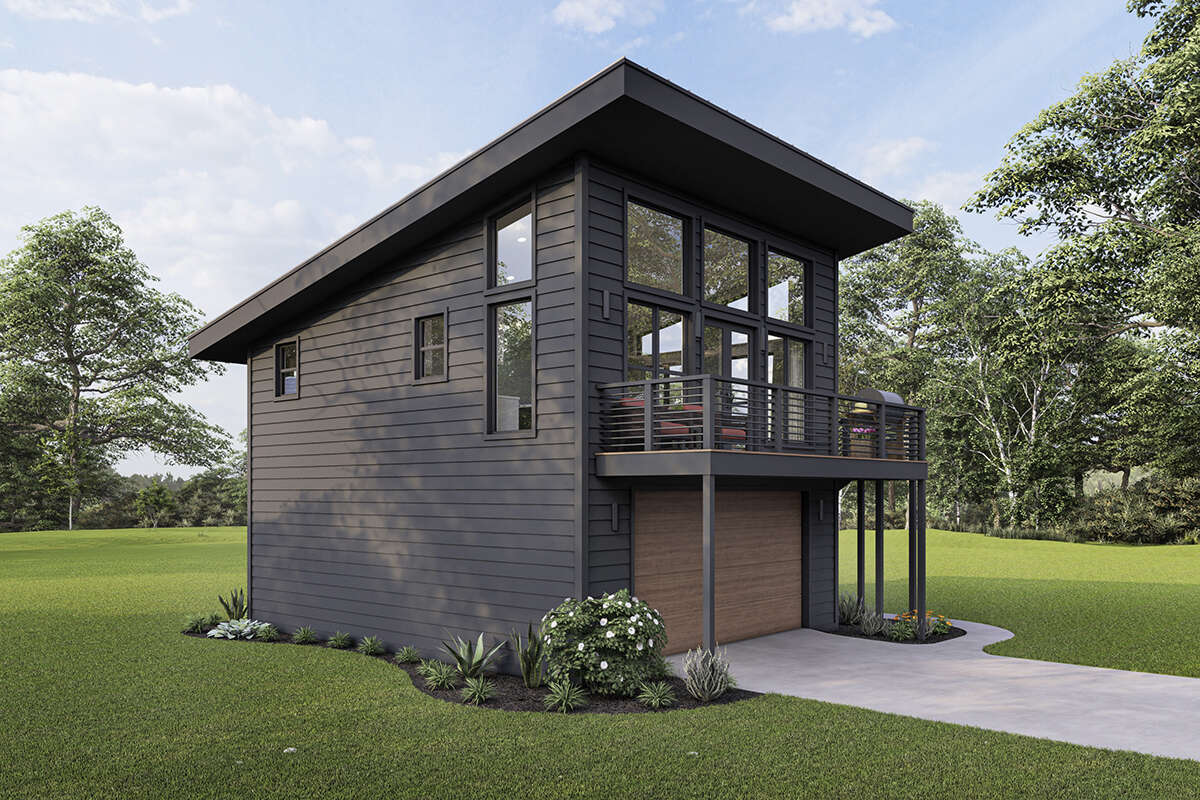

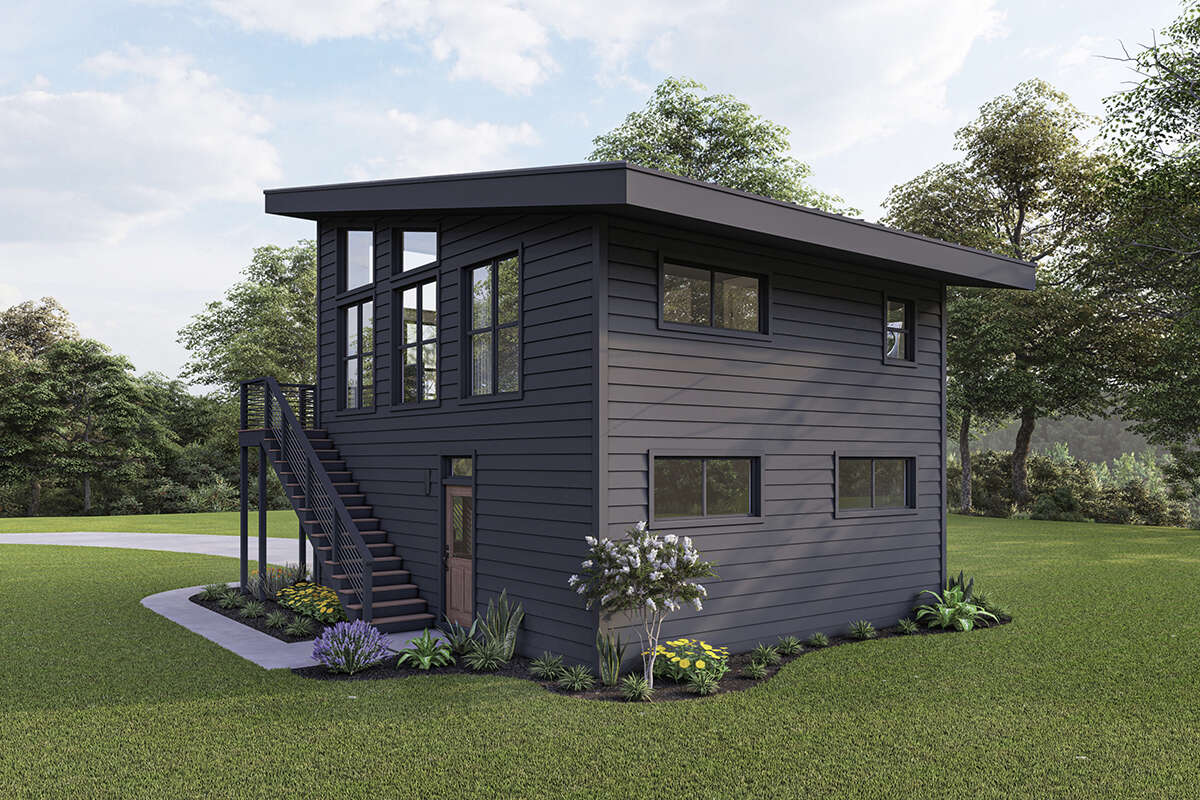

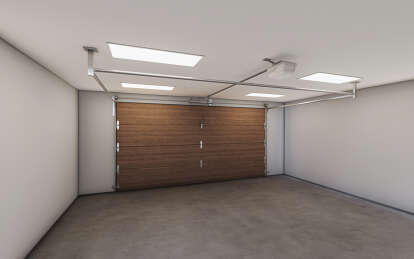

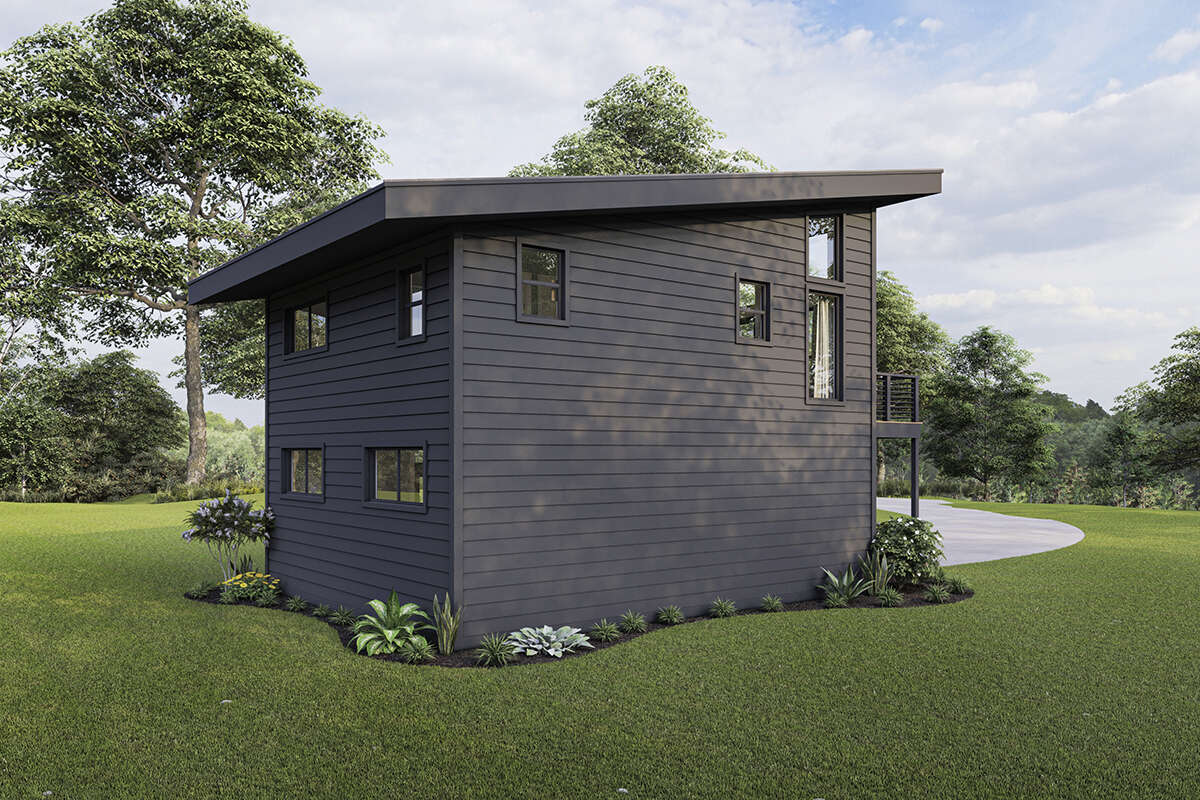

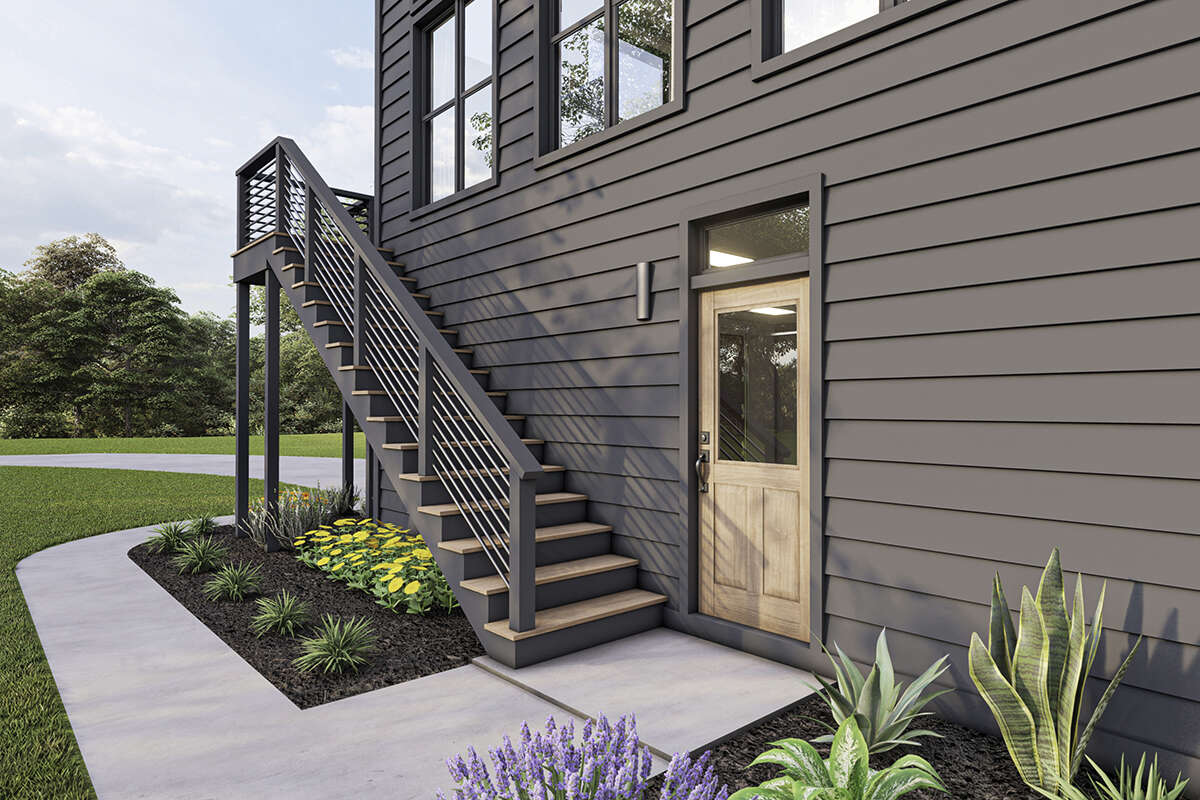

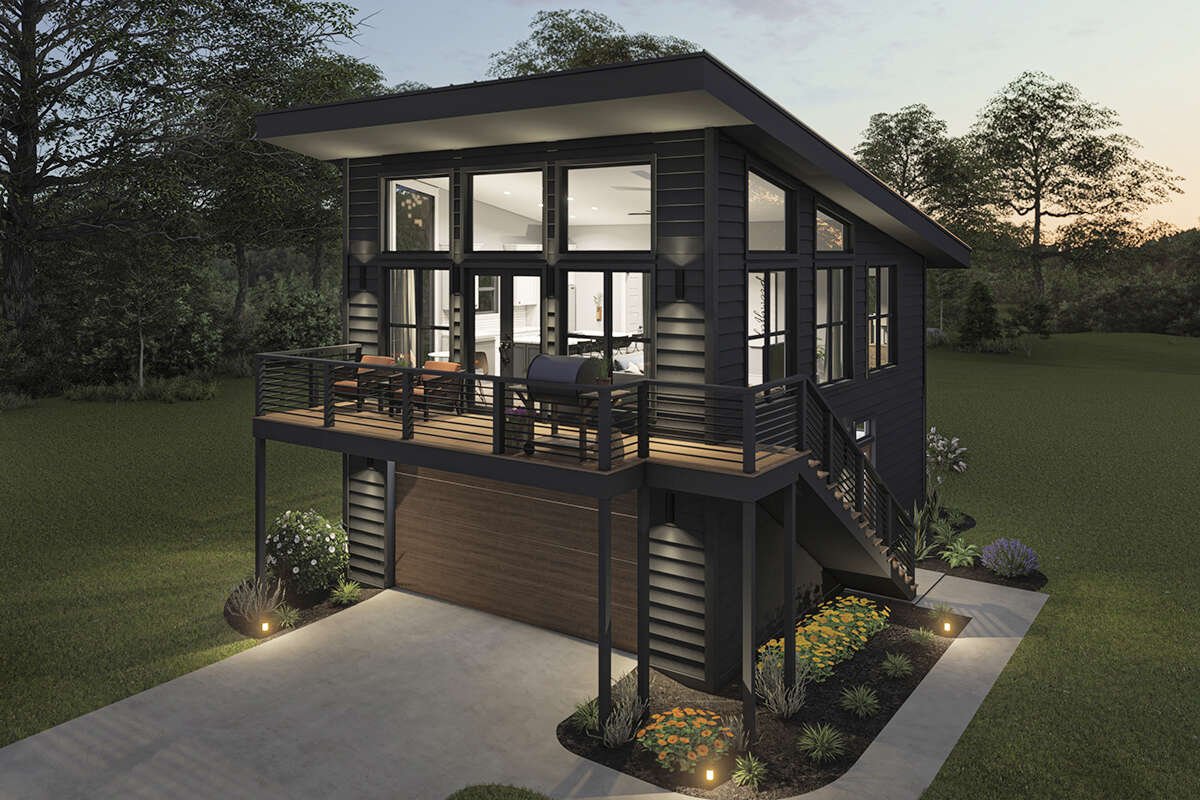

Visually appealing and simply designed, this Modern house plan is perfect as a small home for young professionals, a newly married couple, or empty nesters. The home could also function as a vacation home for a small family whether on a mountain or lake lot; there are lots of possibilities for this exciting house plan. The exterior is simply stunning in its design with its sloping roof line, massive amounts of window views, a balcony that spans the width of the home and metal design features. There is a front loading two car drive under garage with plenty of space for vehicles, two window views and access to the exterior staircase.

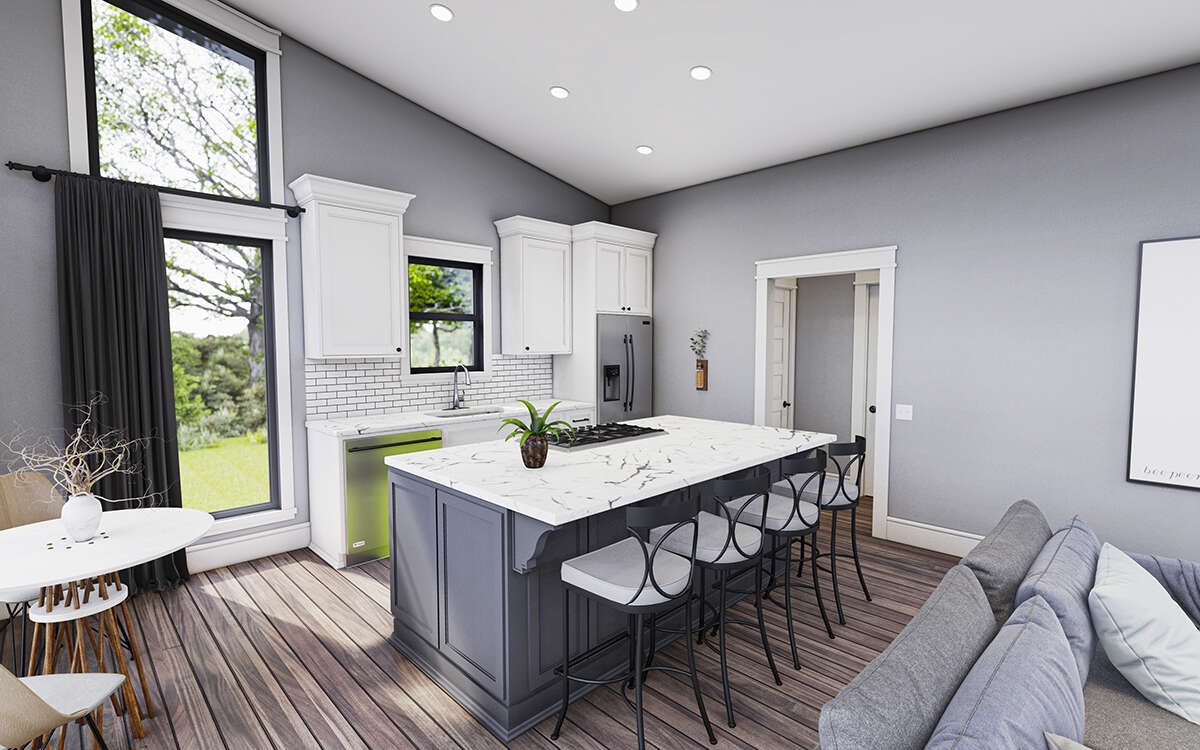

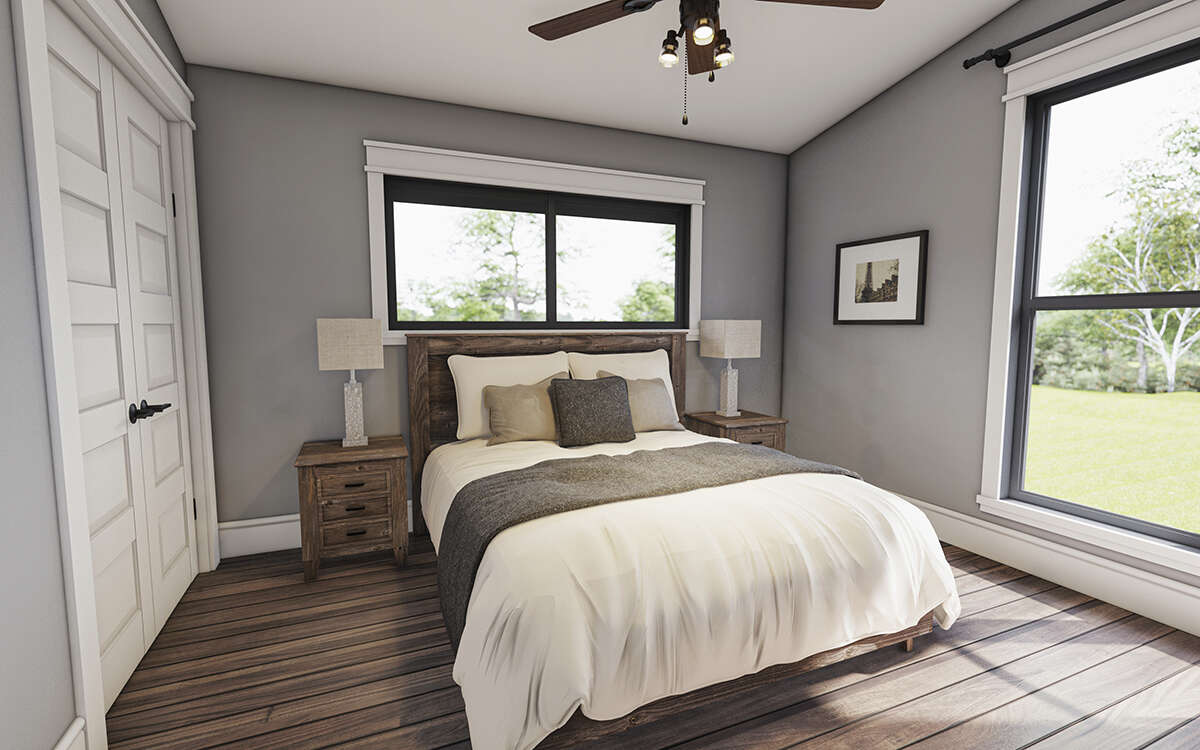

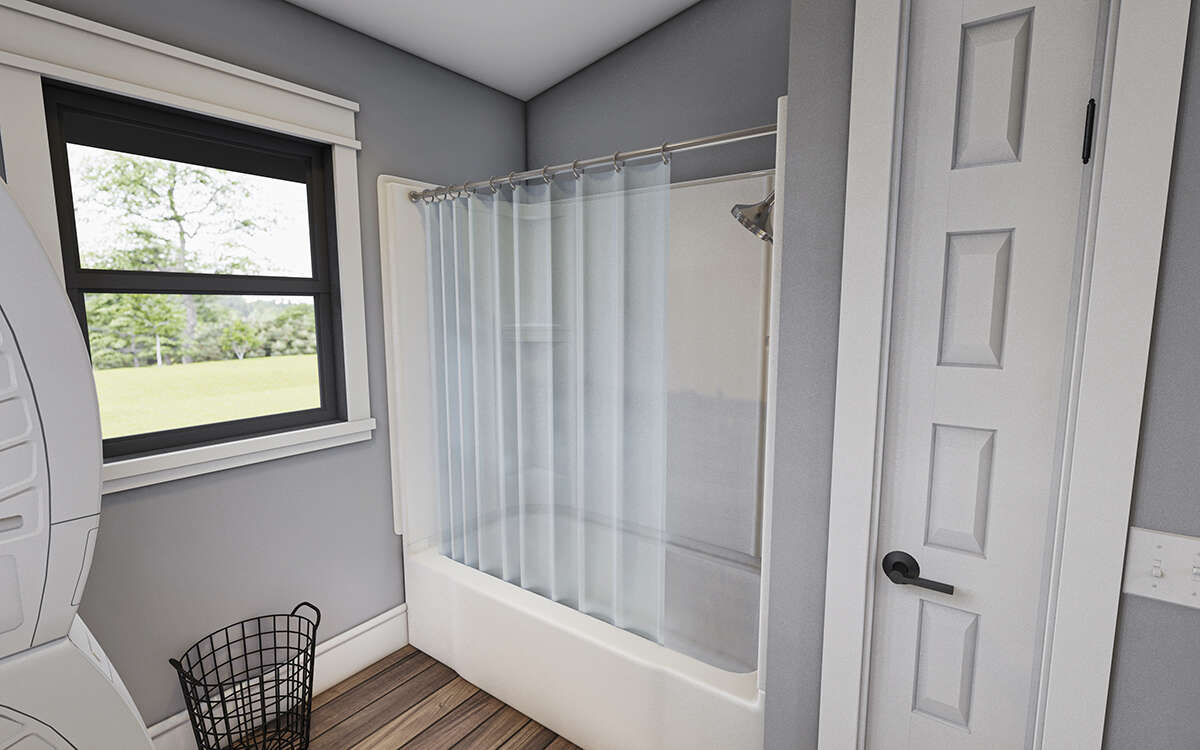

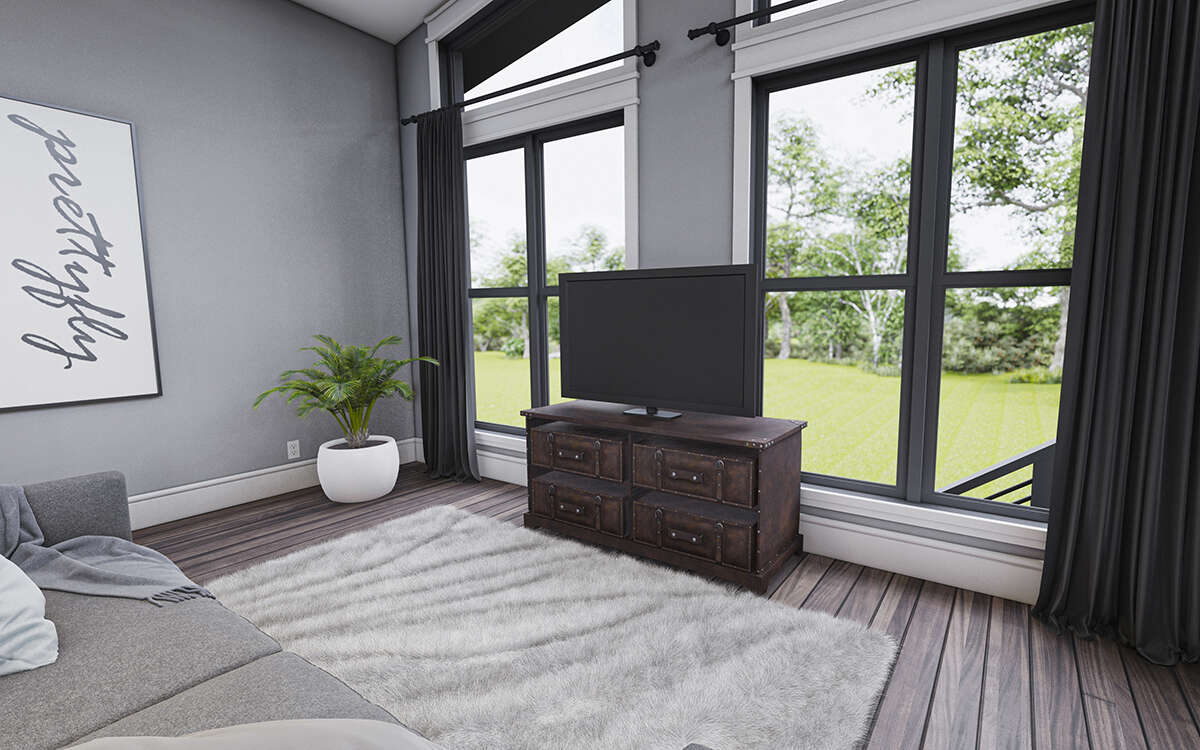

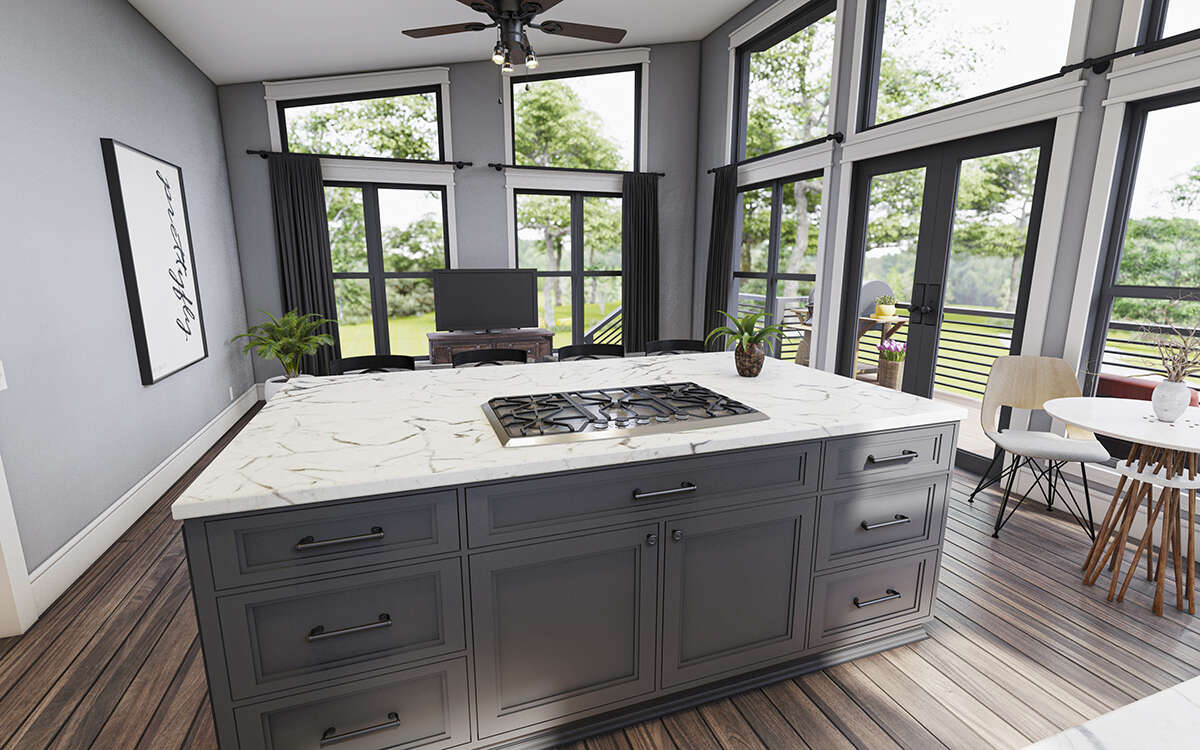

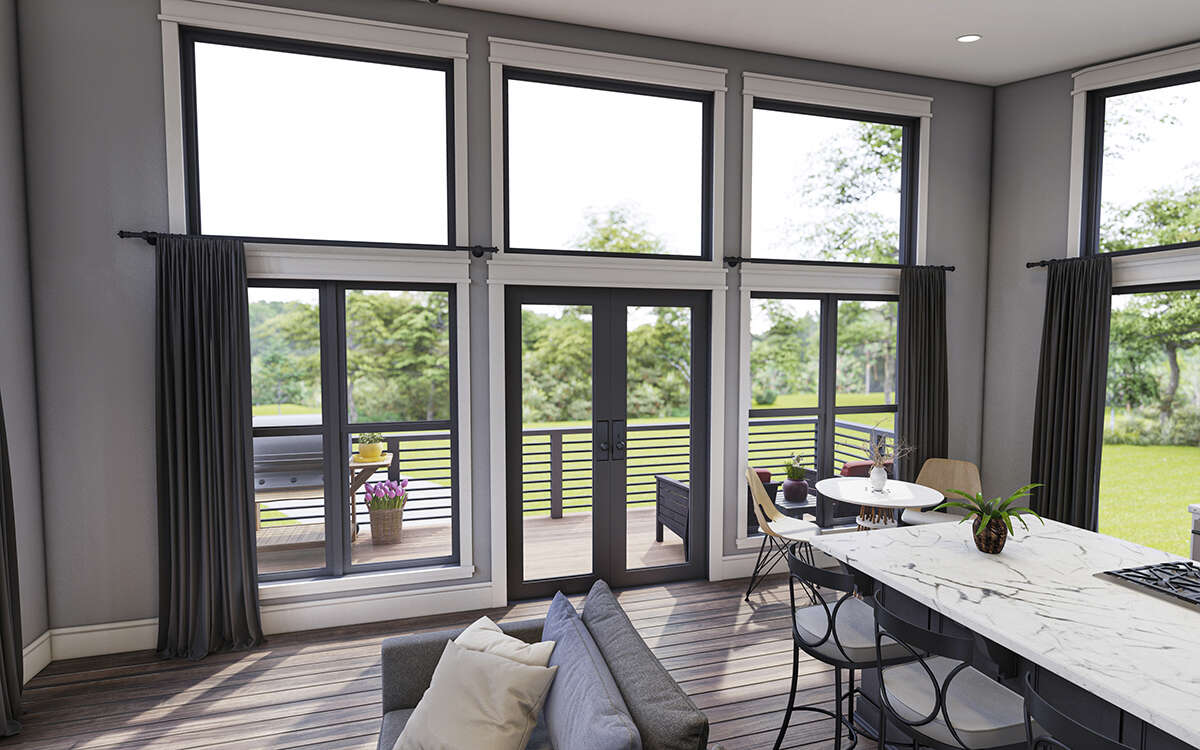

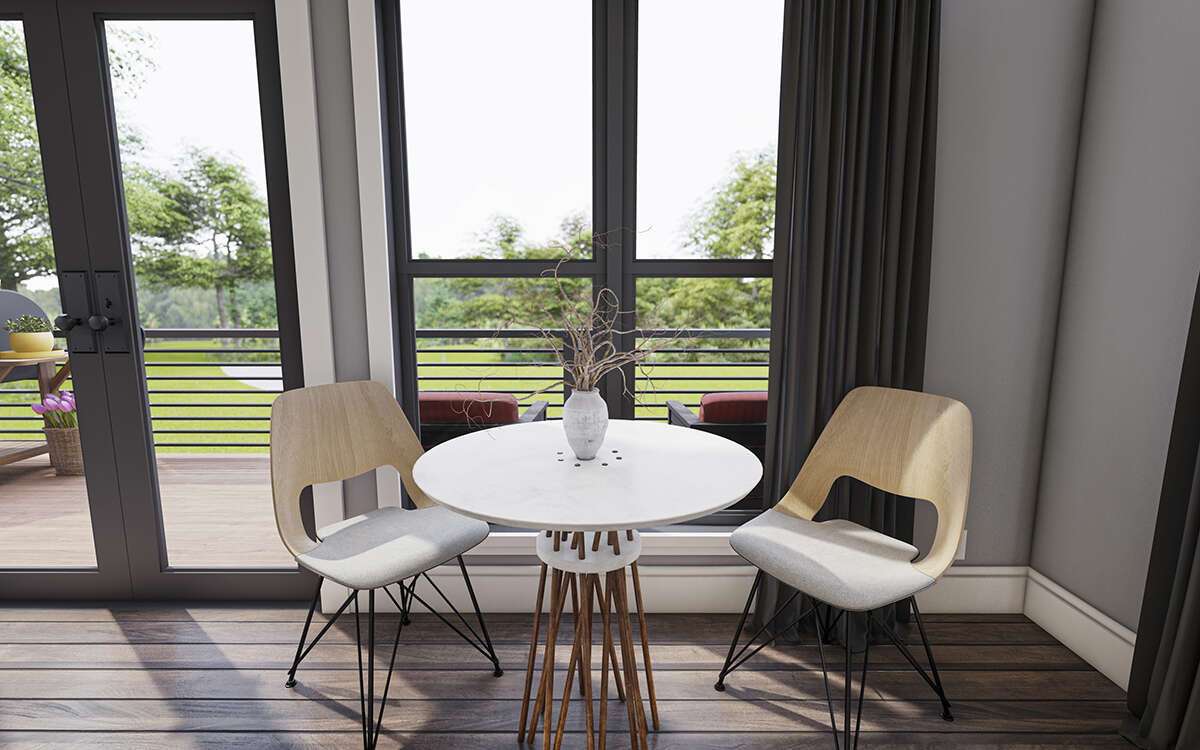

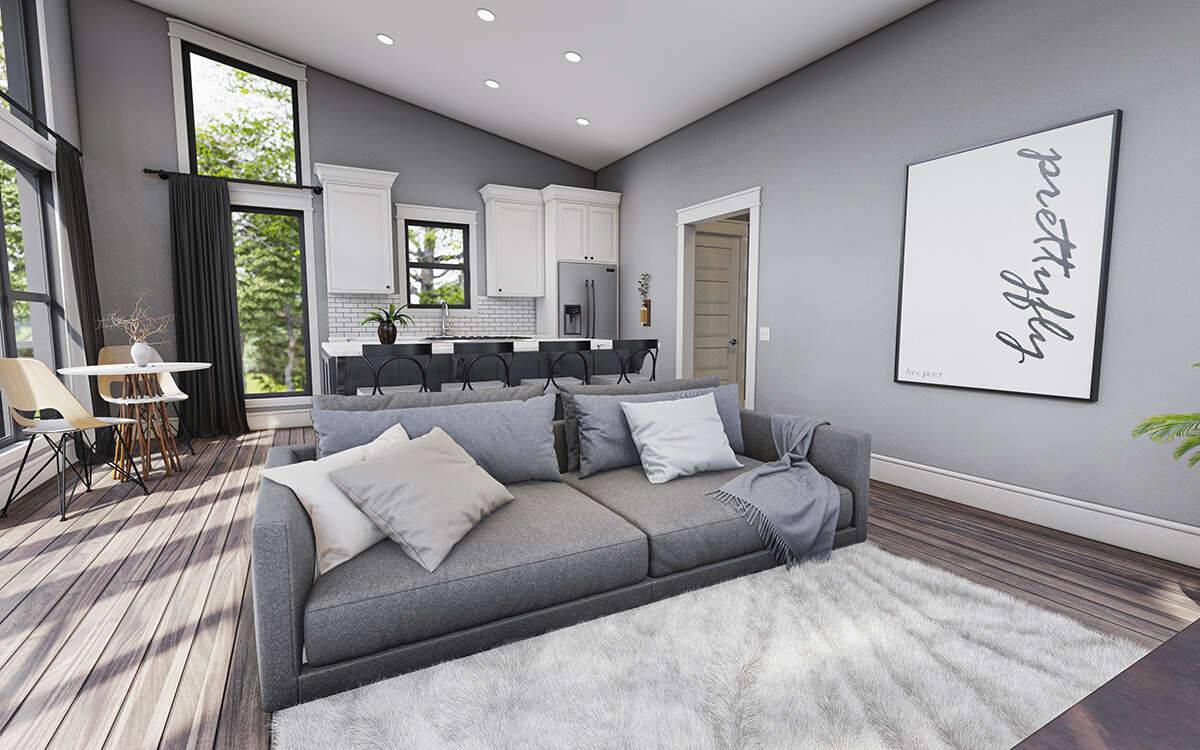

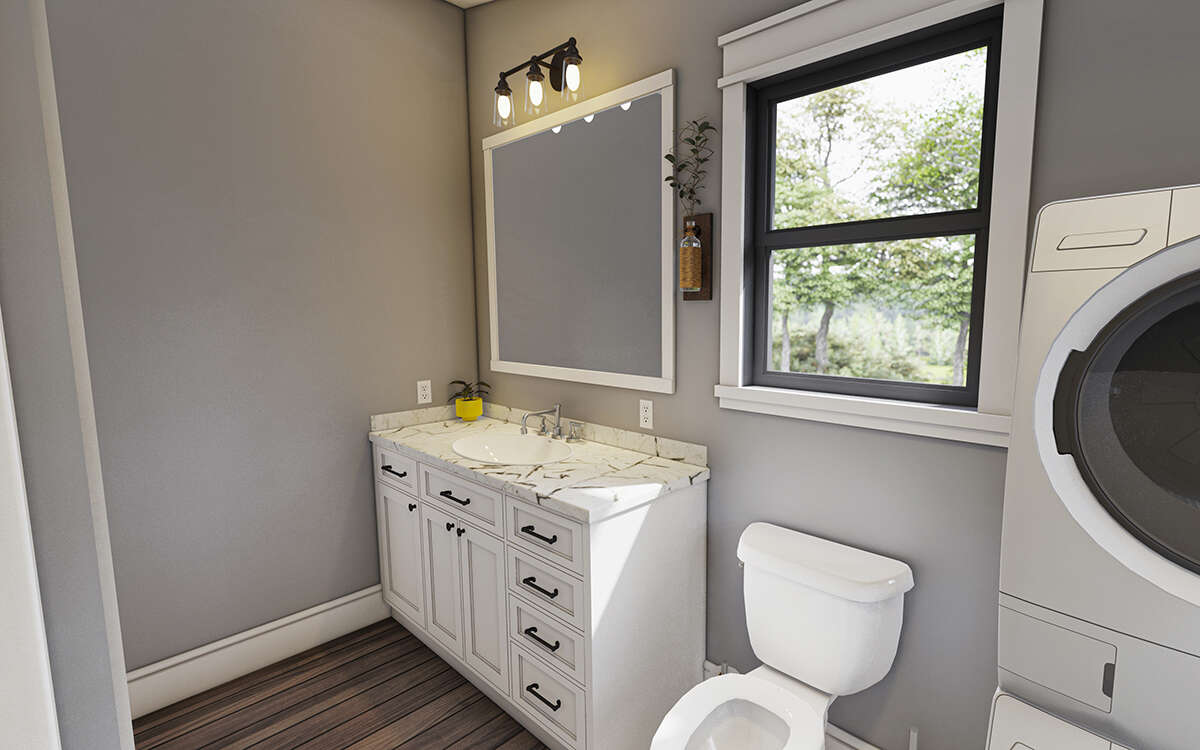

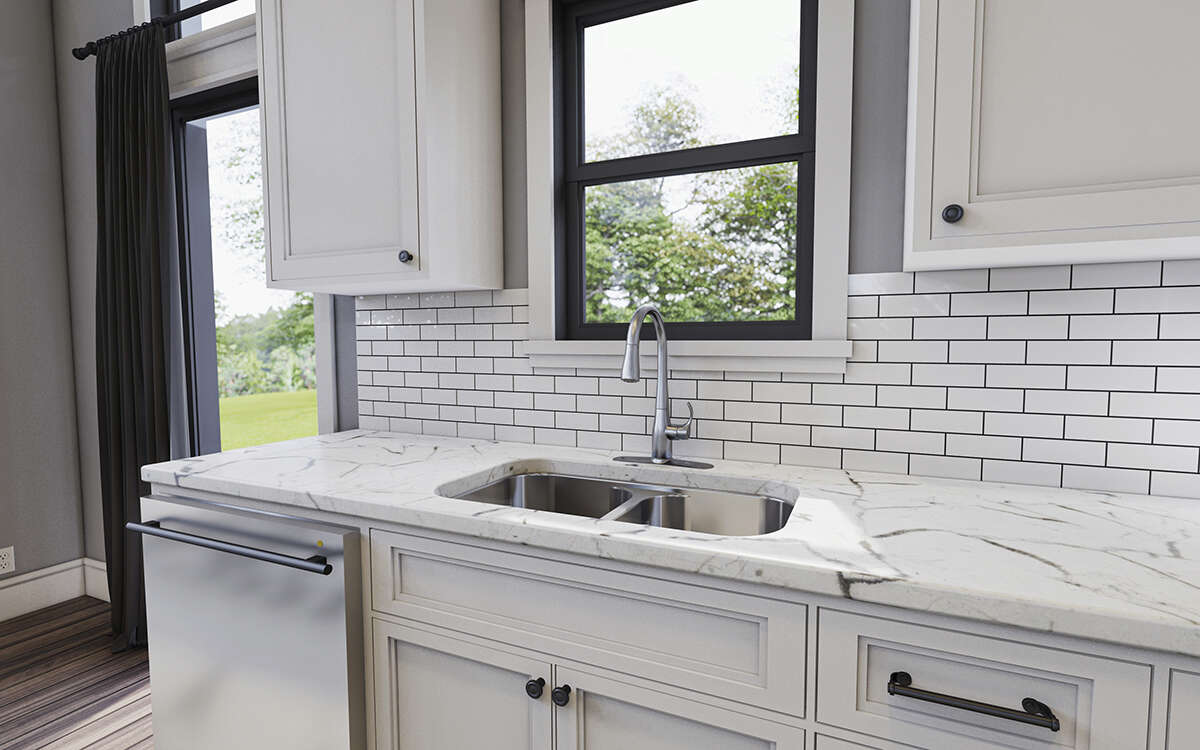

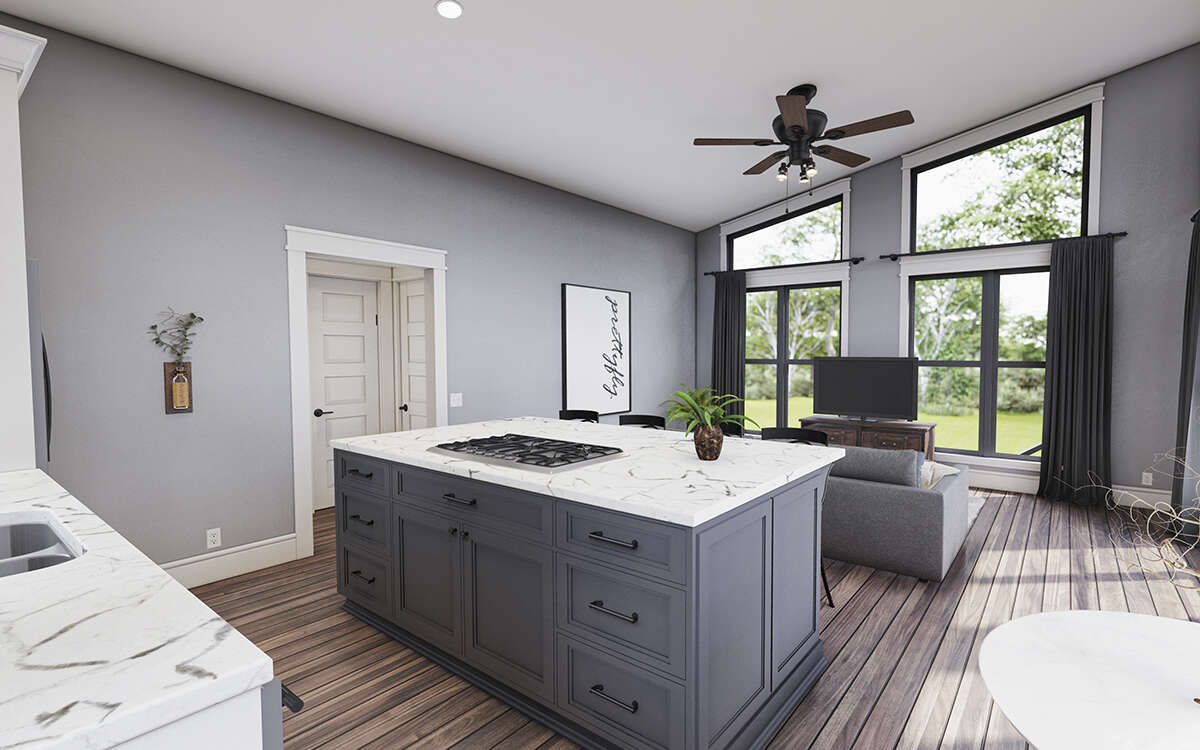

The interior of the plan houses approximately 650 square feet of living space with one bedroom and one bath. A large living room is open to the adjacent kitchen and breakfast room with an island separation that provides additional seating for family and guests. French doors access the spacious balcony/deck located off the living space. Beyond the living space is a small hallway that splits off to either the bath or bedroom. The bedroom features great window views, good floor space and ample closet space. The bath includes a large vanity, a toilet area, and a tub/shower combination. This is a great floor plan appropriate for many different uses whether as a permanent residence or vacation home.
