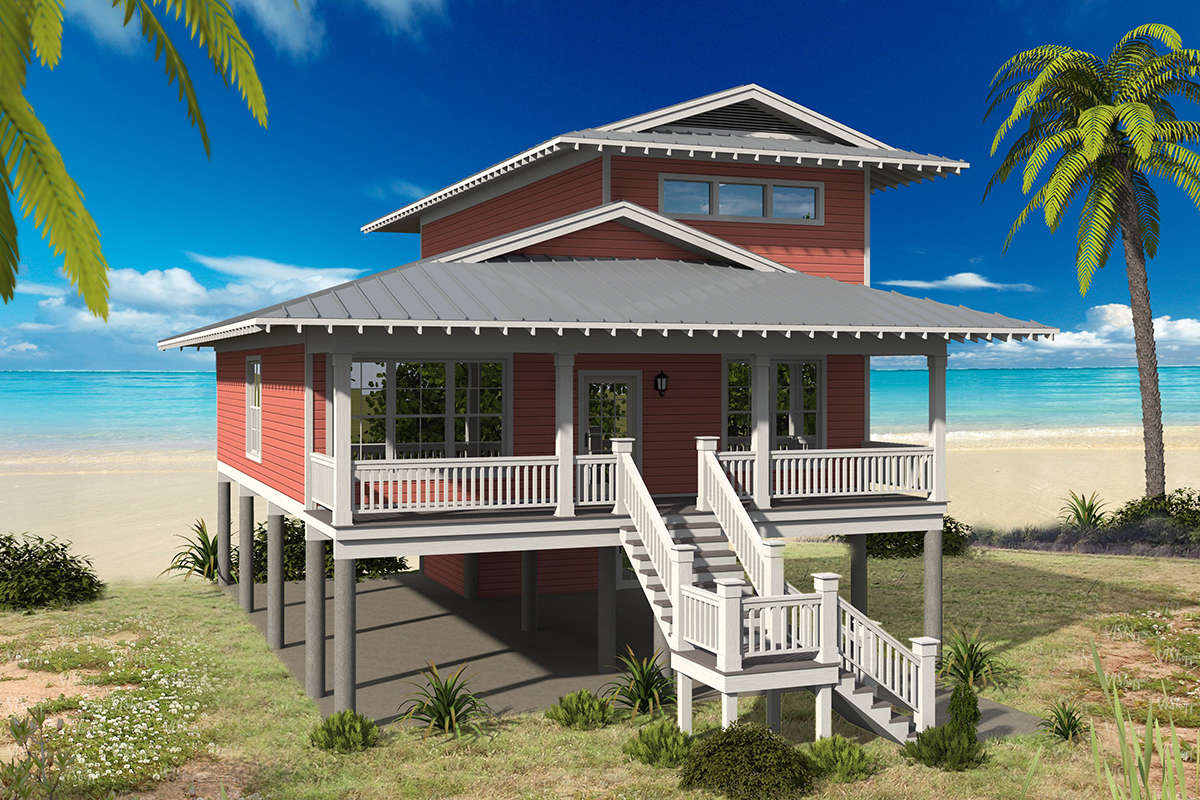

Coastal House Plan 940-00082

Sq Ft2,000
1/2 Baths0
Width33' 4"
Depth50' 1"

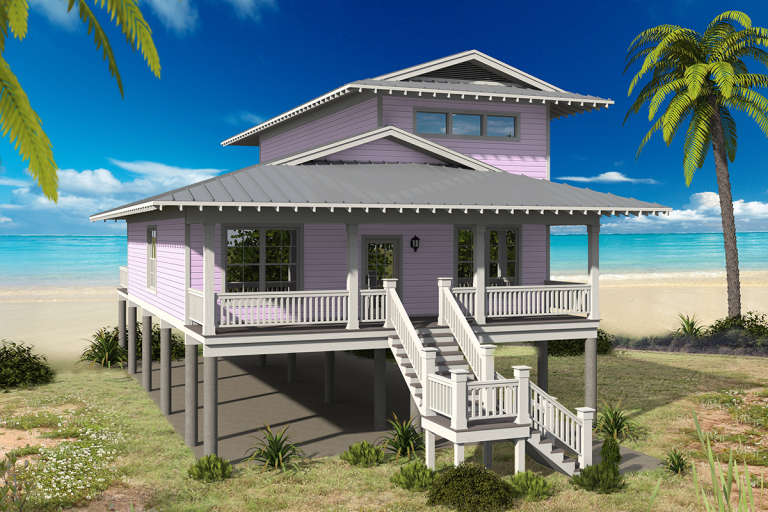

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

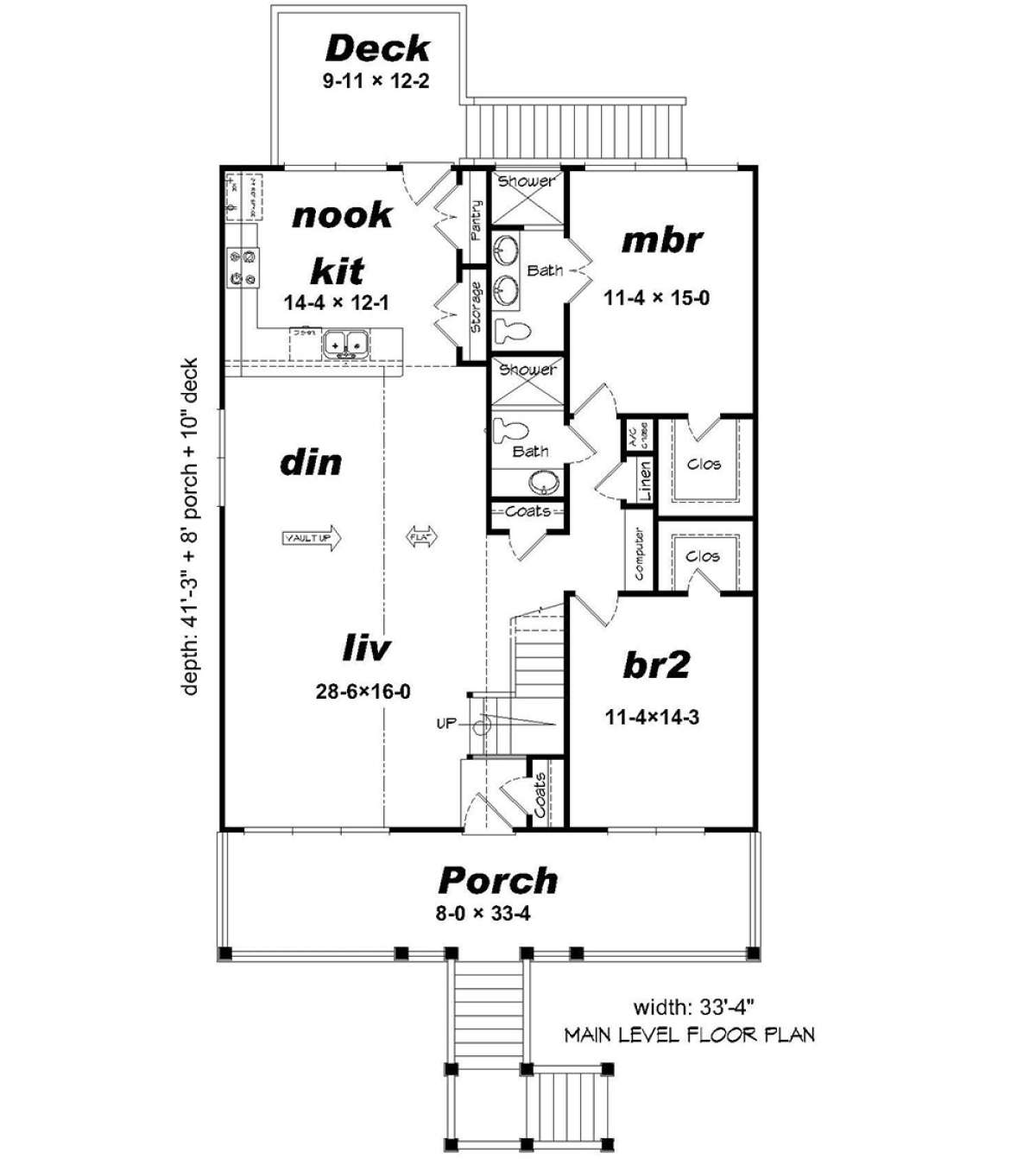

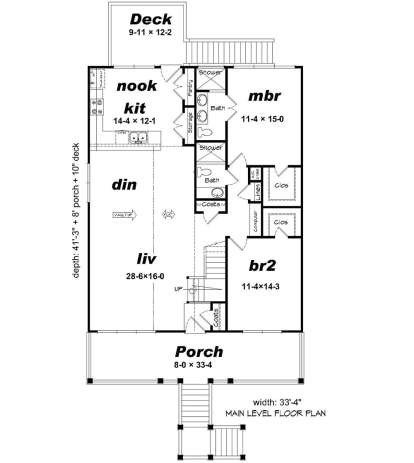

First Floor for House Plan #940-00082

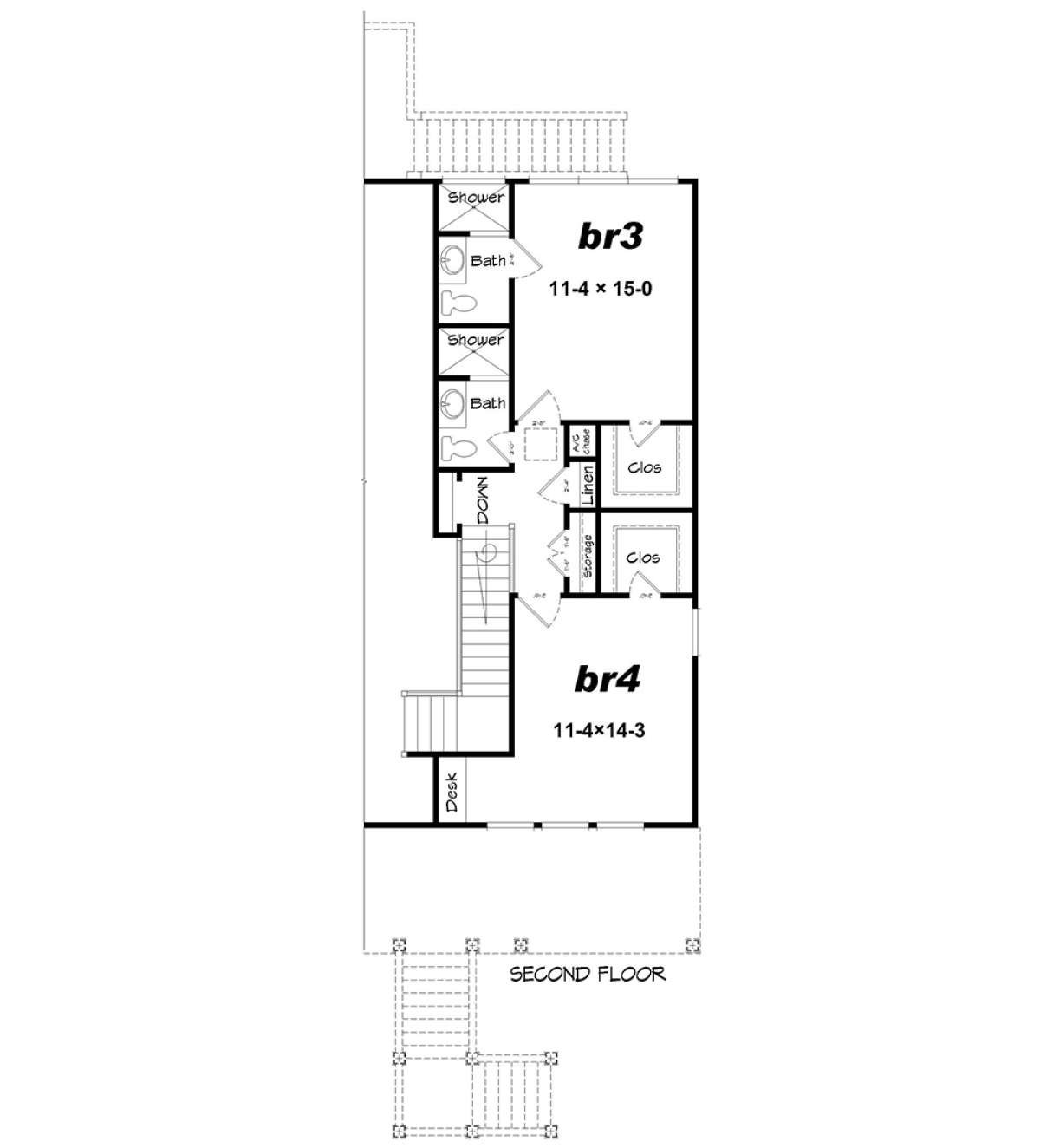

Second Floor for House Plan #940-00082

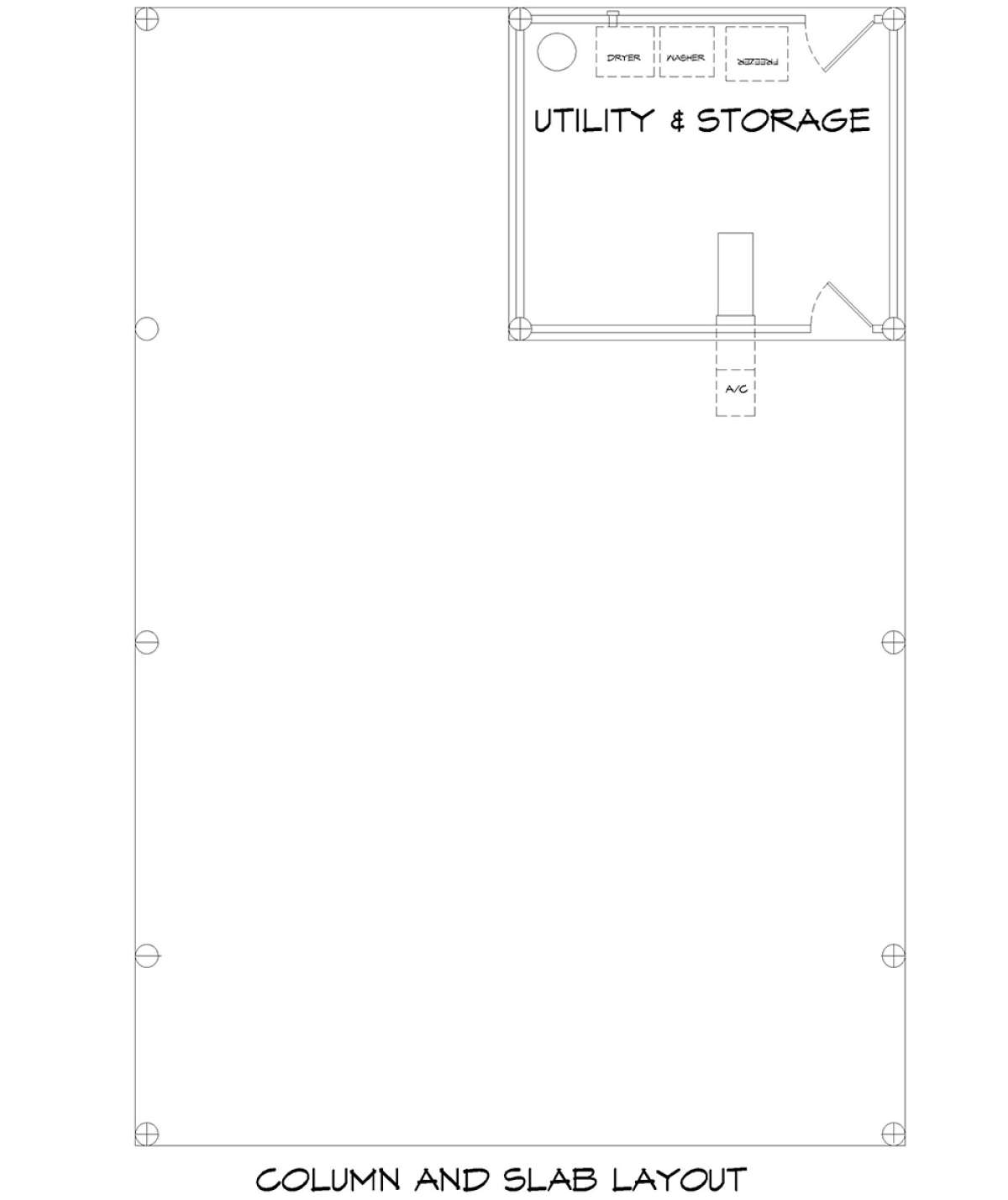

Storage/Carport for House Plan #940-00082
First Floor
First Floor for House Plan #940-00082

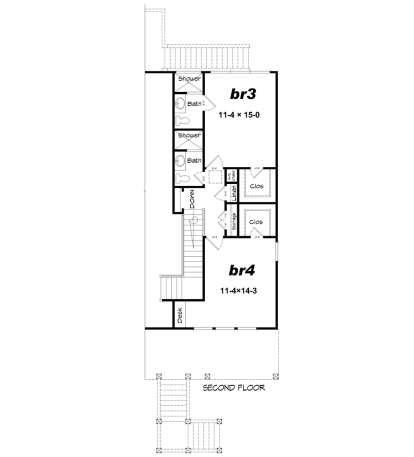

Second Floor
Second Floor for House Plan #940-00082
Storage/Carport for House Plan #940-00082

Frequently Asked Questions


What's Included in these plans?

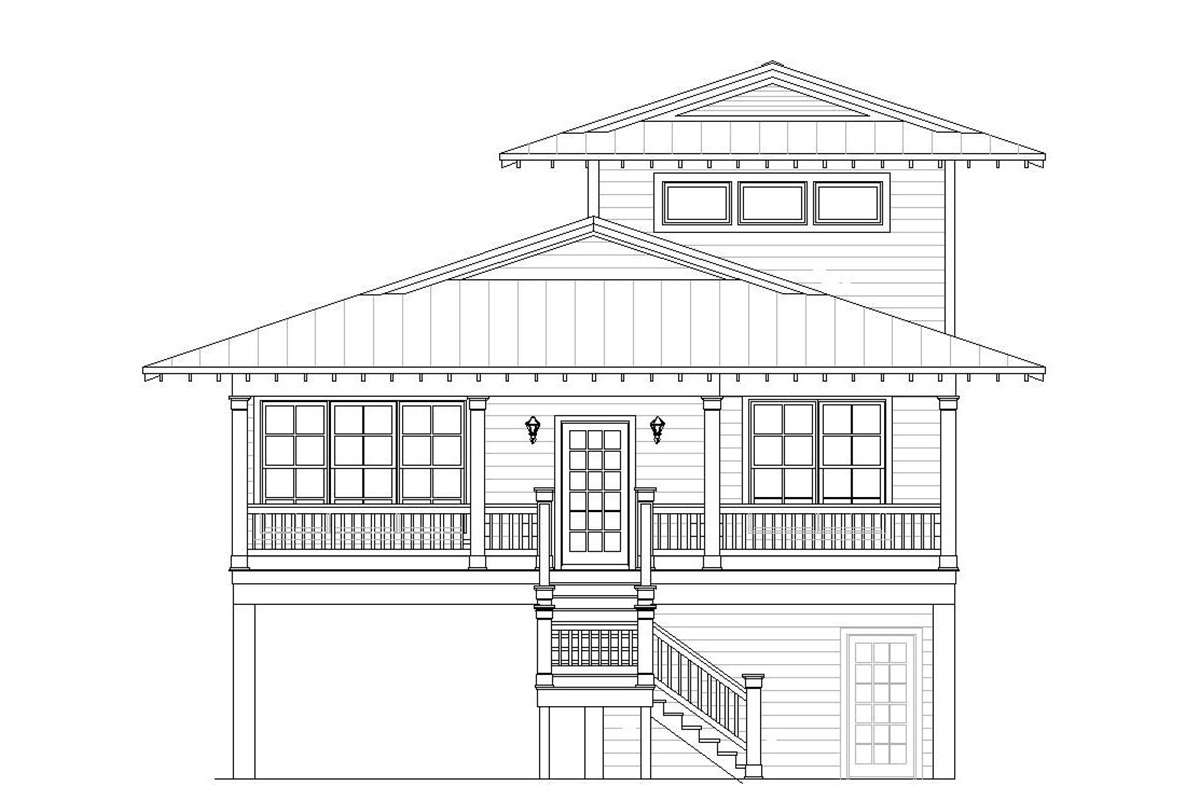

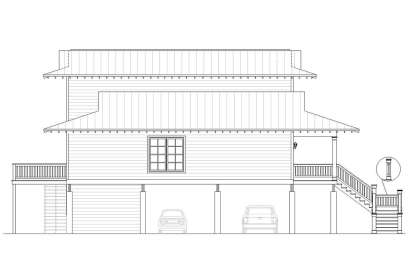

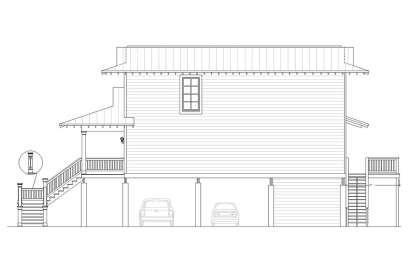

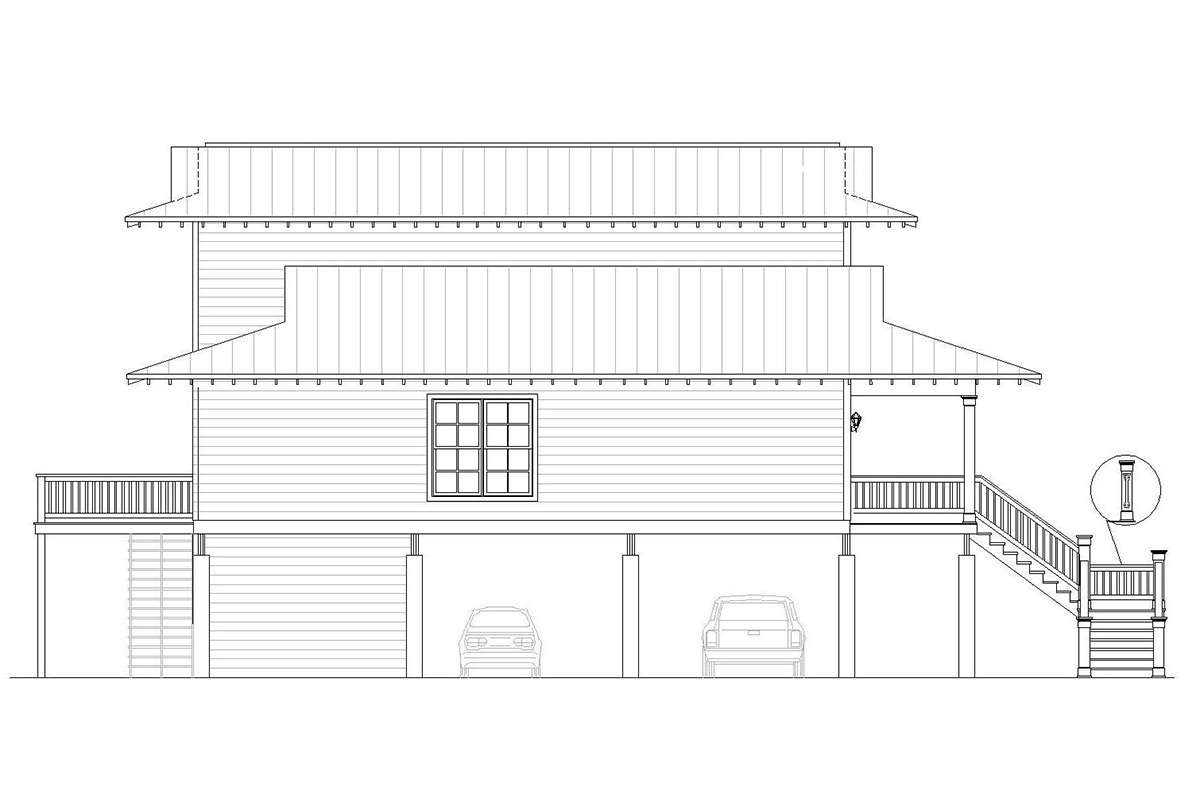

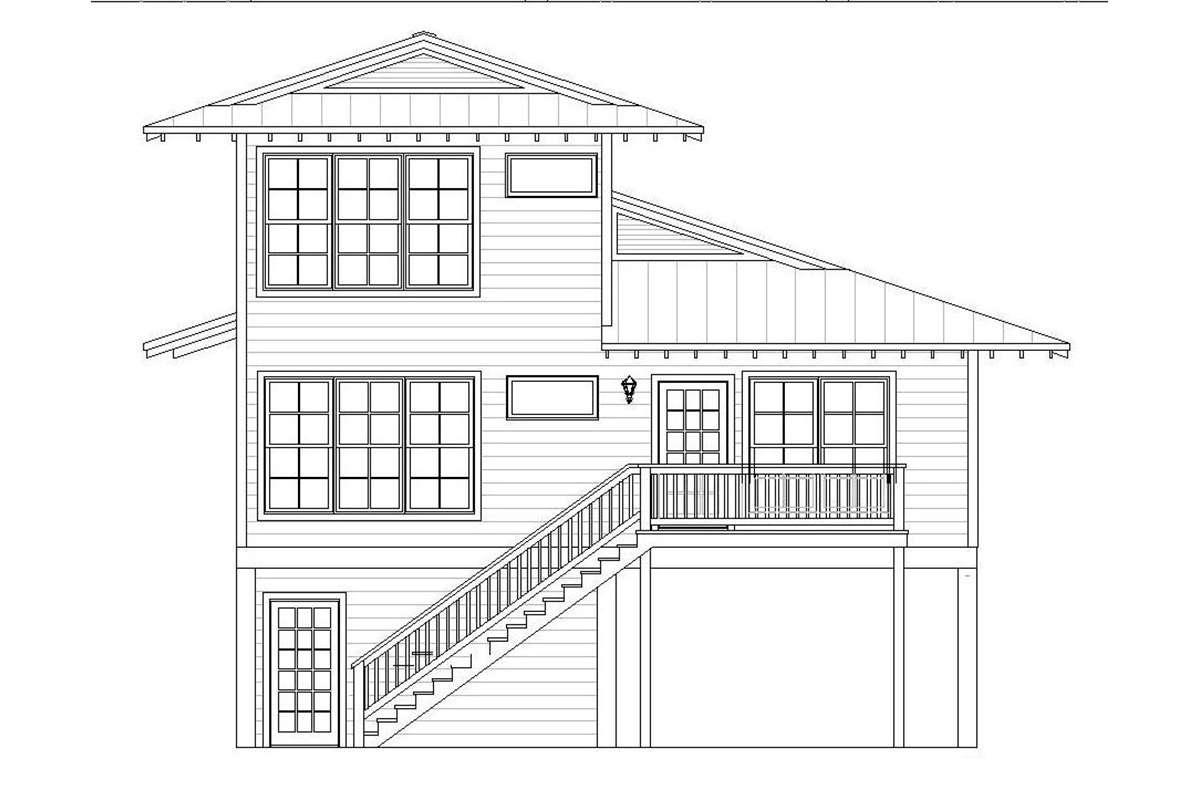

    • Exterior Elevation Views of front, side and rear elevations

    • Foundation Plan

    • Floor plan(s)

    • Electrical Layout

    • Roof Plan

    • Cross Section through main body of house

    • Stair Detail (if applicable)

    • Interior and exterior details

    • General Notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful Coastal home features a timeless exterior with loads of window views and outdoor space for taking advantage of water views, fresh air and picturesque landscape scenery. The addition of exposed rafters, a walk-up staircase, columned beams and open railing in combination with the cantilevered rooflines add rich texture and character to the home’s exterior. The home is situated on a pier foundation and there is underground parking and a large utility/storage room at the rear of the space. The interior floor plan is highlighted with approximately 2,000 square feet of living space, four bedrooms and four bathrooms. The width is a great alternative for expensive property lots and comes in around 33’; an ideal dimension with plenty of room for family living and sleeping quarters along with the always desired outdoor space. The front covered porch offers access into the home’s entry foyer where there is a coat closet and the subsequent open floor plan is revealed. The large living and dining space features vaulted ceiling heights, massive entertaining room and great space for family living. Beyond the living/dining space is the gourmet kitchen which houses a breakfast nook, a peninsula bar and separate storage and pantry space. Double window views overlooking the deck and a slider onto the deck are featured and makes dining al fresco effortless and enjoyable.

A second coat closet, linen closet, hall bath and computer/technology area are situated near the small hallway where the master suite and a second bedroom are located. Bedroom two features window views overlooking the front covered porch and there is walk-in closet in the bedroom. The shared hall bath features a vanity space, toilet area and a shower. The master suite is located at the rear of the home and offers an entire rear wall of windows for scenic outdoor views. There is an attached walk-in master closet and the en suite bath features dual vanities, a shower and a toilet area. Upstairs are two additional bedrooms and baths that quite similarly mirror the downstairs bedrooms and baths. Bedroom four is a front facing bedroom with generous floor space, a walk-in closet and a built-in desk area. The third bedroom is located at the rear of the floor and features a walk-in closet and an en suite bath with vanity space, a toilet area and a shower; in essence, a second master suite. The adjacent hallway houses a linen closet, a storage closet and a bathroom with a toilet area, vanity space and a shower. This Coastal home is perfect for the ocean, lakefront property or mountain property with its lovely outdoor space, beautiful window views and functional, versatile family floor plan.
