Craftsman Plan 8687-00015

Name: House Plan 8687-00015 - Craftsman Plan: 2,764 Square Feet, 4 Bedrooms, 3.5 Bathrooms
Brand: America's Best House Plans
SKU: 8687-00015
Price: 1895.00 USD

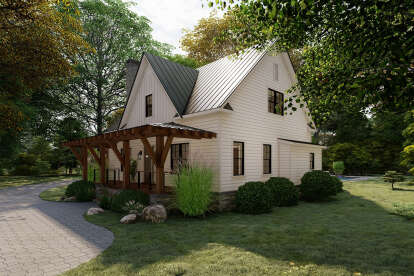

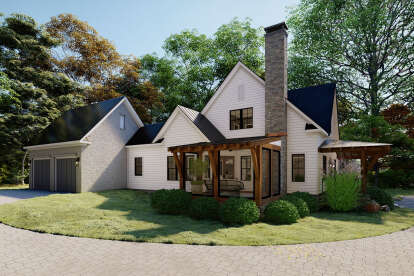

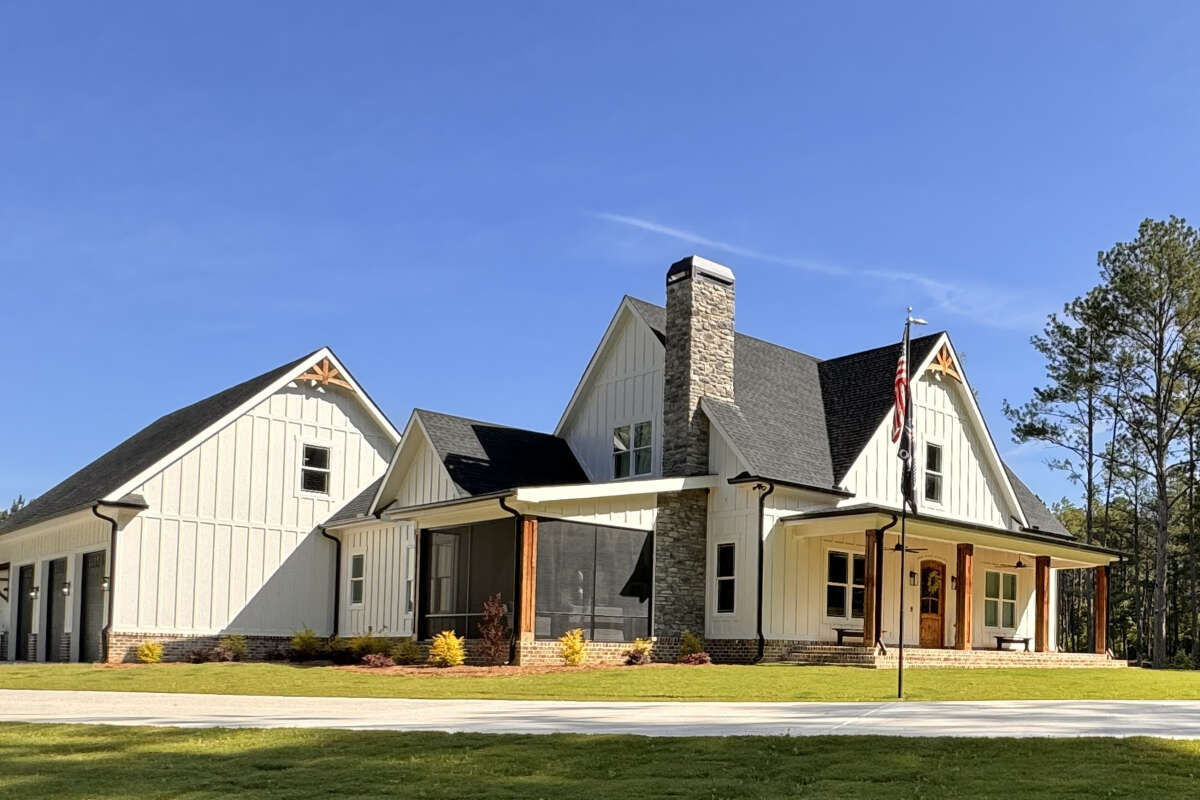

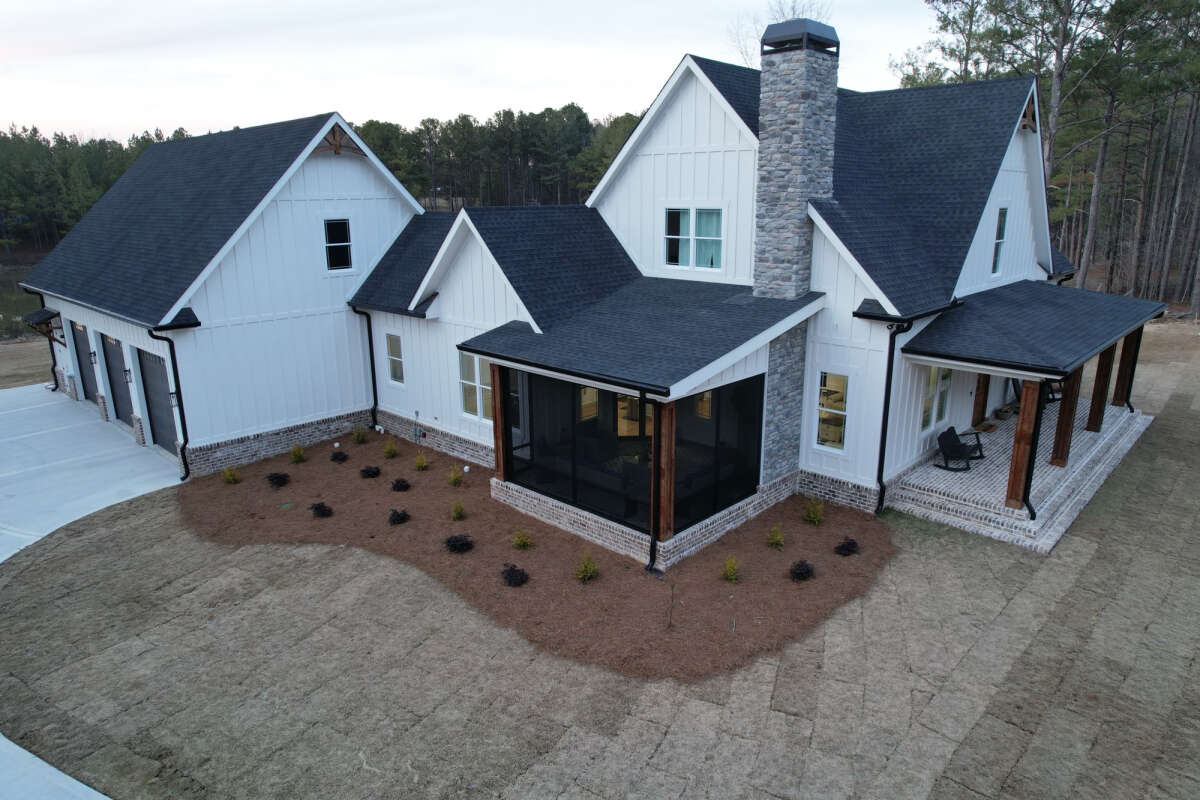

Craftsman House Plan #8687-00015 Elevation Photo

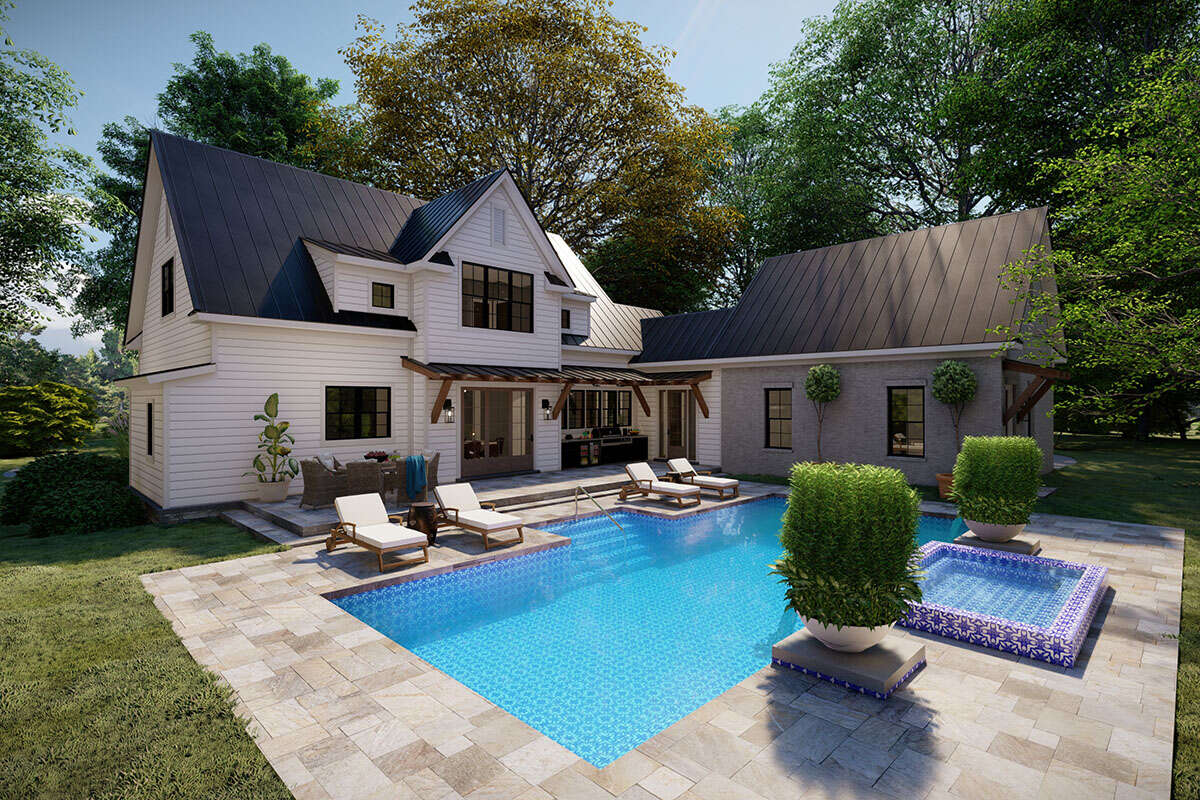

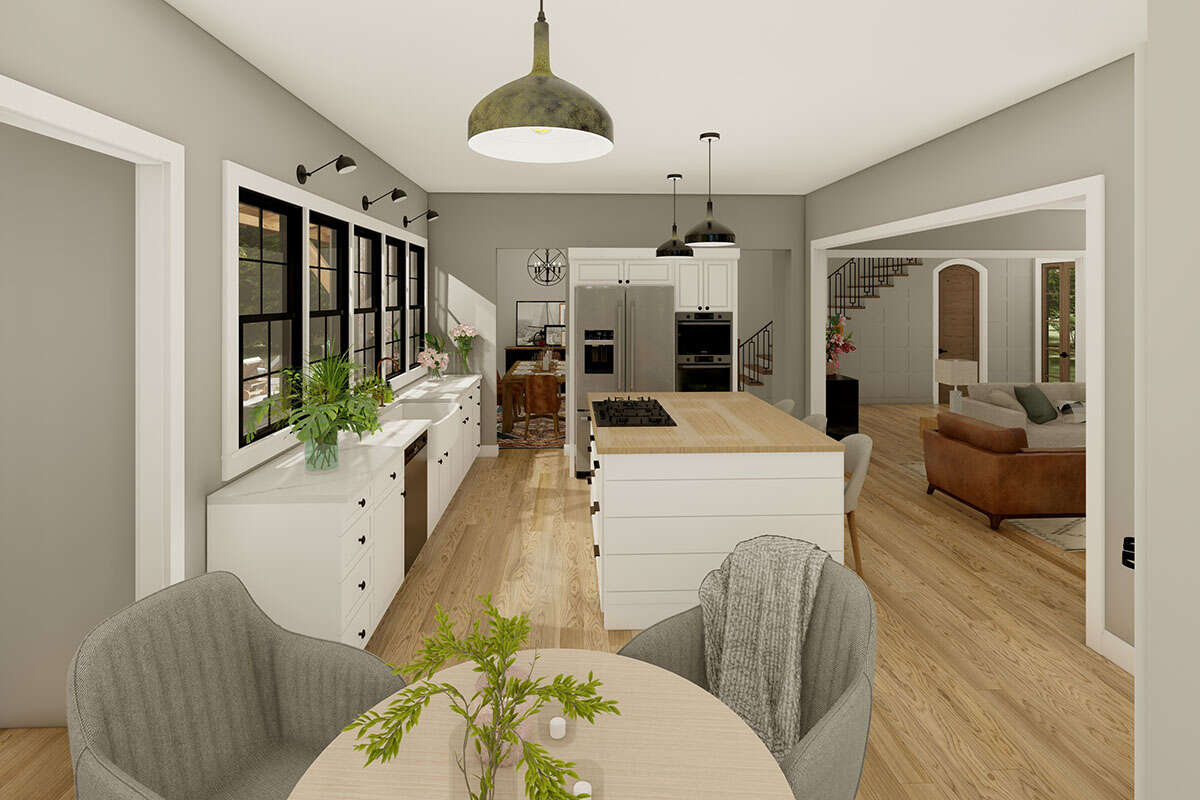

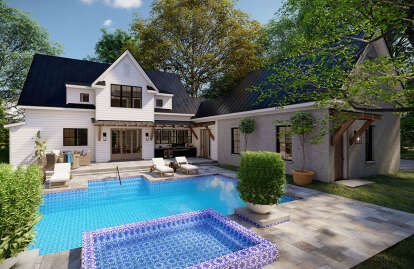

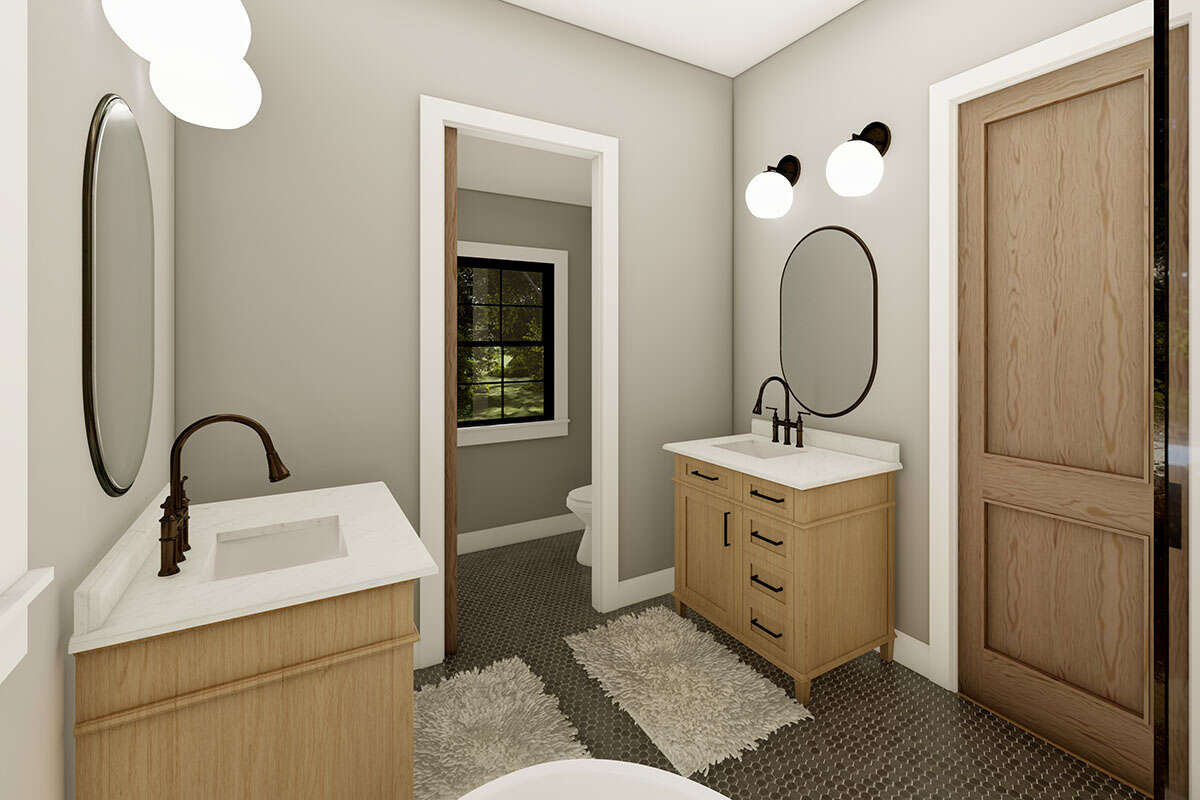

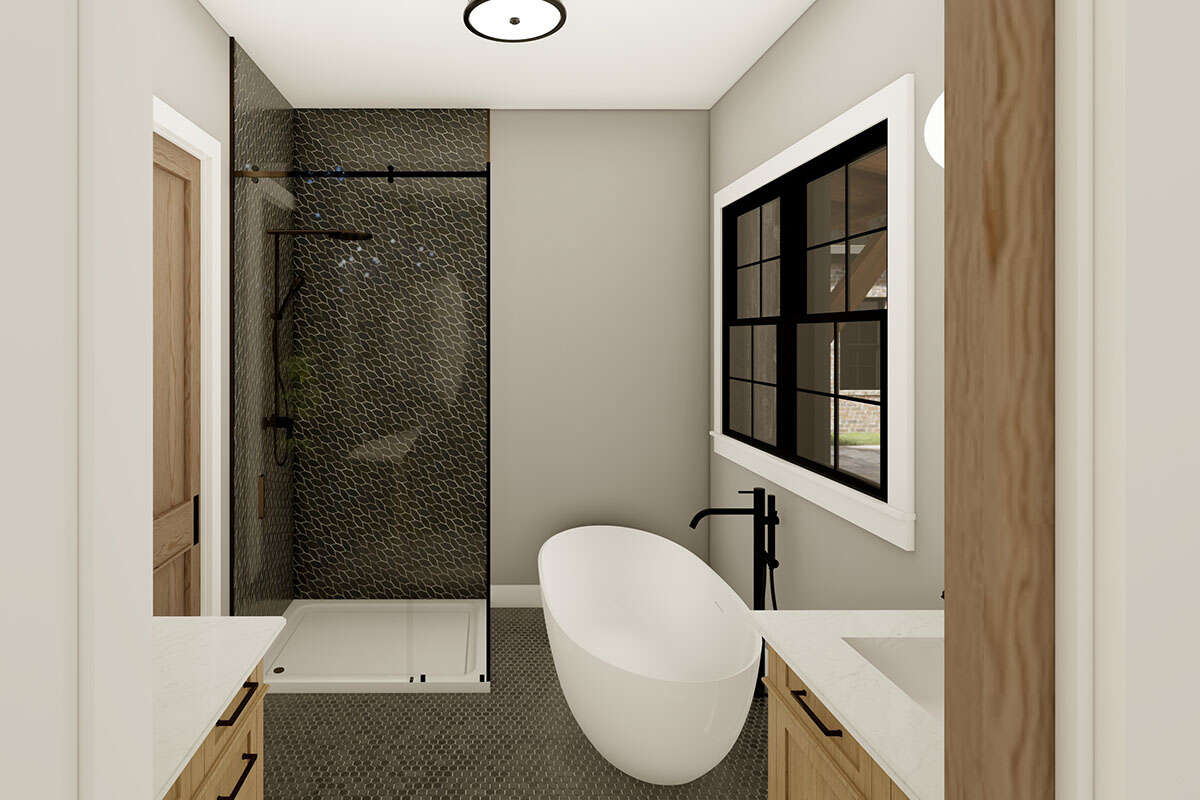

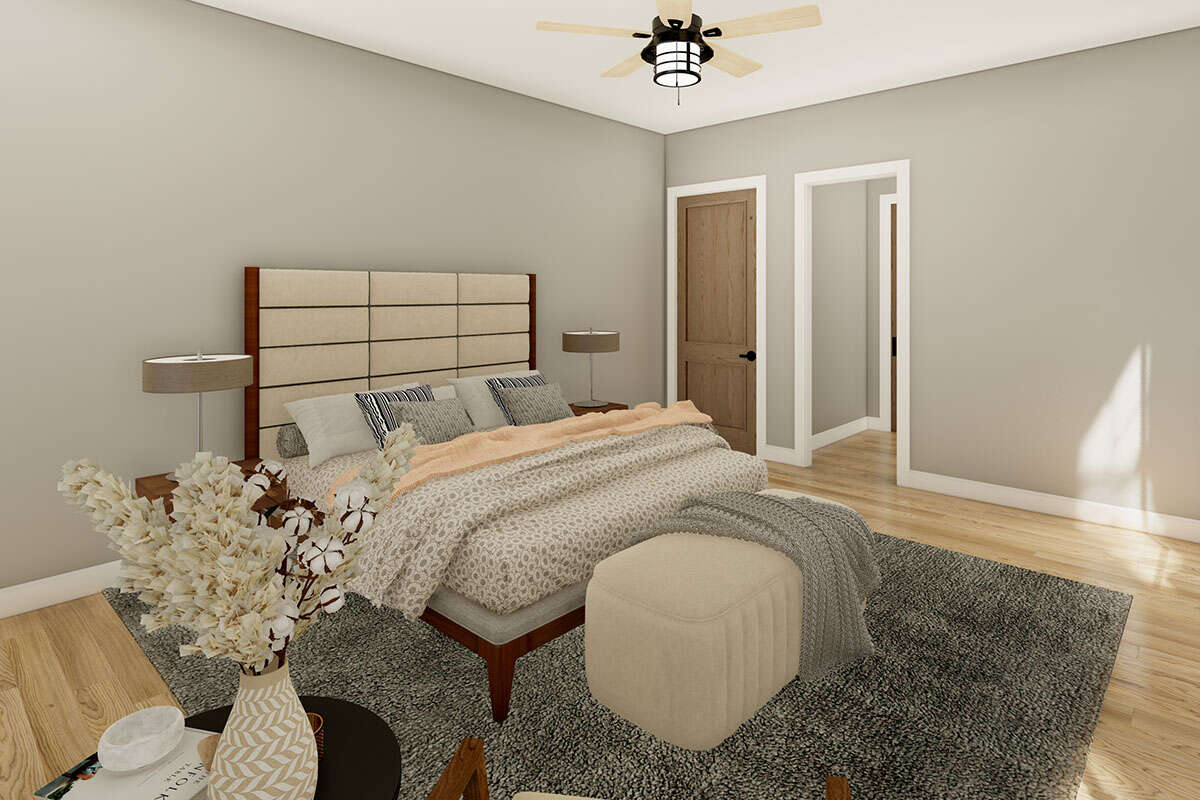

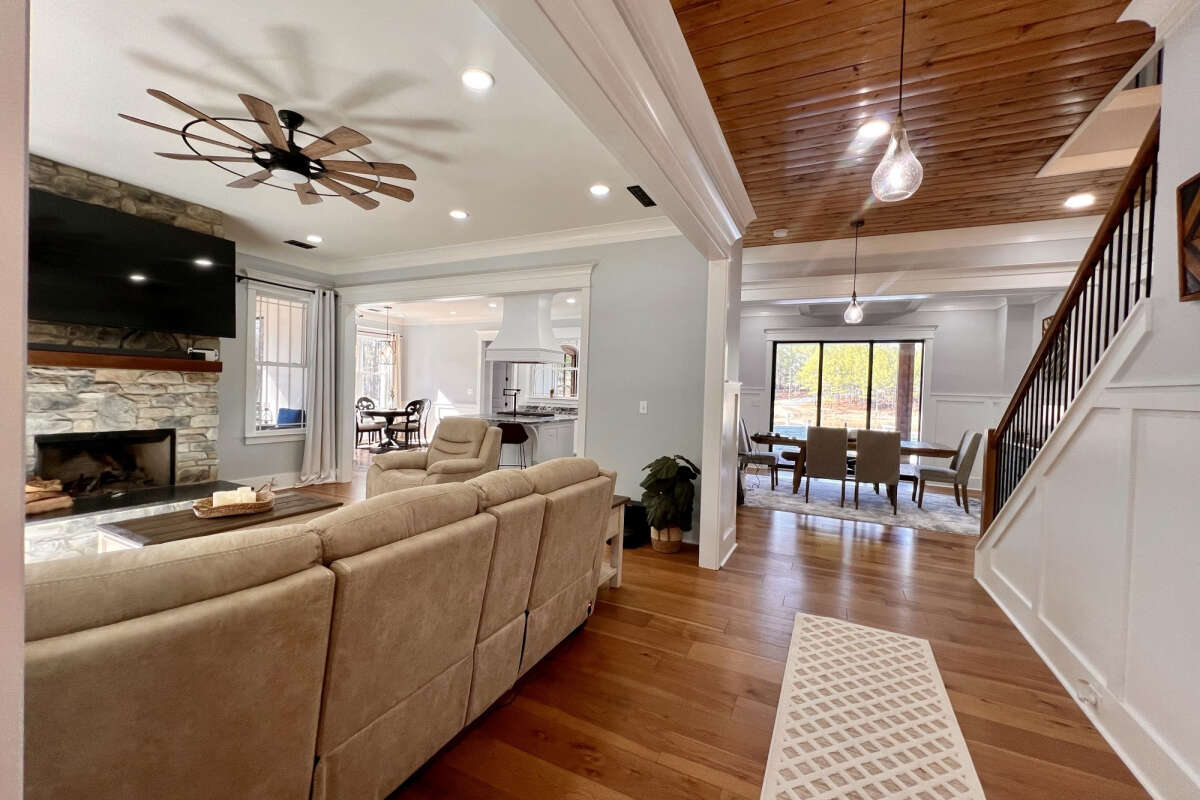

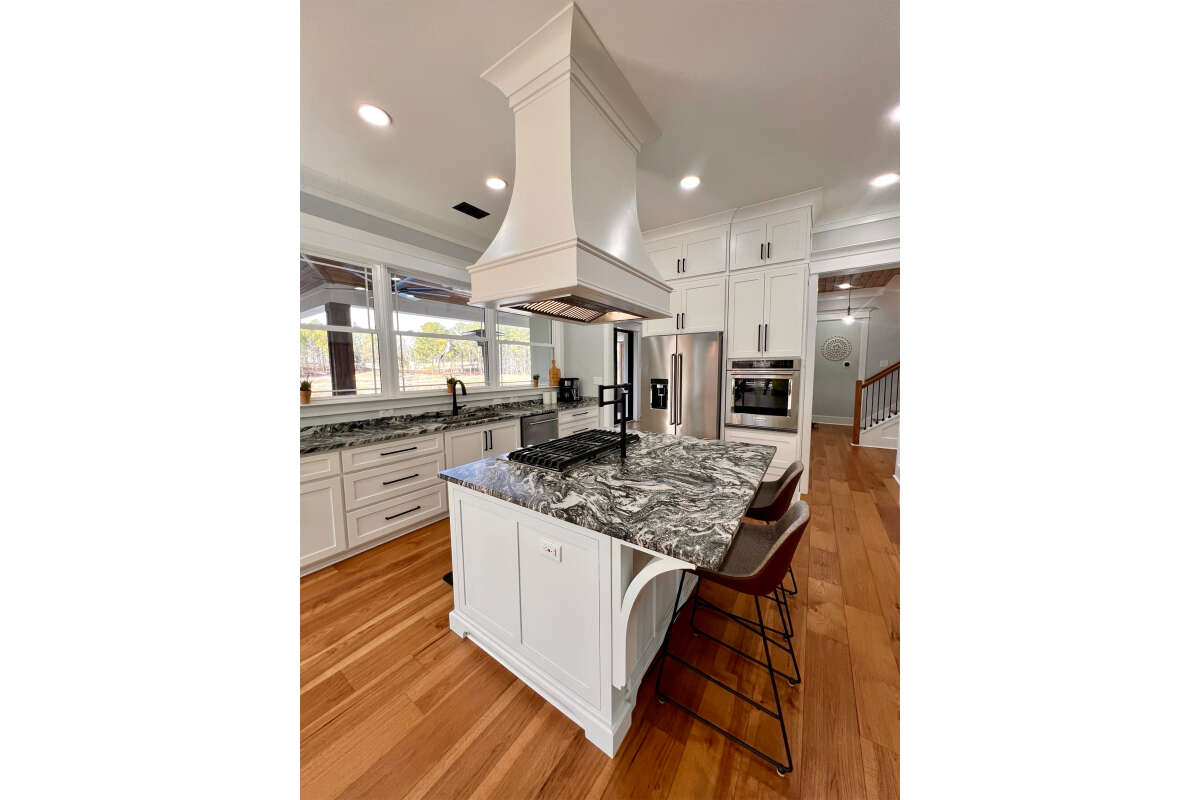

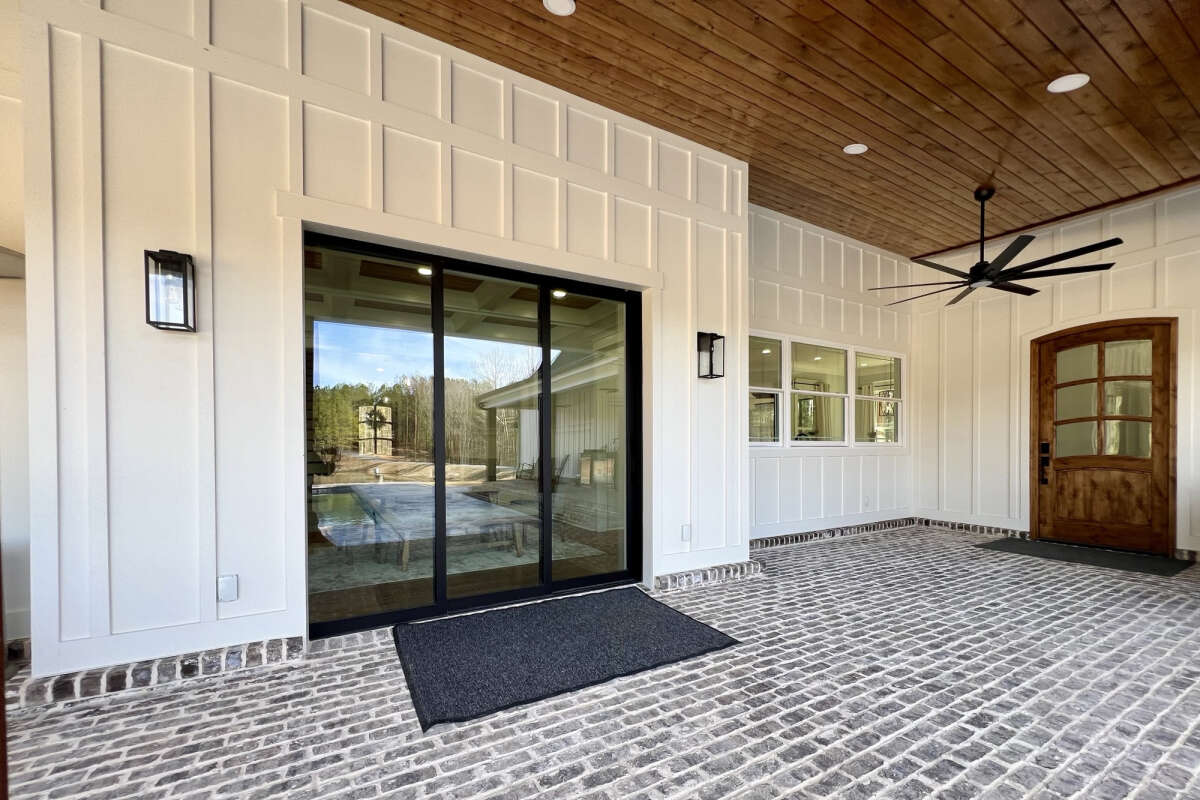

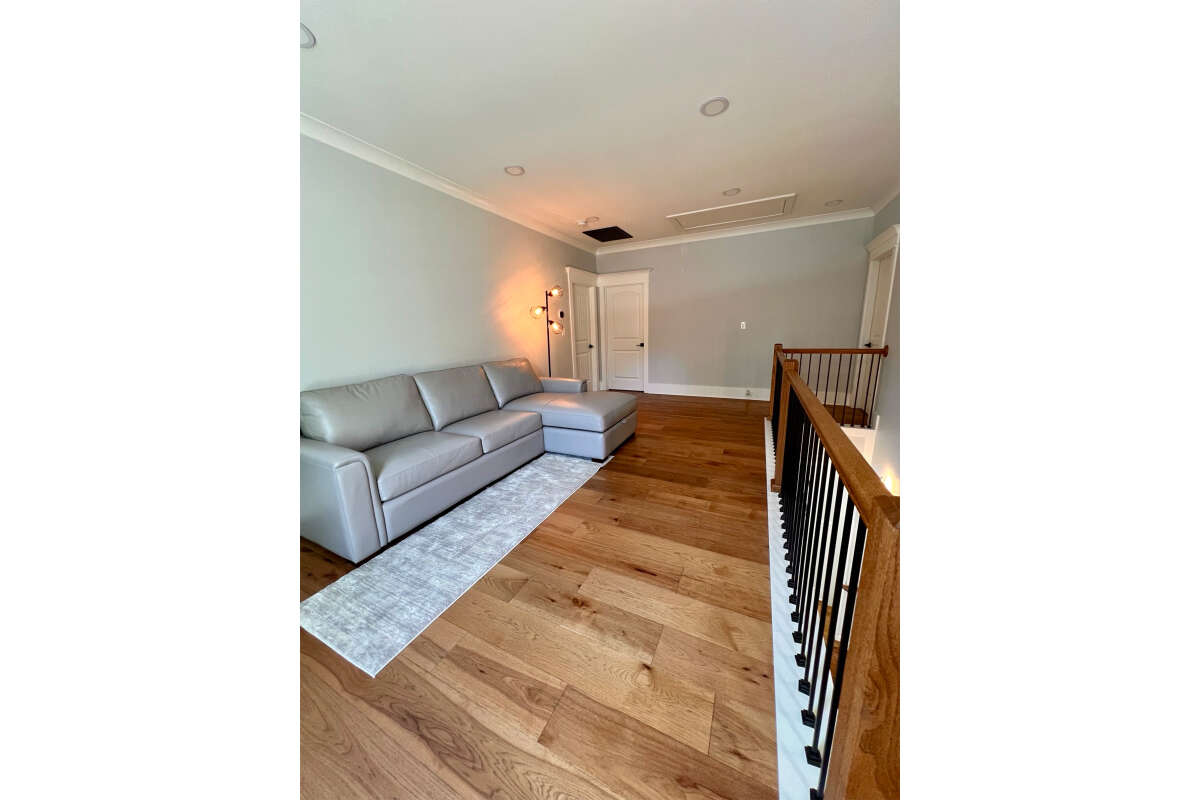

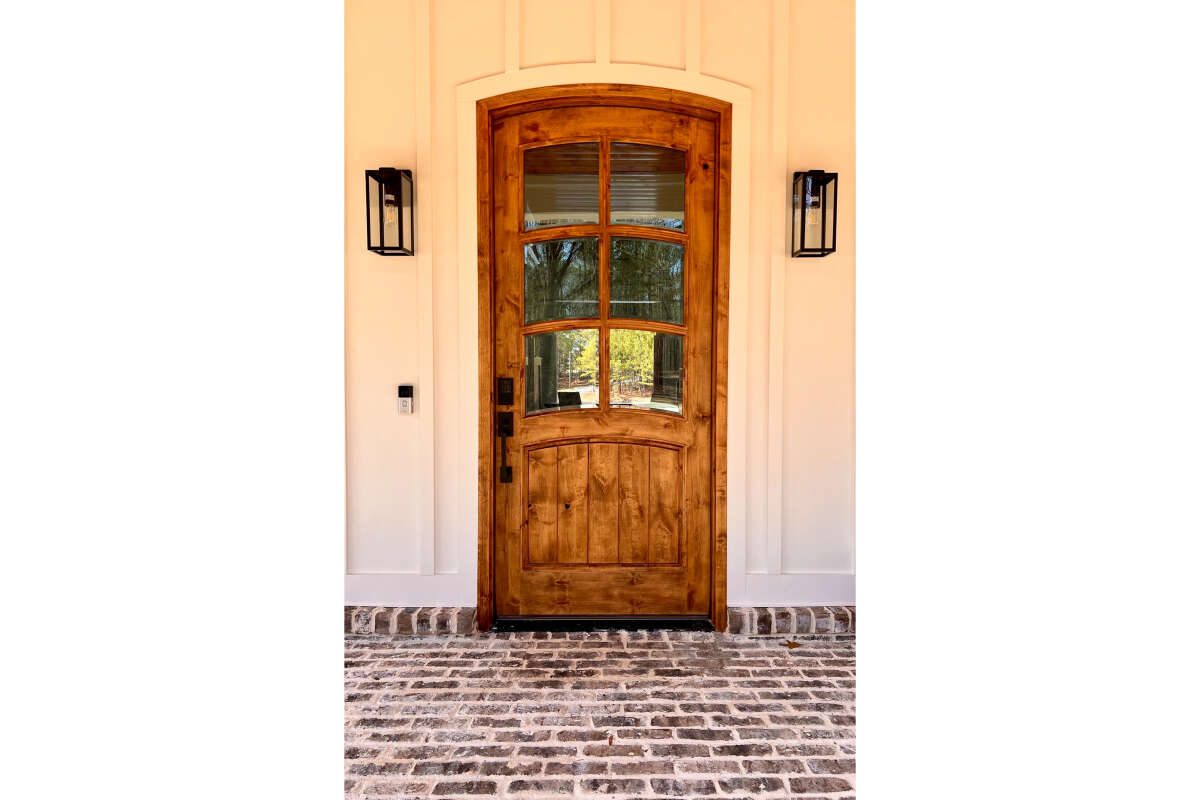

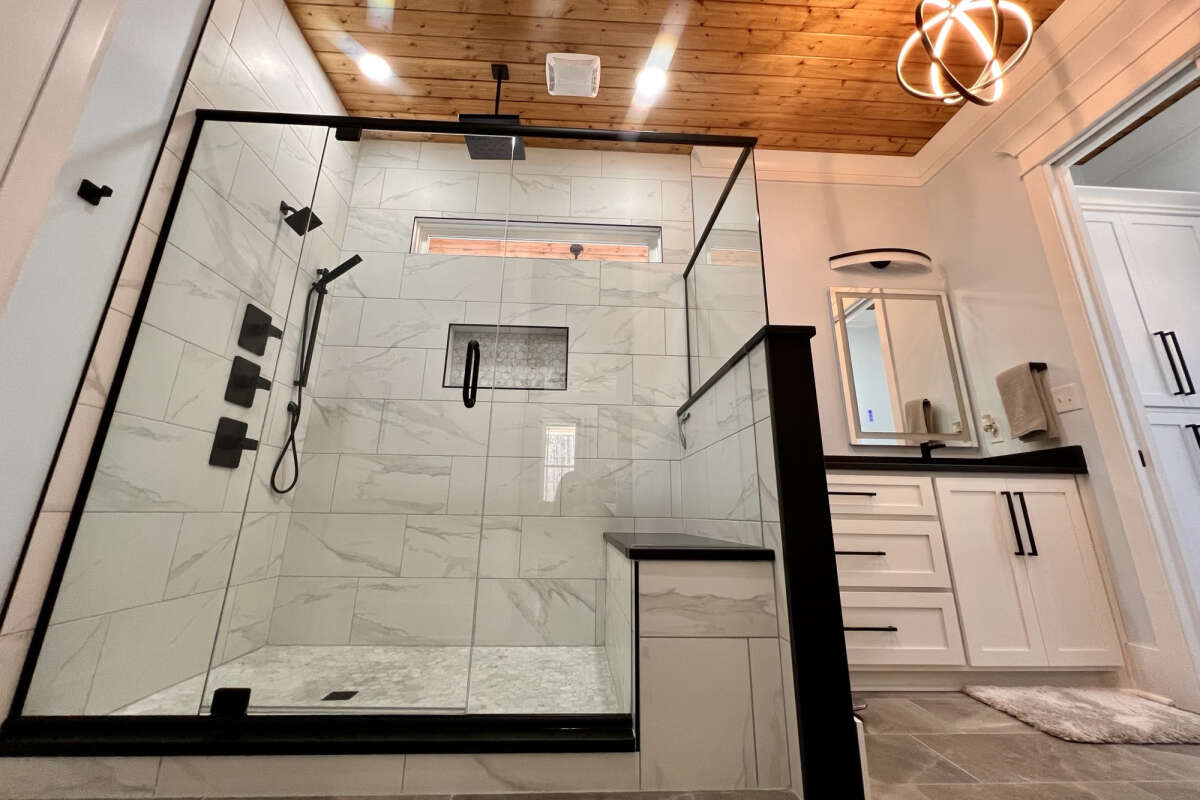

Craftsman House Plan #8687-00015 Additional Photo

Georgia

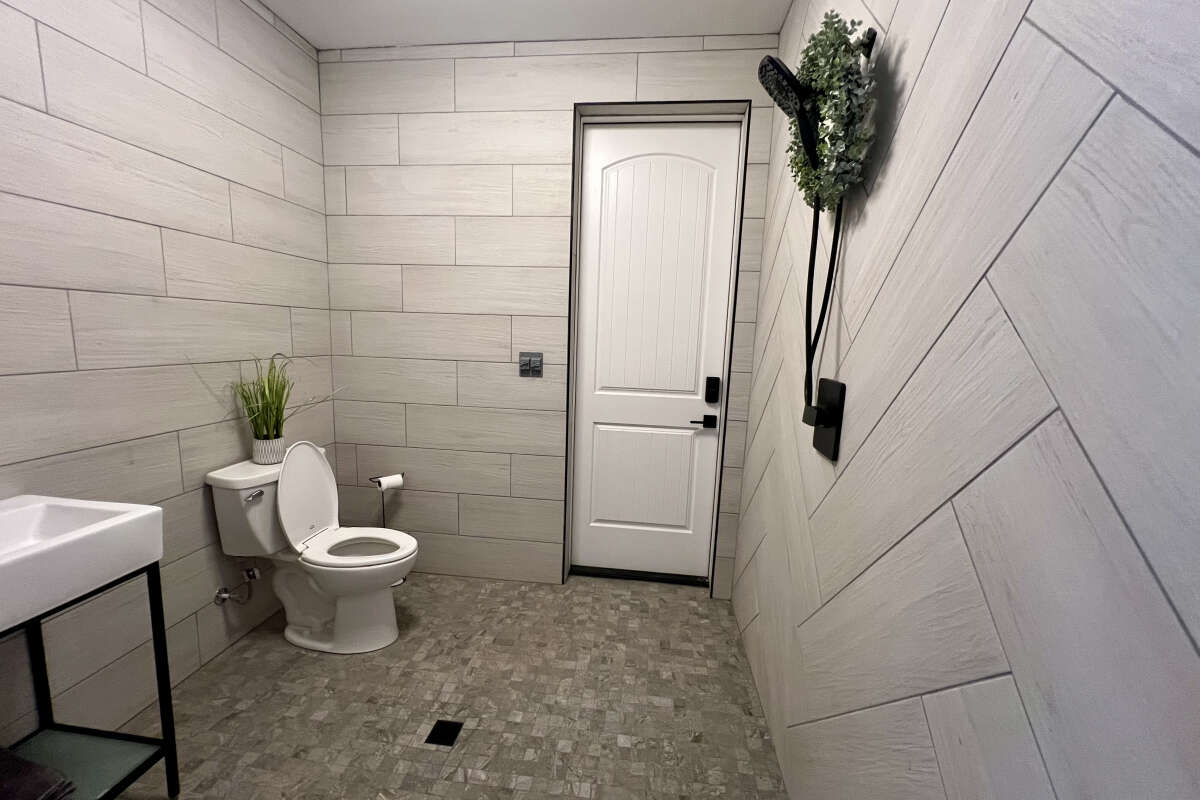

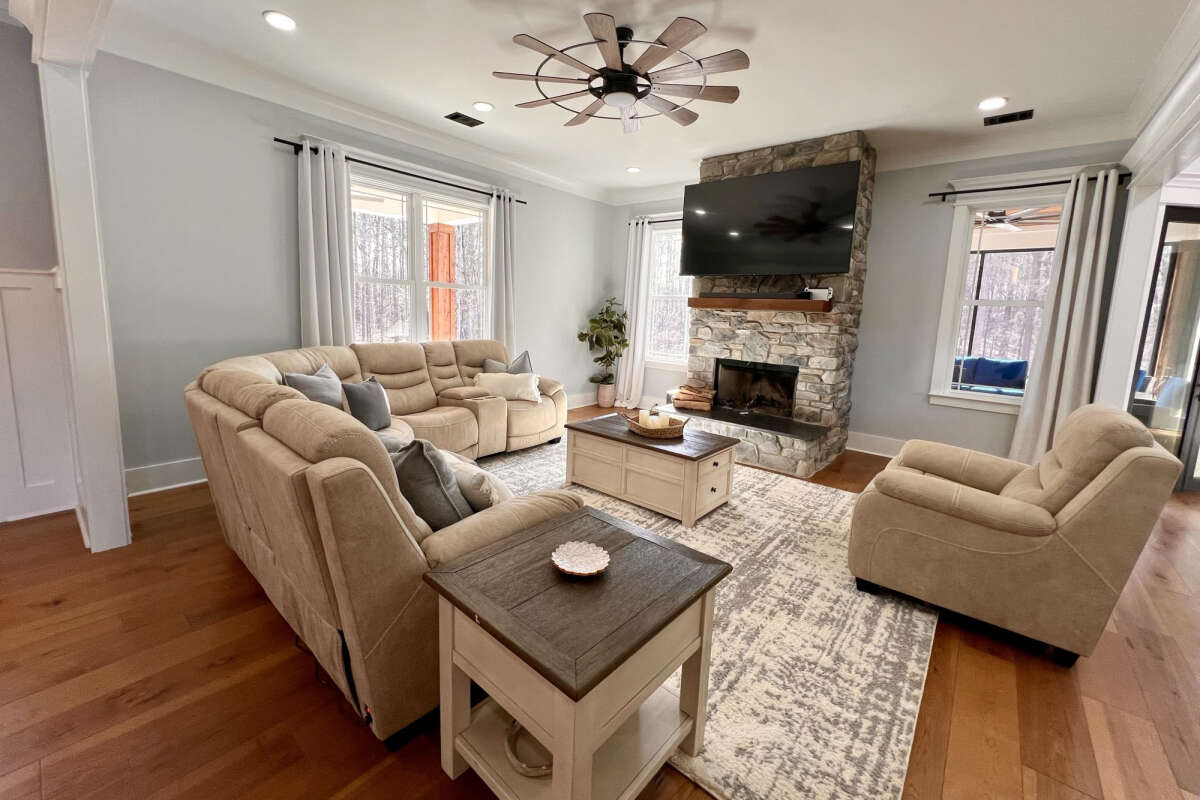

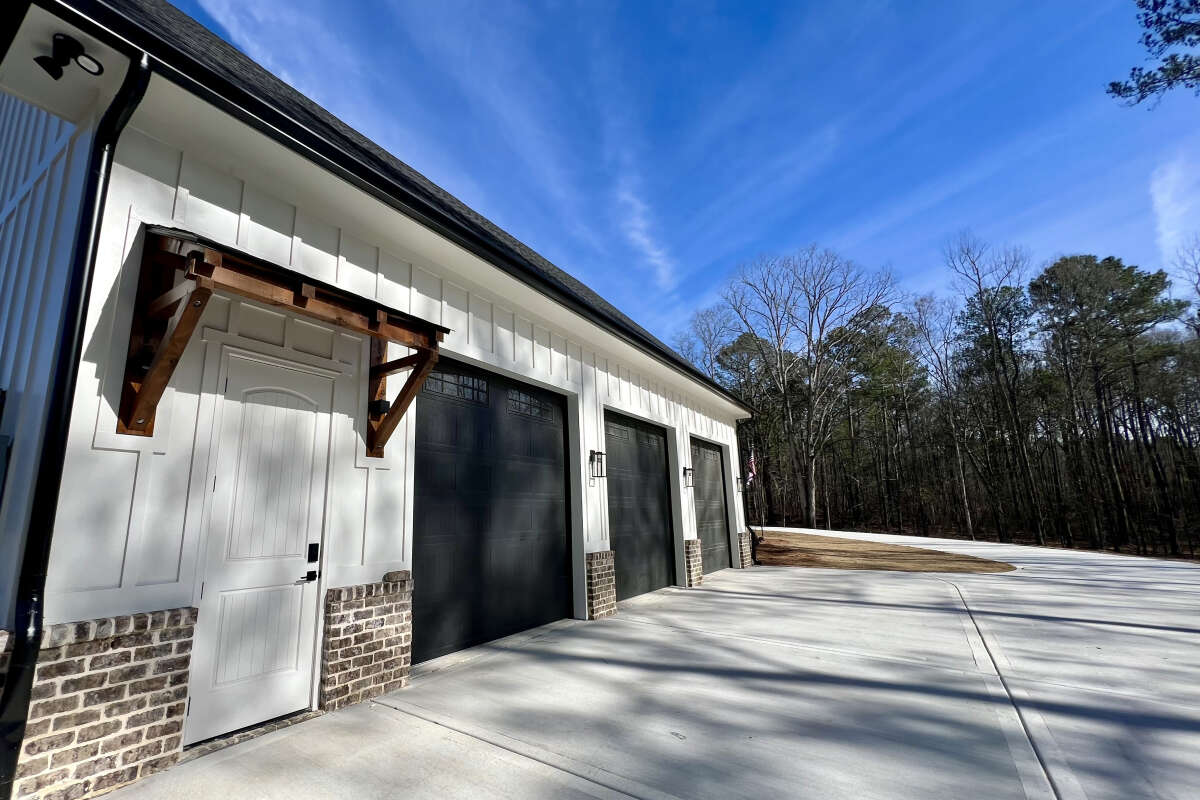

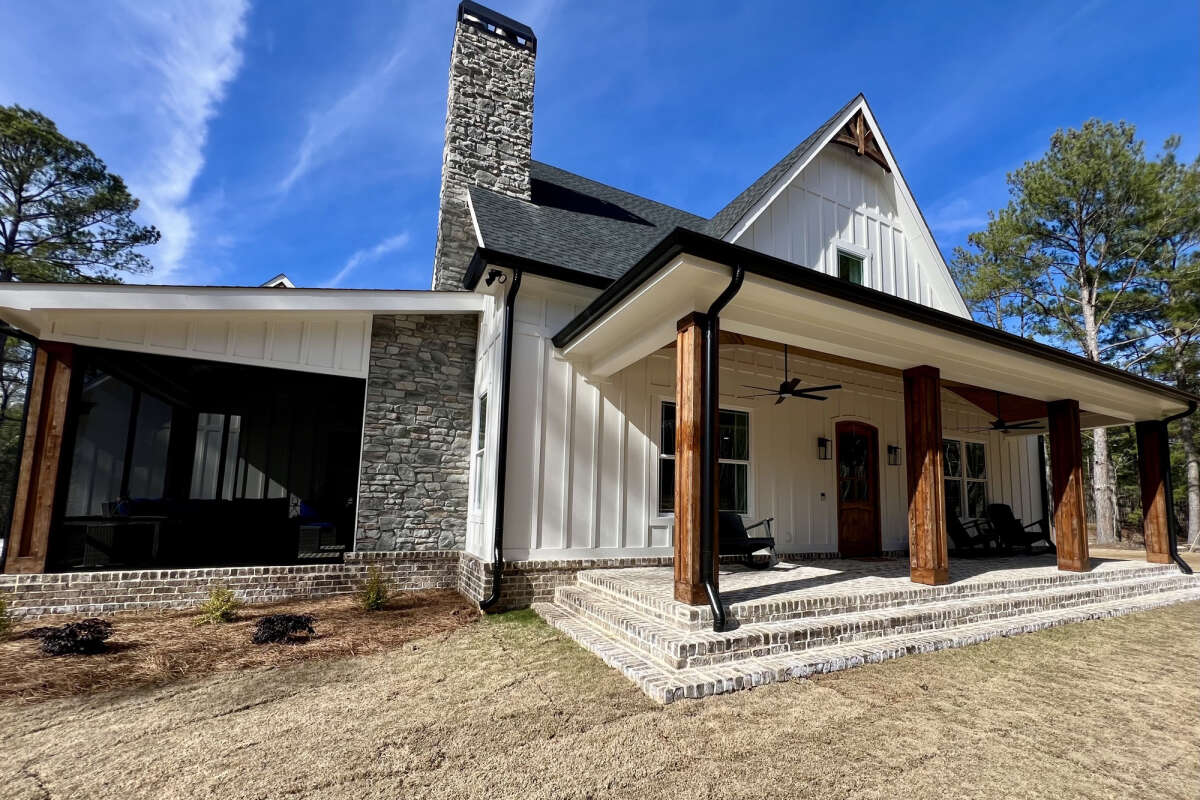

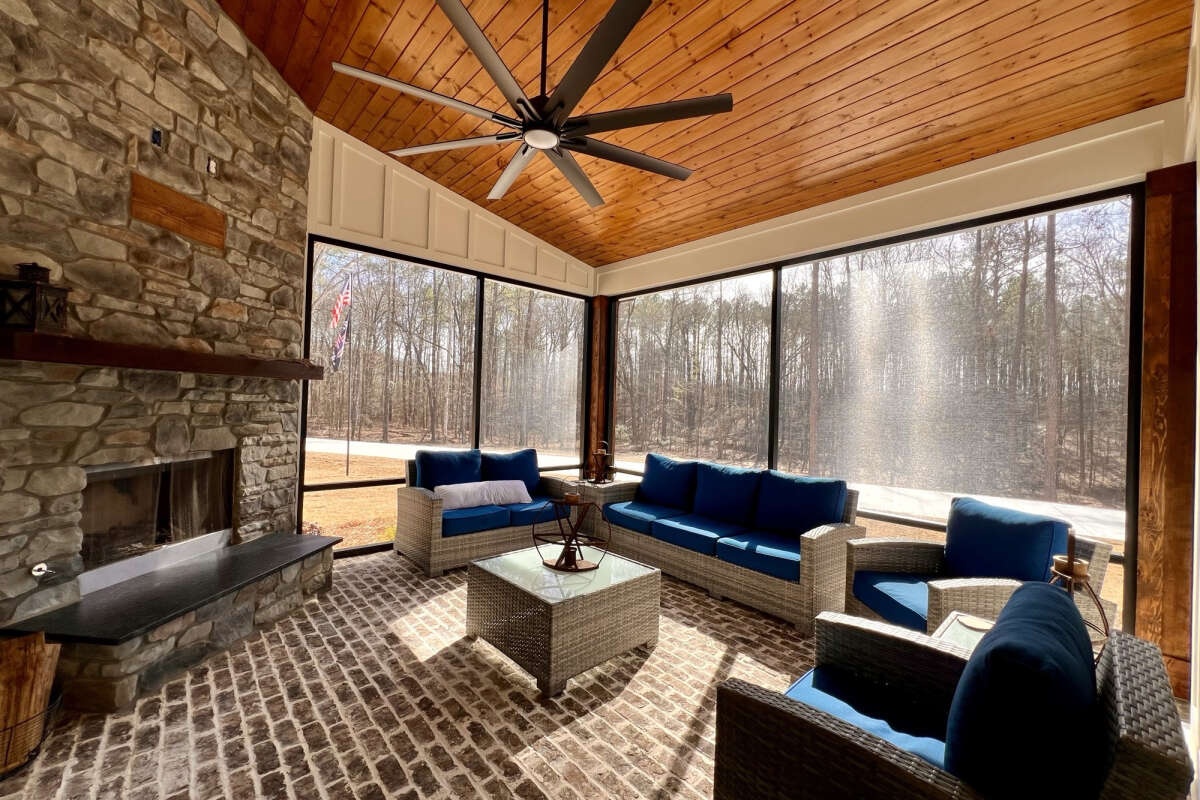

Craftsman House Plan #8687-00015 Build Photo

Georgia

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,764

Beds 4

Bath 3

1/2 Baths 1

Car 2

Stories 2

Width 68' 6"

Depth 76' 10"

See What's Included

Select Package

PDF (Single Build)

$1,895.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

CAD Files (Plus PDF, Unlimited Build)

$2,695.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $305.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

Main Floor

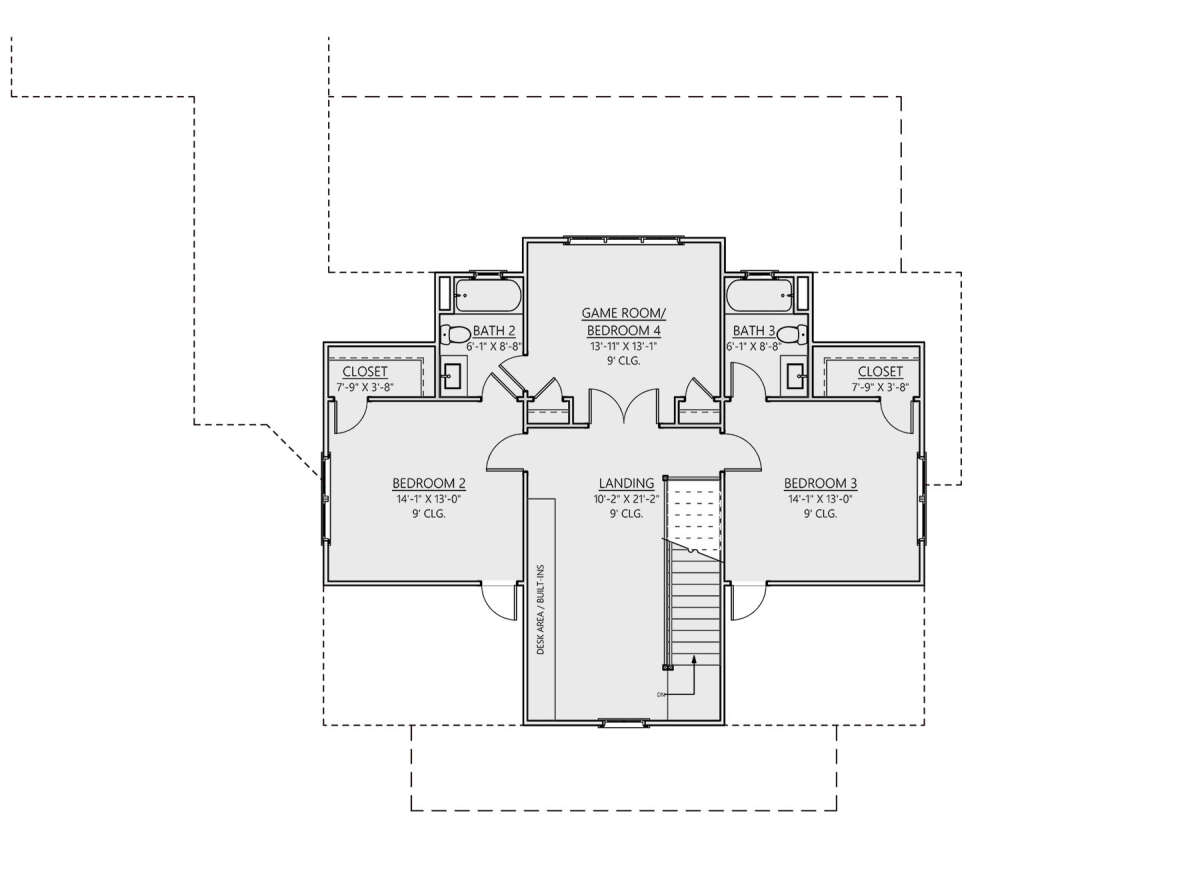

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,764 sq. ft. First Floor: 1,754 sq. ft. Second Floor: 1,010 sq. ft.

UNHEATED Sq Ft

Garage: 572 sq. ft.

Bedrooms: 4

Full Baths: 3

Half Baths: 1

Floors: 2

Garage Size: 2 car

Width: 68ft.-6in.

Depth: 76ft.-10in.

Height: 30ft.-1in.

Foundation: Crawlspace Foundation

Main Roof Pitch: 12:12

Exterior Framing: 2x4 Wood

CEILING HEIGHTS

First Floor: 10.1 feet

Second Floor: 9.1 feet

What's Included in these plans?

• Title Sheet (with cover rendering)
• Rendering Sheet(s)
• Foundation Plan
• Basement Plan (if applicable)
• Main Floor Plan
• Second Floor Plan (if applicable)
• Roof Plan
• (4) Exterior Elevations
• Interior Cabinet Elevations (bathrooms, laundry room, kitchen)
• Section(s)
• Detail(s)
• Lighting Plans for each applicable floor
• General Notes

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This 4 bedroom, 3 bathroom Craftsman house plan features 2,764 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
