Craftsman House Plan 8594-00156

Sq Ft2,400
Beds3-4
Baths2
1/2 Baths1
Stories1
Cars3
Width61' 0"
Depth70' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

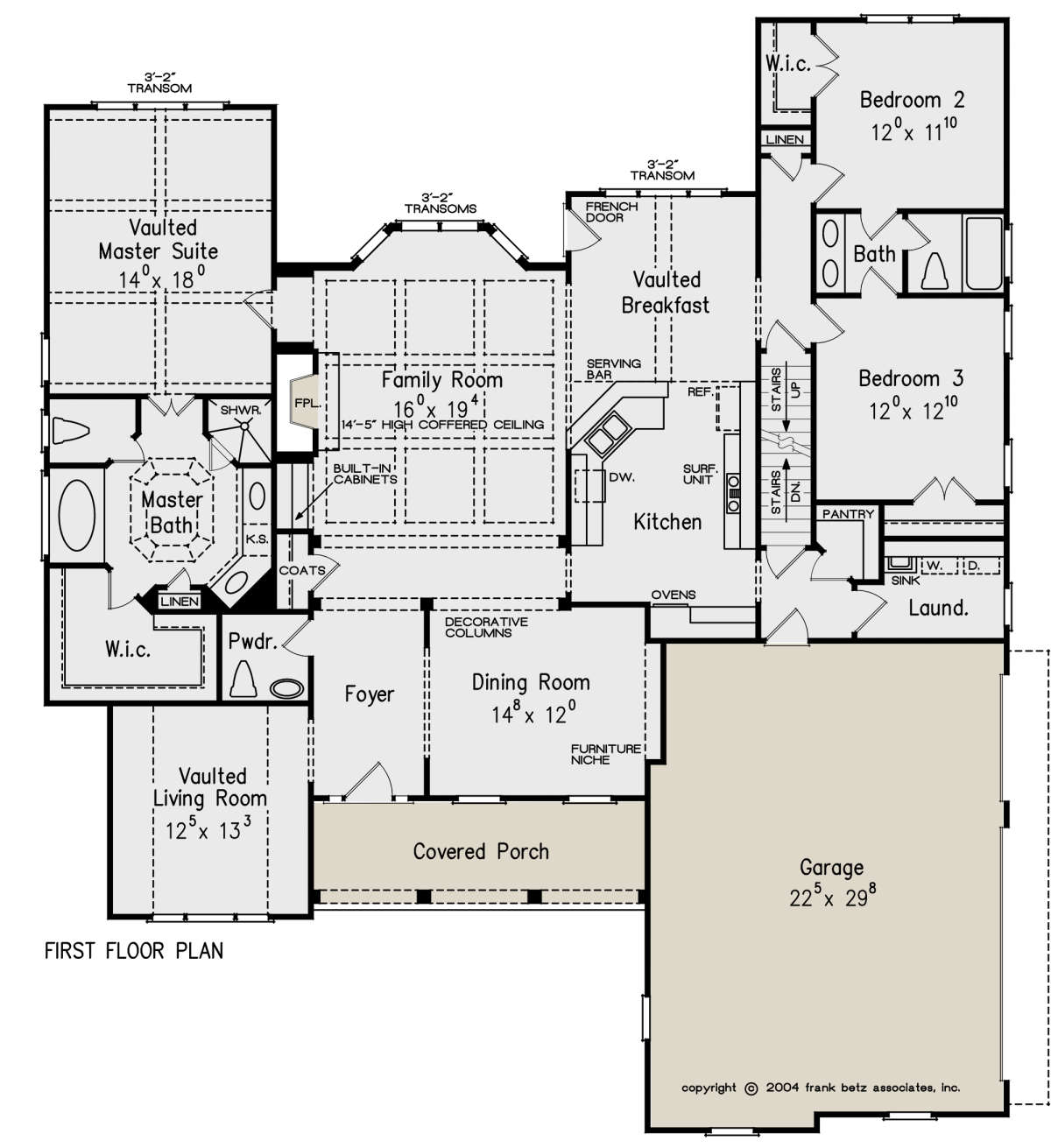

Main Floor for House Plan #8594-00156
Optional Second Floor for House Plan #8594-00156
Main Floor
Main Floor for House Plan #8594-00156

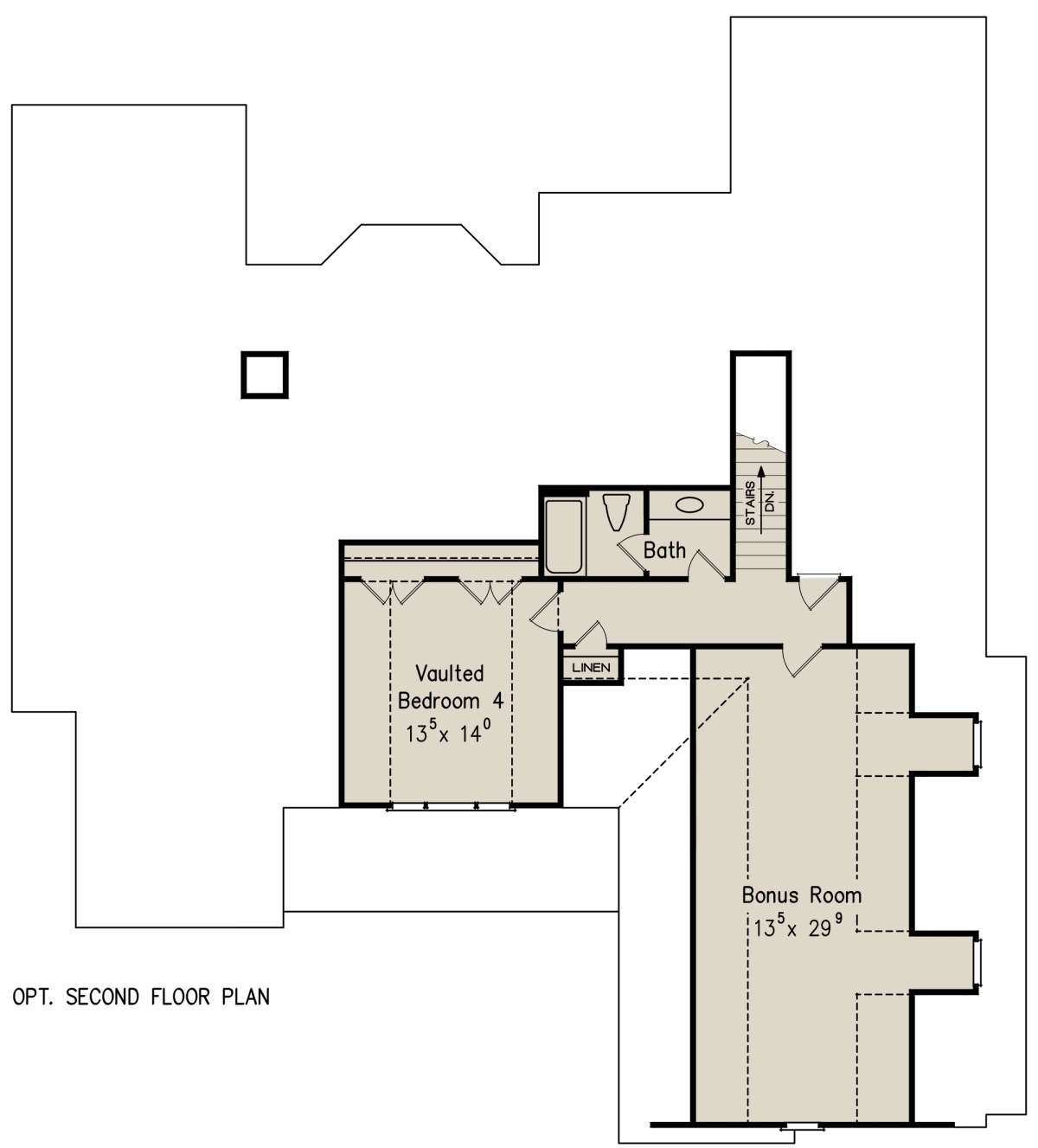

Optional Second Floor
Optional Second Floor for House Plan #8594-00156


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Front Elevation: Plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale.  The elevations show and note the exterior finished materials of the house.
  • Foundation Plans: Walkout basement plans are a 1/4" or 3/16" scale layout of the unfinished spaces showing only the necessary 2x6 wood framed load bearing walls.  The plans will show dimensions, notes and door/window sizes.  Crawl and/or slab foundations are available for some plans.
  • Floor Plans: Floor plans consists of 1/4" or 3/16" scale floor layouts showing the locations of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings.  These plans are complete with dimensions, notes, door/window sizes and schematical electrical layout.
  • Building Sections: The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen and Bath Elevations: Show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor Framing/Ceiling Framing: NOT AVAILABLE WITH ALL PLANS, PLEASE CONFIRM WITH OUR OFFICE TO ENSURE THIS IS AVAILABLE. Floor framing plans show each flor joist indicating the size, spacing and length.  The ceiling joist framing plan shows each ceiling joist indicating the size, spacing and length.  All beams are labeled and sized.
  • Roof Framing: The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. Framing plans are not available for all home plans; please contact our office to ensure availability.
  • Additional Details: Each plan includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details.  Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

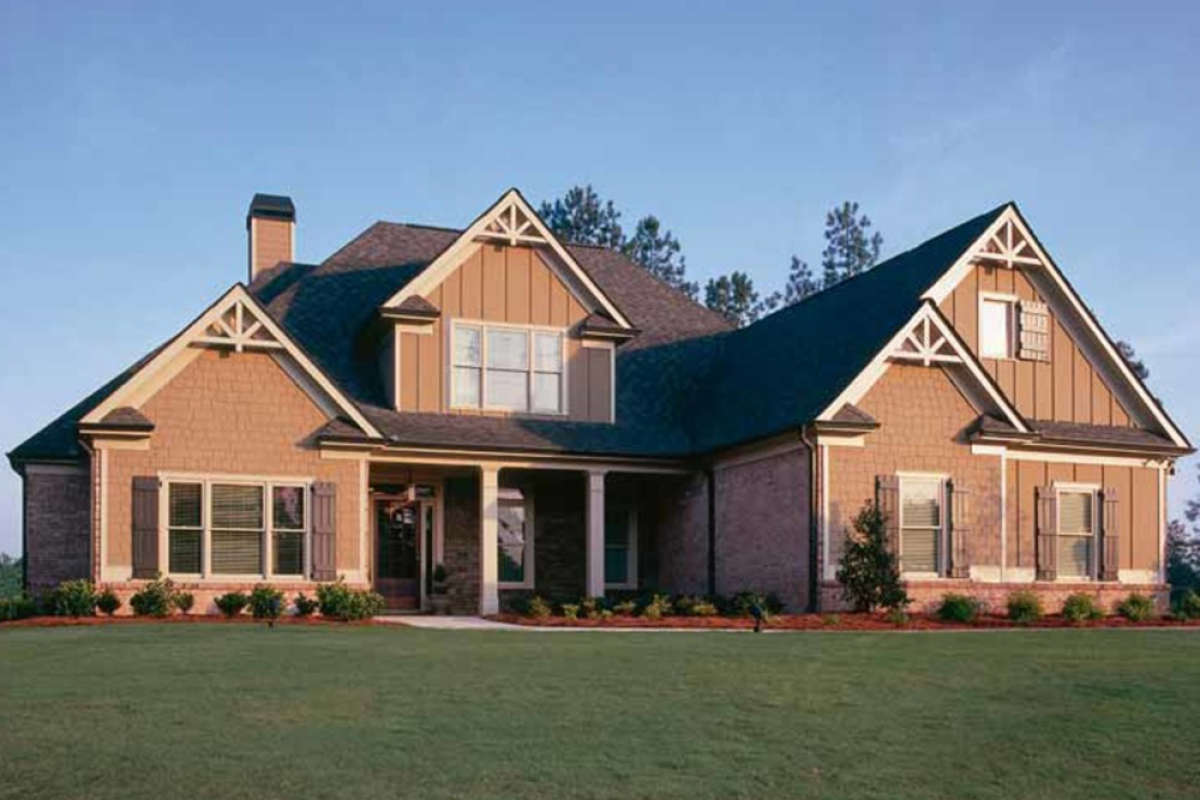

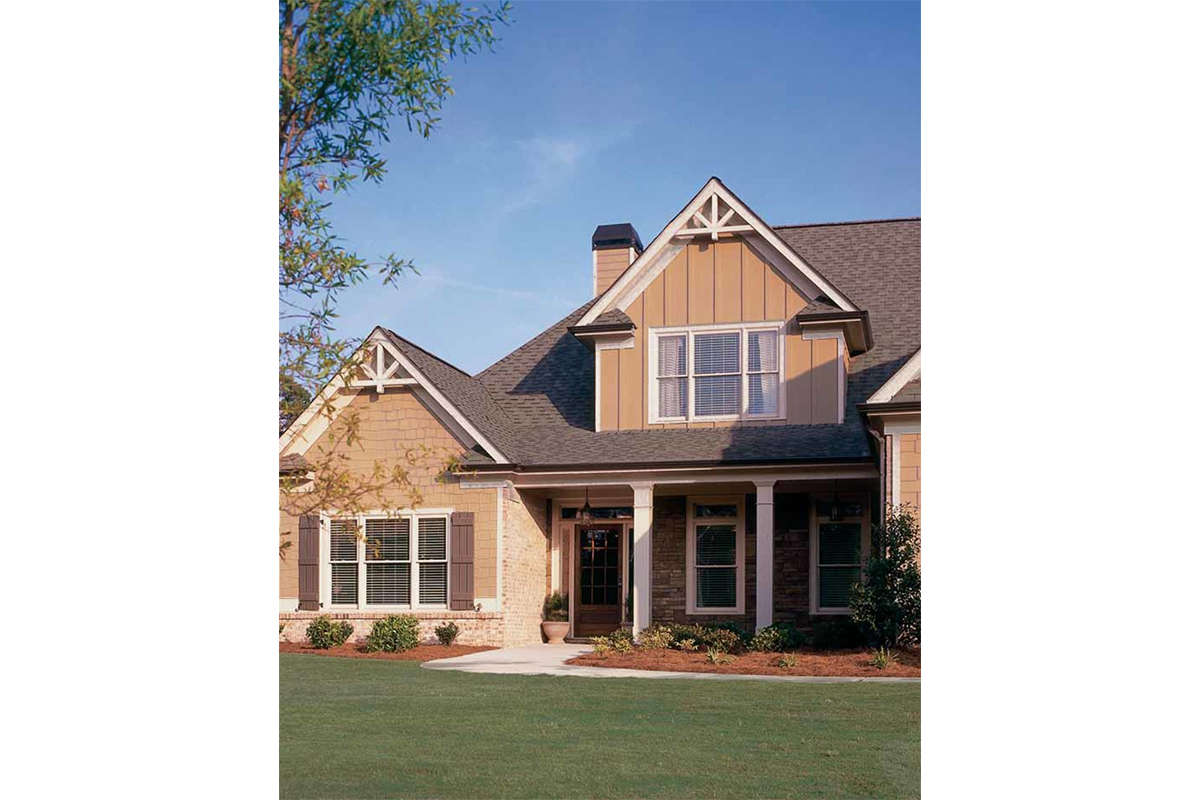

An endearing Craftsman house plan featuring signature exterior design elements that offer abundant charm and character to the home’s appeal. The façade of the home is accentuated with multiple decorative gables, plenty of warm woods, a stone wall feature, and an extended front covered porch. The universal Craftsman porch is a popular home design element and certainly offers an inviting spot to greet family and friends into the interior floor plan which is open and welcoming. There are approximately 2,400 square feet of living space that includes three-to-four bedrooms and two plus bathrooms. The side entry three car garage features a double and single bay with plenty of vehicle and storage space.

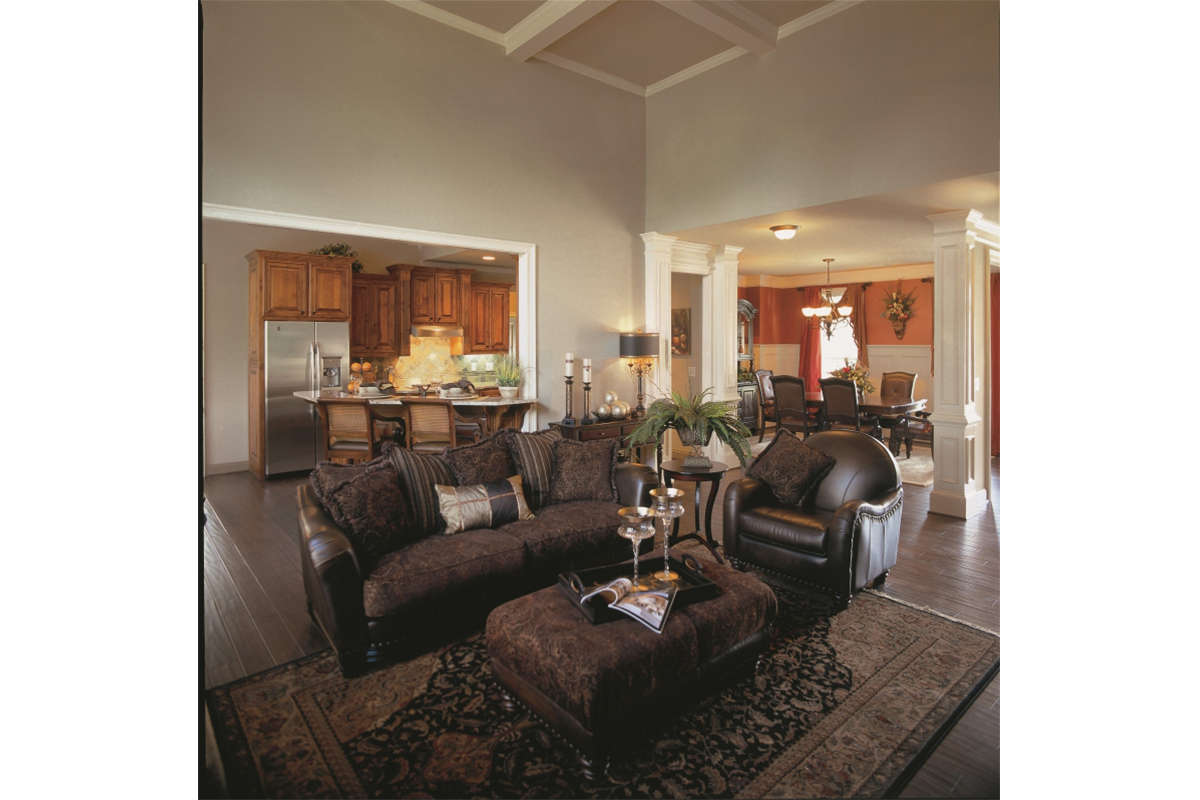

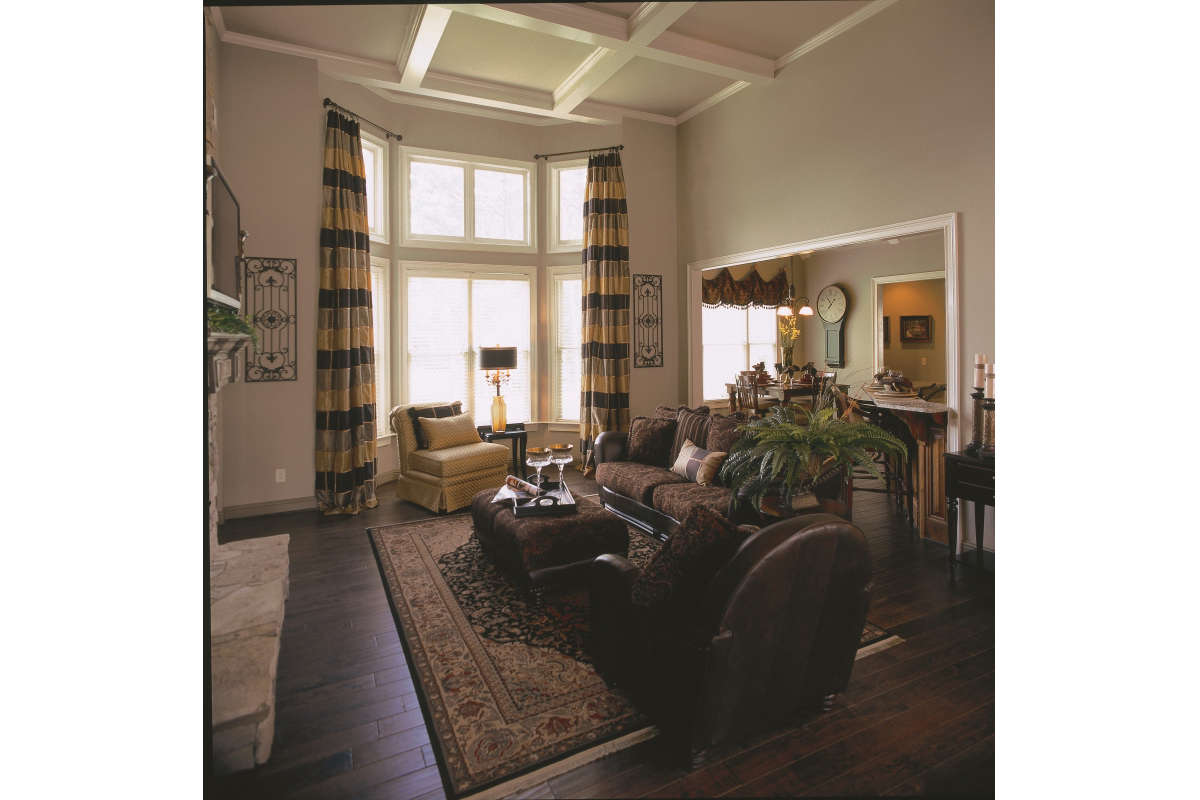

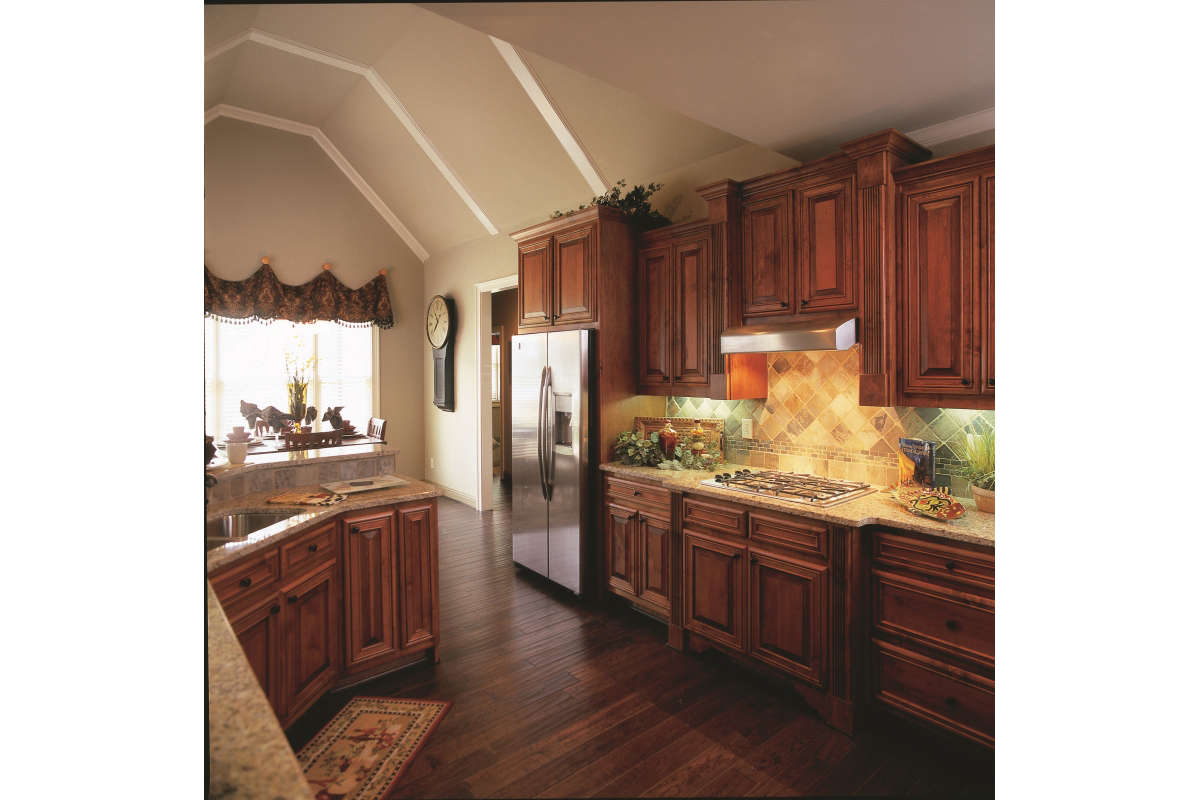

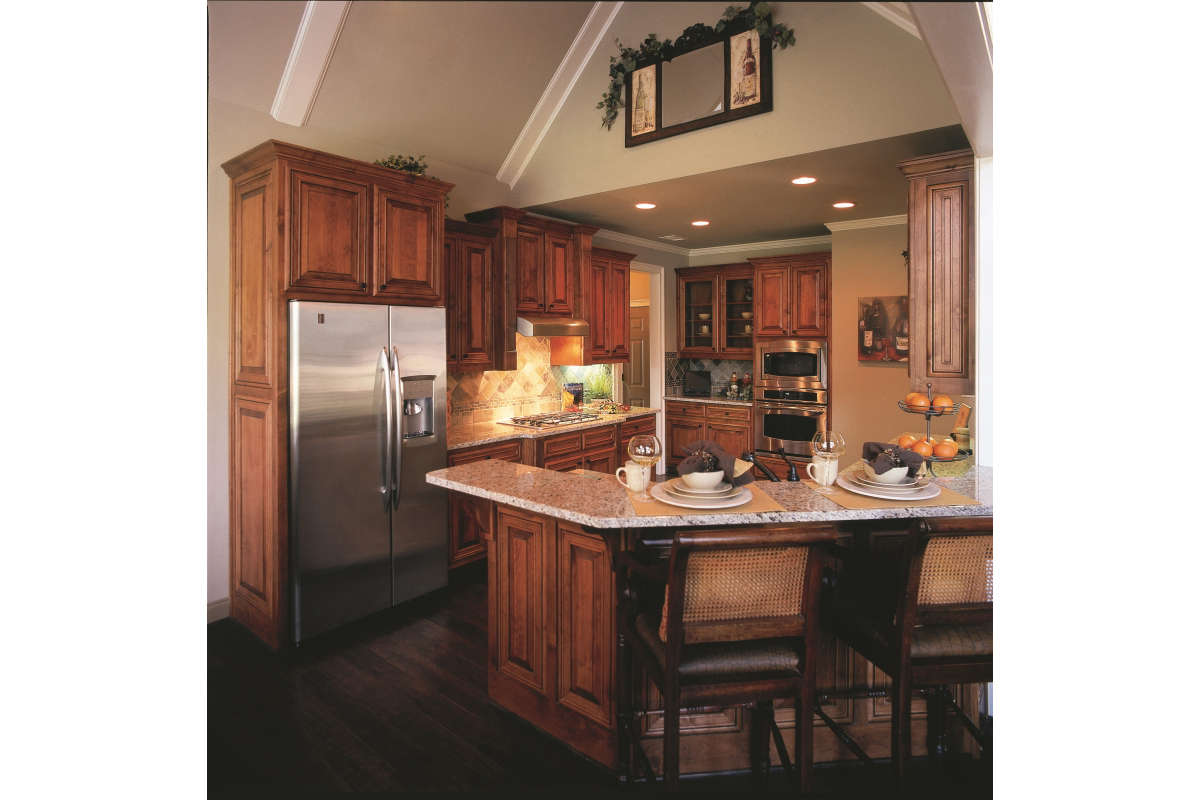

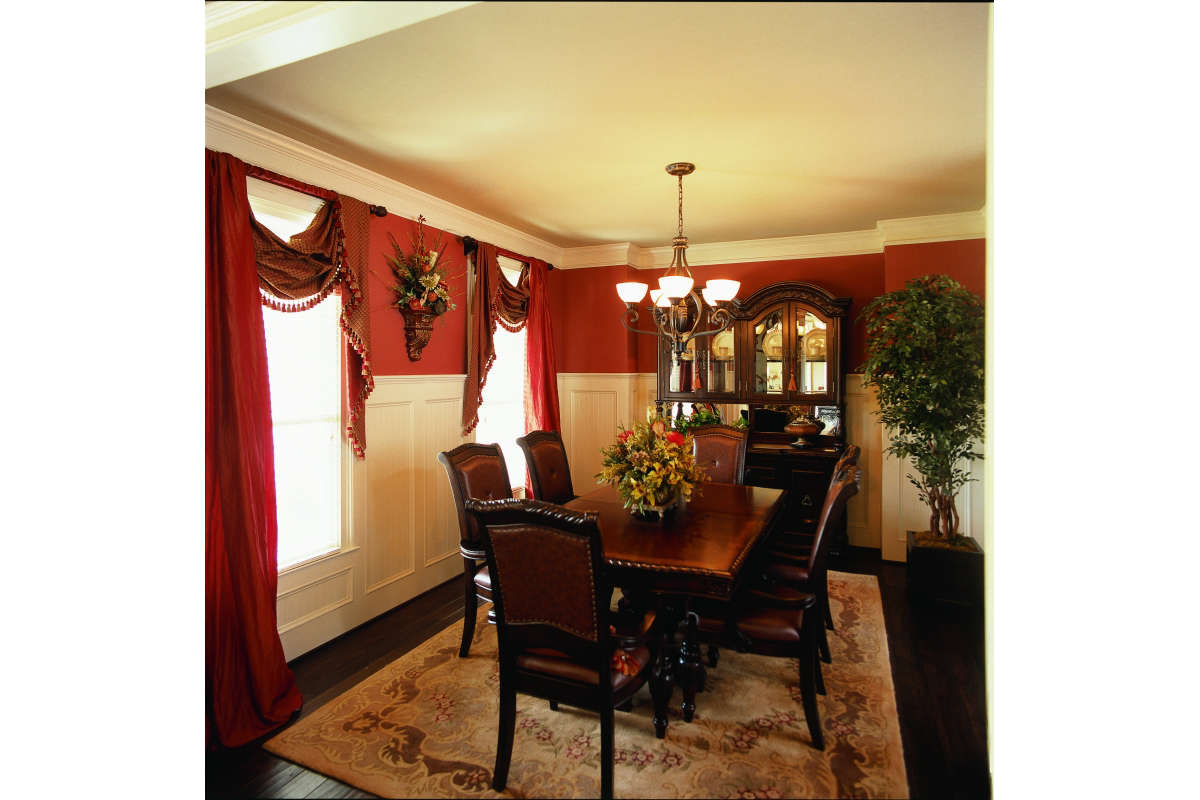

The main foyer entrance is flanked by the formal dining room which is spacious and features decorative columns and a furniture niche along with porch window views on one side while the vaulted living room is located on the opposite side of the foyer. Beyond the foyer is the large family room which is highlighted with gorgeous coffered ceilings, built-in cabinetry, and a large bay window featuring surrounding window views. The adjacent kitchen features an angled serving bar, additional counter space, and a walk-in pantry around the corner. A bright and airy breakfast room features French door access to the outdoor space and transom overhead windows. There is a laundry room with a sink located directly off the garage for tidy home maintenance. An optional second story with approximately 845 square feet of living space could easily accommodate a fourth bedroom with a nearby bathroom as well as a large bonus room.

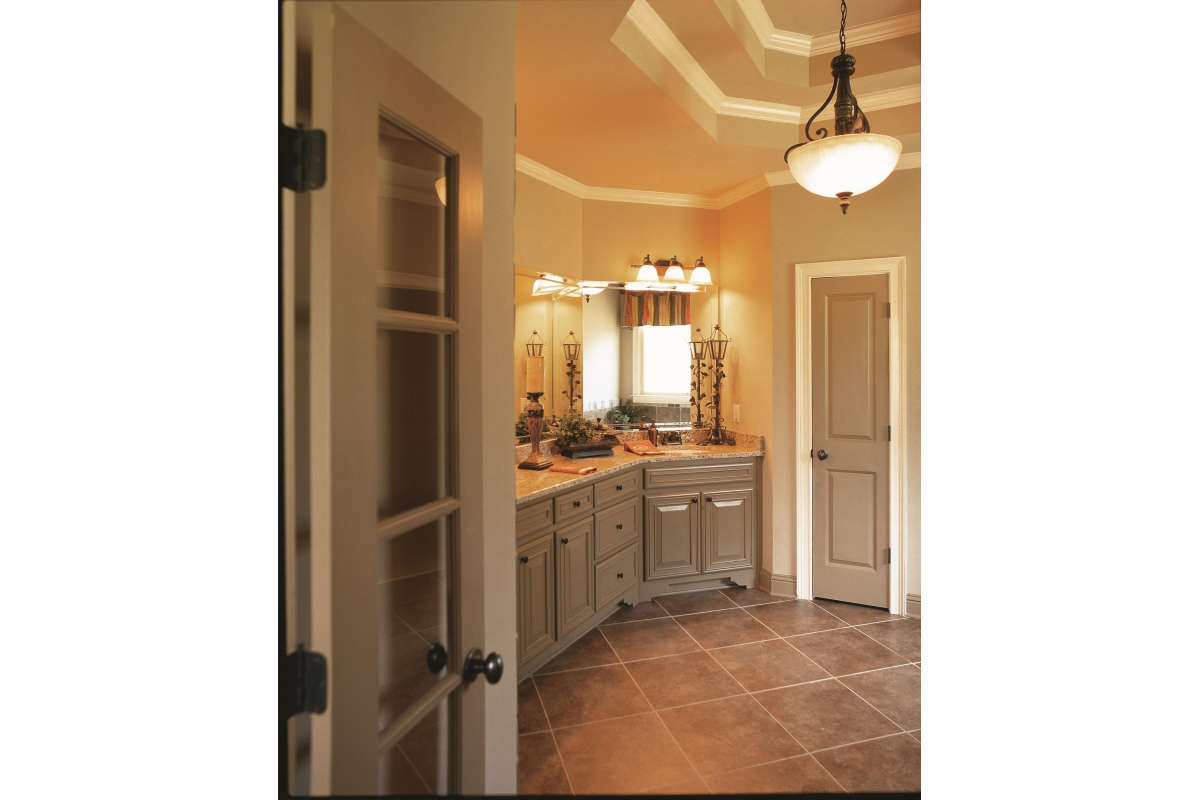

There are three bedrooms and two plus bathrooms on the main floor. The two secondary bedrooms are nearly equivalent in size, both have window views and one features a walk-in closet while the other has plentiful closet space. There are a hall linen closet and a shared Jack and Jill bathroom with double sinks and a toilet room with a tub/shower combination. Located on the opposite wing of the home is the vaulted master suite, which is quite spacious and features great window views and access to the master bathroom and walk-in closet. The master bathroom is an elegant arrangement of modern amenities that include dual vanities, a private water closet, a linen closet, garden tub, and a separate shower. The walk-in closet is located through the door of the bathroom for convenience. A powder room and coat closet are located on the adjacent wall when you enter the home. This lovely Craftsman house design has everything a family needs; a functional family layout, beautiful outdoor space, and room for expansion above and below the main floor.
