Craftsman House Plan 8594-00150

Sq Ft2,619
Beds4
Baths3
1/2 Baths1
Stories2
Cars2
Width56' 0"
Depth53' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

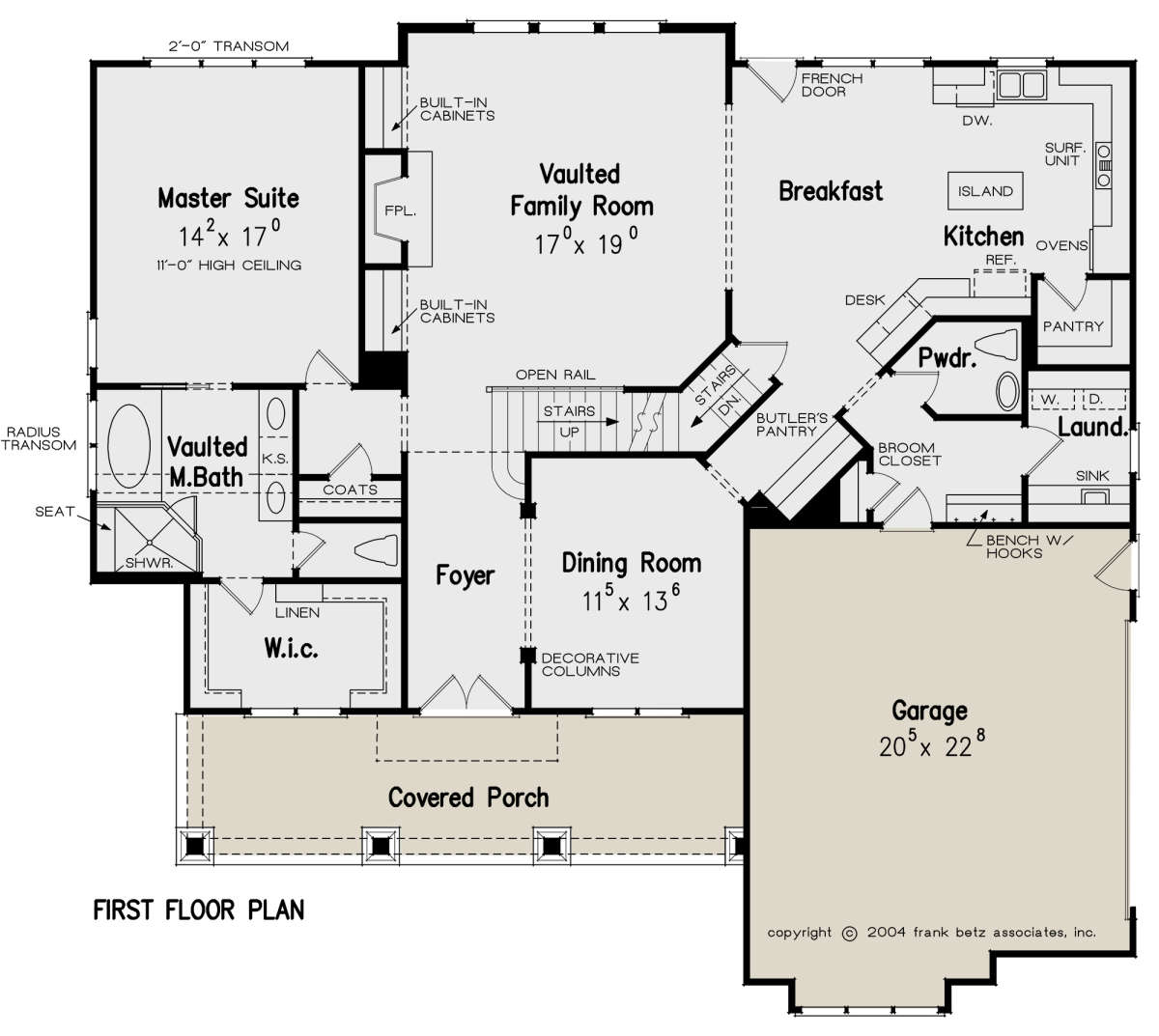

Main Floor for House Plan #8594-00150

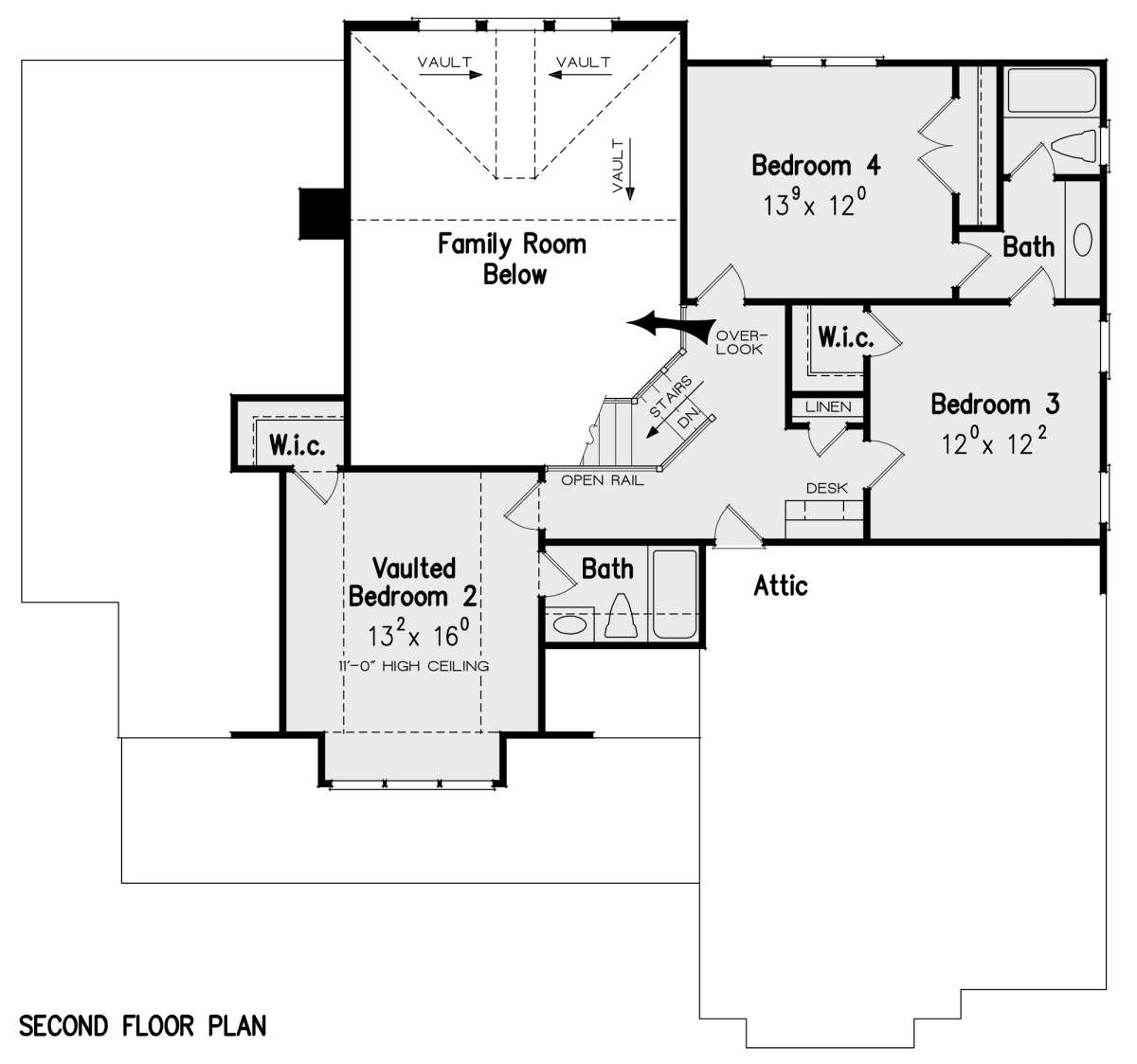

Second Floor for House Plan #8594-00150
Main Floor
Main Floor for House Plan #8594-00150

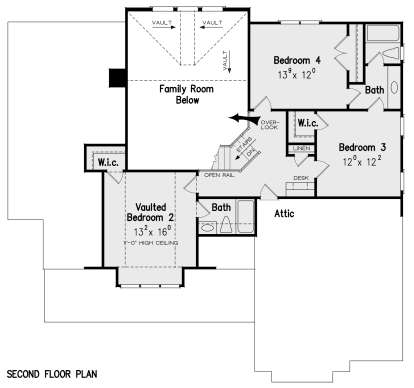

Second Floor
Second Floor for House Plan #8594-00150


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Front Elevation: Plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale.  The elevations show and note the exterior finished materials of the house.
  • Foundation Plans: Walkout basement plans are a 1/4" or 3/16" scale layout of the unfinished spaces showing only the necessary 2x6 wood framed load bearing walls.  The plans will show dimensions, notes and door/window sizes.  Crawl and/or slab foundations are available for some plans.
  • Floor Plans: Floor plans consists of 1/4" or 3/16" scale floor layouts showing the locations of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings.  These plans are complete with dimensions, notes, door/window sizes and schematical electrical layout.
  • Building Sections: The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen and Bath Elevations: Show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor Framing/Ceiling Framing: NOT AVAILABLE WITH ALL PLANS, PLEASE CONFIRM WITH OUR OFFICE TO ENSURE THIS IS AVAILABLE. Floor framing plans show each flor joist indicating the size, spacing and length.  The ceiling joist framing plan shows each ceiling joist indicating the size, spacing and length.  All beams are labeled and sized.
  • Roof Framing: The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. Framing plans are not available for all home plans; please contact our office to ensure availability.
  • Additional Details: Each plan includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details.  Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

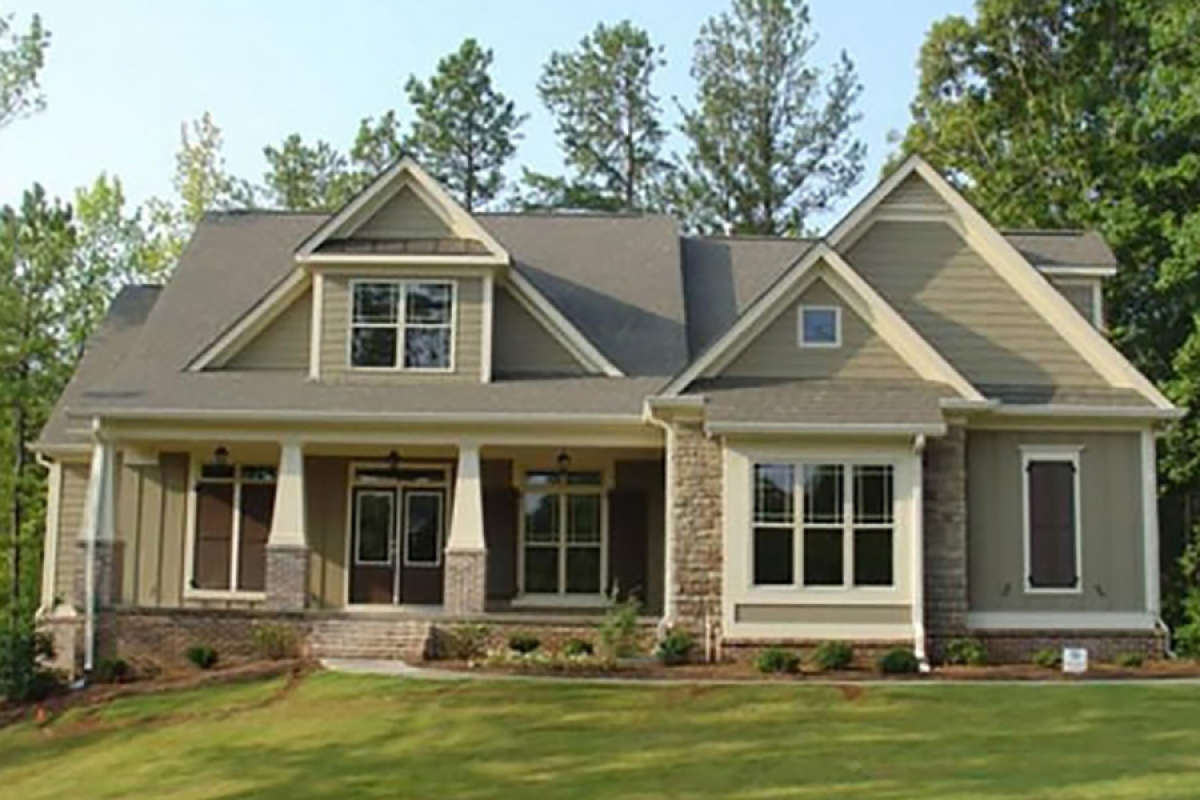

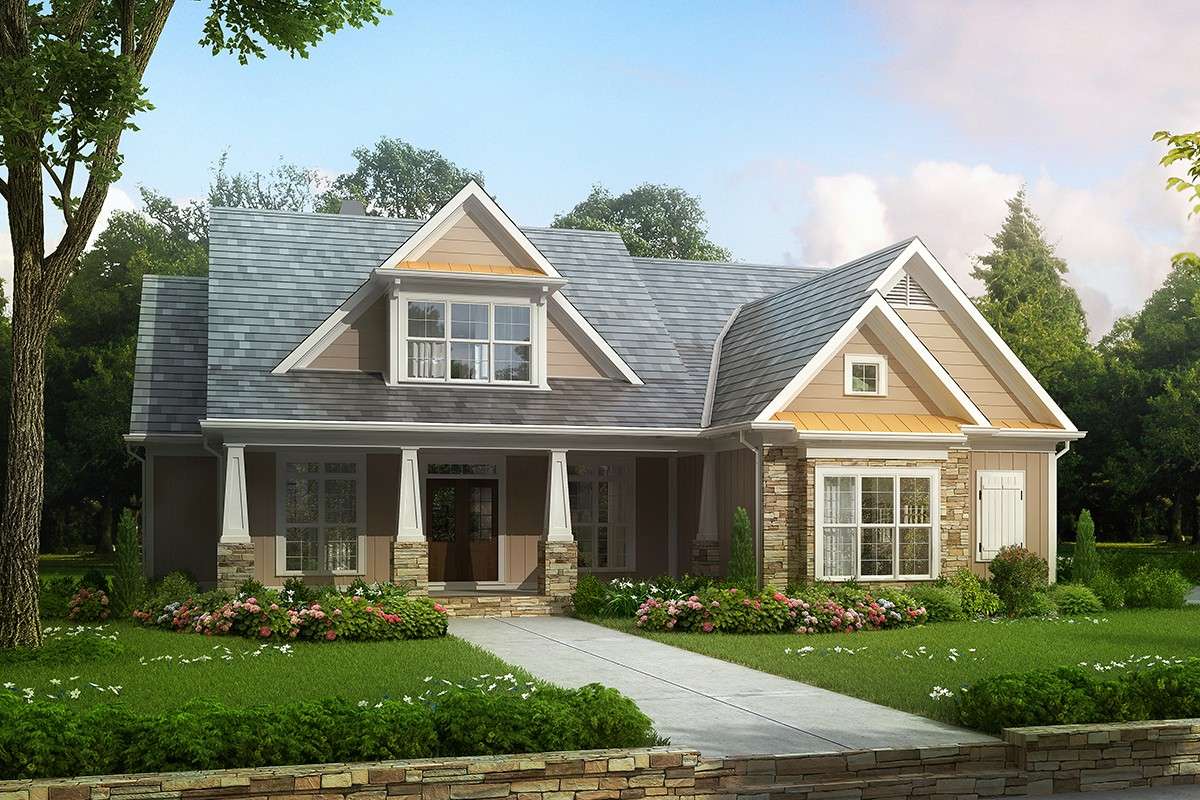

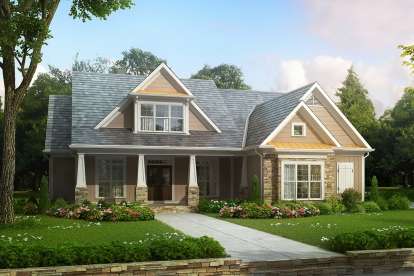

This quintessential Craftsman house plan features a classic exterior comprised of overhead gables, great window views, stone pillars, and tapered columns. The front covered porch is extensive and highlights the double door entry into the home’s interior and two sets of gorgeous windows flanking the door entry. There are approximately 2,619 square feet of living space with four bedrooms and three plus bathrooms in a two-story home. A large two car side entry garage features great vehicle and storage space as well as a pedestrian door for the easy removal of lawn and garden equipment.

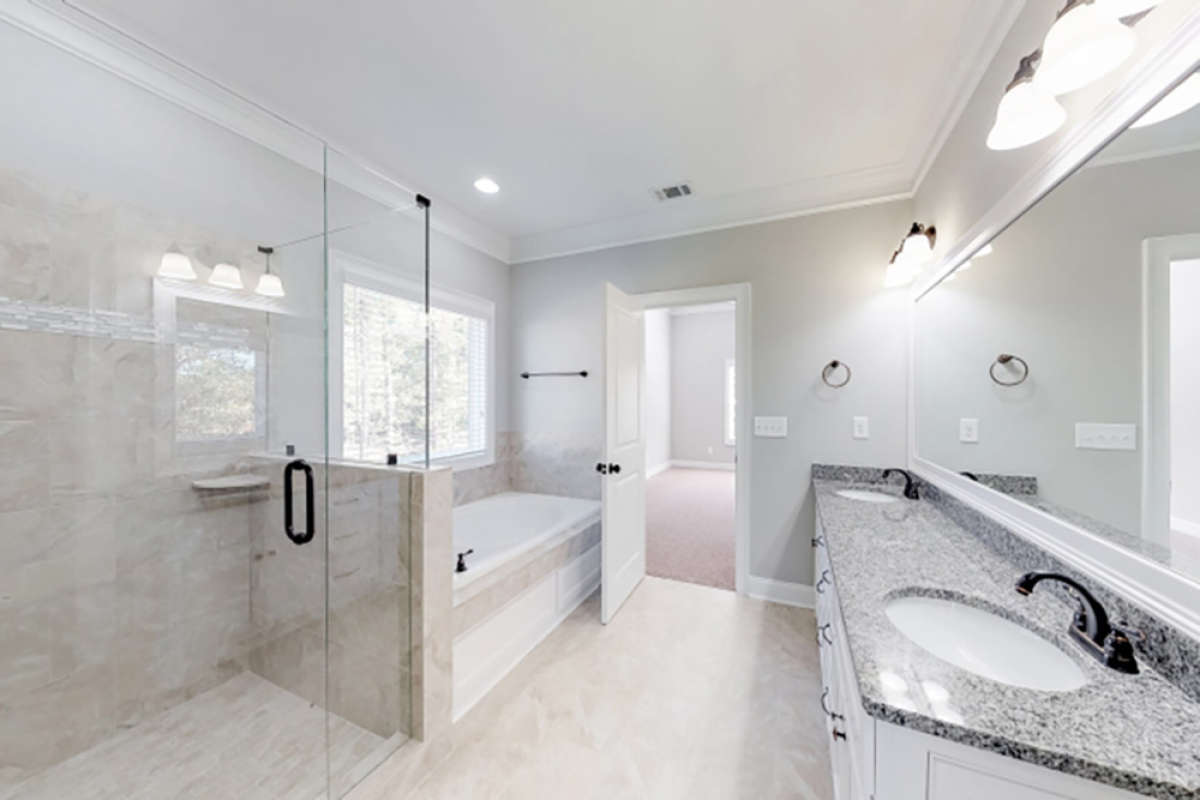

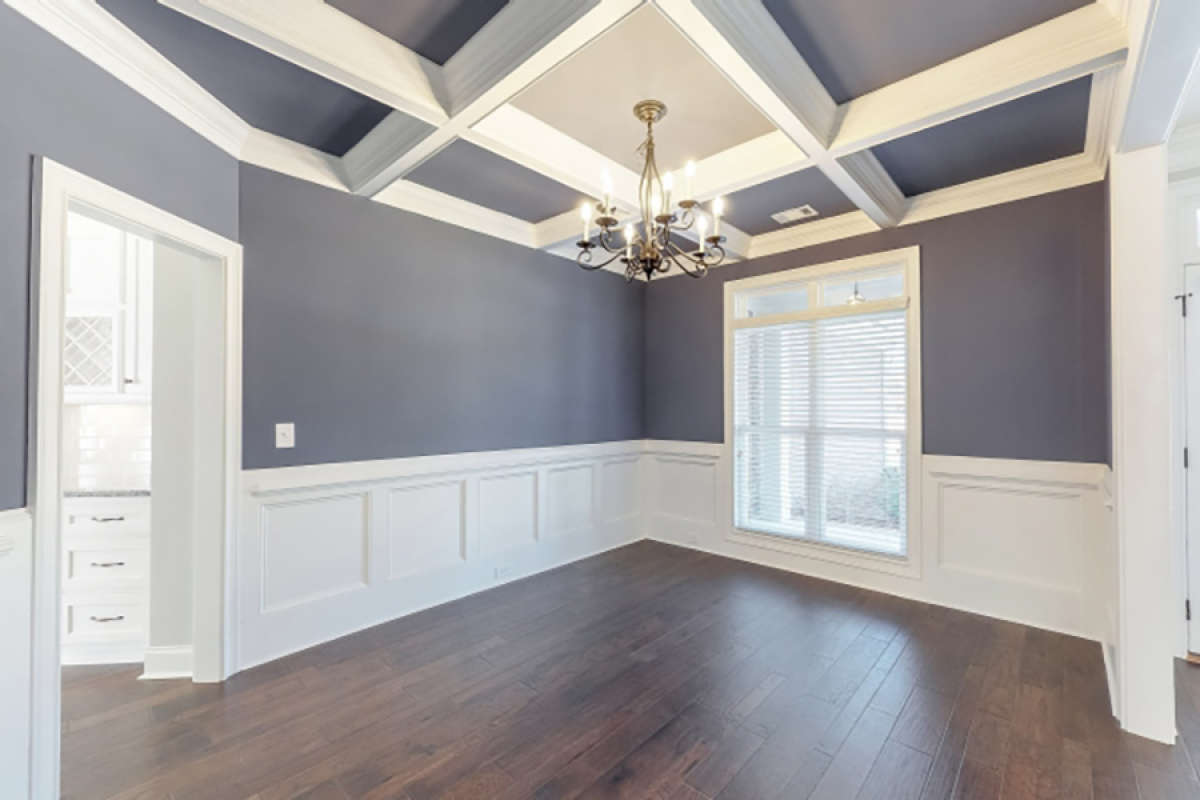

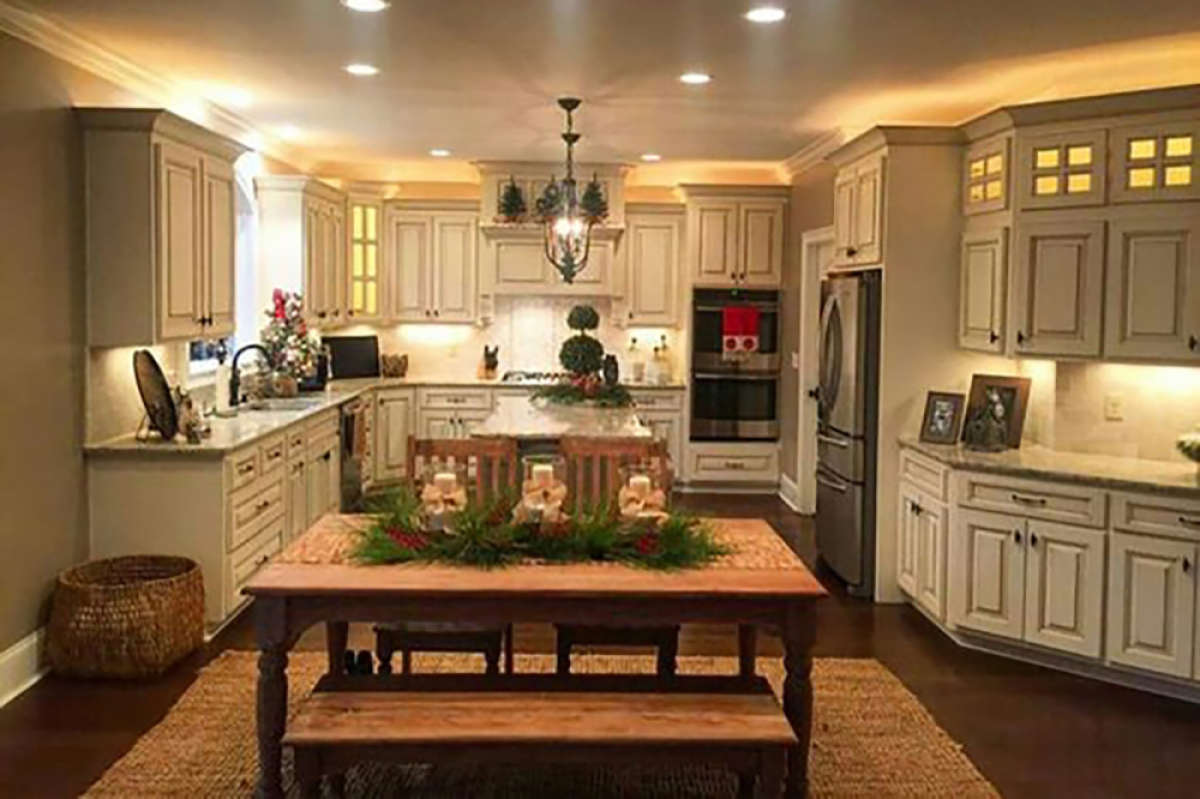

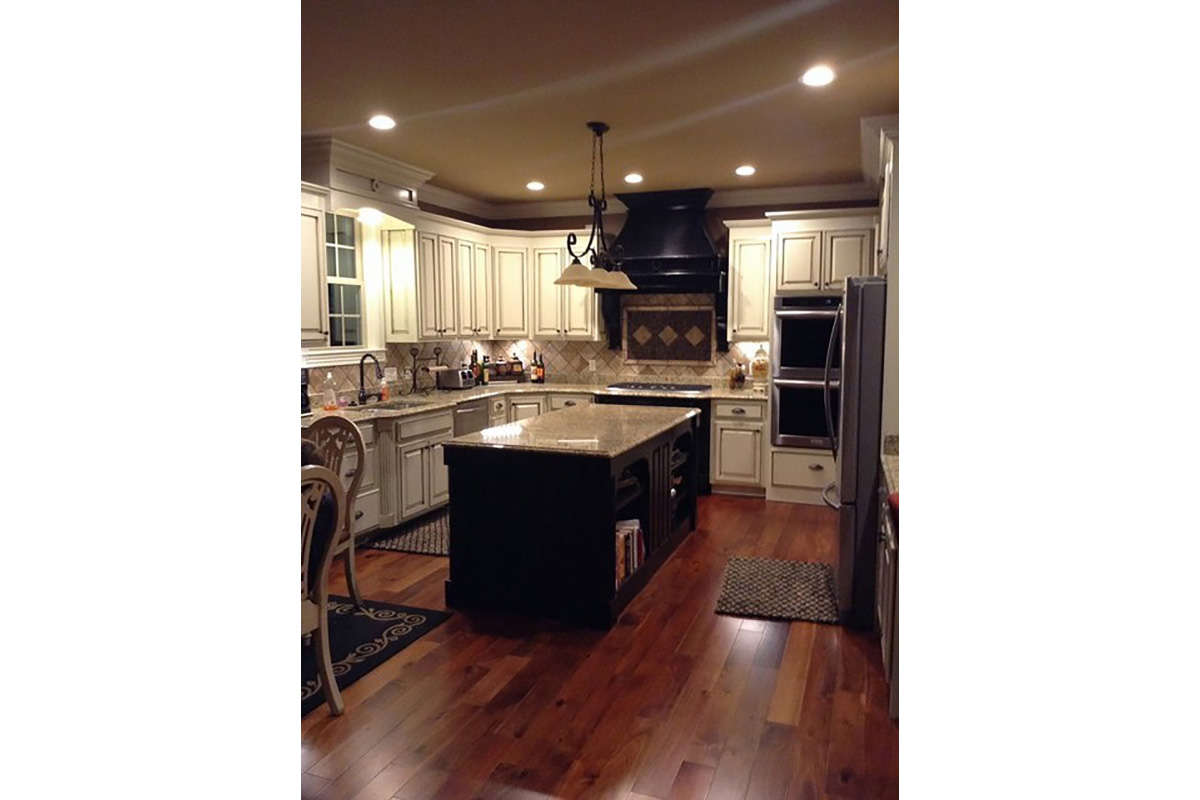

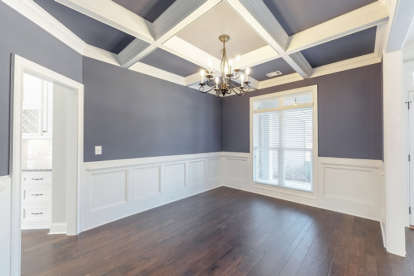

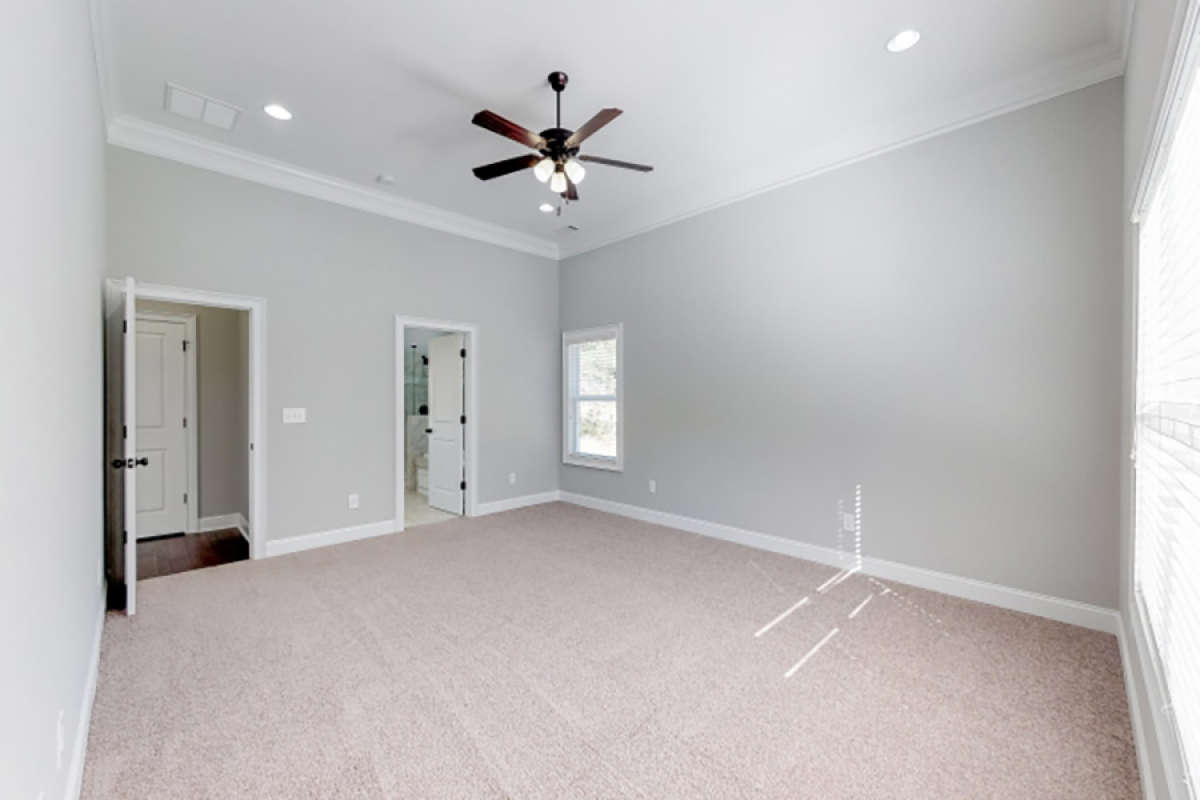

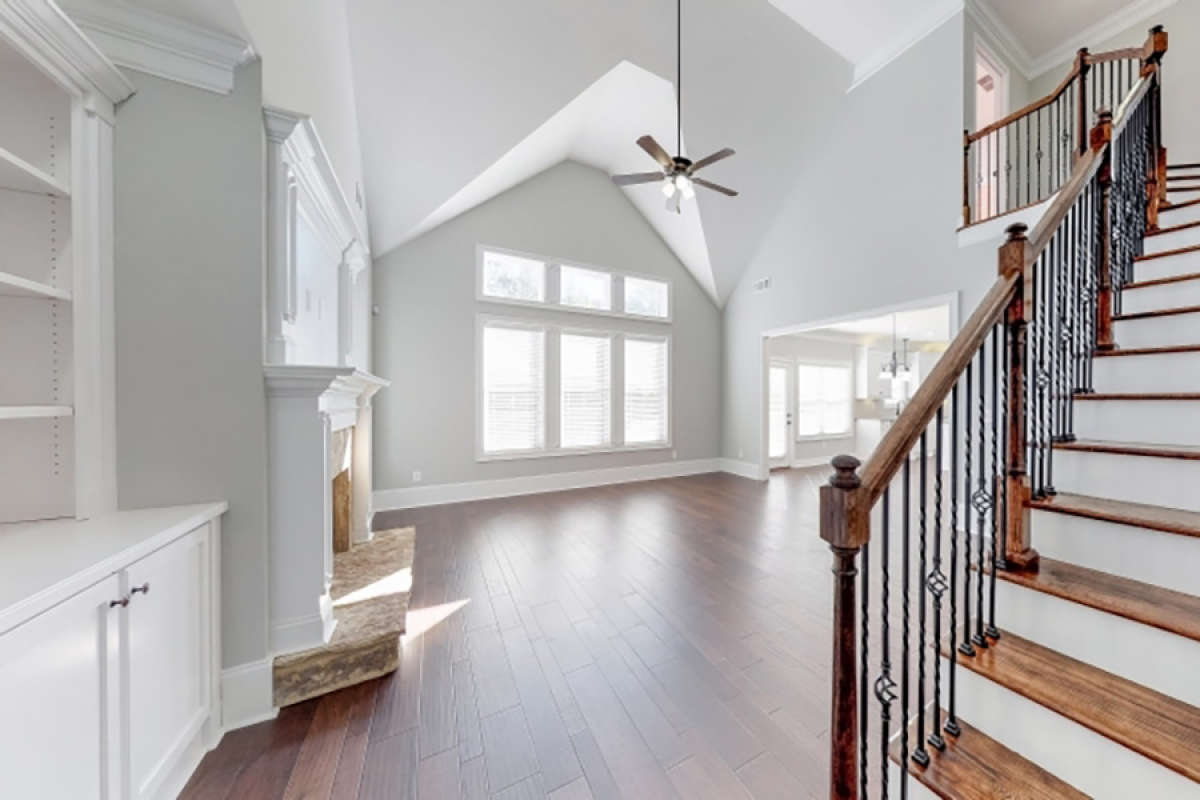

The covered porch showcases the centrally located foyer entrance into the open concept interior. The formal dining room is highlighted with decorative columns and window views overlooking the front porch. Beyond the dining room is the vaulted family room which measures 17’ x 19’, has a warming fireplace, built-in cabinetry and three picturesque window views on the rear wall. An open breakfast room and kitchen are enormous with French door access to the rear, a center island, great counter, and cabinet space and a large walk-in pantry. There is a butler’s pantry situated between the formal dining room and the kitchen and nearby is a mudroom, laundry room, and guest powder room along with garage access. The main level master suite features a gorgeous bedroom with transom window and soaring ceiling heights. There is a vaulted master bathroom featuring modern amenities that includes dual sinks, a garden tub, separate shower with seating and a private water closet. The attached master walk-in closet is huge and sits just beyond the bathroom.

The second floor includes a ton of attic storage; in addition, there is an open railing and an overlook onto the family room below along with three additional bedrooms and two bathrooms. Bedroom #2 is a self-contained suite with 11’ bedroom ceiling heights, a walk-in closet and a private full bathroom. At the other end of the landing are bedroom #3 and #4; both of which are similarly sized with window views and each contains large closet space. There is a shared Jack and Jill bathroom located between the two which features an extended vanity, a toilet area, and a tub/shower combination. Just outside bedroom #3 are a desk area and a linen closet for the shared bathroom. This family Craftsman house plan has great expansion space, a functional layout and loads of storage options.
