Craftsman House Plan 8594-00020

Sq Ft2,295
1/2 Baths0
Width58' 0"
Depth59' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

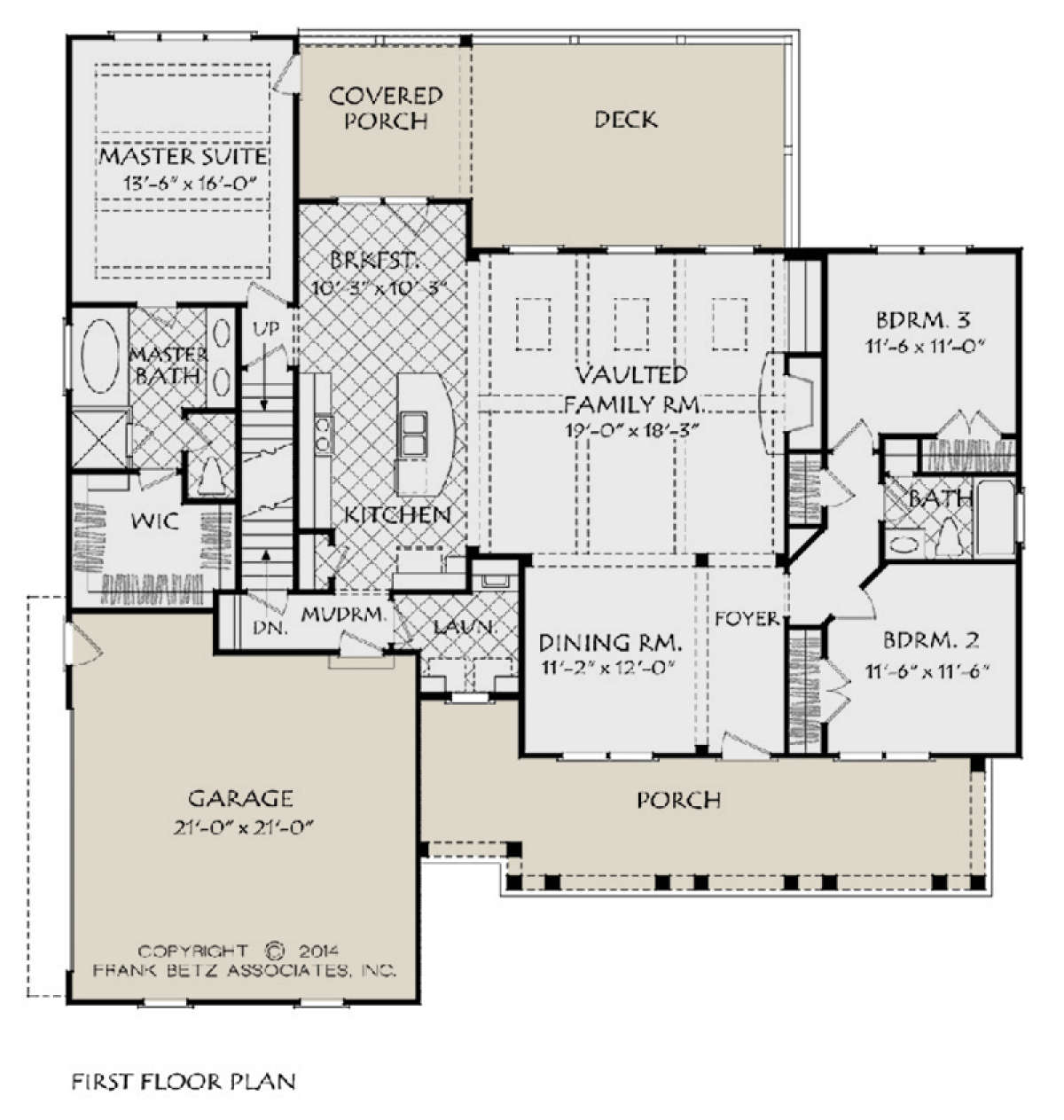

Main Floor for House Plan #8594-00020

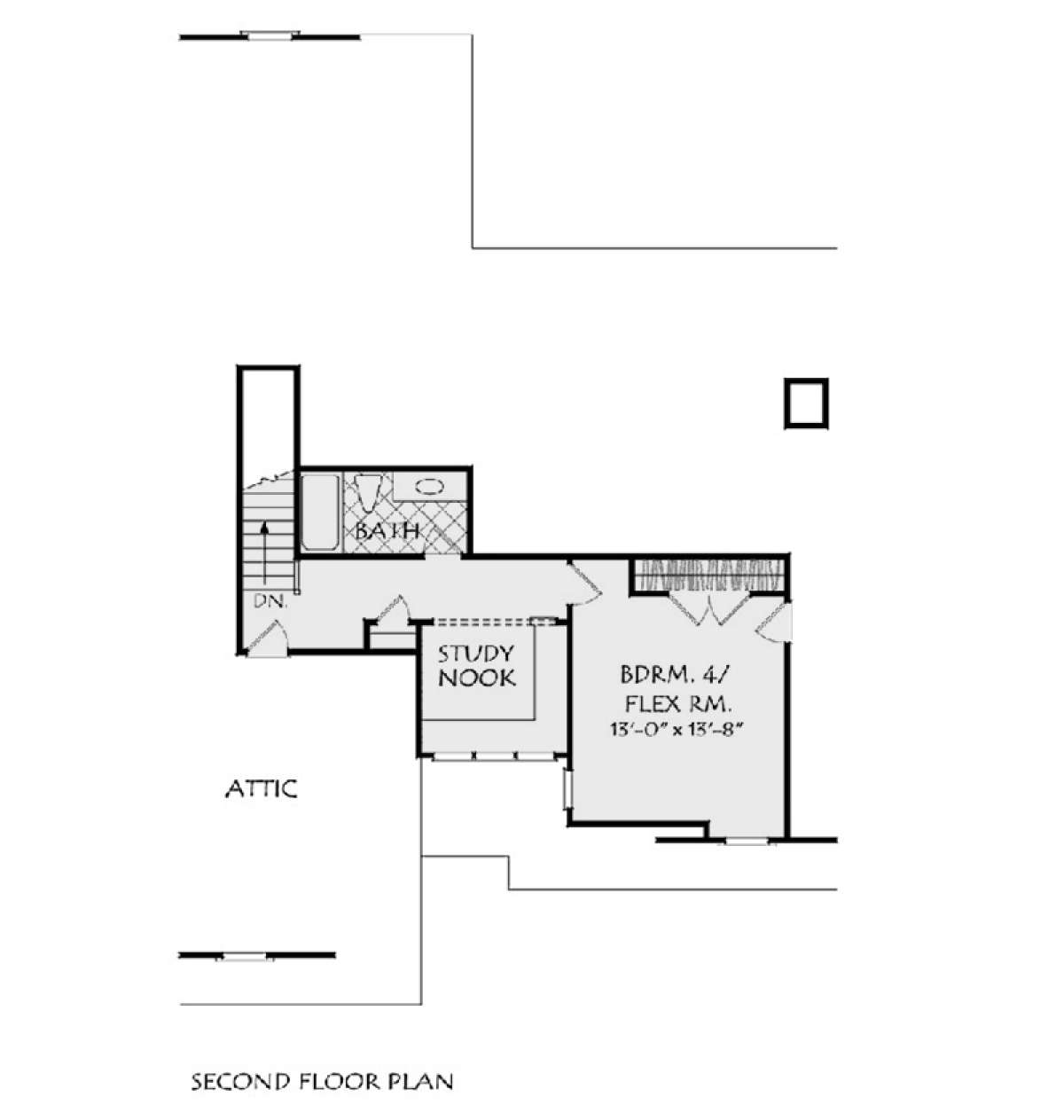

Second Floor for House Plan #8594-00020
Main Floor
Main Floor for House Plan #8594-00020
Second Floor
Second Floor for House Plan #8594-00020

Frequently Asked Questions


What's Included in these plans?

  • Front Elevation: Plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale.  The elevations show and note the exterior finished materials of the house.
  • Foundation Plans: Walkout basement plans are a 1/4" or 3/16" scale layout of the unfinished spaces showing only the necessary 2x6 wood framed load bearing walls.  The plans will show dimensions, notes and door/window sizes.  Crawl and/or slab foundations are available for some plans.
  • Floor Plans: Floor plans consists of 1/4" or 3/16" scale floor layouts showing the locations of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings.  These plans are complete with dimensions, notes, door/window sizes and schematical electrical layout.
  • Building Sections: The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen and Bath Elevations: Show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor Framing/Ceiling Framing: NOT AVAILABLE WITH ALL PLANS, PLEASE CONFIRM WITH OUR OFFICE TO ENSURE THIS IS AVAILABLE. Floor framing plans show each flor joist indicating the size, spacing and length.  The ceiling joist framing plan shows each ceiling joist indicating the size, spacing and length.  All beams are labeled and sized.
  • Roof Framing: The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. Framing plans are not available for all home plans; please contact our office to ensure availability.
  • Additional Details: Each plan includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details.  Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

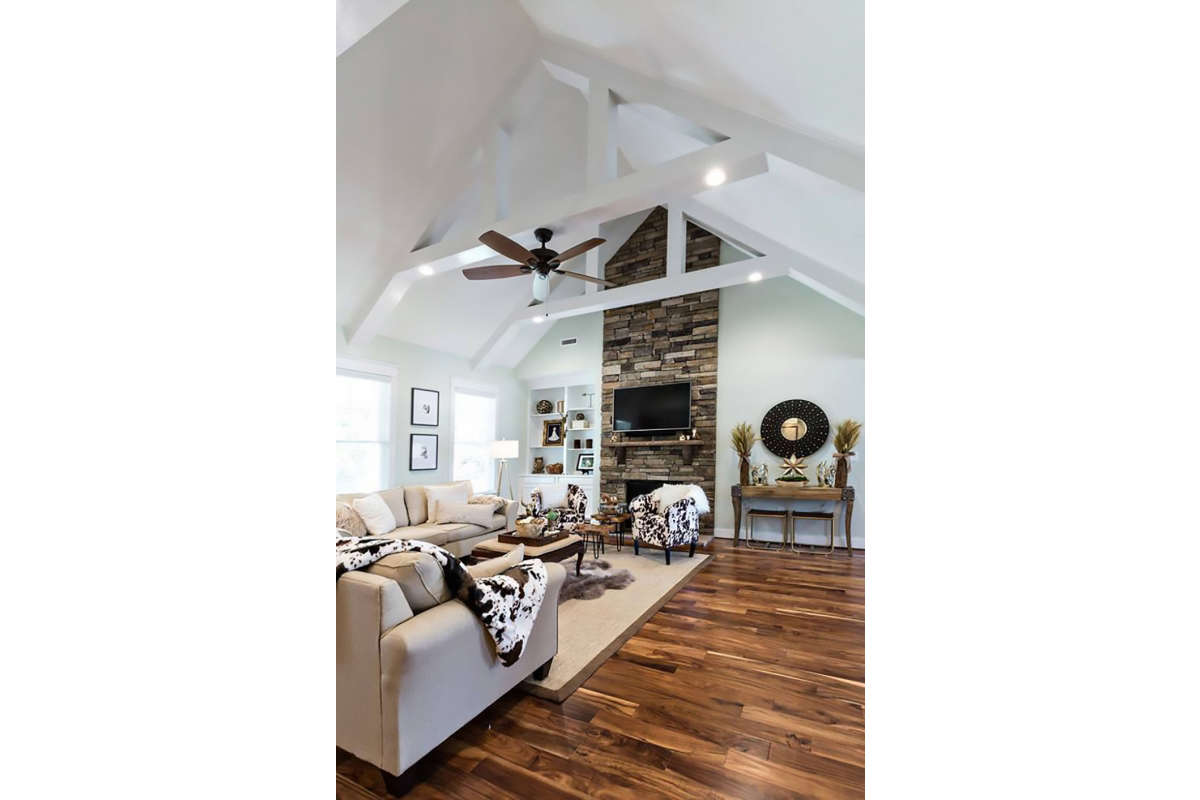

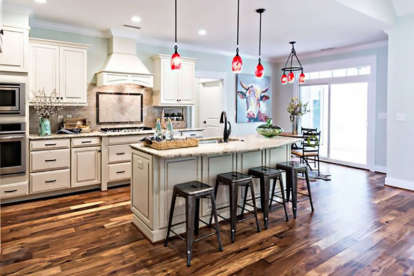

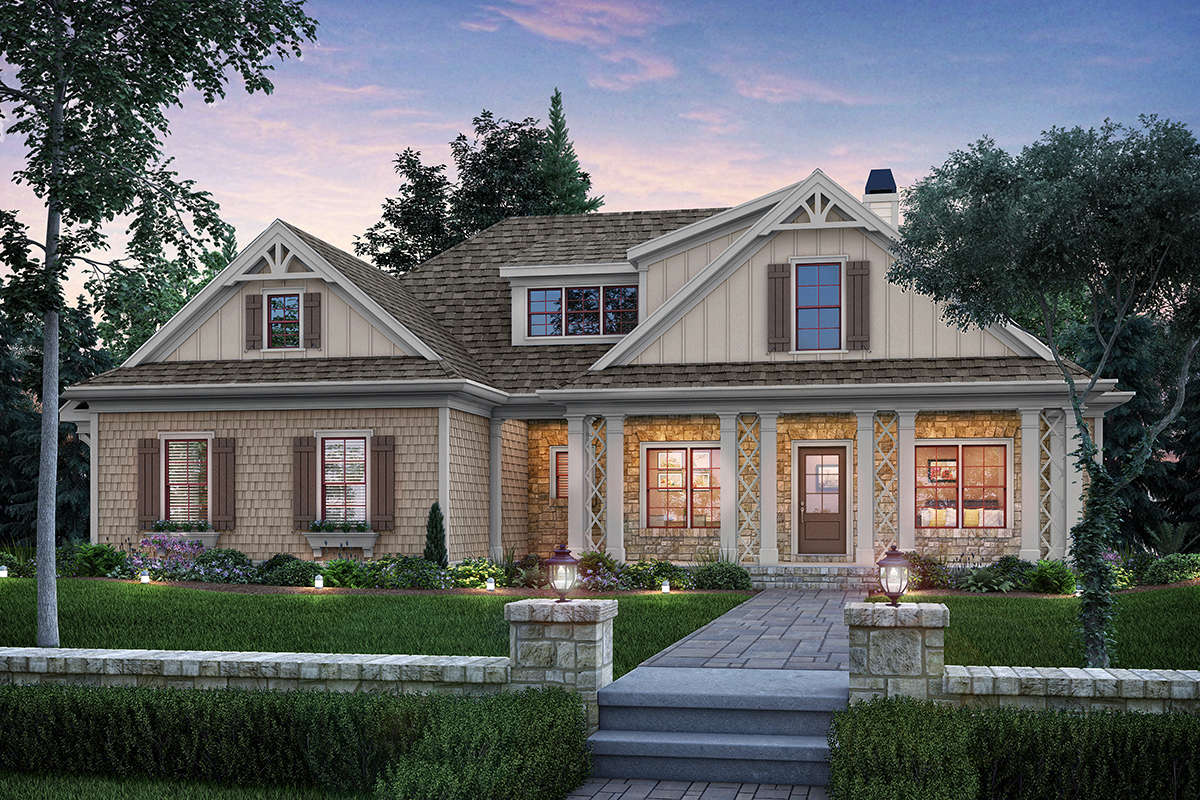

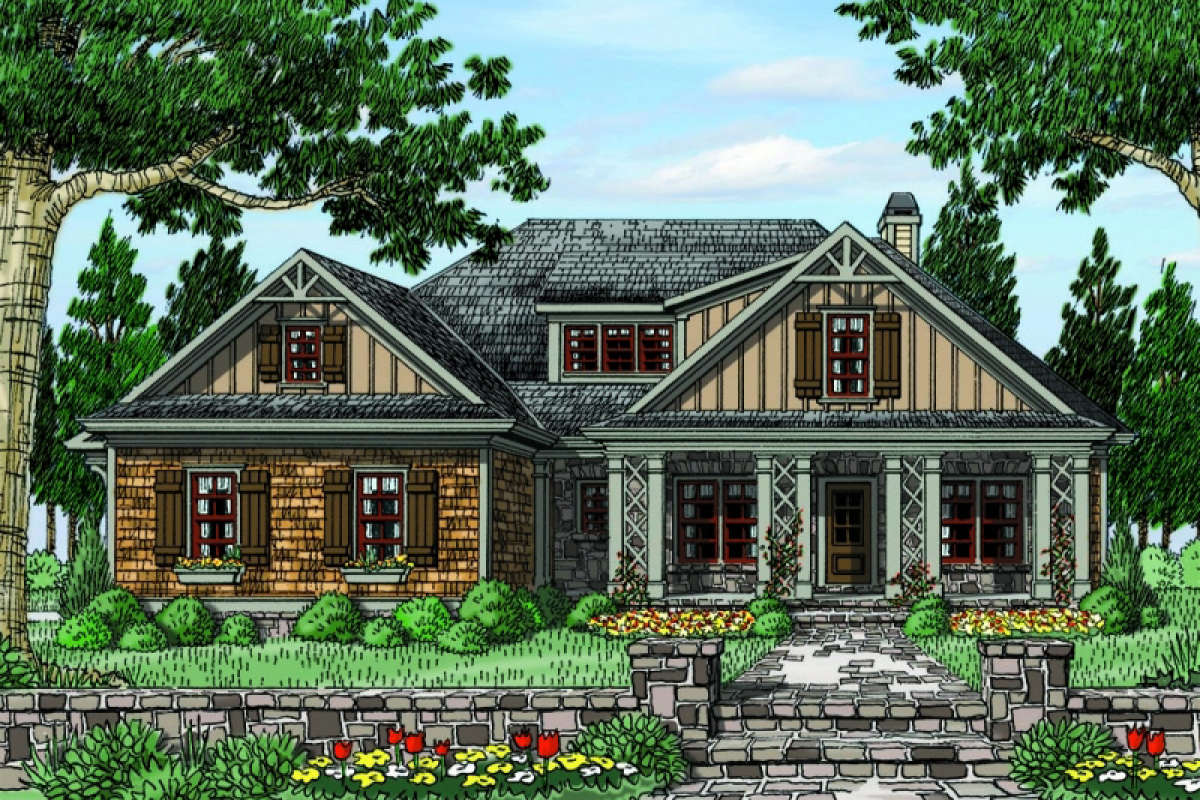

A classic Craftsman exterior houses a large amount of square footage with almost 2,300 square feet of living space on two floors. Double board and batten gables are highlighted overhead along with a dormer shed and the brick highlights create a classic mixture of design elements. The extensive front covered porch features wonderful space in which to greet family and friends before entering the home’s interior where there are four bedrooms, an open floor plan and three baths within the corresponding interior space. A two car side entry garage creates a seamless exterior and allows for good vehicle storage. There is an accompanying pedestrian door to store lawn and sporting equipment as well as a garage entrance into the family mudroom and laundry room. The main living floor welcomes you into an open floor plan with large common rooms including a vaulted family room which is brightly lit with skylights and rear window walls. The open kitchen is attached and features great resources for the family chef; there is a large center island, good counter space and an adjacent breakfast room with access onto the covered porch and deck. Both outdoor spaces are large and fully compatible with entertaining large gatherings of family and friends. The formal dining room is situated directly off the foyer with double window views overlooking the front covered porch.

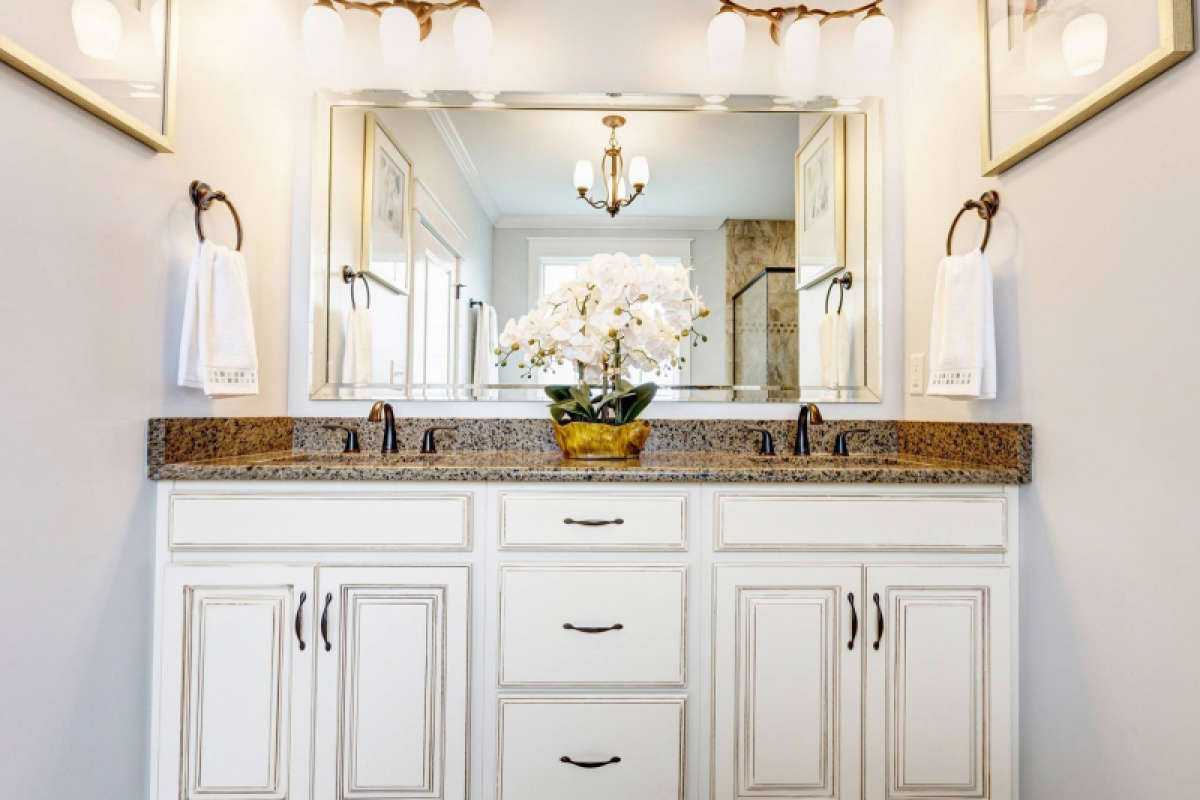

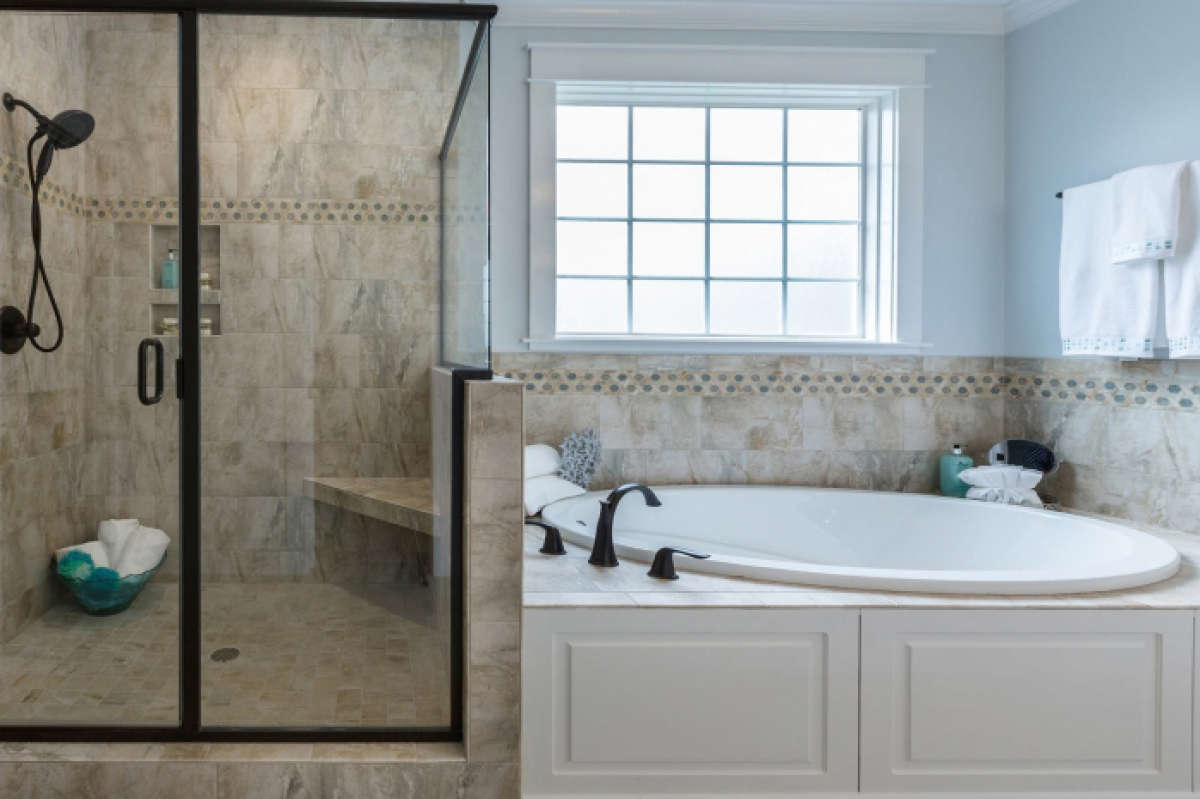

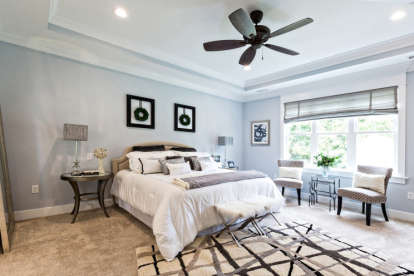

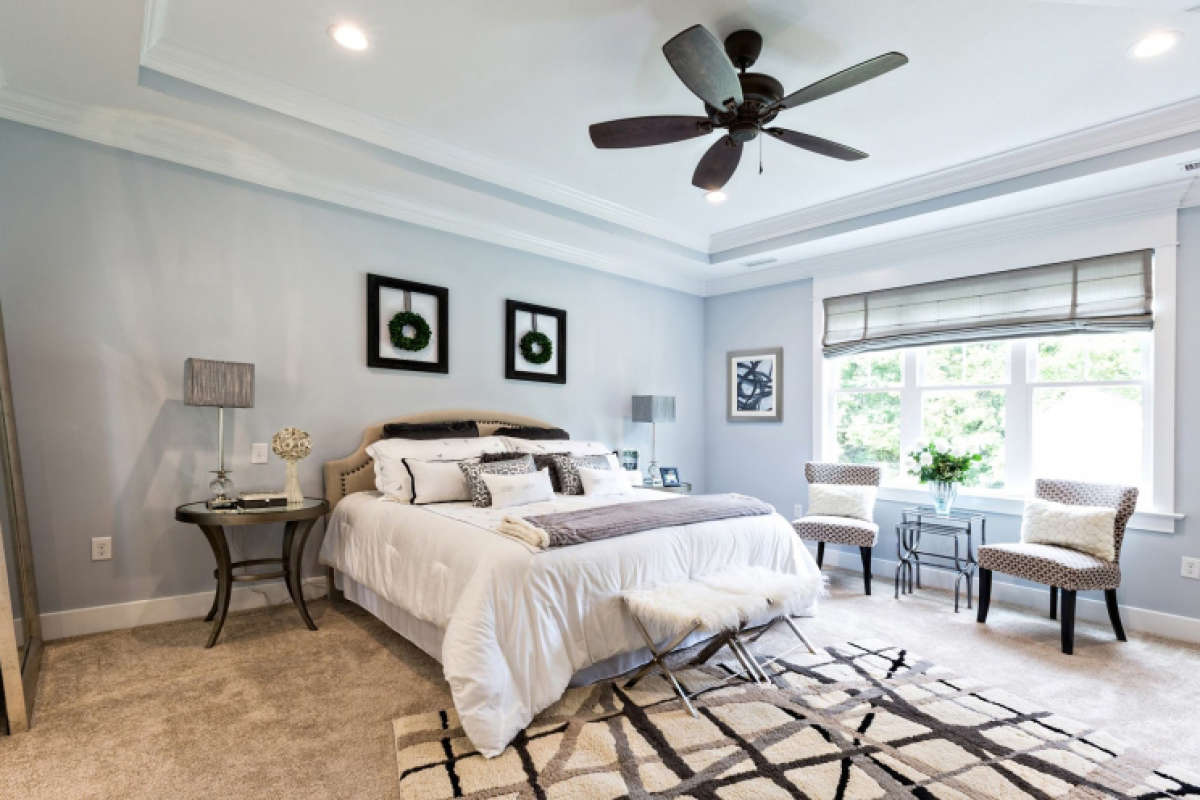

Two secondary bedrooms are situated on one wing of the home; both with good floor space, double window views and plentiful closet space. There is a hall closet as well as a shared bath that features an enclosed linen closet, a vanity space, toilet area and a tub/shower combination. The master suite is situated on the opposite side of the home with a large master bedroom, triple rear wall window views and private access onto the rear covered porch. The elegantly designed master bath features dual vanities, a garden tub, separate shower and a private toilet room. A huge his and her walk-in master closet sits at the rear of the suite. The second floor of the home features a fourth bedroom or flex space with nice closet space, a nearby full bath and a study nook; great for a guest retreat or older children. This classic Craftsman home features a stylish exterior, a functional family layout and great outdoor space.
