Craftsman Plan 8594-00006


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,601
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 58'
Depth 72' 8"

Floorplan Drawings

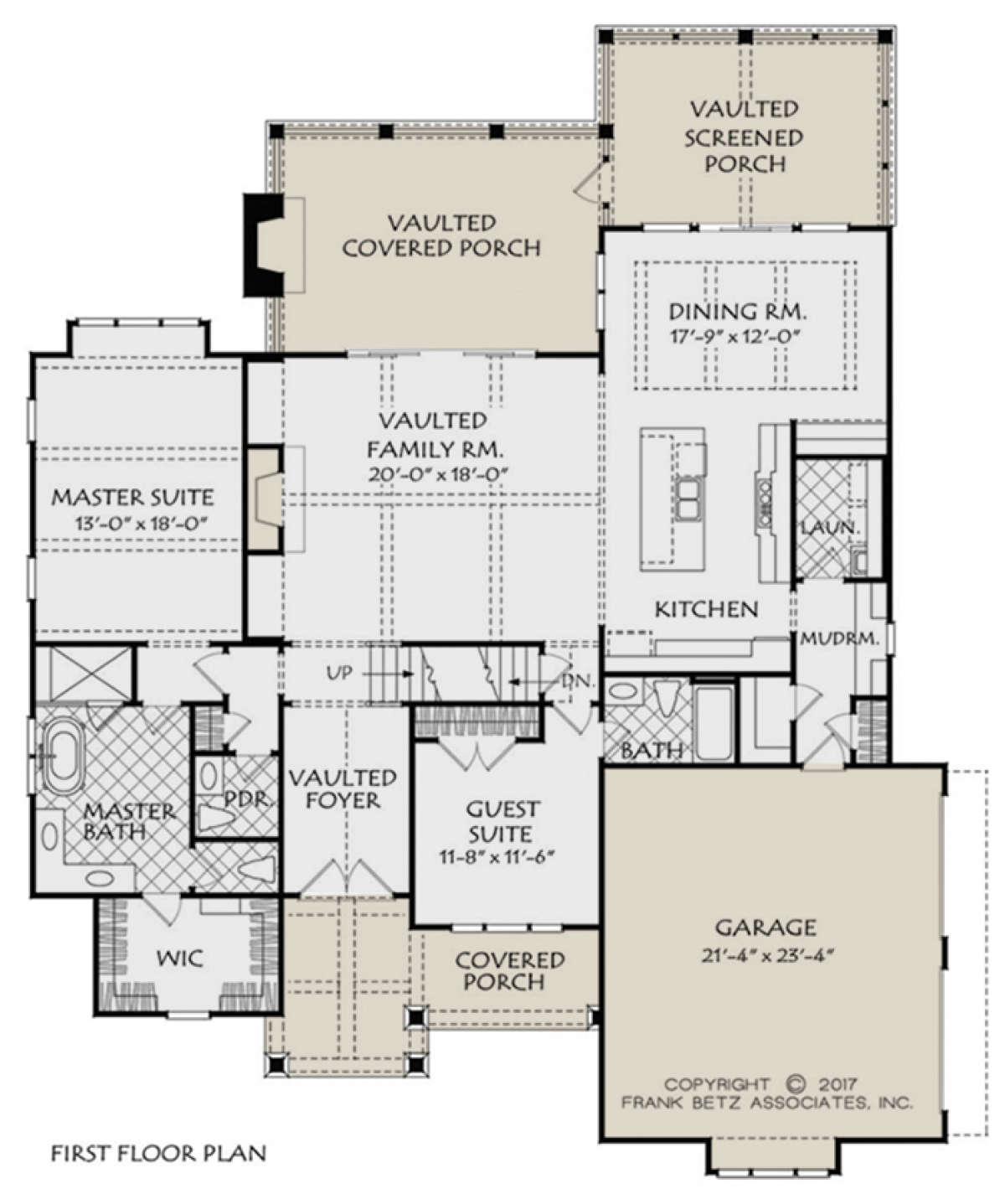

Main Floor
Main Floor for House Plan #8594-00006

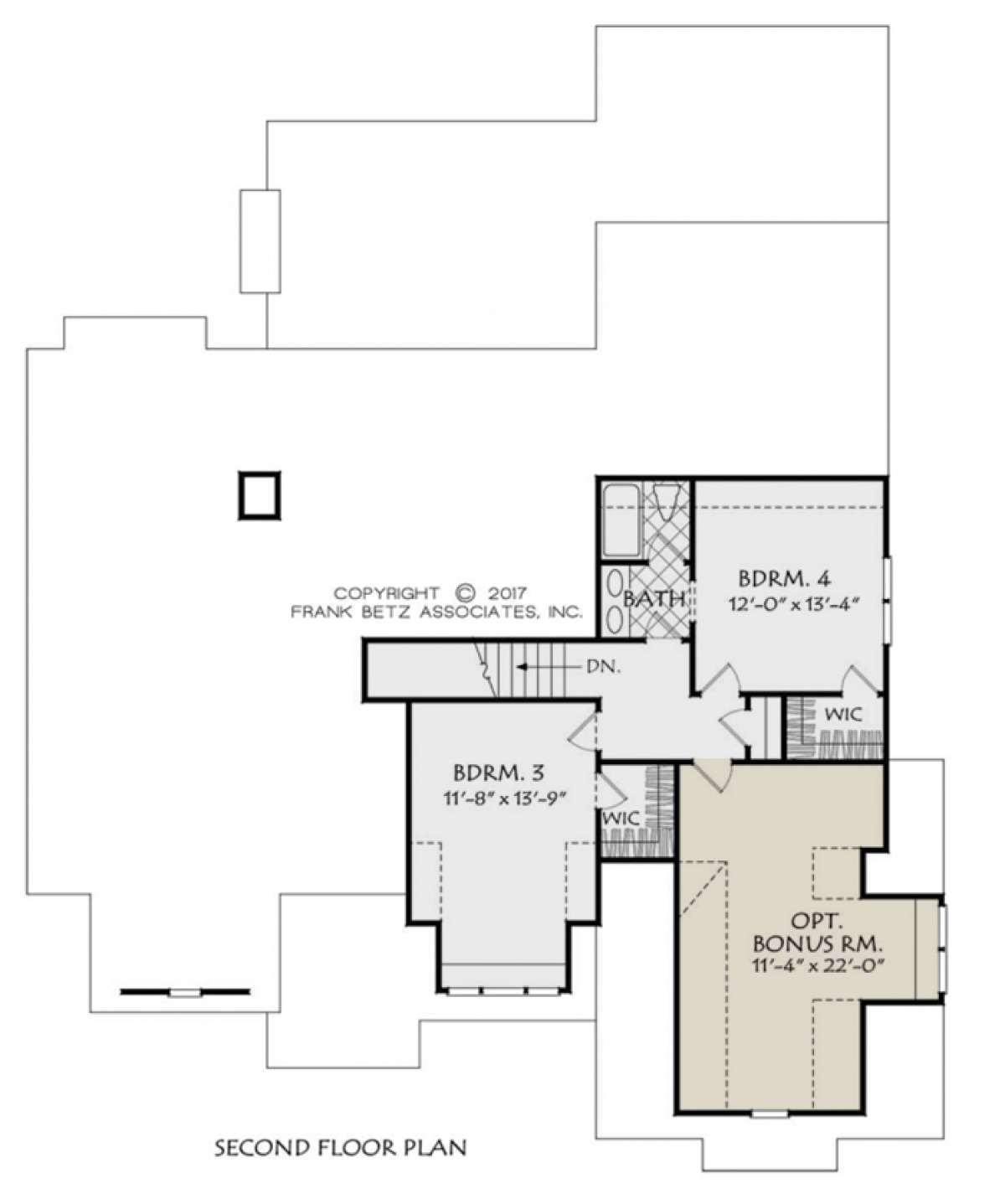

Second Floor
Second Floor for House Plan #8594-00006

What's Included in these plans?

  • Front Elevation: Plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale.  The elevations show and note the exterior finished materials of the house.
  • Foundation Plans: Walkout basement plans are a 1/4" or 3/16" scale layout of the unfinished spaces showing only the necessary 2x6 wood framed load bearing walls.  The plans will show dimensions, notes and door/window sizes.  Crawl and/or slab foundations are available for some plans.
  • Floor Plans: Floor plans consists of 1/4" or 3/16" scale floor layouts showing the locations of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings.  These plans are complete with dimensions, notes, door/window sizes and schematical electrical layout.
  • Building Sections: The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen and Bath Elevations: Show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor Framing/Ceiling Framing: NOT AVAILABLE WITH ALL PLANS, PLEASE CONFIRM WITH OUR OFFICE TO ENSURE THIS IS AVAILABLE. Floor framing plans show each floor joist indicating the size, spacing and length.  The ceiling joist framing plan shows each ceiling joist indicating the size, spacing and length.  All beams are labeled and sized.
  • Roof Framing: The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. Framing plans are not available for all home plans; please contact our office to ensure availability.
  • Additional Details: Each plan includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details.  Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

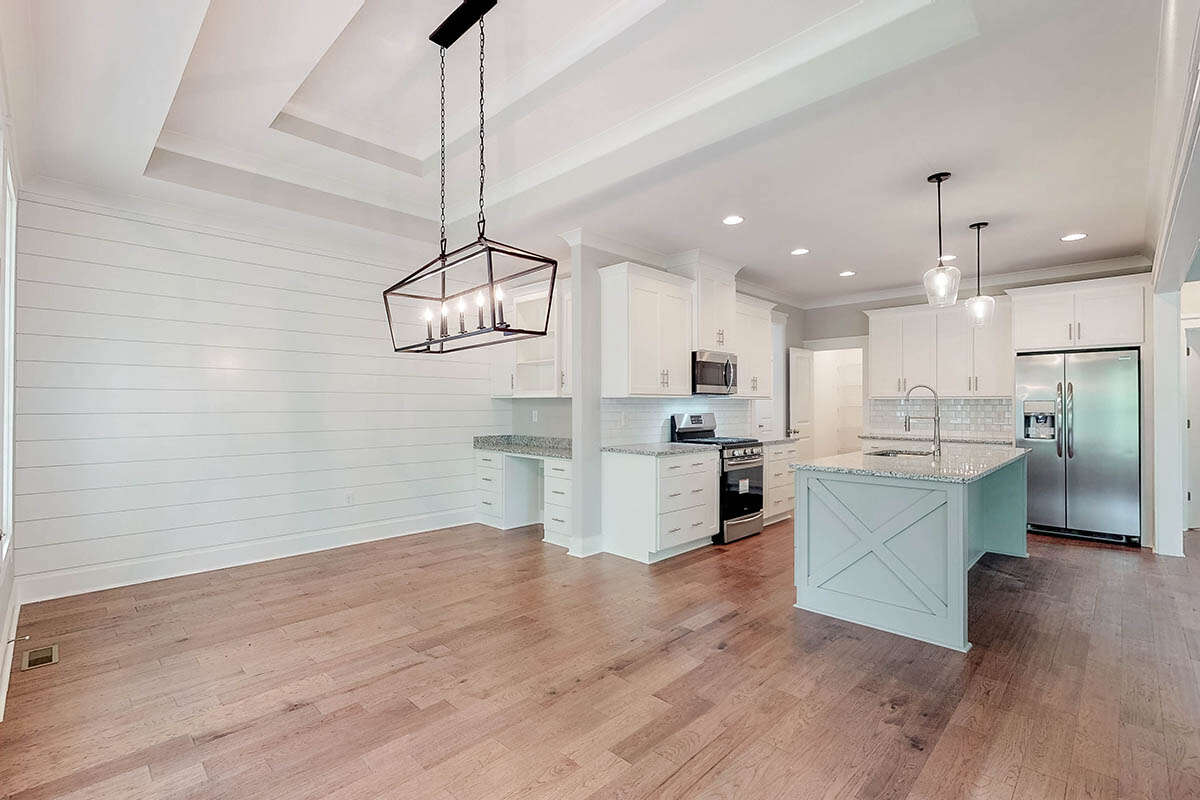

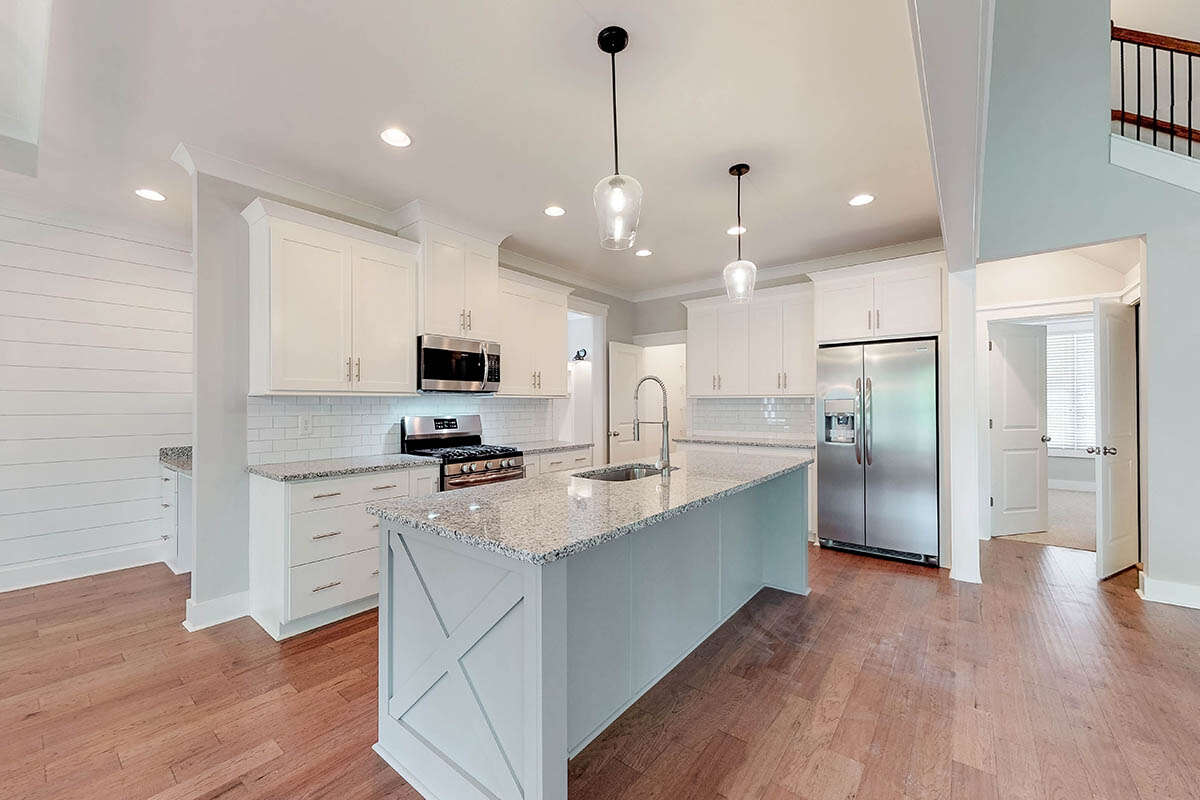

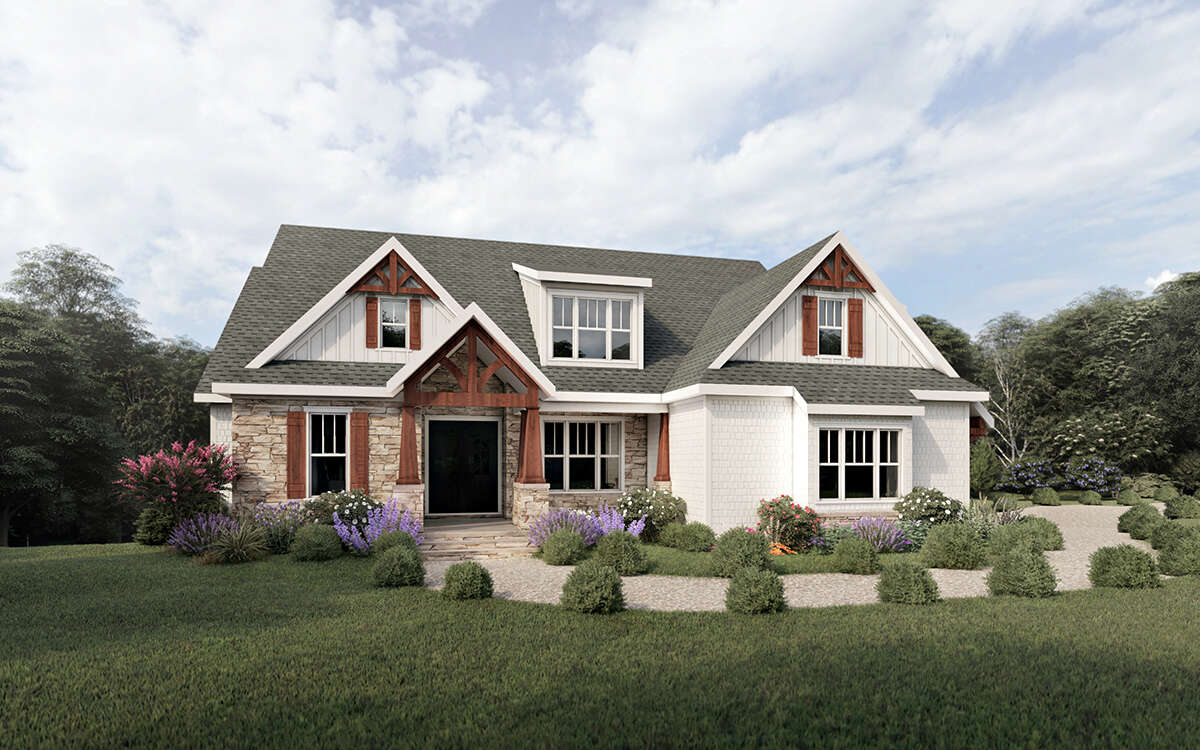

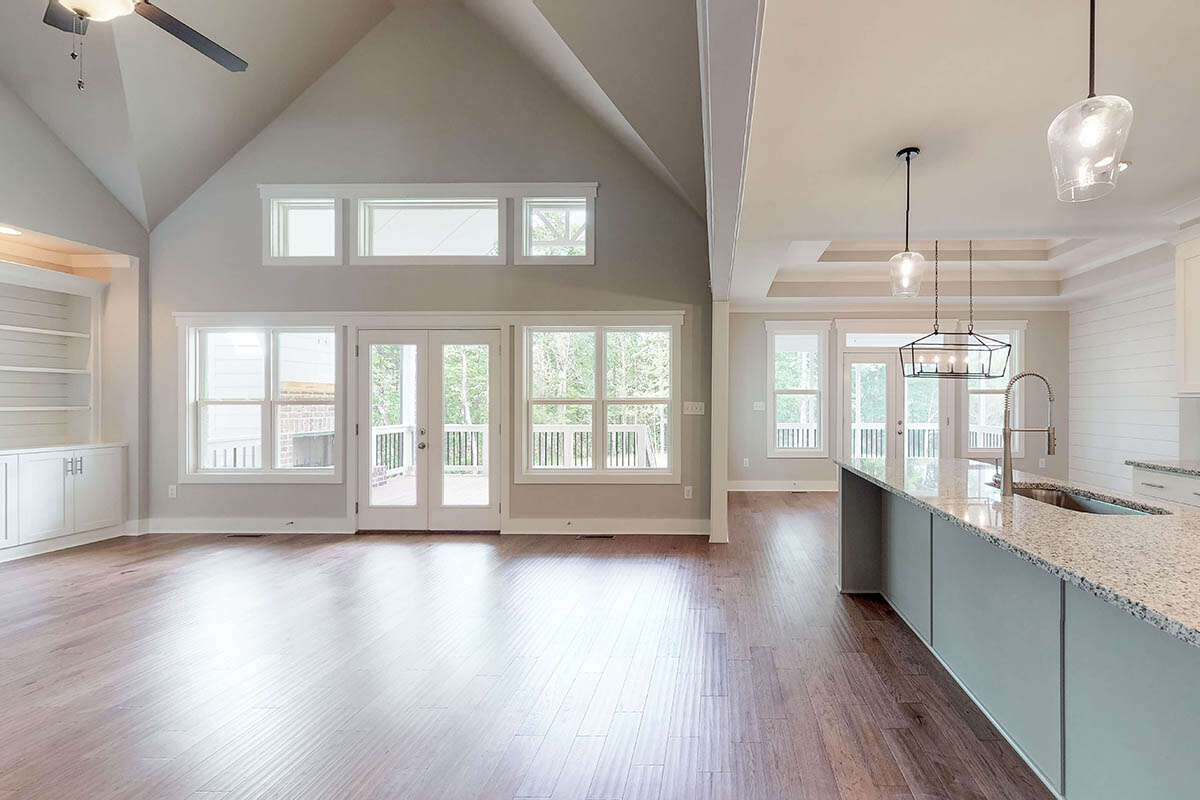

Handcrafted detailing, decorative woodwork, and stonework combine to provide an aesthetically pleasing exterior on the façade of this Craftsman house plan. Two overhead gables feature board and batten and warm woods while the center shed dormer nicely centers the design. Below is the front covered porch outlined with stonework and a commanding wood gable that allows you to warmly greet your family and guests. An interior floor plan houses approximately 2,601 square feet of living space with four bedrooms, three plus baths and an open floor plan beautifully designed for optimal entertaining and family living. The vaulted foyer entry provides access to the remainder of the common rooms where there is a family room with vaulted ceilings and a warming fireplace, a spacious dining room, and a grand kitchen with a large center island and plenty of counter and cabinet space. Double vaulted covered/screened porches are highlighted on the rear outdoor space; they provide a huge amount of entertaining space and the larger of the two features a warming fireplace for those chilly mornings and nights. Between the rear wall of the kitchen and the two-car side-entry garage is a mudroom, a laundry room, and two storage/coat closets. Two bedroom suites are featured on the main level; one is the guest suite with plentiful closet space, a triple window overview of the front covered porch and a private full bath with a tub/shower combination. The master suite is located on the opposite side of the home and is highlighted with a large bedroom, a bump-out window wall with views, an elegant bathroom, and a walk-in closet. The bath is a delightful oasis featuring a separate shower, a garden tub, a private toilet room, and dual vanities. Two additional bedrooms and a bonus space are located on the second floor. Both bedrooms offer generous floor space with window views and walk-in closets and, there is a shared hall bath with double sinks to alleviate morning chaos. The optional bonus room measures in excess of 300 square feet and features plenty of space for an additional bed and bath, a home office/study or a multi-purpose family room. Along with the expandable bonus room, there is a basement foundation available with an additional 2,011 square feet of living space; perfect for an in-law suite, a teen-ager suite or additional living space as family needs dictate. This beautiful house design features an appealing exterior, a large and functional interior floor plan and plenty of space to expand.
