Cabin House Plan 8504-00158

Sq Ft1,184
1/2 Baths0
Width44' 0"
Depth57' 0"

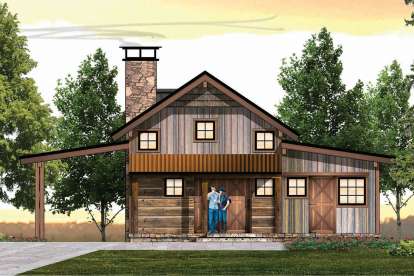

Cabin House Plan #8504-00158 Elevation Photo

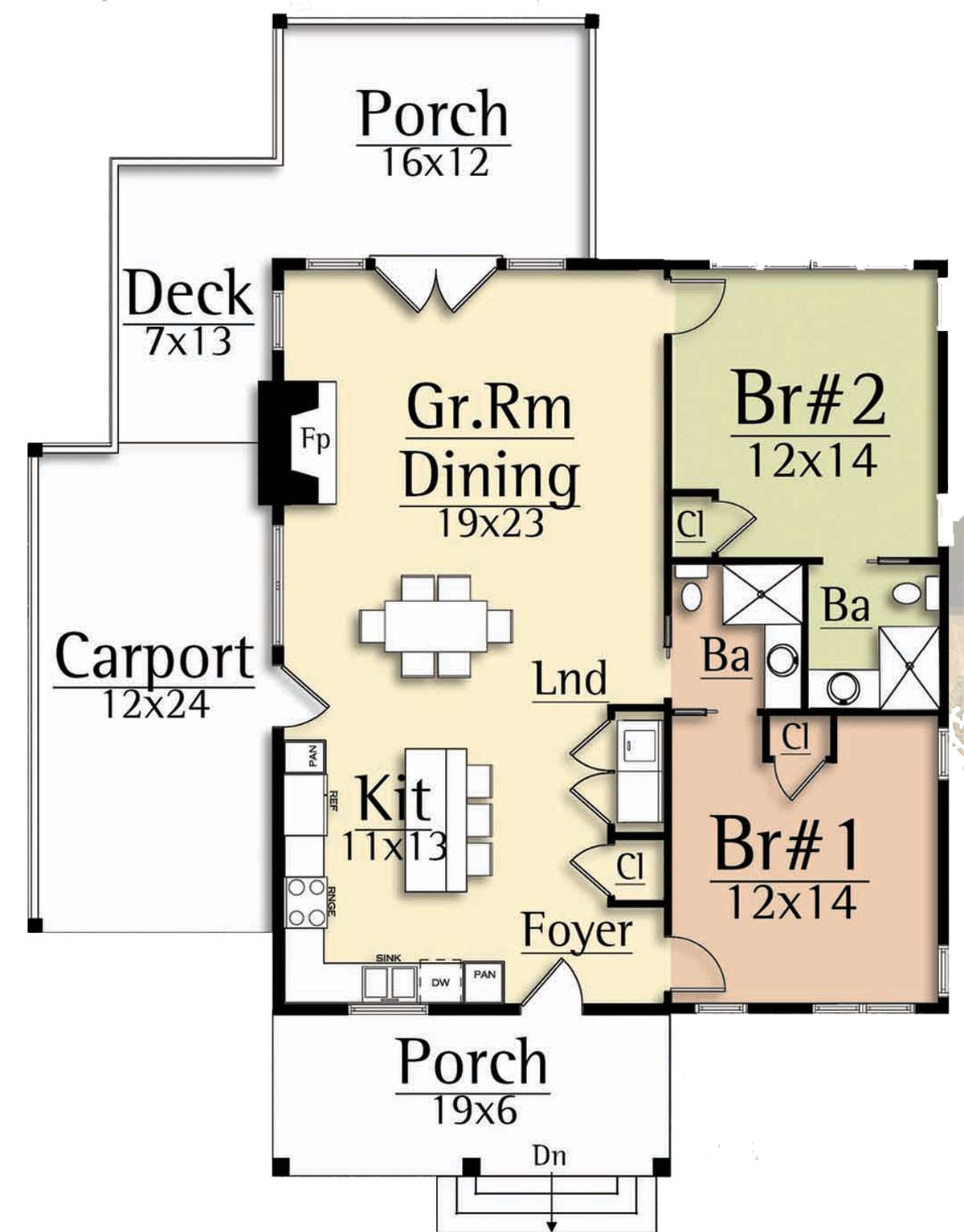

Main Floor
Main Floor for House Plan #8504-00158
Cabin House Plan #8504-00158 Elevation Photo
Main Floor for House Plan #8504-00158
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #8504-00158
Main Floor
Main Floor for House Plan #8504-00158

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This thoroughly modern yet, rustic Cabin house plan features an eclectic exterior finished with wood and stone accents built in the style of a log Cabin that combines the functionality of a family home with the visual appeal of a classic barn. There is an attached carport which offers covered access into the home’s interior and can provide shelter to a vehicle and any storage items you may have. The home’s interior houses approximately 1,184 square feet of living space that features two bedrooms and two baths along with an open floor plan. The home’s width of 44’ is perfect for a narrow lot and, of course, this is a perfect vacation home as it can be nestled conveniently in the smallest of spaces whether wooded, in a glade or on a lakefront. There is a front covered porch which grants access into the open floor plan where there is a kitchen, great room and dining area. The kitchen features a center island with additional seating for a casual dining experience and there is plentiful counter space as well as cabinet space. Double sink window views give an outdoor view of the front porch and, a coat closet and laundry nook are located on the far wall. The dining space is situated beyond the kitchen, tucked between the great room and kitchen. The great room is highlighted with a handsome fireplace and French door access onto the rear covered porch and open deck. The outdoor space is a wonderful addition and allows for generous outdoor/indoor dining and entertaining opportunities. The far side of the home features the two bedrooms, both of equal size, and measuring 12’ x 14’. An abundance of window views and the rear slider give both rooms a sunny and bright interior and both bedrooms feature ample closet space. Bedroom one features private access to the shared hall bath which offers a shower, toilet area and a vanity. The second bedroom is highlighted with a private bathroom which features a shower, toilet area and vanity space. This Cabin house plan is ideal as a vacation home or permanent residence for a young couple, empty nesters or someone looking for simplicity and solitude in a rustic, yet modern home.
