Mountain House Plan 8504-00054

Sq Ft725
1/2 Baths0
Width58' 0"
Depth37' 0"
Mountain House Plan #8504-00054 Elevation Photo
Main Floor

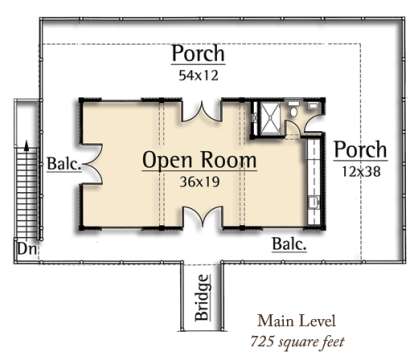

Main Floor for House Plan #8504-00054
Mountain House Plan #8504-00054 Elevation Photo
Mountain House Plan #8504-00054 Elevation Photo
Main Floor for House Plan #8504-00054
Mountain House Plan #8504-00054 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #8504-00054
Main Floor
Main Floor for House Plan #8504-00054

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The intersection of rustic charm and functional space are highlighted in this Mountain plan design. The exterior façade of the home demands a serene lakefront or mountain view property setting with its commanding design features. There are multiple window dormers, a simple gabled roof line with decorative timber trusses and gorgeous stonework that complement the wraparound porch. The porch, in fact, wraps entirely around the home and gives a sense of comfort and warmth to the structure, not to mention, the practicality of outdoor entertaining and dining space. A trio of barn inspired doors highlights the front of the home providing balance and symmetry which adds to the charm of the home’s exterior façade. There are approximately 725 square feet of living space in the home’s interior which includes one bedroom and one bath. This house plan is ideally suited for a vacation home, young couple’s home or as a writer’s or artist’s studio. The bridge to the home comes to rest directly in front of one of the trio of barn doors which provides entrance into the home. An enormous open space measuring 36’x19’ can be configured in a series of design spaces to include living, dining and sleeping. In addition to the wide open space, there is a side wall of counter space and two additional access points onto the wraparound porch from the side and rear of the home. A fully equipped bathroom includes a toilet, vanity and stand along shower with a fourth access point onto the porch. There is a primitive styled staircase leading from the porch to the rear of the home. This unique home features great interior space along with outdoor space which forges an environment in which purposeful living and creating co-mingle.
