Craftsman House Plan 8504-00052

Sq Ft2,128
1/2 Baths0
Width51' 0"
Depth36' 0"

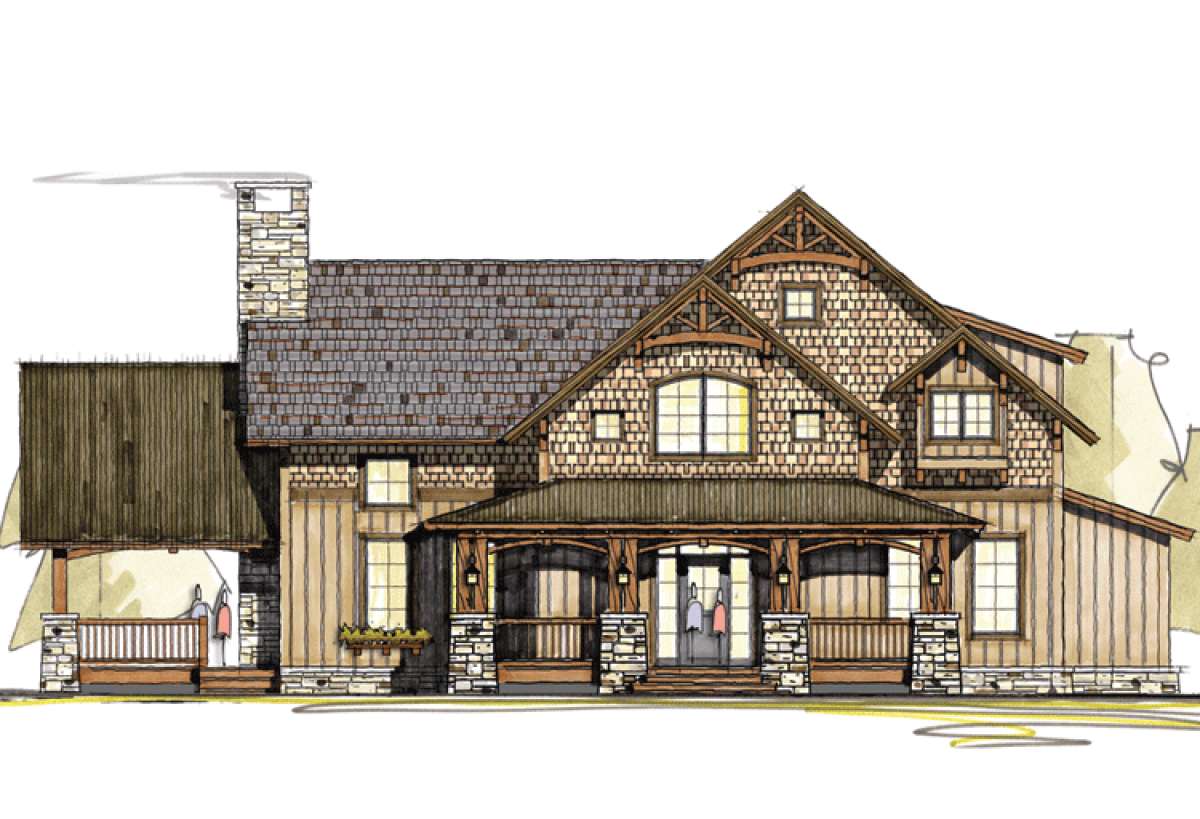

Craftsman House Plan #8504-00052 Elevation Photo
Floorplan 1

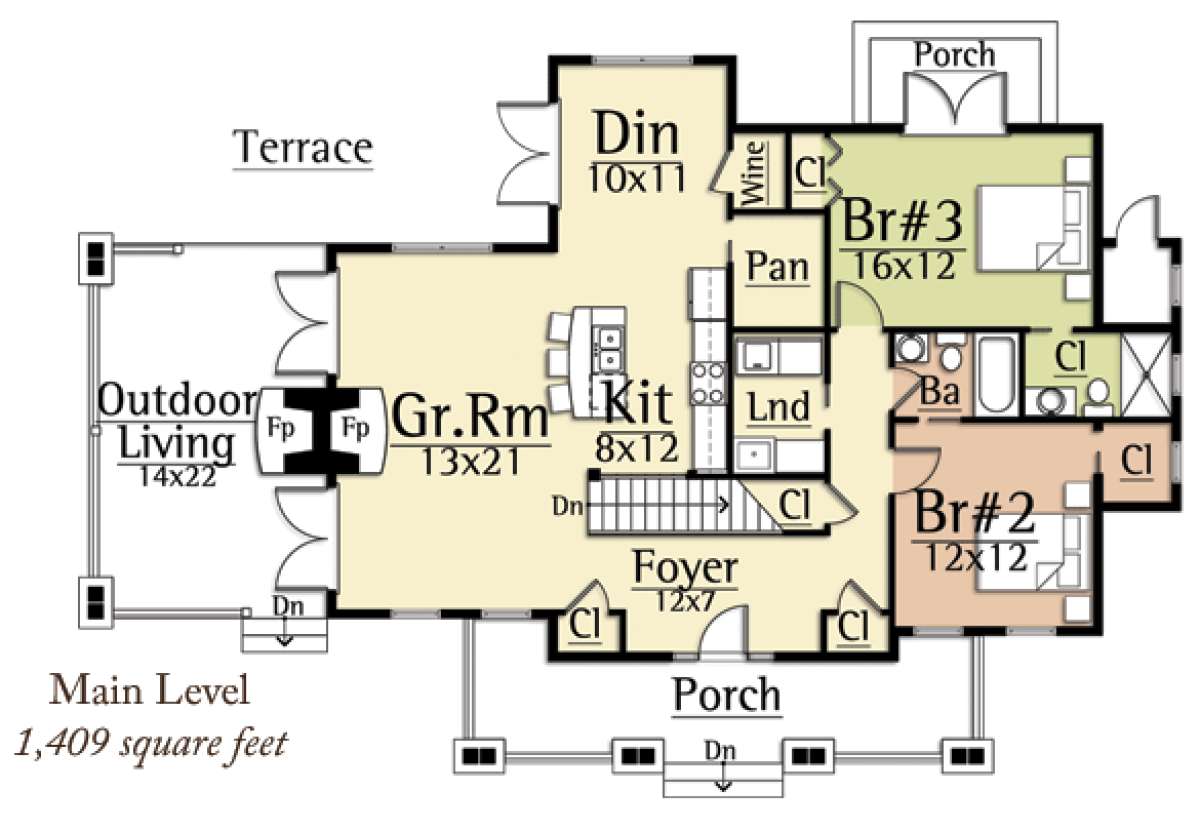

Floorplan 1 for House Plan #8504-00052
Floorplan 2

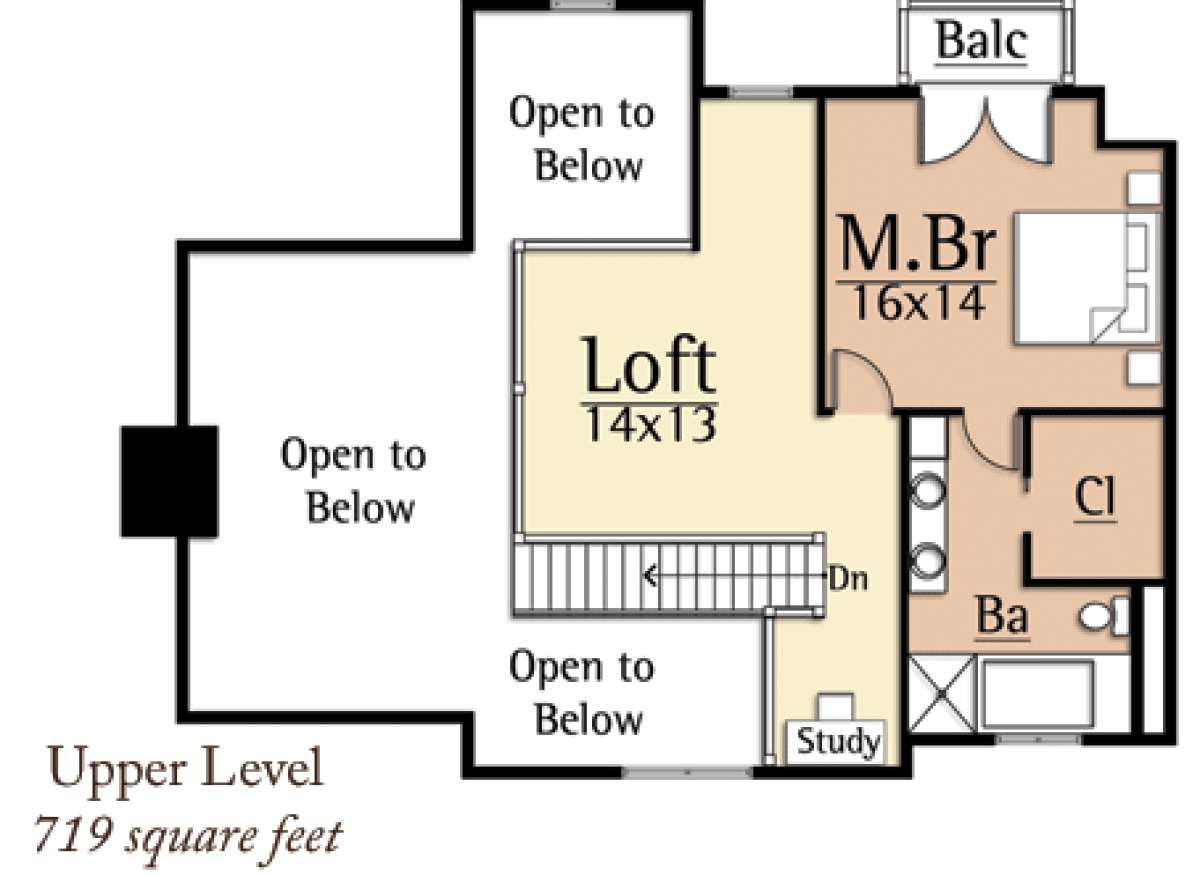

Floorplan 2 for House Plan #8504-00052

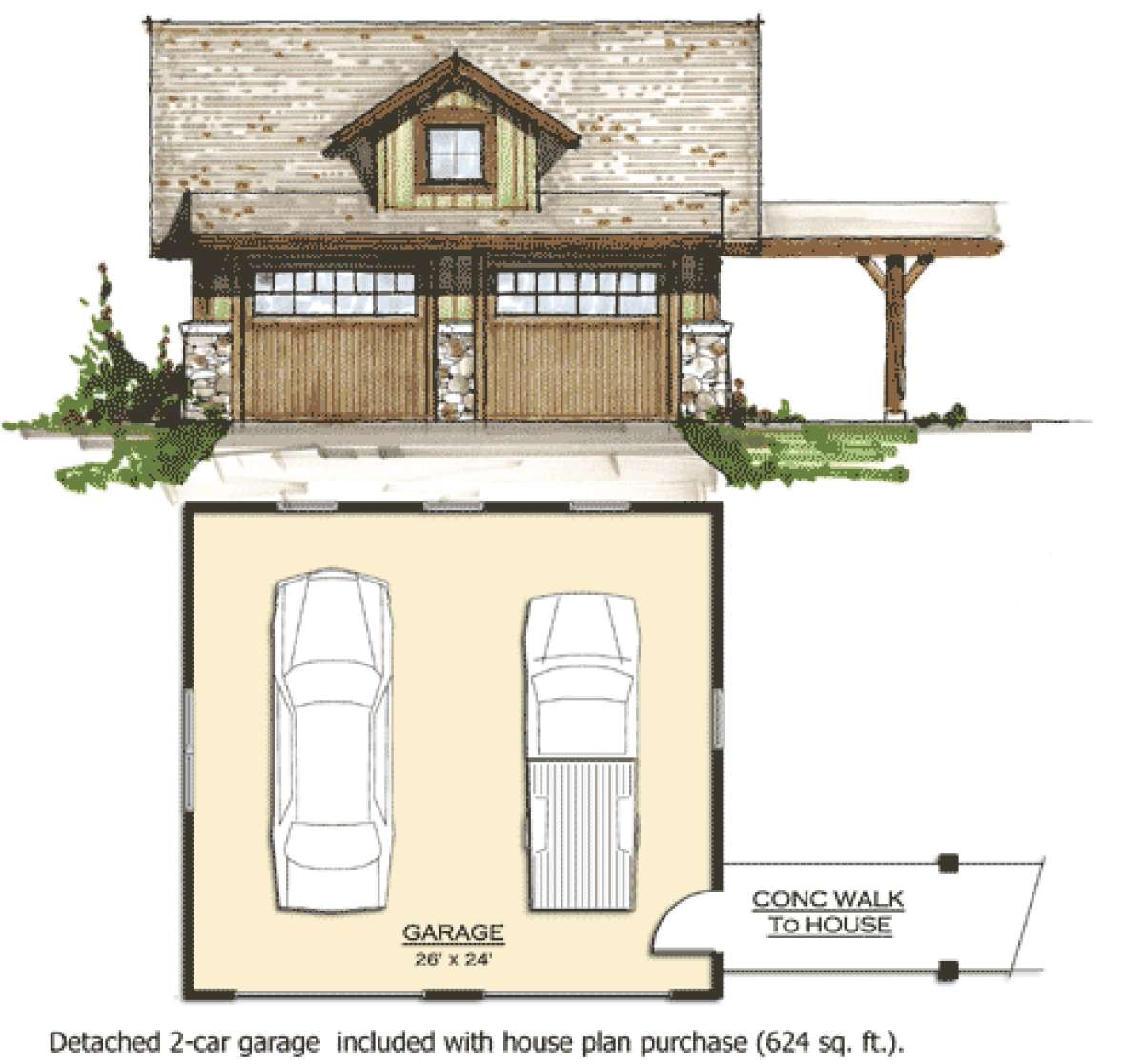

Garage for House Plan #8504-00052
Craftsman House Plan #8504-00052 Elevation Photo
Floorplan 1 for House Plan #8504-00052
Floorplan 2 for House Plan #8504-00052
Garage for House Plan #8504-00052
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00052
Floorplan 2 for House Plan #8504-00052
Garage for House Plan #8504-00052
Floorplan 1
Floorplan 1 for House Plan #8504-00052
Floorplan 2
Floorplan 2 for House Plan #8504-00052
Garage for House Plan #8504-00052

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Shakes, decorative window gables, vertical siding and stacked stone make for an inviting and organic exterior façade in this Craftsman lodge inspired home. Three bedrooms and three baths line the interior floor plan comprised of approximately 2,128 square feet of living space. The front covered porch is extensive space for greeting family and friends and leads to the spacious interior foyer flanked by double coat closets. The foyer splits to form an open layout which includes a large great room with handsome fireplace and a spacious dining room with French door access onto the terrace and a wine closet. There is also a gourmet kitchen with breakfast bar, a walk-in pantry and a rear wall housing modern amenities and counter/cabinet space. Double sets of French doors lead off the great room onto the outdoor living space which is covered, expansive and offers a warming fireplace for chilly seasonal weather. The opposite side of the foyer features a hallway with a storage closet and two bedroom suites. Both bedrooms feature excellent floor space, generous closet space, private baths and the larger bedroom also offers a private porch accessible through French doors.
The second floor is devoted master retreat space with an assortment of spacious rooms designed for the homeowner’s pleasure and comfort. There are also overlooks onto the foyer and great room below from the large loft area with an adjoining study. This is great space for relaxing, reading or enjoying arts and crafts. The master bedroom is quite spacious with a private balcony and there is an oversized master walk-in closet along with the en suite bath highlighted with dual vanities, a large soaking tub and a separate shower. A detached two car garage measuring 624 square feet of space is perfect for vehicle and other storage items. This home is ideally suited for a mountain or lakefront property to take advantage of vista views and a slower pace of life.
