Lake Front Plan 8504-00024


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,262
Beds 3
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 52'
Depth 43'

Floorplan Drawings

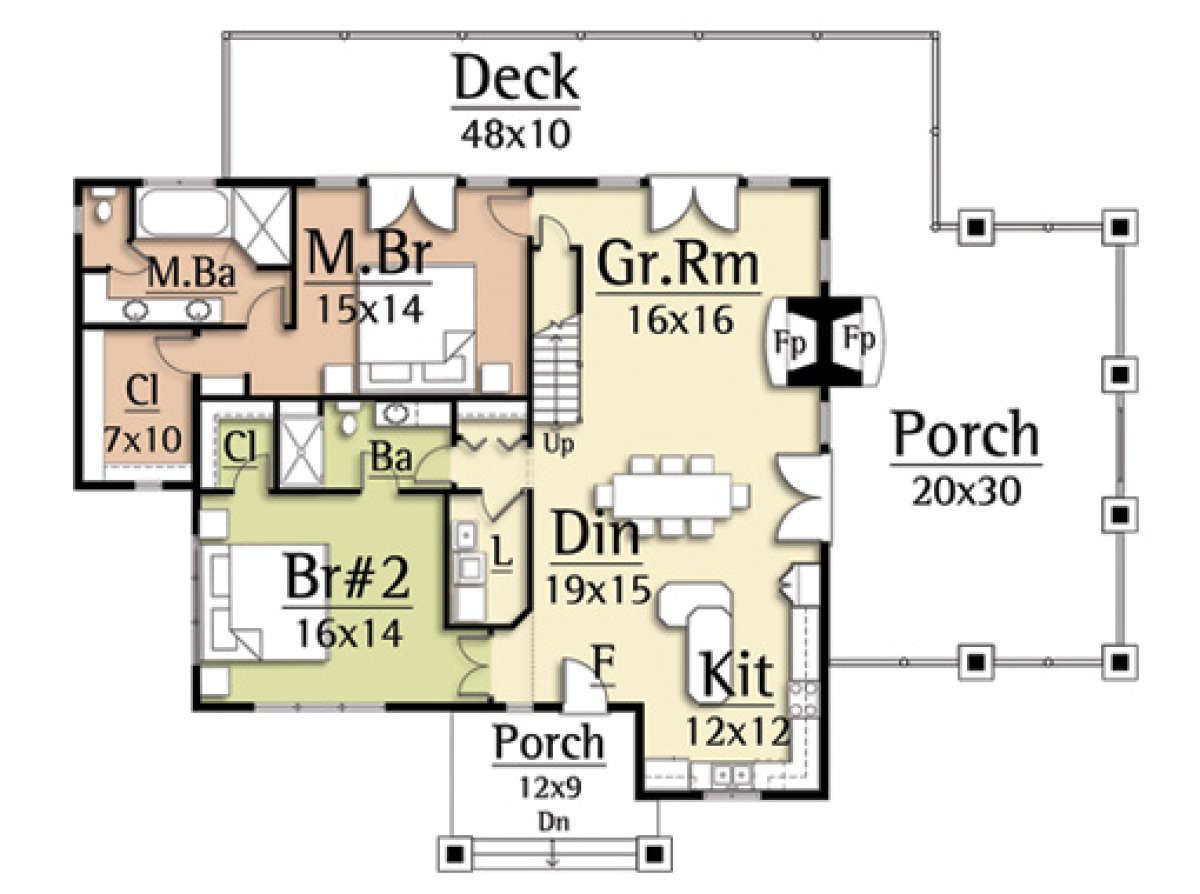

Floorplan 1
Floorplan 1 for House Plan #8504-00024

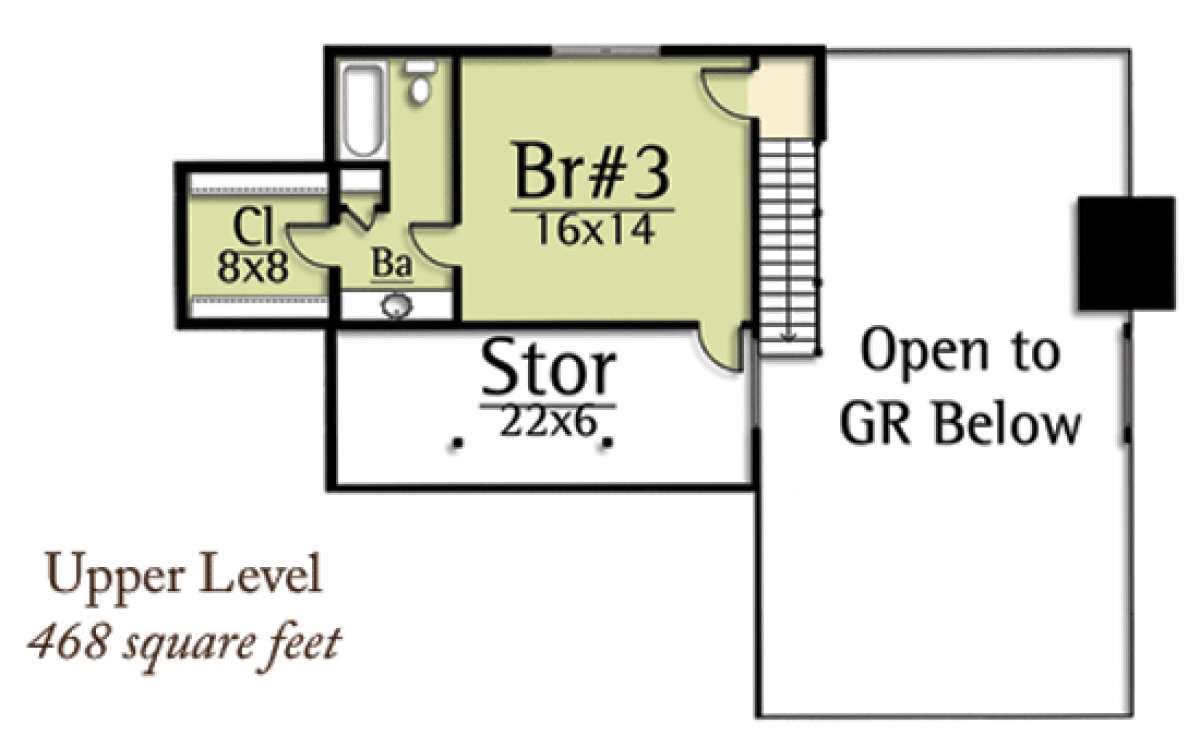

Floorplan 2
Floorplan 2 for House Plan #8504-00024

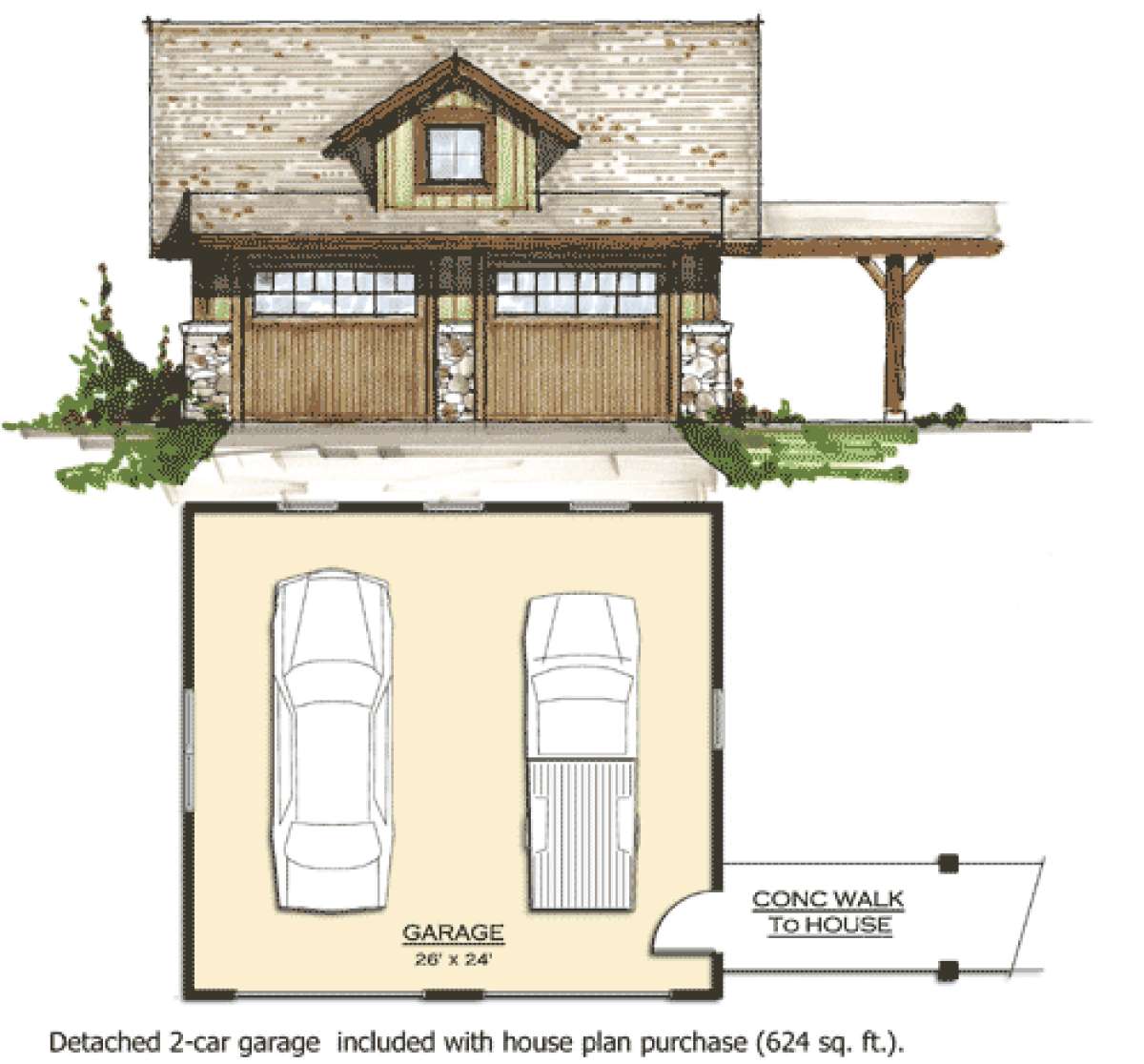

Garage for House Plan #8504-00024

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

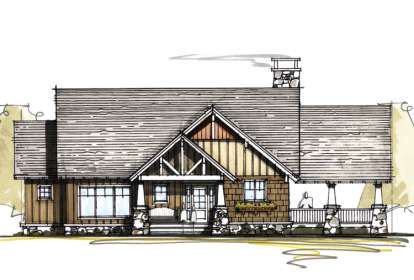

Lakefront or mountaintop living; either way this eclectic house design features exterior Lodge styling, an interior floor plan that is open and offers outstanding outdoor living space. The two storied home features approximately 2,262 square feet of living space with three bedrooms and three baths. The extensive front covered porch is highlighted with tapered stack stone pillars that support columned beams and an open gable overhead. Entrance into the home reveals an open floor plan that features a complete kitchen with a large center island and side peninsula bar. There is a comprehensive dining space, spacious enough for a large country kitchen table and there are French doors leading to the hugely popular outdoor living space. The outdoor living room shares a double sided fireplace with the interior great room and wraps around to the rear expansive deck which offers French door access into the interior living space for a practical and lovely set-up of indoor/outdoor entertaining space. The main level master suite occupies the rear of the home for privacy and features French door access onto the rear deck, a large bedroom with walk-in closet and an en suite bath highlighted with dual vanities, a separate shower and a large soaking tub. There is a main level second bedroom/guest suite which features huge floor space, 20’x14’; a walk-in closet and private entrance into the full bath along with a hall linen closet and utility room to complete the first floor.
The third bedroom is situated on the second floor of the home and features a large private suite; there is a 16’x14’ bedroom, a walk-in closet and a private bath with extended vanity. An enormous storage space is available off the bedroom; the perfect spot for seasonal clothing, holiday items or any other storage items. A two car detached garage with 624 square feet of space is great for the family vehicles and/or lawn and sporting equipment. This family friendly home would make an excellent vacation home for extended holidays or a forever home that is fully functional and versatile.
