Northwest House Plan 8504-00023

Sq Ft1,824
Beds4
Baths3
1/2 Baths0
Stories2
Cars2
Width30' 0"
Depth24' 0"

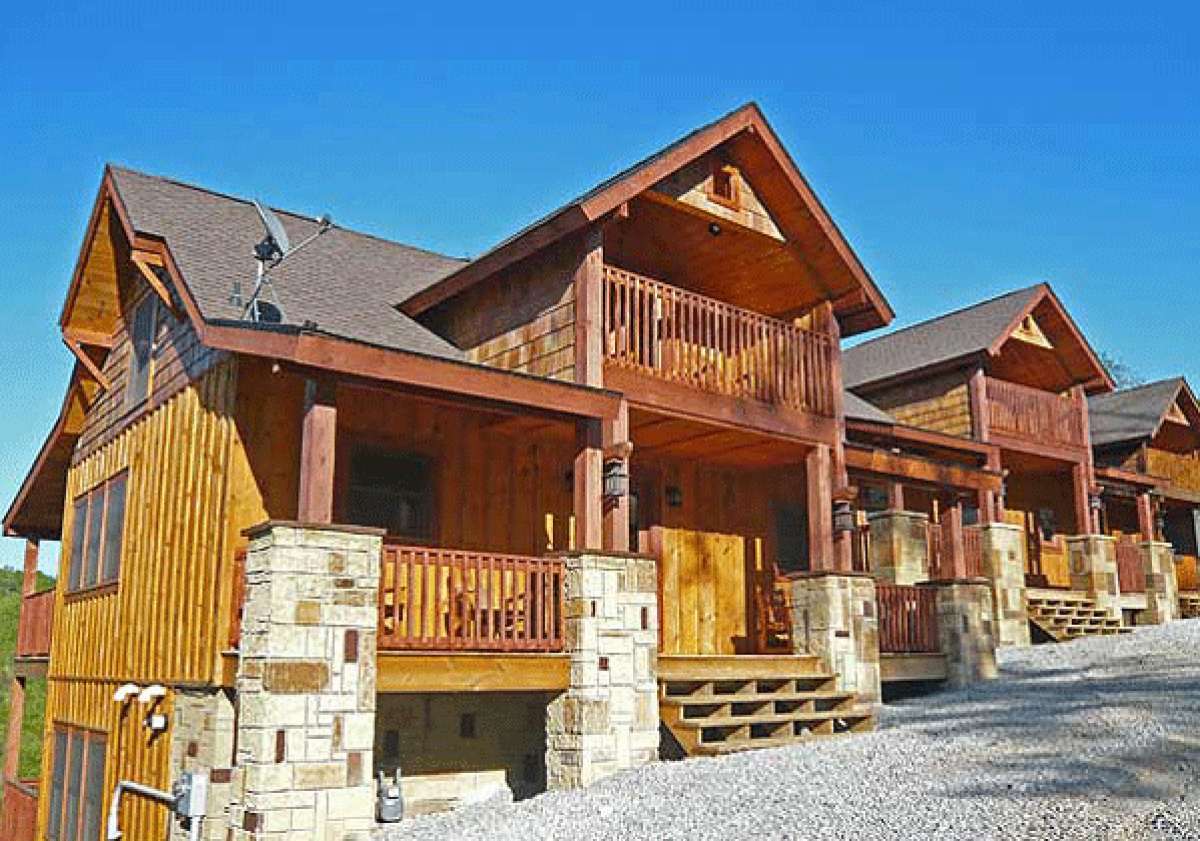

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

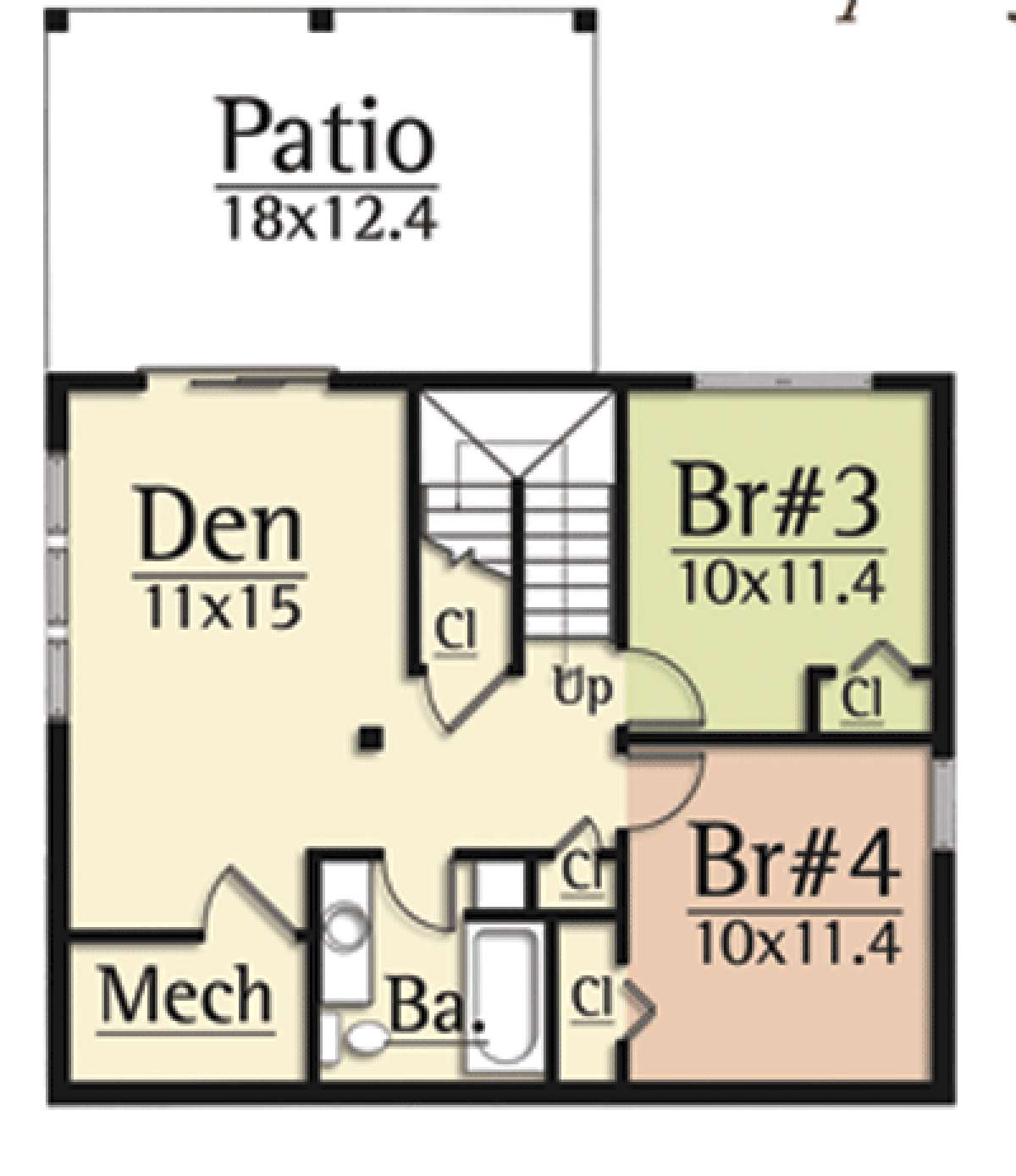

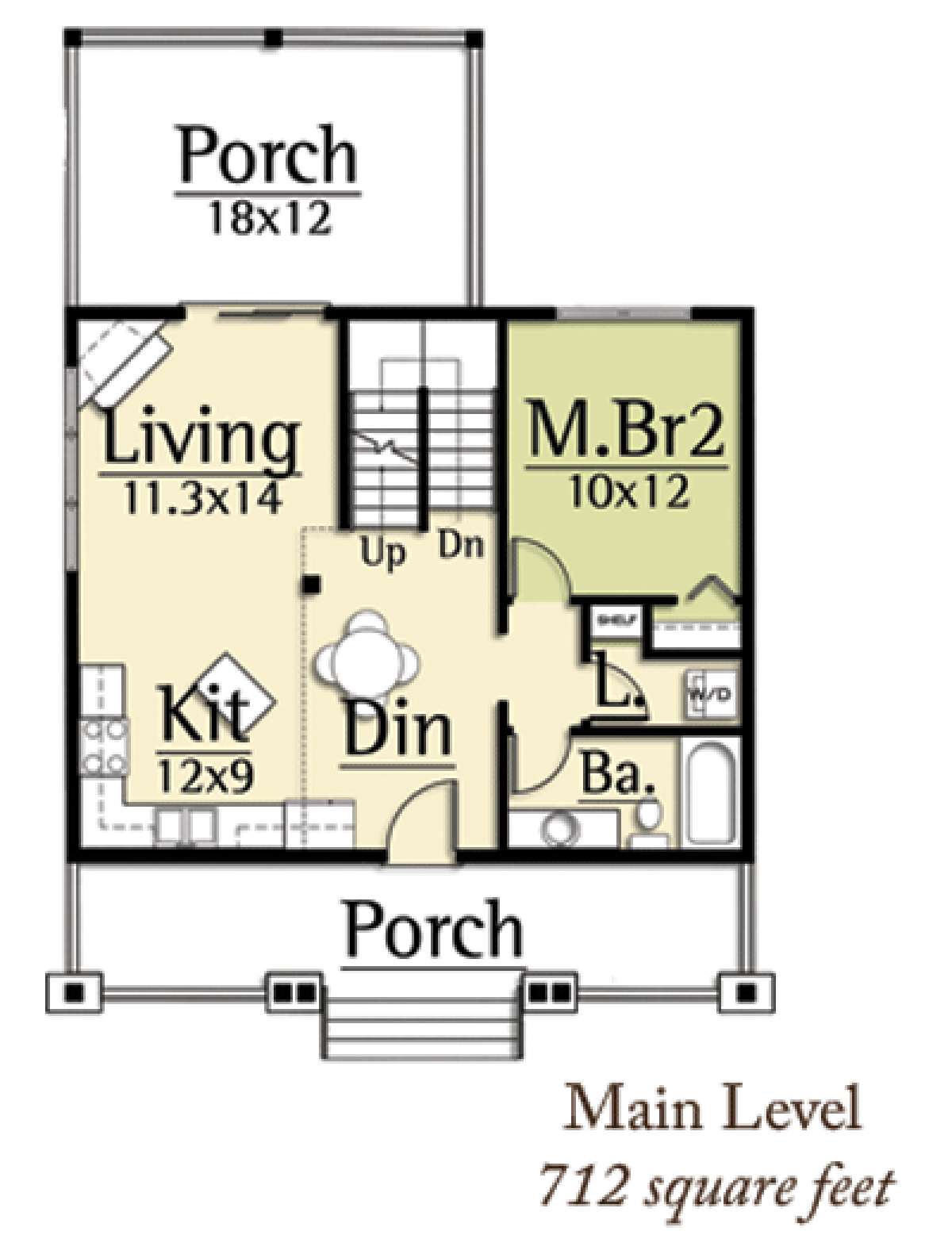

Floorplan 1 for House Plan #8504-00023

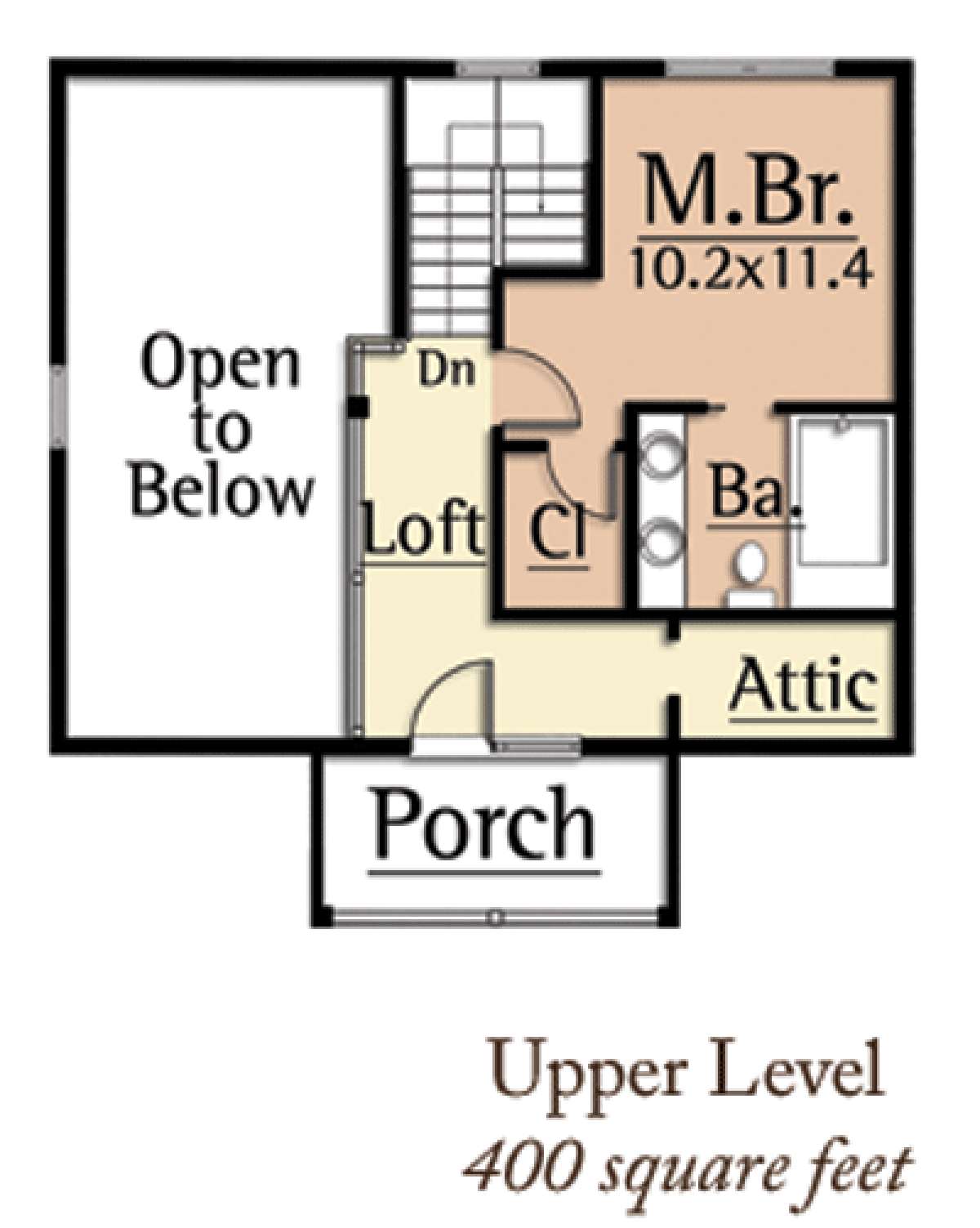

Floorplan 2 for House Plan #8504-00023
Floorplan 3 for House Plan #8504-00023
Floorplan 1
Floorplan 1 for House Plan #8504-00023
Floorplan 2
Floorplan 2 for House Plan #8504-00023
Floorplan 3
Floorplan 3 for House Plan #8504-00023


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Golden wood tones and stacked stone along with outstanding outdoor space are featured highlights of the exterior façade of this Northwest house plan. Multiple porches, great for entertaining or relaxing, are special features outlining the exterior of the home and there are three tiers including a walk-out basement highlighted in the interior of the home. Approximately 1,824 square feet of living space includes four bedrooms, three baths and an open concept in the main living areas of the home. Additionally, there is a two car garage and the width and depth dimensions, 30’ and 24’ respectively, are perfect for a small and/or narrow lot. The front covered porch is highlighted with substantial stacked stone beams and a plethora of warm wood tones which include vertical siding, wood beams and open railing. The front porch opens onto the interior open layout which is highlighted with a separate dining space, a grand kitchen with a large center island and, a living room with corner fireplace and access to the rear 18’x12’ covered porch. There is a guest suite or second bedroom on the main level which consists of a spacious bedroom with closet space and an adjacent full bath. The family laundry room completes this level of the home before ascending the second story staircase. The second story landing features a large L-shaped loft area perfect for reading or relaxing which supplies the master suite with a sitting room overlooking the main living areas below. Directly accessible from the loft is a private covered porch and there is a large attic/storage space situated at the end cap of the loft; perfect for seasonal clothing or other storage items. The master suite features a bedroom with double window views, a walk-in closet and a private bath with dual vanities and a large garden tub.
The terrace level of the home is highlighted with a large amount of secondary space which includes two storage closeta, a mechanical room and a spacious den, measuring 11’x15’. This space could be utilized as a teen-age lounge, playroom for small children or a family den for viewing movies and relaxing. There is a large patio space off the den and two family bedrooms are situated on the other side of the floor. Both bedrooms are of equivalent size with ample closet space and there is a shared hall bath with double lavatories and an enclosed linen closet. This home is ideal for an active family who values their outdoor space and private family space.
