Craftsman House Plan 8504-00021

Sq Ft5,198
1/2 Baths1
Width88' 0"
Depth63' 0"
Craftsman House Plan #8504-00021 Elevation Photo
Floorplan 1

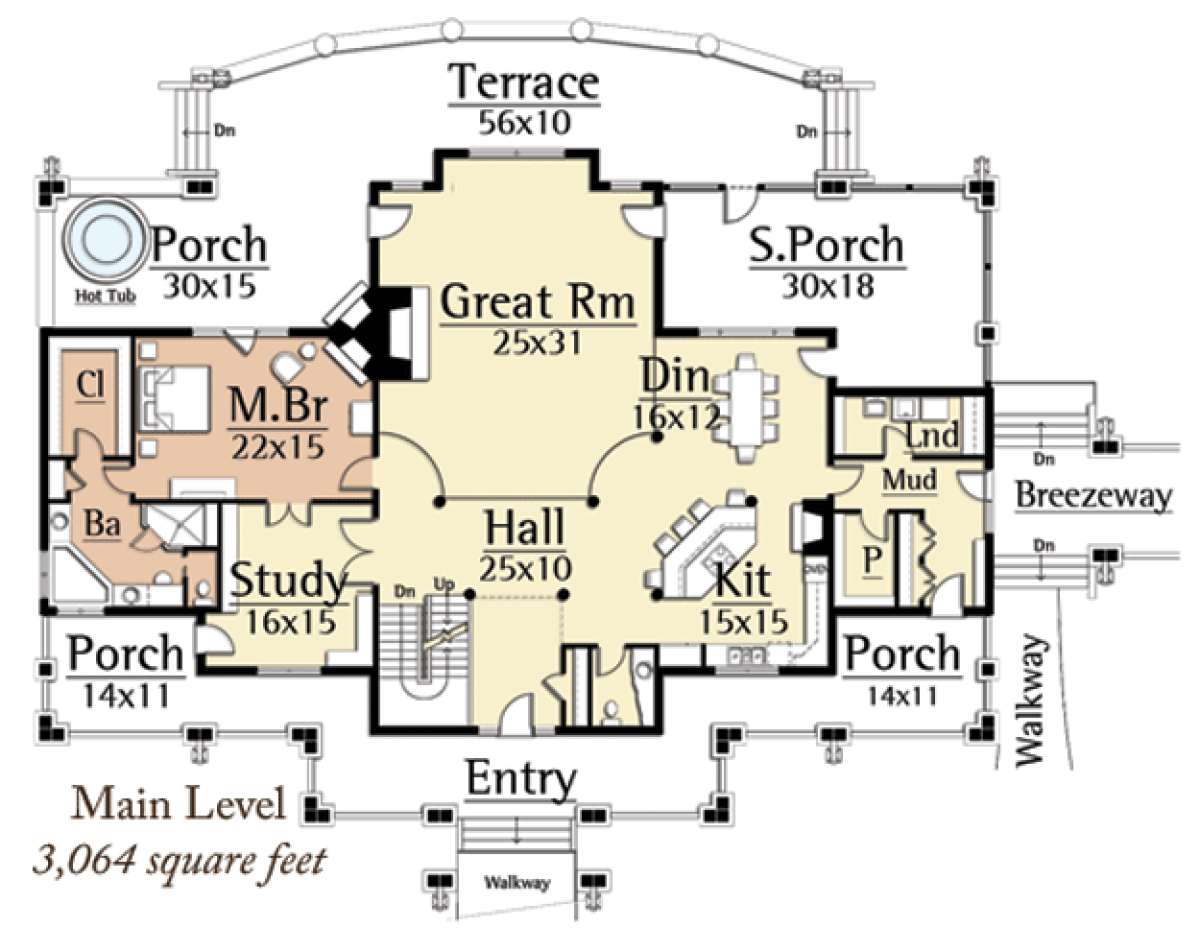

Floorplan 1 for House Plan #8504-00021
Floorplan 2

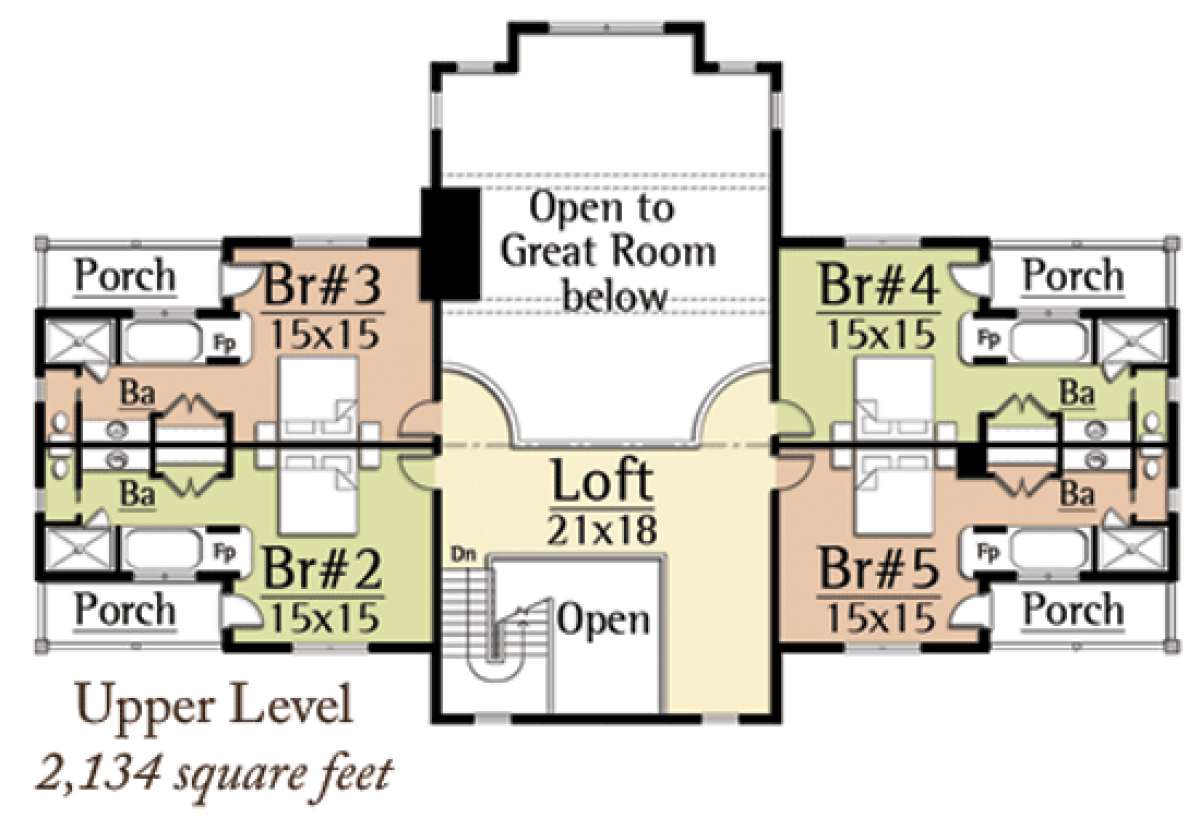

Floorplan 2 for House Plan #8504-00021
Craftsman House Plan #8504-00021 Elevation Photo
Craftsman House Plan #8504-00021 Elevation Photo
Floorplan 1 for House Plan #8504-00021
Floorplan 2 for House Plan #8504-00021
Craftsman House Plan #8504-00021 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00021
Floorplan 2 for House Plan #8504-00021
Floorplan 1
Floorplan 1 for House Plan #8504-00021
Floorplan 2
Floorplan 2 for House Plan #8504-00021

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This gorgeous Lodge style home is highlighted with a sprawling exterior full of rustic detailing and an interior floor plan in excess of 5,198 square feet of living space. The symmetrical façade is highlighted with an amazing array of aesthetically pleasing exterior elements that include stone pillars, wood beams and a multitude of window views and gable accents. Generous outdoor space is featured in this house plan, both on the main floor as well as the second story. The front covered porch is accessed from the walk-up staircase and spans the width of the home for gracious relaxing and entertaining space. The home’s interior features five bedrooms, five plus baths and an open layout perfectly designed for those who love to entertain and yet, require private space as well. The front entry leads to the spacious foyer and generously sized grand hallway which subsequently spans out in multiple directions. Beyond the hallway is the oversized great room with warming fireplace, beautiful window views and access onto both the screened porch and covered porch. The screened porch measures 30’ x 18’ and adjoins with the rear terrace before connecting with the covered porch which features an outdoor fireplace; just an awesome amount of outdoor space for family fun and entertaining. The dining room and gourmet kitchen are both open to the great room; the dining room also features screened porch access, perfect for dining al fresco. The kitchen offers a large center island with additional seating options, loads of counter and cabinet space and there is a food storage pantry located directly off the kitchen. Adjacent to the pantry is the laundry room and mudroom which features access onto the front porch as well as the breezeway leading to the two car detached garage; a perfect use of space and the means to a tidy home. The main level master suite can be accessed through either the study/sitting room or the master bedroom. The bedroom is highlighted with a large amount of floor space, a warming fireplace and private access onto the rear covered porch. The study also features access onto the front covered porch for different outdoor views. There is an en suite master bath with modern amenities and a walk-in master closet.

The second story staircase landing reveals a large open loft with overviews onto the great room and foyer below. There are four large bedroom suites located on the second floor; each one measures 15’ x 15’, features a fireplace and has a private covered porch located at each corner point of the home. There is a private full bath in each suite with both a separate shower and tub, a large vanity and a toilet area as well as plentiful closet space. A commanding use of space, the second story provides children and guests alike a well thought-out use of private space that even includes private outdoor space. This special house design is highlighted with an attractive exterior and an interior that is versatile, large and employs an ingenious floor plan for family and guests.
