Ranch House Plan 849-00067

Sq Ft1,994
1/2 Baths1
Width71' 0"
Depth56' 0"
Ranch House Plan #849-00067 Elevation Photo
Floorplan 1

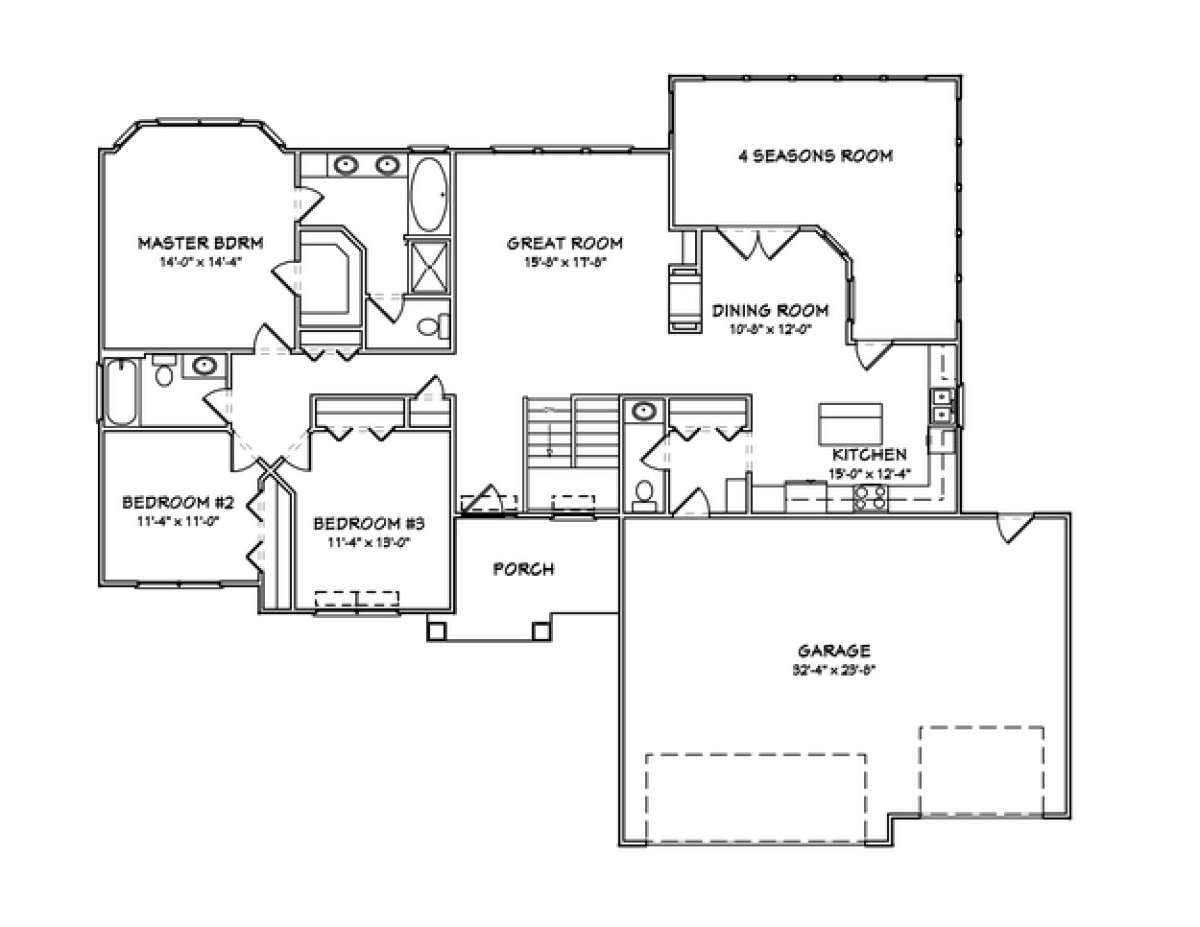

Floorplan 1 for House Plan #849-00067
Ranch House Plan #849-00067 Elevation Photo
Ranch House Plan #849-00067 Elevation Photo
Ranch House Plan #849-00067 Elevation Photo

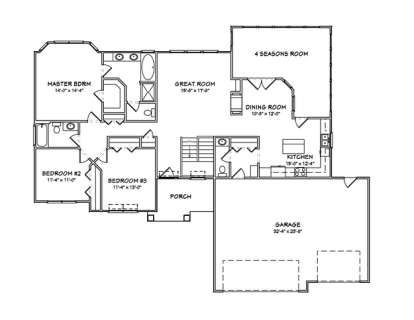

Floorplan 1 for House Plan #849-00067
Ranch House Plan #849-00067 Elevation Photo
Ranch House Plan #849-00067 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

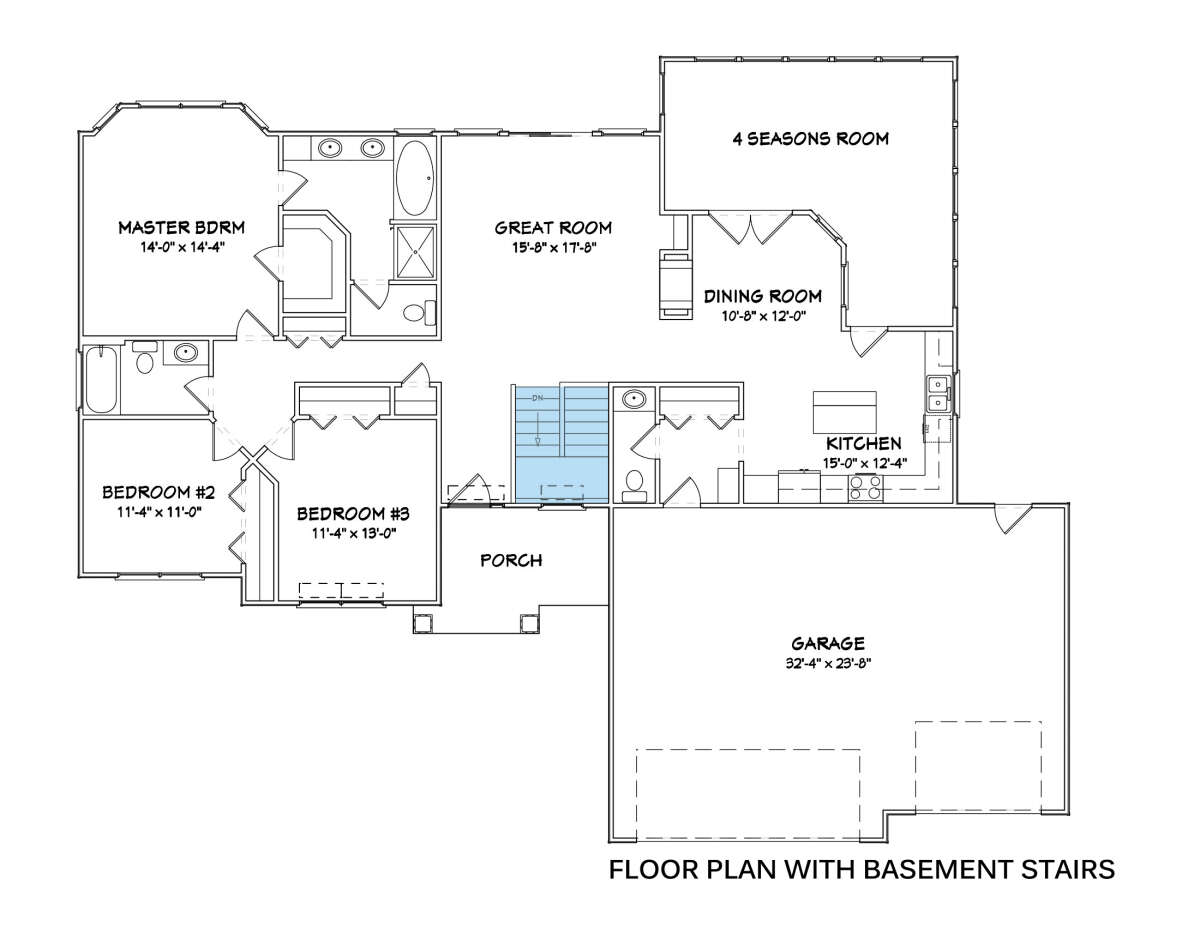

Floorplan 1 for House Plan #849-00067
Floorplan 1

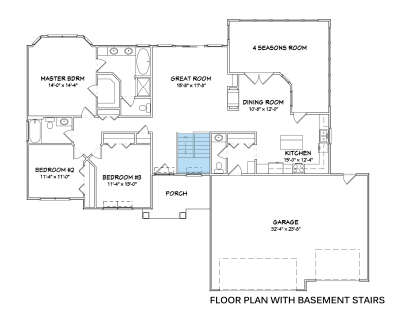

Floorplan 1 for House Plan #849-00067

Frequently Asked Questions


What's Included in these plans?

  • General plan notes for the plan, framing, hvac, plumbing and electrical
  • Floor plans with detailed dimensions and notes
  • Fireplace details, if applicable
  • Cross section, wall section, construction details
  • Front, back, left and right side elevations
  • Foundation plan with detailed dimensions and notes
  • Roof plan with roof framing notes and details

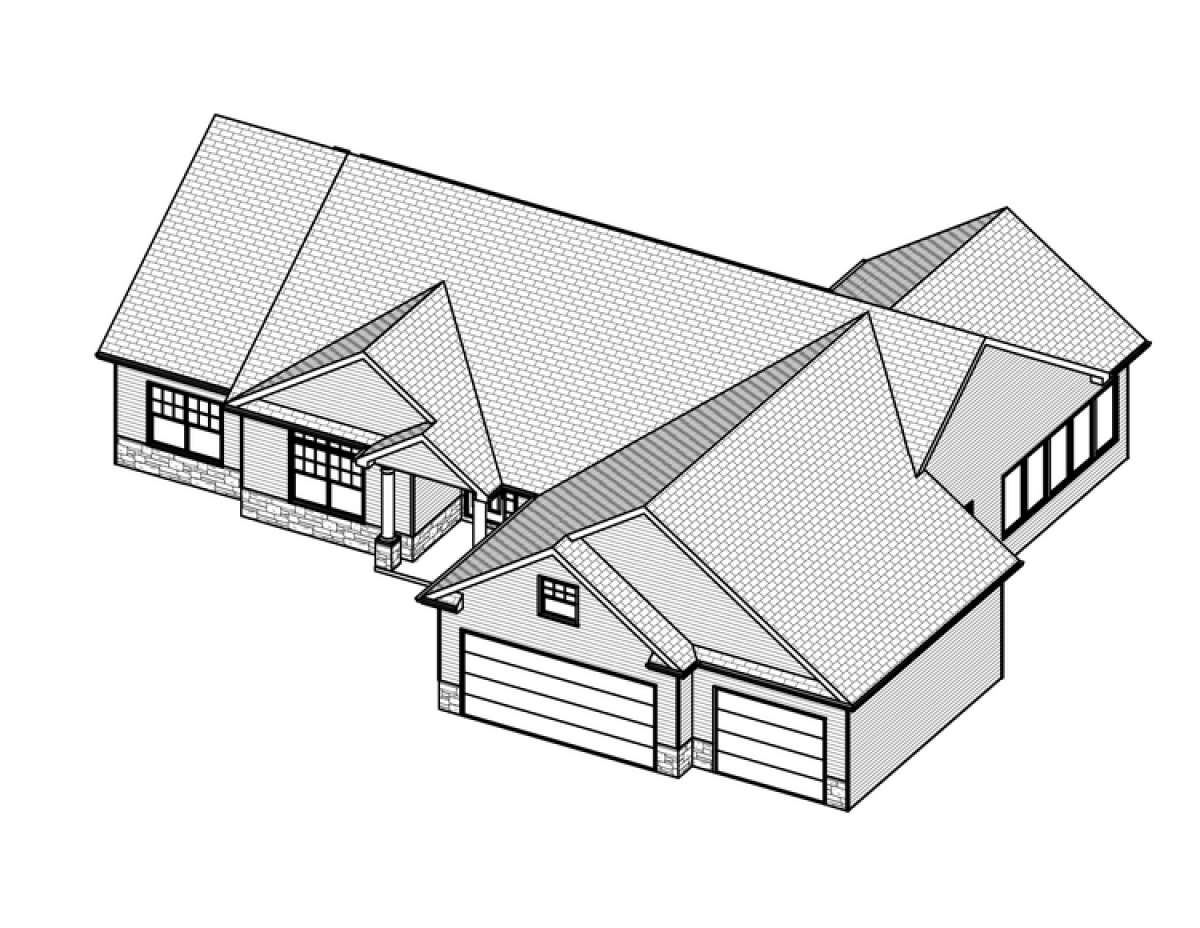

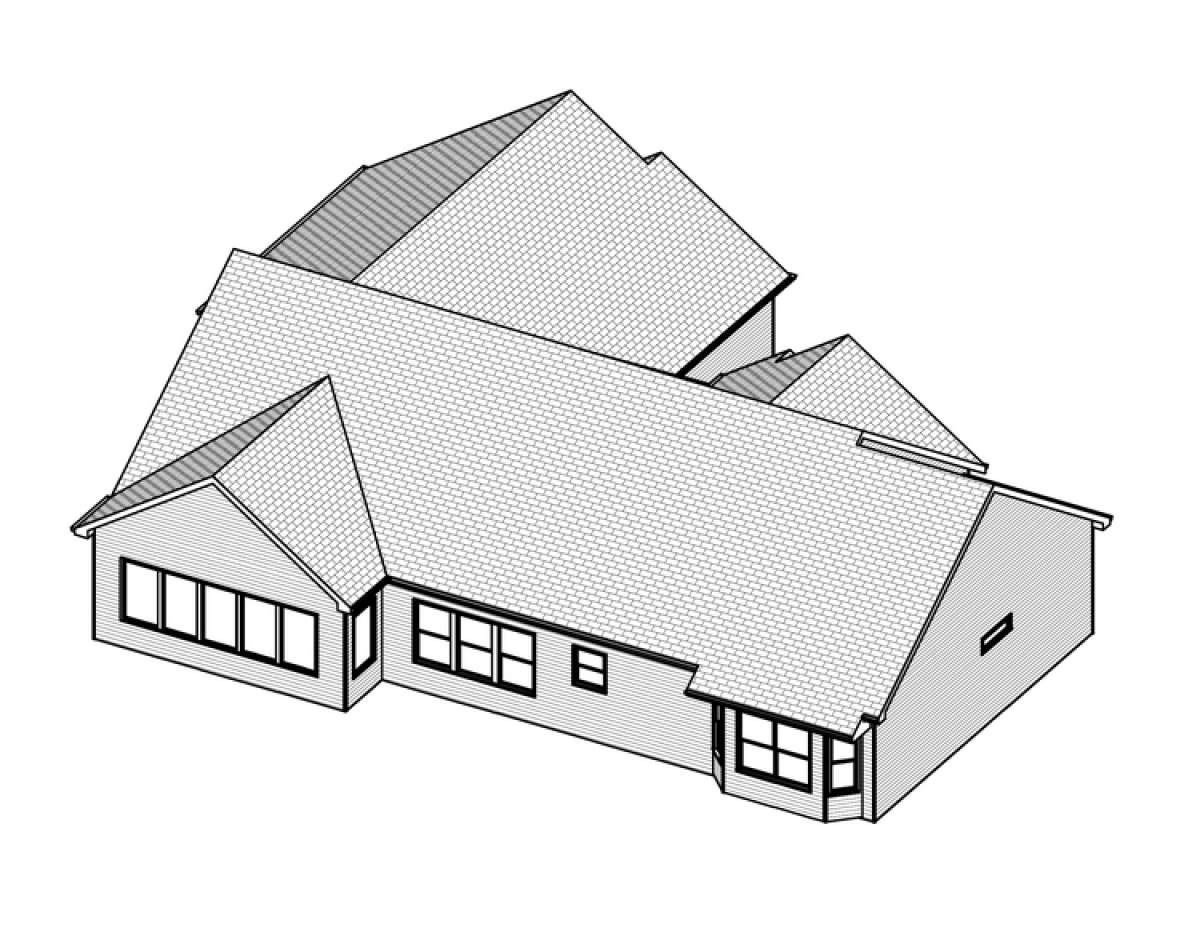

  • Two 3-D overhead views of the exterior from the back and front
  • Electrical plan with legend
  • Stair and hand rail details and notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This delightful Ranch house plan features an attractive exterior façade and a one level living plan on a basement foundation. The exterior is highlighted with horizontal siding, a stone perimeter, expansive gables and wide eaves. The front covered porch is adorned with columned beams, stone pillars and good space for relaxing and/or greeting your guests. The interior floor plan features in excess of 1,990 square feet of usable living space that incorporates three bedrooms and two plus baths into the home. There is a three car front loading garage with a double bay as well as a single bay; this space is large enough to accommodate several vehicles or part of the space could be used as a workshop/hobby area. There is a rear pedestrian door to the yard which is perfect for easy storage of lawn and/or sporting equipment. The basement foundation allows for expansion now or in the future as the family size and needs grow and can be configured as numerous living options. Entering the front covered porch there is a spacious foyer and double sided staircase for easy access to the lower level. Beyond the foyer is the great room which is spacious and features a rear wall of window views. There is an adjacent dining room which is surrounded by window views and also grants access onto the oversized four season room. This sunroom is L-shaped and contains an abundance of space to relax with family and friends while providing gracious entertaining. There is a second entrance onto the sunroom from the kitchen which offers loads of counter and cabinet space, a center island with breakfast bar and double sink window views. There is access to the half bath and laundry room from both the kitchen and the garage entrance which allows for a clean home environment. Bedroom two features good floor space, a double window view and a wall-to-wall closet. The third bedroom is slightly larger with window views as well as a window seat and plentiful closet space. There is a shared hall bath at one end of the hallway and the linen closet is nearby; the shared bath features a vanity space, a toilet area and a tub/shower combination. The master suite is spacious and the bay window allows for a sundrenched space in which the homeowners can relax and “recharge their batteries.” A large walk-in master closet is directly accessible from the bedroom and the elegant master bath is highlighted with dual vanities, a large garden tub, a compartmentalized toilet area and a separate shower. This family friendly home is perfect for a small family or those looking to enlarge their family and space with its basement foundation, efficient floor plan and attractive exterior.
