Ranch House Plan 849-00058

Sq Ft1,536
1/2 Baths1
Width74' 0"
Depth36' 0"
Ranch House Plan #849-00058 Elevation Photo
Floorplan 1

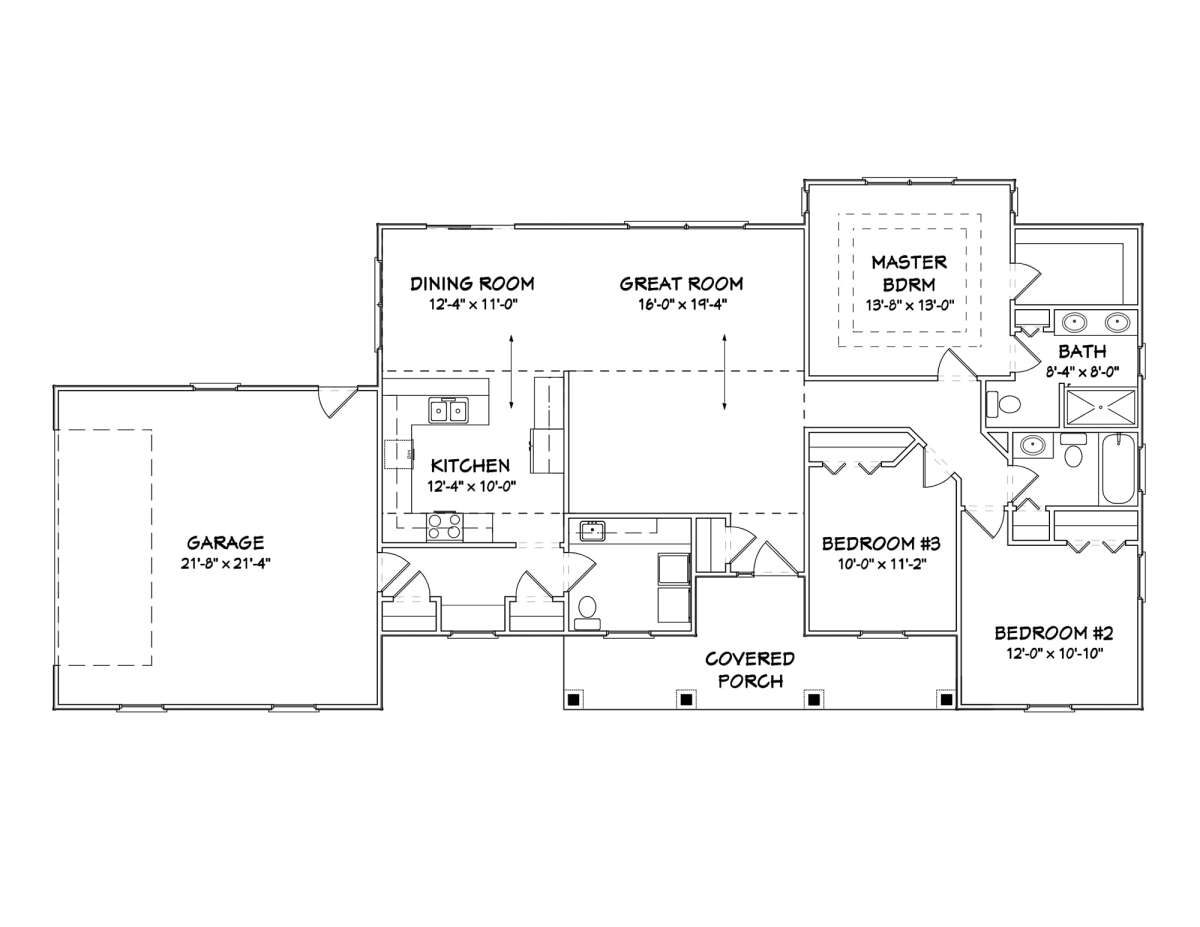

Floorplan 1 for House Plan #849-00058
Ranch House Plan #849-00058 Elevation Photo
Ranch House Plan #849-00058 Elevation Photo
Ranch House Plan #849-00058 Elevation Photo

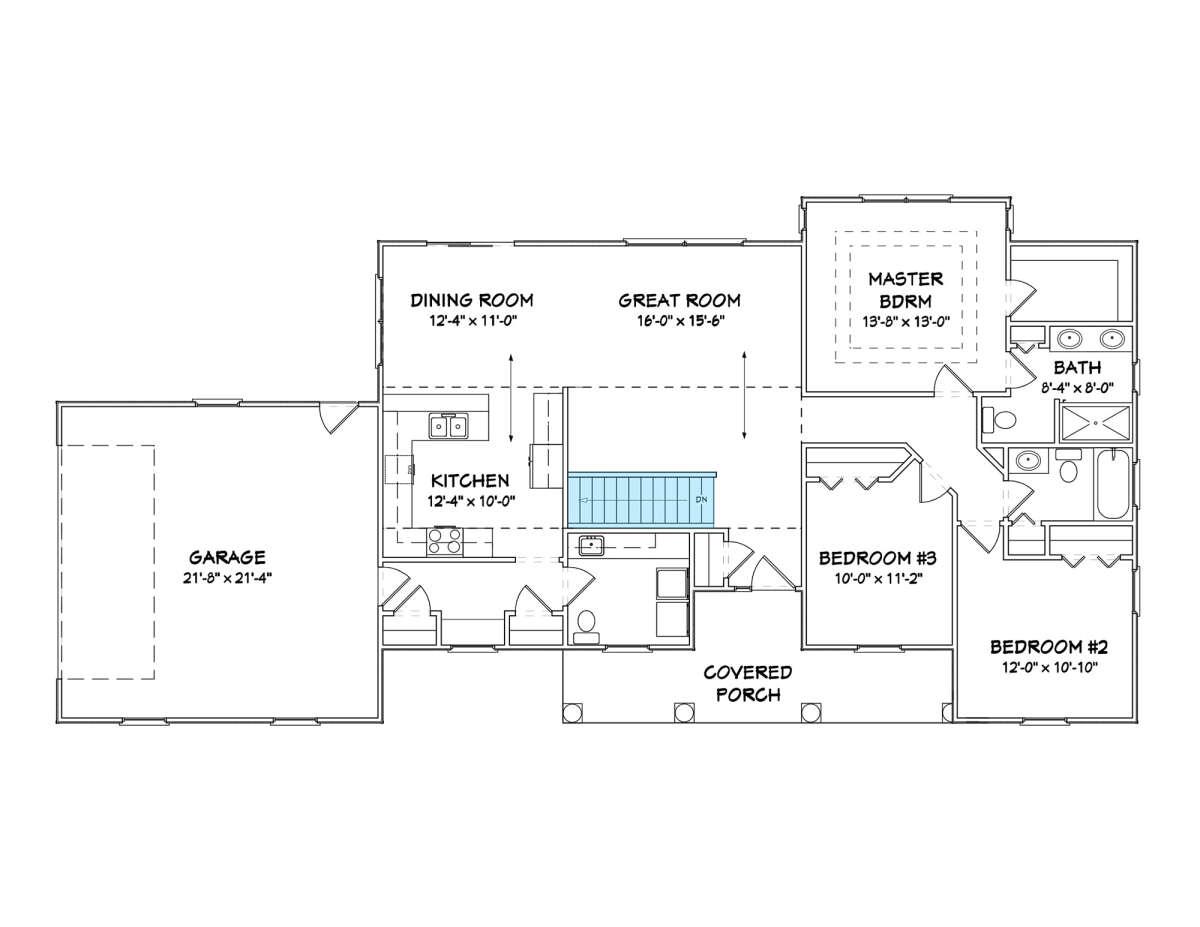

Floorplan 1 for House Plan #849-00058
Ranch House Plan #849-00058 Elevation Photo
Ranch House Plan #849-00058 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #849-00058
Floorplan 1
Floorplan 1 for House Plan #849-00058

Frequently Asked Questions


What's Included in these plans?

  • General plan notes for the plan, framing, hvac, plumbing and electrical
  • Floor plans with detailed dimensions and notes
  • Fireplace details, if applicable
  • Cross section, wall section, construction details
  • Front, back, left and right side elevations
  • Foundation plan with detailed dimensions and notes
  • Roof plan with roof framing notes and details
  • Two 3-D overhead views of the exterior from the back and front
  • Electrical plan with legend
  • Stair and hand rail details and notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan features a simply designed exterior façade with multiple gables, cedar shakes and horizontal siding. The front covered porch features columned beams and plenty of space to comfortably greet family and friends or relax with morning coffee or a cool afternoon beverage. There are three bedrooms, two plus baths and an open floor plan within the approximate 1,536 square feet of living space. The home is situated on a basement foundation with expansion space for the future or it can be configured presently for numerous family friendly spaces; an in-law suite, additional living and recreation space or as a teen-age suite. There is a two car side entry garage with spacious vehicle and storage space that also provides a rear pedestrian door allowing for easy access and storage of lawn and sporting equipment. The front covered porch grants access into the home’s interior where a coat closet, entry foyer and spacious great room is revealed. The great room features good entertaining possibilities and double window views onto the rear yard. There is an adjoining dining room which comfortably provides space for family and special occasion meals along with slider access onto the rear outdoor space. The family friendly kitchen is highlighted with a peninsula bar, plenty of counter and cabinet space and there are two closets lying just beyond the kitchen; one of which could be utilized as pantry storage. The second closet is located directly off the garage and there is an adjacent large laundry room with a sink area and counter space along with a guest half-bath. The three bedrooms are situated on the opposite side of the home; bedroom two is highlighted with good floor space, window views and plentiful closet space. The third bedroom is slightly larger with a window view and ample closet space. There is a shared hall bath that includes an enclosed linen closet, vanity space, a toilet area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and features a double step trey ceiling master bedroom, generous floor space, amazing window views and an attached large walk-in master closet. The master bath features modern amenities that include dual vanities, an enclosed linen closet, a toilet area and a large shower. This home while compact, yields efficient use of the floor plan with minimal waste, an attractive exterior and a basement foundation perfect for expansion.
