Ranch House Plan 849-00031

Sq Ft1,790
Beds3
Baths2
1/2 Baths1
Stories1
Cars3
Width78' 0"
Depth49' 0"
SALE

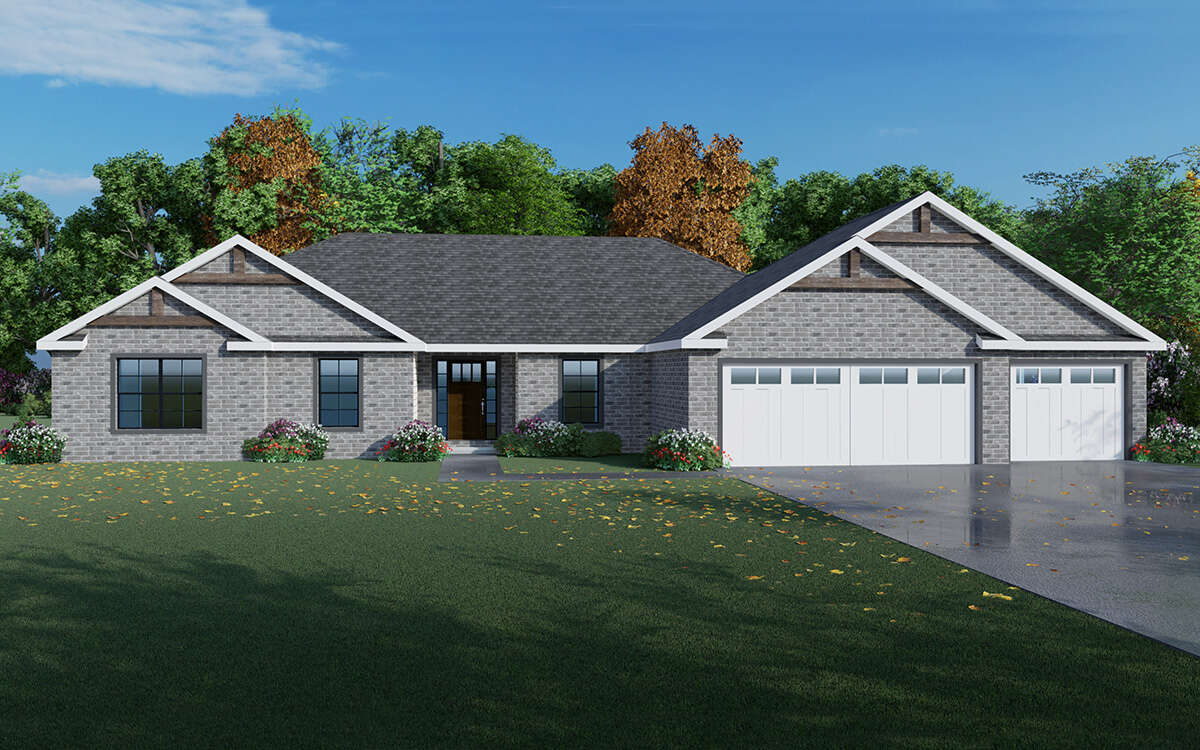

Ranch House Plan #849-00031 Elevation Photo
Ranch House Plan #849-00031 Elevation Photo
Ranch House Plan #849-00031 Elevation Photo
Ranch House Plan #849-00031 Elevation Photo
Ranch House Plan #849-00031 Elevation Photo
Ranch House Plan #849-00031 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

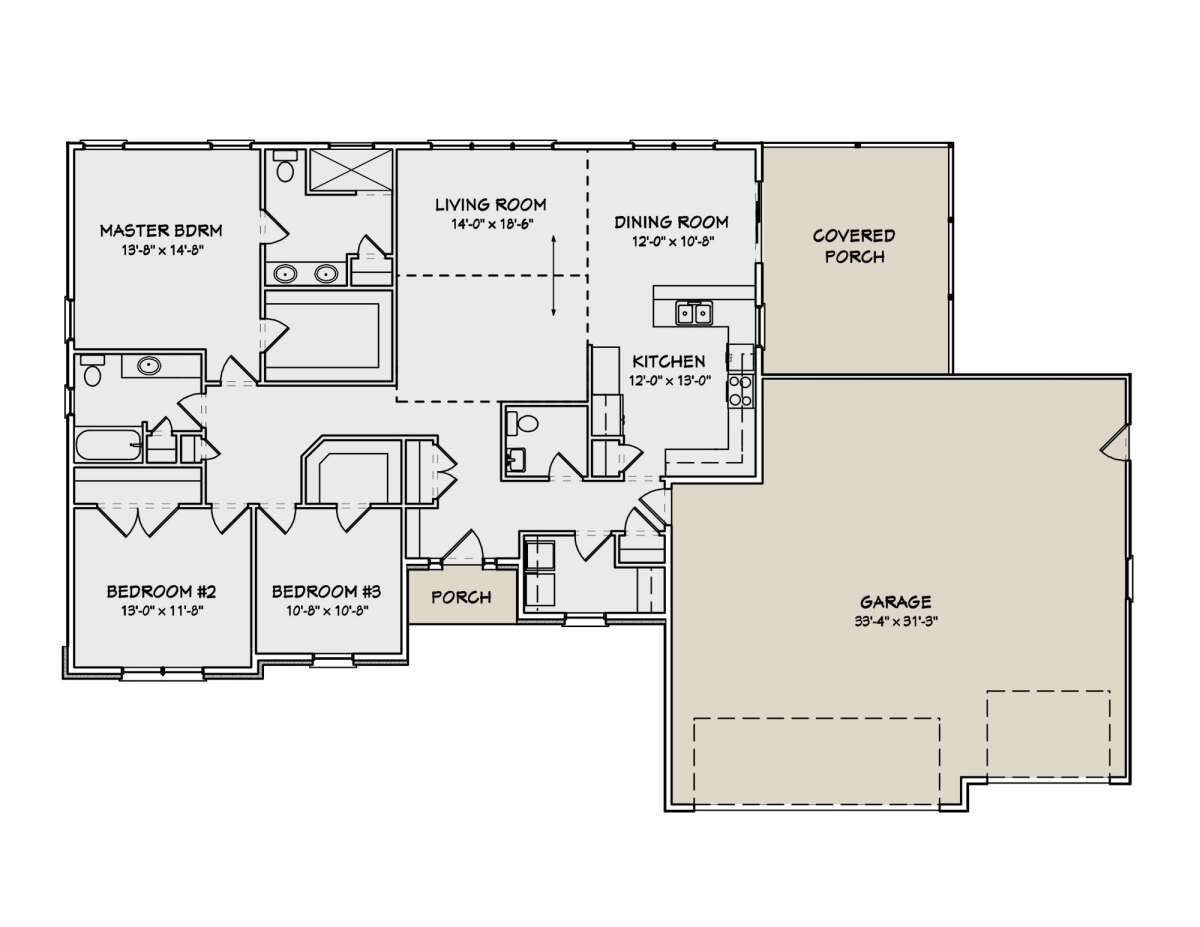

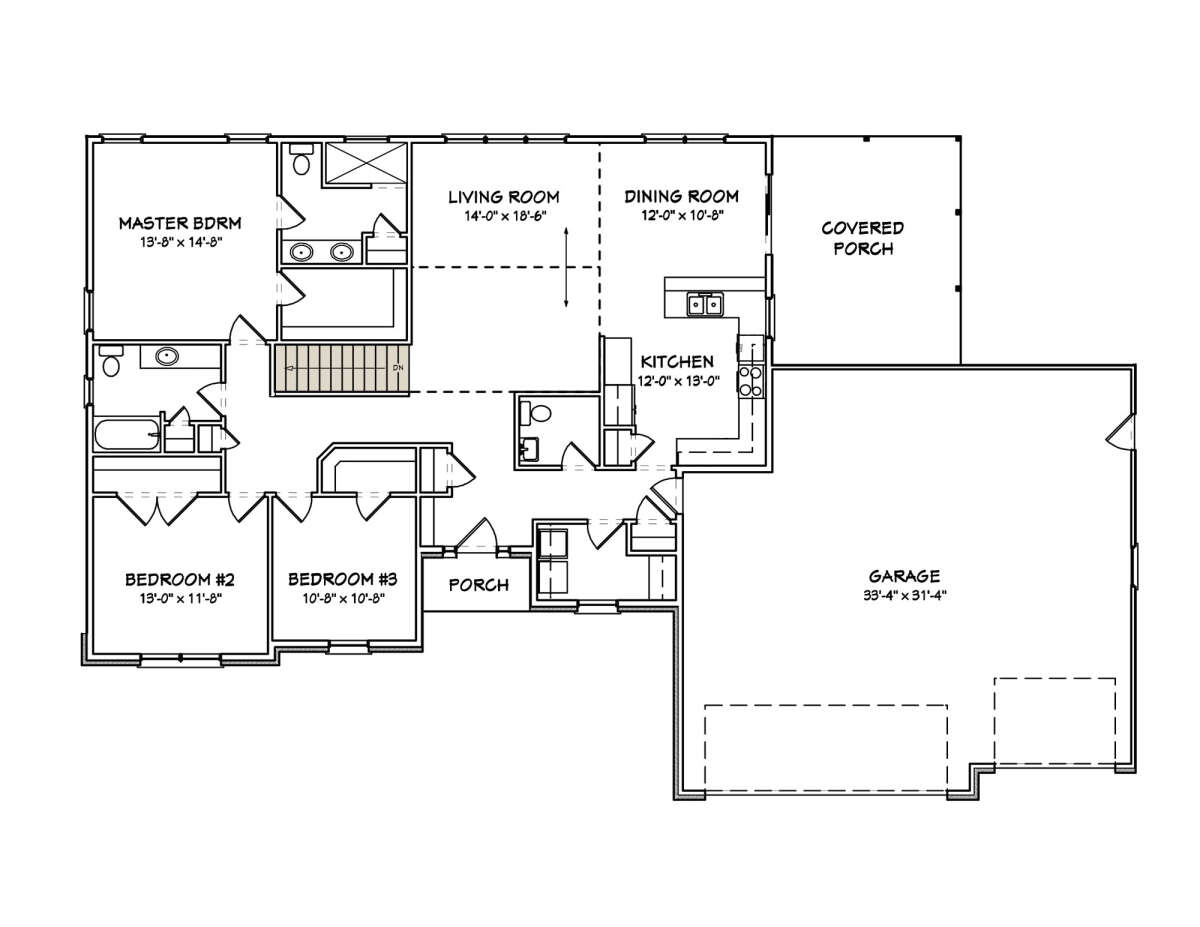

Floorplan 1 for House Plan #849-00031
Floorplan 1
Floorplan 1 for House Plan #849-00031


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • General plan notes for the plan, framing, hvac, plumbing and electrical
  • Floor plans with detailed dimensions and notes
  • Fireplace details, if applicable
  • Cross section, wall section, construction details
  • Front, back, left and right side elevations
  • Foundation plan with detailed dimensions and notes
  • Roof plan with roof framing notes and details

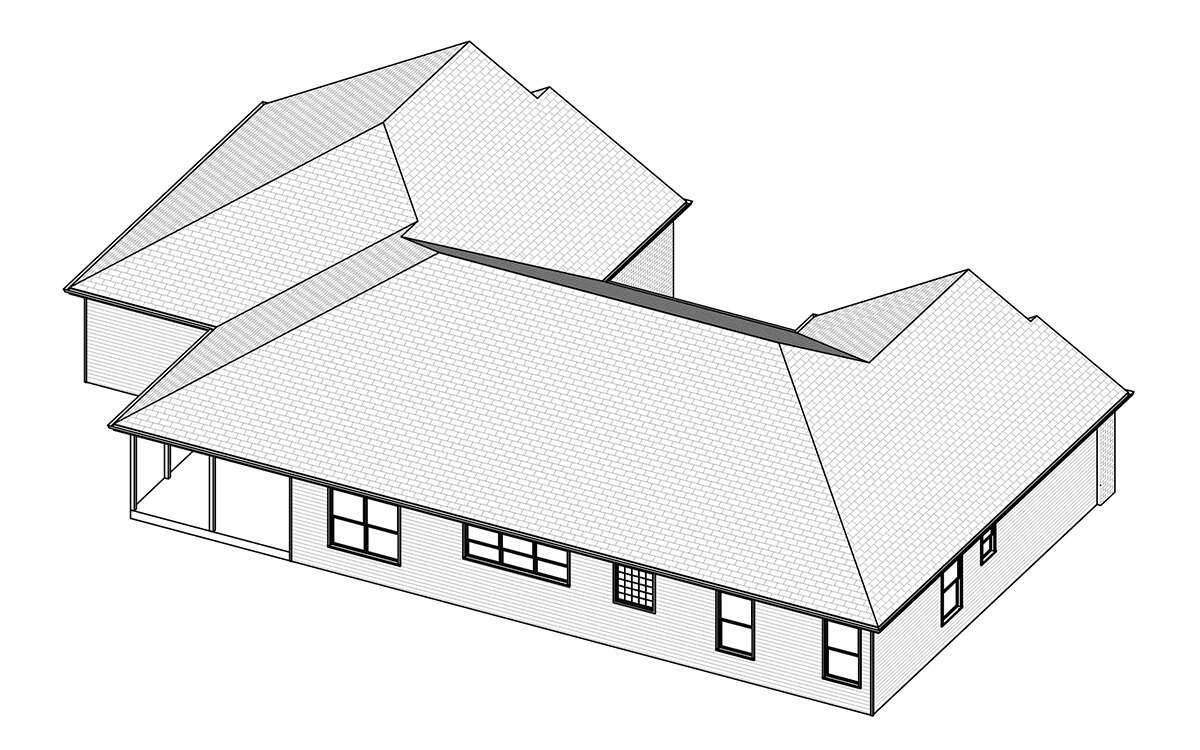

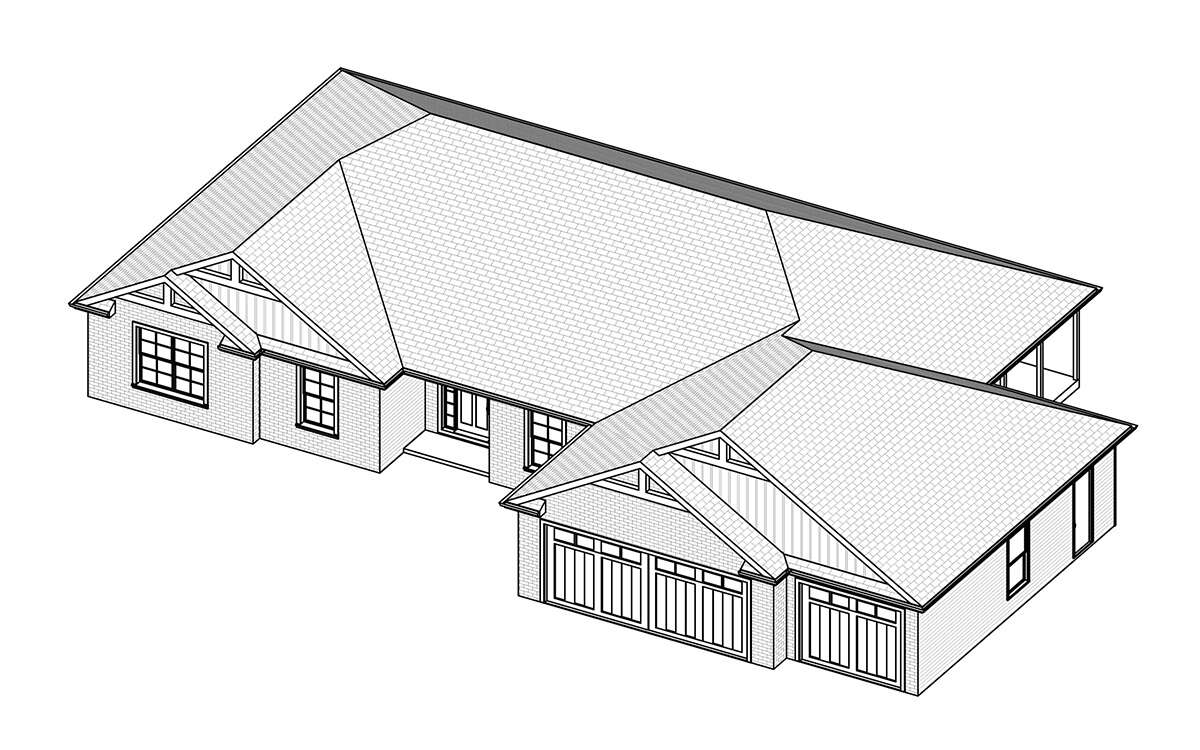

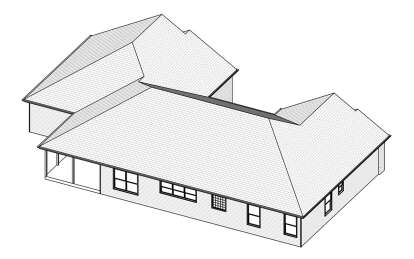

  • Two 3-D overhead views of the exterior from the back and front
  • Electrical plan with legend
  • Stair and hand rail details and notes

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Ranch house plan features 1,790 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
