Craftsman Plan 8318-00173

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,986
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 67' 8"
Depth 51'

Floorplan Drawings

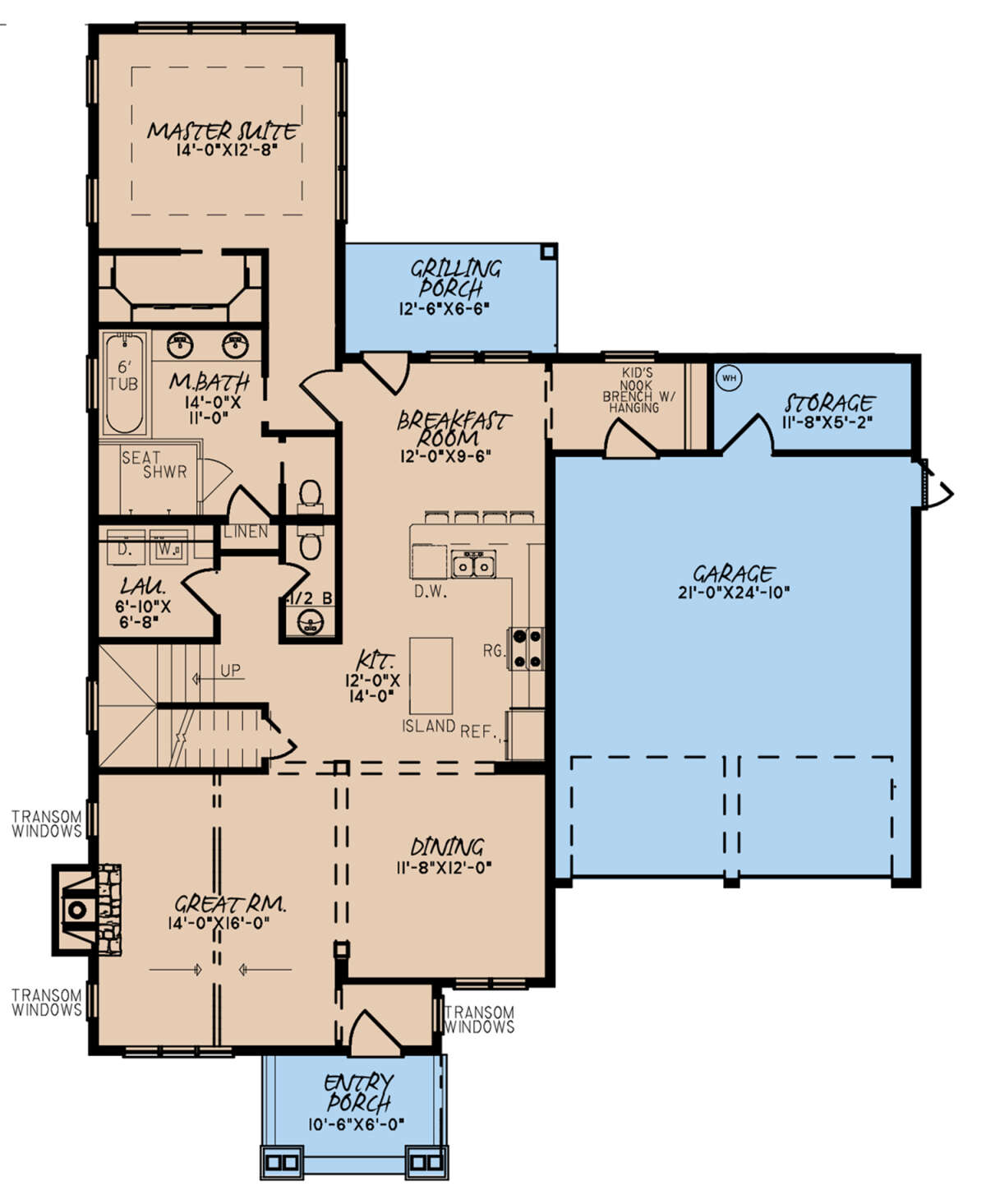

Main Floor
Main Floor for House Plan #8318-00173

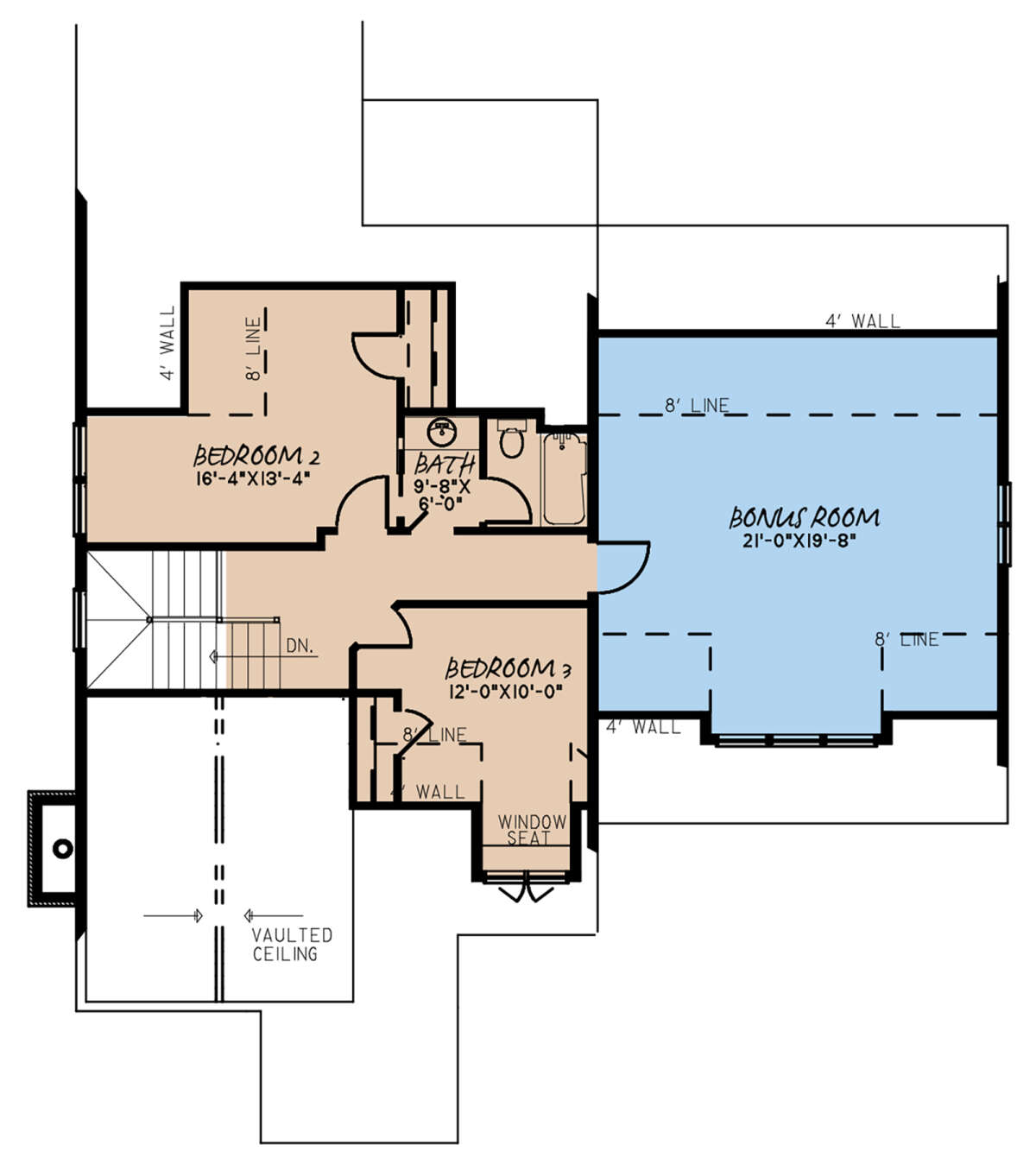

Second Floor
Second Floor for House Plan #8318-00173


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

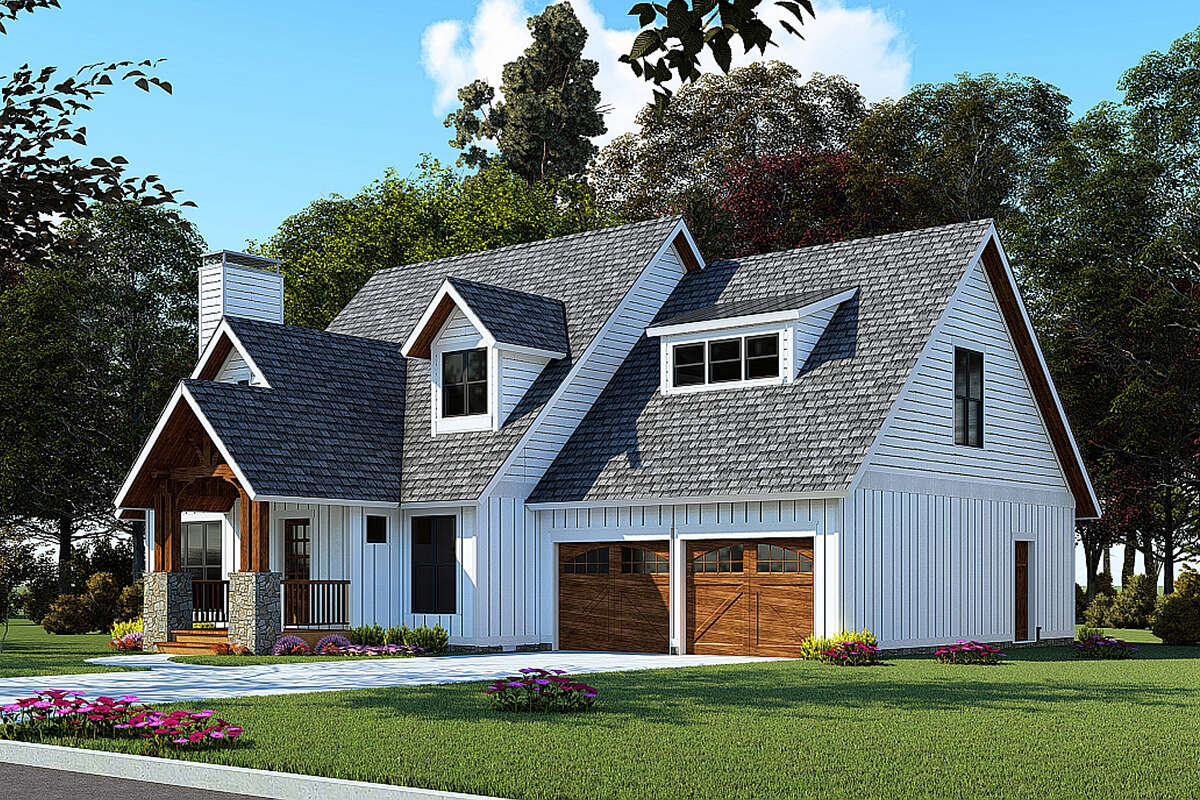

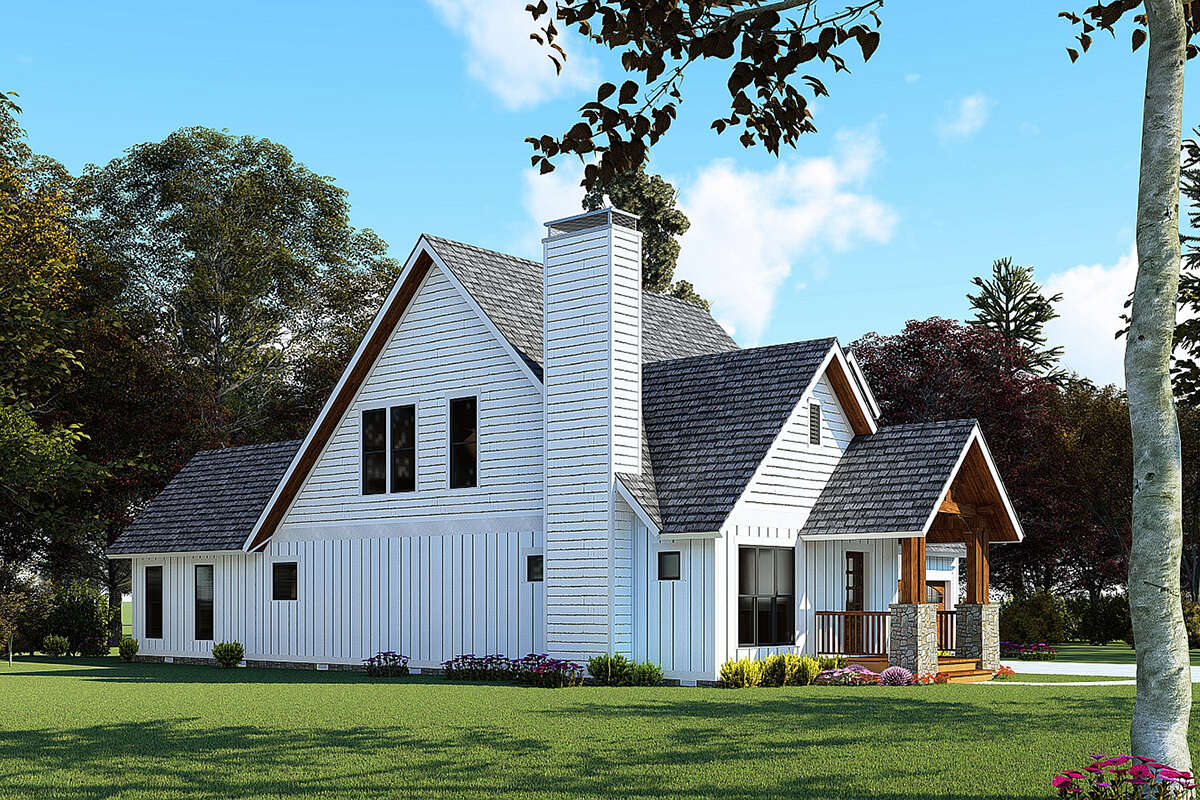

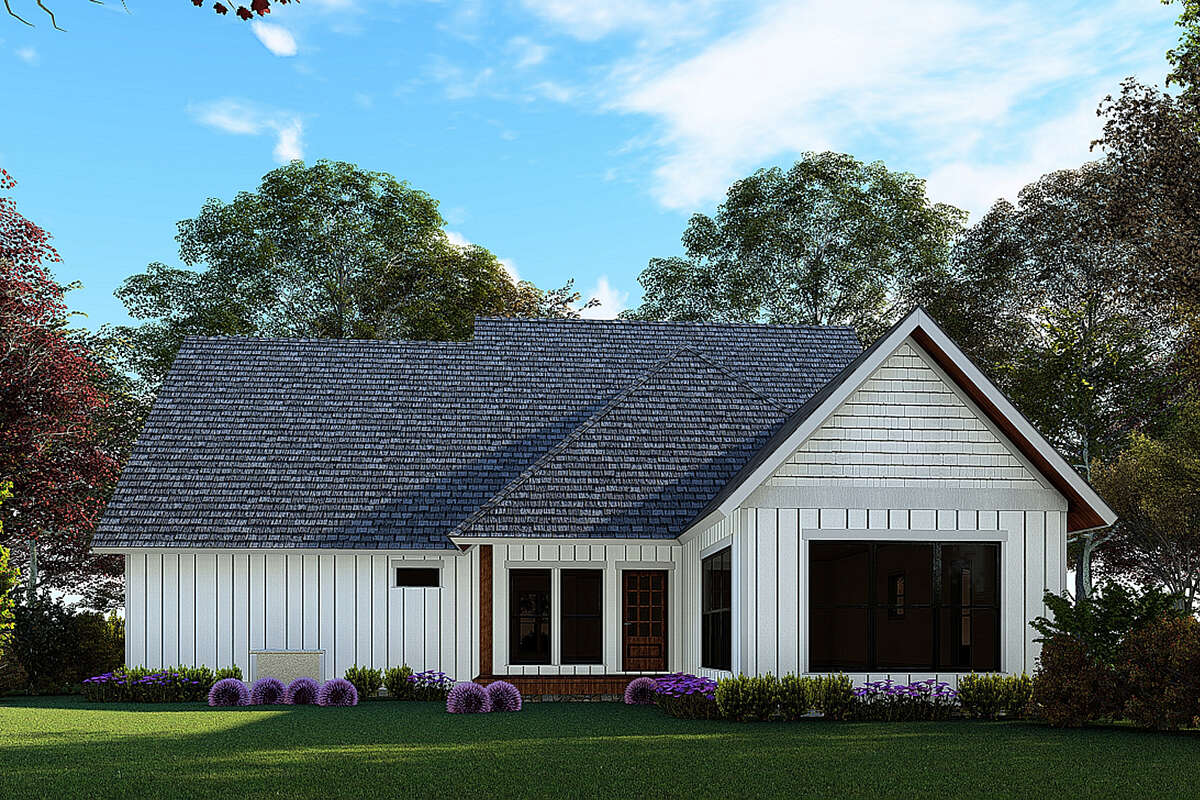

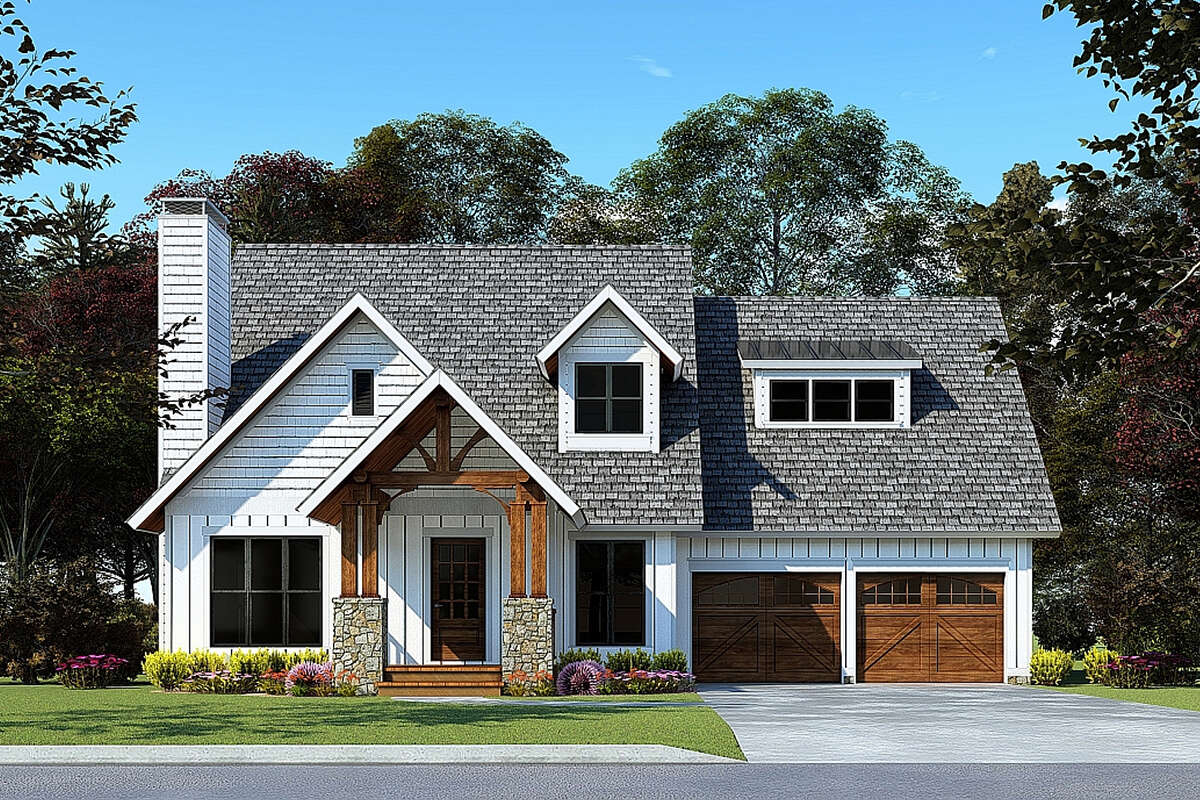

This Craftsman house plan has a sincere, welcoming exterior design highlighted by white board and batten siding contrasted with rich, golden wood garage doors and matching timber columns framing the front porch. The entry porch is also accented with cool, gray stone offering an attractive invitation to enter the home. Two dormers above the main living area and the garage space break up the roofline for a cozy, rustic design. The front-entry garage details two bays for the storage of two vehicles. Inside, the garage offers a storage closet big enough for storing tools, equipment, and sports gear, as well as featuring a pedestrian door and access to the mudroom/ kid’s nook. Completing the exterior is the grilling porch located at the rear of the home. This cookout space will make summer grilling a comfortable breeze with extra space for sitting and enjoying the outdoors.

Walking up the wood steps to the covered entry porch, the front door grants entry into a small foyer. The foyer is brightened by the above transom windows while granting entrance into the vaulted great room. This cozy space showcases a spacious gathering place with great windows facing the front property, transom windows, and a warming fireplace made-up of stone. The adjoining dining room is wonderful for hosting big dinner parties or quiet, intimate time with loved ones. The configuration of these two rooms allows for a seamless flow between entertaining in the great room and the dining room.

The dining space flows into the kitchen which offers generous counter space in an L-shaped design and a prep island allowing for more cook space and storage. Additional seating is available at the high-low bar for up to four guests. The rear of the kitchen features a cozy breakfast room with access to the outdoor grilling porch and open to the mudroom. The mudroom features a kid’s nook for art projects, homework, or any special activity. A bench seat with hanging space gives everyone an opportunity to ditch dirty boots and coats before making their way through the home. Opposite the kitchen is the laundry room and half bathroom.

Valuing the homeowners’ need for privacy, the master suite is located on the main floor, away from the second-floor bedrooms. This enclosed space features a tray ceiling with windows on all sides of the room, a large walk-in closet, and the master bathroom. The 5-fixture bathroom features a dual sink vanity, a 6’ soaking tub resting beneath a side-facing privacy window, a large enclosed shower with a built-in shower seat, and an enclosed toilet for added privacy. The second-floor houses two more bedrooms with a shared hall bathroom and an optional bonus room. This generously spacious area can function as a game room, a library, or a home theater. The bonus room has an almost limitless ability to fill your lifestyle need.

This cozy, rustic Craftsman house plan has three bedrooms, two-plus bathrooms with approximately 1,986 square feet of living space, making it ideal for newlyweds, new families, and aging in place.
