Barn House Plan 8318-00115

Sq Ft3,277
Beds5
Baths3
1/2 Baths1
Stories1
Cars2
Width107' 8"
Depth57' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Main Floor for House Plan #8318-00115

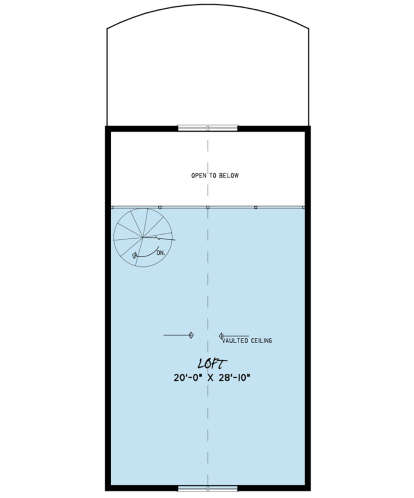

Loft for House Plan #8318-00115

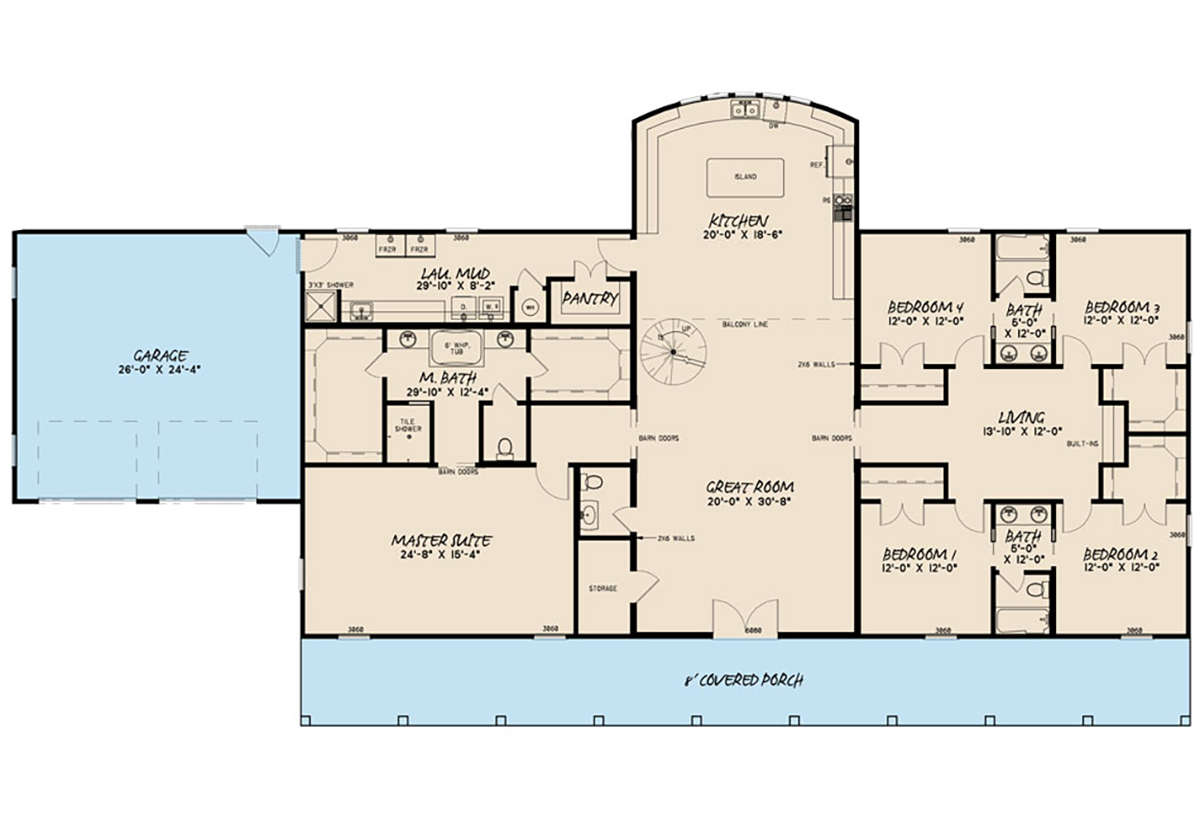

Main Floor
Main Floor for House Plan #8318-00115

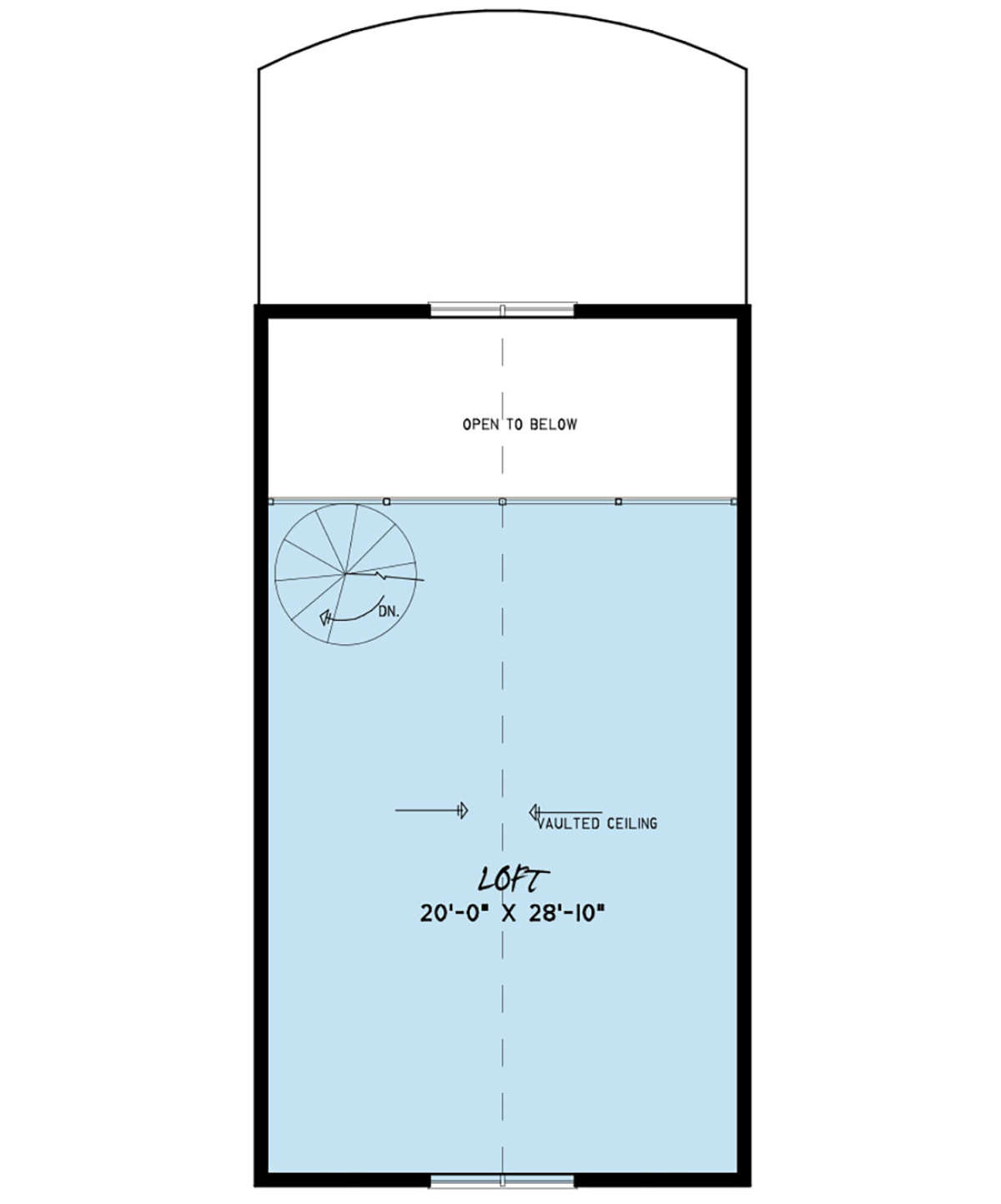

Loft
Loft for House Plan #8318-00115


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Kitchen and Bath Elevations (1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.
  • ASK US A QUESTION

    Name:
    E-mail Address:
    Password: (for robots)
    Your Question:

    To request a modification quote, please use the Modification Request Form.

    About This Plan

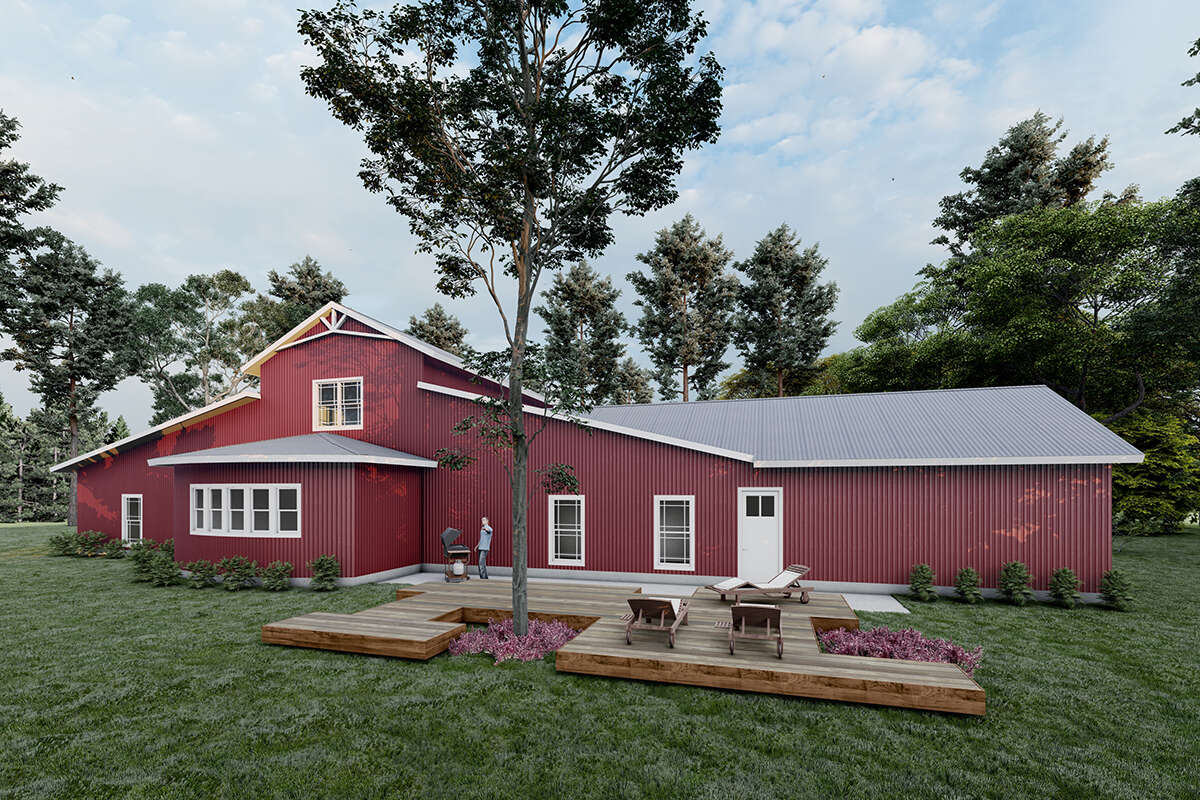

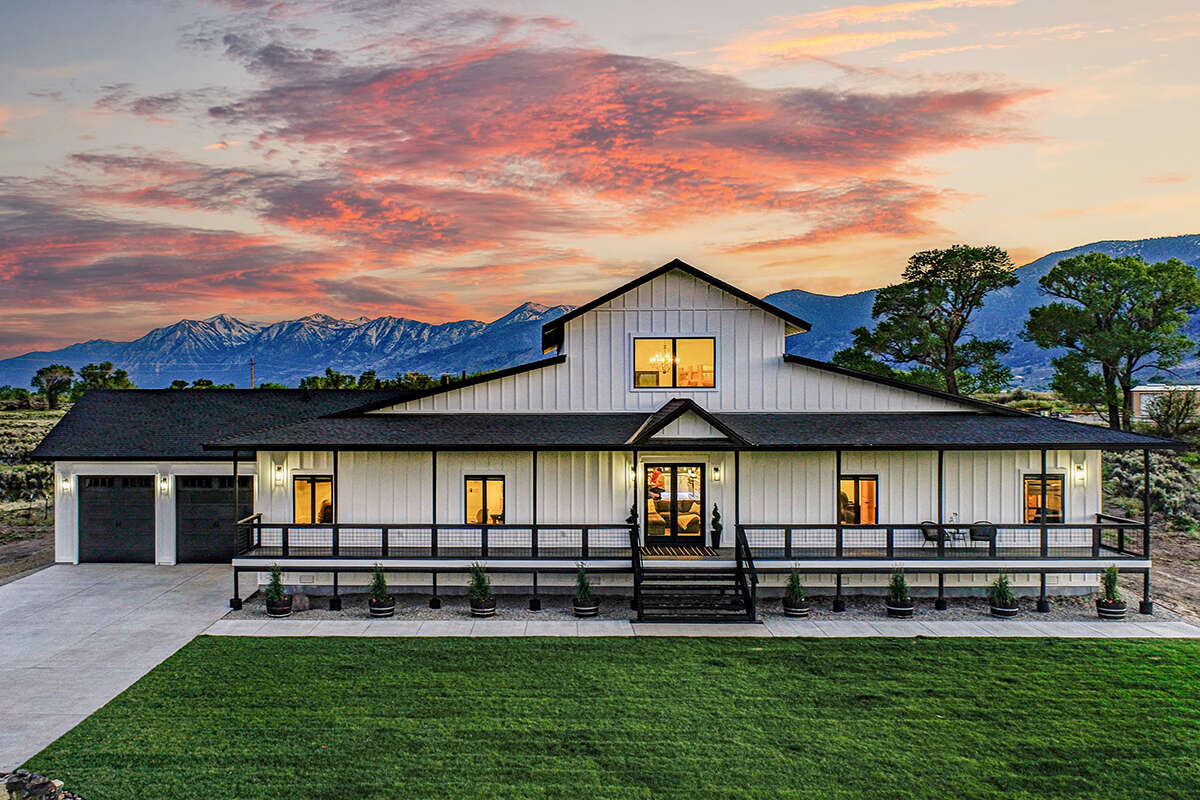

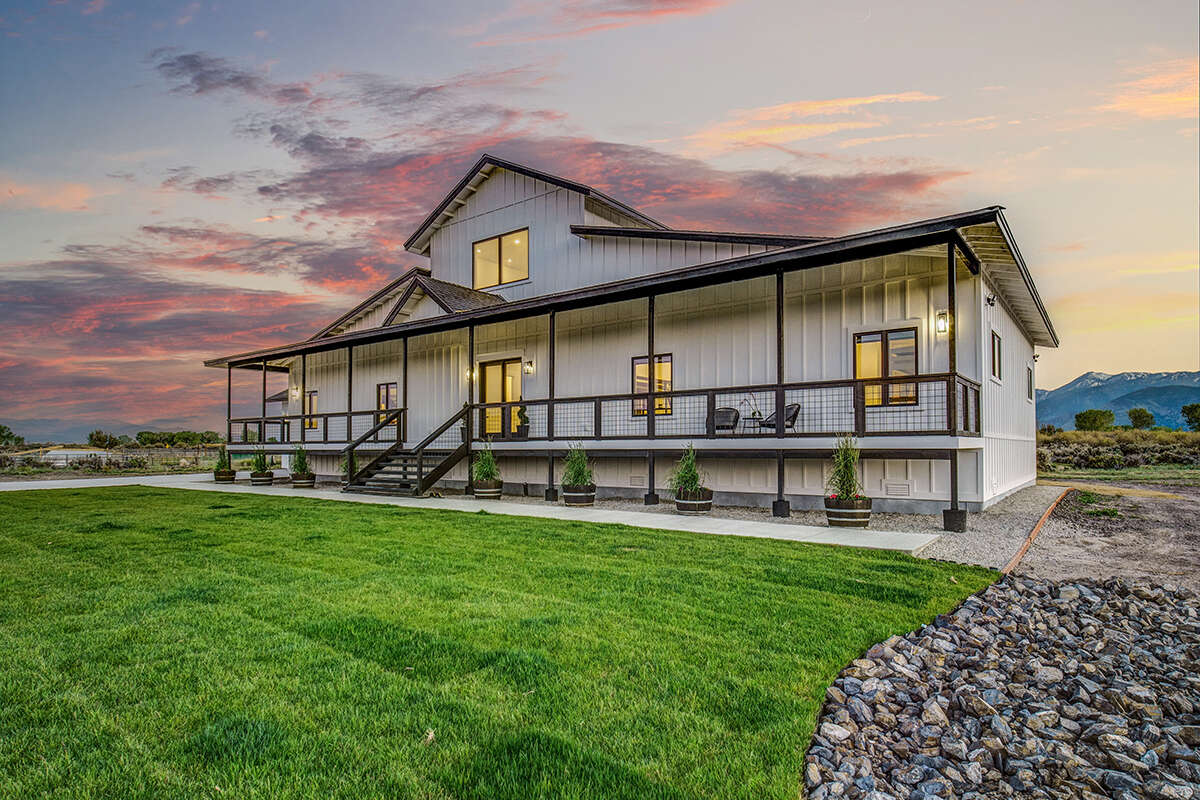

    This Barn house plan outlines great curb appeal with a fresh and sleek exterior facade. Long vertical siding and a massive covered front porch perfect for a porch swing and a few rocking chairs to enjoy a glass of cold lemonade on a hot summer afternoon draw the attention of the front exterior. Concurrently, the interior delivers the same appeal as it measures approximately 3,277 square feet with five bedrooms and three-plus bathrooms in a single-story home.

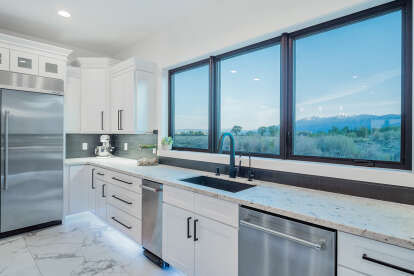

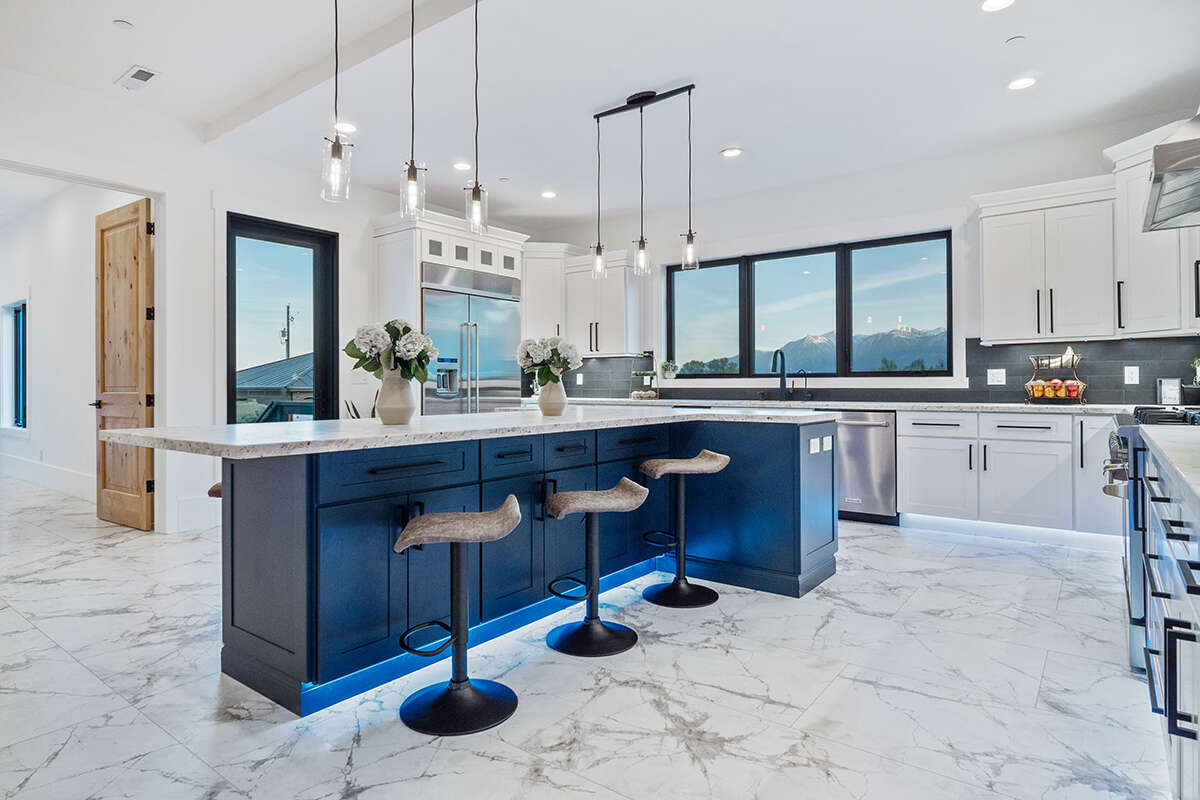

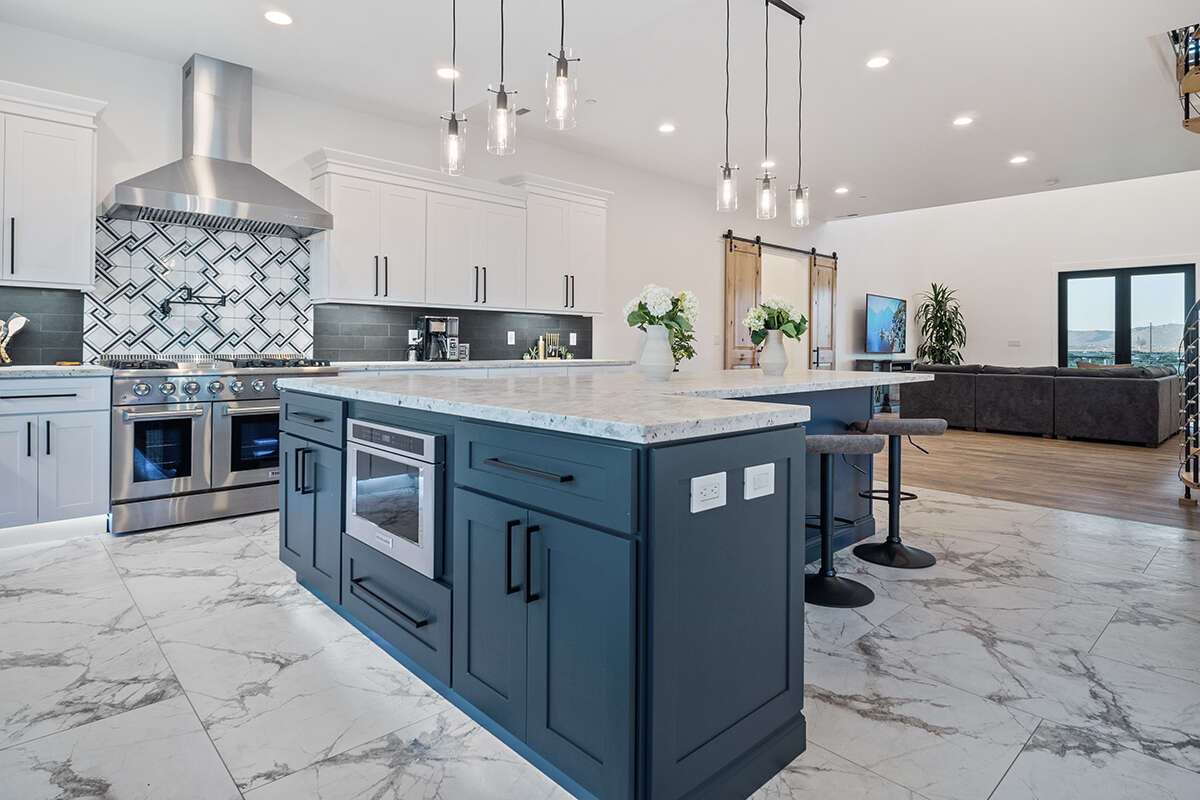

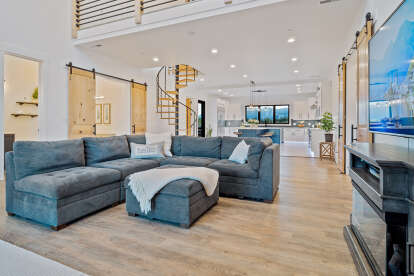

    Once inside you will immediately notice the large open floor plan as you can see all the way through the great room and into the kitchen. This creates the perfect atmosphere for family living and entertaining. The spacious area between the great room and kitchen provides plenty of room for a dining table. In this area, you’ll also find the spiral staircase leading to the loft above. The modern rustic theme is infused throughout this interior design with barn doors called out on either side of the great room as well as in the master suite.

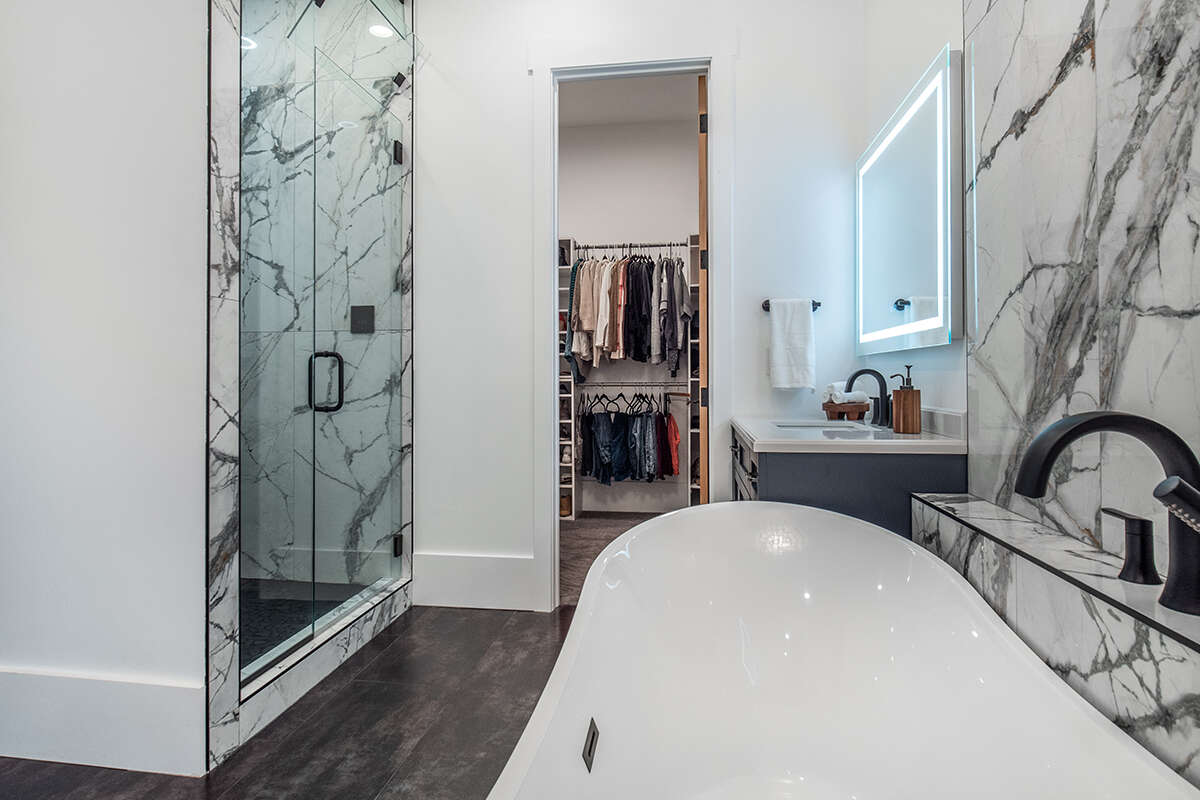

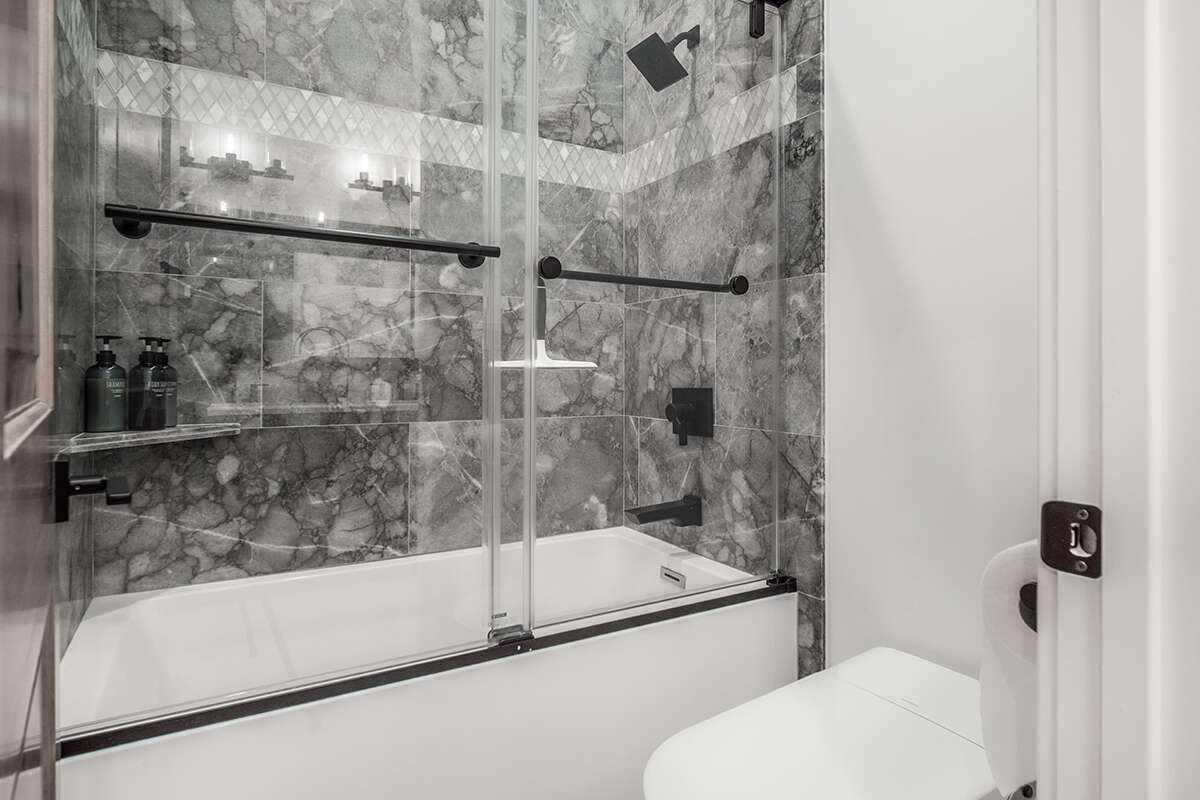

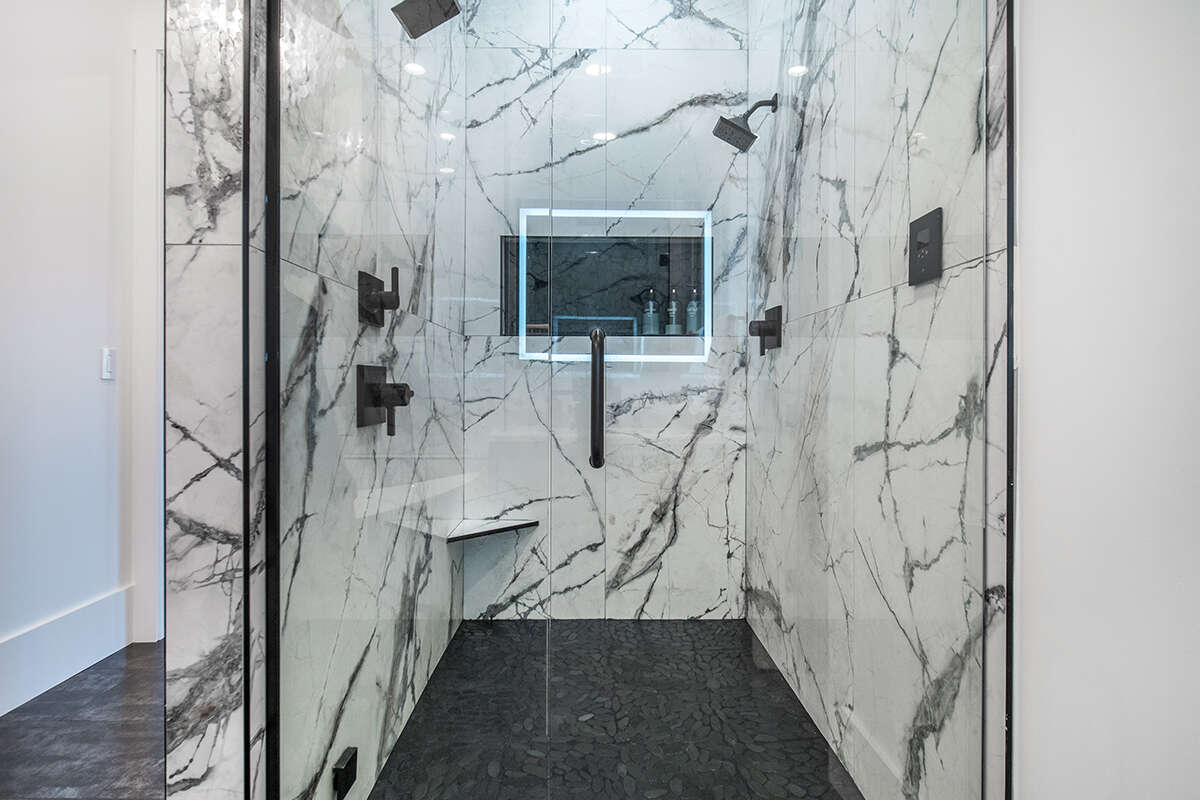

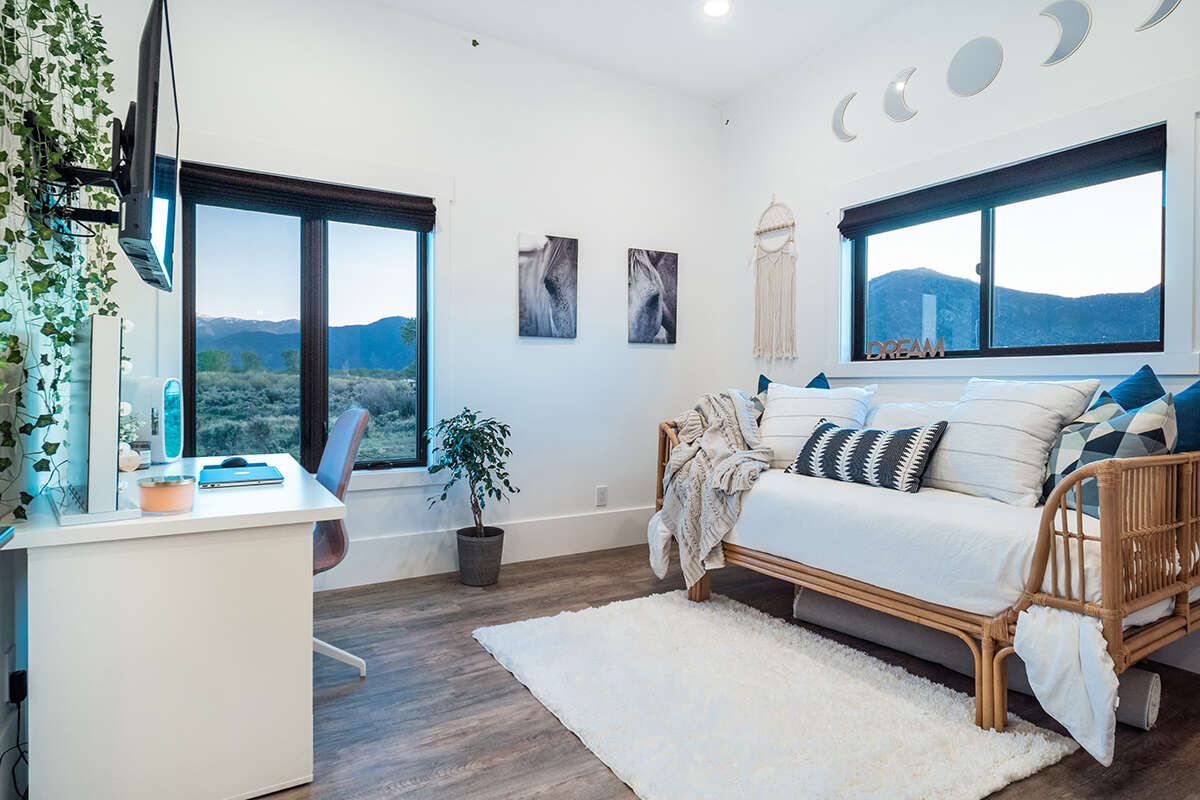

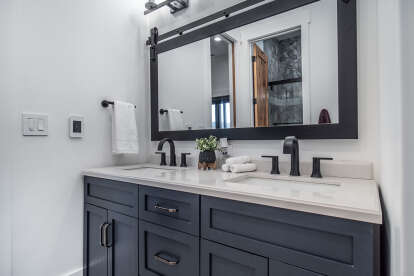

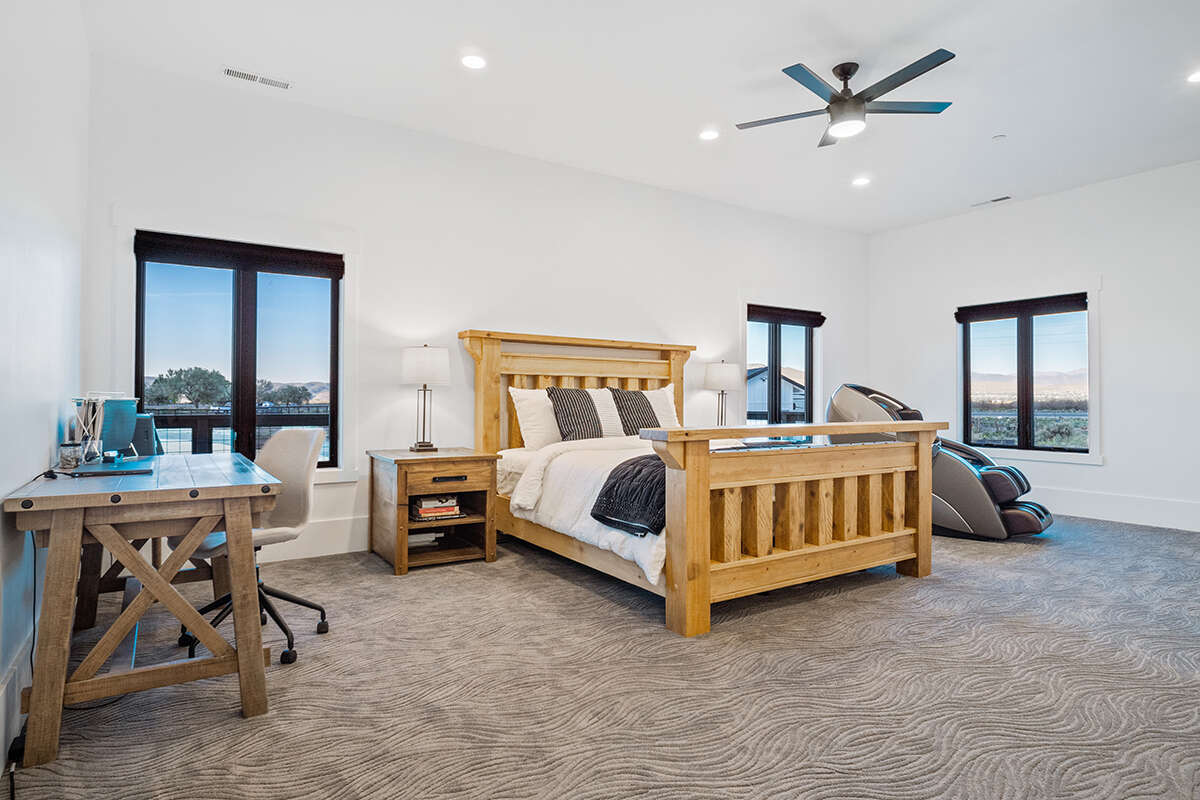

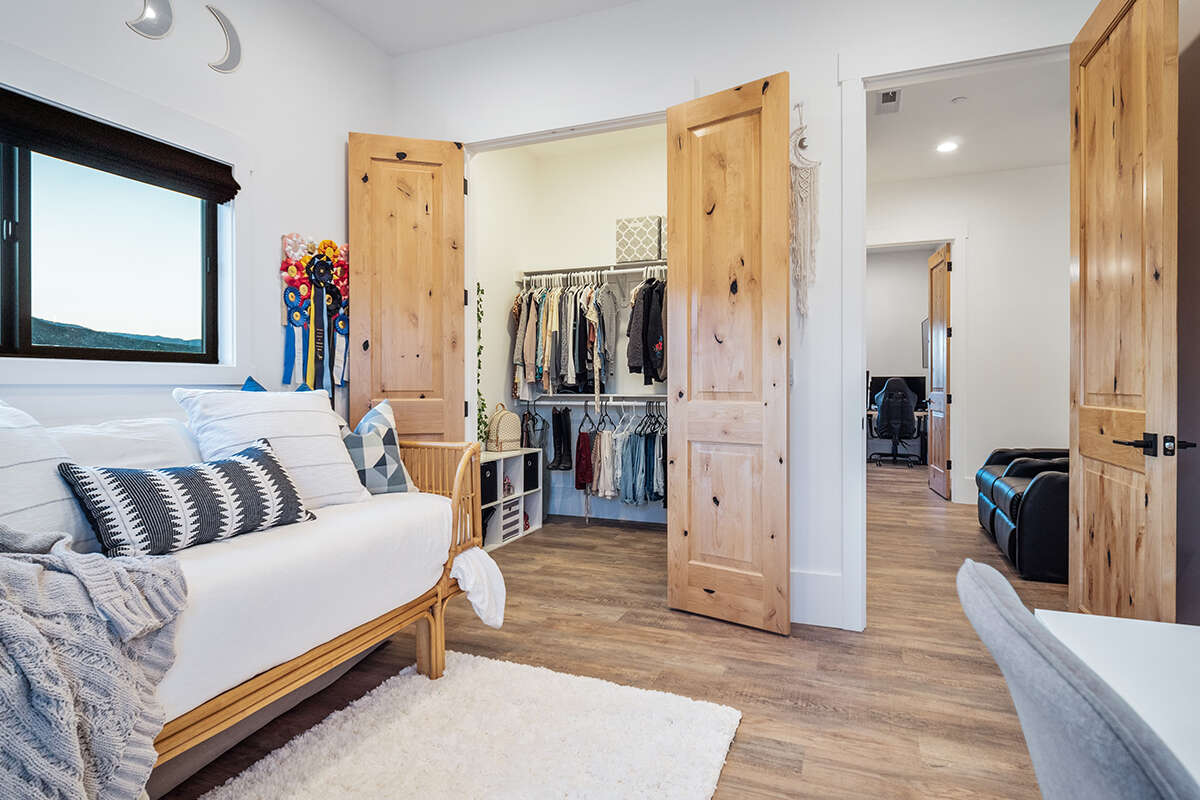

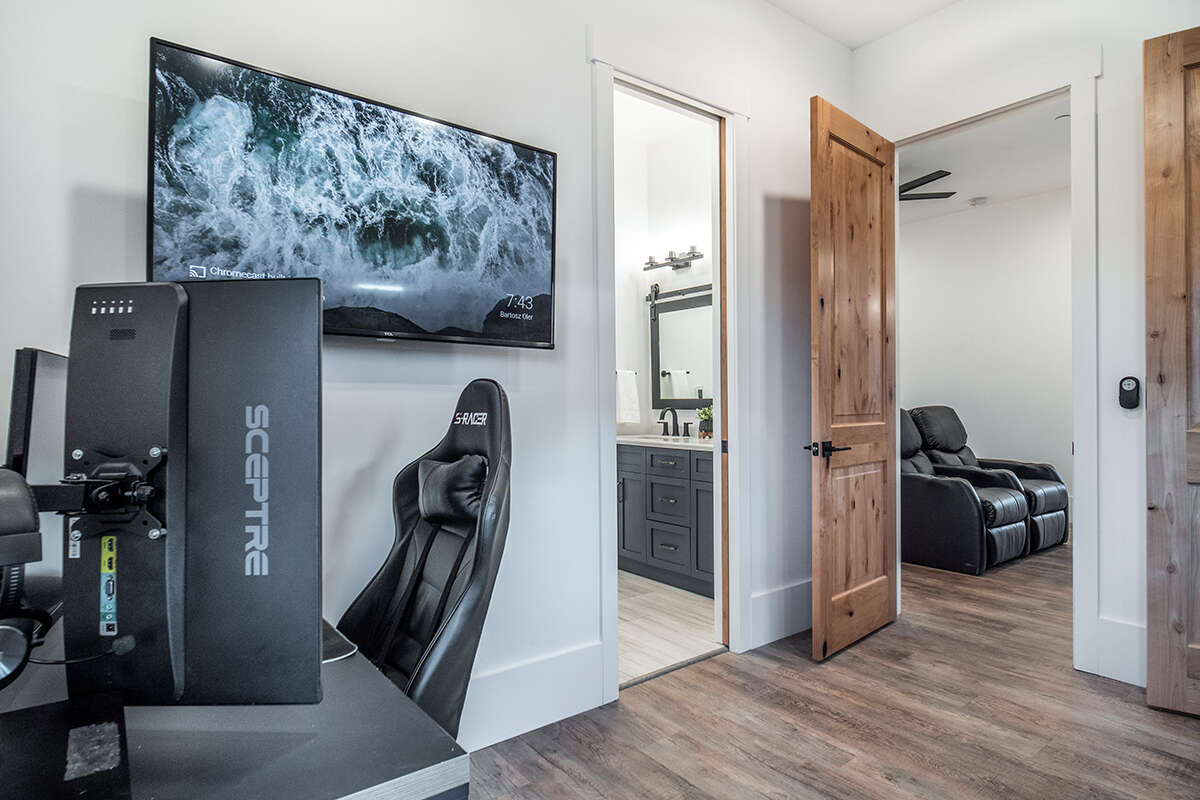

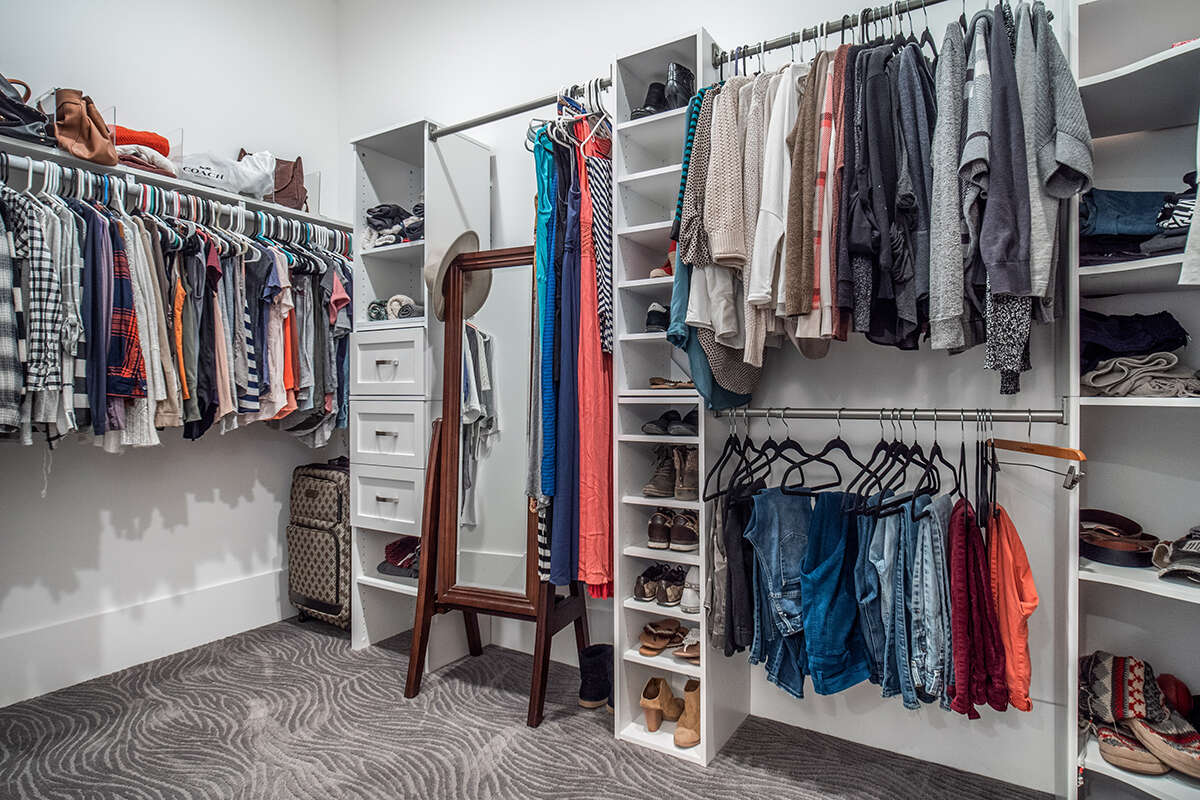

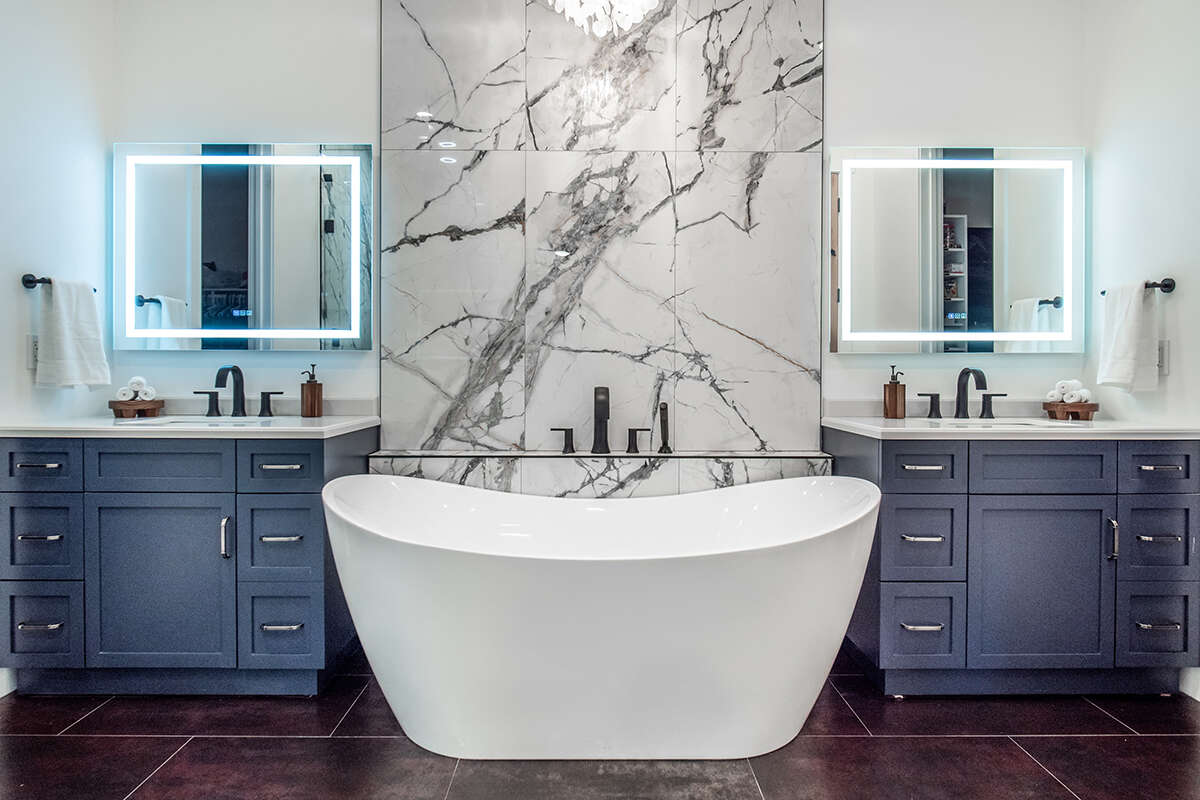

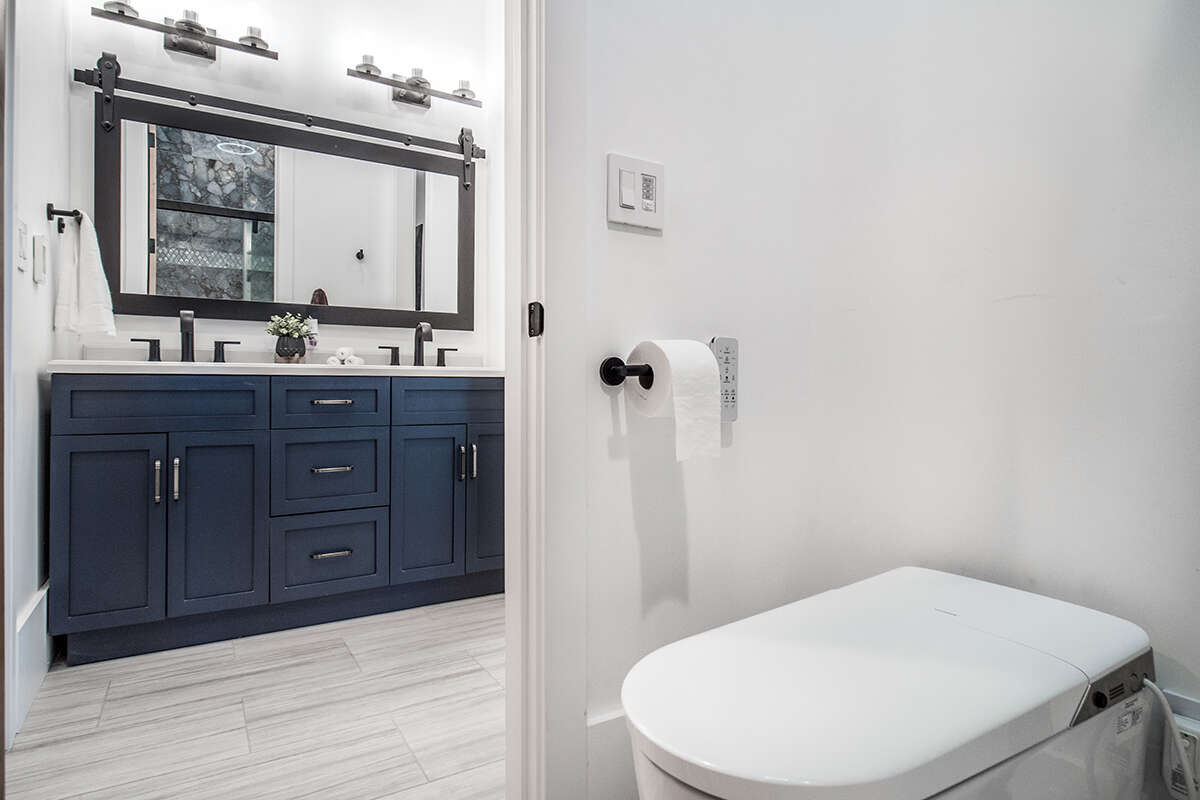

    The large master suite is for more than just for sleeping. This spacious dwelling details a comfortable bedroom, awesome en suite, and his and her walk-in closets. The master bathroom has all the amenities you could want with a tile shower and a separate whirlpool tub, his and hers vanities, and a private toilet. On the opposite end of the home are four additional bedrooms allowing suitable privacy from the master. Each bedroom is paired with another through Jack and Jill bathrooms and share a living space that would be perfect for a game room or a playroom for younger children.

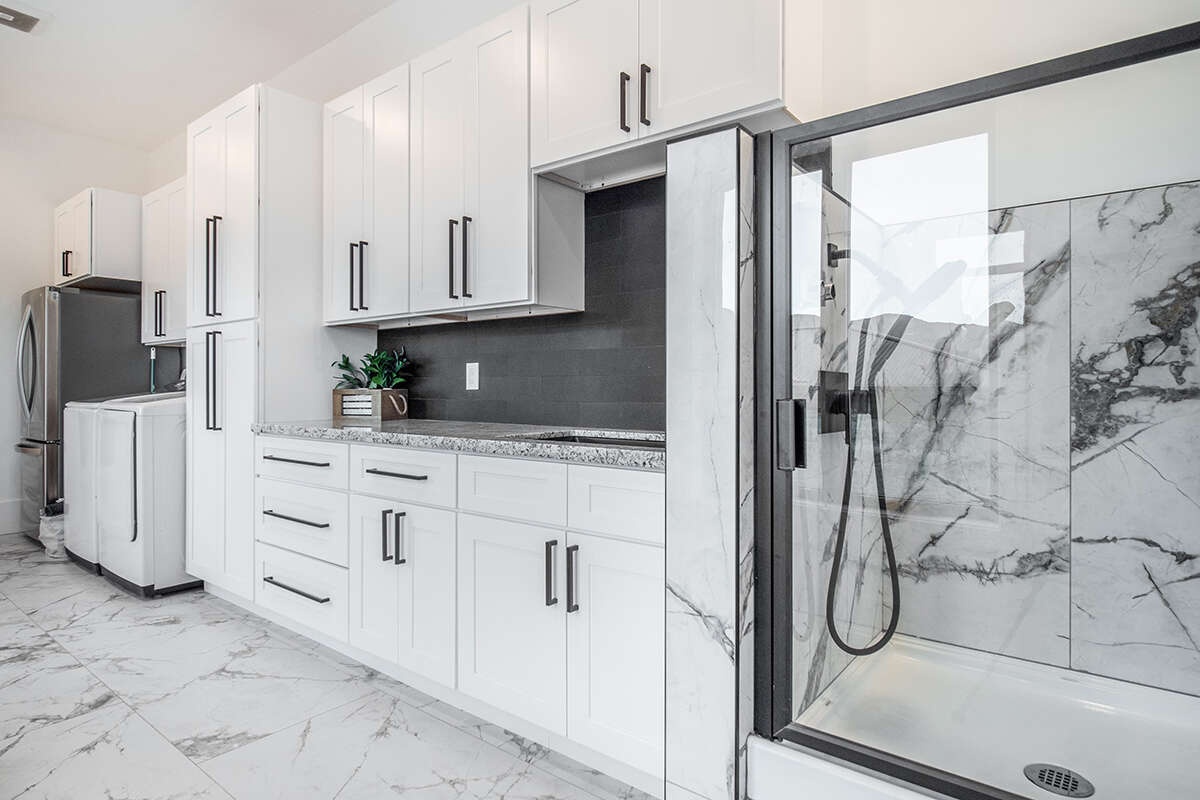

    The rear of the house that opens to the garage features a huge mudroom and laundry room in a shotgun-style entry making it easy to move from one chore to the next.

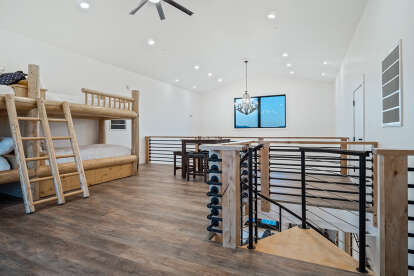

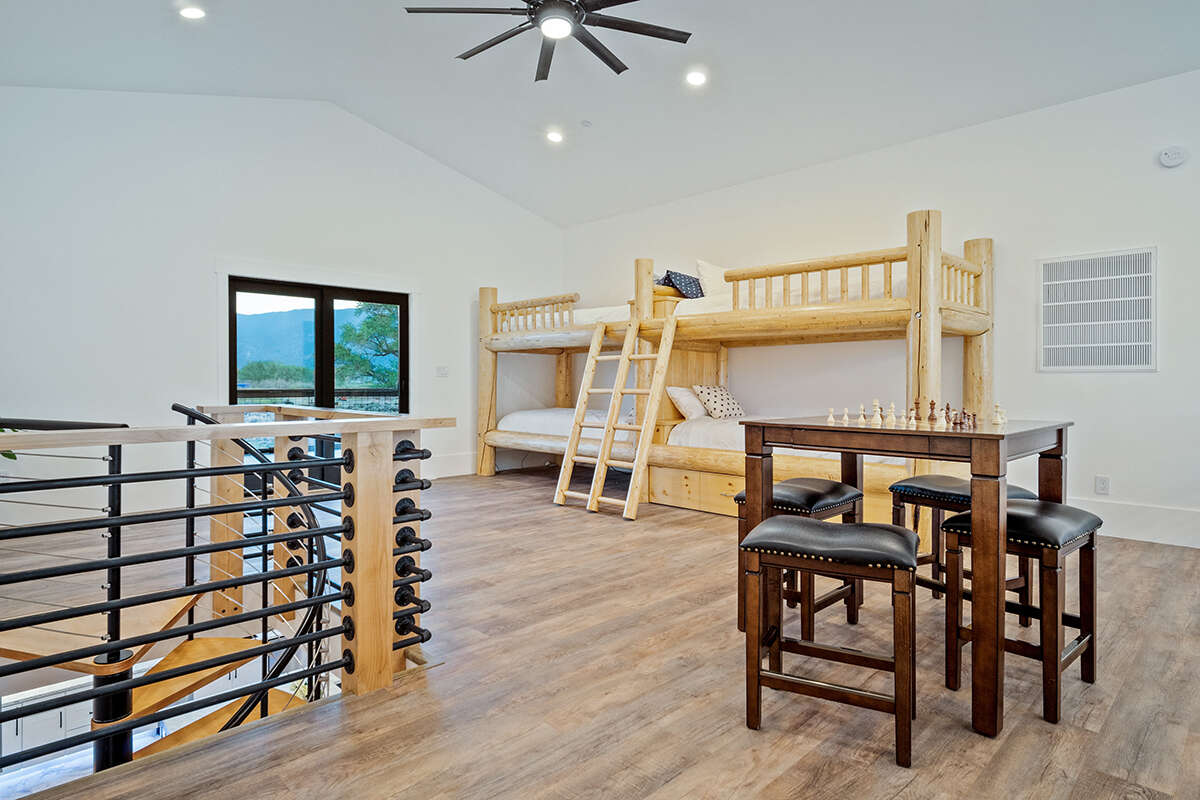

    An option loft is located above the great room if desired. This additional space is perfect for a game room or home office.
