Craftsman Plan 8318-00064

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,464
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 1
Width 60'
Depth 80' 8"

Floorplan Drawings

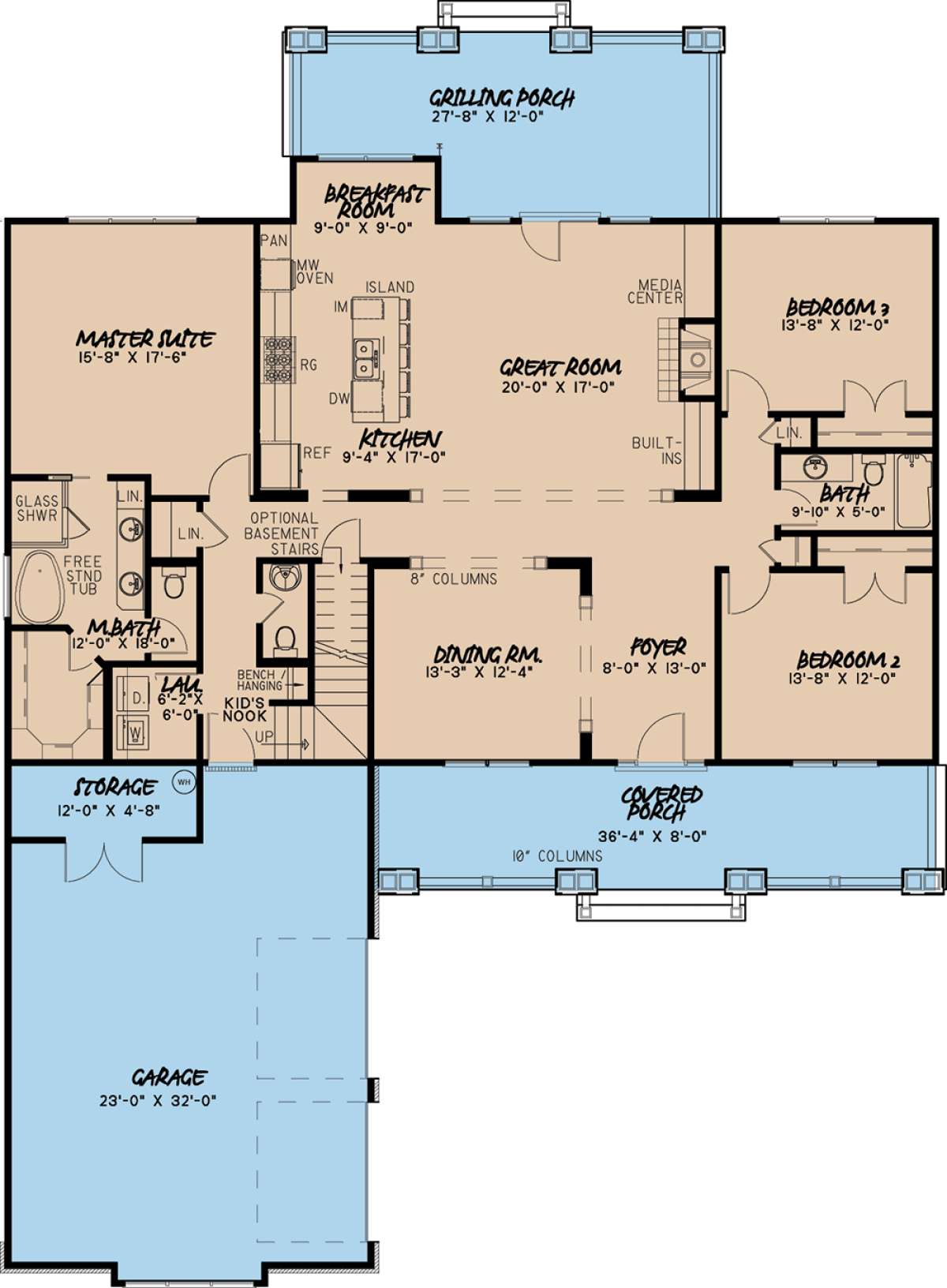

Floorplan 1

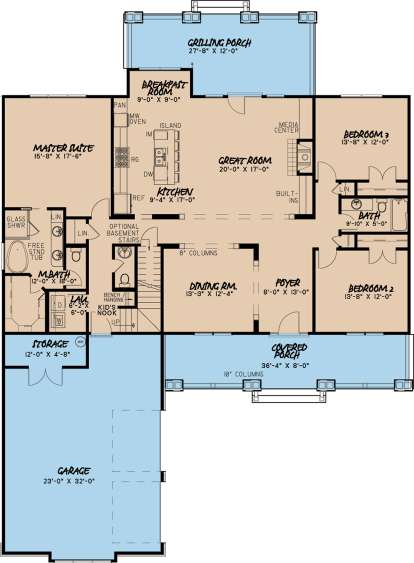

Floorplan 1 for House Plan #8318-00064

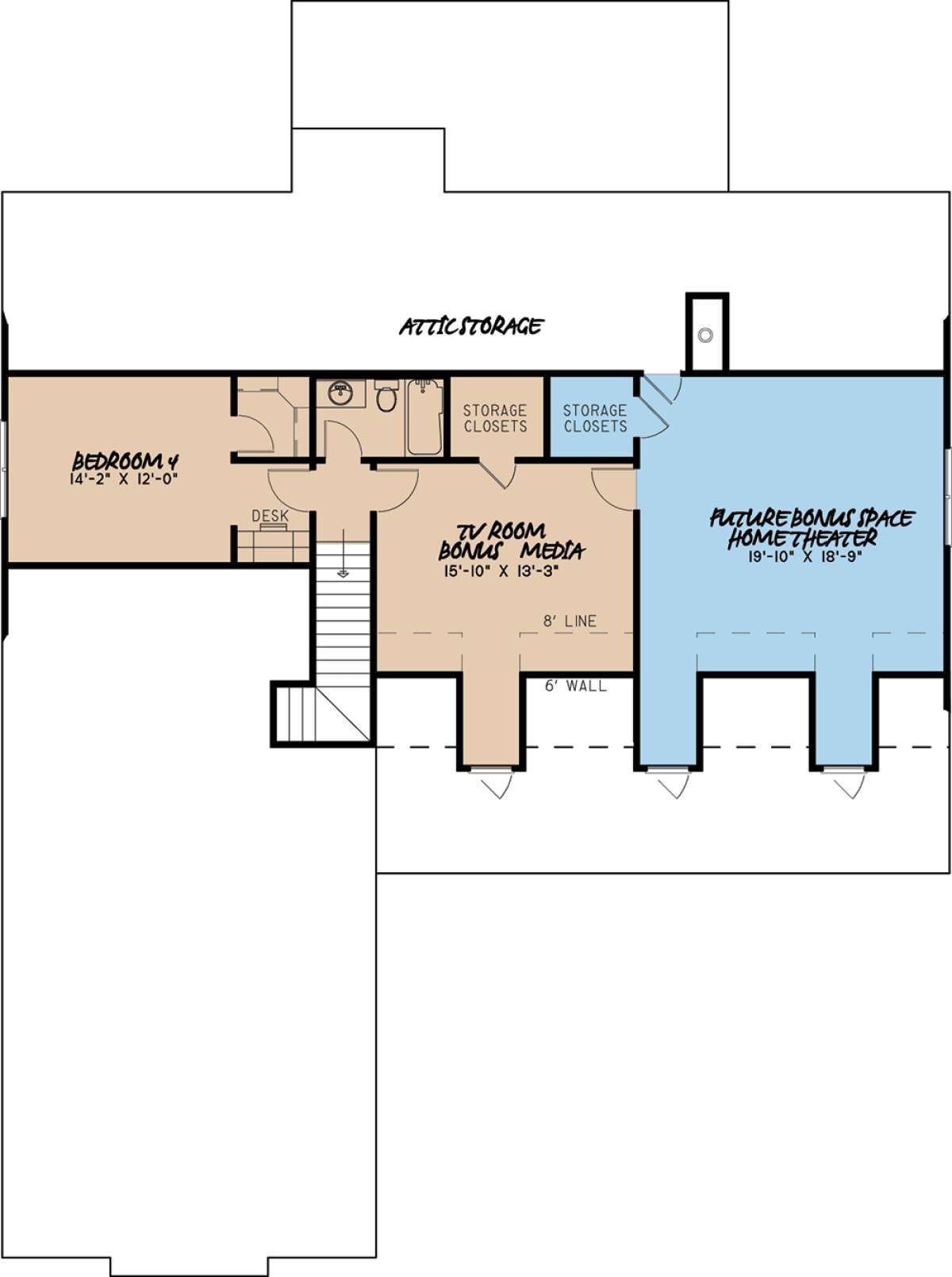

Floorplan 2

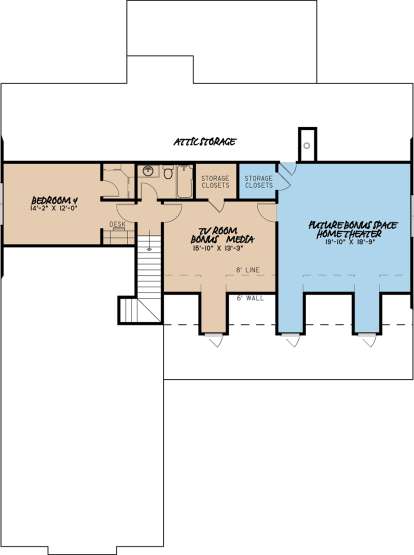

Floorplan 2 for House Plan #8318-00064


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Lovely construction features and an abundance of interior living space are featured in this Craftsman house plan. There is a courtyard entry into the two car garage, a triple set of overhead window dormers and complementary window views on the exterior of the home. The front covered porch is highlighted with great curb appeal with its open railing, stone pillars and double columned beams and it’s an ideal spot to relax or greet family and friends. The family friendly layout features approximately 2,464 square feet of living space with a large open floor plan, four bedrooms and three plus baths. In addition to the heated square footage, there is overhead bonus space which measures 758 square feet that would be perfect expansion space whether a fifth bedroom and extra bath, a home theatre/media room or a multi-purpose family room. The large covered porch provides entrance into the home’s interior where there is an open floor plan that includes a formal dining room, great room, kitchen and breakfast nook. The dining room features perimeter columns, double window views and wonderful space for family or special occasion meals. The great room is spectacular with its spacious quality, warming fireplace, built-in cabinetry and access to the rear outdoor space. The grilling porch is quite large, measures in excess of 27’ x 12’ and offers ideal entertaining and relaxing space. The gourmet kitchen is highlighted with a center island and additional seating, a separate pantry and plenty of counter and cabinet space. The casual dining nook is a bright and airy spot to enjoy family meals. A large storage room is featured in the garage and coming into the home, a kid’s nook, bench, the guest powder room and laundry room are found. The master suite is situated on one side of the home and offers generous floor space with amazing window views. There is a modern master bath with dual vanities, a free standing tub, separate shower and private water closet. The master walk-in closet is situated at the rear of the suite for privacy. Two bedrooms are located across the home and they are identical in every way, measuring 13’8’ x 12’ with double window views and plentiful closet space. There are double hall closets and the shared bath features an extended vanity, a toilet area and a tub/shower combination. Upstairs is the fourth bedroom with a walk-in closet and nearby full bath. There are storage closets off each of the bonus spaces for seasonal and household items. This lovely home features a striking exterior and an interior floor plan with loads of living space.
