Ranch House Plan 8318-00041

Sq Ft1,800
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width54' 0"
Depth49' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

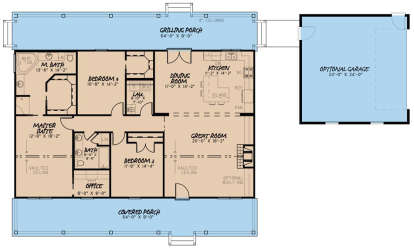

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main for House Plan #8318-00041
Main
Main for House Plan #8318-00041


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

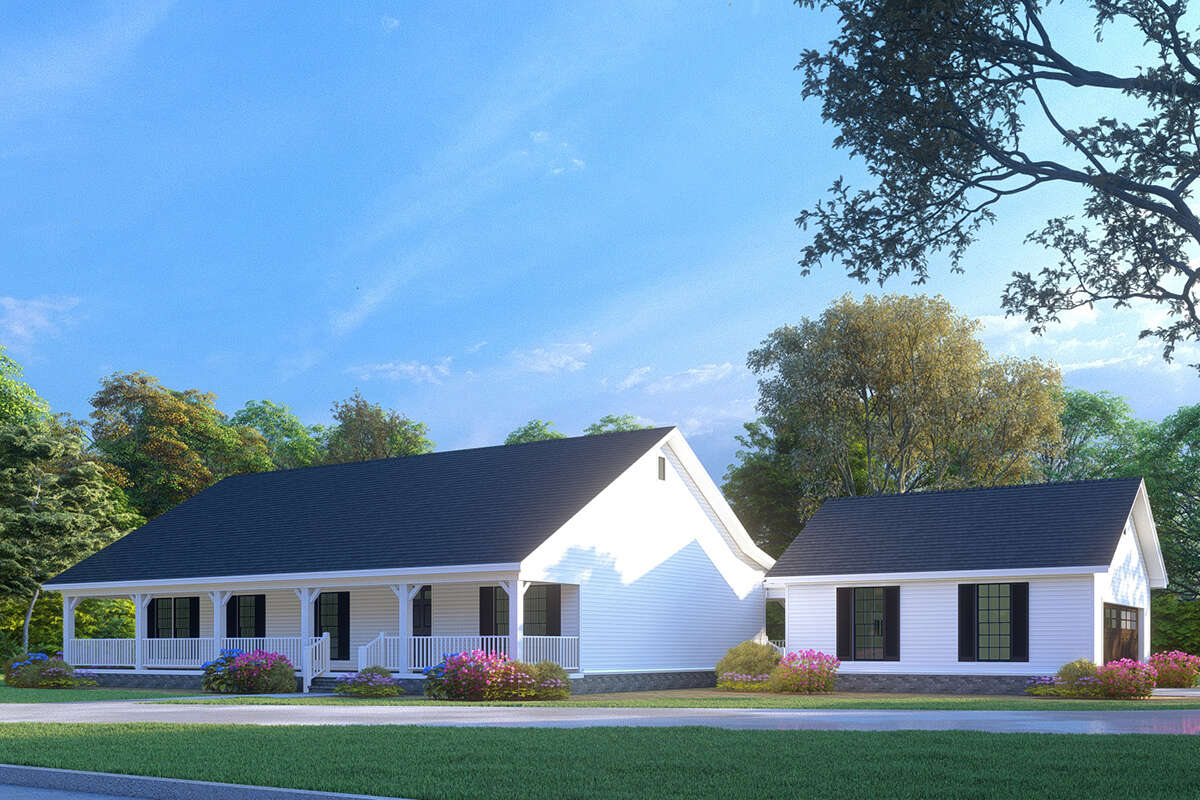

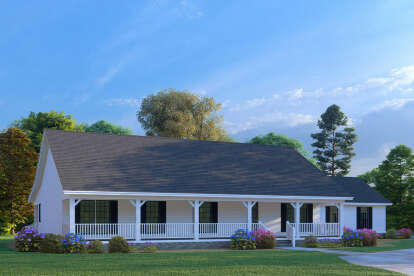

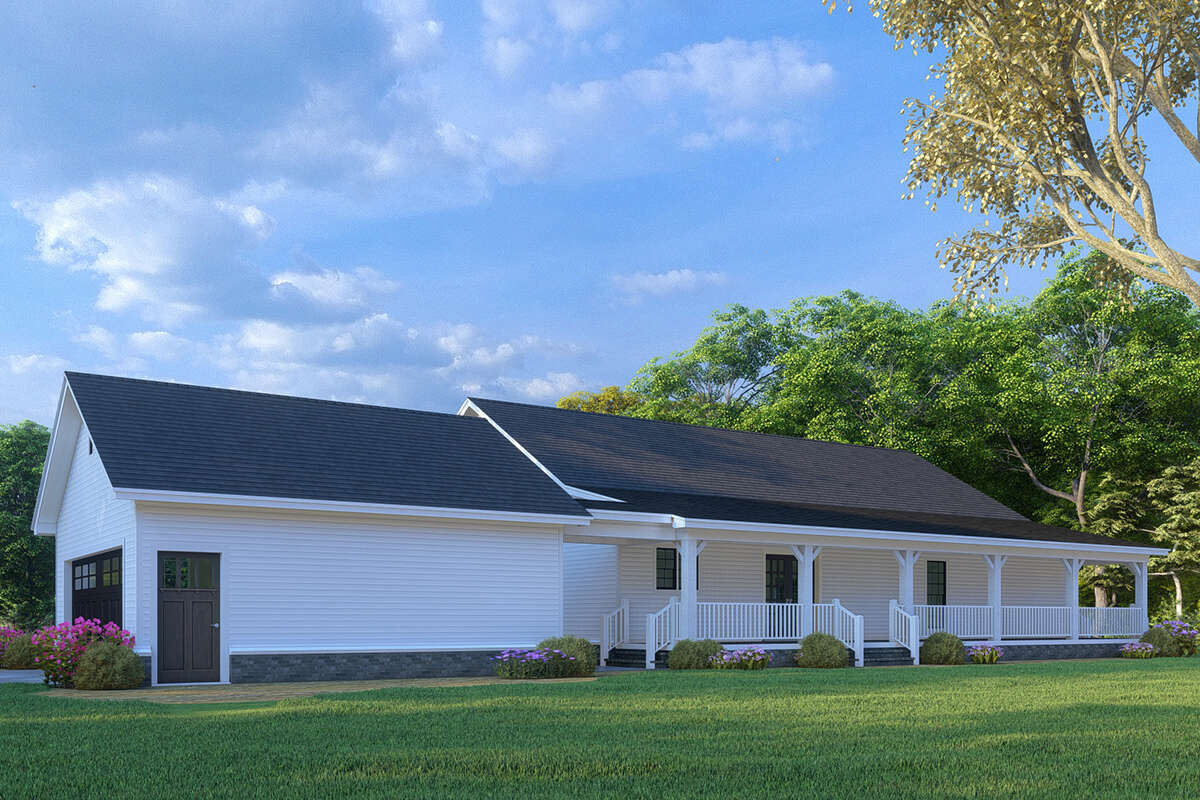

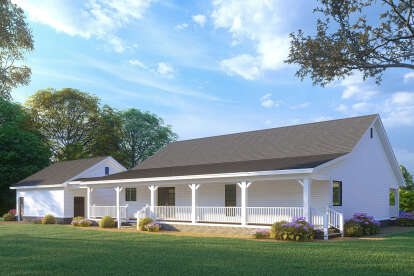

An elongated exterior bursting with rustic charm is found in this Ranch house plan. An off-center walk-up staircase, open railing spanning the front porch and substantial beams along the way add character and warmth to the home’s exterior. A simple roofline and near identical rear covered porch give this special plan plenty of room to relax and entertain outdoors. There is a detached two car garage which provides plenty of vehicle and storage space. The approximate 1,800 square foot interior features three bedrooms and two baths in one level of living.


Accessing the interior of the home is a vaulted great room which is quite large with a warming fireplace, optional built-in cabinetry and window views overlooking the front covered porch. Beyond the great room are the kitchen and dining space where an L-shaped island provides plenty of prep and casual dining space and there is a set of French doors leading to the rear covered deck; perfect for dining al fresco, grilling out or just enjoying the great outdoors. Travelling down the hallway, there is a laundry room, three bedrooms and two baths along with an office. The two secondary bedrooms are spacious and each provides a window view and great closet space. There is a shared hall bath with dual vanities and a linen closet as well as the family laundry room. The owner’s suite occupies the end of the home and features great floor space; the bedroom offers a vaulted ceiling and there is an adjacent, privately enclosed office for convenience. The primary bath features a separate shower, a whirlpool tub, separate vanities, and a toilet area while the walk-in closet provides excellent storage for clothing and other accessories. This Ranch house plan, while simple, features a perfect set-up for a small family or young professionals.
