Small House Plan 8318-00005

Sq Ft844
1/2 Baths0
Width28' 6"
Depth42' 0"
Small House Plan #8318-00005 Elevation Photo

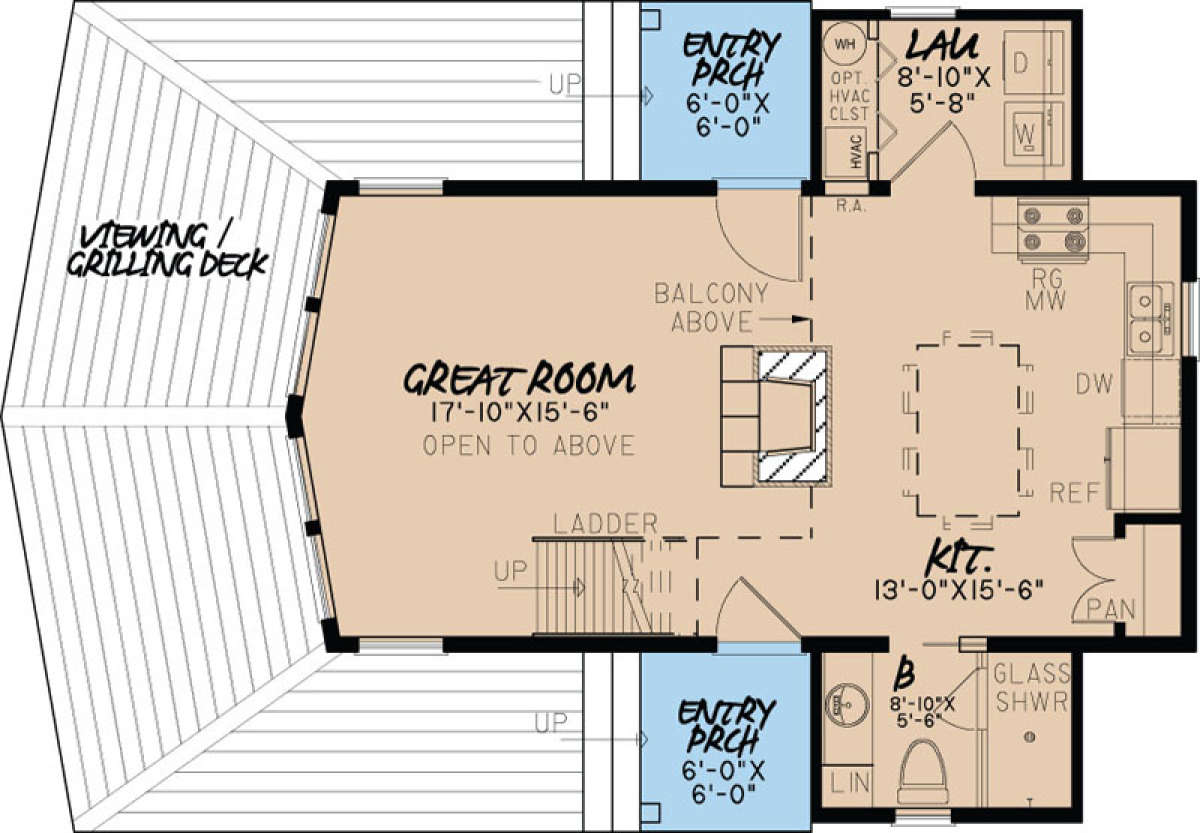

Floorplan 1
Floorplan 1 for House Plan #8318-00005

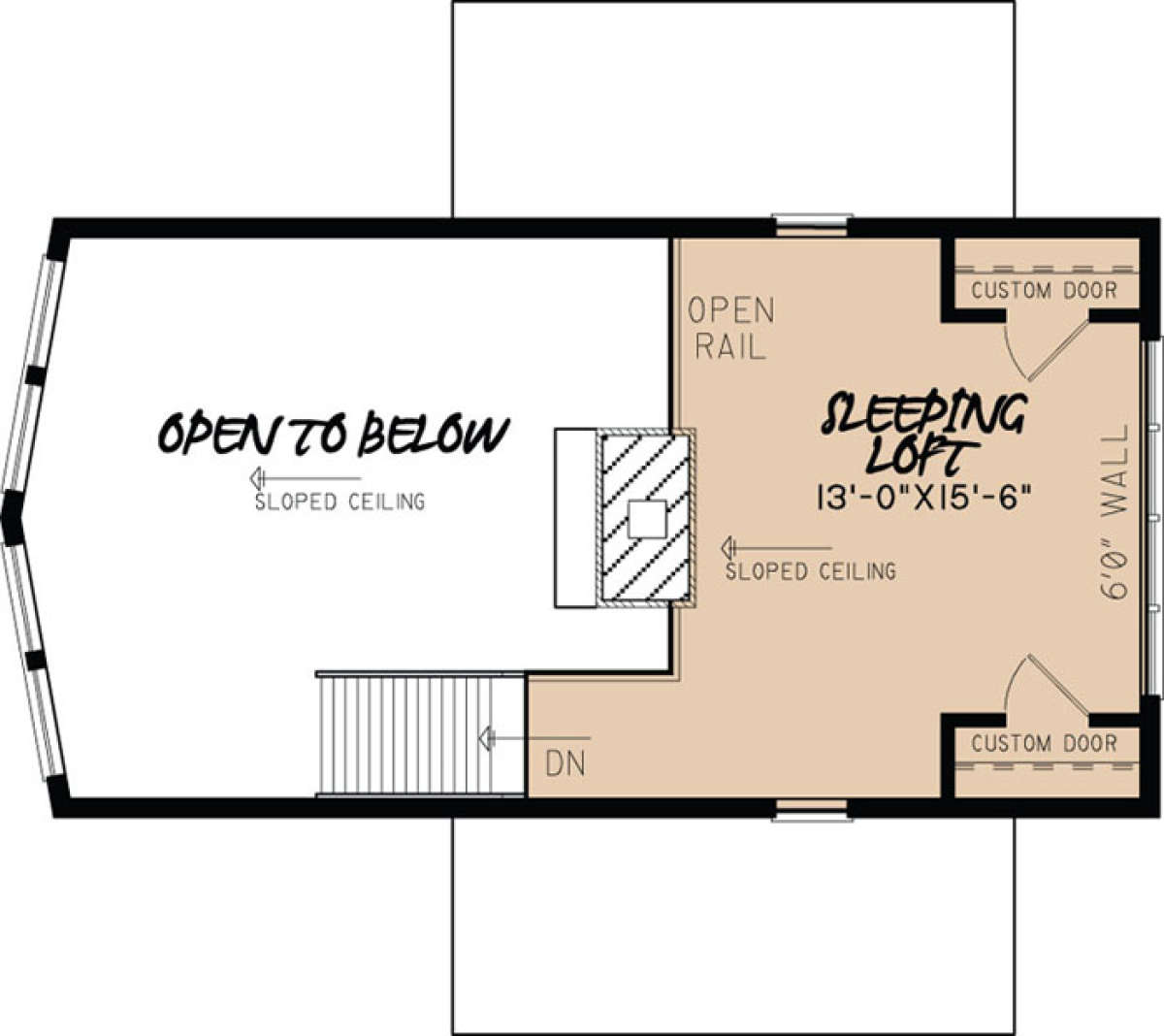

Floorplan 2
Floorplan 2 for House Plan #8318-00005
Small House Plan #8318-00005 Elevation Photo
Floorplan 1 for House Plan #8318-00005
Floorplan 2 for House Plan #8318-00005
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8318-00005
Floorplan 2 for House Plan #8318-00005
Floorplan 1
Floorplan 1 for House Plan #8318-00005
Floorplan 2
Floorplan 2 for House Plan #8318-00005

Frequently Asked Questions


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Small house design features a great exterior and layout for a Vacation home; conversely, the home could be utilized as a permanent residence for artists/writers, young professionals or empty-nesters. The exterior is composed of warm woods, stonework, a plethora of window panels and views as well as double entry points into the main floor of the home. A wide and attractive cantilevered roof and stone chimney add character and visual appeal to the home’s exterior. The interior floor plan is highlighted with approximately 844 square feet of living space with one bedroom, one bath and a huge open floor plan in 1.5 stories. This is a fantastic house design for a narrow and/or small property lot with its respective 28’ plus width and 42’ depth whether it’s a lakefront or mountain property lot. On either side of the home’s front exterior are walk-up entry points that access the interior of the home. These entry points offer coverage from inclement weather and there is an enormous focal viewing and grilling deck located from either point onto the front of the home; great space for entertaining, cook-outs or relaxing while enjoying the sunshine or night gazing at the stars. Either entry point into the home features access onto the open floor plan, which is two storied, large and is highlighted with a brightly lit interior. The great room is quite spacious and features a warming fireplace and a multitude of lovely window views with all types of living/sleeping arrangements available within the space. The subsequent kitchen is highlighted with a large amount of dining space, a separate pantry and plenty of counter and cabinet space. The enclosed laundry/mechanical room features direct access from the kitchen and there is a full bath on the main floor which is highlighted with a vanity, linen closet, a toilet area and a glass enclosed shower.

Upstairs, extensive and beautiful overviews onto the open space below is available along with a huge sleeping loft. This loft is perfect as a studio, multi-purpose room or sleeping quarters for overnight visits from family and/or guests. This space is naturally sunlit from the front window views as well as a rear wall of windows on the back of the room. Double closets with custom doors provide good clothing and storage space. This small house plan is uniquely designed for those who value open concept layouts, plenty of natural sunlight and the great outdoors.
