Craftsman Plan 8314-00007

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,540
Beds 3
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 104'
Depth 48' 4"

Floorplan Drawings

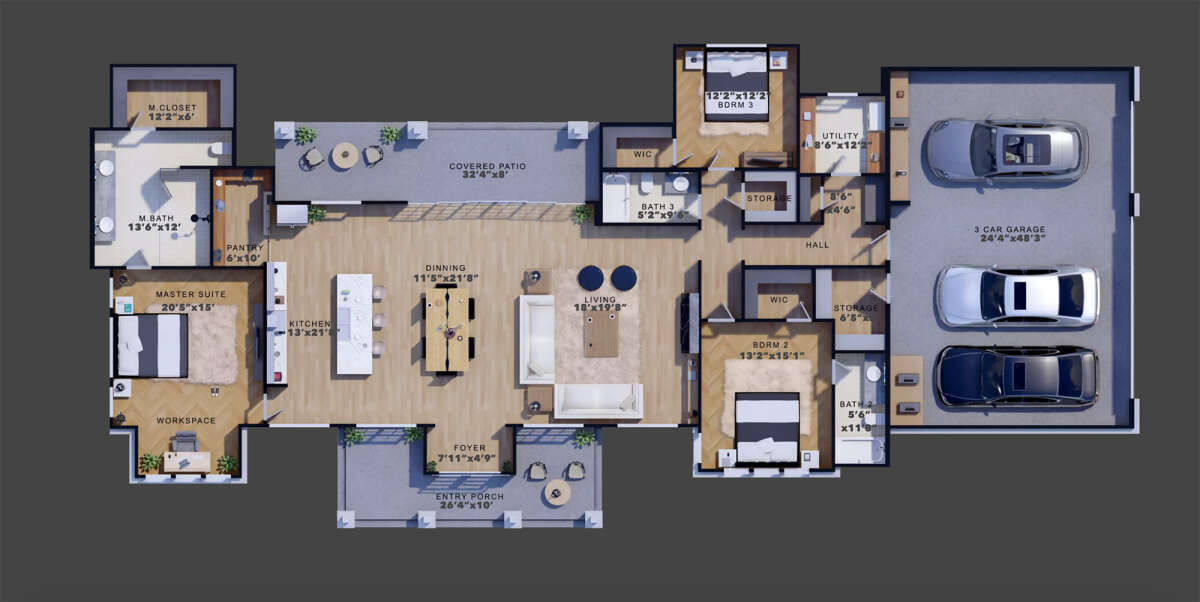

Main Floor
Main Floor  for House Plan #8314-00007


What's Included in these plans?

Cover Page with general notes
General Measurements (all levels)
Roof Design

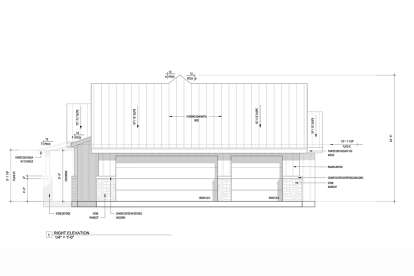

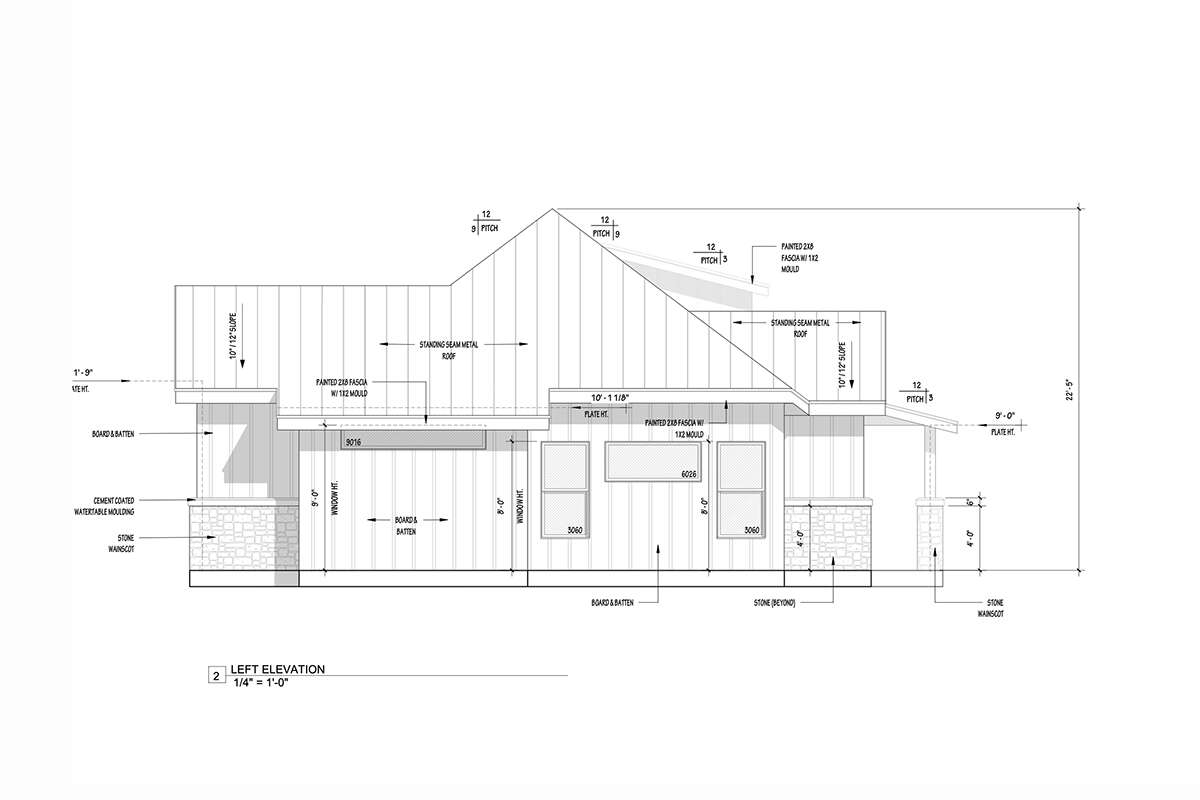

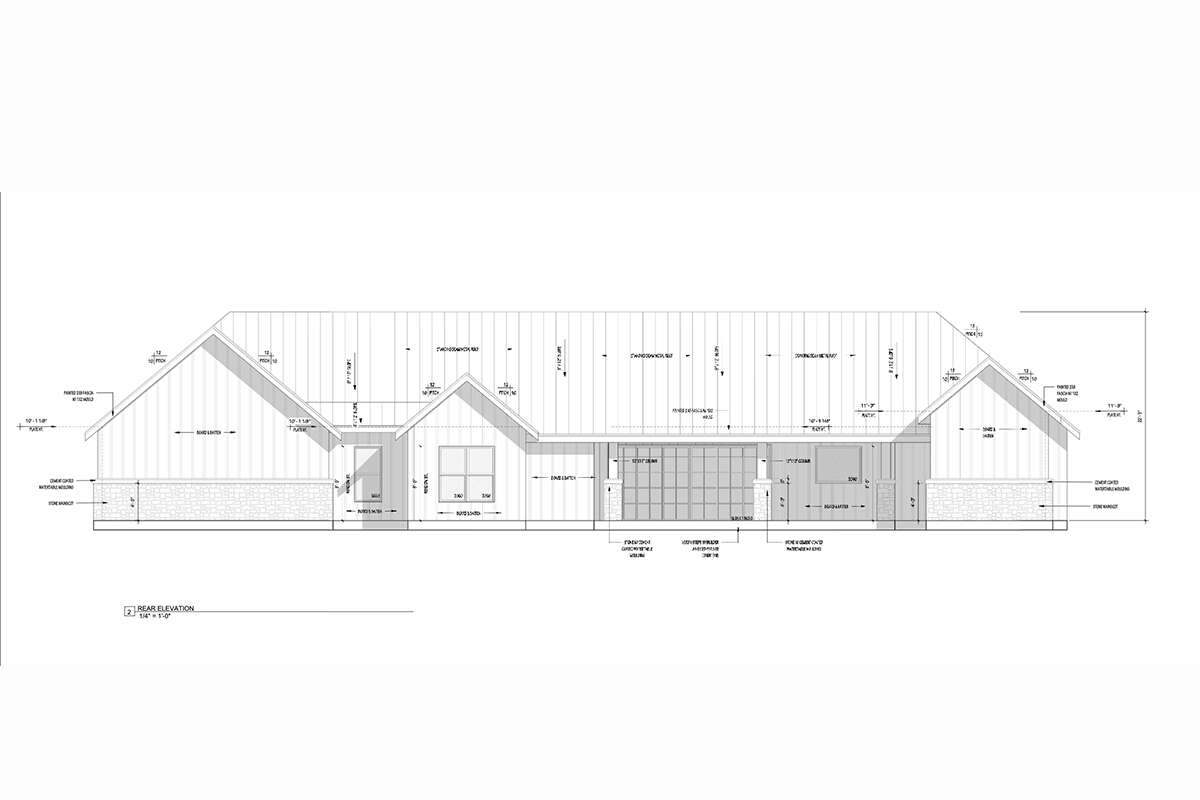

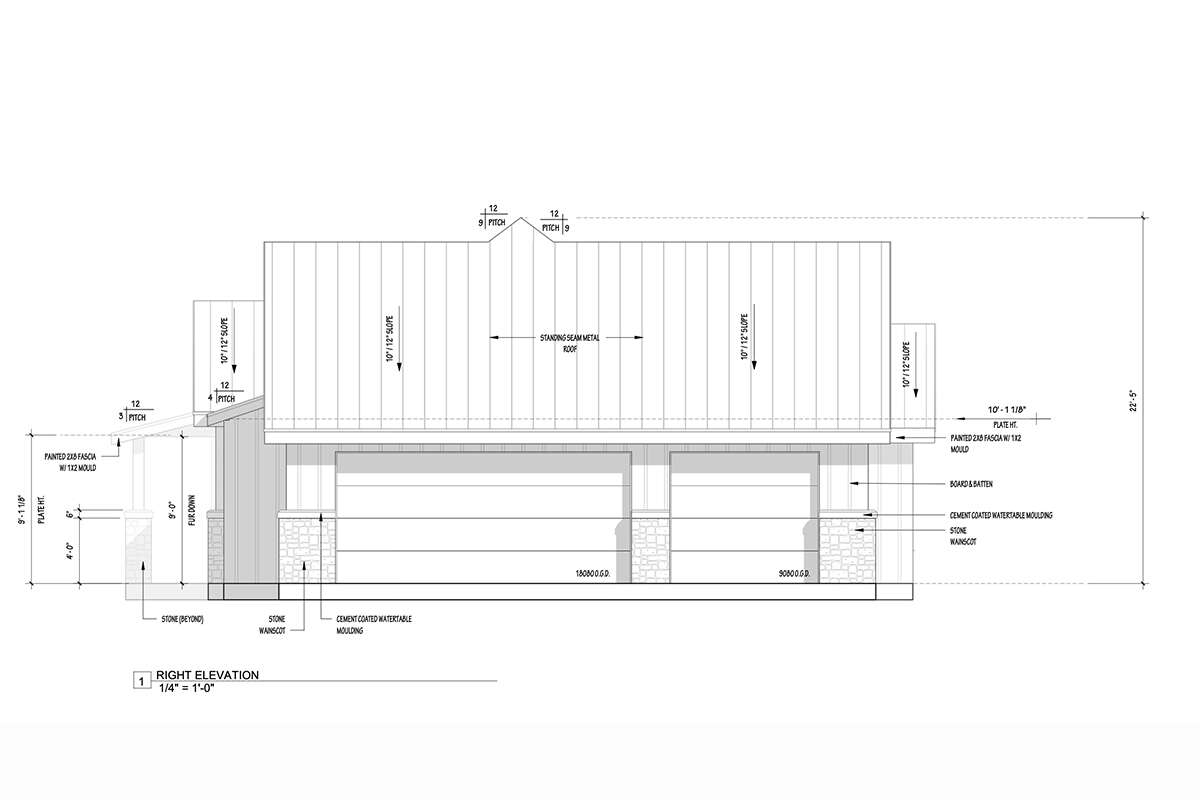

Elevations pages (all angles)
Foundation Plan
Electrical Plan
Typical Wall Detail (interior and exterior)
Reflective Ceiling Plan
Interior Elevations
Cabinet Schedules
Lateral Section (on all plans featuring roof pitch less than 4:12

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Craftsman house plan features 2,540 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
