Ranch House Plan 7806-00019

Sq Ft1,641
1/2 Baths0
Width70' 8"
Depth57' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

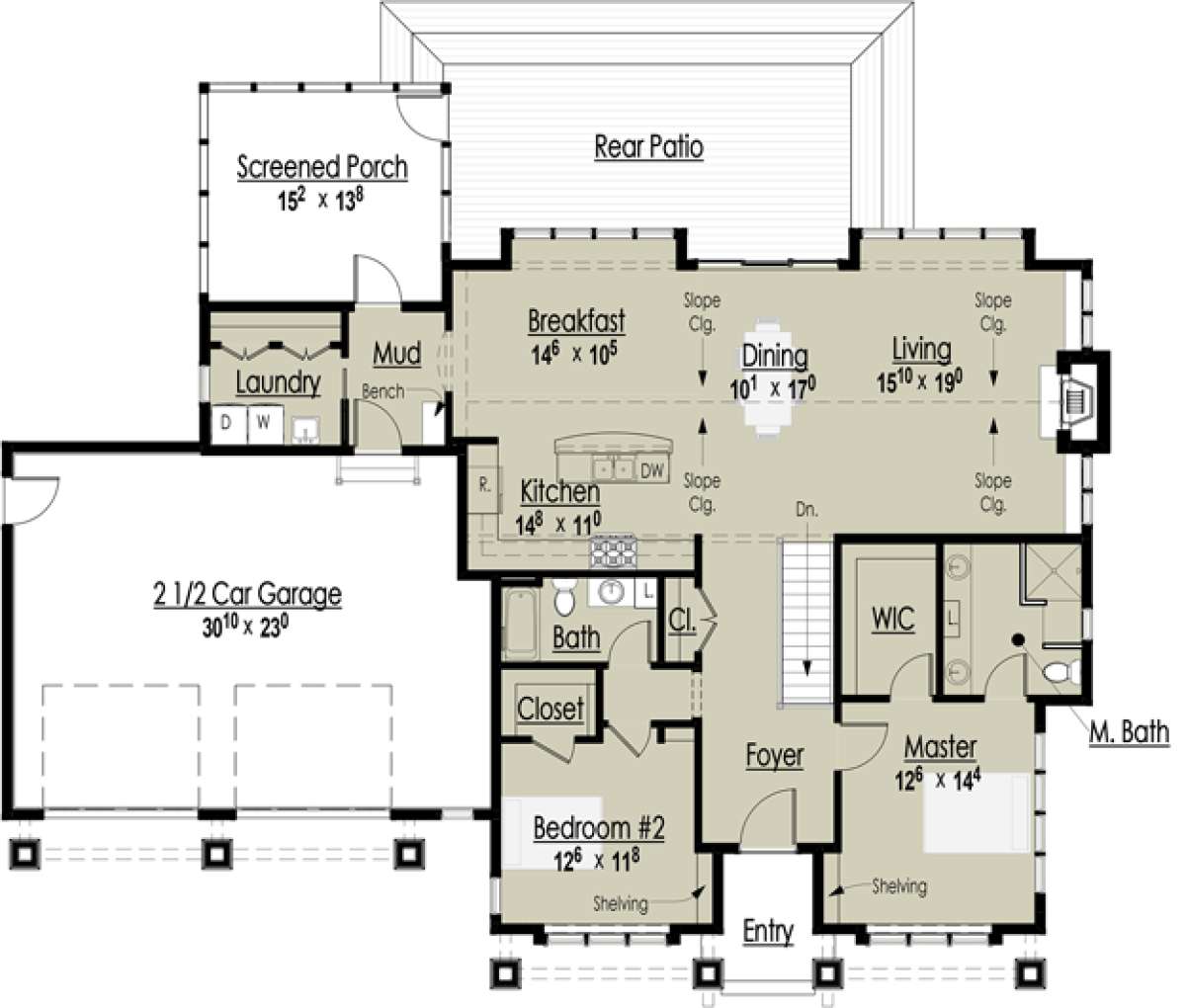

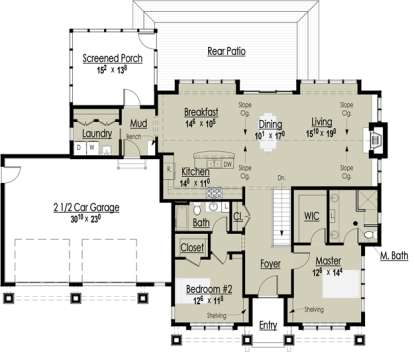

Floorplan 1 for House Plan #7806-00019
Floorplan 1
Floorplan 1 for House Plan #7806-00019

Frequently Asked Questions


What's Included in these plans?

  • Floor plan
  • Foundation Plan
  • Exterior Elevations
  • Building Section(s)
  • Wall Section
  • Roof Plan
  • Door Schedule
  • Window Schedule
  • 3-d Views of Exterior
  • Structural Notes
  • Electrical Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

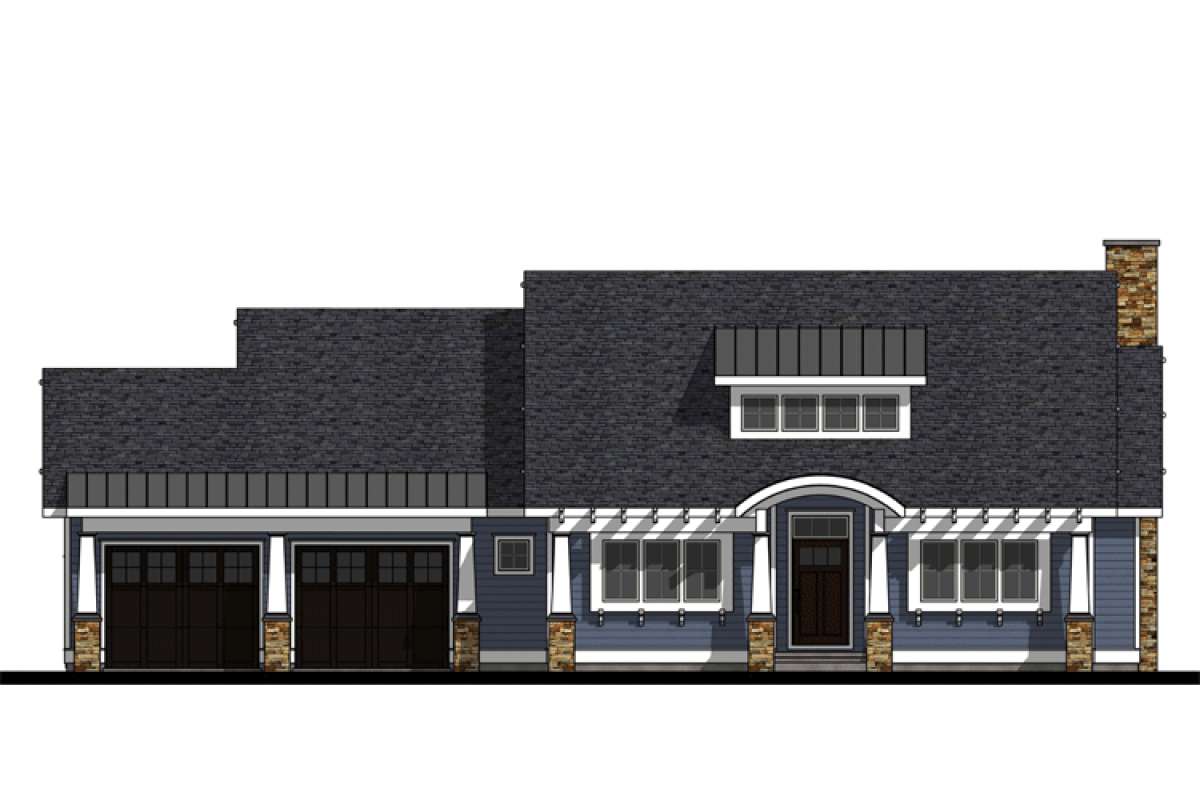

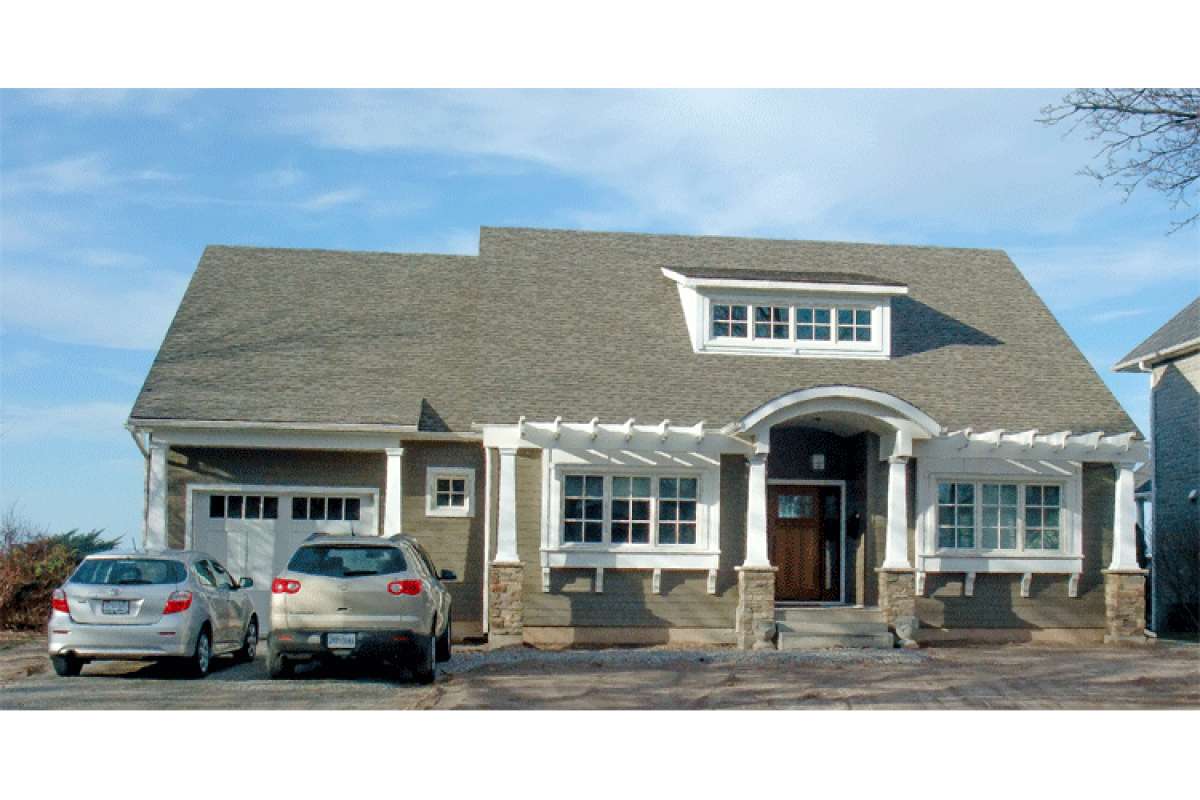

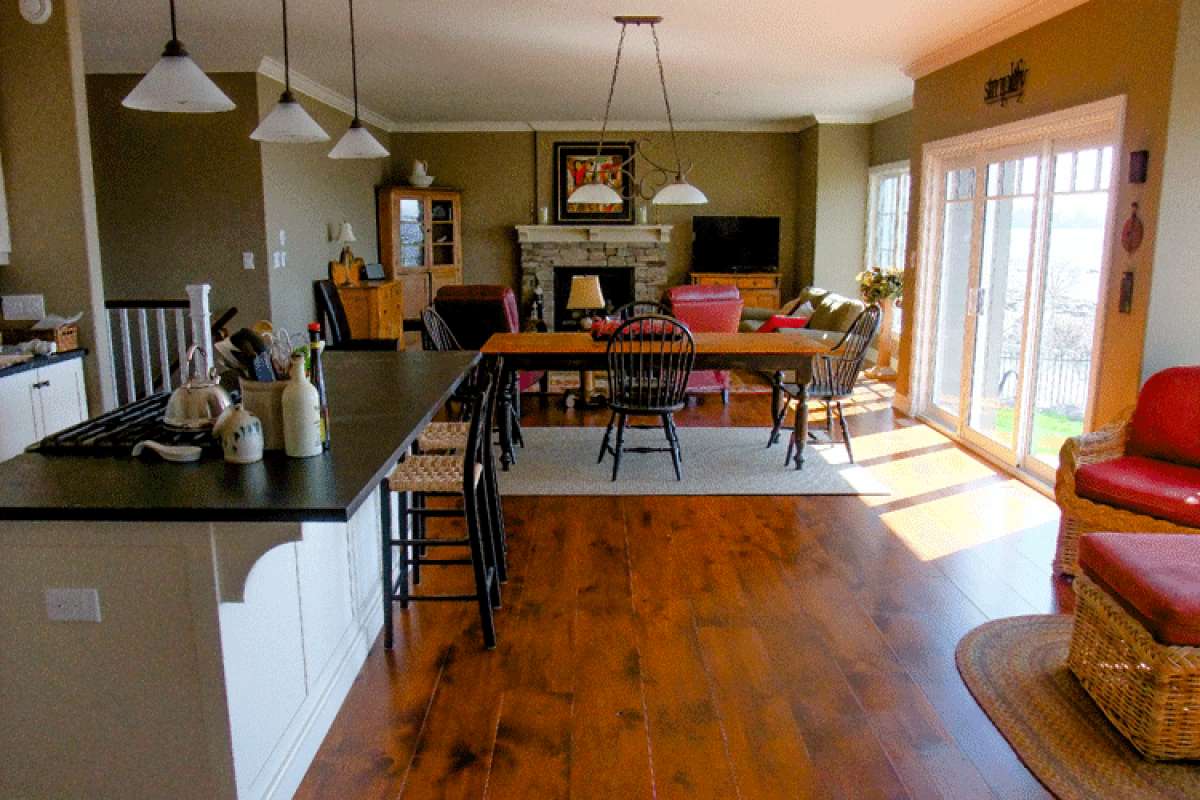

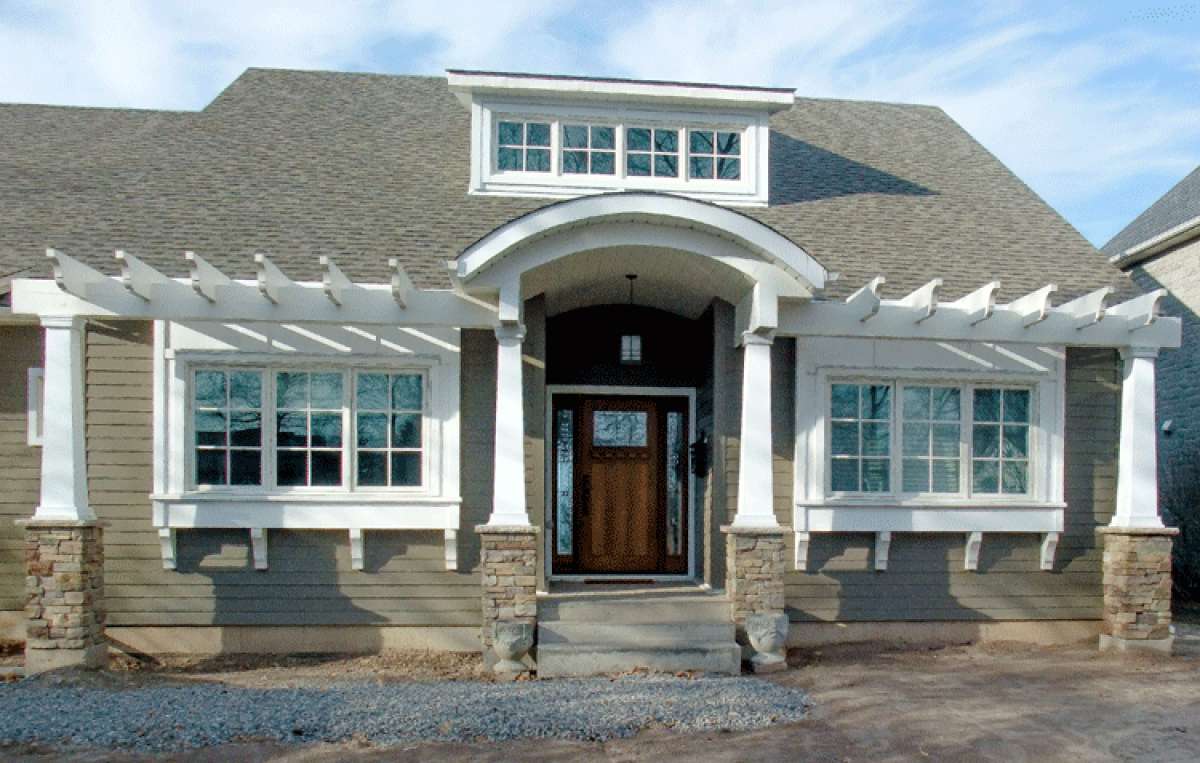

This one story house plan features a lovely exterior and a spacious interior floor plan that is perfect for family living. The façade of the home consists of interesting architectural elements featuring details designed to captivate the eye and heart. There are exposed rafters, an overhead shed dormer, brick pillars and substantial tapered beams. Beautiful window views and a front covered porch add instant charm and character to the façade while the two and-a-half car front loading garage is similarly styled. Great vehicle and storage space is found in the garage and there is a pedestrian door for the easy removal of lawn and sporting equipment. The interior floor plan offers approximately 1,641 square feet of living space with two bedrooms and two baths. The home is situated on a basement foundation that offers an additional 1,832 square feet of potential expansion space; wonderful possibilities could exist in the space – an in-law suite, casual family living space, additional bedrooms and baths – the possibilities are endless. This Ranch plan is highlighted with a front foyer entry that is large and opens onto the rear common rooms. There is a living room, measuring in excess of 15’ x 19’ with sloped ceilings, a warming fireplace and surrounding window views. The dining space is large, perfect for family and friends to dine in comfort and a great space for special occasion meals with rear porch/patio access for al fresco dining. The adjacent kitchen is grand and offers a large center island with plenty of additional counter and cabinet space. The breakfast room features great space for casual family dining and beautiful window views overlooking the outdoor area. There is a large rear patio and adjoining screened porch for outdoor entertaining, dining and relaxing. The laundry room is spacious with a sink area and closet space while the mudroom offers double entrances, from the garage and porch, into the home for tidy home maintenance.

The master suite features good floor space with built-in shelving and amazing window views on the front and side of the bedroom. There is an attached walk-in master closet and the master bath is highlighted with dual vanities, a shower, linen closet and a toilet area. The second bedroom is spacious with wonderful window views and there is a walk-in closet as well. A nearby hall bath features vanity space, a linen closet, toilet area and a tub/shower combination. This attractive one story house plan offers great design details, a basement foundation for expansion and a large amount of outdoor space.
