Craftsman House Plan 7806-00017

Sq Ft4,181
1/2 Baths1
Width83' 0"
Depth91' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

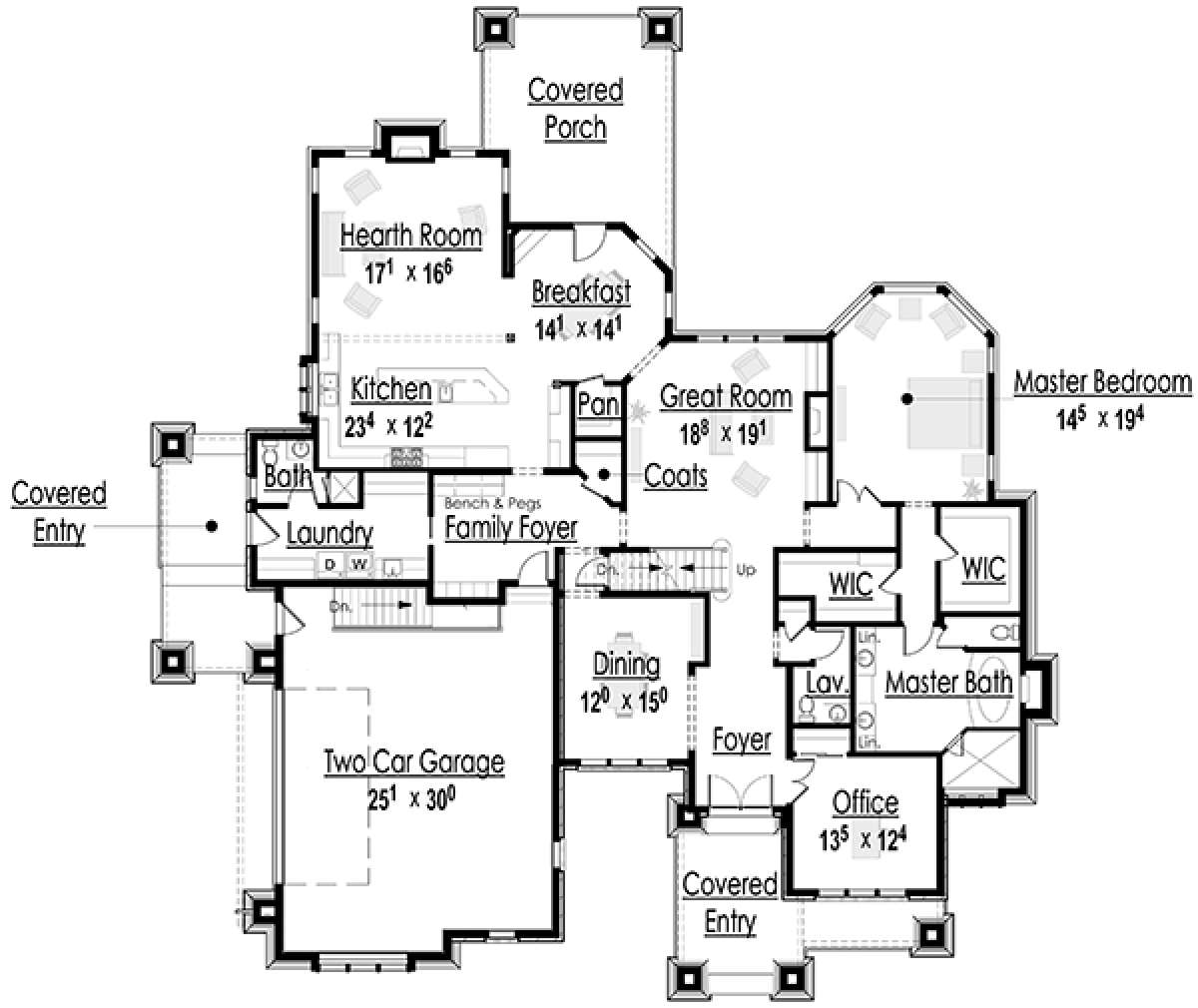

Floorplan 1 for House Plan #7806-00017

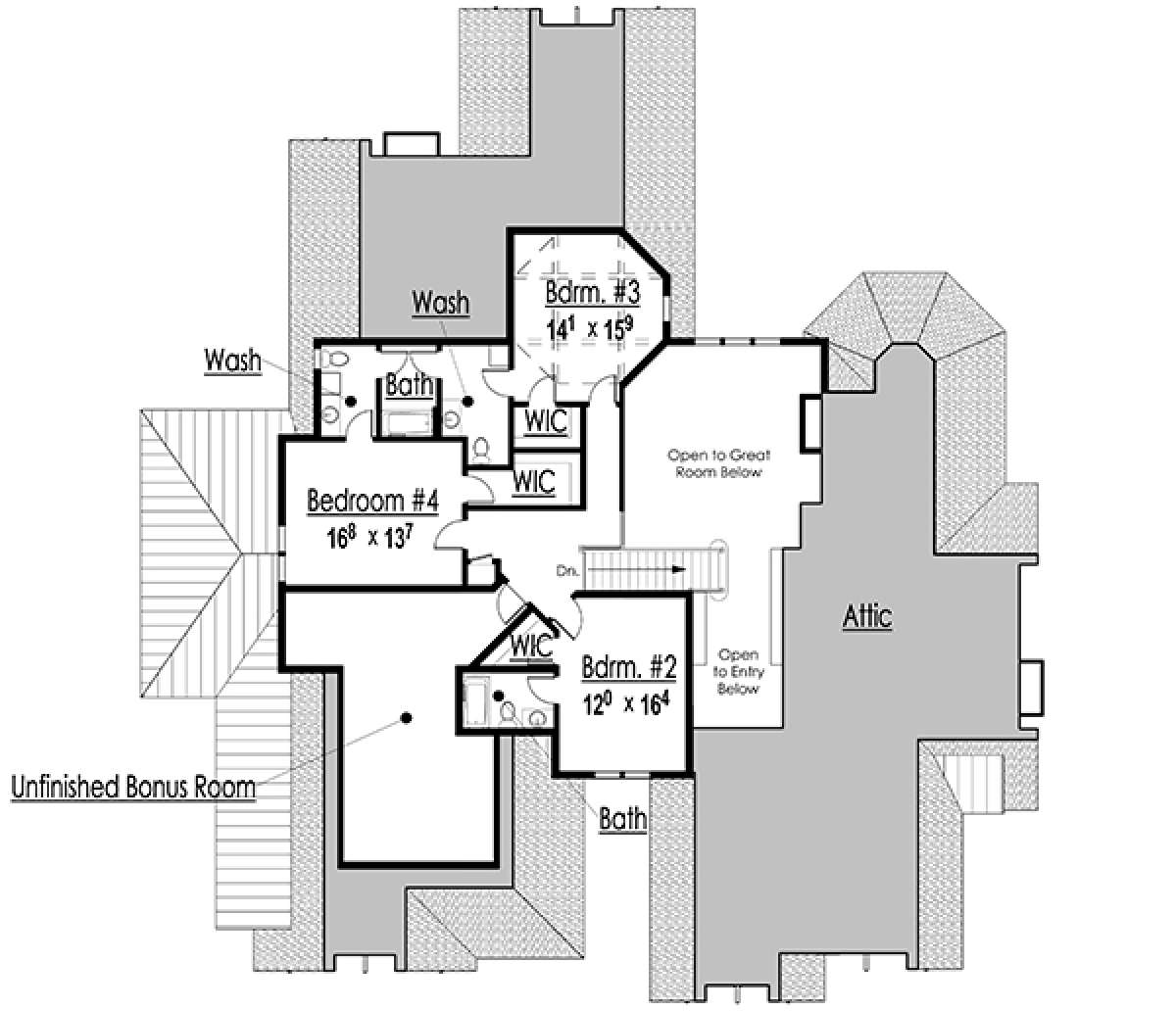

Floorplan 2 for House Plan #7806-00017

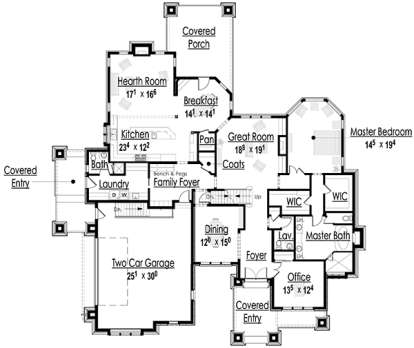

Floorplan 1
Floorplan 1 for House Plan #7806-00017
Floorplan 2
Floorplan 2 for House Plan #7806-00017

Frequently Asked Questions


What's Included in these plans?

  • Floor plan
  • Foundation Plan
  • Exterior Elevations
  • Building Section(s)
  • Wall Section
  • Roof Plan
  • Door Schedule
  • Window Schedule
  • 3-d Views of Exterior
  • Structural Notes
  • Electrical Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

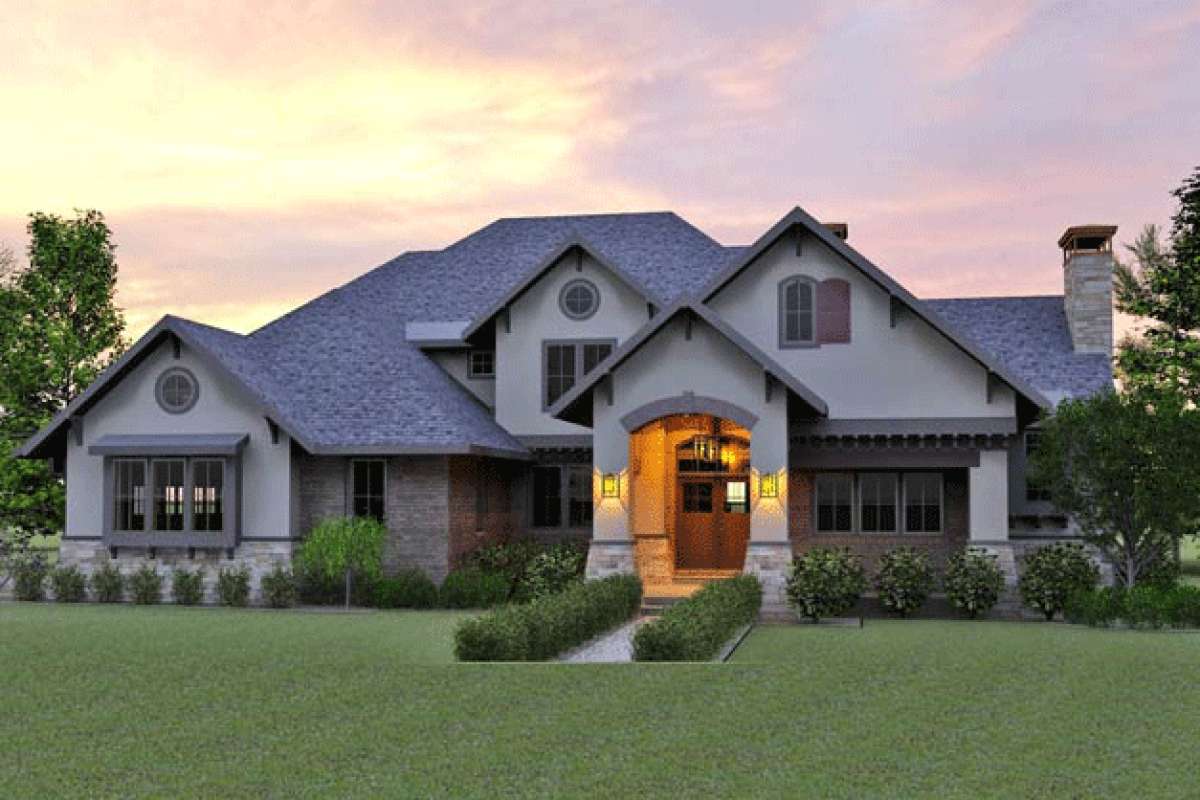

This large Craftsman house plan offers plentiful square footage, approximately 4,182, and a specially designed exterior that is chock full of unusual and attractive design features. Beautiful smooth stucco walls, stacked stone, gables with exposed rafters and an expansive front covered porch highlighted with a grand entrance give the home massive curb appeal. In addition to the impressive amount of interior space, there is additional expansion space in the bonus room and unfinished basement foundation. Finely detailed craftsmanship is also on display once you enter the home through the double door entry into the extended foyer. A private office is situated through French doors off the foyer and the formal dining room sits further along the foyer. The foyer extends to the rear of the home for uncompromising views and ultimately ends in the large great room where there is a warming fireplace, built-in cabinetry and a three panel window view. The rear of the home features great family space where a large kitchen with wraparound breakfast bar and separate pantry adjoins the hearth room with fireplace and there is a breakfast room with outdoor passage to the covered porch. There is a two car side loading garage that directly leads to the family foyer where there is a bench and hanging space for winter gear along with access to the utility room and a half bath. Additionally, there is a second point of entry/exit into the family utility room; a side covered porch for ease of clean up and maintenance of a tidy home. The master suite is situated on the main floor for privacy and features a bevy of elegant and spacious rooms. There is a large master bedroom situated in a large bayed window; two oversized his and hers walk-in master closets and an en suite master bath. The bath is composed of modern amenities that today’s homeowners seek and enjoy.
The second level landing offers overviews into the foyer and great room below while extending to include family bedrooms, baths, attic space and the bonus space. The bonus room features 273 square feet of additional space which could be utilized as a playroom for the children or a teen-age lounge for friends. The second bedroom is a private suite with good floor space, a walk-in closet and a private bath. Bedrooms three and four are slightly larger; each contains a walk-in closet, as well, and there are private vanities and toilet areas located within the jack and jill bath. A beautifully designed exterior, a spacious interior and loads of expansion space define this Craftsman home.
