Craftsman House Plan 7806-00011

Sq Ft5,878
1/2 Baths1
Width108' 0"
Depth98' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

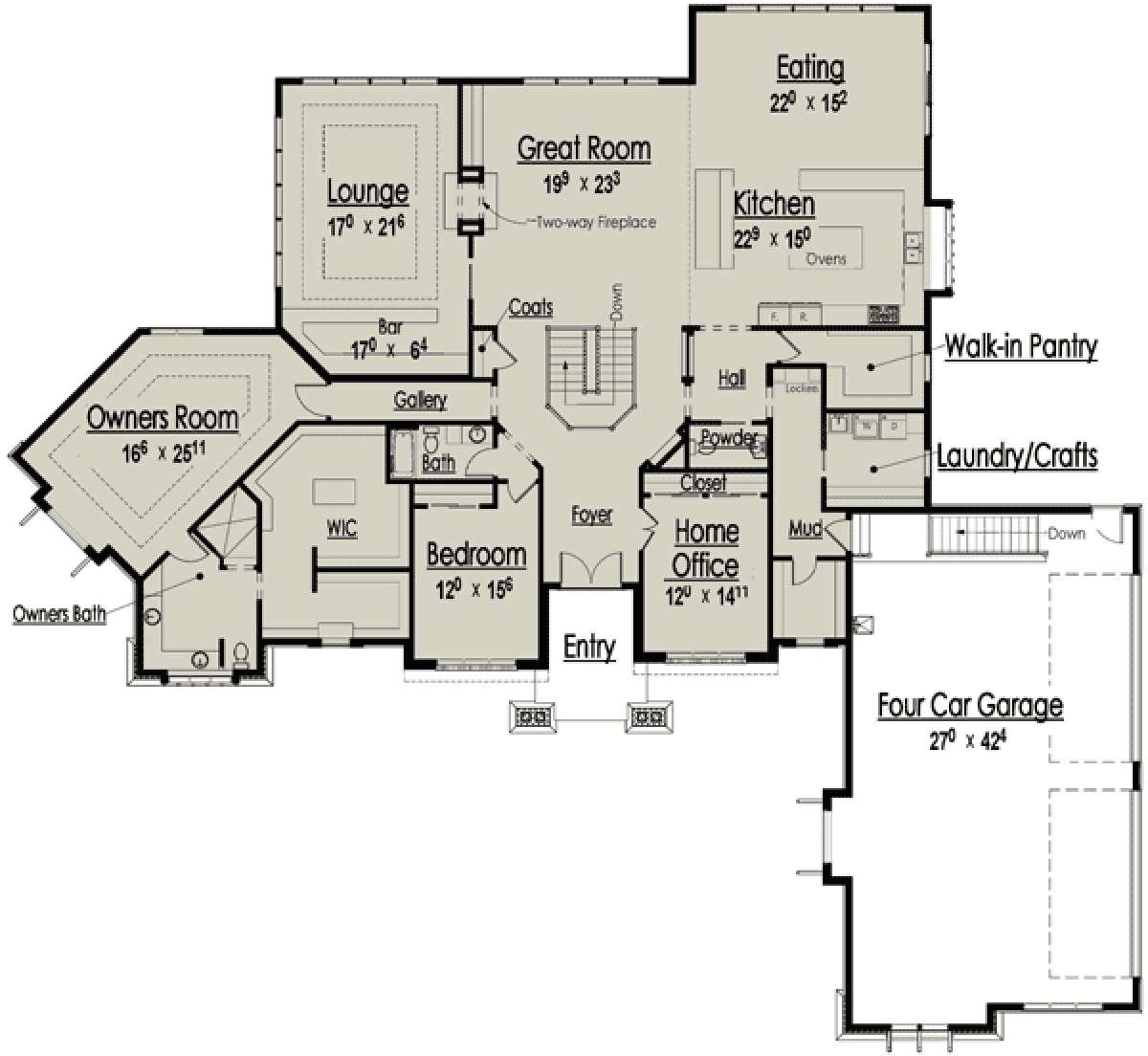

Floorplan 1 for House Plan #7806-00011
Basement for House Plan #7806-00011
Floorplan 1
Floorplan 1 for House Plan #7806-00011
Basement for House Plan #7806-00011

Frequently Asked Questions


What's Included in these plans?

  • Floor plan
  • Foundation Plan
  • Exterior Elevations
  • Building Section(s)
  • Wall Section
  • Roof Plan
  • Door Schedule
  • Window Schedule
  • 3-d Views of Exterior
  • Structural Notes
  • Electrical Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

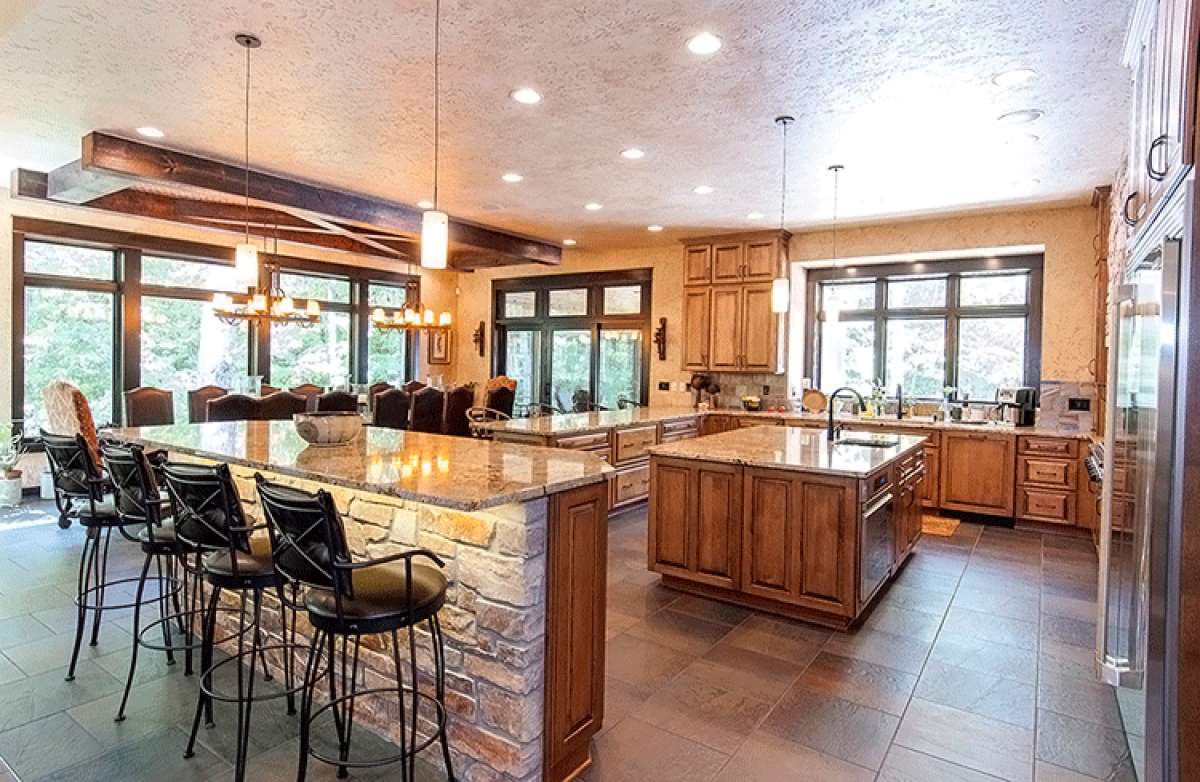

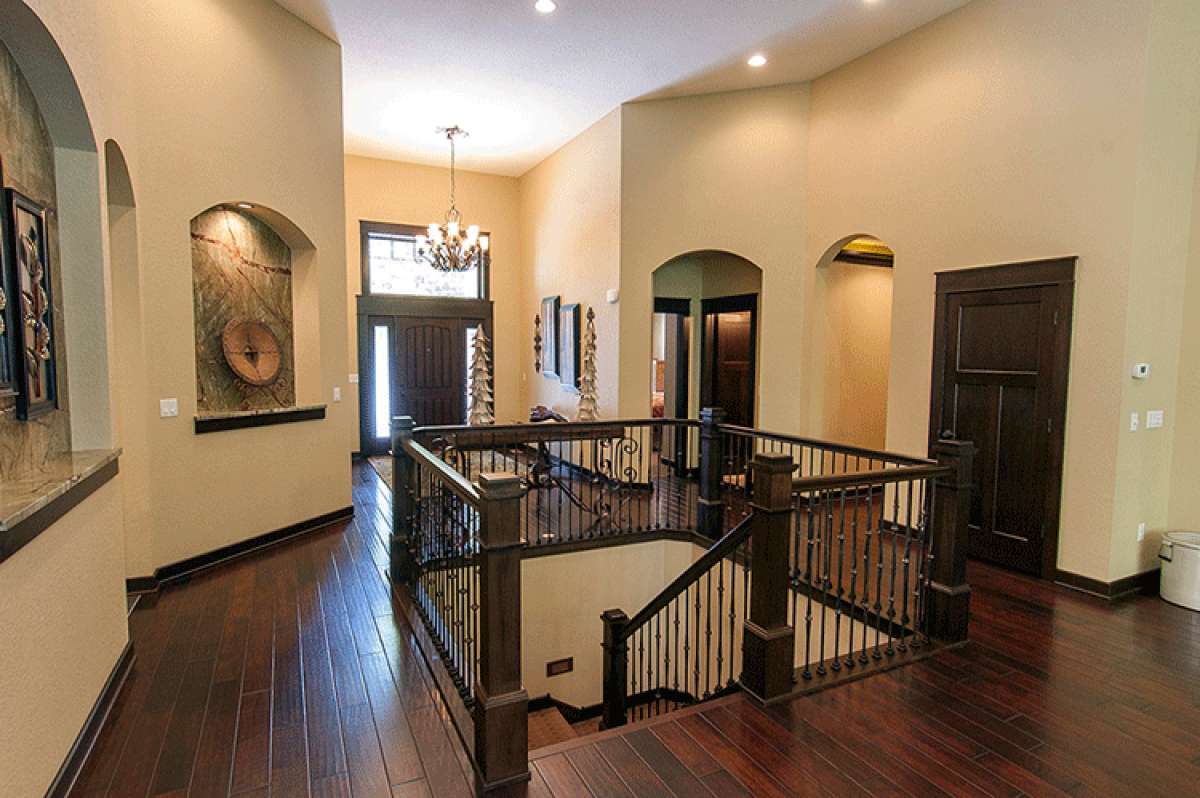

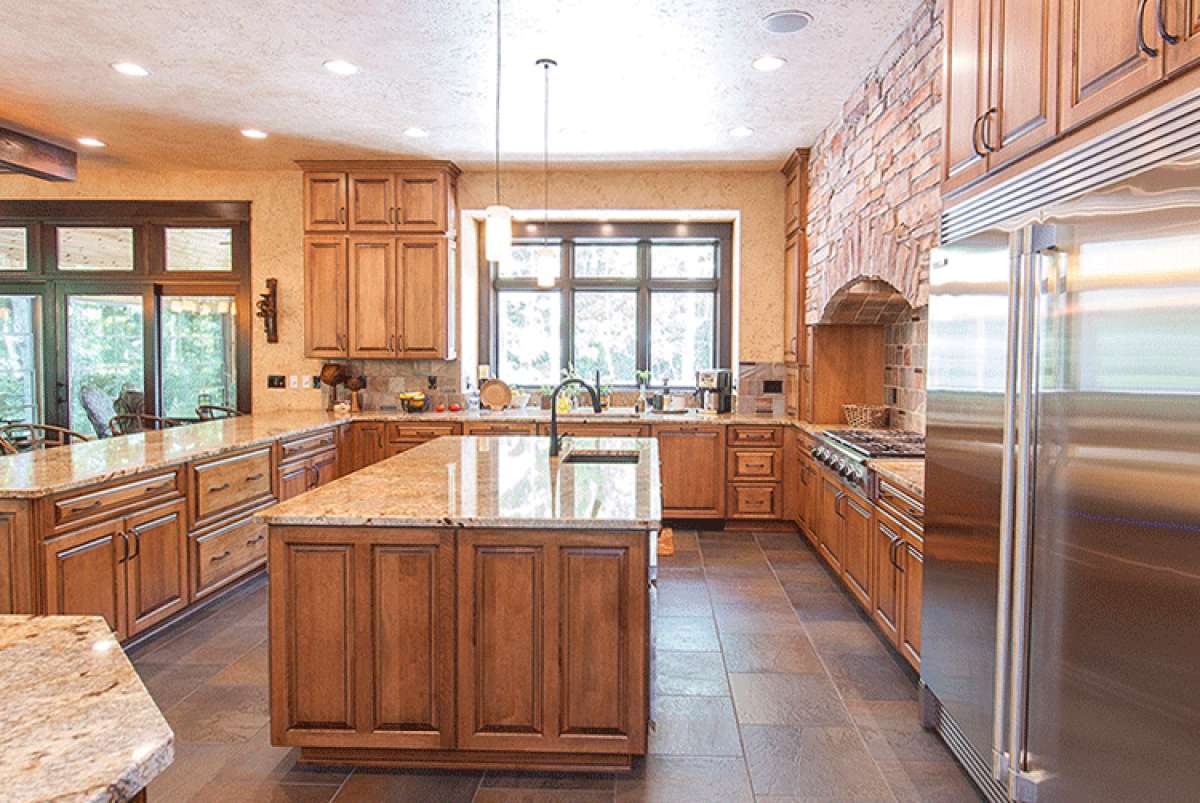

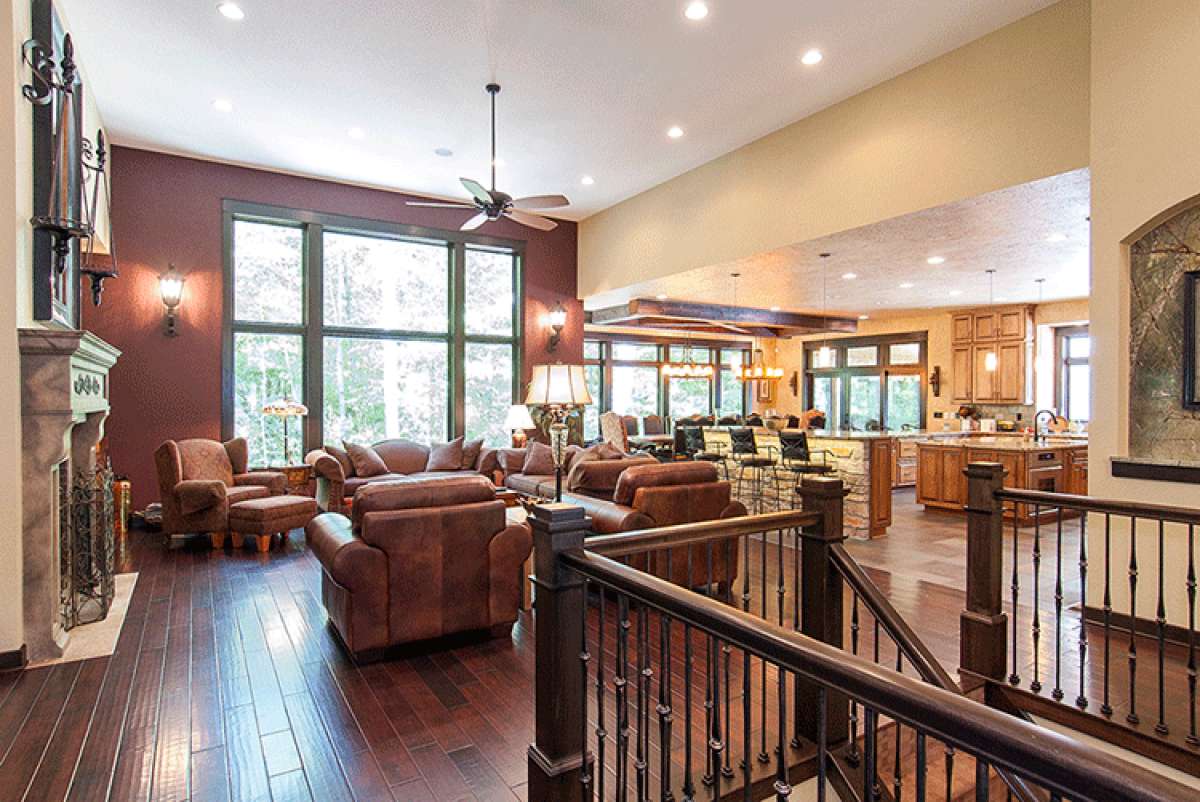

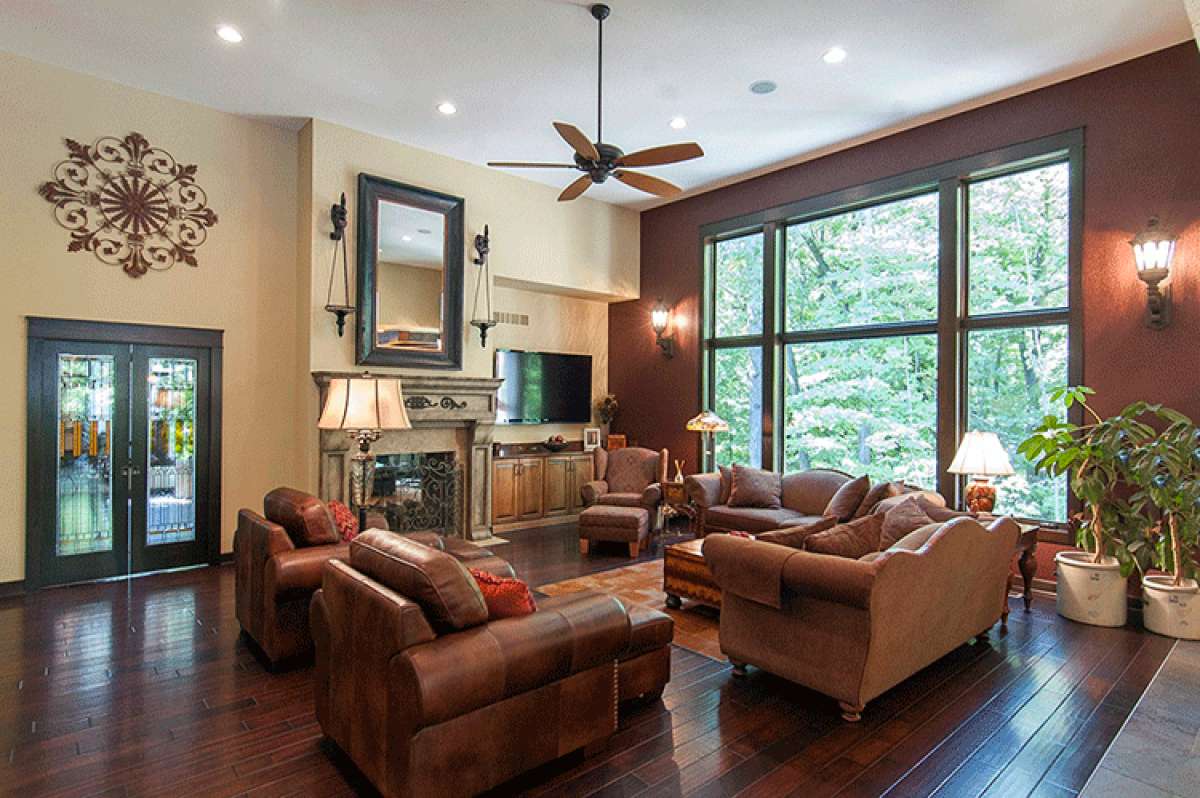

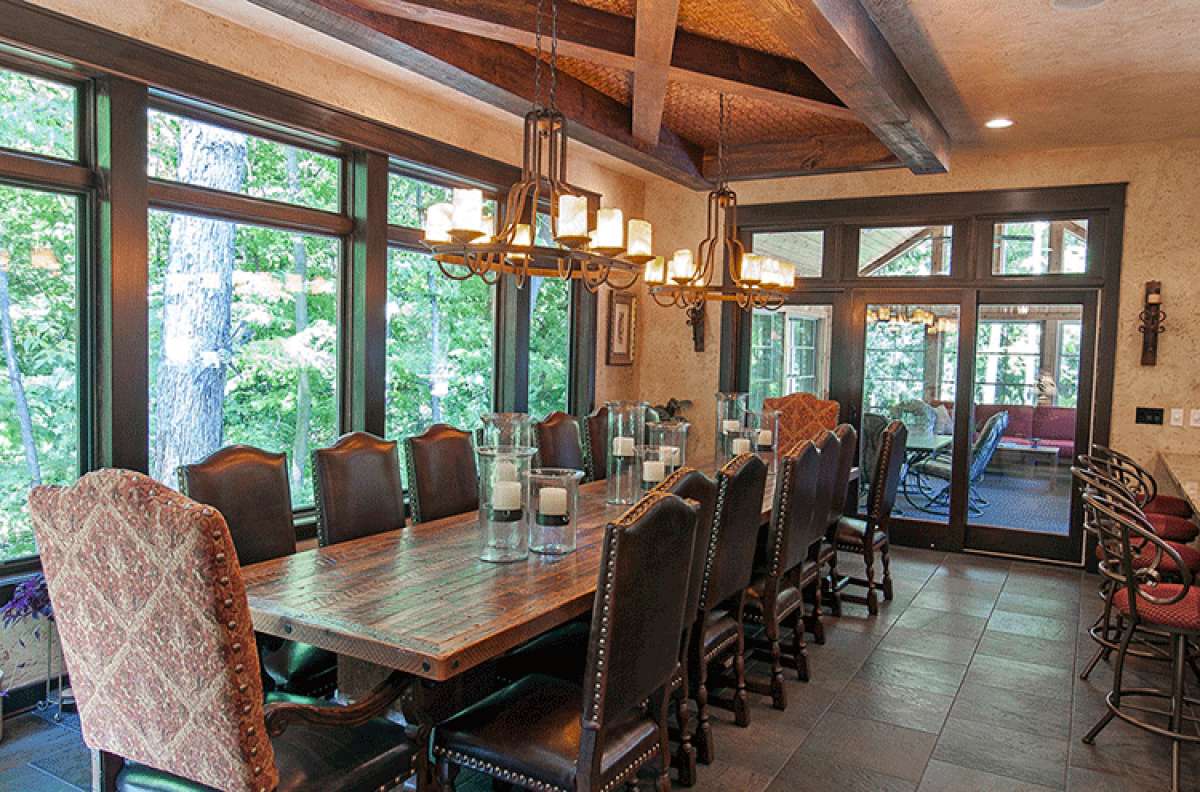

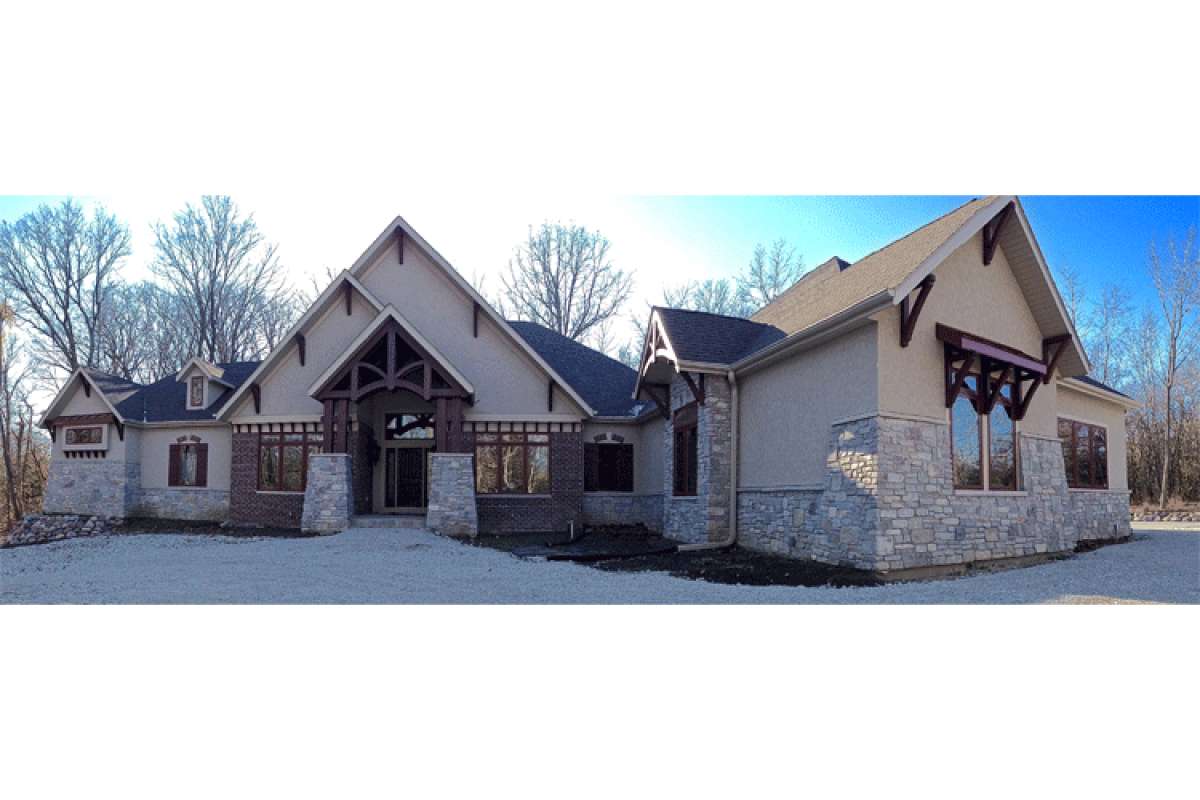

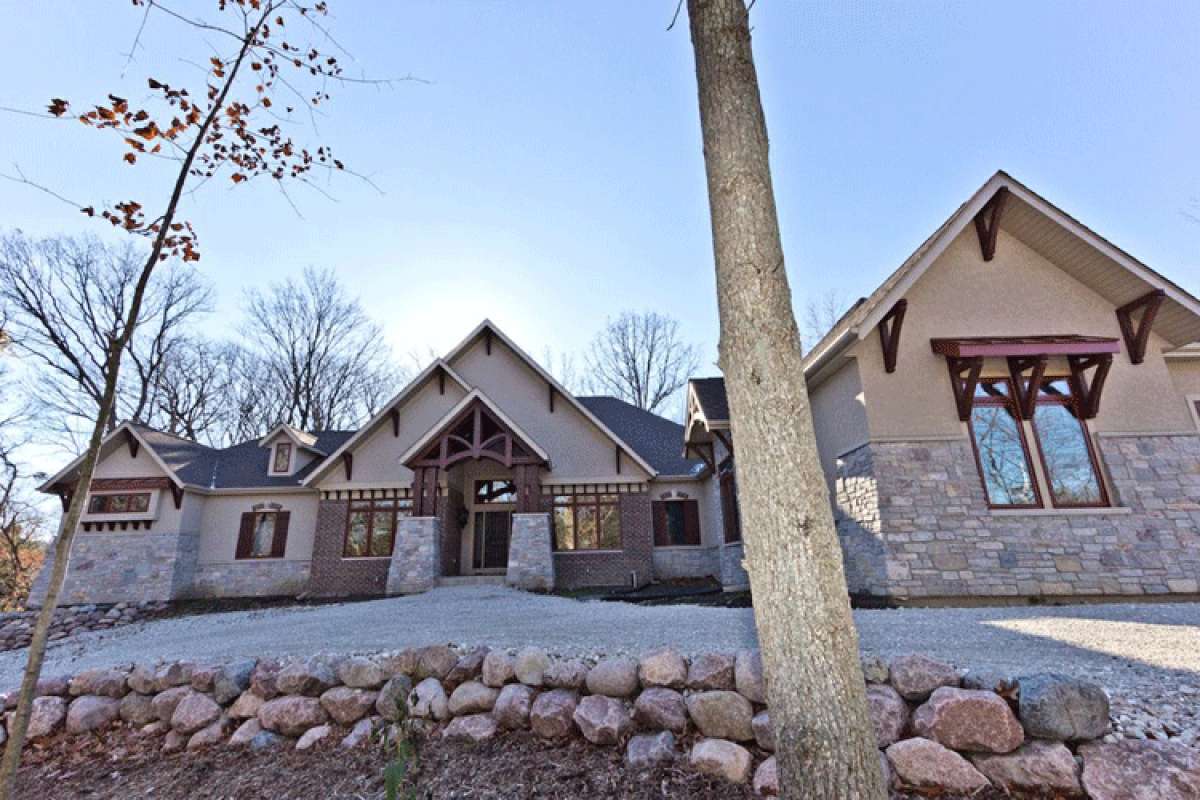

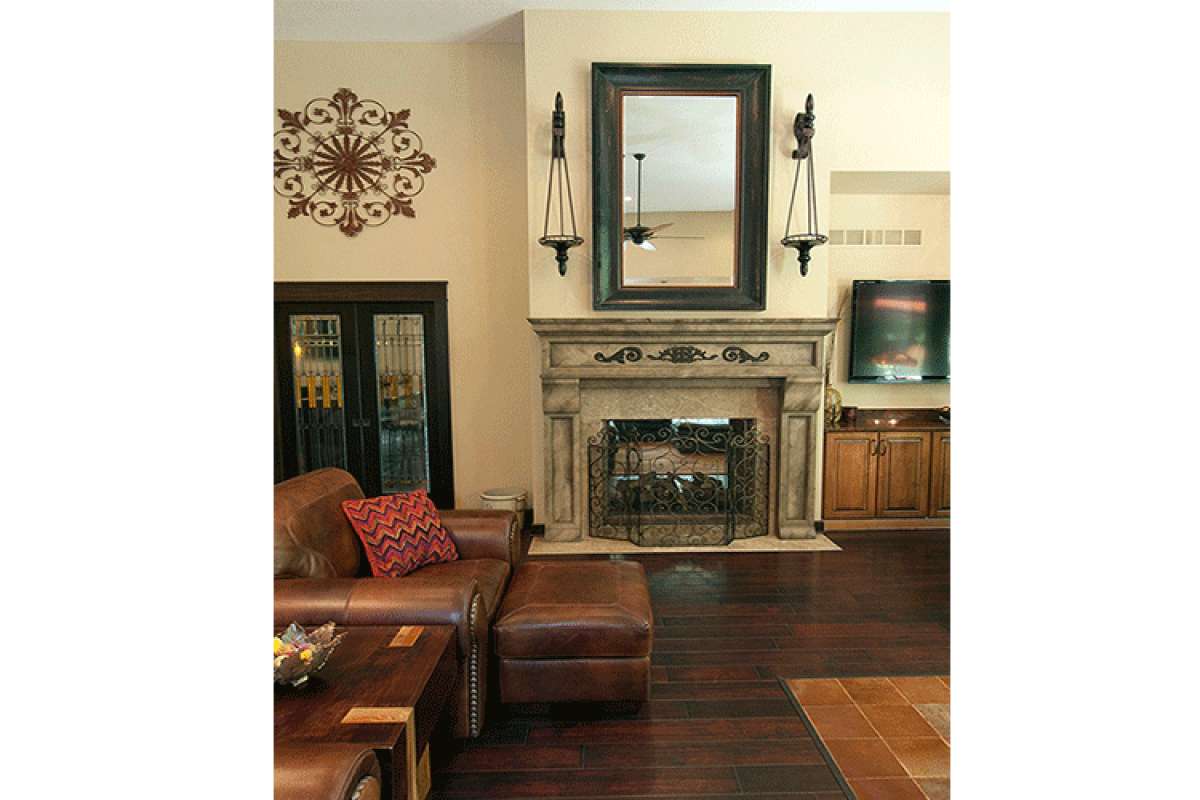

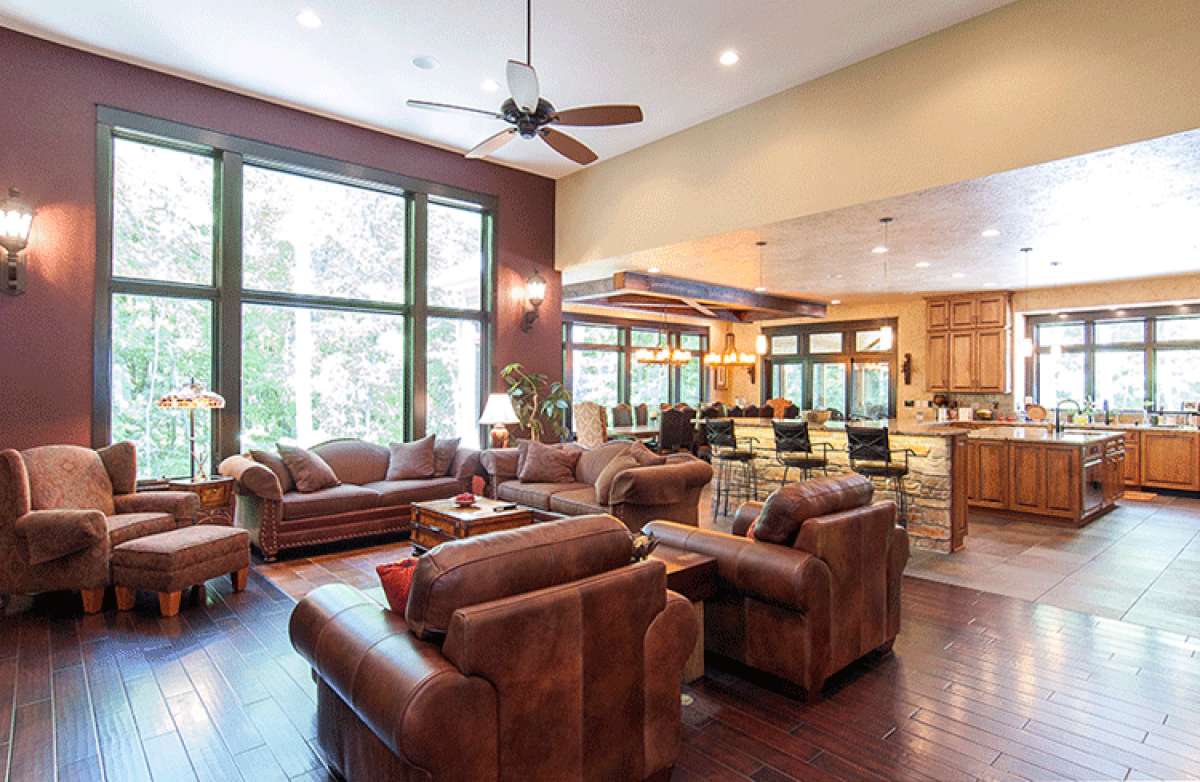

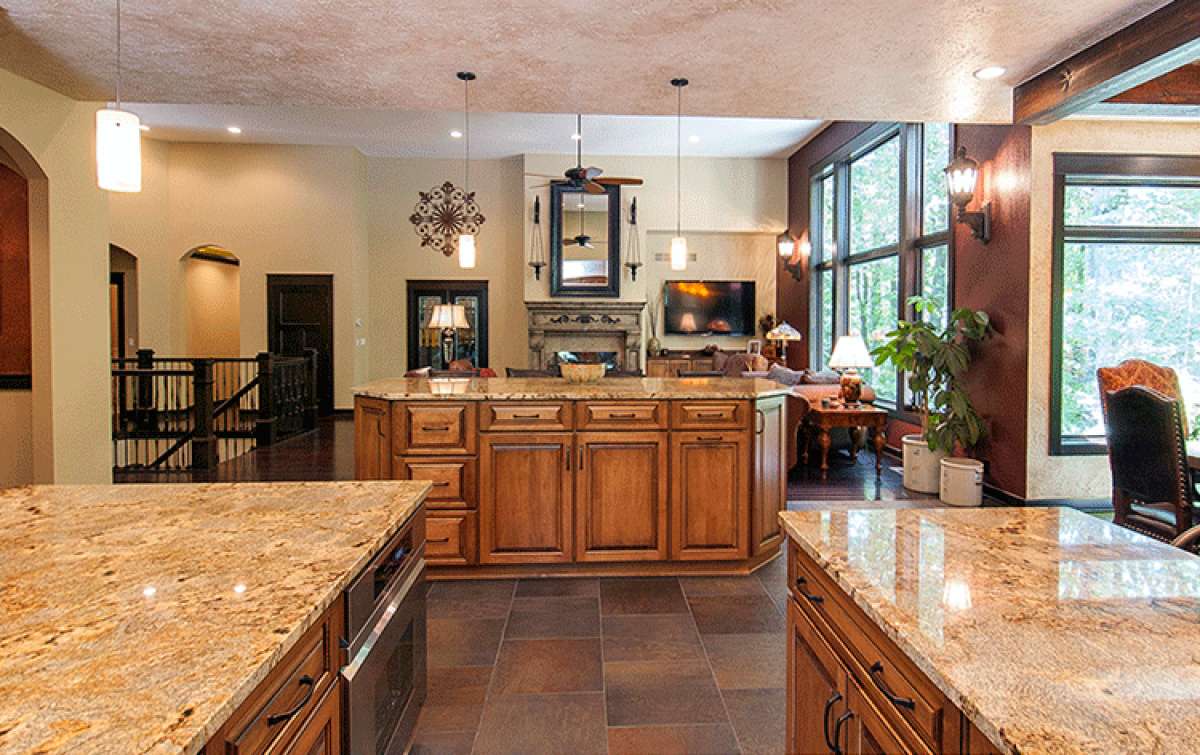

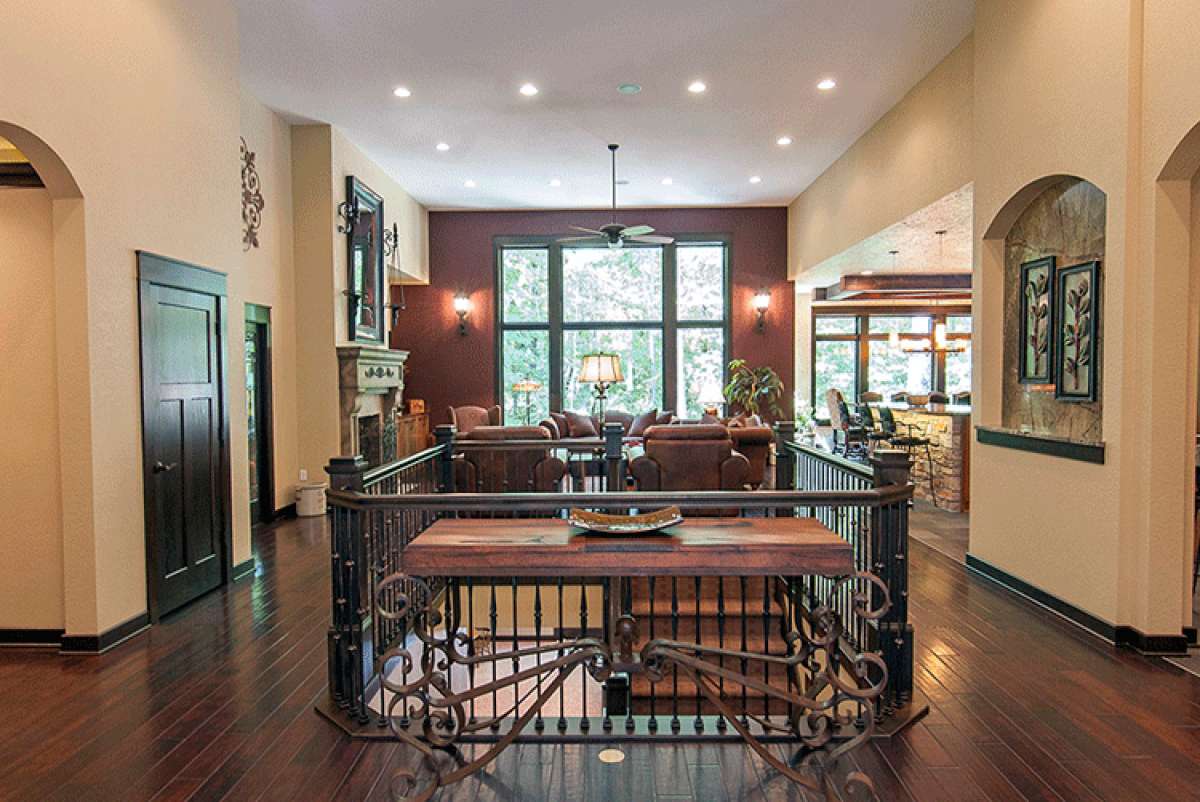

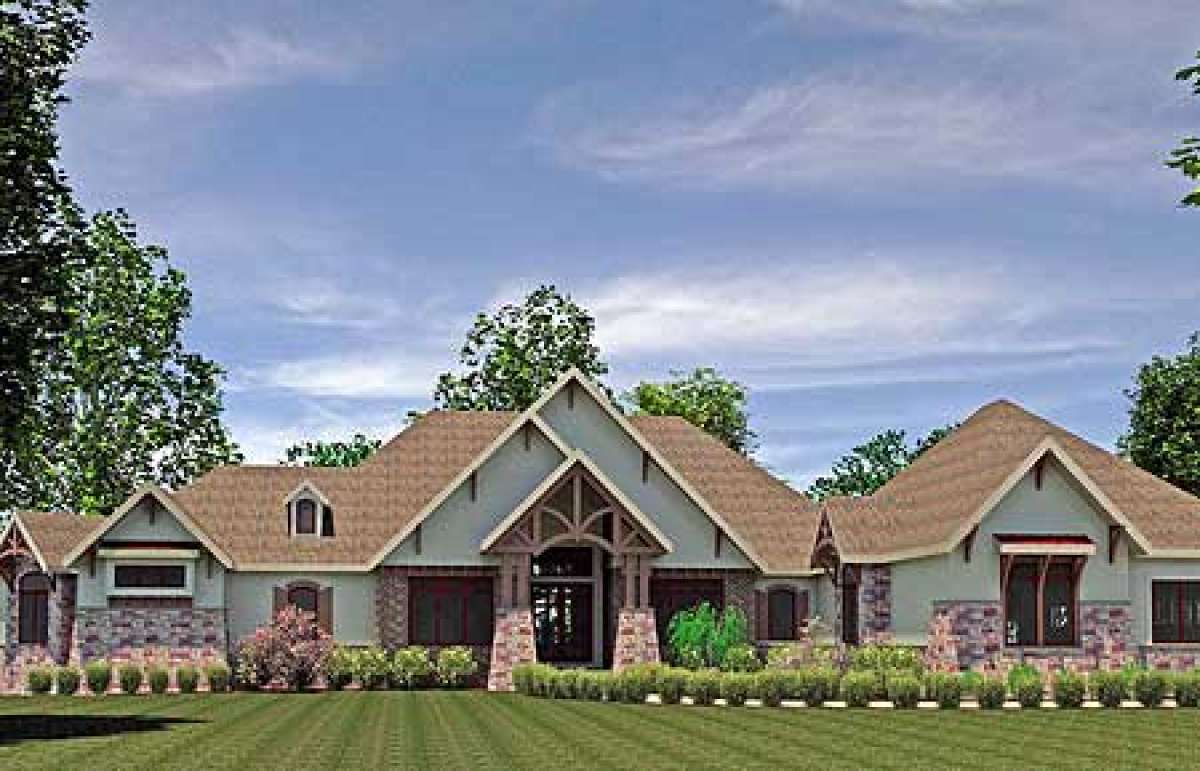

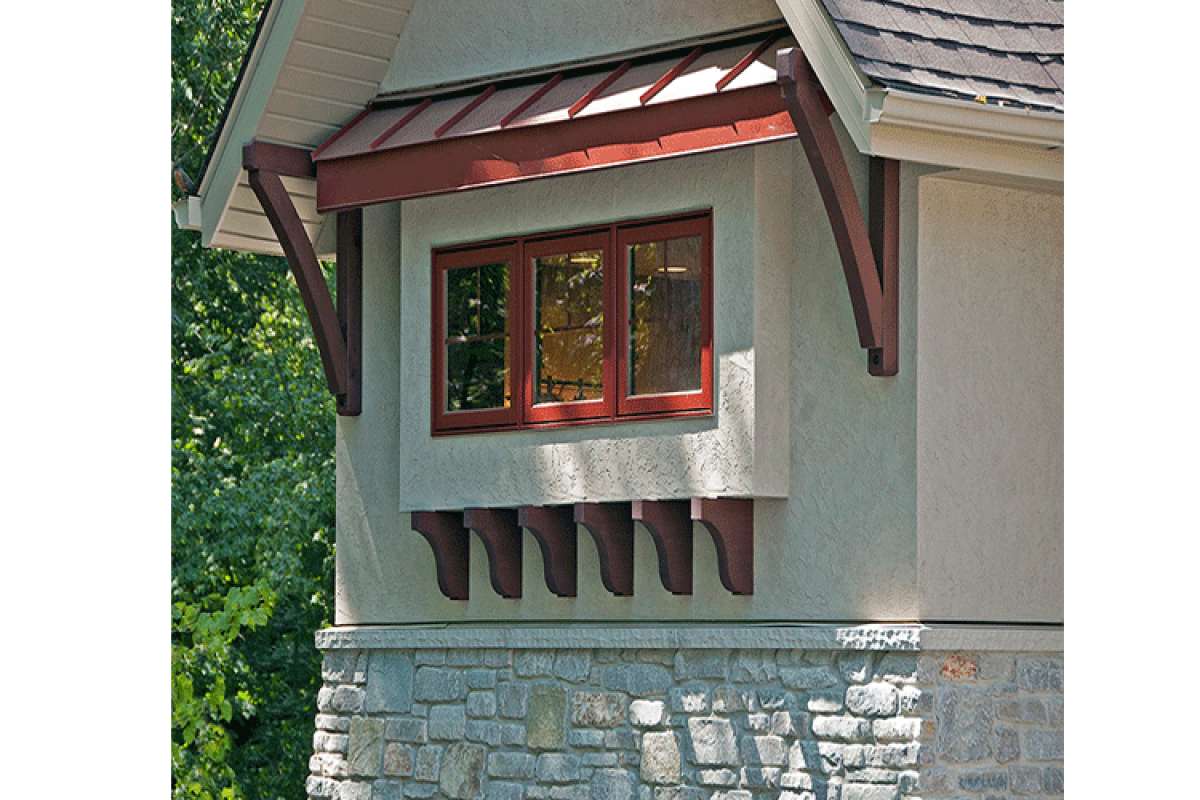

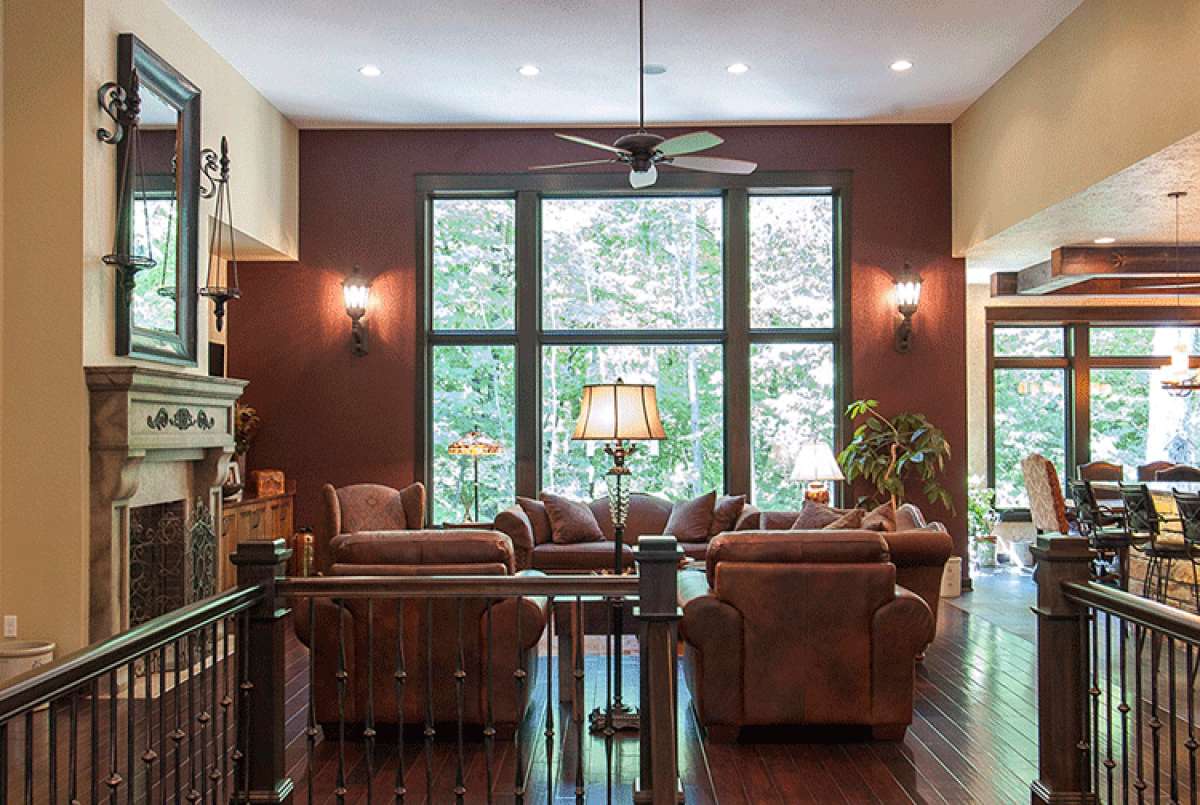

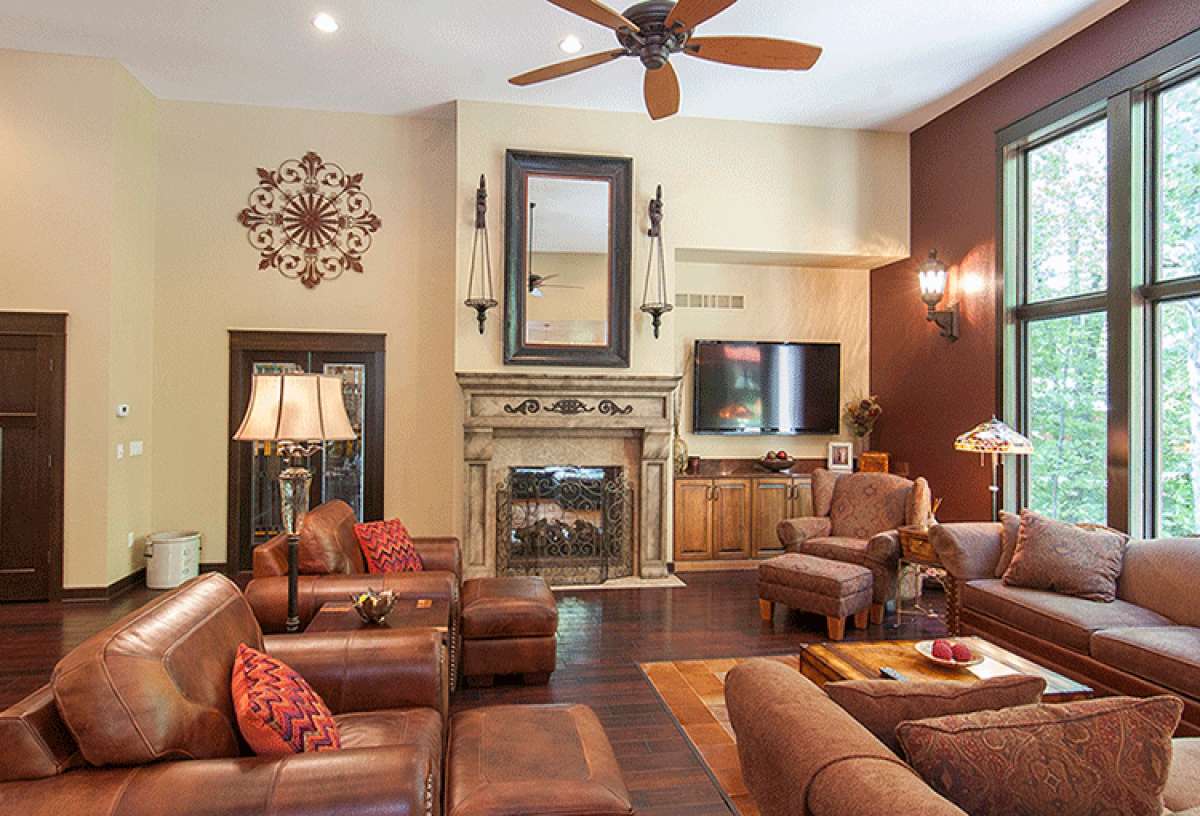

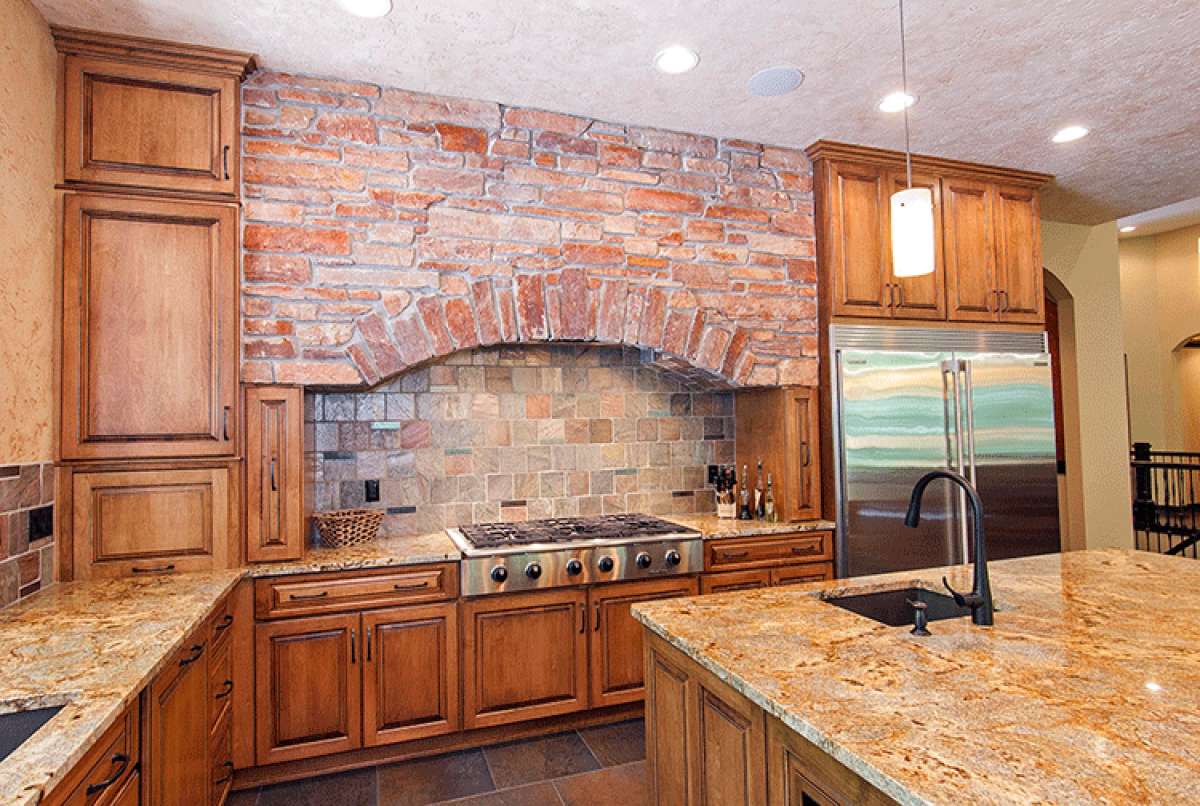

This large and gorgeous Craftsman house plan features natural design elements on the exterior façade and a well laid-out floor plan is highlighted on the home’s interior. The stacked stone perimeter and front entrance pillars offer a nice contrast to the smooth stucco finish and the exposed rafters and gable beamed entryway features give the home dramatic flair. The interior floor plan is highlighted with approximately 5,878 square feet of living space consisting of two floors, three bedrooms and three plus baths. The side loading four car garage is huge and offers excellent vehicle and other storage items space. The main living floor is highlighted with 3,735 square feet of space and is revealed beyond the double door entry foyer. This foyer is quite spacious and there is a home office/study directly located off the foyer with French door access and closet space. Beyond the foyer is a coat closet and the terrace level staircase before accessing the enormous great room. The great room features a rear wall of windows, a two way fireplace shared with the lounge and open access into the breakfast room and kitchen. The lounge features bold window views on both walls, a large bar area and a double step trey ceiling. The gourmet kitchen is highlighted with a large island, a peninsula bar and loads of counter and cabinet space. There is a massive food storage pantry located directly off the kitchen as well. The breakfast room is oversized and surrounded with beautiful window views. A guest powder room, mudroom with great space and a laundry room with hobby/craft space are situated directly off the garage. There is a second bedroom and adjacent full bath connected to the gallery hall where the main level master retreat is located. The master suite is a private haven for the homeowner’s pleasure and comfort and includes a massive master bedroom with double step trey ceilings. The owner’s master bath features dual vanities, a large shower and toilet area. His and hers walk-in closets are tucked beyond the bath; both are quite large and offer enormous room for clothing and other accessories.

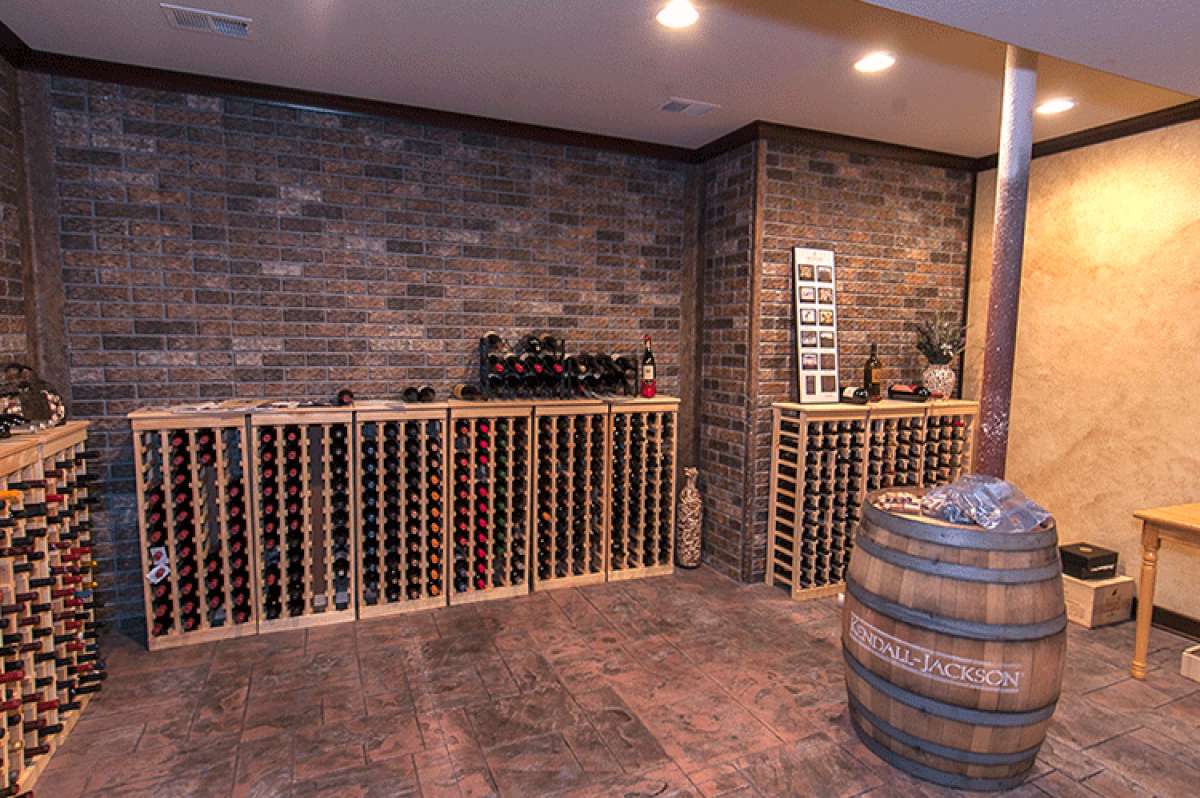

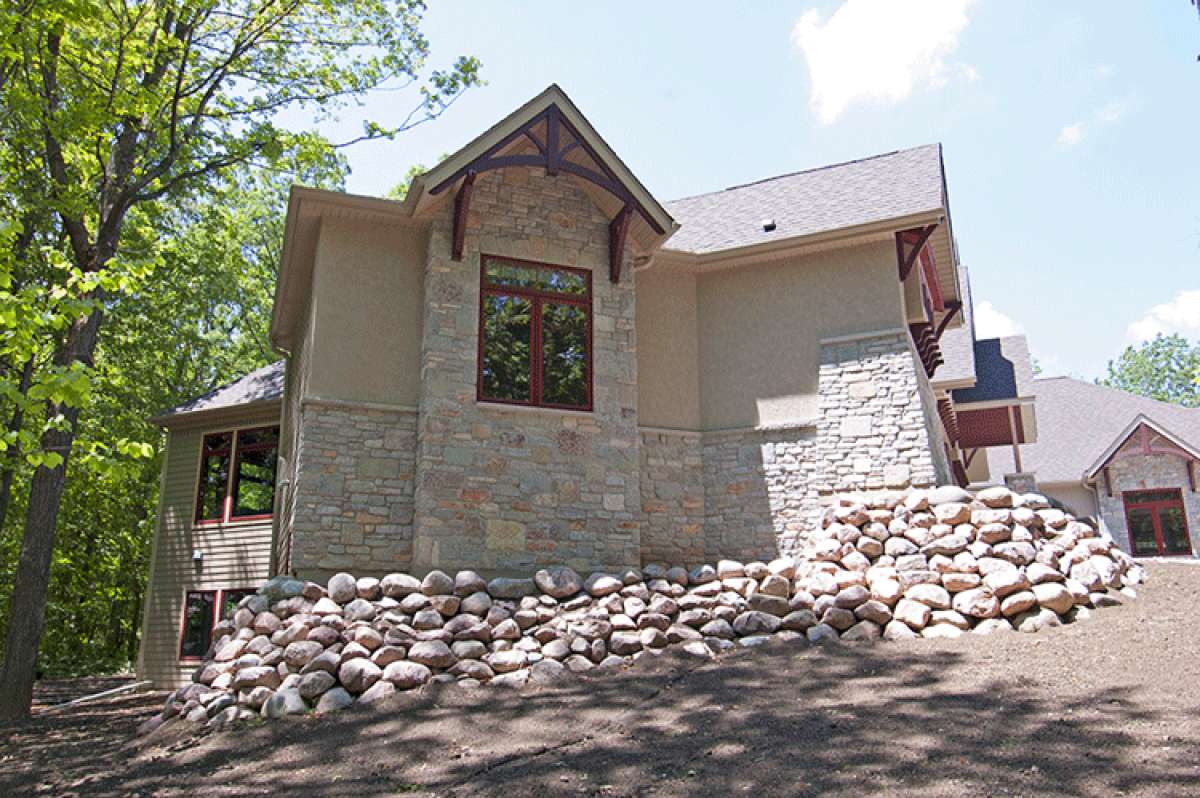

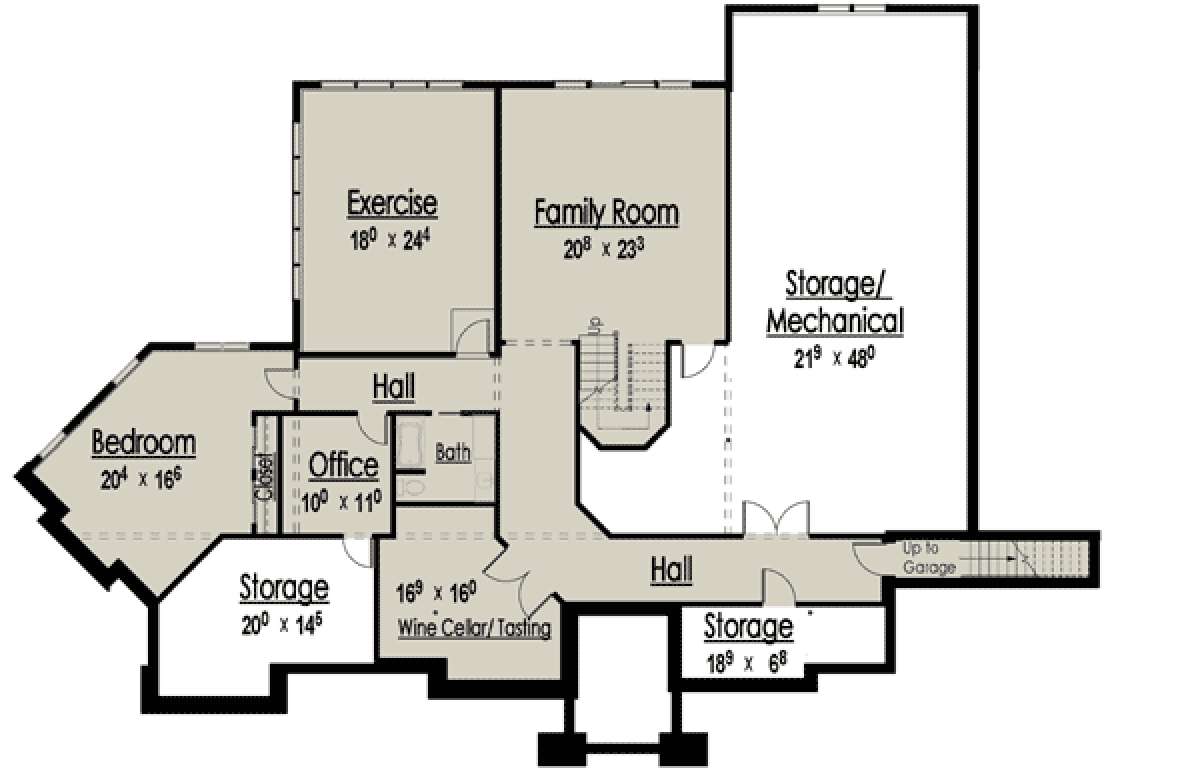

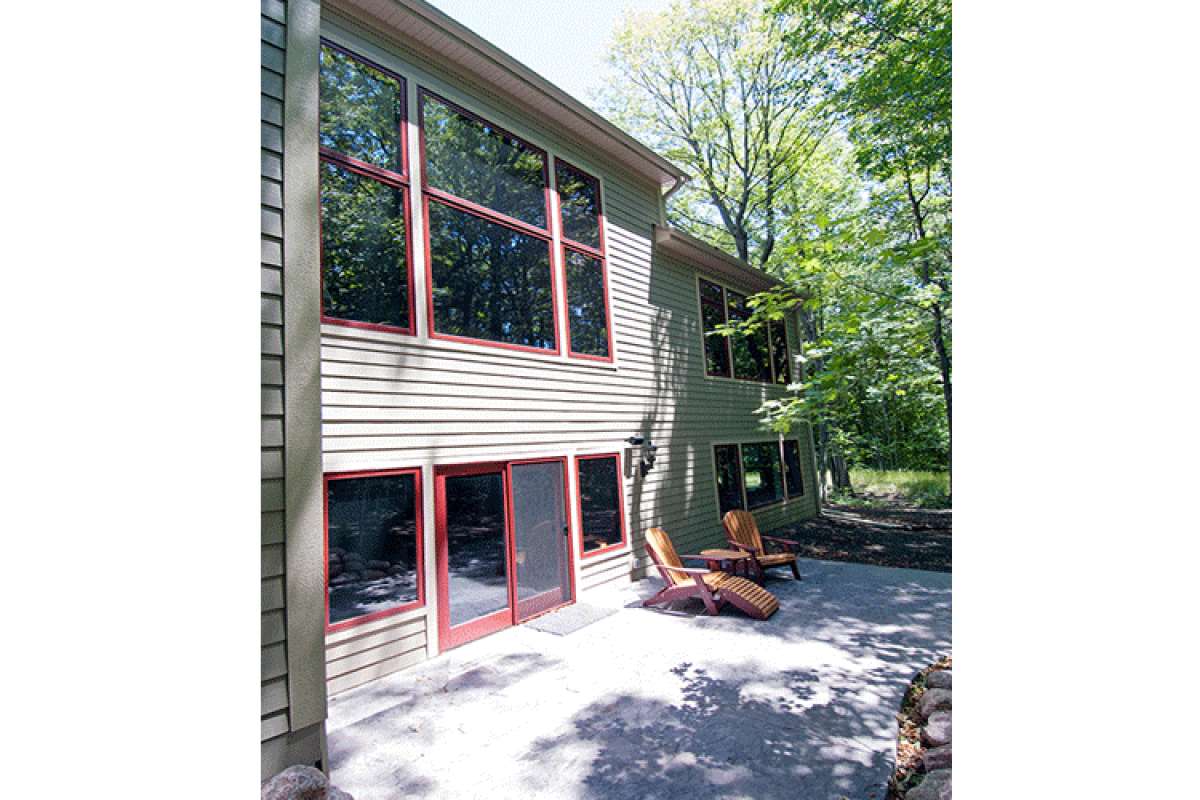

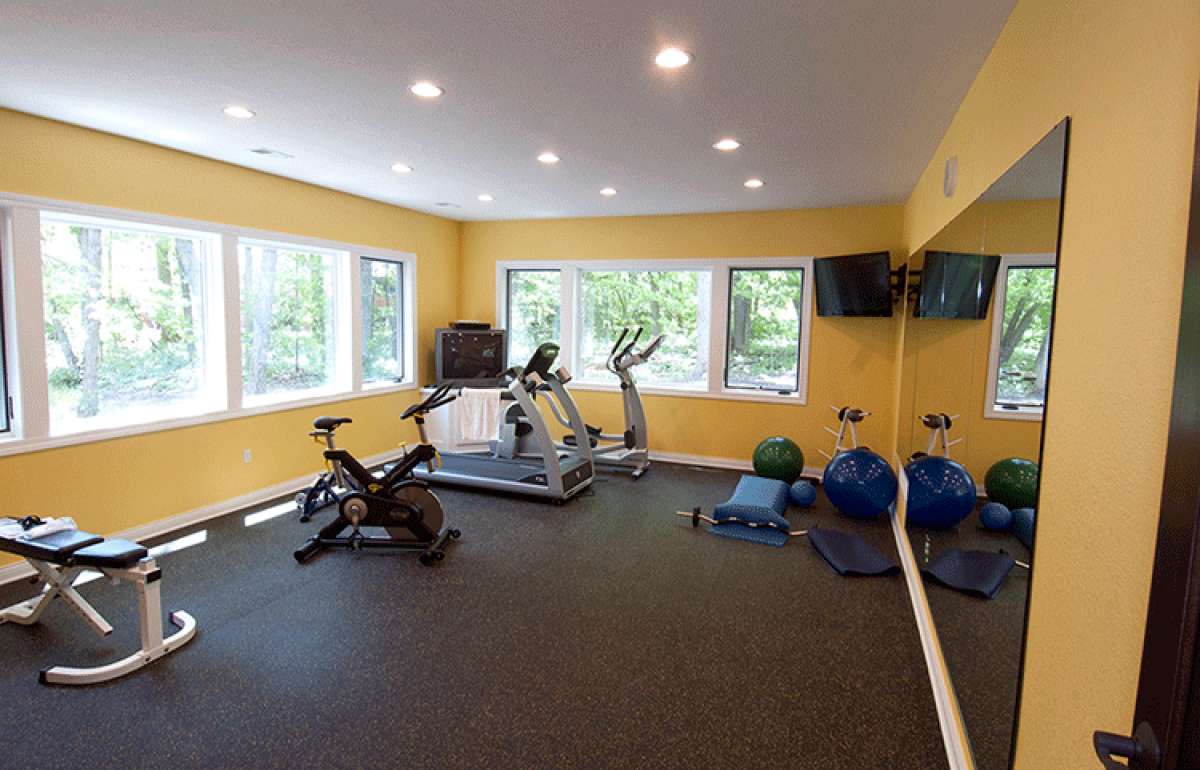

The walk-out basement foundation is highlighted with family recreation space, large storage space, an office, bedroom and bath. A family room sits at the bottom of the staircase and a large exercise room with massive amounts of window views is adjacent to the family room. The backside of the family room leads to the hallway where the wine cellar is located as well as mechanical and storage space. There is a second hallway which leads to the remainder of the rooms. An office measures 10’x 11’ and there is a large storage room adjoining the office; great for supplies and other business paraphernalia. The third bedroom features excellent floor space, wonderful window views and plentiful closet space. There is a hall bath with a vanity area, toilet and a tub/shower combination. This large family home features an attractive exterior façade and a versatile and functional floor plan.
