Contemporary Plan 748-00002

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,341
Beds 4
Bath 4
1/2 Baths 2
Car 3
Stories 1
Width 76'
Depth 116' 8"

Floorplan Drawings

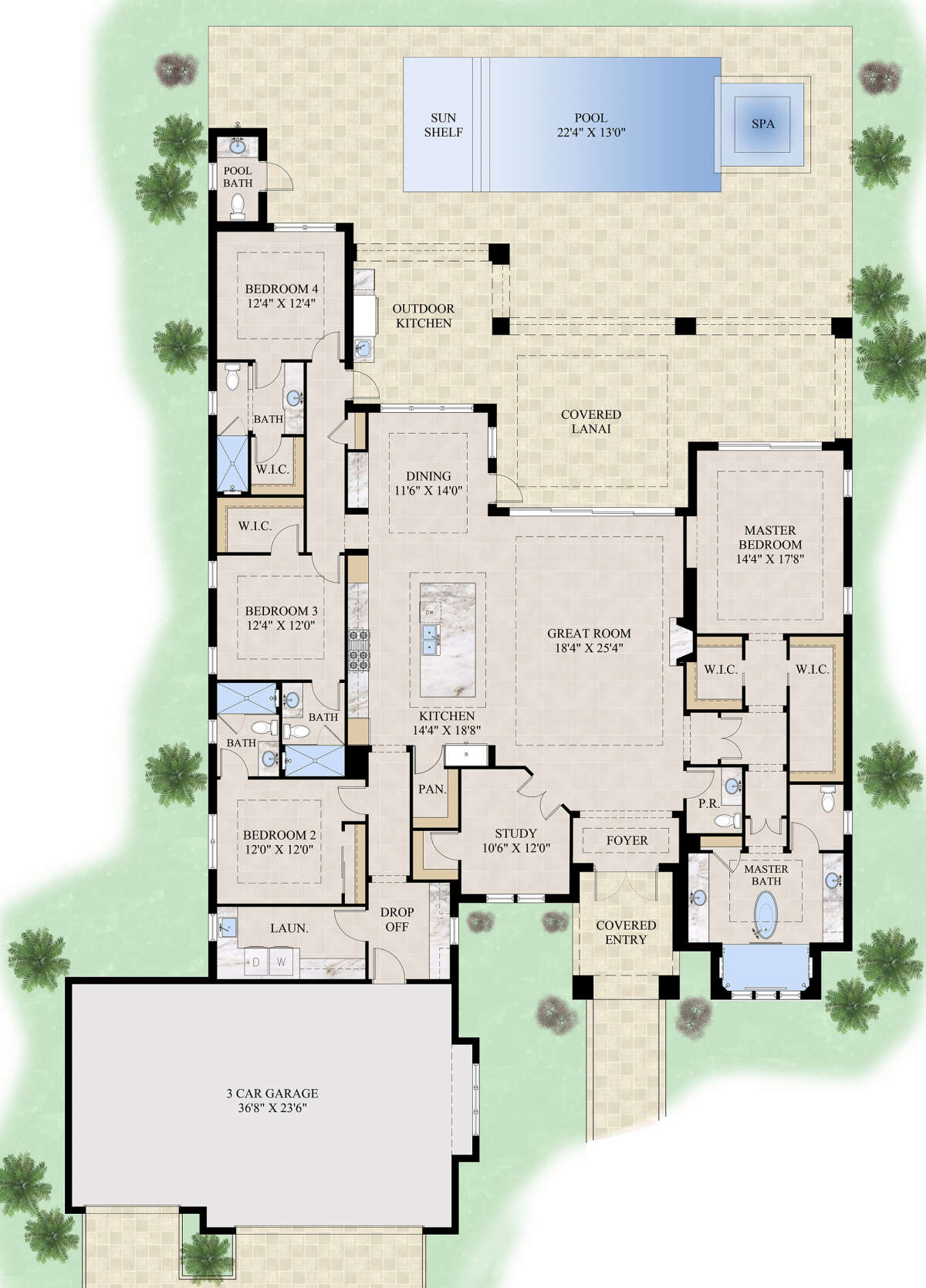

Main Floor
Main Floor  for House Plan #748-00002


What's Included in these plans?

  • Floor Plans are drawn at 1/8" to 1/4"= 1'-0" scale and include dimensions of the plan, room names, window and door schedules, opening size and all labels.
  • Slab Plan drawn at 1/8" to 1/4"=1'-0" scale and include dimensions and location of rough-in plumbing, mechanical equipment location and electrical locations.
  • Elevations are drawn at 1/8" to 1/4"=1'-0" scale and include front, sides and rear elevation, dimensions of floor to floor, window and door header height, material finishes, roof slope and finish.
  • Roof Plan drawn at 1/8" to 1/4"=1'-0" scale and include dimensions of overhangs, roof slopes, hips and valleys, truss bearing heights and roofing material.
  • Electrical Layout include electrical receptacle locations, switches and lighting layout.
  • Building Sections are drawn at 1/8" to 1/4"=1'-0" scale and include floor to floor height, wall construction and location of insulation.
  • Typical Wall Section drawn at 1/8" to 1/4"=1'-0" scale and include wall construction, insulation type and all labels.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 4 bathroom Contemporary house plan features 3,341 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
