Craftsman Plan 7174-00020

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,670
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 52' 10"
Depth 45'

Visualize this plan on your own land! Create Photo

Floorplan Drawings

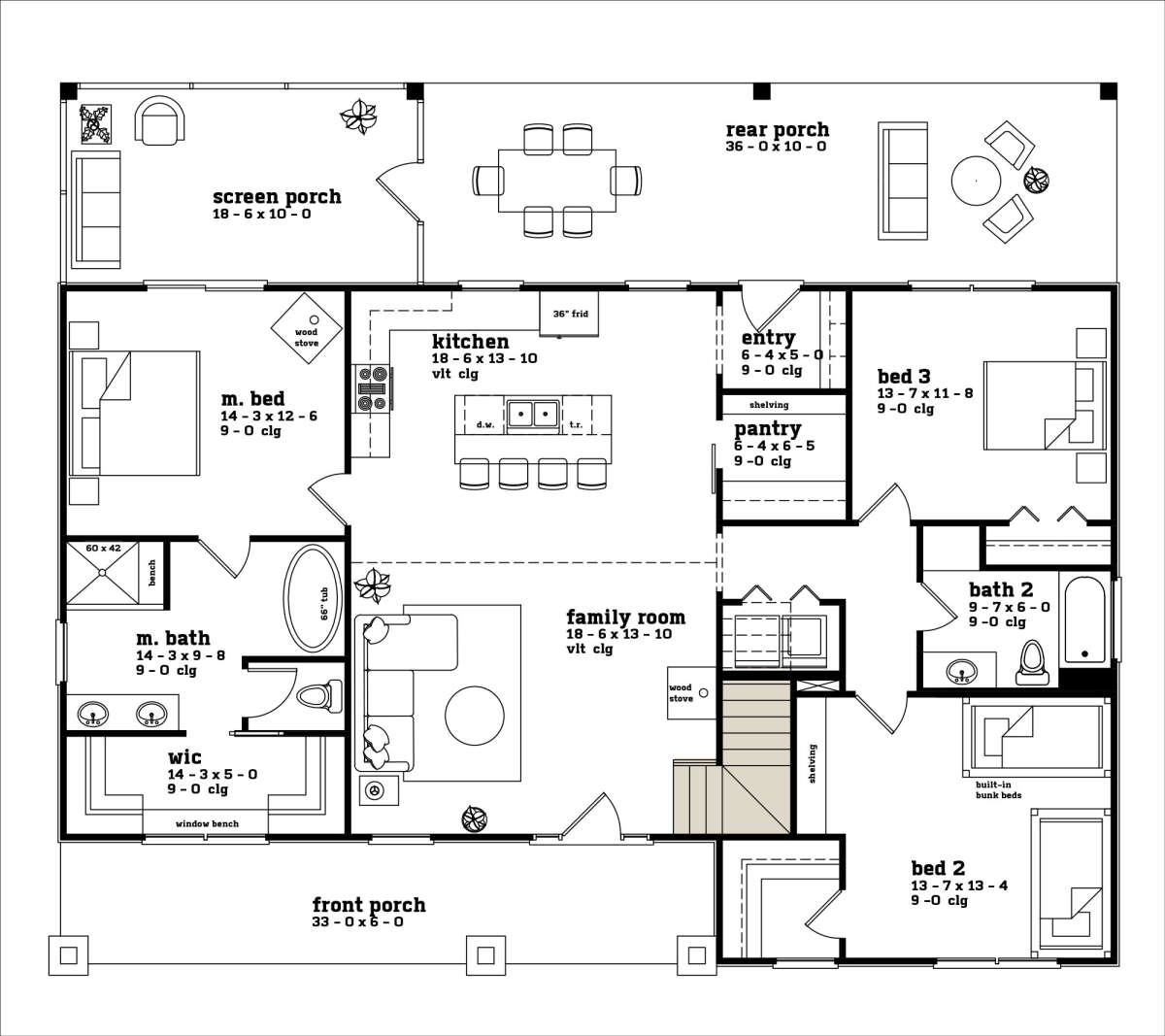

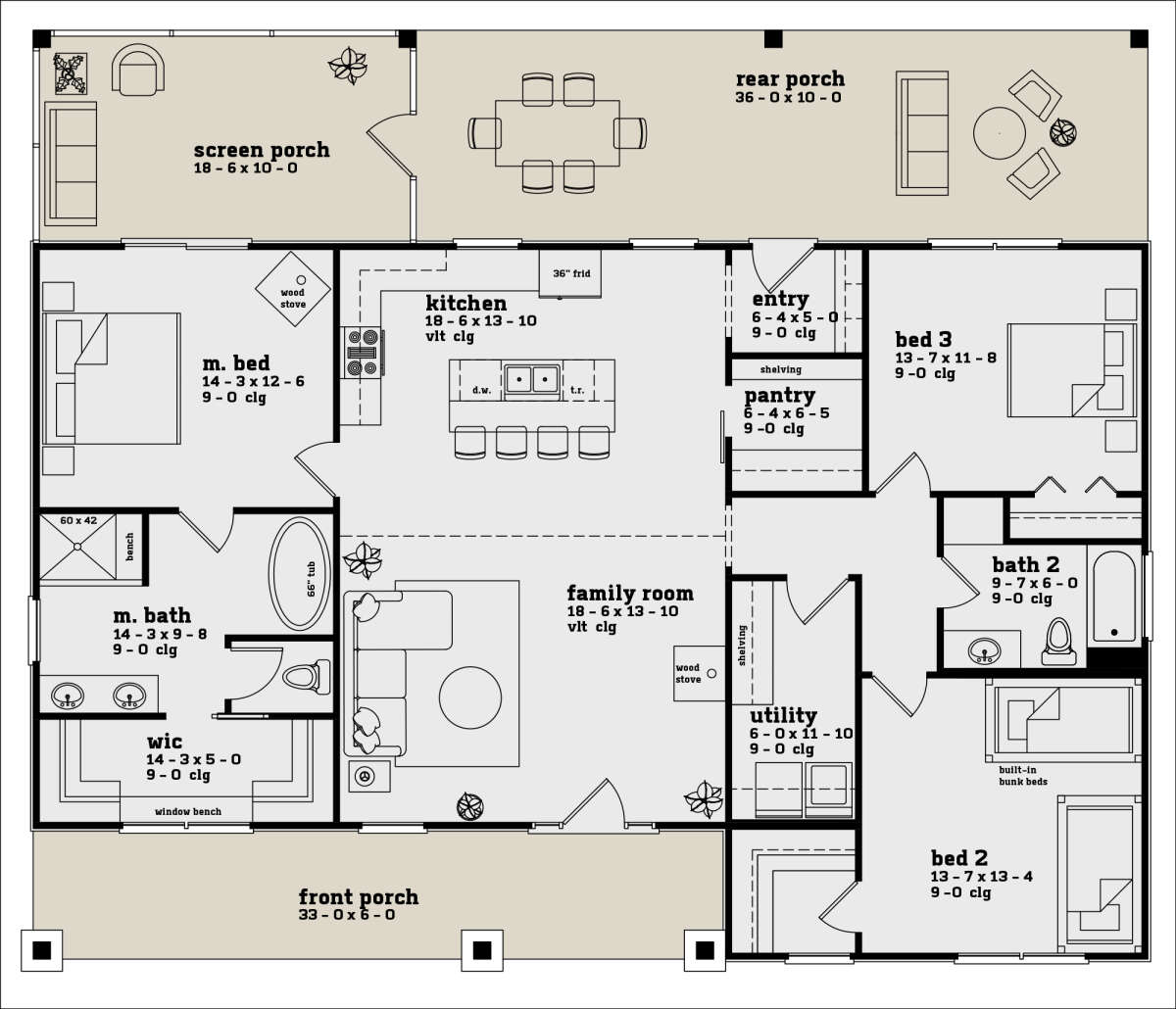

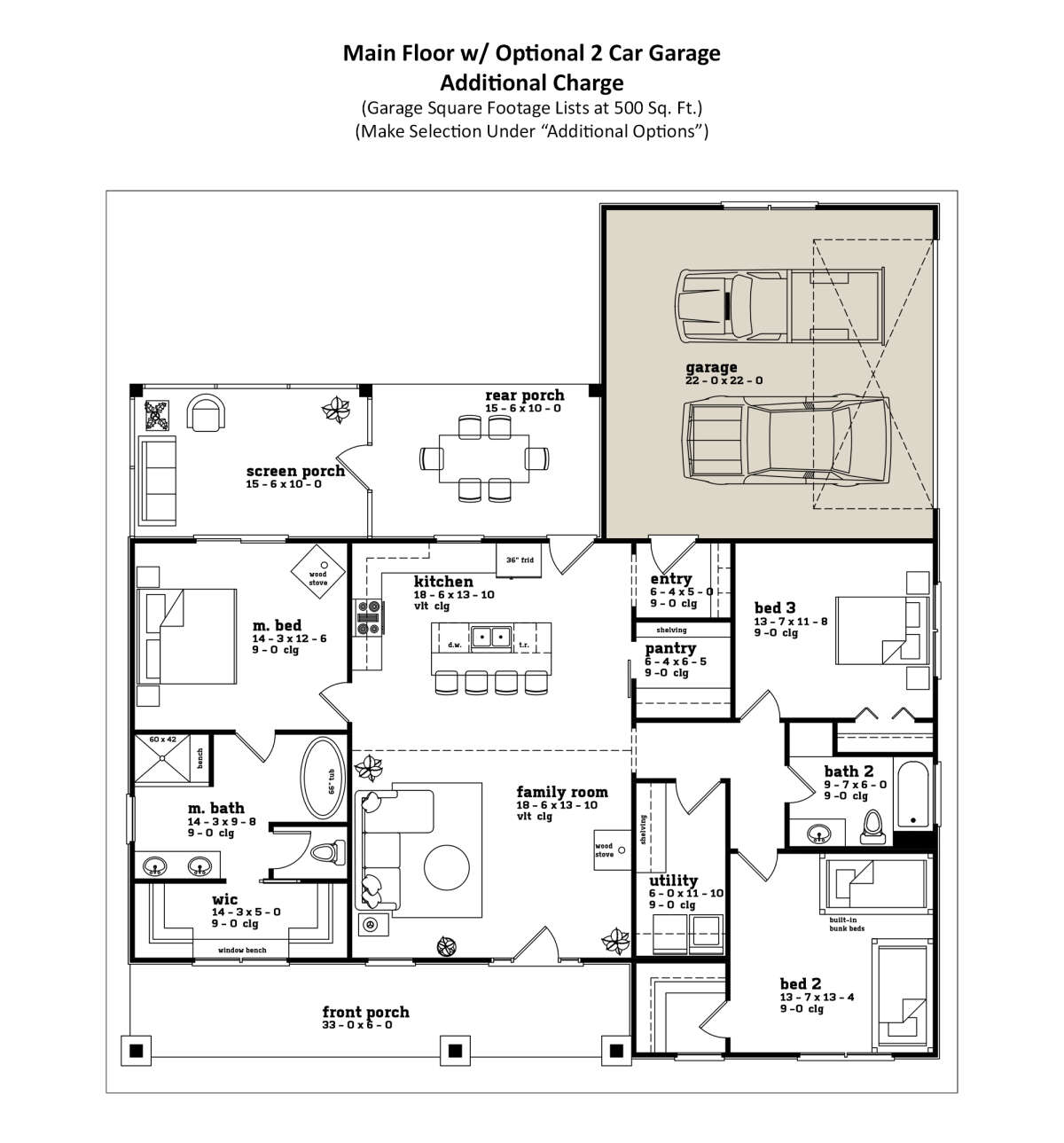

Main Floor
Main Floor  for House Plan #7174-00020

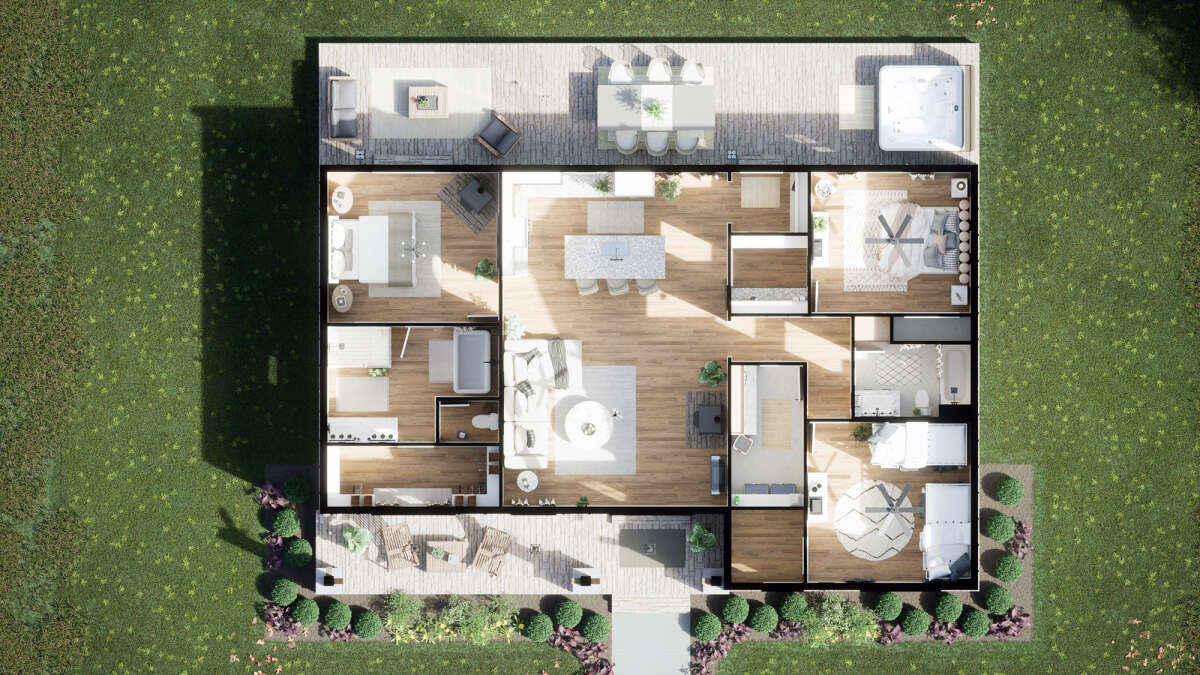

Overhead Floor Plan
Overhead Floor Plan for House Plan #7174-00020
Main Floor w/ Basement Stairs Location
Main Floor w/ Basement Stairs Location for House Plan #7174-00020
Walkout Basement
Walkout Basement for House Plan #7174-00020

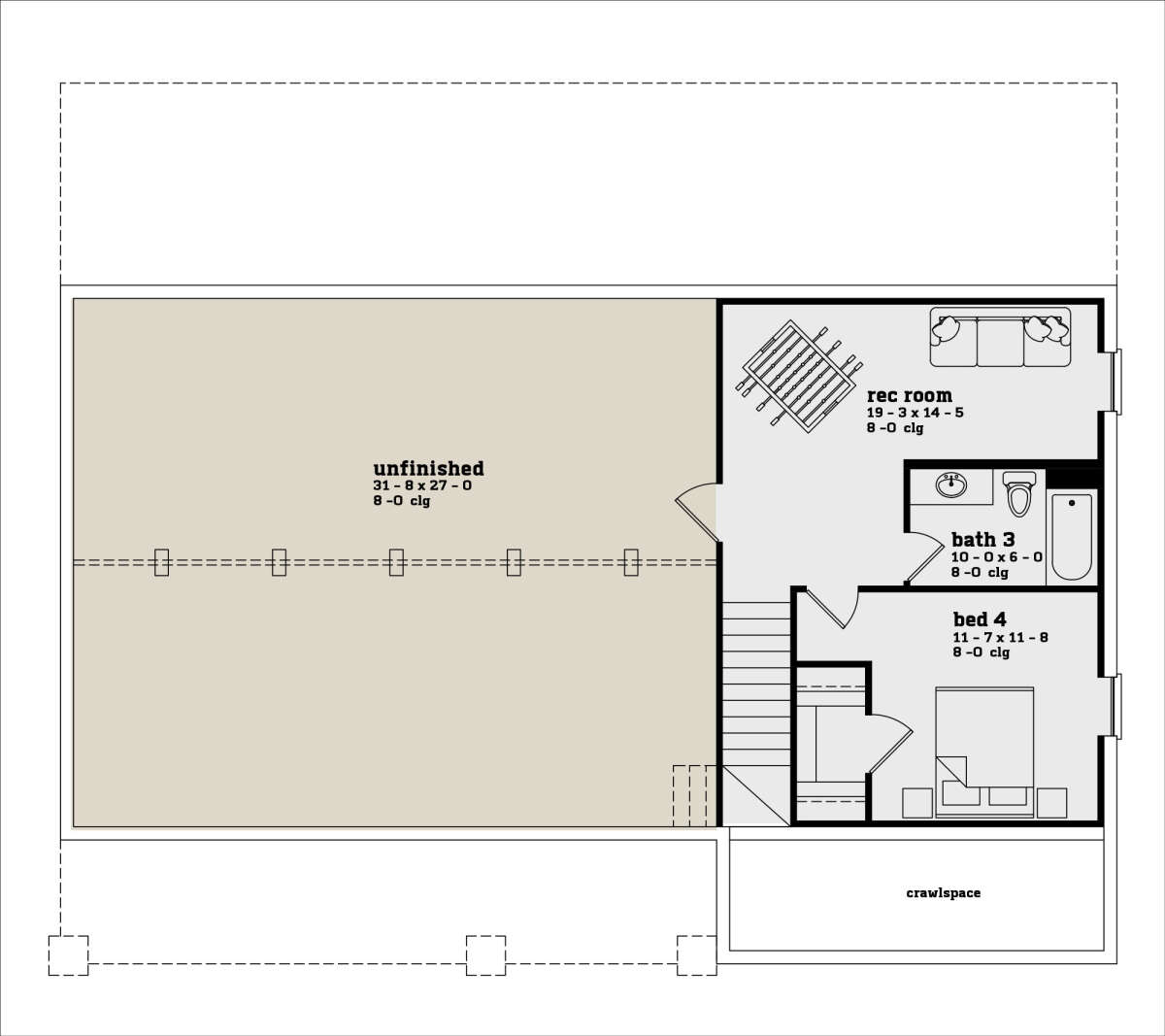

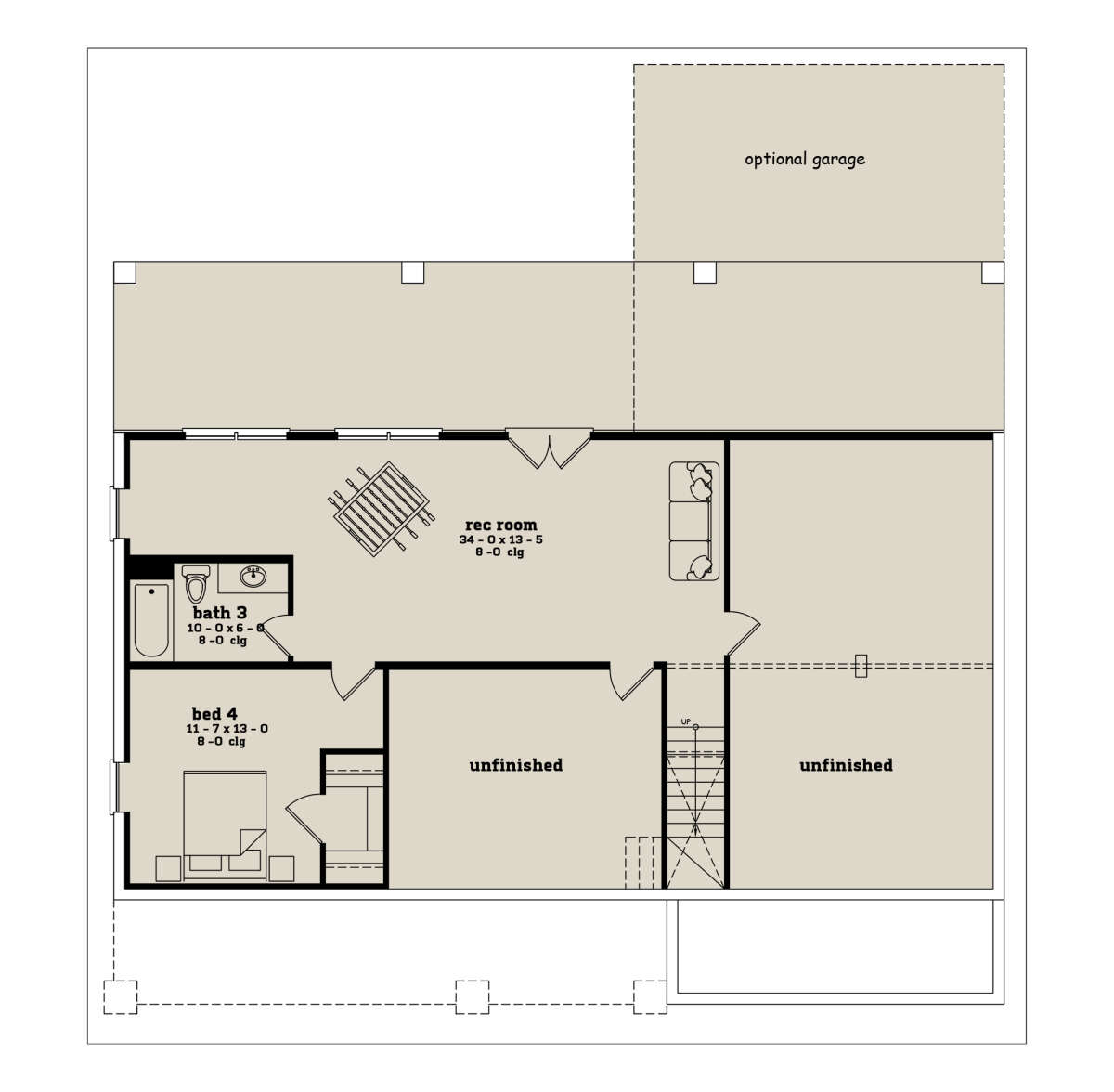

Finished Basment
Finished Basment for House Plan #7174-00020


What's Included in these plans?

24” x 36” sheet size

Cover Sheet

Foundation/Framing Plan (¼” Scale)

Floor Plans (¼” Scale)

Door/Window/Finish Schedule

(4) Exterior Elevations (¼” Scale)

Building Section (3/4” Scale)

Roof Plan (¼” Scale)

Electrical Plan (¼” Scale)

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Craftsman house plan features 1,670 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
