Lake Front House Plan 7174-00002EXCLUSIVE PLAN

Sq Ft1,100
1/2 Baths0
Width71' 0"
Depth20' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

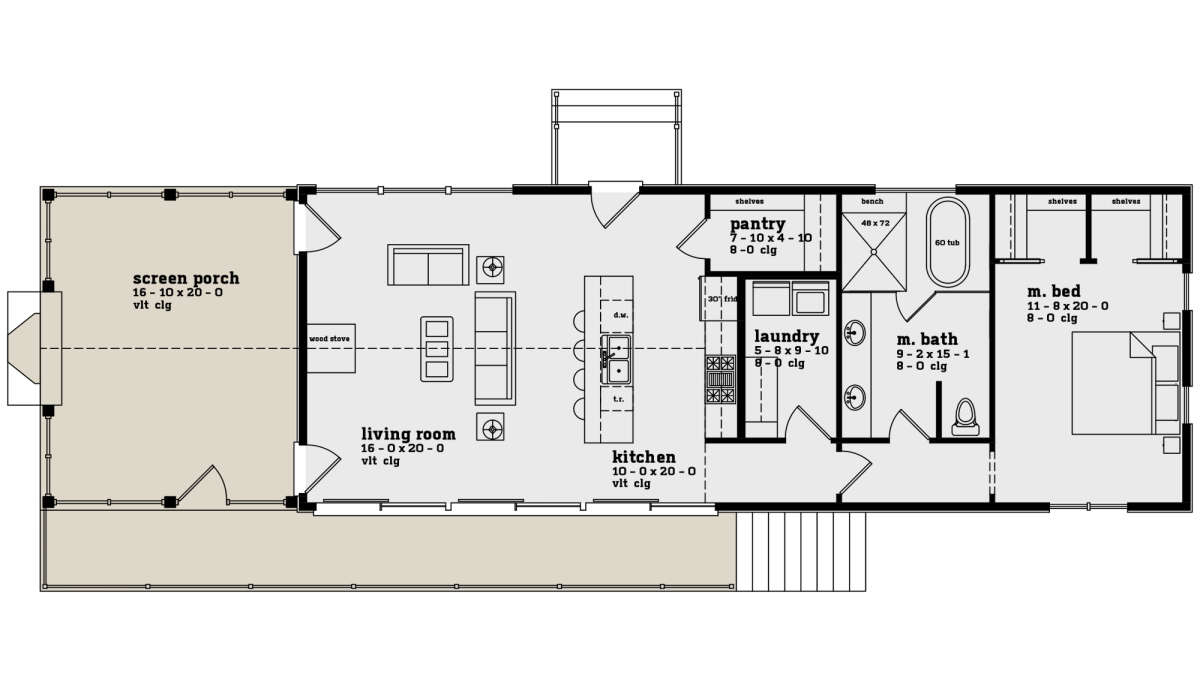

Main Floor  for House Plan #7174-00002
Overhead Floor Plan for House Plan #7174-00002
Main Floor
Main Floor  for House Plan #7174-00002

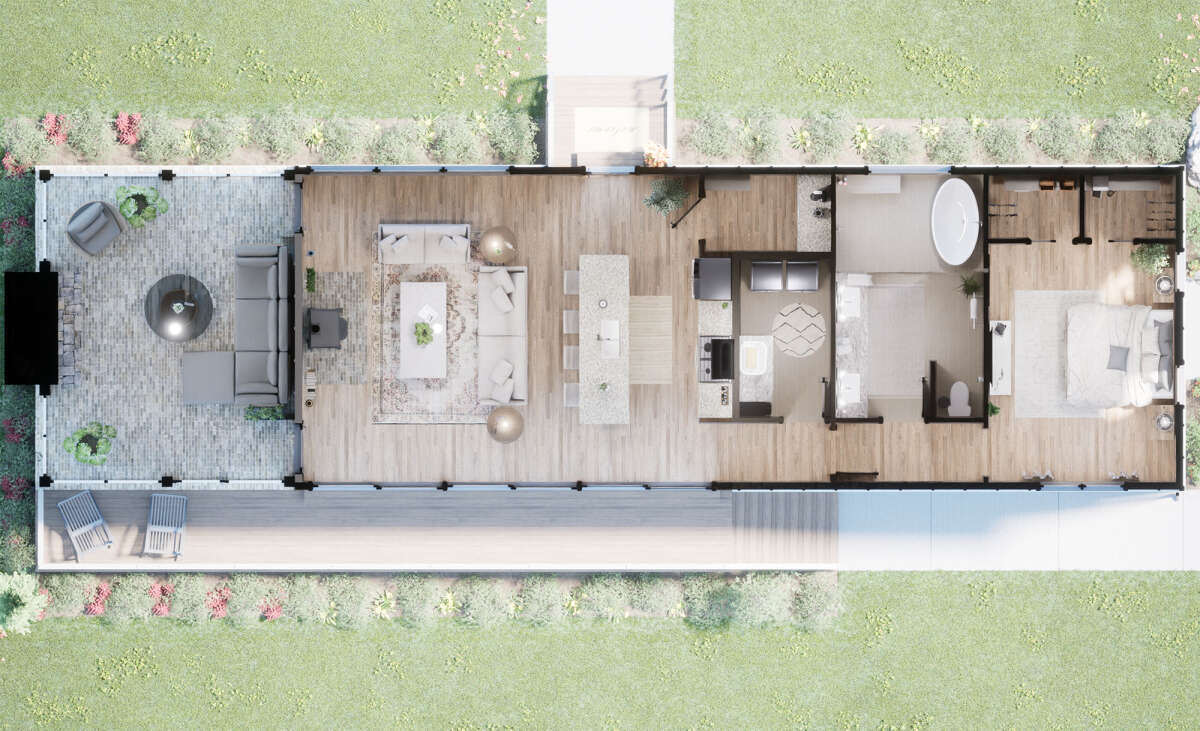

Overhead Floor Plan
Overhead Floor Plan for House Plan #7174-00002

Frequently Asked Questions


What's Included in these plans?

24” x 36” sheet size

Cover Sheet

Foundation/Framing Plan (¼” Scale)

Floor Plans (¼” Scale)

Door/Window/Finish Schedule

(4) Exterior Elevations (¼” Scale)

Building Section (3/4” Scale)

Roof Plan (¼” Scale)

Electrical Roof Plan (¼” Scale)

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

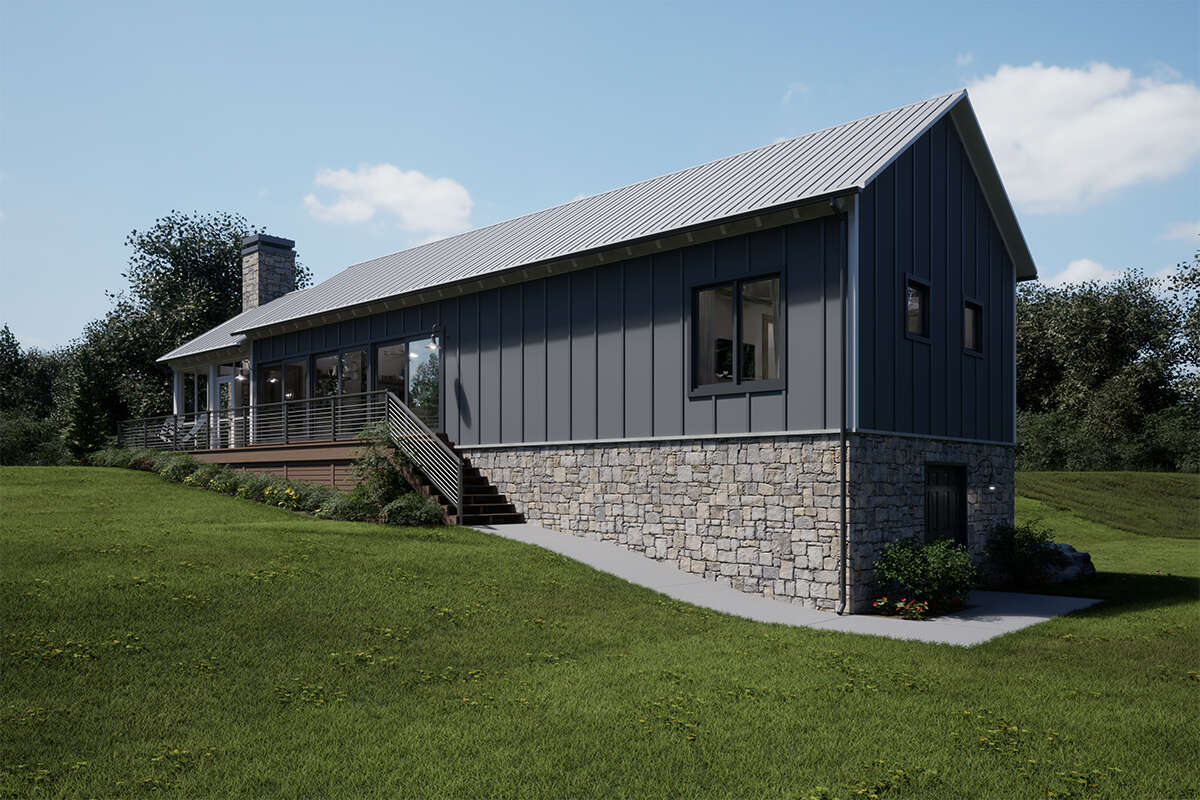

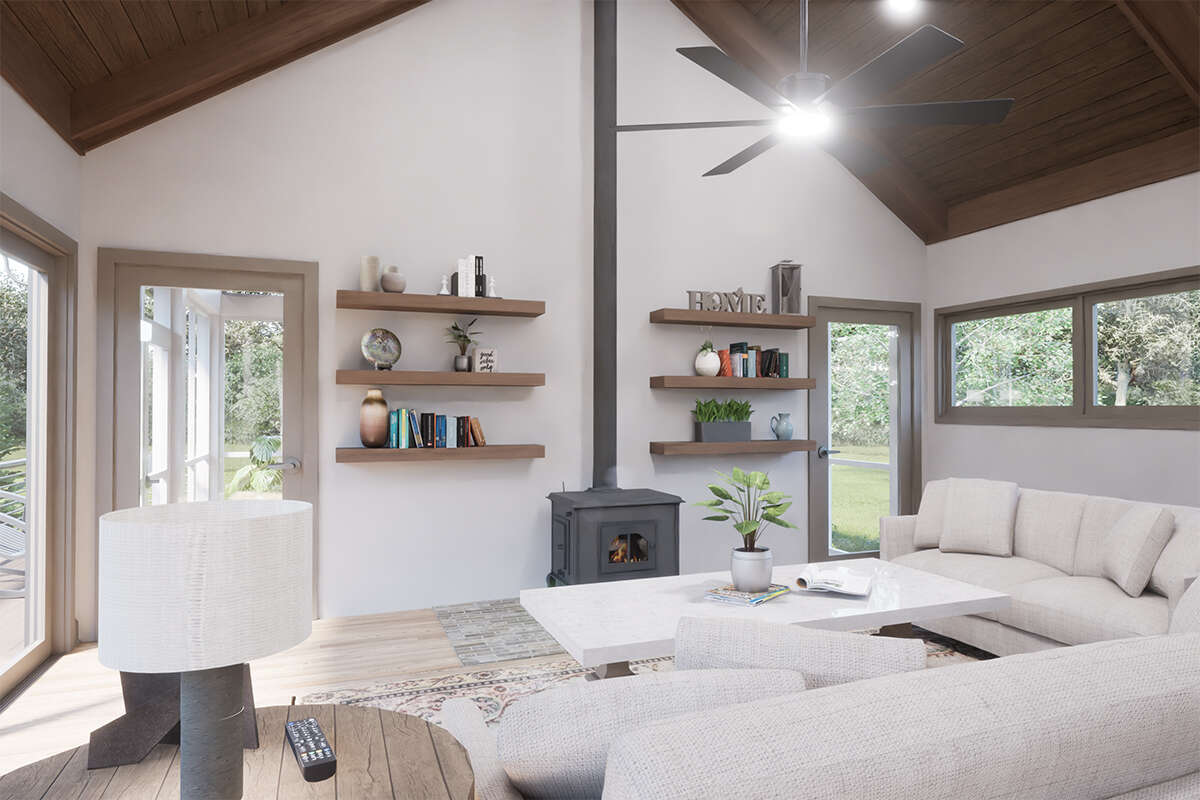

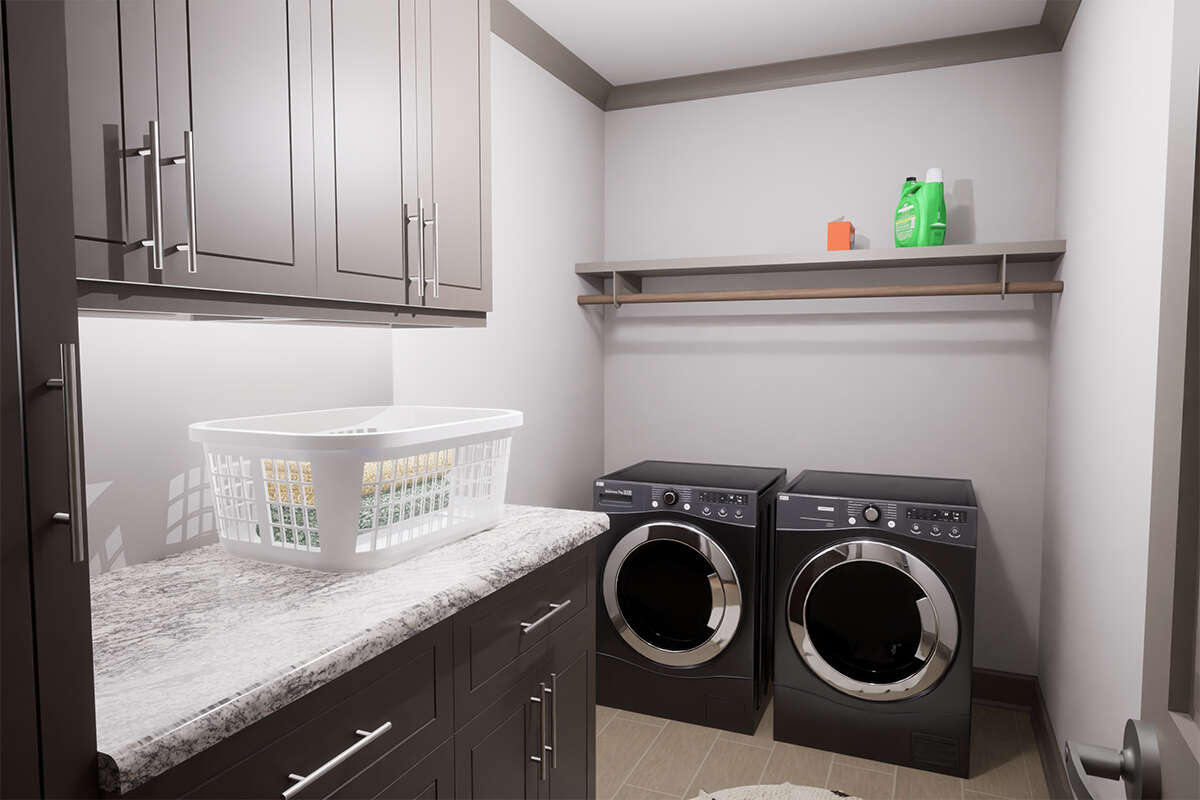

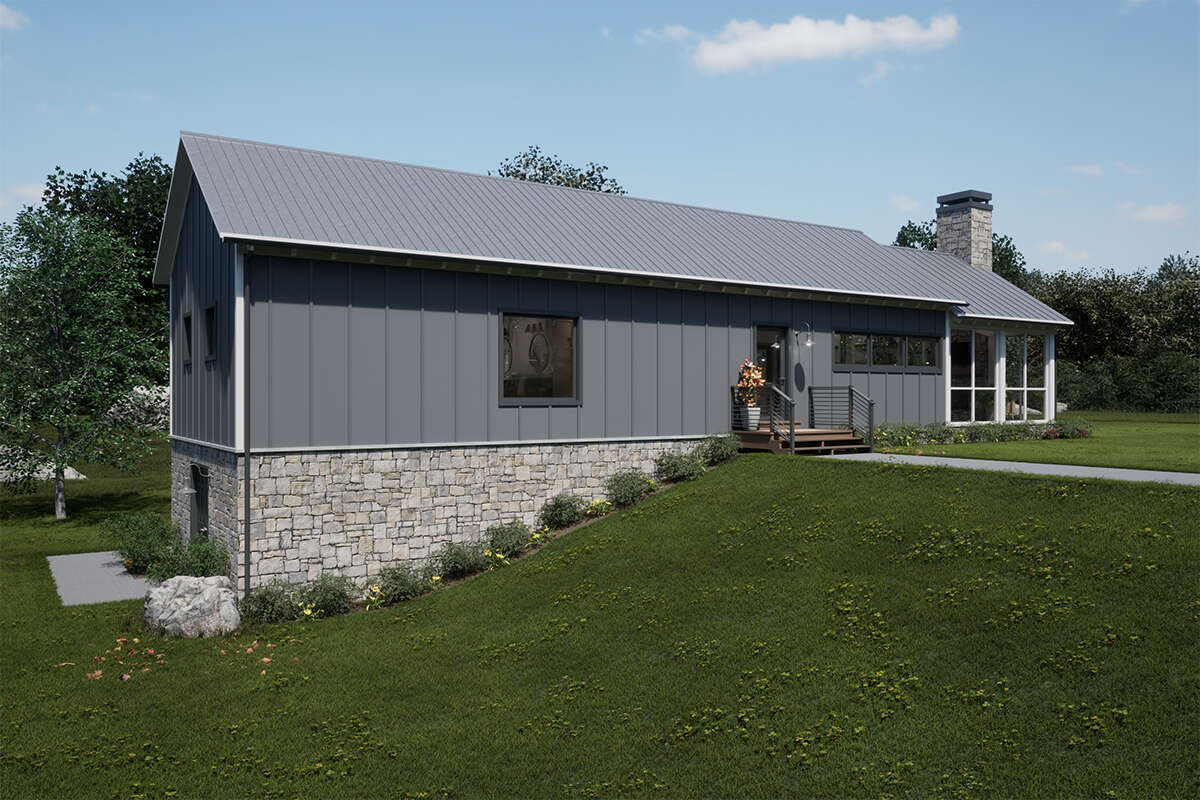

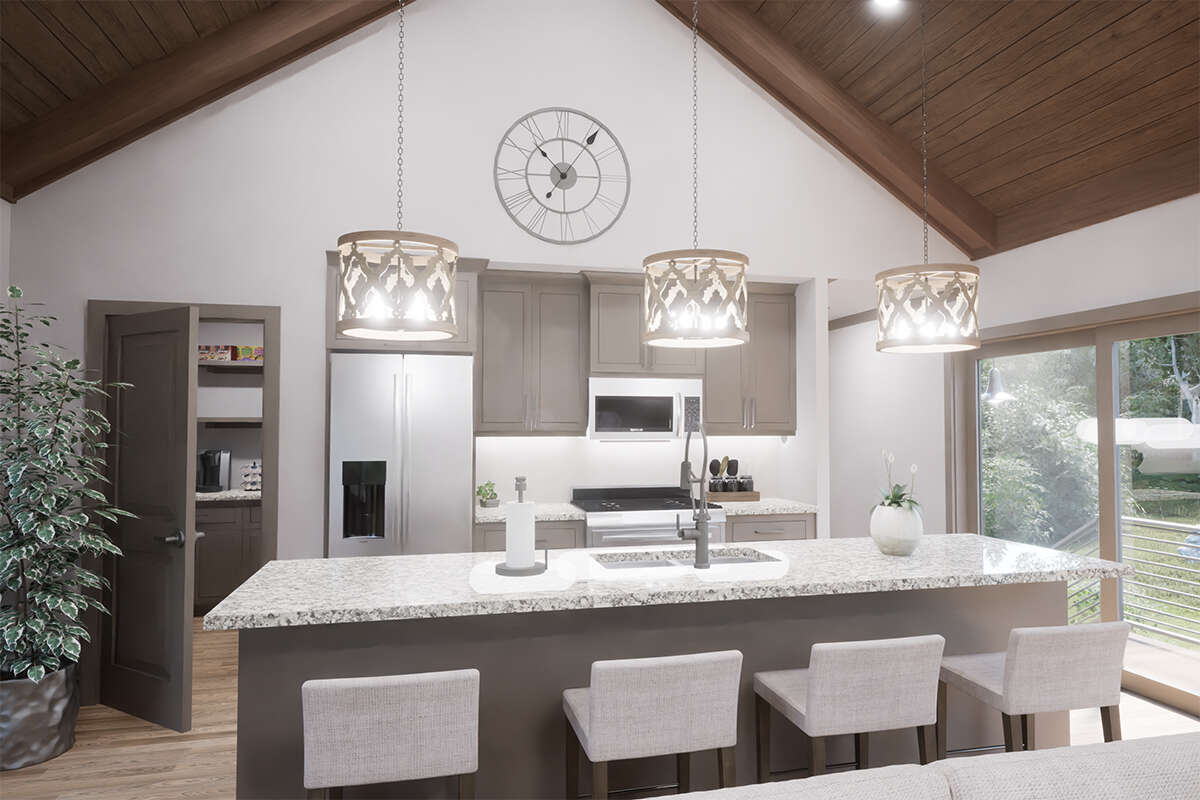

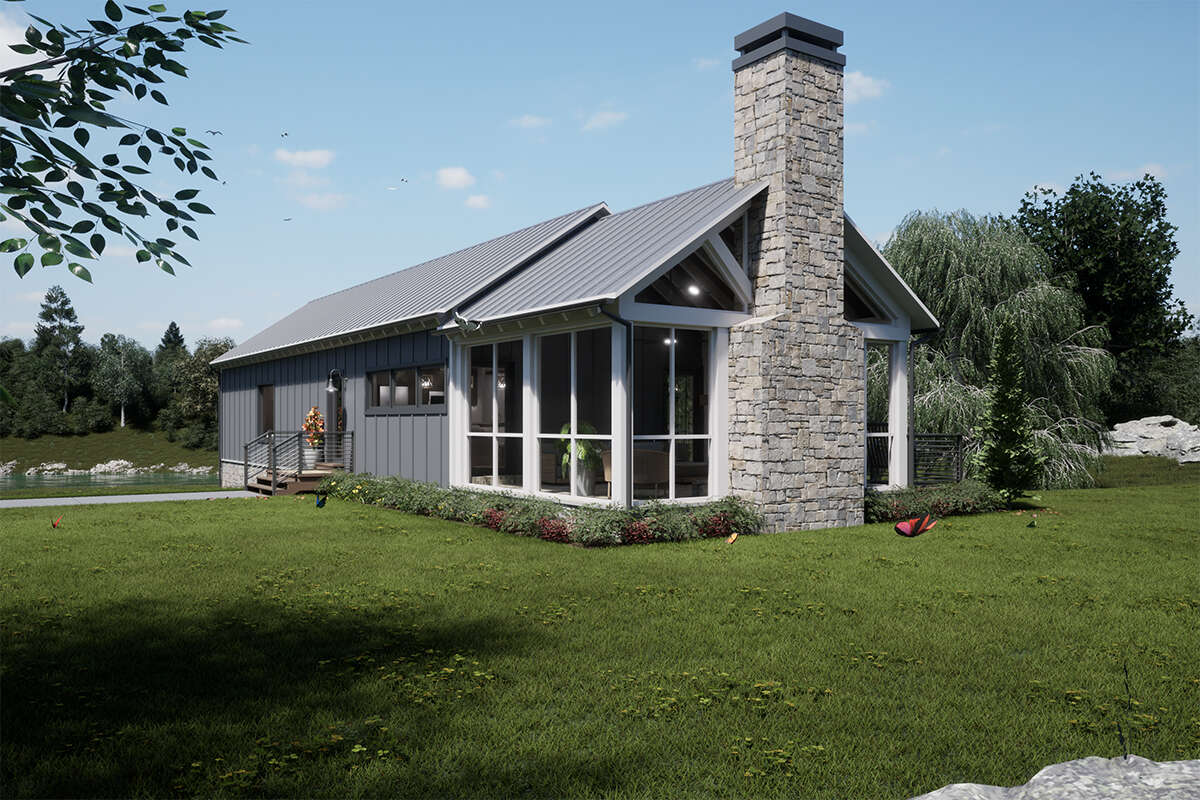

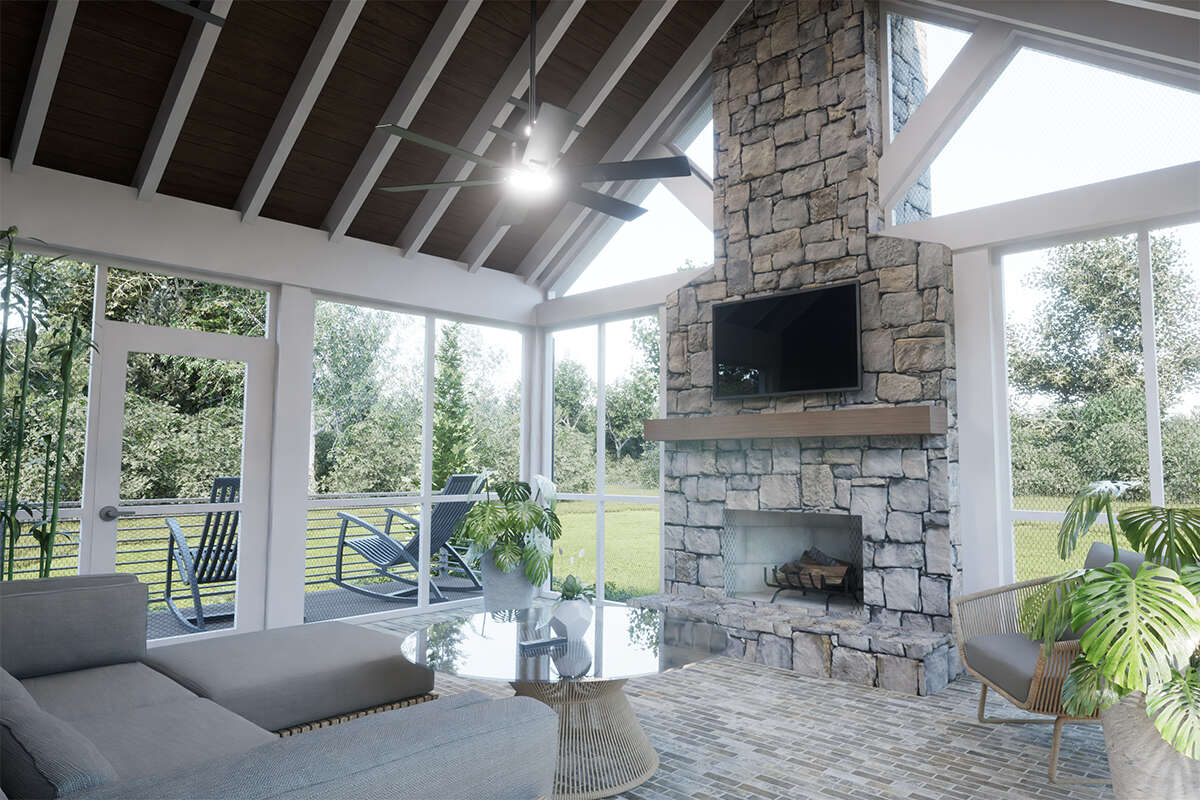

A wonderful addition to any waterfront or mountain top property, this Lakefront house plan is an Exclusive design offering ideal interior living and outdoor space. The handsome exterior offers a rear deck that nearly runs the entirety of the home’s width before leading into the screened in porch. This porch is a wonderful entertaining space with vaulted ceilings and a warming fireplace for those chilly lake or mountain nights and morning. A warm cup of coffee, cozy blanket and good book are all that’s needed to enjoy this space or conversely large numbers of family and friends can gather to enjoy the outdoor space. There is also a front porch entrance into the home and two entry points off the porch to access the living room; another oversized space, there are vaulted ceilings here and in the adjoining kitchen. The kitchen is highlighted with a large center island where family and friends can gather while preparing meals. The walk-in pantry sits nearby and features plenty of space as well as shelving. The laundry room is located on the opposite side of the kitchen with great space for the washer and dryer along with counter space.

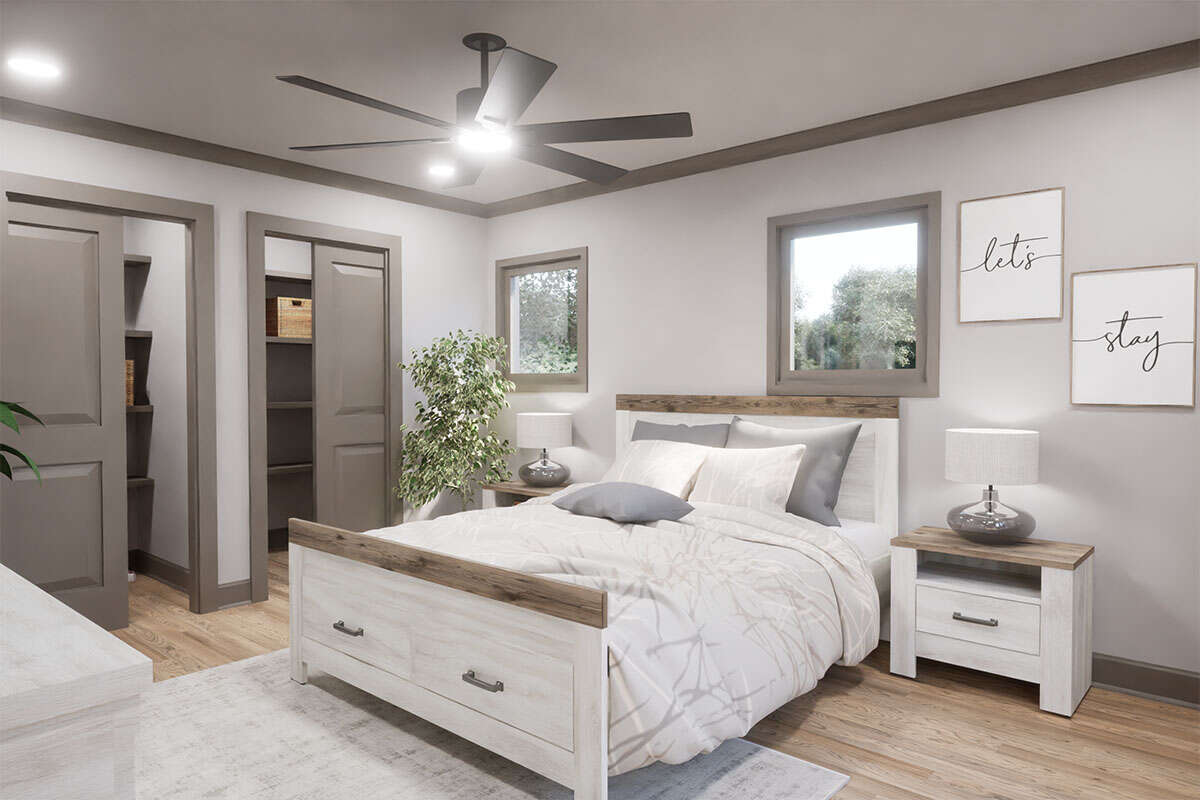

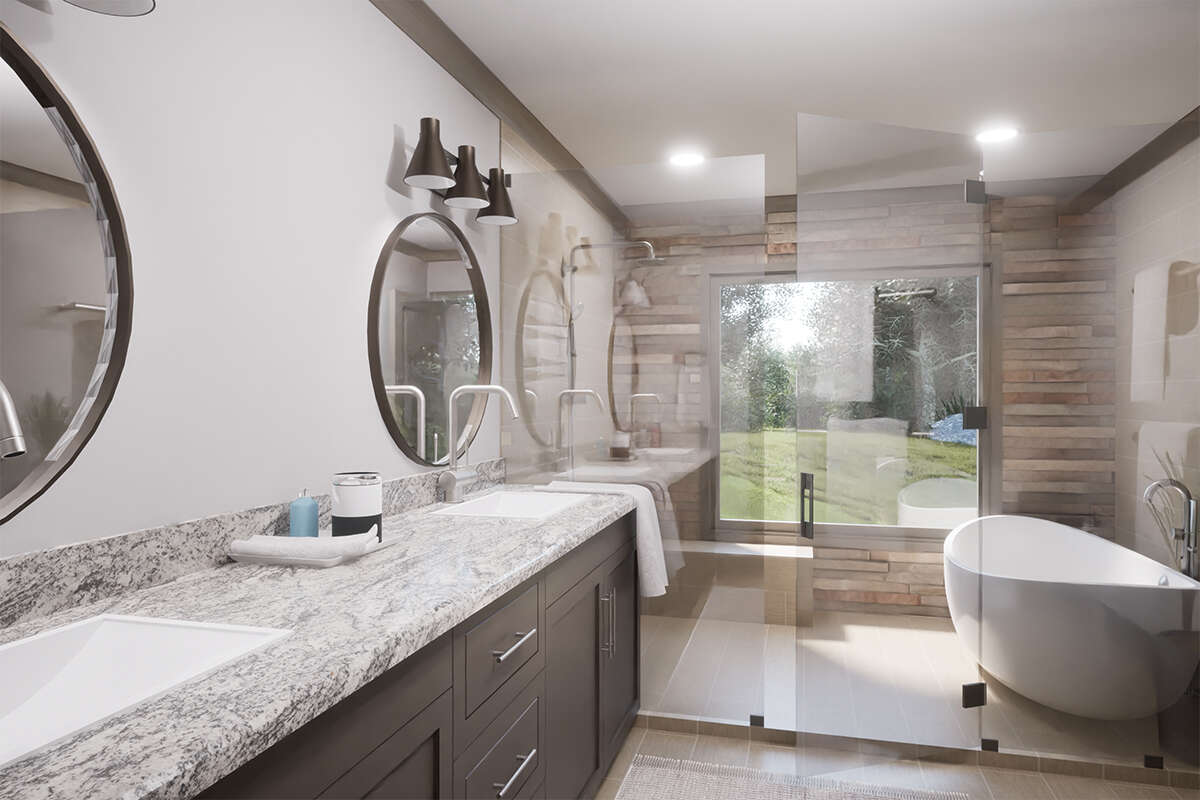

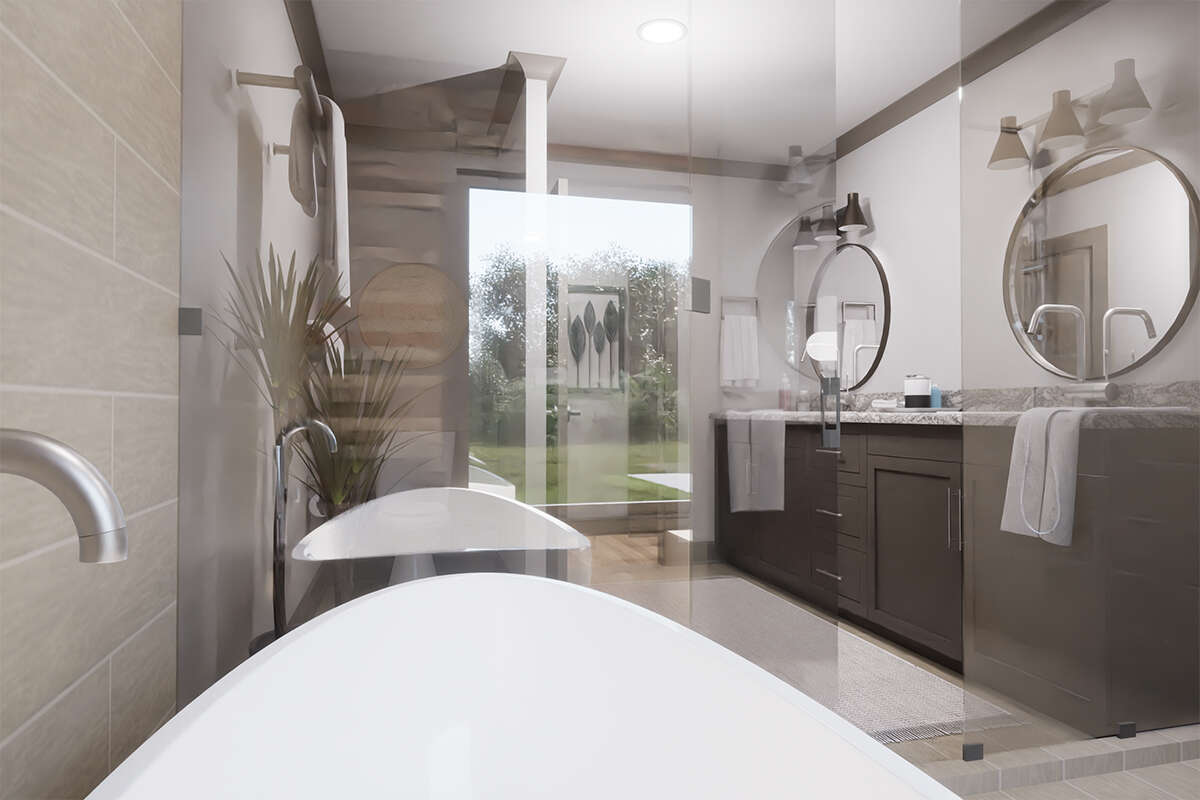

One bedroom and one bath highlights one end of the approximate 1,100 square foot home. The bedroom is abundantly oversized with lots of natural light streaming in from the many window views and there are double walk in closets with shelving; one for him and one for her. The bathroom is also designed with luxury appointments and a large amount of space, easily holding dual vanities, toilet space and a huge water room. The water room features a large tub enclosed within the adjoining shower with bench space. This beautifully designed home is an exclusive plan crafted with a great layout and luxurious finishes for you to enjoy relaxing and entertaining in.
