Craftsman House Plan 699-00266

Sq Ft4,851
1/2 Baths1
Width106' 2"
Depth87' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #699-00266

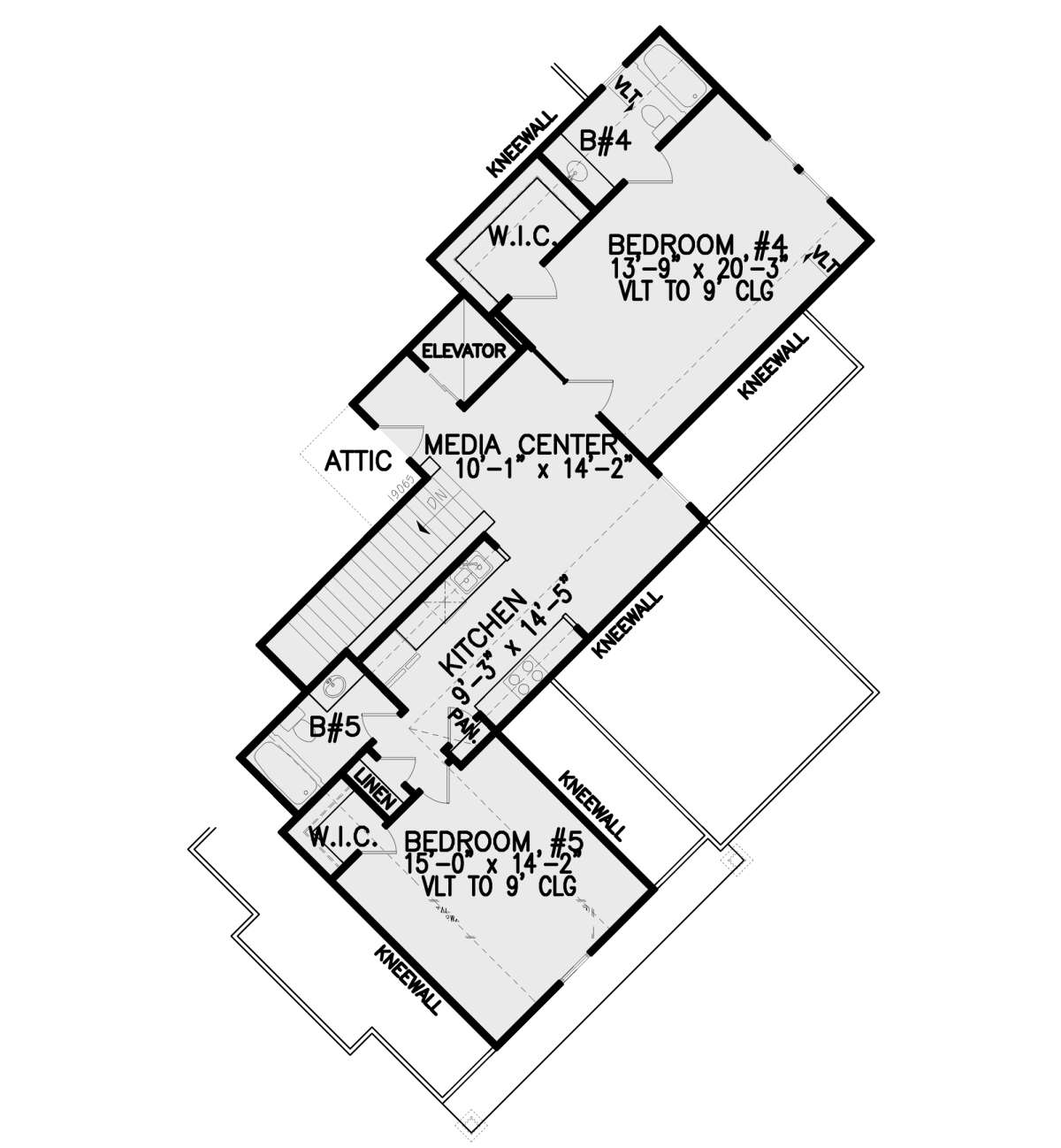

Second Floor for House Plan #699-00266

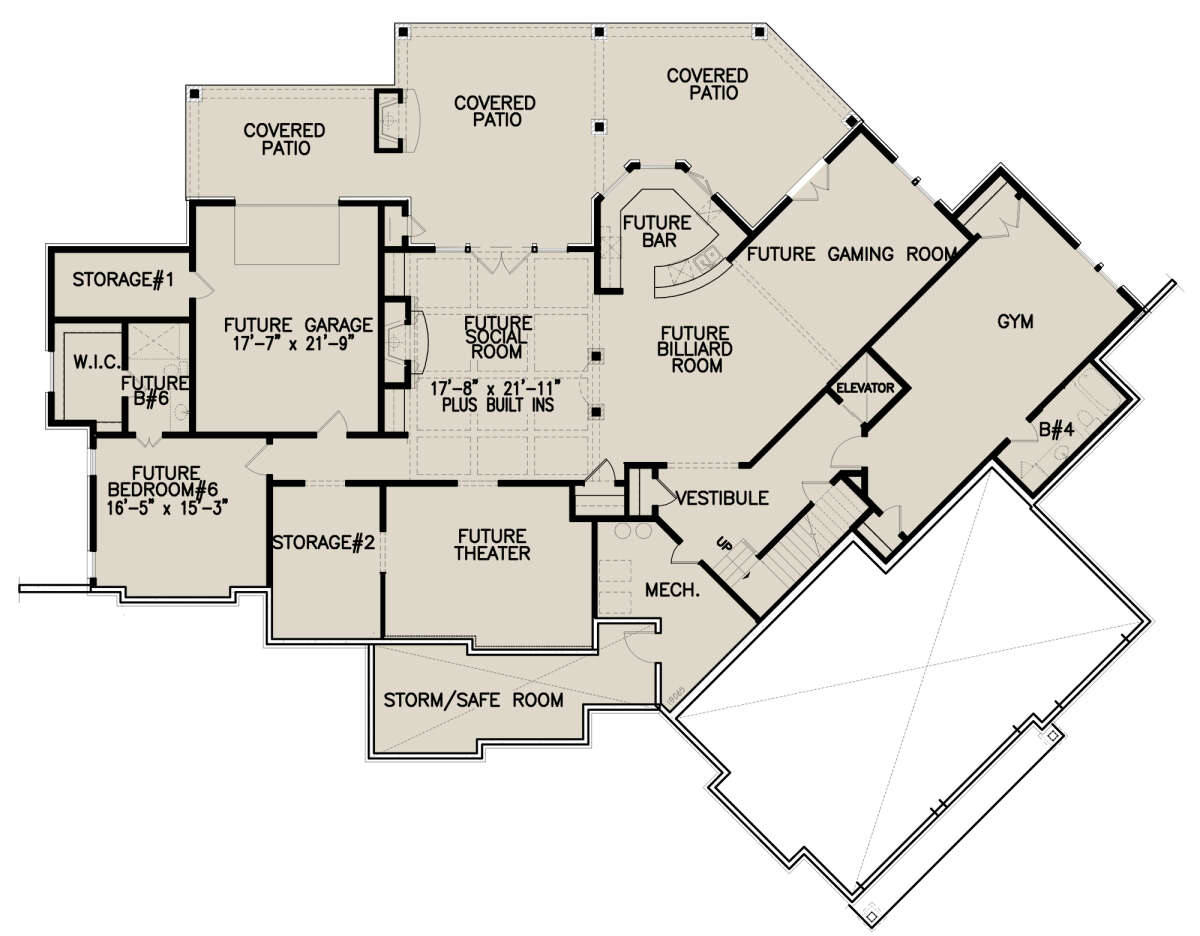

Basement for House Plan #699-00266

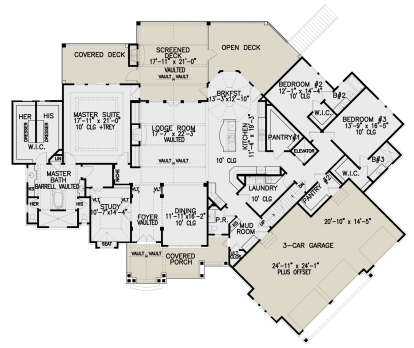

Main Floor
Main Floor for House Plan #699-00266
Second Floor
Second Floor for House Plan #699-00266
Basement for House Plan #699-00266

Frequently Asked Questions


What's Included in these plans?

  • Front, Rear, & Side Elevations
  • Floor Plans (1st and 2nd)
  • Foundation Plan (Whatever we have available for that particular plan being either basement, crawlspace, or slab)
  • Roof Plan
  • Building Section and Detail Pages
  • Electrical Pages


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

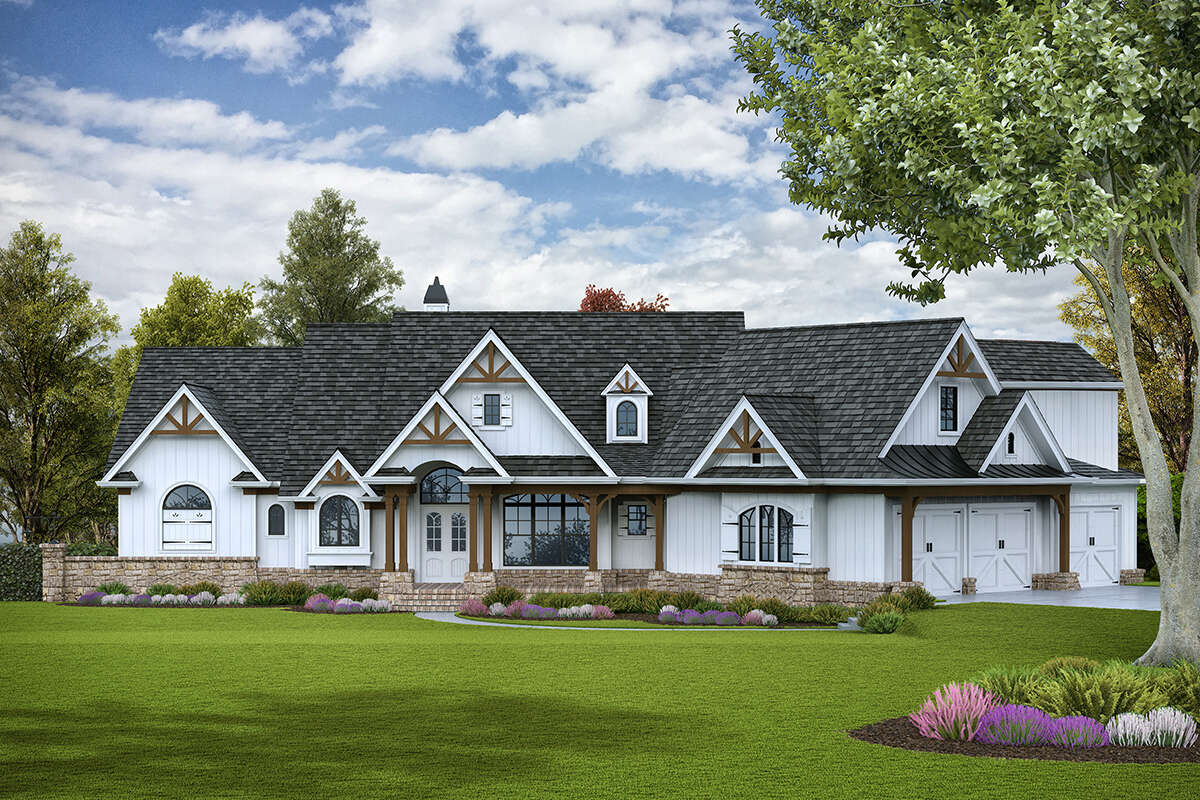

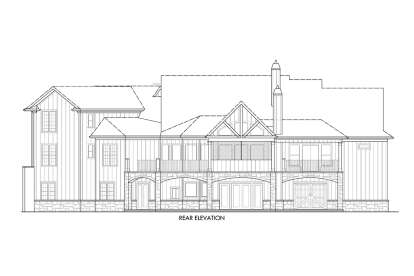

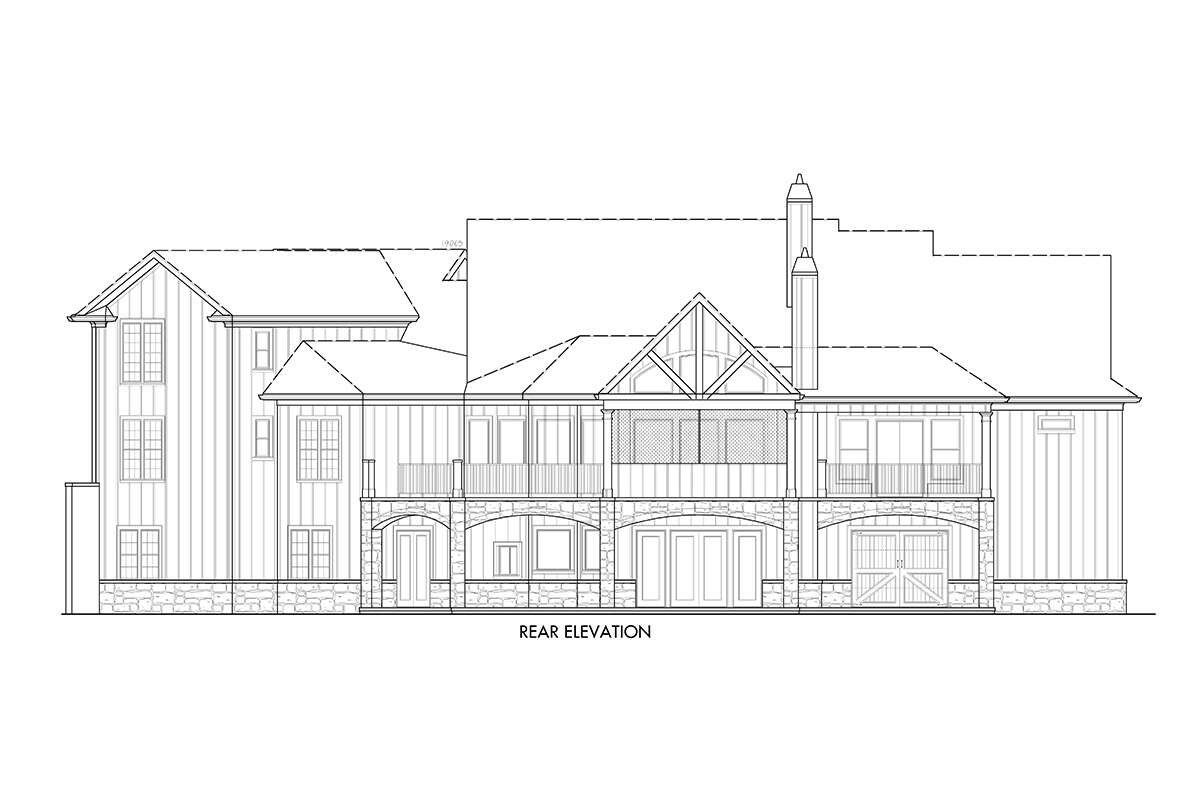

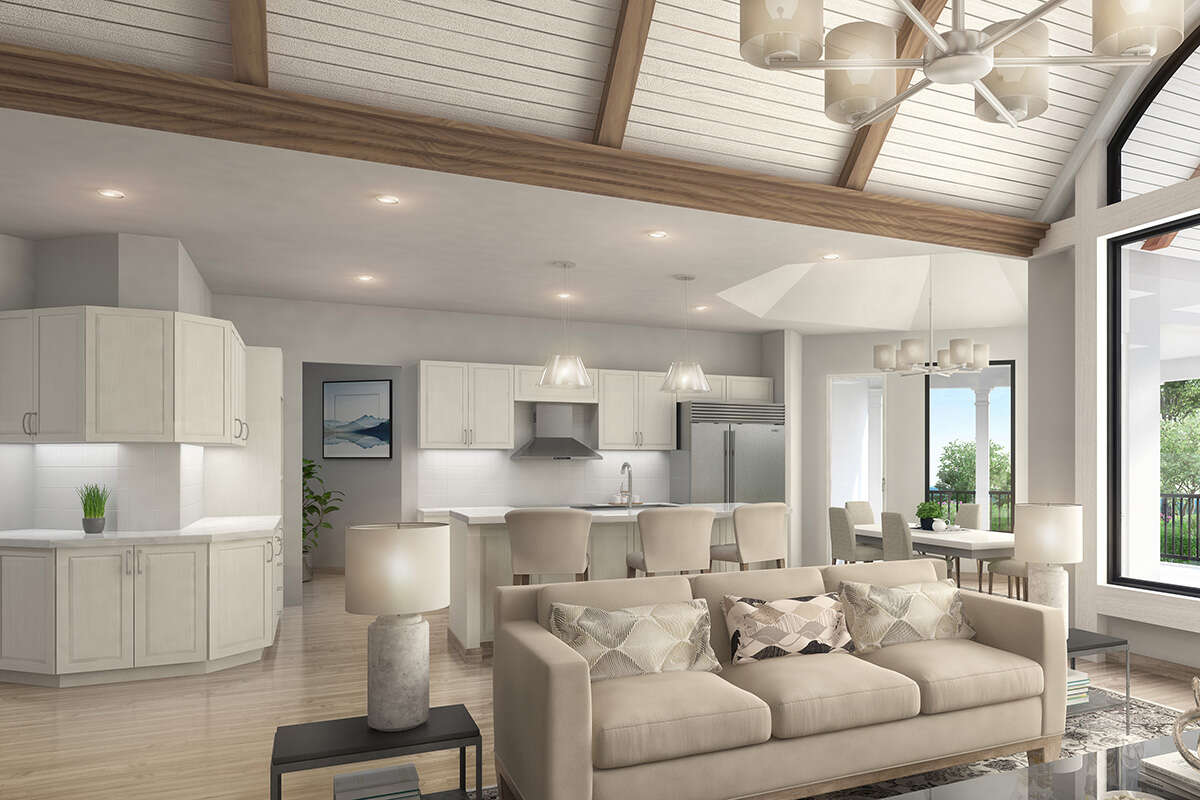

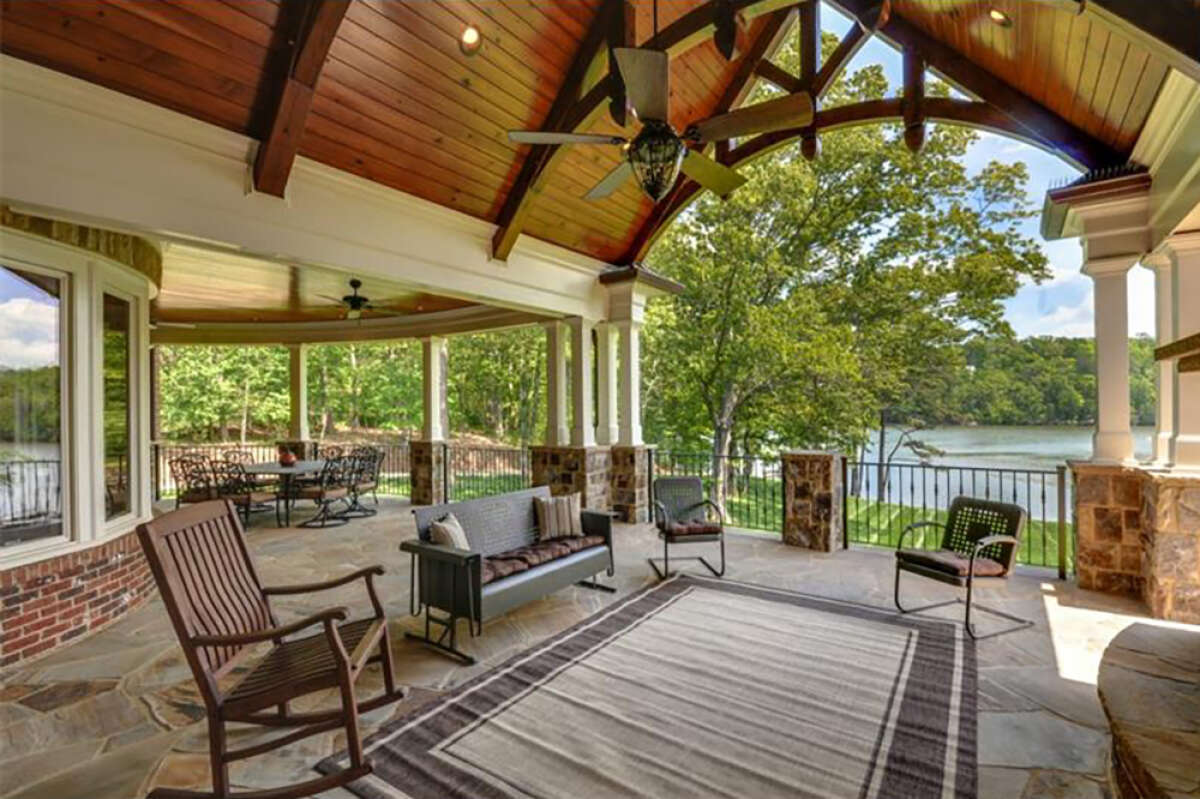

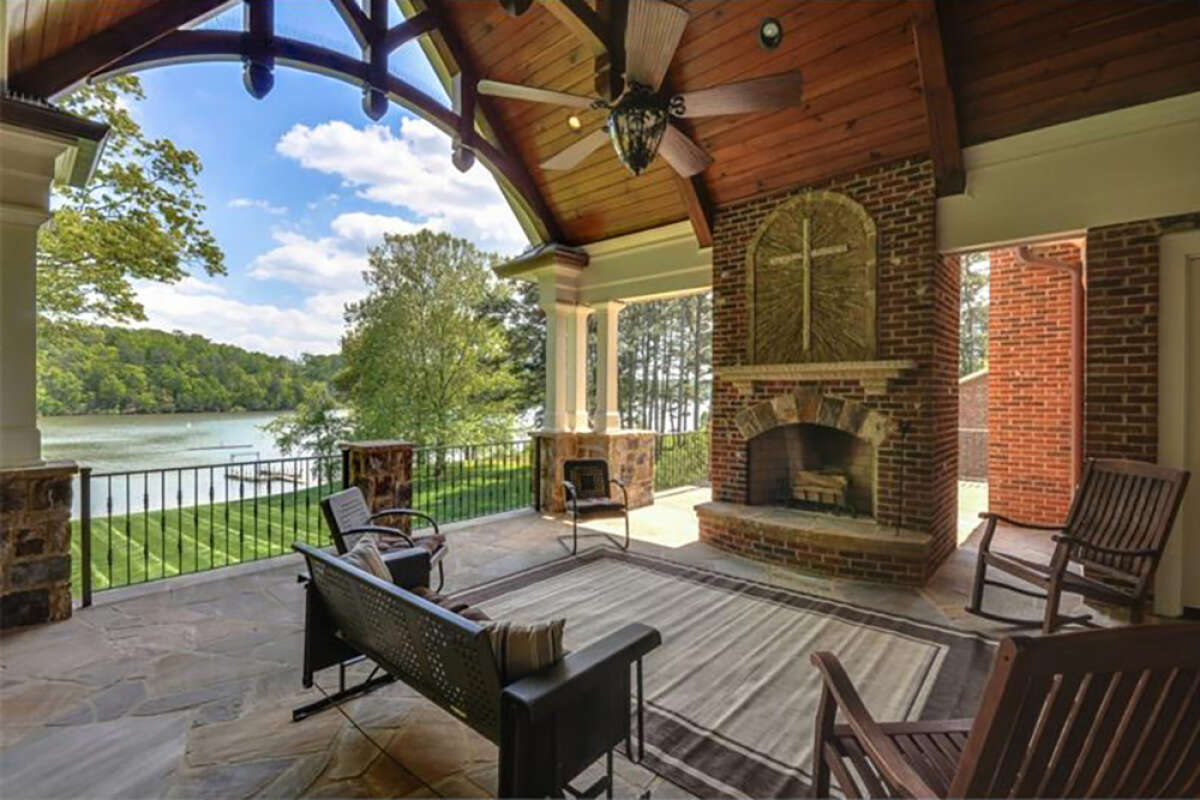

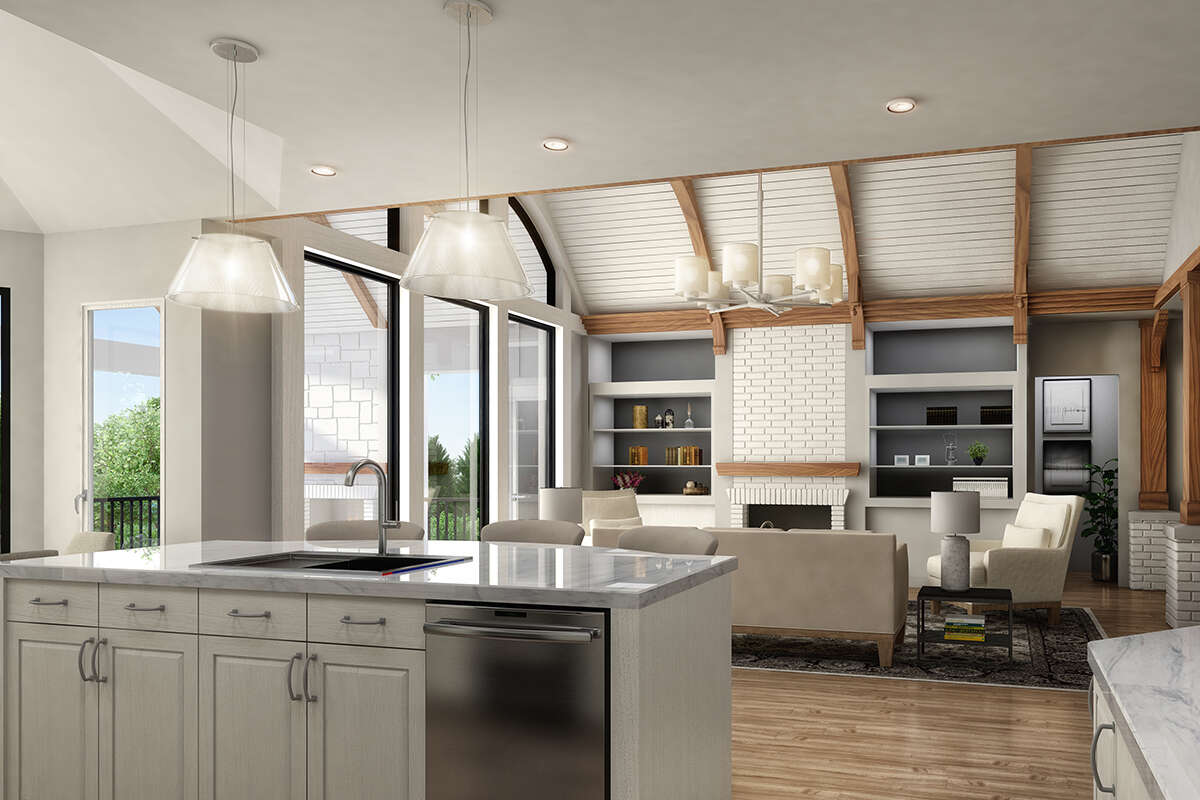

This Craftsman house plan showcases a stunning exterior countenance outlined with beam-columns, decorative gables, a stone perimeter skirt, and a variety of window shapes and sizes. The three-car side entry garage mirrors the rest of the exterior and hosts excellent vehicle space with two interior entries through the kitchen’s second pantry and mudroom. The rear of the home features a fantastic space for relaxing and entertaining. The screened-in porch highlights a vaulted ceiling and an outdoor fireplace, and is flanked by a covered deck and an open deck. These spaces are wonderful for outdoor dining and/or relaxing under the sun year-round. The main floor measures approximately 3,730 square feet with three bedrooms and three-plus bathrooms on the main floor. A running feature in this Craftsman home design is the variety of volume ceilings. Upon front entry, the vaulted ceiling in the foyer sets the first impression and continues into the vaulted study and discontinues in the open dining room. The open floor concept is exposed as the vaulted lodge room introduces the island kitchen and vaulted breakfast nook. The centrally located fireplace is the main feature of the lodge room and is conveniently flanked on either side with built-in shelving. The kitchen offers plenty of storage with cabinetry and two walk-in pantries. The breakfast nook provides double access to the screened-in deck and open deck. The split bedroom floor plan offers a treat for the privacy of the master suite and allows for the secondary bedrooms to stay close. The master suite is truly a place of relaxation for the owners as it features private access to the covered deck and study, in addition, there is a huge closet with his and her sides and built-in dressers and shelving. The master bathroom showcases a work of art with a barrel ceiling, dual vanities, his and her toilets, and a large walk-in shower with a separate soaking tub. The secondary bedroom suites each enjoy a walk-in closet and a full private bathroom. There are two additional bedroom suites on the optional second floor, also complete with vaulted ceilings, full private bathrooms, and walk-in closets. Bedrooms #5 is adjoined with a kitchenette and would function perfectly as an in-law suite. Either take the stairs or the elevator to the basement level where there is a host of entertaining areas. Travel down the vestibule to the game room where you’ll enjoy loads of fun and a full bar, as well as access to the covered patio. The social room features access to the theater room and the covered patio. Two storage rooms, a sixth bedroom suite, a spacious gym, and a safe room complete the basement level, making this Craftsman house plan a delight for any size family.
