Craftsman Plan 6849-00052

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,975
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 45' 7"
Depth 88' 8"

Floorplan Drawings

Main Floor

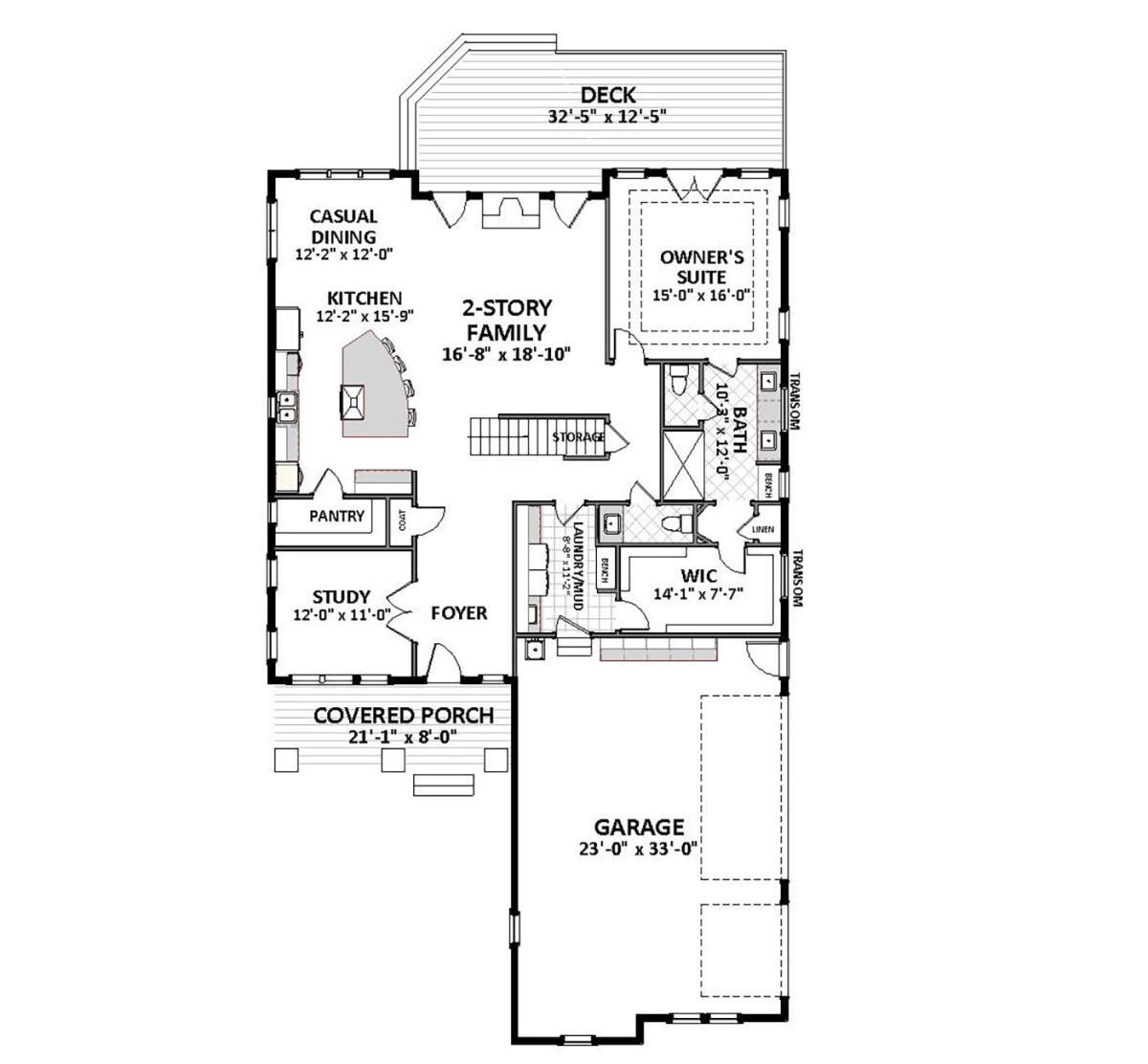

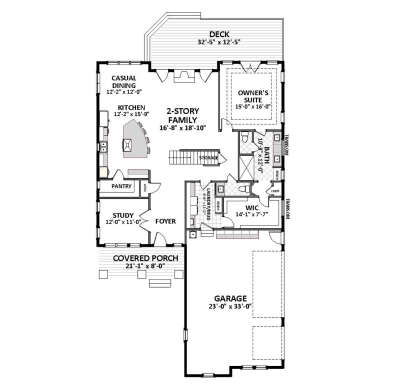

Main Floor for House Plan #6849-00052
Second Floor

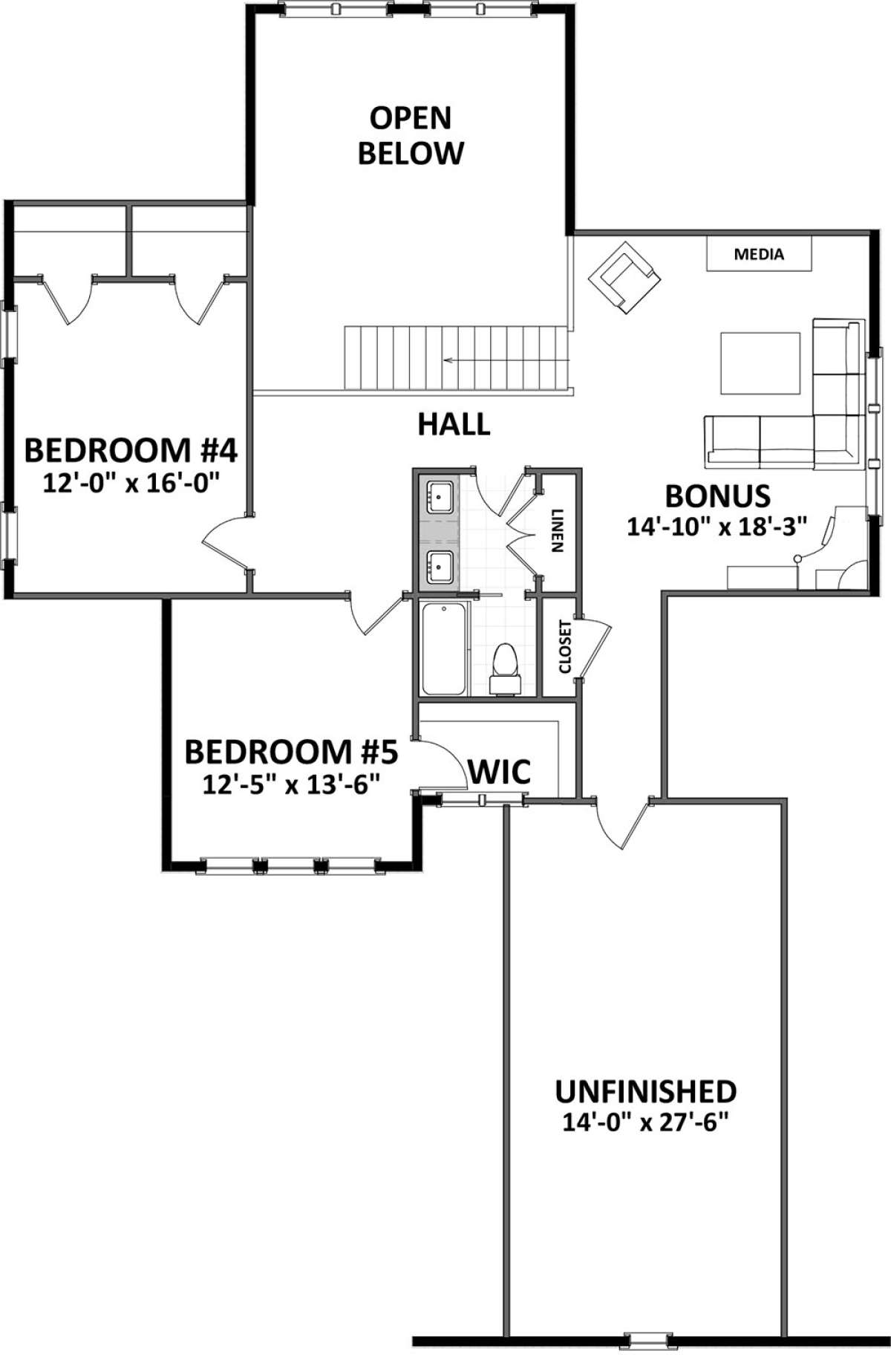

Second Floor for House Plan #6849-00052


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Foundation Plan  (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level
  • Floor Framing plans at each framed floor level
  • Exterior Elevations   (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section   (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Roof Plan
  • Electrical Plans at each finished level  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Craftsman house plan features 2,975 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
