Ranch House Plan 6471-00084

Sq Ft2,255
Beds3
Baths3
1/2 Baths0
Stories1
Cars2
Width95' 0"
Depth52' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

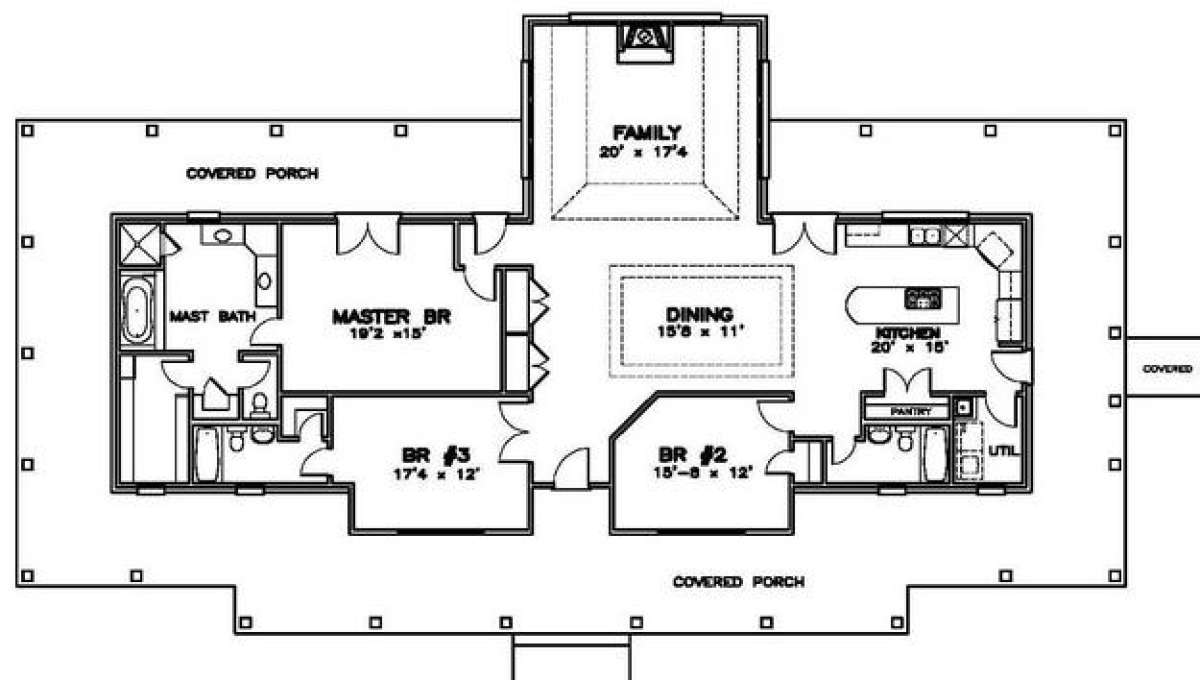

Floorplan 1 for House Plan #6471-00084

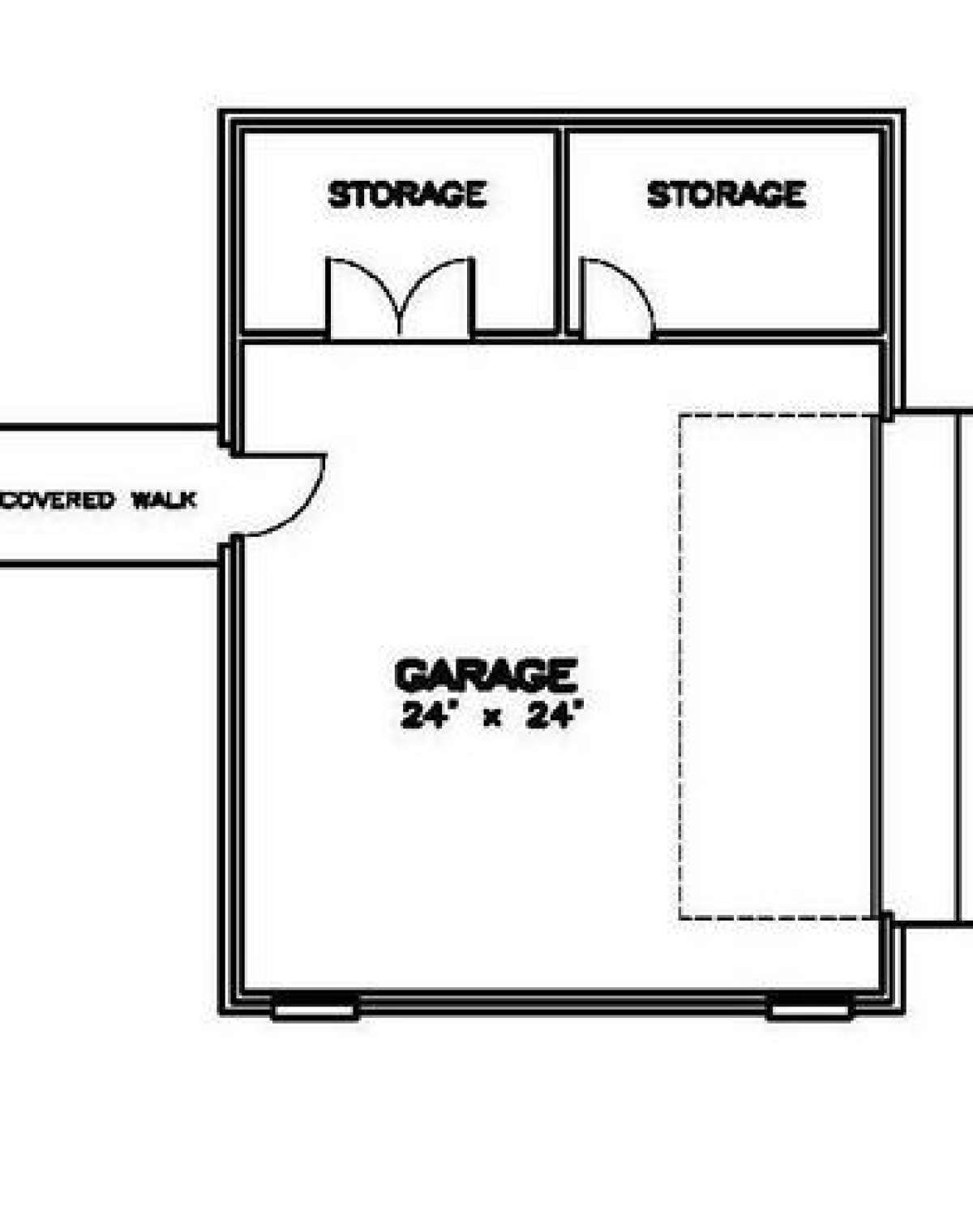

Detached Garage for House Plan #6471-00084
Floorplan 1
Floorplan 1 for House Plan #6471-00084
Detached Garage
Detached Garage for House Plan #6471-00084


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Title Sheet      3D line drawing of the residence, plan number.

Foundation Plan

  • Plan showing dimensional layout of slab foundation of the home.
  • Necessary notations pertaining to foundation.
  • Keyed section marks of footings, piers, etc.
  • If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

    Detail Sheet
  • This sheet has standard section details for the particular type of foundation chosen.
  • Typical masonry fireplace details
  • Typical cornice sections and symbol schedule.
  • Typical wall sections.
  • Above details may be on other sheets

    Floor Plans
  • All wall placements with dimensions.
  • Door & window sizes and descriptions.
  • Room labels.
  • Stairway dimensions, sections and layout. (May be shown on other sheets)
  • Notes relating to vaults, electrical floor outlets, location of beams, headers.
  • Suggested mechanical equipment locations.

    Elevations

  • Front, rear and all sides of the exterior elevations. (Scale - ¼" equals 1"-0)
  • These sheets will include all necessary dimensions, material labels, roof slopes.
  • All architectural elements relating to the exterior of the home.
  • Dormer locations on two story homes, if any.

    Electrical Schematic
      Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

    Section Drawings
           All necessary cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

    Millwork Elevations
         Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

    Roof Plan & Roof Framing Plan
          Shows the roof slopes & suggested rafter layouts.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This large comfortable Ranch house design is situated on a slab foundation, has an amazing exterior façade and features an excellent interior floor plan. The exterior is highlighted with an extensive wraparound covered porch, overhead dormers and a generous amount of window views. The front covered porch extends to the sides and rear of the home beautifully with large wooden beams and plenty of room to entertain, relax with family and friends, host a cookout and dine outdoors. Multiple entry and exit points lead to the front porch and the interior of the home for easy accessibility and entertaining options. There is a breezeway exit to the garage which has good vehicle and storage space and the utility room is located directly adjacent to the garage breezeway for easily access and a clean home environment. The interior of the home boasts of approximately 2,255 square feet of living space, three bedrooms and three baths on one floor. An open floor plan is revealed once you enter the home, full of natural light and large comfortable rooms. The dining room is quite spacious and grounds the space between the kitchen and family room. The gourmet kitchen is large with a center island, a separate pantry and double entry/exit points onto the covered porch; ideal for dining al fresco. The family room is situated at the rear of the home and is highlighted with a double step trey ceiling, a warming fireplace and is surrounded with beautiful window views that overlook the rear covered porch.

Bedroom two features excellent floor space, a triple window wall overlooking the covered porch, good closet space and there is a nearby full bath with a tub/shower combination. The third bedroom is slightly larger, measuring in excess of 17’ x 12’, has a walk-in closet and private full bath. The master suite is located at the rear of the home for privacy and features a large master bedroom with French door access onto the porch. The master bath is equipped with a full range of modern amenities that include dual vanities, a separate shower, garden tub and an enclosed toilet area. The master walk-in closet is large with plenty of room for clothing and assorted other accessories. This Ranch house plan features outstanding outdoor space for active and busy families, a great layout and a series of large well laid-out rooms for entertaining and private family spaces.
