Country Plan 6471-00032


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,225
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 50'
Depth 50'

Floorplan Drawings

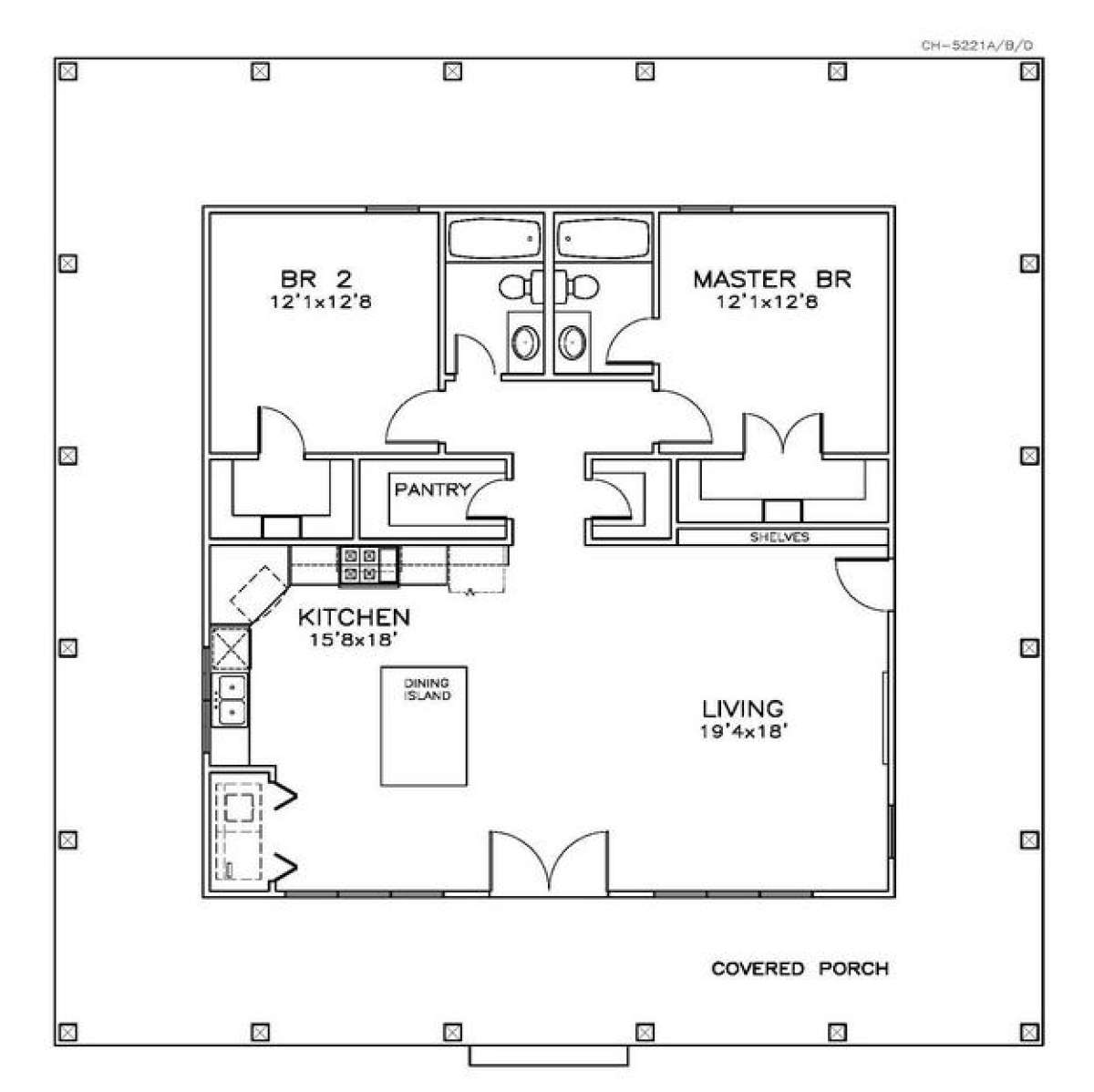

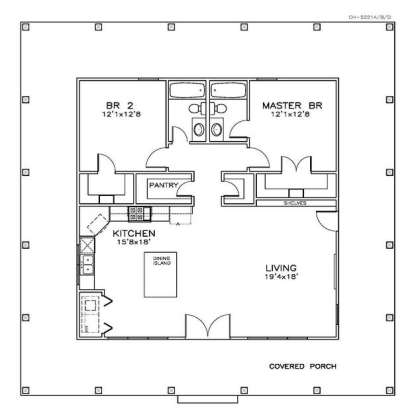

Floorplan 1
Floorplan 1 for House Plan #6471-00032

What's Included in these plans?

Title Sheet      3D line drawing of the residence, plan number.

Foundation Plan

  • Plan showing dimensional layout of slab foundation of the home.
  • Necessary notations pertaining to foundation.
  • Keyed section marks of footings, piers, etc.
  • If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

    Detail Sheet
  • This sheet has standard section details for the particular type of foundation chosen.
  • Typical masonry fireplace details
  • Typical cornice sections and symbol schedule.
  • Typical wall sections.
  • Above details may be on other sheets

    Floor Plans
  • All wall placements with dimensions.
  • Door & window sizes and descriptions.
  • Room labels.
  • Stairway dimensions, sections and layout. (May be shown on other sheets)
  • Notes relating to vaults, electrical floor outlets, location of beams, headers.
  • Suggested mechanical equipment locations.

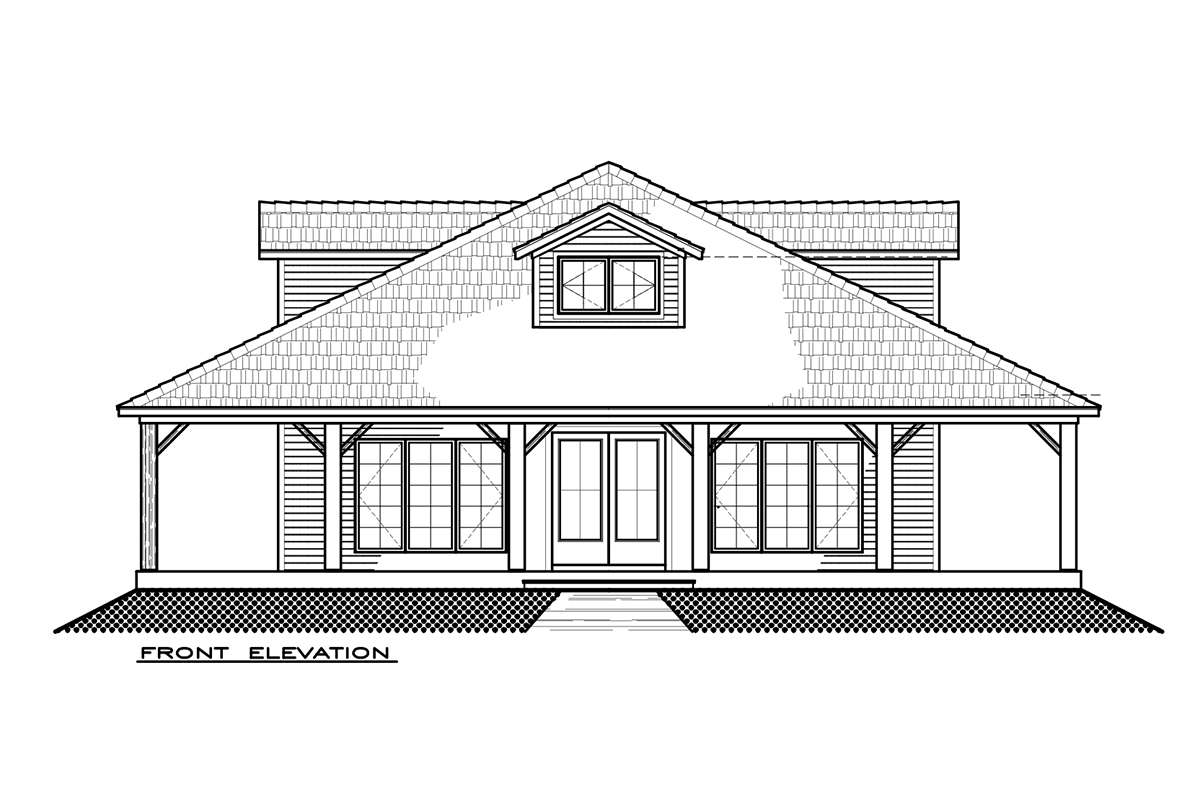

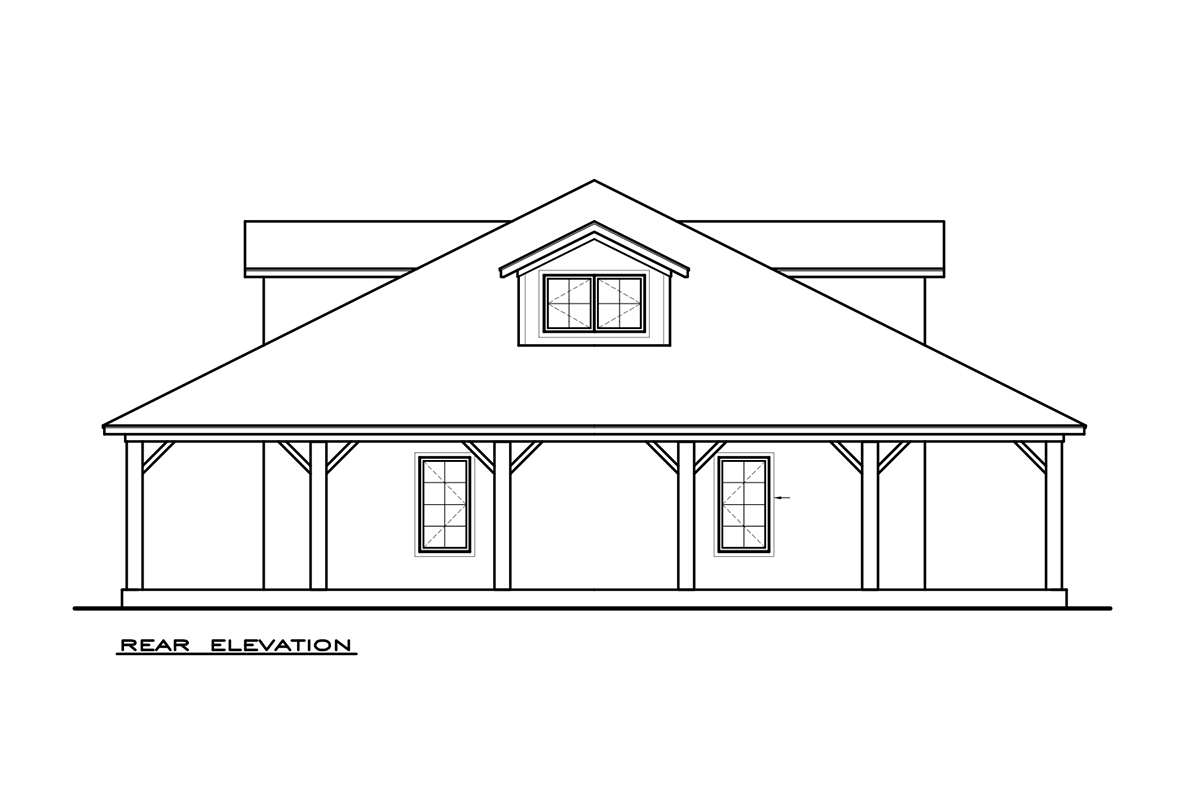

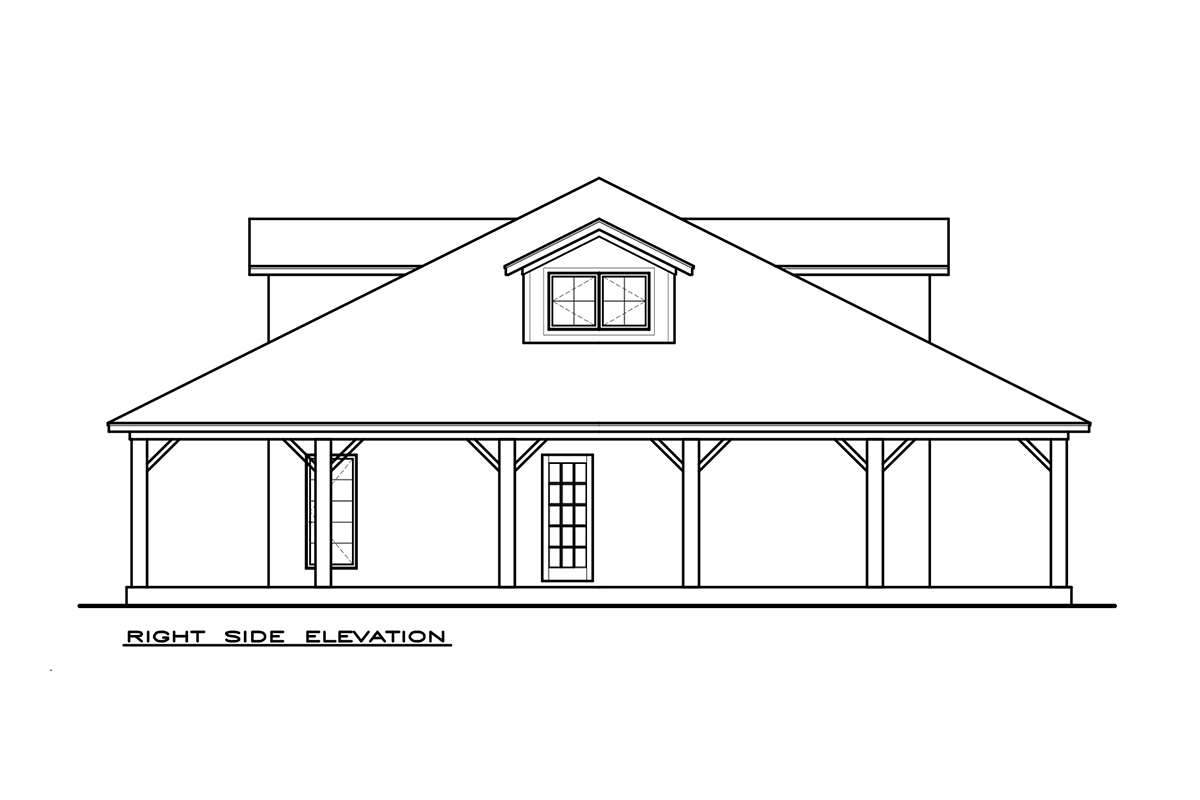

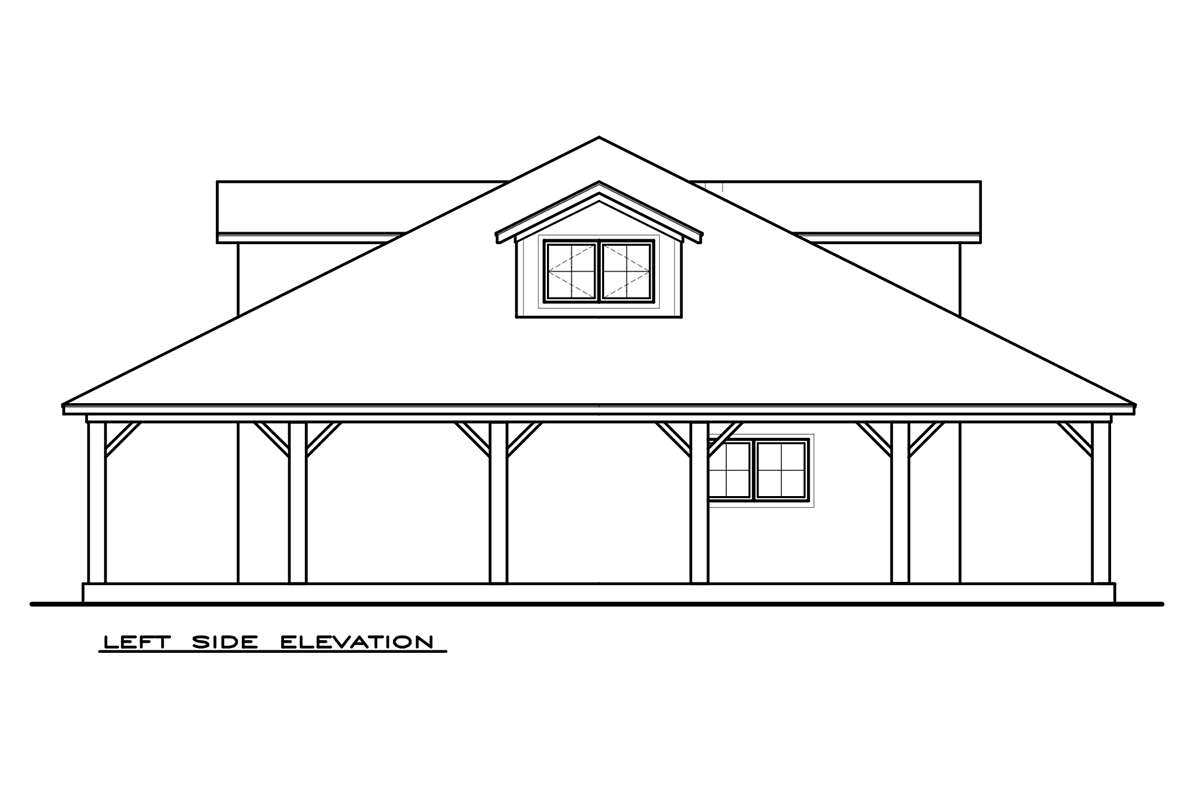

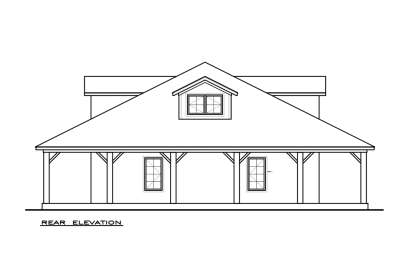

  • Front, rear and all sides of the exterior elevations. (Scale - ¼" equals 1"-0)
  • These sheets will include all necessary dimensions, material labels, roof slopes.
  • All architectural elements relating to the exterior of the home.
  • Dormer locations on two story homes, if any.

    Electrical Schematic
      Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

    Section Drawings
           All necessary cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

    Millwork Elevations
         Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

    Roof Plan & Roof Framing Plan
          Shows the roof slopes & suggested rafter layouts.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

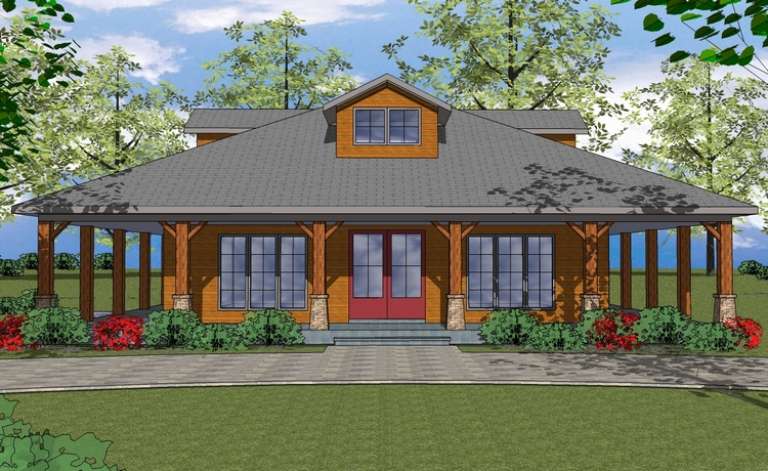

This Country house design has a low slung stylish exterior reflecting the simplicity and character of the structure that envelops the pursuit of excellence. Certainly, the home allows form to follow function, a principle associated with modern architecture, allowing for a comfortable and fully functional interior while maintaining a warm exterior façade. Joined in a spirited union, this Country house plan has a simple yet, stylish exterior façade fashioned of a double window gabled dormer, a low-pitched roofline and a covered wraparound porch that encompasses the entirety of the home. Outlined with wood beams and stone tapered supports, the front covered wraparound porch offers a respite in which to relax and effortlessly enjoy family and friends. The interior floor plan features approximately 1,225 square feet of living space that incorporates two bedrooms and two bathrooms into the space.
Double door entry into the home reveals a wide open layout brimming with endless furniture placement options and great space for entertaining. In combination with the outstanding exterior space, this home is well designed for hosting large gatherings of family and friends. The living room measures in excess of 19’x18’, houses built-in shelving and multiple access points onto the covered porch. Directly opposite the living room, is the grand kitchen that holds a dining island, a great solution for space management. Additionally, there are a wide range of modern amenities lining the rear and side walls of space including a laundry nook. A walk-in pantry is situated on the back wall of the kitchen providing plenty of space for food storage and there is an adjacent storage closet as well. The second bedroom features spacious floor space, a walk-in closet and an adjacent bath containing a vanity, toilet area and a tub/shower combination. The master suite features a spacious bedroom with an oversized walk-in closet and a private en suite bath offering a vanity, toilet area and a tub/shower combination. Fantastic interior space and outstanding outdoor space combine to create a one-of-a-kind home that is fully functional and aesthetically pleasing.
