Vacation Plan 6471-00031

Vacation House Plan #6471-00031 Elevation Photo

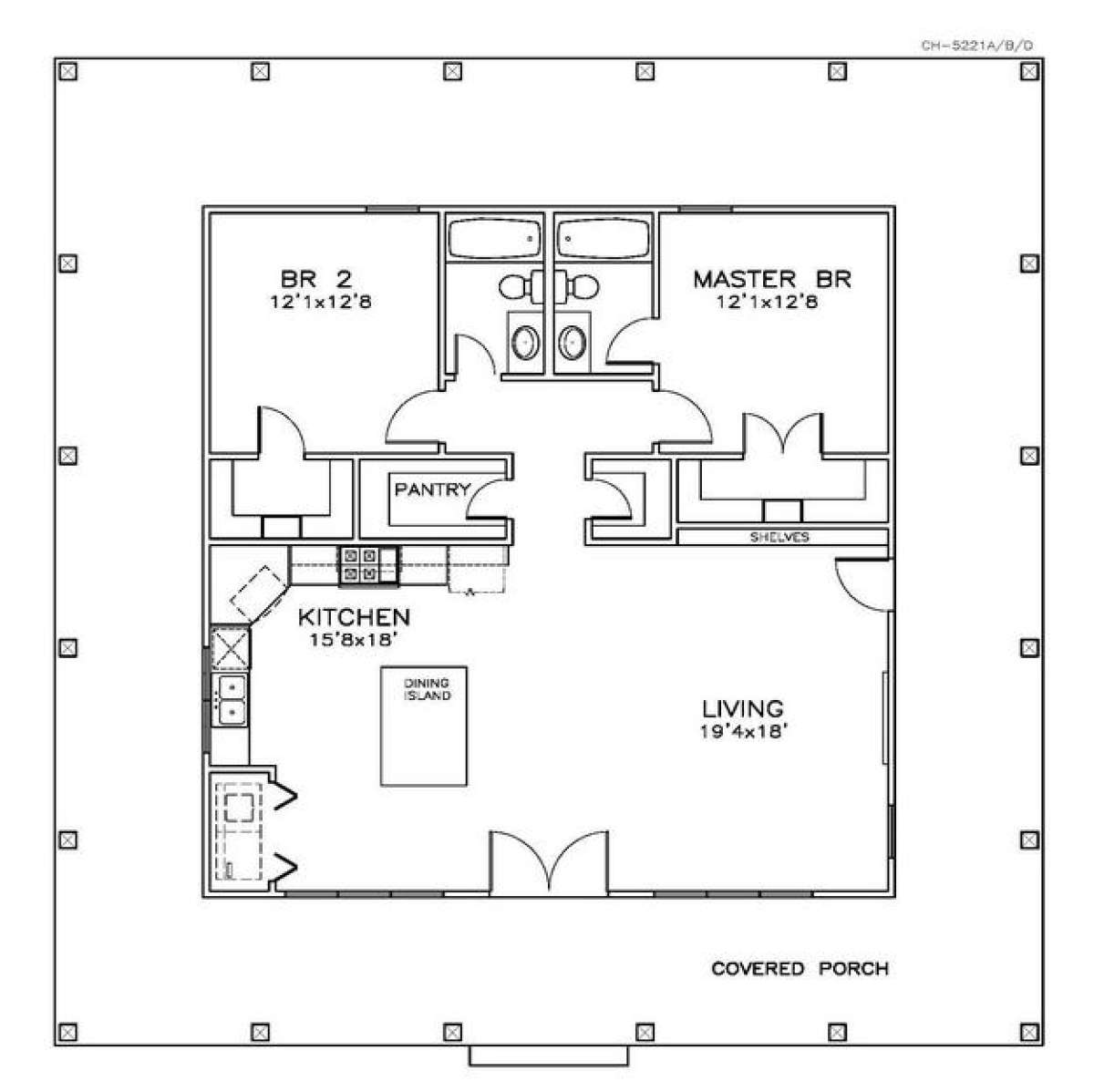

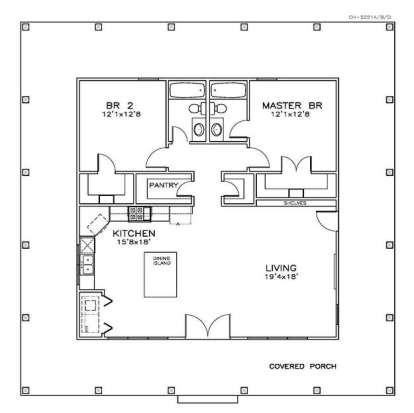

Floorplan 1 for House Plan #6471-00031
SALE
Vacation House Plan #6471-00031 Elevation Photo
Floorplan 1 for House Plan #6471-00031

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,225
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 50'
Depth 50'

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan 1 for House Plan #6471-00031
Floorplan 1
Floorplan 1 for House Plan #6471-00031
Images copyrighted by the designer.


What's Included in these plans?

Title Sheet      3D line drawing of the residence, plan number.

Foundation Plan

  • Plan showing dimensional layout of slab foundation of the home.
  • Necessary notations pertaining to foundation.
  • Keyed section marks of footings, piers, etc.
  • If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

    Detail Sheet
  • This sheet has standard section details for the particular type of foundation chosen.
  • Typical masonry fireplace details
  • Typical cornice sections and symbol schedule.
  • Typical wall sections.
  • Above details may be on other sheets

    Floor Plans
  • All wall placements with dimensions.
  • Door & window sizes and descriptions.
  • Room labels.
  • Stairway dimensions, sections and layout. (May be shown on other sheets)
  • Notes relating to vaults, electrical floor outlets, location of beams, headers.
  • Suggested mechanical equipment locations.

    Elevations
  • Front, rear and all sides of the exterior elevations. (Scale - ¼" equals 1"-0)
  • These sheets will include all necessary dimensions, material labels, roof slopes.
  • All architectural elements relating to the exterior of the home.
  • Dormer locations on two story homes, if any.

    Electrical Schematic      Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

    Section Drawings           All necessary cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

    Millwork Elevations         Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

    Roof Plan & Roof Framing Plan          Shows the roof slopes & suggested rafter layouts.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This functional and lovely house plan could serve as a Vacation home or permanent residence. An abundance of outdoor space is highlighted on the exterior of the home where the deeply set and widely proportioned covered porch wraps entirely around the home providing excellent entertaining and relaxing family space. The combination of wraparound porch and exterior features such as an overhead cupola, substantial columned beams, abundant window views and a gently sloping roofline add visual interest and character to the home’s facade. The interior layout is open, contains two bedrooms and two baths and a large open common rooms in approximately 1,225 square feet of living space. Double doors and symmetrical window views are highlighted on the front entrance of the home and once you enter the home the open floor plan greets you. There is a large living room with built-in shelving and an entry/exit point onto the wraparound porch; great spill-over space for hosting dinner parties, family and special occasion celebrations and family fun. The adjacent kitchen and dining island is great space for preparing and enjoying meals; there is an island for casual dining and the kitchen features double sink window views and plenty of counter and cabinet space along with an enclosed laundry nook. An oversized walk-in pantry and large storage/coat closet line the hallway to the rear of the home where the bedrooms and baths are located.

The bedrooms are of equivalent size; each have window views and there is a large walk-in closet in bedroom two while the master suite features an oversized walk-in closet with French door access into the space. The master suite has an attached en suite bath with vanity space, a toilet area and a tub/shower combination. Bedroom two has a nearby bath with identical features and hall entrance for the guest’s use as well. This Vacation house plan is all about “the views” and offers excellent outdoor space and a functional and casual floor plan.
