Craftsman Garage Plan 6082-00184

Name: Craftsman 3 Car Garage Plan - 1,353 Square Feet, 2 Bedrooms, 2.5 Bathrooms | Floor Plan #6082-00184 | America's Best House Plans
Brand: America's Best House Plans
SKU: 6082-00184
Price: 1495.00 USD
Availability: InStock

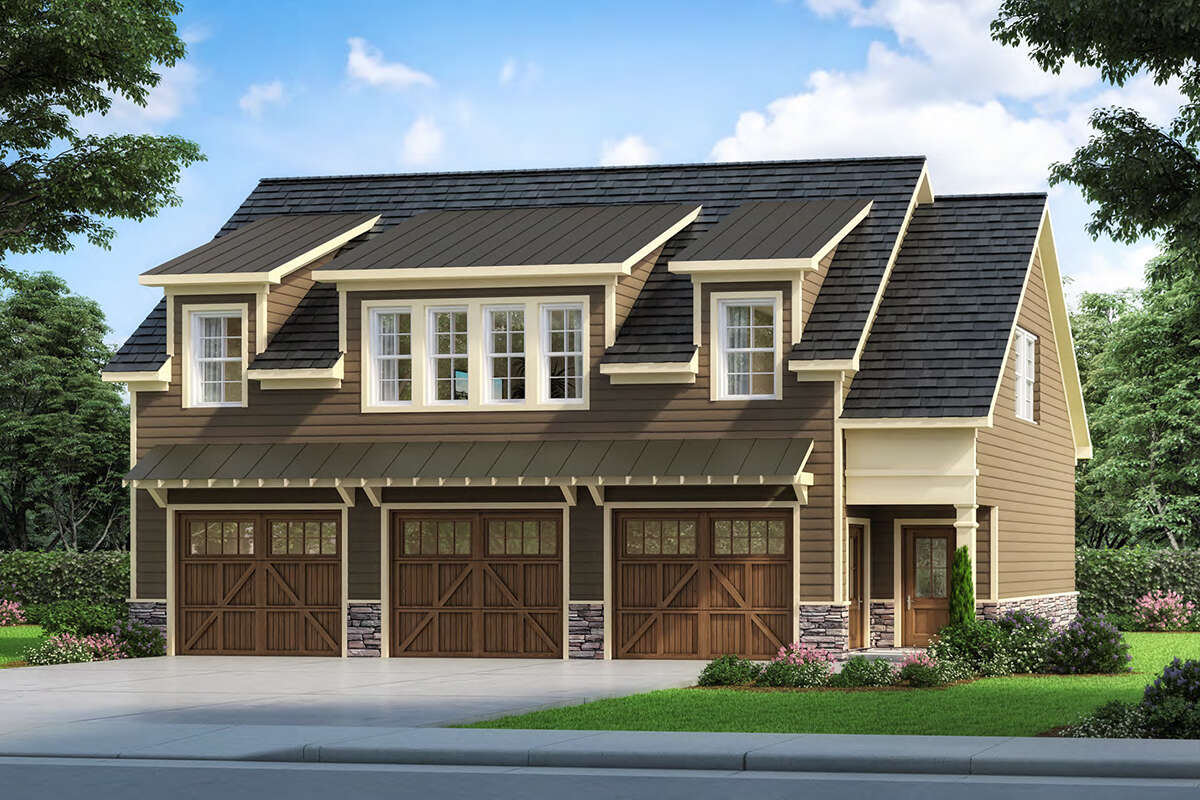

Craftsman House Plan #6082-00184 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Unfin Sq Ft 0

Fin Sq Ft 1,353

Cars 3

Beds 2

Width 48' 6"

Depth 28'

See What's Included

Select Package

PDF (Single Build, Non-Modifiable)

$1,595.00

ELECTRONIC FORMAT
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally. This option does not allow for modifications to be made to the plans.

5 Sets (Single Build)

$1,495.00

PHYSICAL FORMAT
Five printed sets of construction drawings shipped to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,895.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

ABHP Material List $325.00

A complete material list for this plan plus purchased options excluding right reading reverse, windows and doors and any modifications. Product requires 5-7 business days to complete.

View Sample ABHP Material List

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

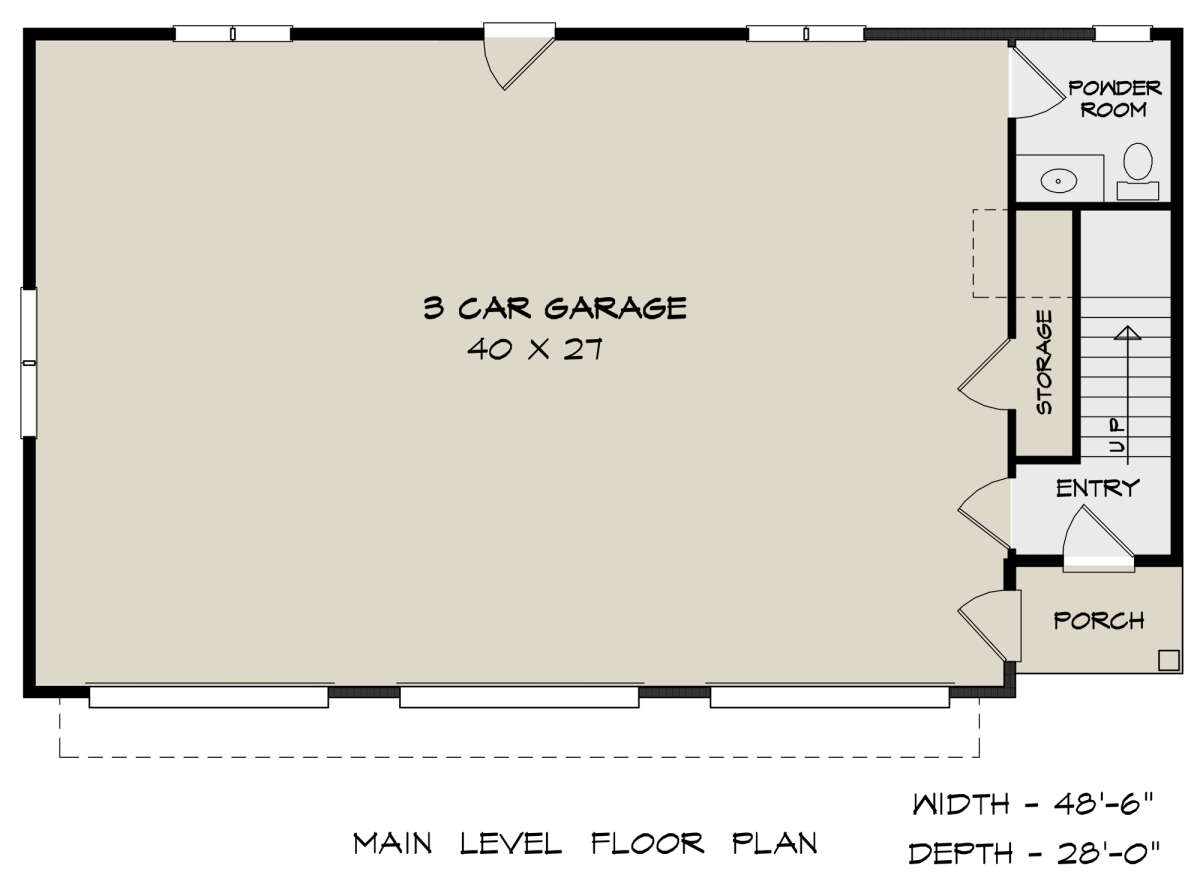

First Floor

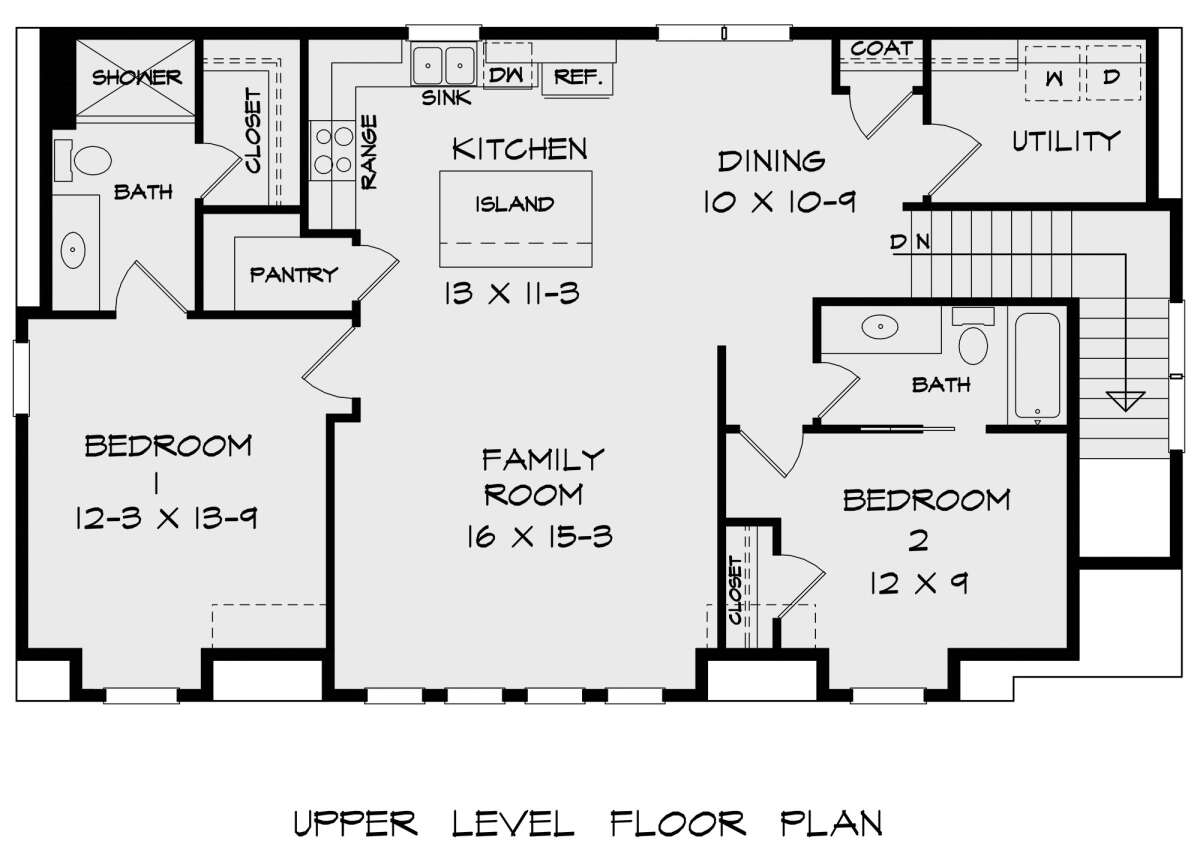

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,353 sq. ft. First Floor: 131 sq. ft. Second Floor: 1,222 sq. ft.

UNHEATED Sq Ft

Garage: 1,189 sq. ft.

Bedrooms: 2

Full Baths: 2

Half Baths: 1

Floors: 2

Garage Size: 3 car

Width: 48ft.-6in.

Depth: 28ft.

Height: 29ft.

Foundation:

Slab Foundation

Main Roof Pitch: 12:12

Exterior Framing:

2x6 Wood

CEILING HEIGHTS

First Floor: 10 feet

Second Floor: 9 feet

What's Included in these plans?

Elevations

Foundation Plan

Floor Plans

Electrical Plan

Details which will include typical wall sections, stair sections, rafter details etc.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
