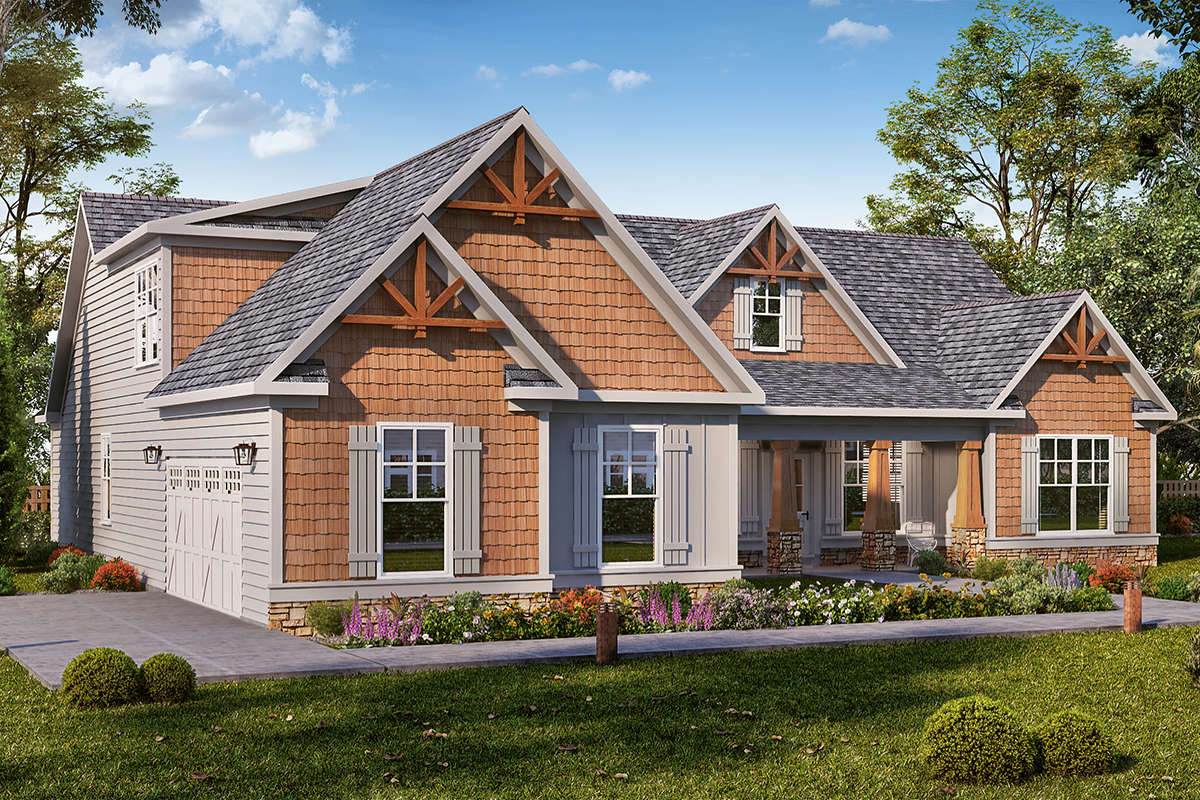

Craftsman House Plan #6082-00155 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,145

Beds 3-4

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 64' 7"

Depth 62' 4"

See What's Included

Select Package

PDF (Single Build, Non-Modifiable)

$1,800.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with the copyright release which allows for making printed copies locally. This option does not allow for modifications to be made to the plans. This package comes with a license to construct one home.

5 Sets (Single Build)

$1,300.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,100.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $350.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

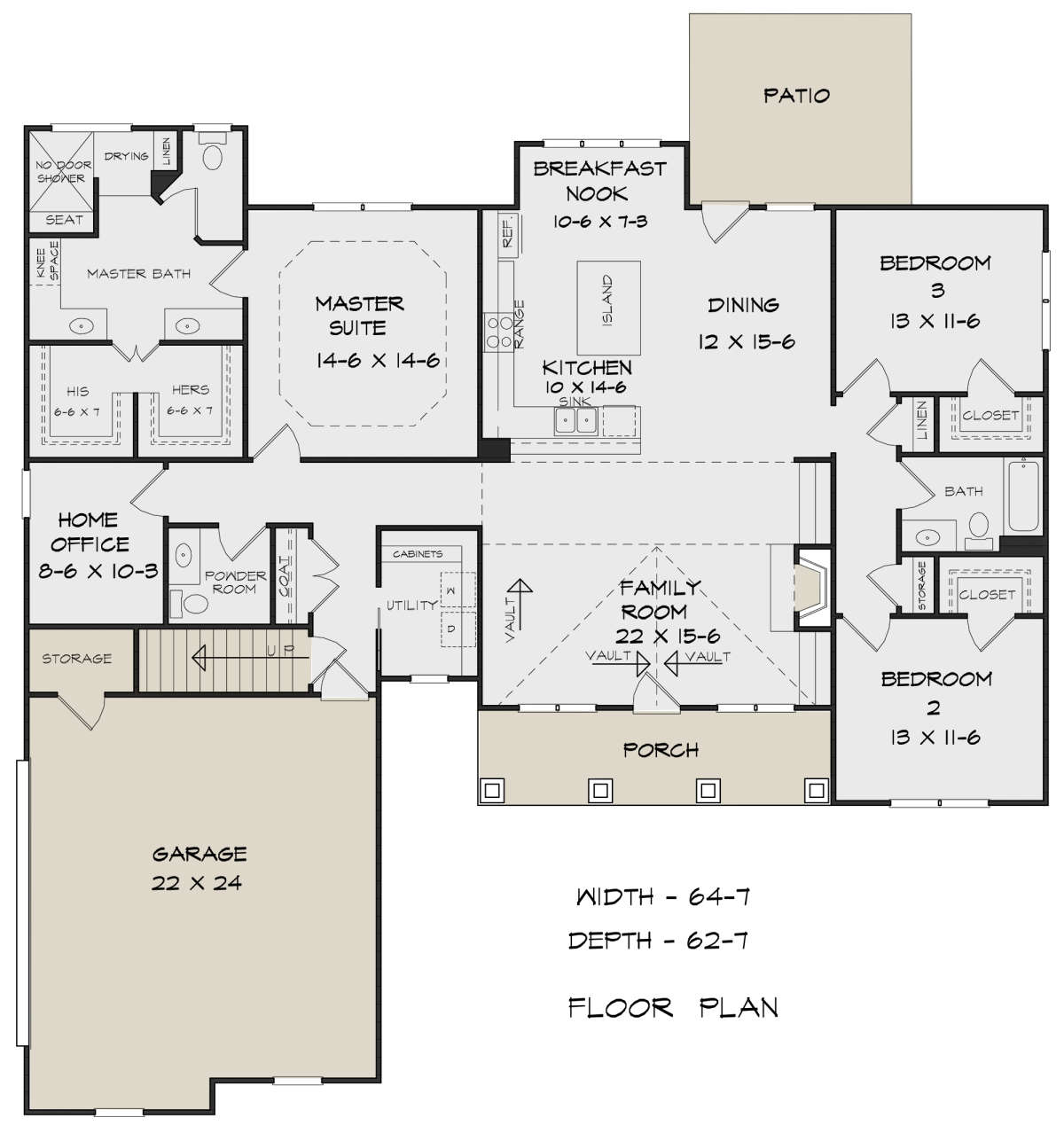

Main Floor

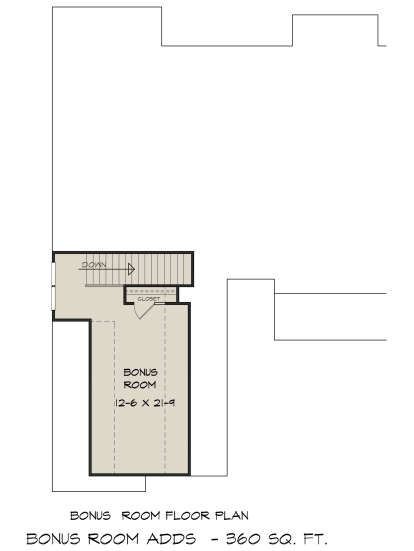

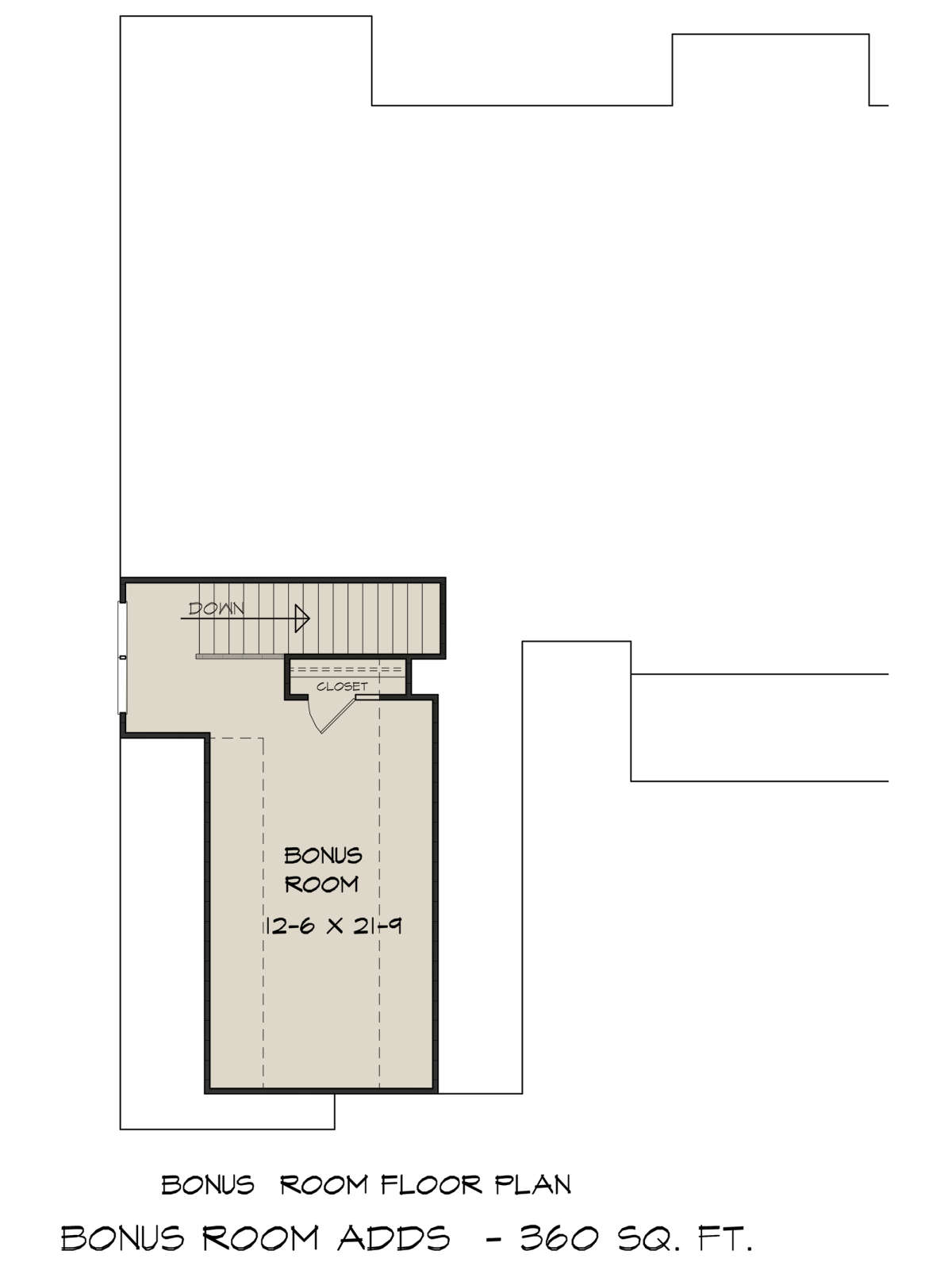

Bonus Room

Images copyrighted by the designer.

What's Included in these plans?

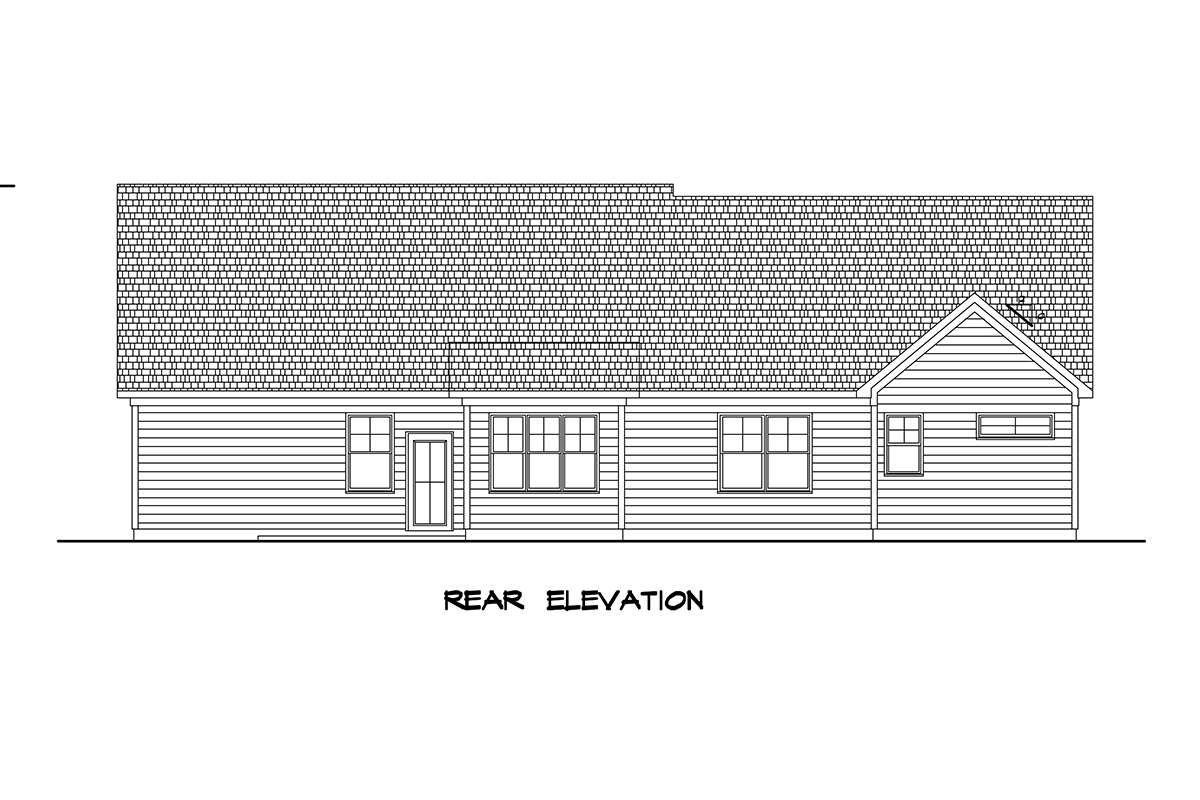

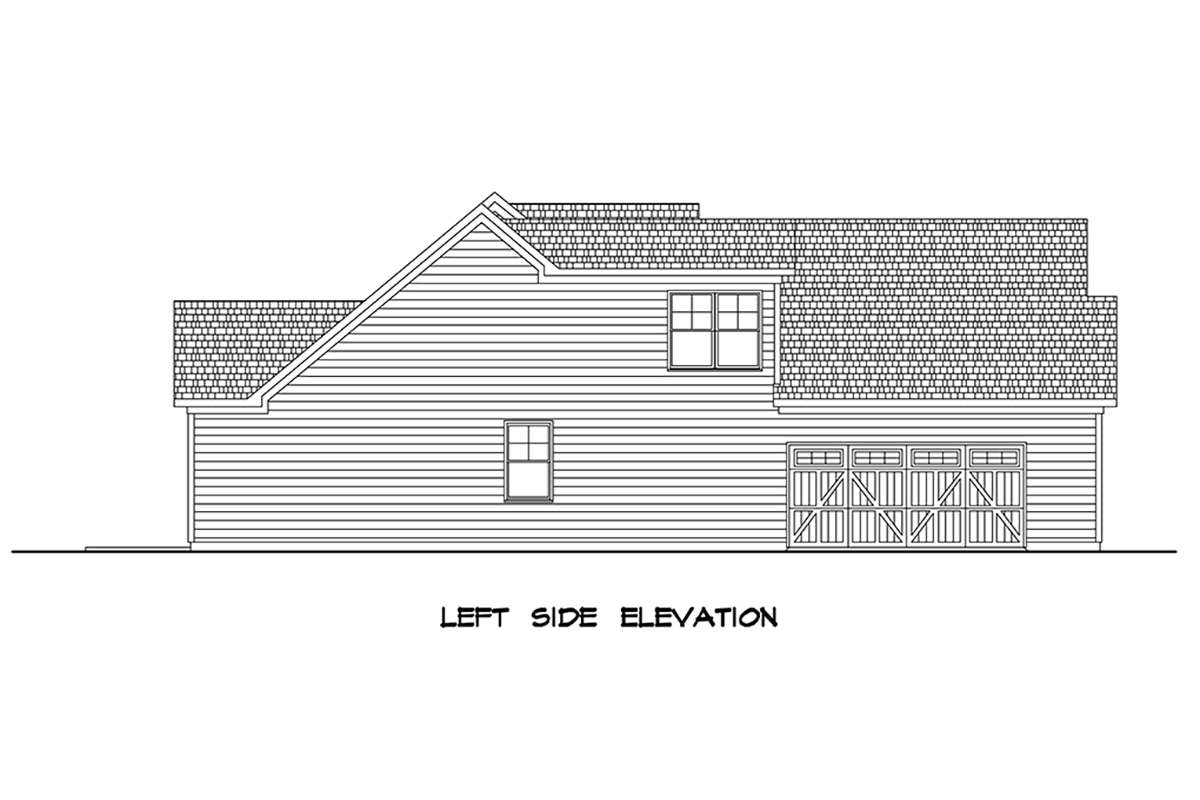

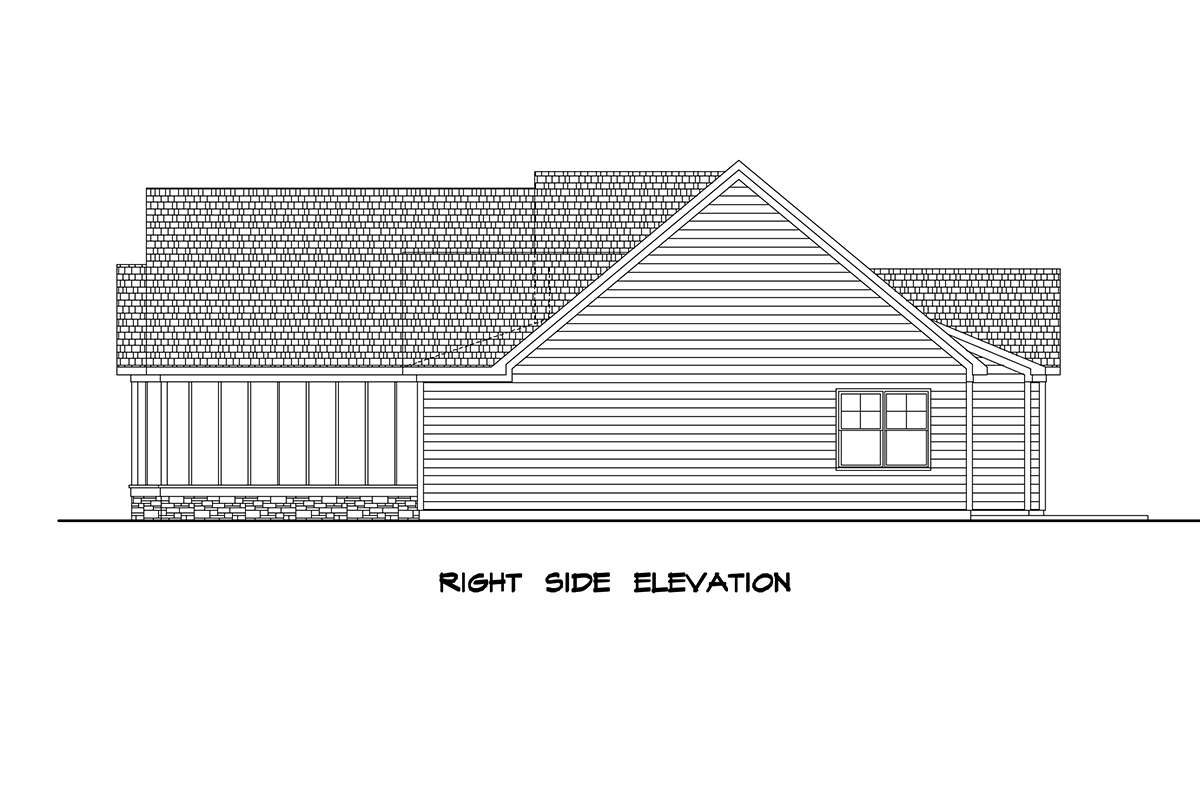

Elevations

Foundation Plan

Floor Plans

Electrical Plan

Details which will include typical wall sections, stair sections, rafter details etc.

Ask Us A Question

About This Plan

Outlined by cedar shakes and exposed timber trusses, this Craftsman house plan defines a charming home with a 2 car side entry garage that doesn't interrupt the pleasant countenance of the exterior. From the covered front porch, the vaulted family room opens to the dining, L-shaped island kitchen, and the breakfast nook. The master suite details a tray ceiling, his and her walk-in closets, and a custom shower with a drying space. Bedroom 2 and 3 share a hall bathroom with walk-in closets, while the bonus room functions well as a media room, crafts room, or an additional bedroom.
