Modern Triplex Plan 5984-00043

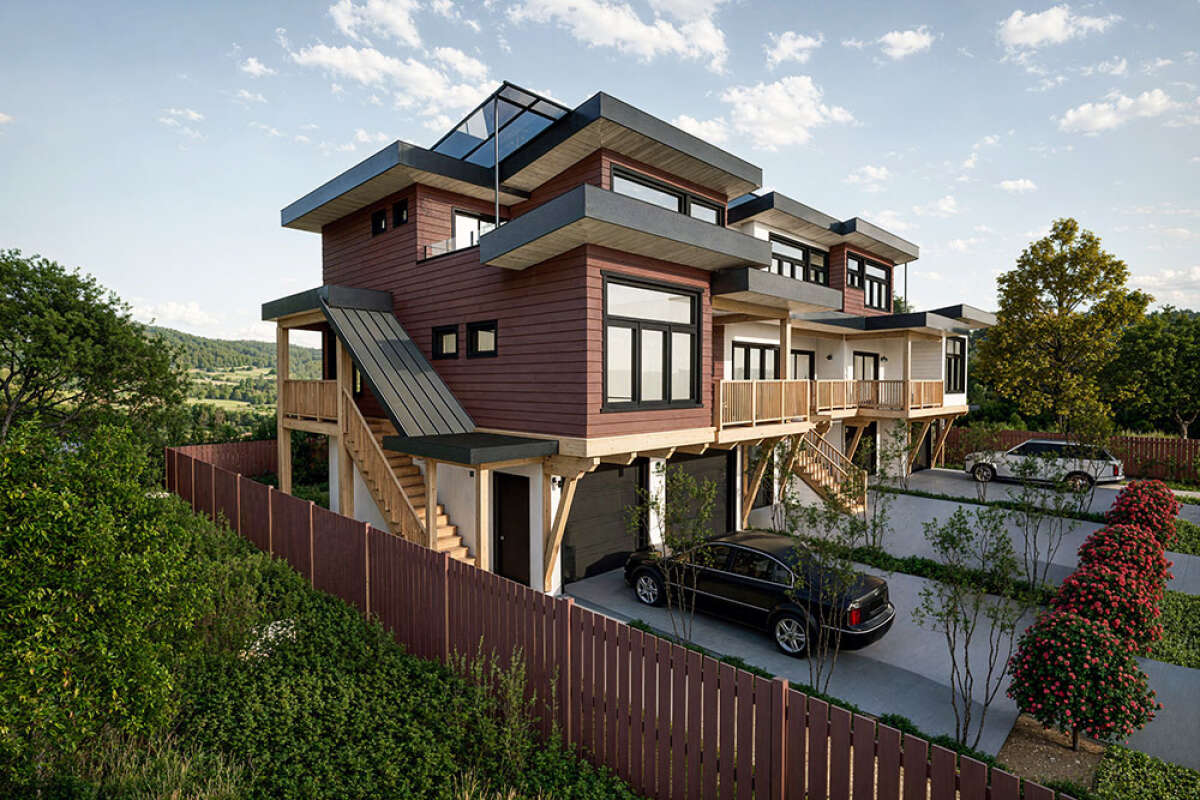

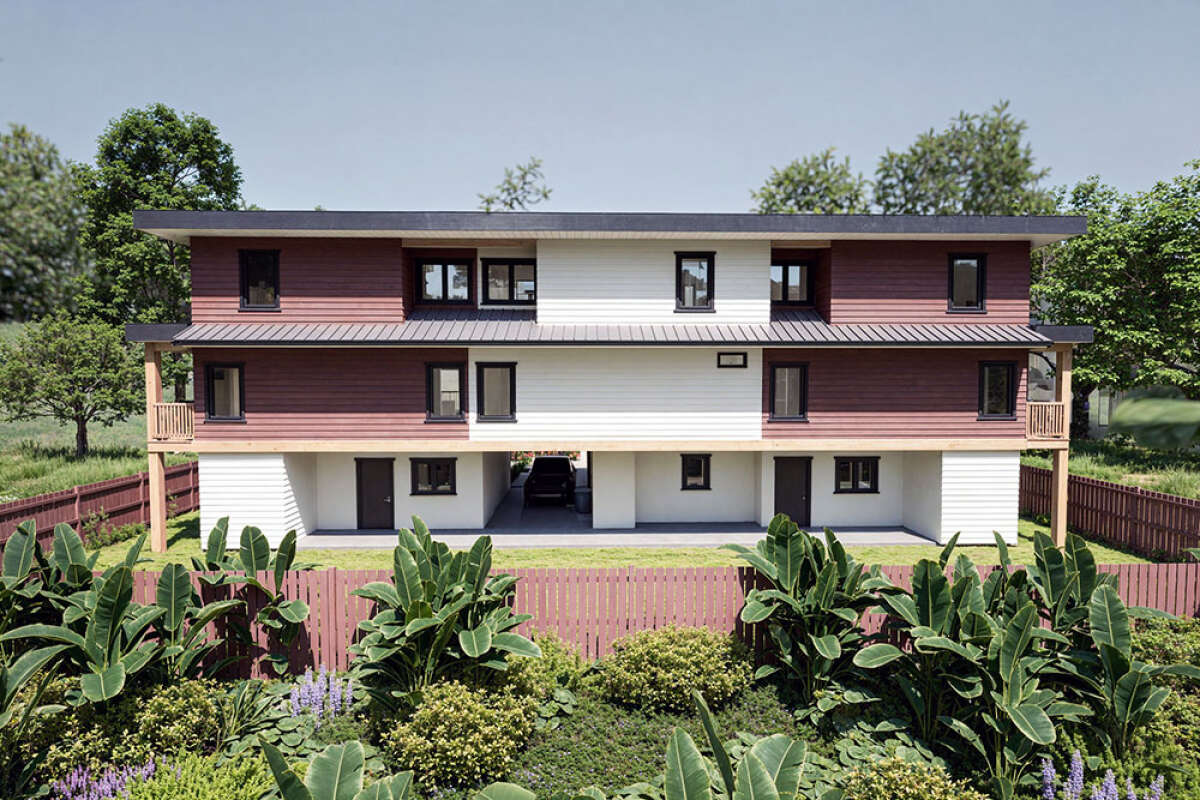

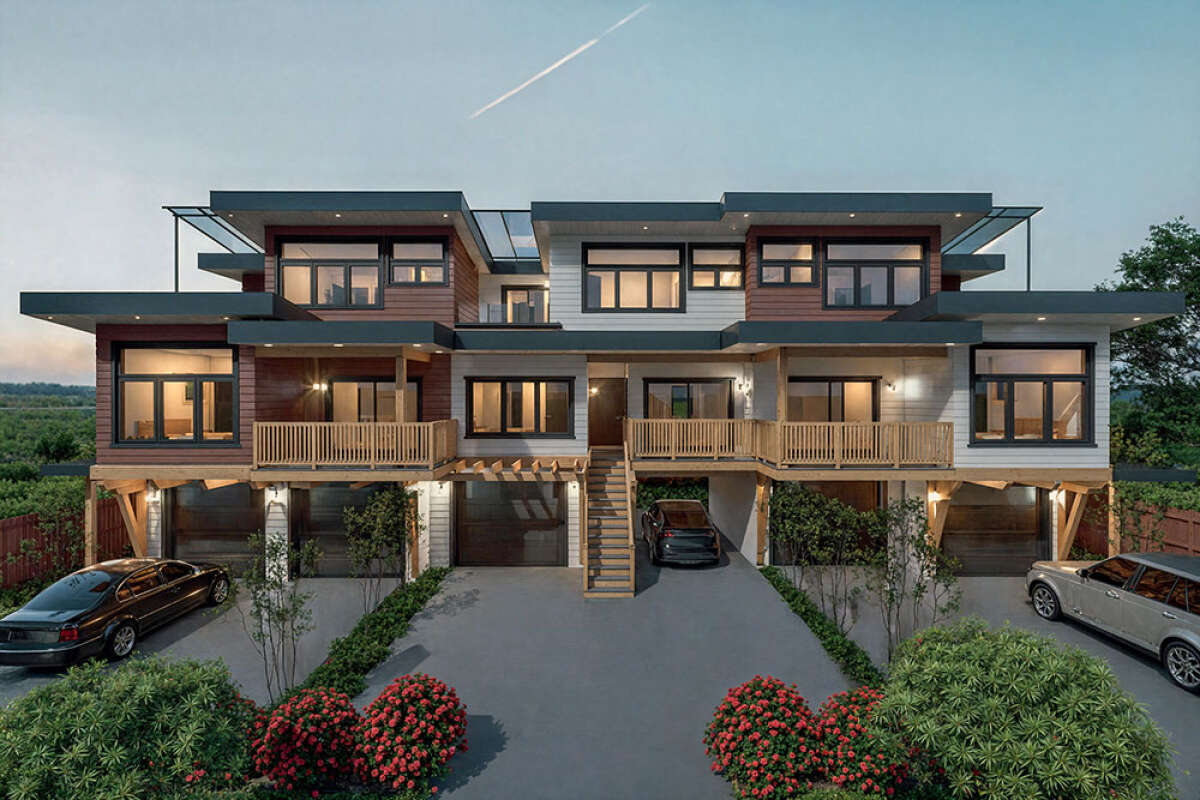

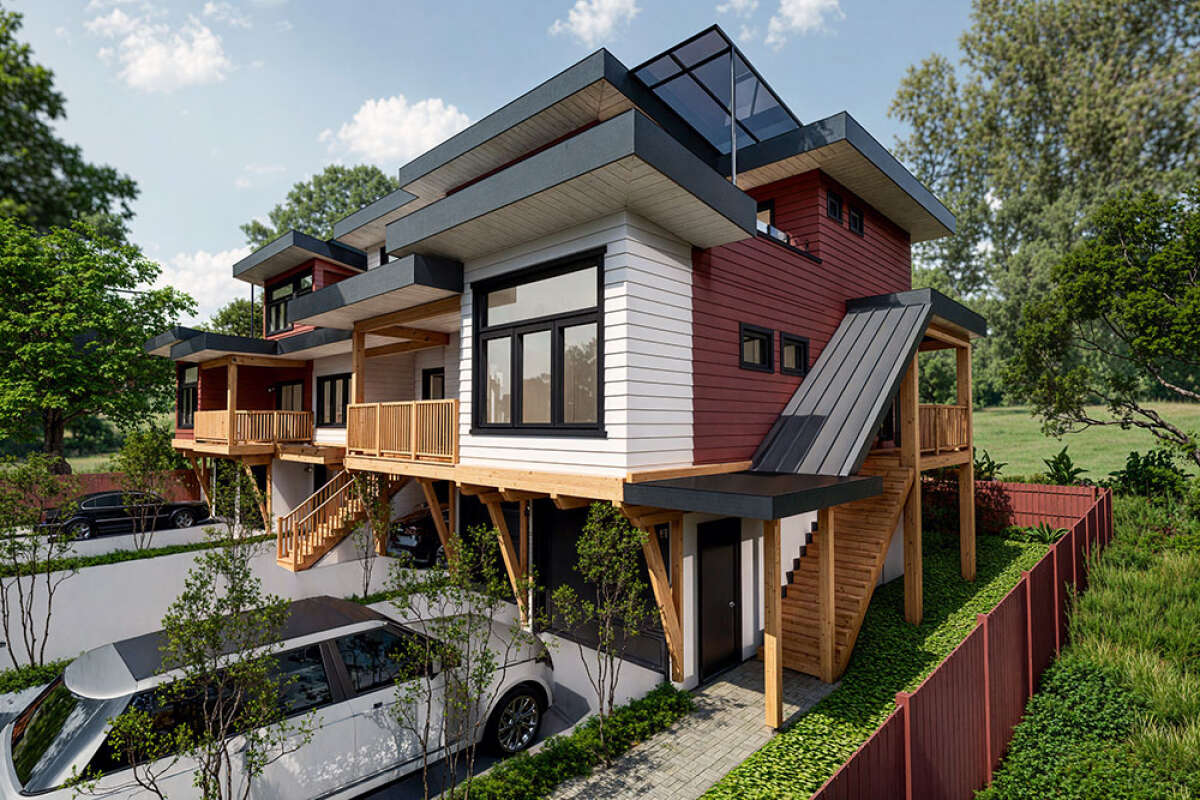

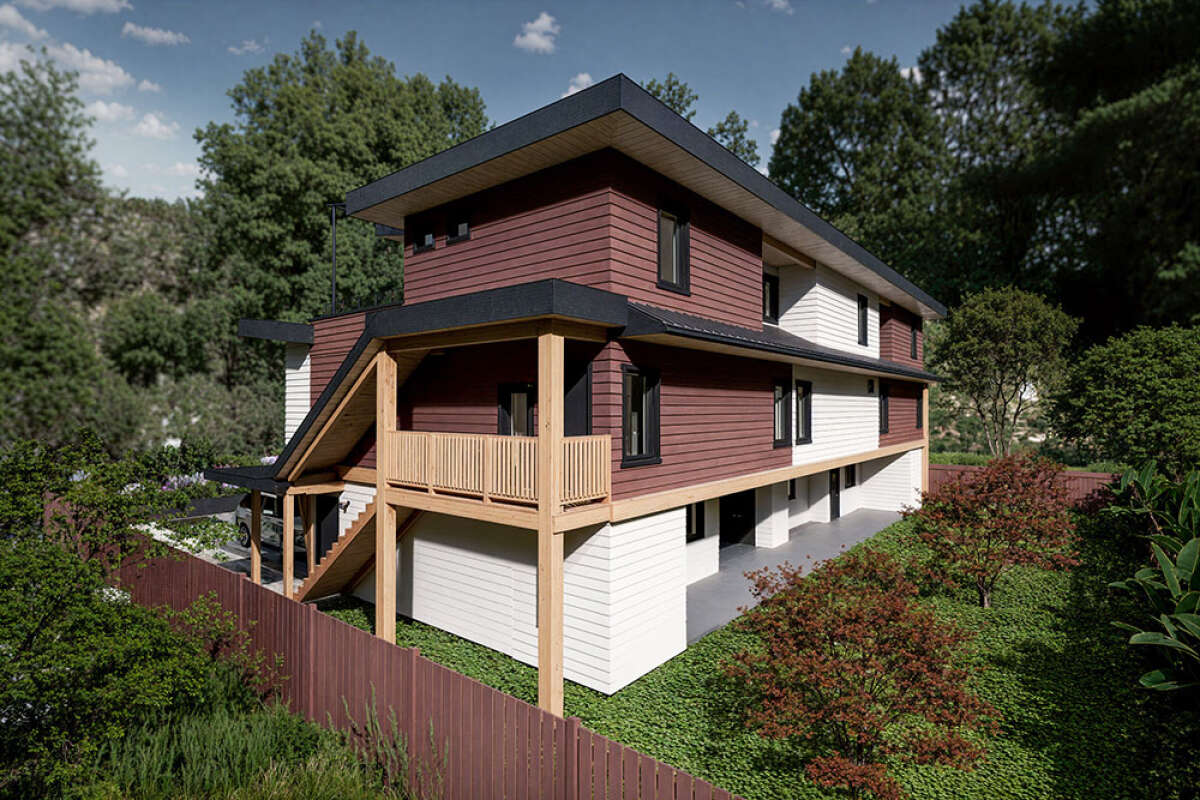

Modern House Plan #5984-00043 Elevation Photo
Modern House Plan #5984-00043 Elevation Photo
Modern House Plan #5984-00043 Elevation Photo
Modern House Plan #5984-00043 Elevation Photo
Modern House Plan #5984-00043 Elevation Photo
First Floor/Garage Floor for House Plan #5984-00043
Main Floor for House Plan #5984-00043
Second Floor for House Plan #5984-00043
8 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Units Icon Units 3
Square Footage Icon Sq Ft 4,281
Width Icon Width 84' 10"
Depth Icon Depth 37' 3"
Beds Icon Beds/Unit 3
Baths Icon Baths/Unit 2
1/2 Baths Icon 1/2 Baths/Unit 1
Cars Icon Cars/Unit 2

Floorplan Drawings

 PRINT  DOWNLOAD
First Floor/Garage Floor for House Plan #5984-00043
Main Floor for House Plan #5984-00043
Second Floor for House Plan #5984-00043

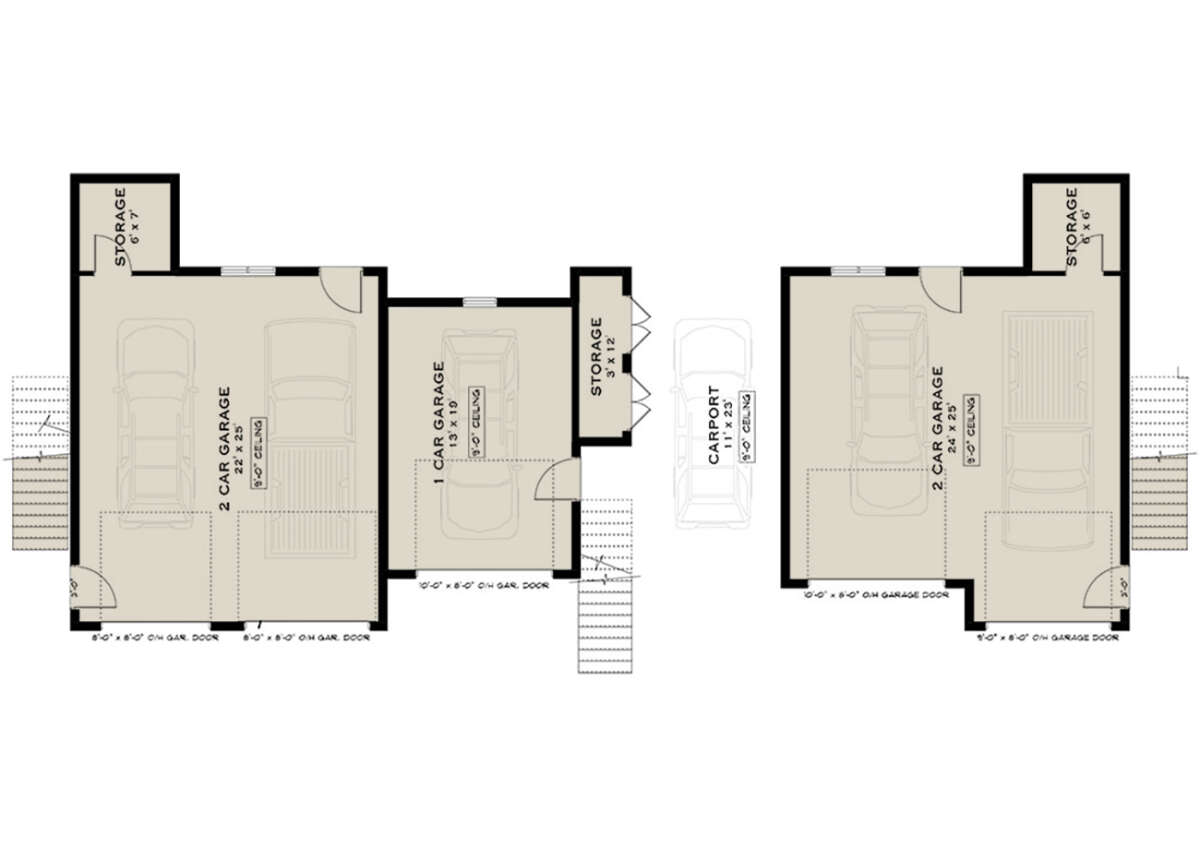

First Floor/Garage Floor
First Floor/Garage Floor for House Plan #5984-00043

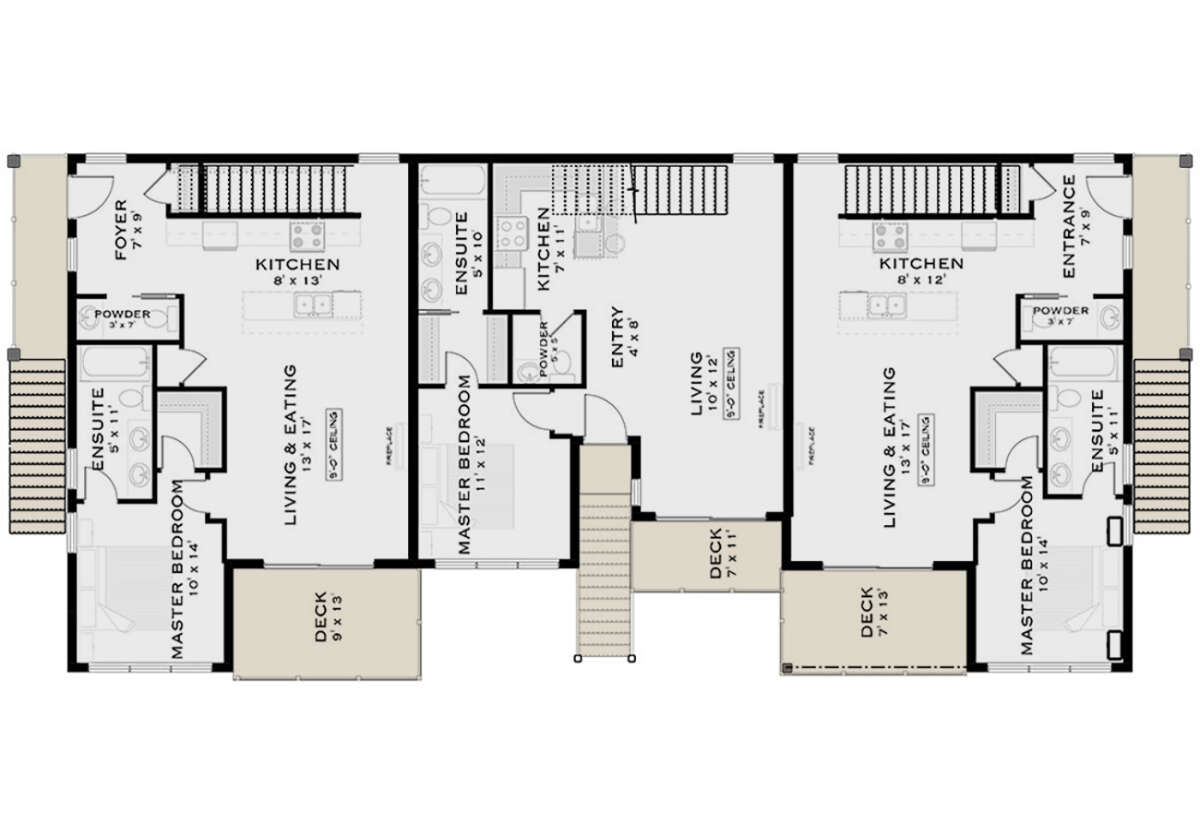

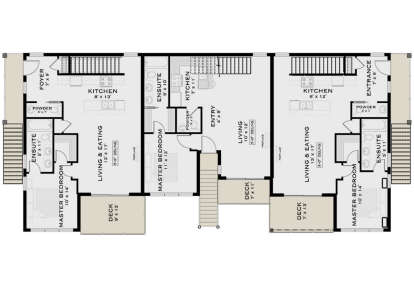

Main Floor
Main Floor for House Plan #5984-00043

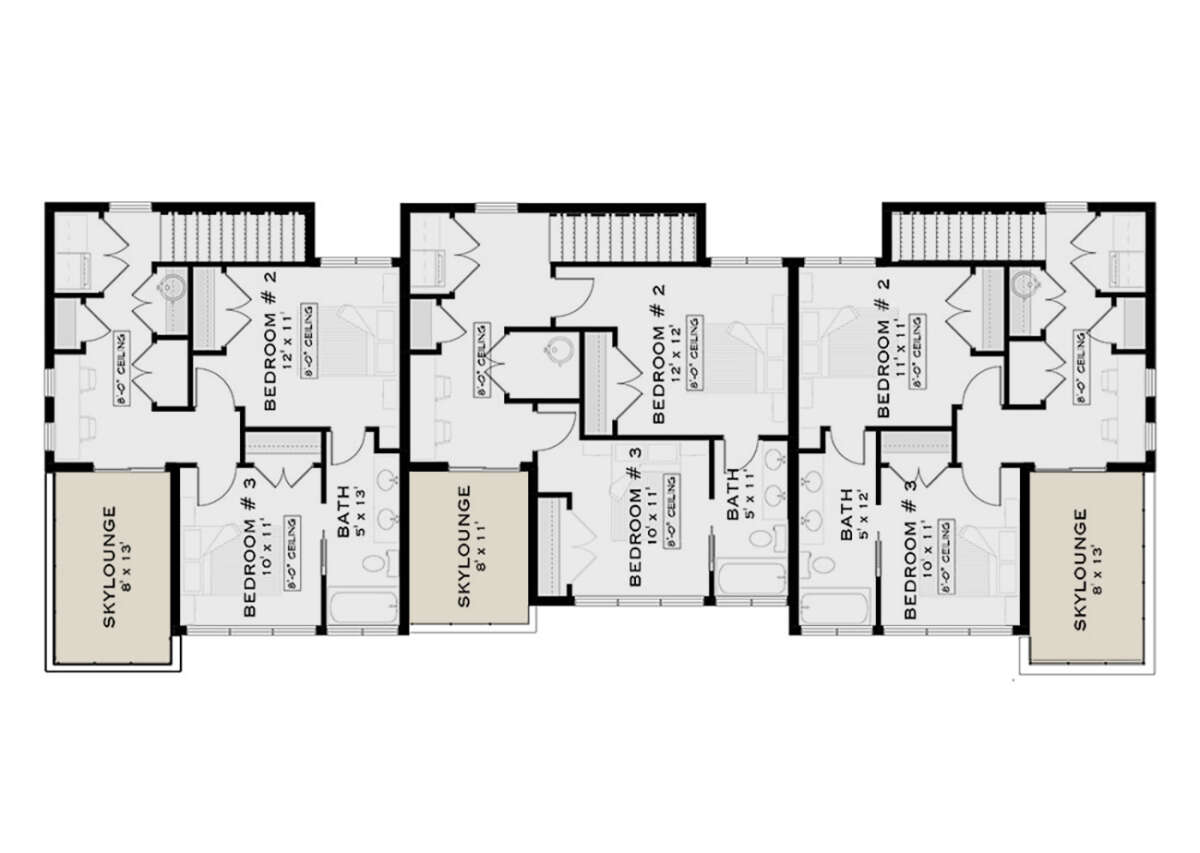

Second Floor
Second Floor for House Plan #5984-00043
Images copyrighted by the designer.








What's Included in these plans?

  • Foundation Plan at 1/4" Scale:
  • Main Floor Plan at 1/4" Scale:
  • Upper Floor Plan at 1/4" Scale:
  • Roof Plan: · Includes roof pitch specifications, overhang depth, and miscellaneous notes.
  • Framing Plans:· Framing plan showing joist direction.
  • Exterior Views at 1/4" Scale:· Includes front, rear, and both side elevation drawings. Wall and roof finishes are notated. The height of each story is notated.
  • Building Section(s) at 1/4" Scale:
  • Construction Details:
  • Electrical Plans:· Shows electrical fixture locations as well as soffit lighting fixtures. Not all plans include an electrical layout.
  • General Notes:· Shows excerpts of the IRC 2018.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Modern building offers 3 Units and is 84ft.-10in. Wide x 37ft.-3in. Deep. Each unit offers 3 bedrooms, 2 bathrooms, and a 2 car garage. America's Best House Plans offers high-quality multi-family home plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of Multi-Family designs are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your building needs and requirements.
