Modern Garage Plan 5984-00042

Name: Modern 2 Car Garage Plan - 2,305 Square Feet, 2 Bedrooms, 1 Bathroom | Floor Plan #5984-00042 | America's Best House Plans
Brand: America's Best House Plans
SKU: 5984-00042
Price: 1130.00 USD
Availability: InStock

Modern House Plan #5984-00042 Elevation Photo

Modern House Plan #5984-00042 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Unfin Sq Ft 860

Fin Sq Ft 1,445

Cars 2

Beds 2

Width 31'

Depth 45' 10"

See What's Included

Select Package

PDF (Single Build)

$1,130.00

ELECTRONIC FORMAT Recommended
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

PDF (Unlimited Build)

$1,830.00

ELECTRONIC FORMAT
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built multiple times and a release for printing copies locally.

CAD Files (Single Build)

$1,530.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

CAD Files (Unlimited Build)

$2,130.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $245.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x4 Conversion $125.00

Convert the exterior framing to 2x4 walls.

ABHP Material List $325.00

A complete material list for this plan plus purchased options excluding right reading reverse, windows and doors and any modifications. Product requires 5-7 business days to complete.

View Sample ABHP Material List

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

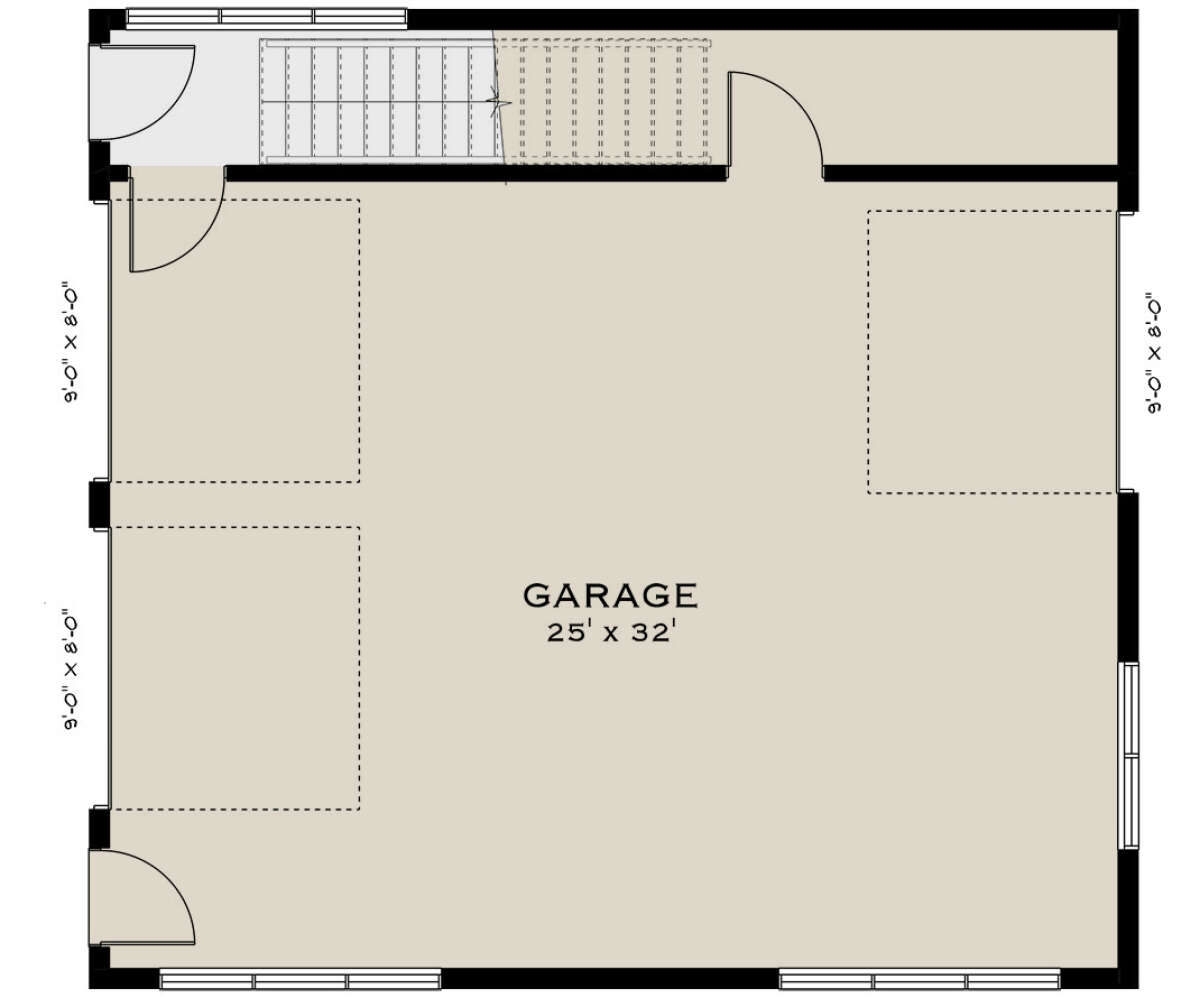

Garage Floor

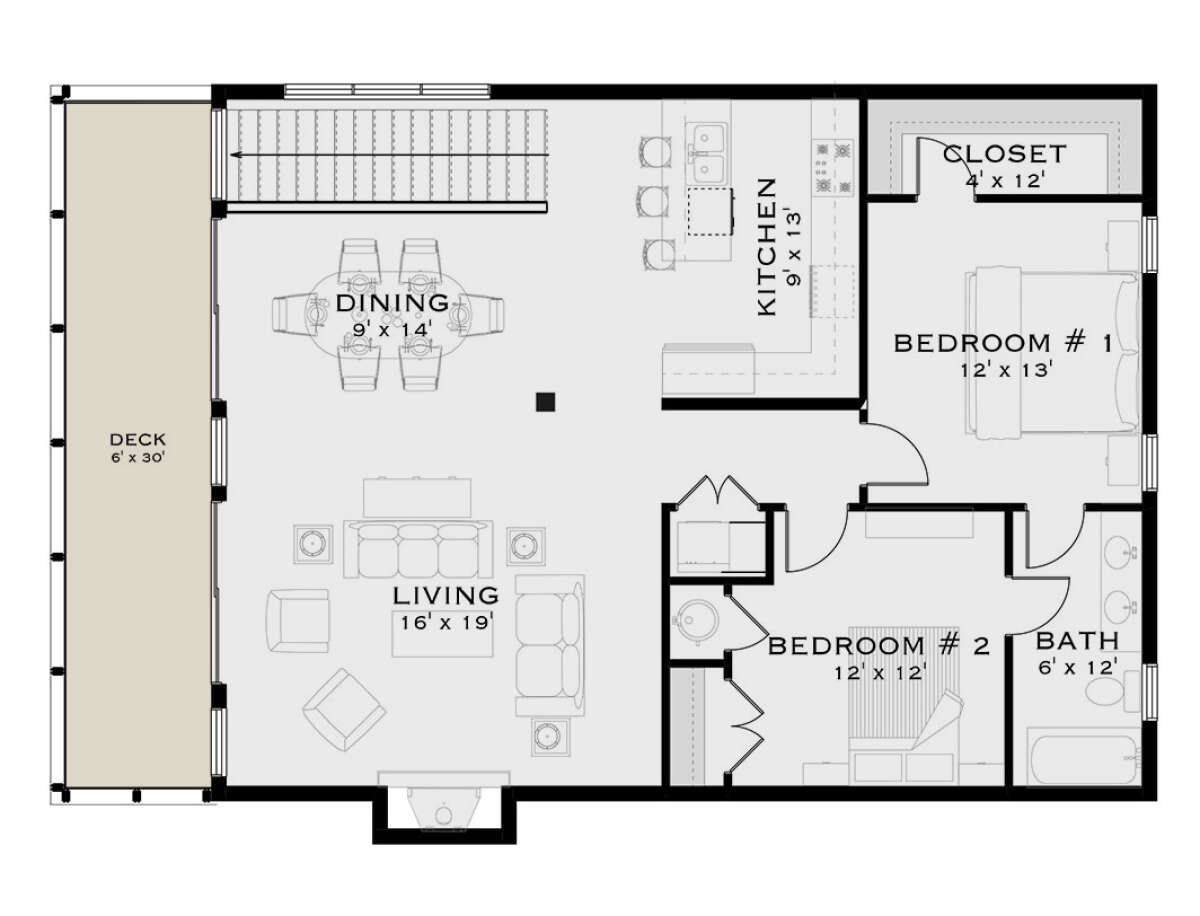

Second Floor

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,445 sq. ft. Second Floor: 1,445 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 860 sq. ft. Garage: 860 sq. ft.

Total Covered Area: 2,305 sq. ft.

Bedrooms: 2

Full Baths: 1

Floors: 2

Garage Size: 2 car

Width: 31ft.

Depth: 45ft.-10in.

Height: 28ft.-2in.

Foundation:

Slab Foundation

Main Roof Pitch: 4.5:12

Exterior Framing:

2x6 Wood

PAID OPTION 2x4 Conversion

CEILING HEIGHTS

First Floor: 9 feet

Second Floor: 9 feet

What's Included in these plans?

Foundation Plan at 1/4" Scale:
Main Floor Plan at 1/4" Scale:
Upper Floor Plan at 1/4" Scale:
Roof Plan: · Includes roof pitch specifications, overhang depth, and miscellaneous notes.
Framing Plans:· Framing plan showing joist direction.
Exterior Views at 1/4" Scale:· Includes front, rear, and both side elevation drawings. Wall and roof finishes are notated. The height of each story is notated.
Building Section(s) at 1/4" Scale:
Construction Details:
Electrical Plans:· Shows electrical fixture locations as well as soffit lighting fixtures. Not all plans include an electrical layout.
General Notes:· Shows excerpts of the IRC 2018.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
