Craftsman Plan 5984-00020

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,124
Beds 3
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 61' 9"
Depth 37' 8"

Floorplan Drawings

Main Floor

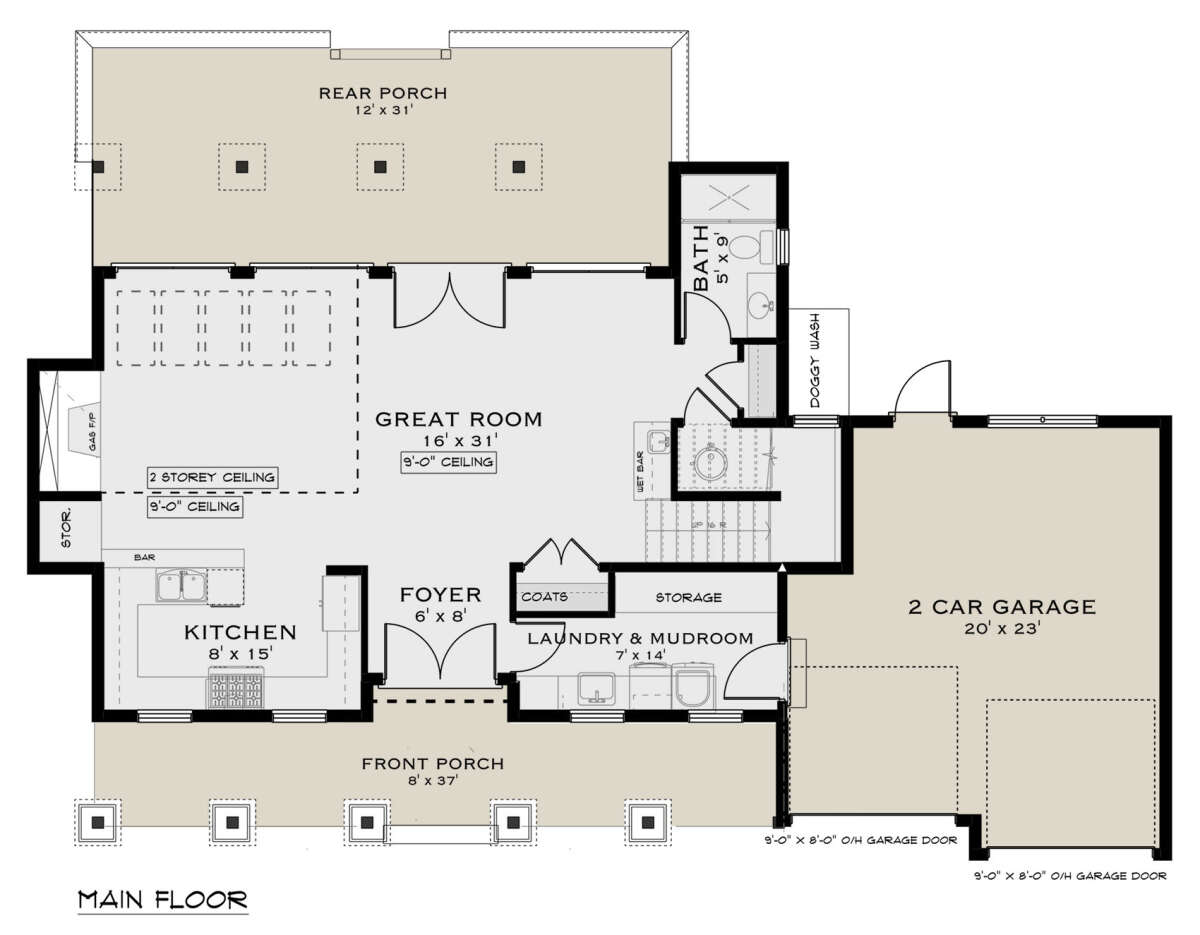

Main Floor  for House Plan #5984-00020
Second Floor

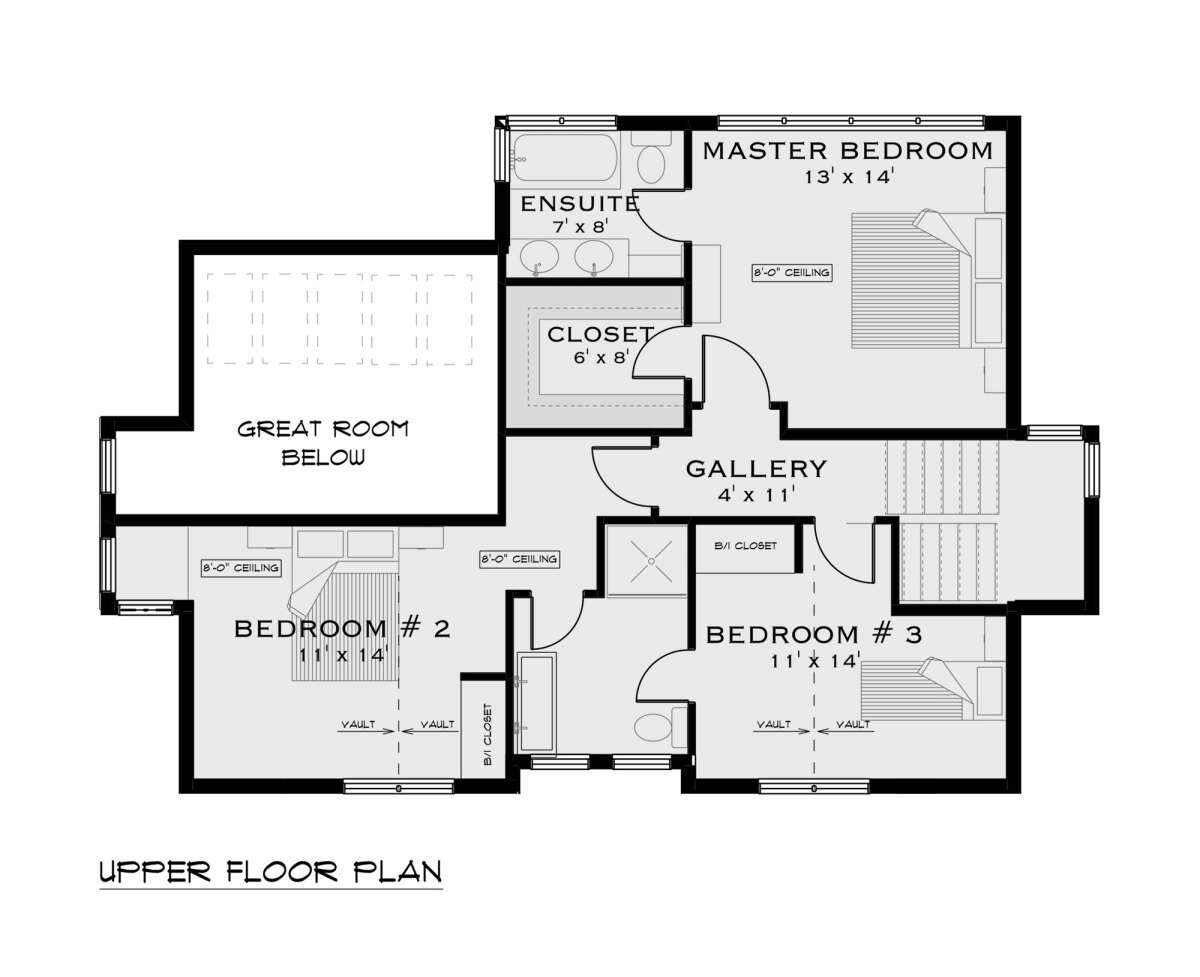

Second Floor for House Plan #5984-00020


What's Included in these plans?

  • Foundation Plan at 1/4" Scale:
  • Main Floor Plan at 1/4" Scale:
  • Upper Floor Plan at 1/4" Scale:
  • Roof Plan: · Includes roof pitch specifications, overhang depth, and miscellaneous notes.
  • Framing Plans:· Framing plan showing joist direction.
  • Exterior Views at 1/4" Scale:· Includes front, rear, and both side elevation drawings. Wall and roof finishes are notated. The height of each story is notated.
  • Building Section(s) at 1/4" Scale:
  • Construction Details:
  • Electrical Plans:· Shows electrical fixture locations as well as soffit lighting fixtures. Not all plans include an electrical layout.
  • General Notes:· Shows excerpts of the IRC 2018.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Craftsman house plan features 2,124 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
