Craftsman Plan 5984-00008

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,127
Beds 3
Bath 3
1/2 Baths 0
Car 0
Stories 1
Width 44' 8"
Depth 35'

Floorplan Drawings

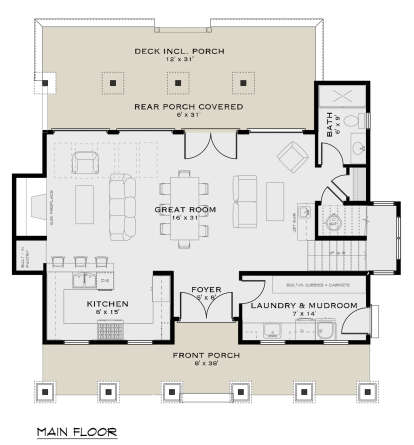

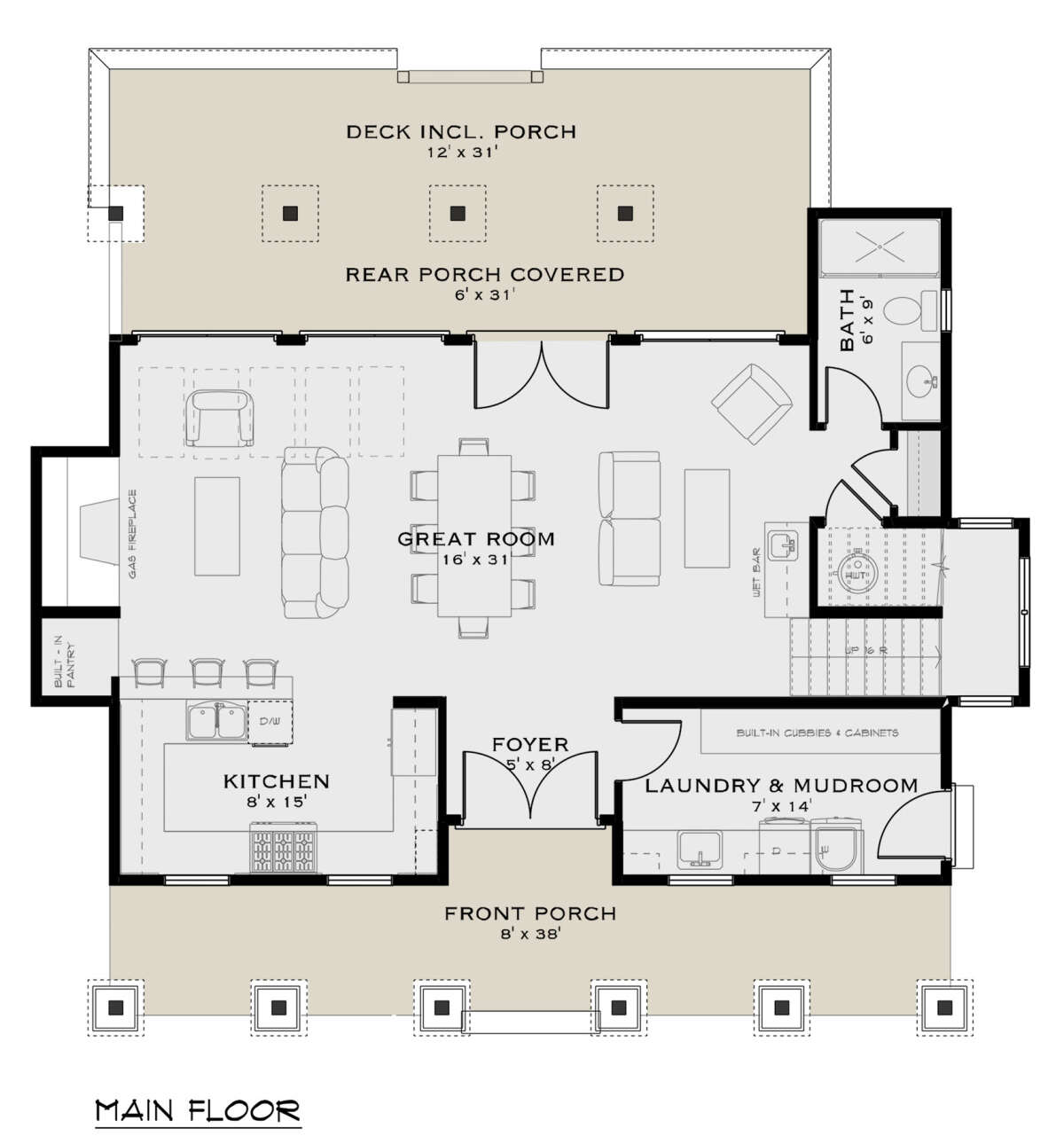

Main Floor
Main Floor  for House Plan #5984-00008

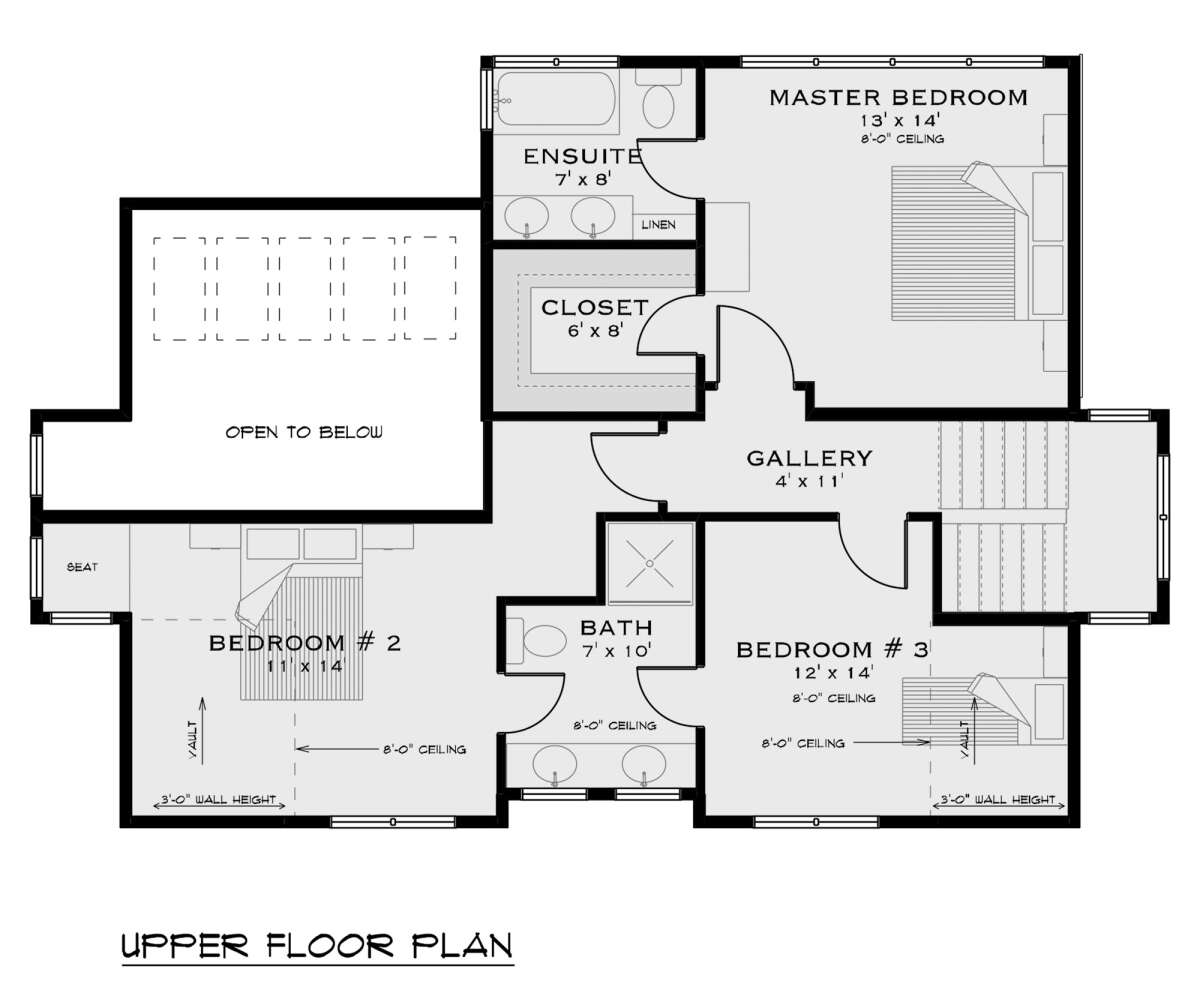

Second Floor
Second Floor for House Plan #5984-00008


What's Included in these plans?

Title page

Foundation Plan at 1/4" Scale

Main Floor Plan at 1/4" Scale

Upper Floor Plan at 1/4" Scale

Roof Plan
  • Shows the roof outline including roof pitches and overhang dimensions.
Framing Plans
  • Upper floor framing plan showing joist direction
Exterior Views at 1/4" Scale
  • Front, rear and both side elevation drawings
Building Section(s) at 1/4" Scale

Construction Details

Electrical Plans
  • Show electrical fixture locations as well as soffit lighting fixtures.
General Notes
  • Shows excerpts of the IRC 2018.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Craftsman house plan features 2,127 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
