Modern Plan 5984-00003

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,166
Beds 4
Bath 4
1/2 Baths 1
Car 2
Stories 1
Width 55' 3"
Depth 65'

Floorplan Drawings

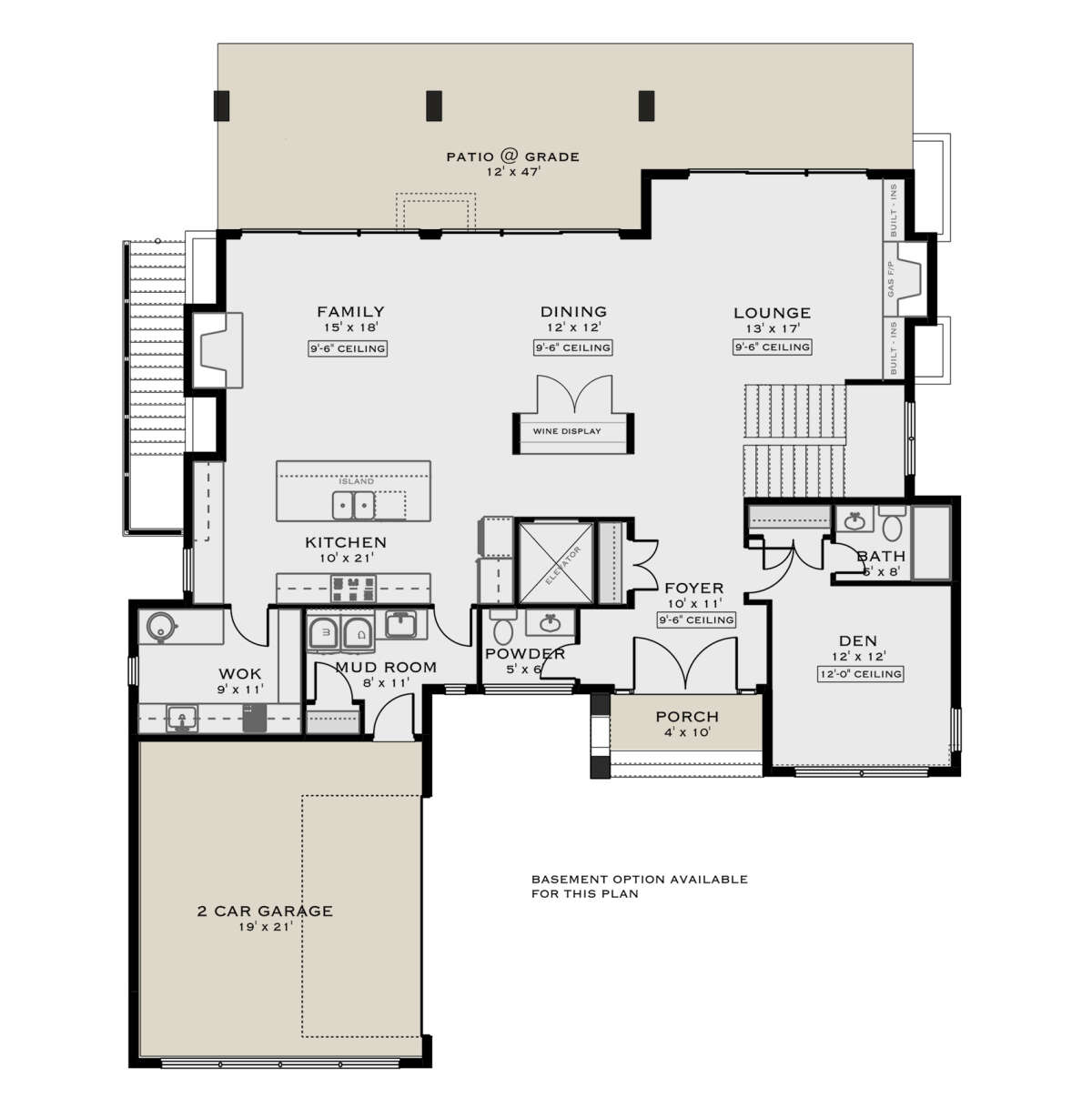

Main Floor
Main Floor  for House Plan #5984-00003

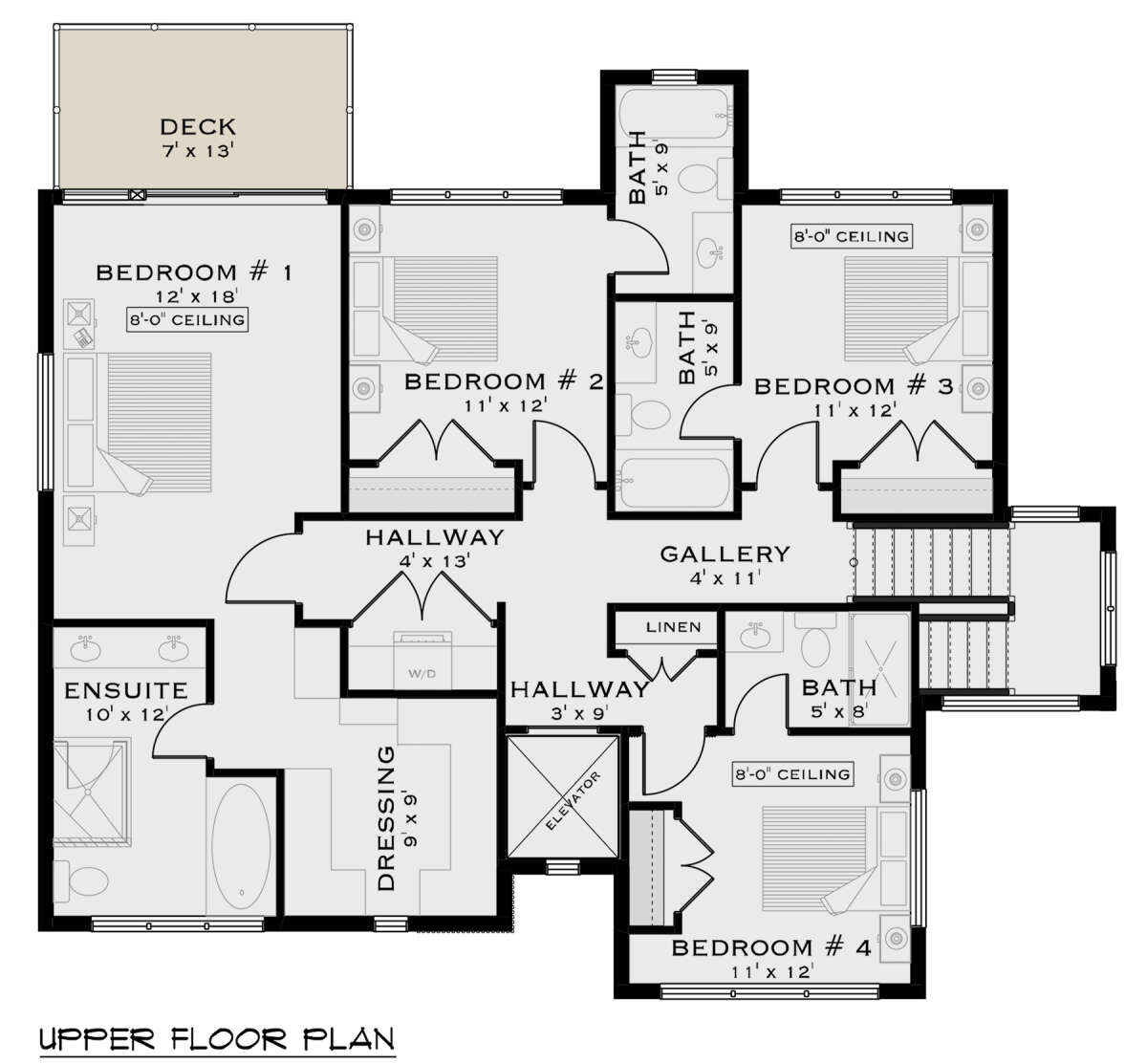

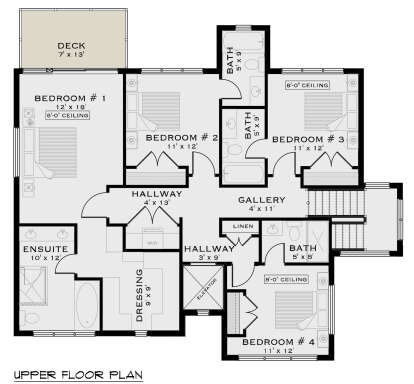

Second Floor
Second Floor for House Plan #5984-00003


What's Included in these plans?

  • Foundation Plan at 1/4" Scale:
  • Main Floor Plan at 1/4" Scale:
  • Upper Floor Plan at 1/4" Scale:
  • Roof Plan: · Includes roof pitch specifications, overhang depth, and miscellaneous notes.
  • Framing Plans:· Framing plan showing joist direction.

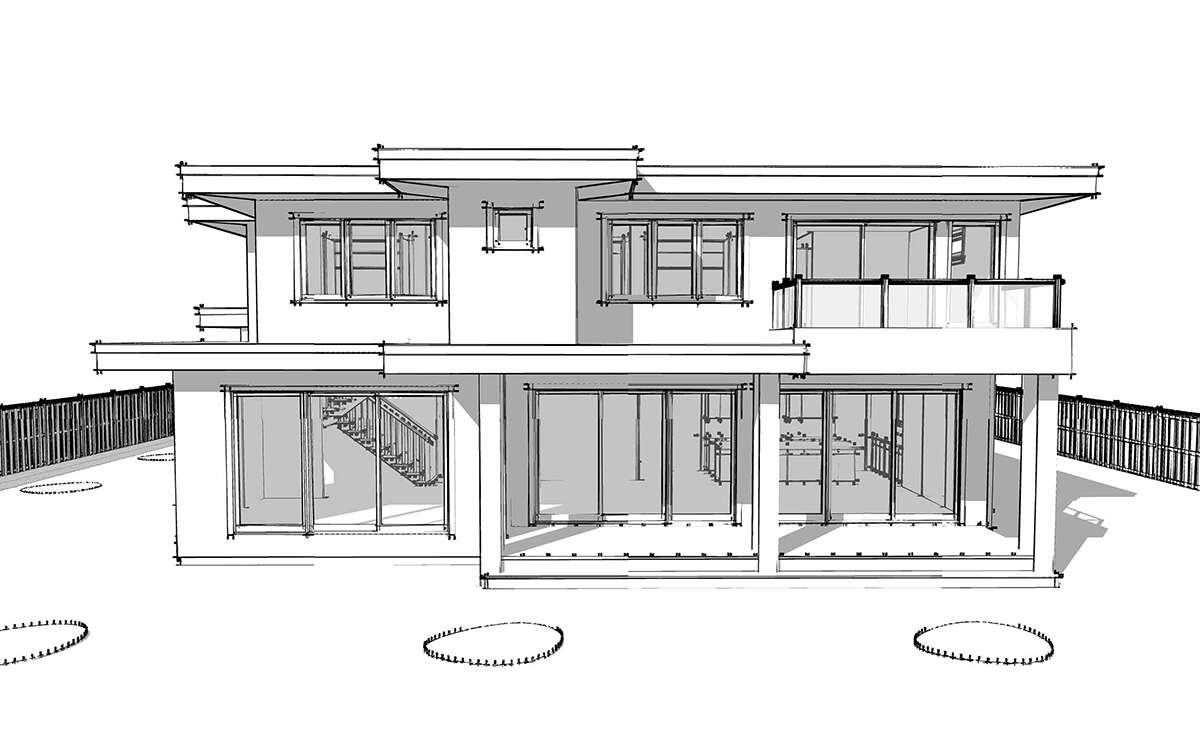

  • Exterior Views at 1/4" Scale:· Includes front, rear, and both side elevation drawings. Wall and roof finishes are notated. The height of each story is notated.
  • Building Section(s) at 1/4" Scale:
  • Construction Details:
  • Electrical Plans:· Shows electrical fixture locations as well as soffit lighting fixtures. Not all plans include an electrical layout.
  • General Notes:· Shows excerpts of the IRC 2018.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 4 bathroom Modern house plan features 3,166 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
